SKU: F403604 | UPC: 26715143047

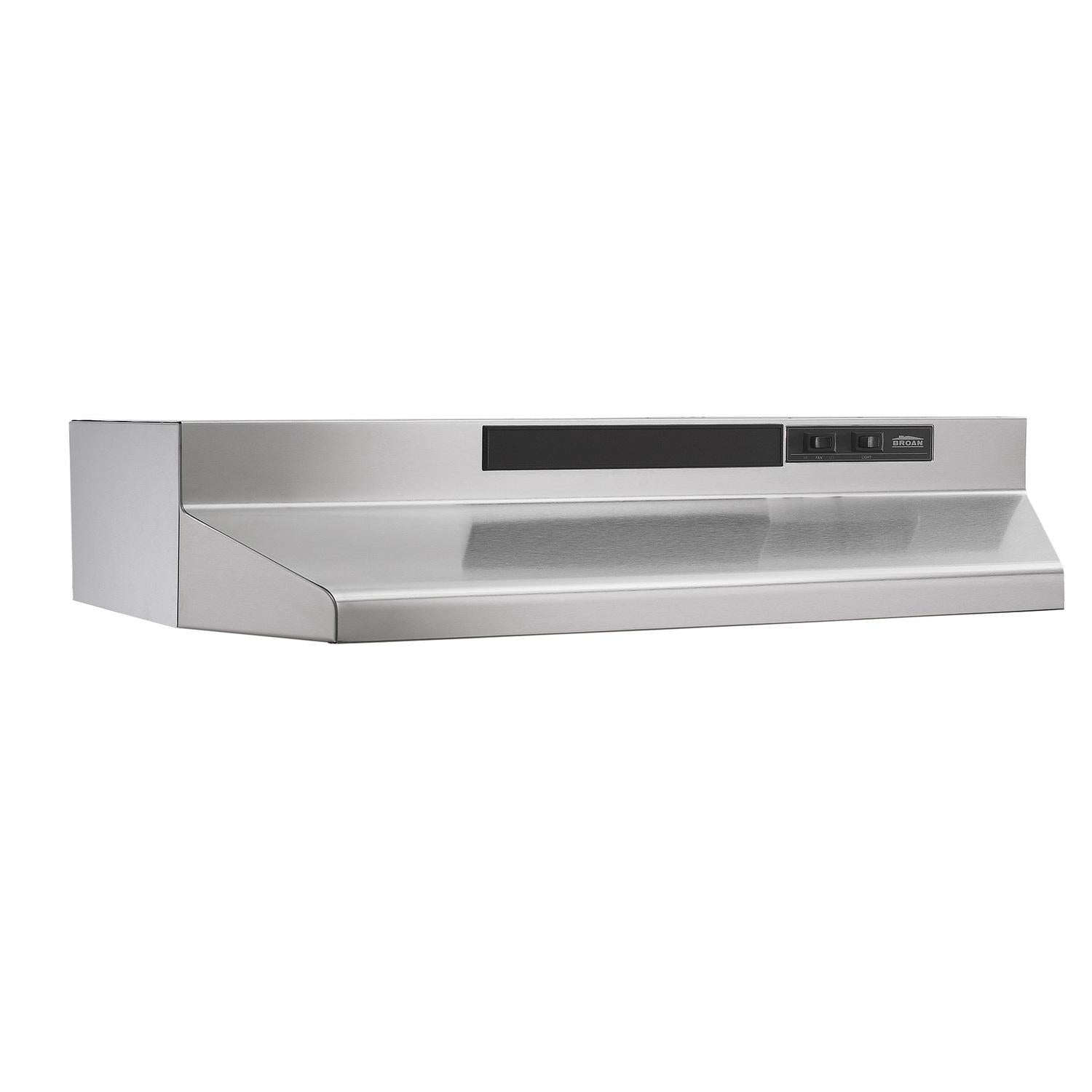

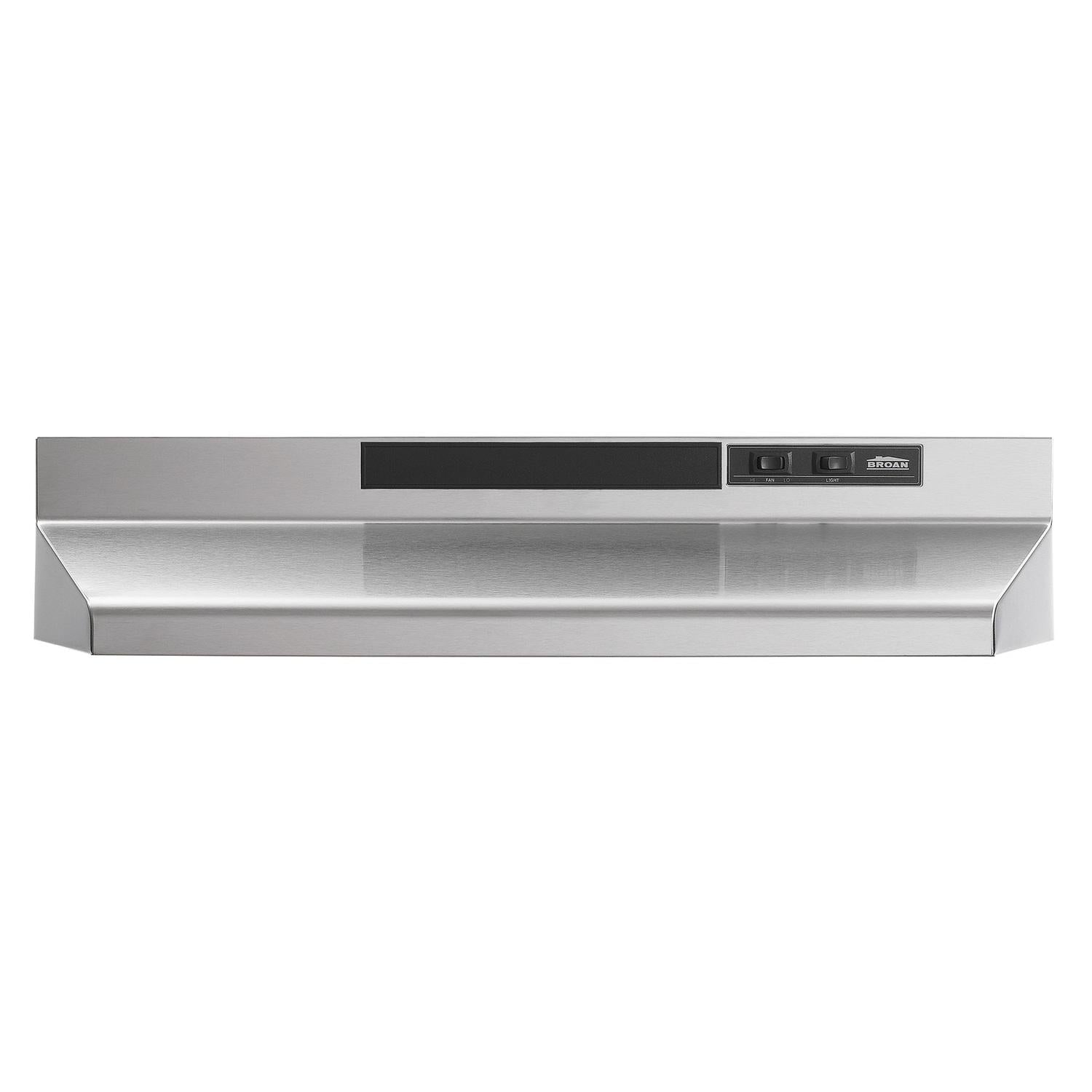

Broan F403604 36-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower CFM Stainless Steel

Quick Specification More details

Width:
36"
Depth:
17.5"
Height:
6"
Type:
Under Cabinet Hoods

About this product

HVI Certified
UL Listed
Provides installation flexibility with 4-way convertibility to fit virtually all applications

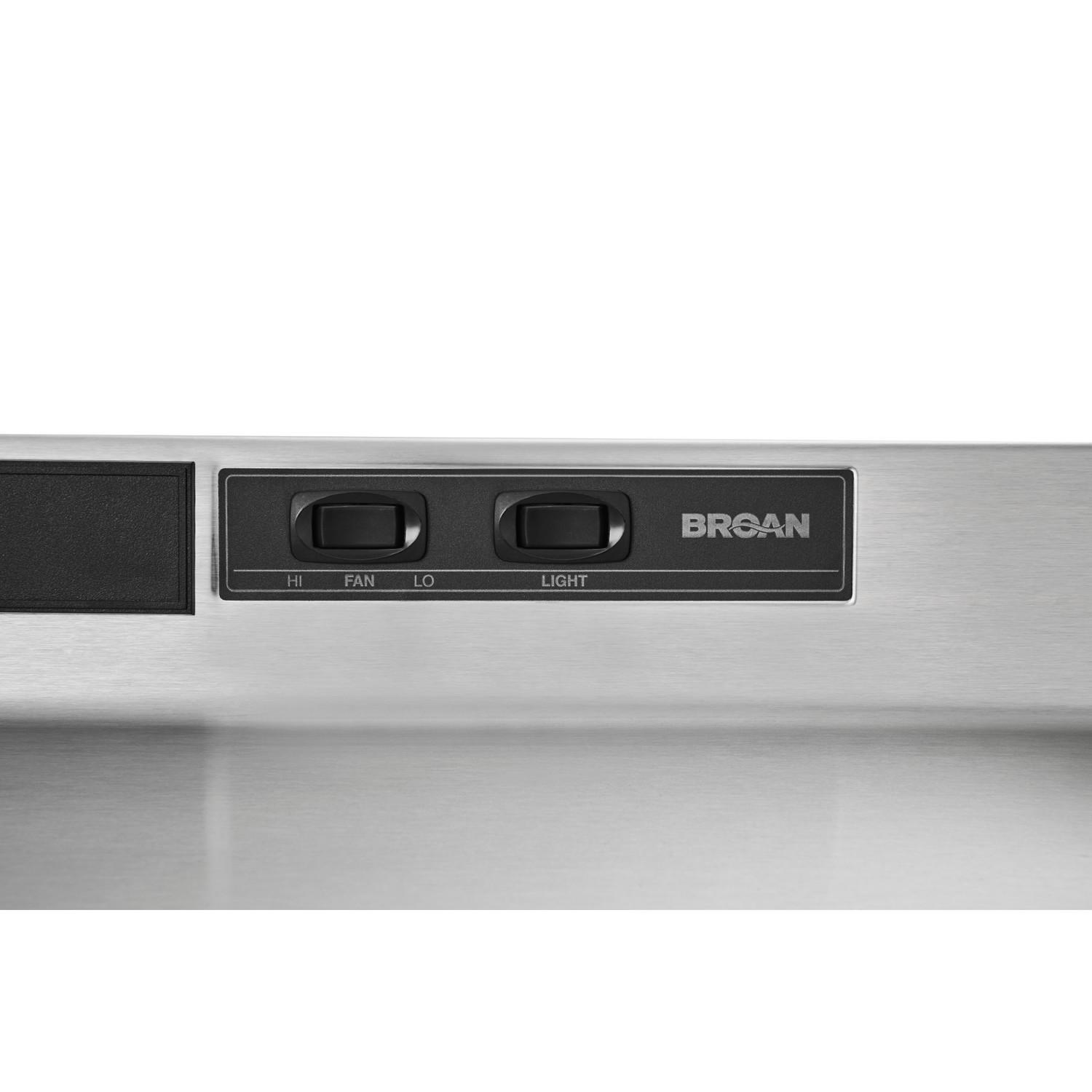

Simple to use rocker switches let you adjust the fan speed and the light setting separately

Summer Sale

Clearance

SKU: F403604 | UPC: 26715143047

Broan F403604 36-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower CFM Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
17.5"
Height:
6"
Type:
Under Cabinet Hoods

About this product

HVI Certified
UL Listed
Provides installation flexibility with 4-way convertibility to fit virtually all applications
Simple to use rocker switches let you adjust the fan speed and the light setting separately

Related Products

Genuine Replacement Charcoal Filter for Ductless Range Hoods, 8-3/4" x 10-1/2", Fits Select Models

Broan 41F Genuine Replacement Charcoal Filter for Ductless Range Hoods, 8-3/4" x 10-1/2", Fits Select Models Other

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan F403604

Technical Details

Other

Filter Type	Aluminum
Heat Sentry™	No
HVI Certified	Yes
Lighting Type	LED
Sound Level (Sones)	6.5
Light Bulb Wattage	75
Light Levels	1
Material	Steel
Speed Levels	2
Switch Control Type	Rocker
Rated Voltage	120
Country of Origin	United States
Rated Amps	2.5
CFM	230 Max
Diameter	7" Round
Vent Type	Convertible Built-In
Duct Direction	Horizontal/Vertical
Bulb (Recommended Type)	A19
Manufacturer Warranty	1 Year
Wattage	300

Dimensions & weight

Width	36 in.
Height	6 in.
Length	17.5 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	2.19 ft³
Dimensional Weight	27.19 lbs.
Total of Cubes	2.19 ft³
Total of Dimensional Weight	27.19 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	39 in.
Shipping Depth	7.5 in.
Shipping Height	19.5 in.
Shipping Weight	15 lb.

Description

Broan 36" Under Cabinet Hood with Dishwasher-safe Aluminum Mesh Filter and Two-speed 190 CFM Fan

Product Features

Provides installation flexibility with 4-way convertibility to fit virtually all applications
Simple to use rocker switches let you adjust the fan speed and the light setting separately
Two fan speeds help you tackle a variety of venting jobs
230 MAX Blower CFM quickly removes smoke and cooking odors from the air
Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
Uses up to a 75-Watt in LED light to brightly illuminate the cooking area (bulb sold separately)

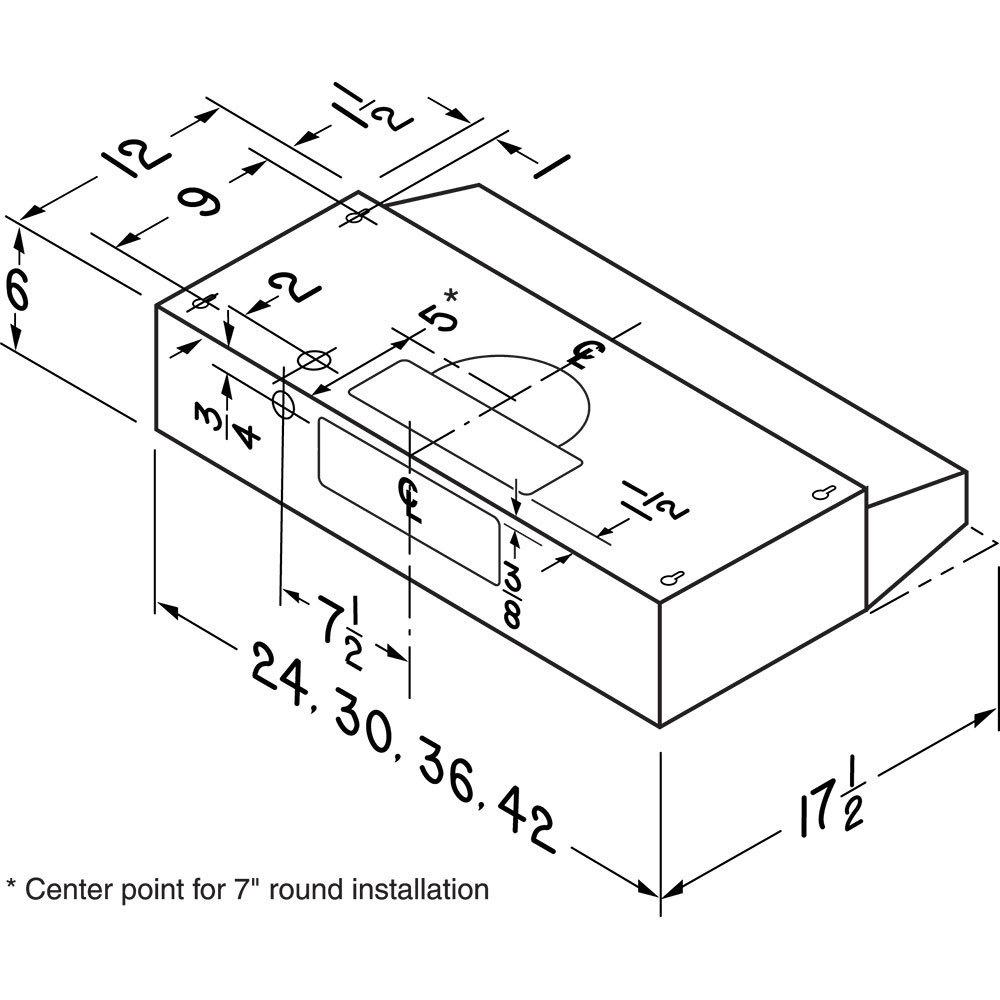

Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
One year limited warranty
UL listed and HVI 2100 certified
