Sale price $144.00 Regular price $220.97 Save $76.97 / 34% OFF

Product Details for Broan BXT130BL

Technical Details

Product details

Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 2
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulbs Included Yes
Light Levels 1
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 2
Switch Control Type Rocker
Rated Voltage 120
Boost Mode No
Rated Amps 1.3

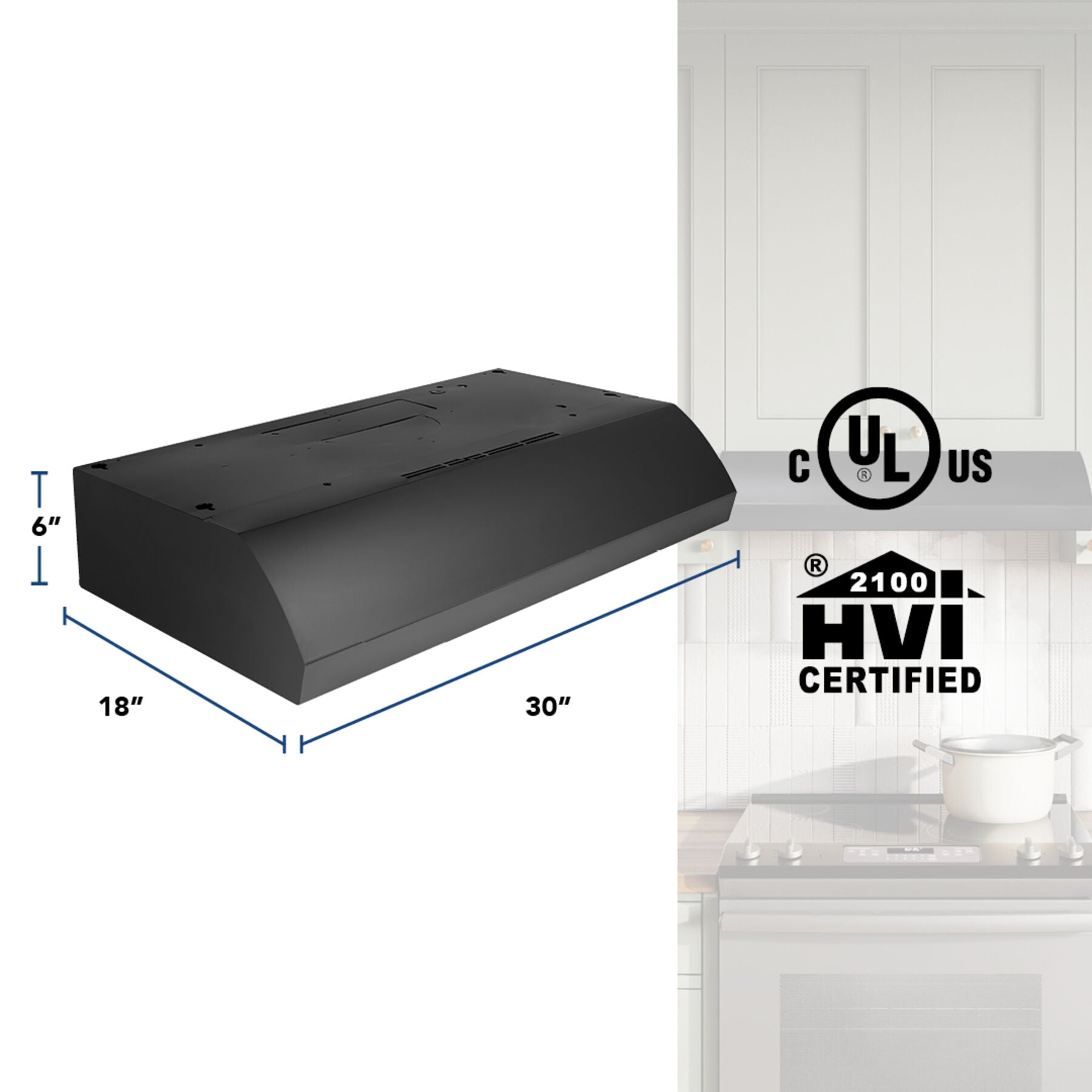

Product Depth 18"
Product Height 6"
Product Width 30"
Built-In Timer No
CFM 270 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) LED
Manufacturer Warranty 1 Year

Dimensions & weight

Width 30 in.
Height 6 in.
Length 18 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.88 ft³
Dimensional Weight 23.31 lbs.
Total of Cubes 1.88 ft³
Total of Dimensional Weight 23.31 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width 24 in.
Shipping Depth 47 in.
Shipping Height 8 in.
Shipping Weight 19 lb.

Description

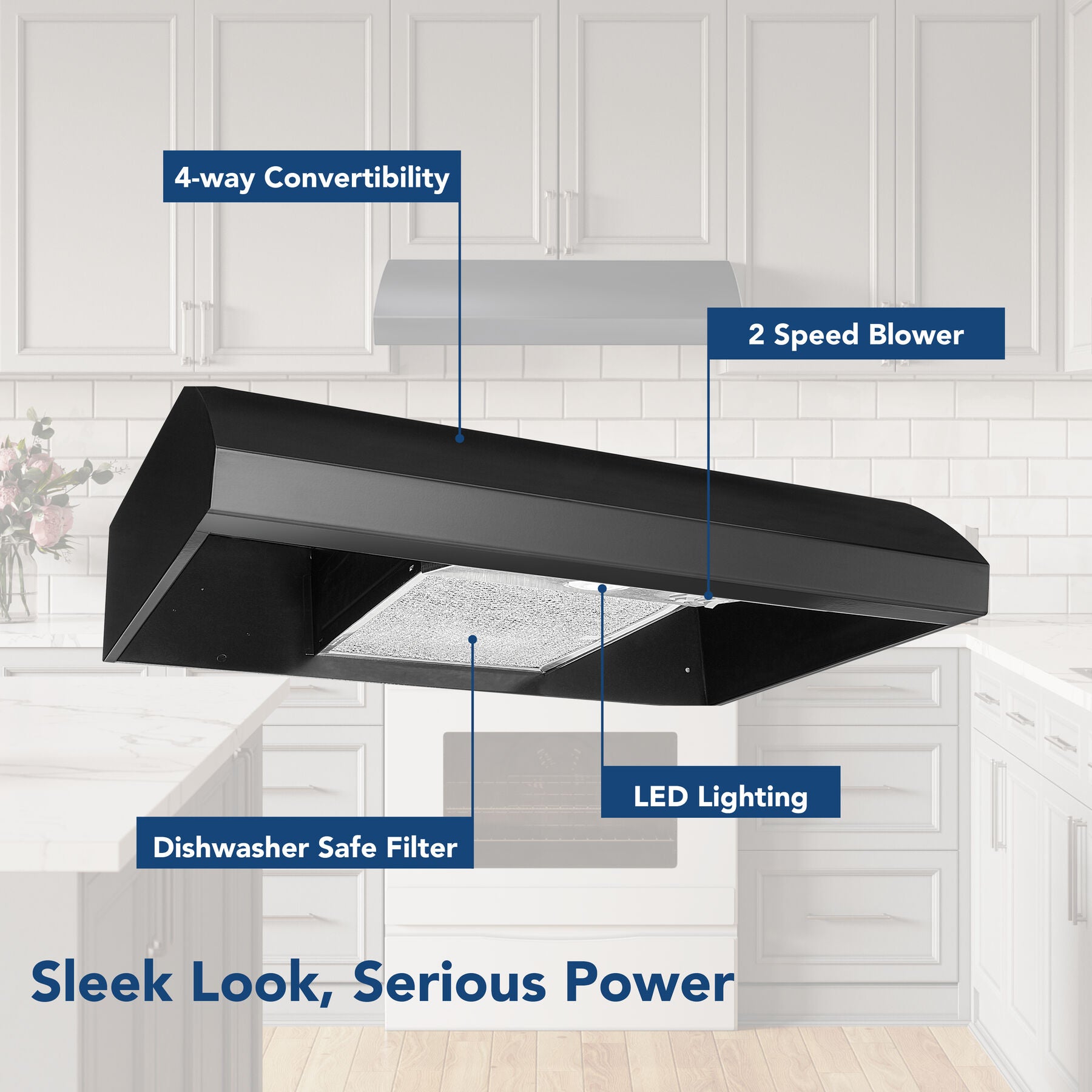

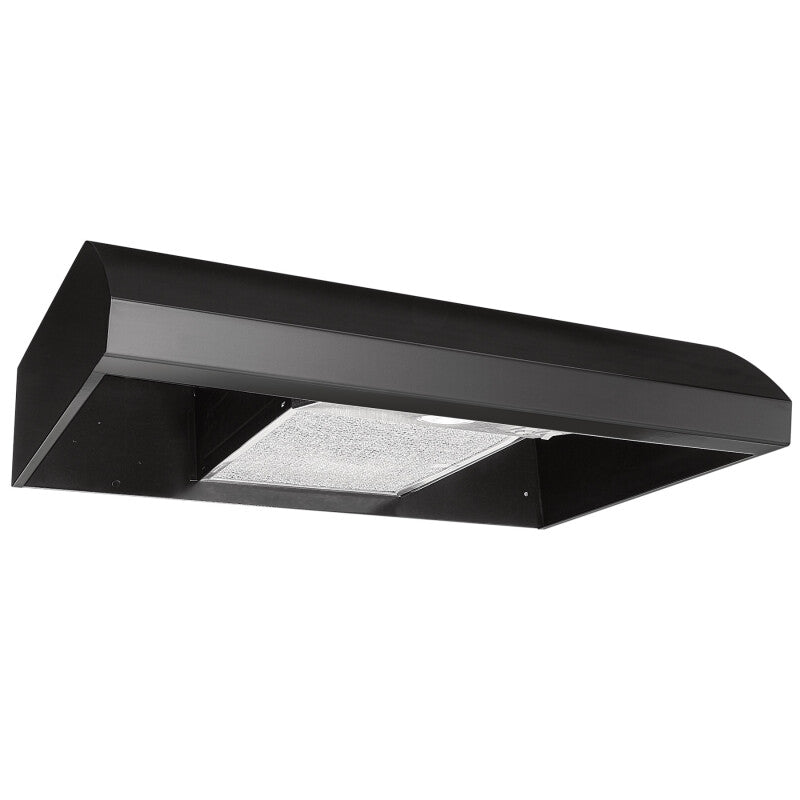

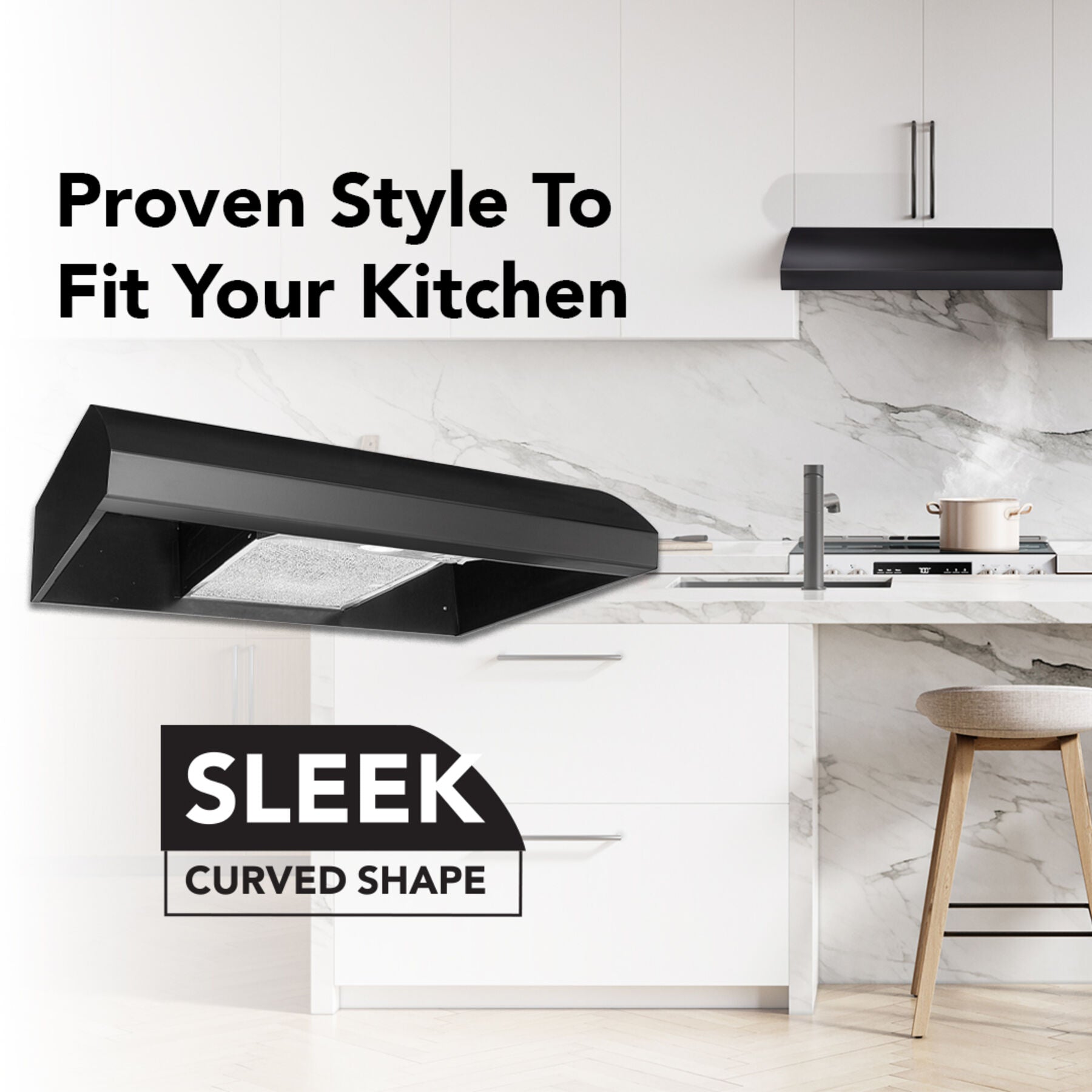

Broan 30-Inch 4-Way Convertible Under-Cabinet Range Hood has 270 Max CFM and comes in Black. The BXT1 Series Kitchen Exhaust Ventilation Range Hood features a transitional design with gently rounded surfaces. It is an excellent choice for today's modern kitchens. The simple design incorporates hidden rocker controls, making operation simple and convenient for just any person. A big dishwasher-safe filter, a completely integrated light panel, and top-oriented recirculation louvers are among the hood's easy-to-clean features. A bright LED bulb illuminates the stove as part of the one-level lighting system.


Product Features

  • Perfect for replacement as well as new installations, this powerful 4-way convertible range hood will fit into most all applications. The enclosed light and fan/filter assembly makes for easier cleaning
  • The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance

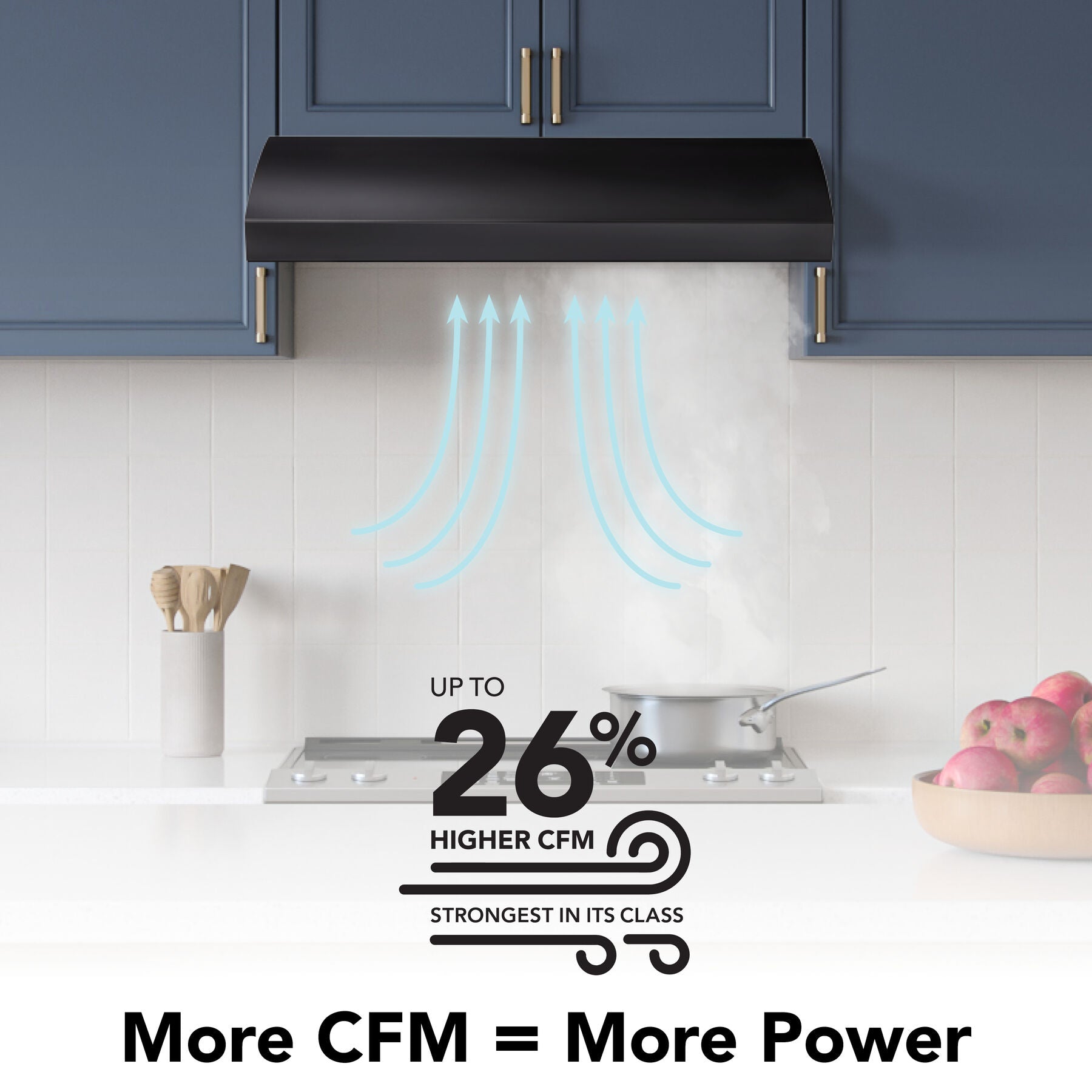

  • With a powerful 2-speed fan offering 270 Max Blower CFM, this range hood provides adequate capture for electric and most gas ranges
  • One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
  • Dishwasher-safe aluminum mesh filter provides highly efficient grease removal
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Optional 7 in. round BP87Q damper sold separately
  • Non-duct capable with use of charcoal filter (HPFX1), sold separately. Hidden ductless louvers on top of hood exhaust away from cabinetry
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)

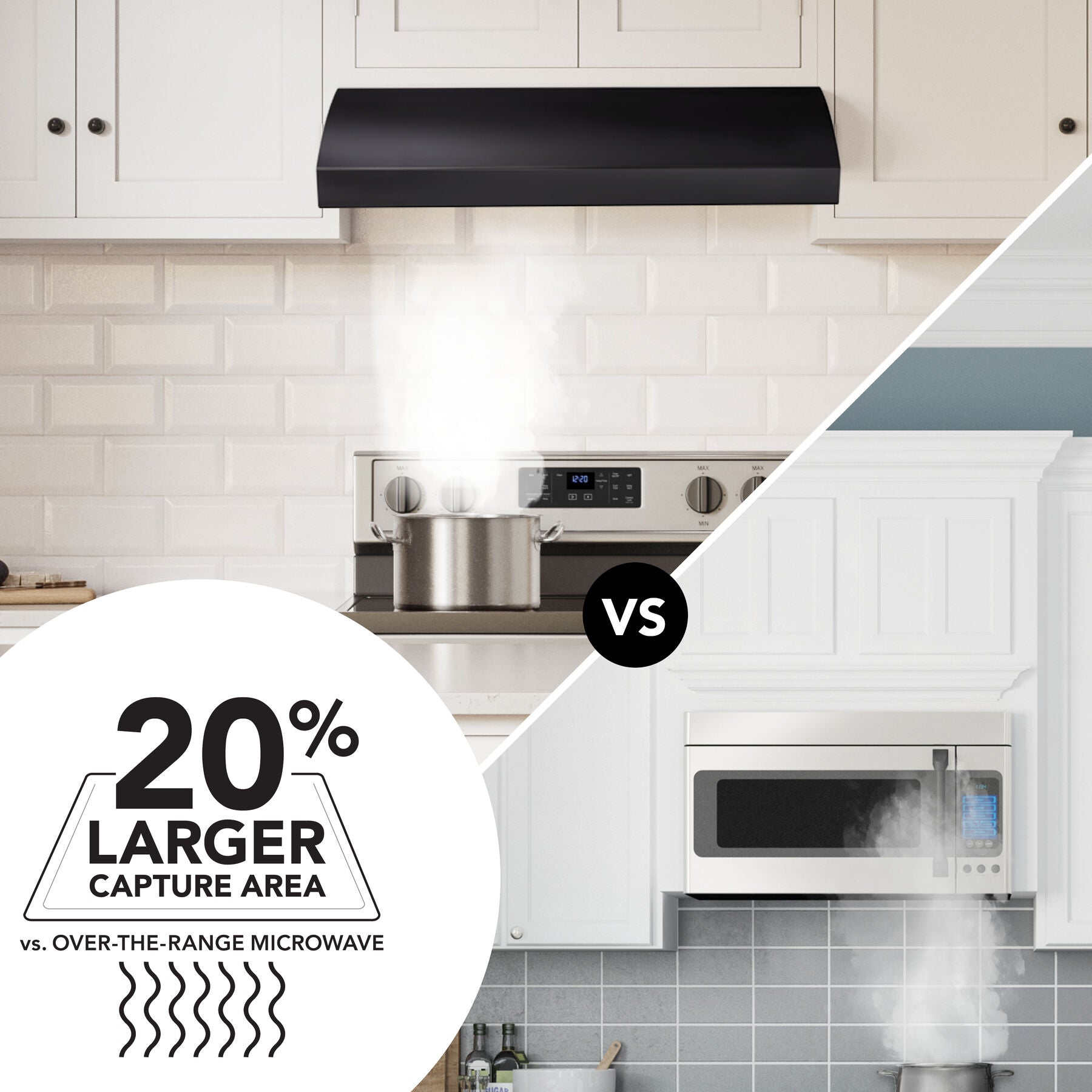

  • The 18” deep design provides 20% more coverage over the cooktop than the standard over-the-range microwave combination units
