SKU: BUF403BL

Broan BUF403BL 30-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower CFM Black

Quick Specification More details

Width:
30"
Depth:
17.5"
Height:
6"
Type:
Under Cabinet Hoods

About this product

Provides installation flexibility with 4-way convertibility to fit virtually all applications
Simple to use rocker switches let you adjust the fan speed and the light setting separately
Two fan speeds help you tackle a variety of venting jobs
230 Max Blower CFM quickly removes smoke and cooking odors from the air

SKU: BUF403BL

Broan BUF403BL 30-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower CFM Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
17.5"
Height:
6"
Type:
Under Cabinet Hoods

About this product

Provides installation flexibility with 4-way convertibility to fit virtually all applications
Simple to use rocker switches let you adjust the fan speed and the light setting separately
Two fan speeds help you tackle a variety of venting jobs
230 Max Blower CFM quickly removes smoke and cooking odors from the air

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Broan BUF403BL

Technical Details

Product details

Filter Type	Aluminum Mesh
Heat Sentry™	No
HVI Certified	Yes
Lighting Type	LED
UL Listed	Yes
ADA Compliance	Yes
Damper Included	No
ENERGY STAR® certified	No
Light Bulb Wattage	75
Light Bulbs Included	No
Light Levels	1
Material	Steel
Nightlight Or Nighlight Setting	No
Ductless Recirculation Capable	Yes
Ductless Filter Or Kit Included	No
Speed Levels	2
Switch Control Type	Rocker
Rated Voltage	120
Boost Mode	No
Rated Amps	2.5
Product Depth	17.5"
Product Height	6"
Product Width	30"
Built-In Timer	No
CFM	230 Max
Diameter	7" Round
Vent Type	Convertible Built-In
Duct Direction	Horizontal/Vertical
Bulb (Recommended Type)	A19
Manufacturer Warranty	1 Year Limited
Sound Level (Sones)	3.5
Remote Operation Capable	Yes
Wattage	240

Dimensions & weight

Width	30 in.
Height	6 in.
Length	17.5 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	11 in.
Shipping Length	22.5 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.82 ft³
Dimensional Weight	22.66 lbs.
Total of Cubes	1.82 ft³
Total of Dimensional Weight	22.66 lbs.

Description

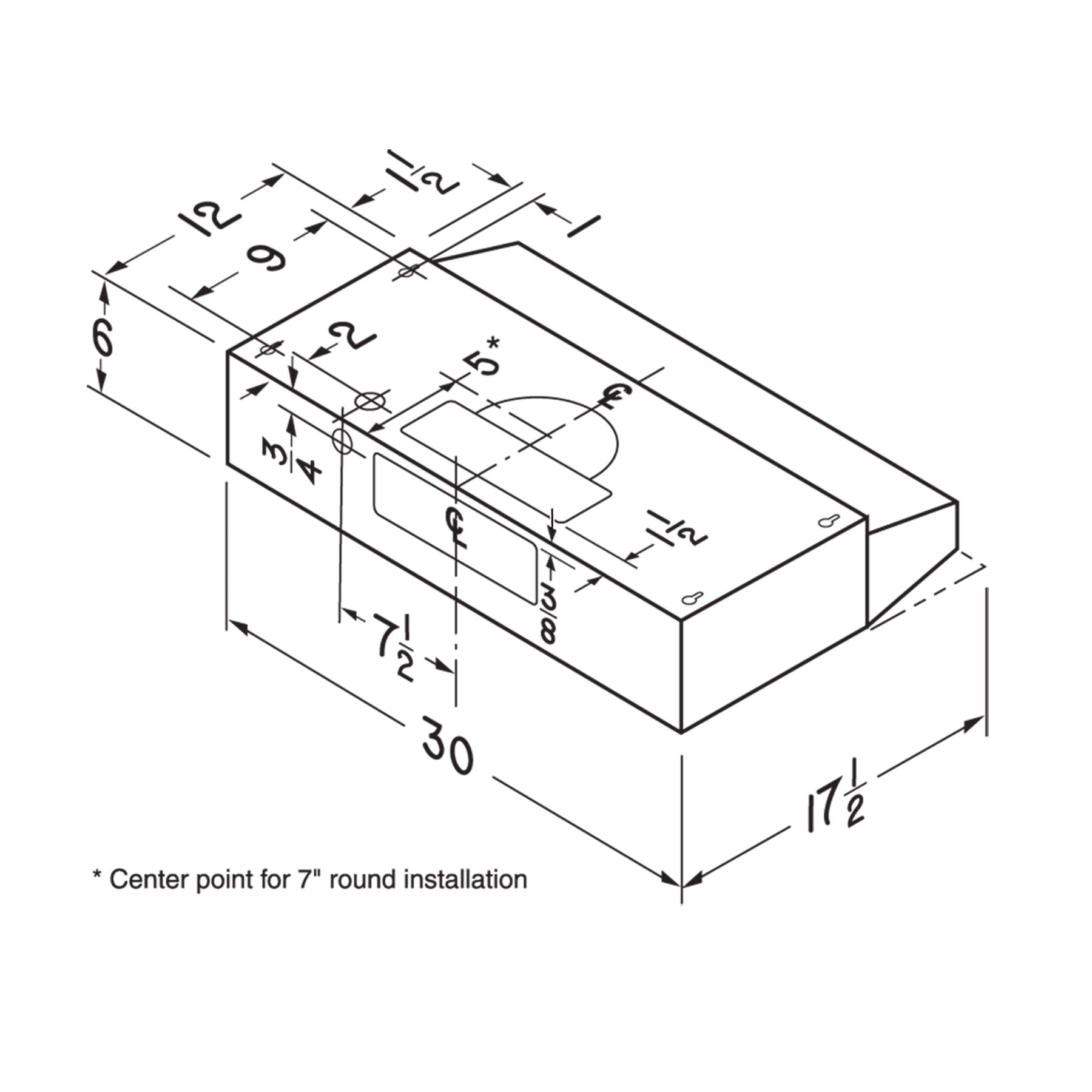

The BUF4 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble-free service, an easy to clean grease filter, and control switches for fan speed and light activation

Product Features

Provides installation flexibility with 4-way convertibility to fit virtually all applications
Simple to use rocker switches let you adjust the fan speed and the light setting separately
Two fan speeds help you tackle a variety of venting jobs
230 Max Blower CFM quickly removes smoke and cooking odors from the air

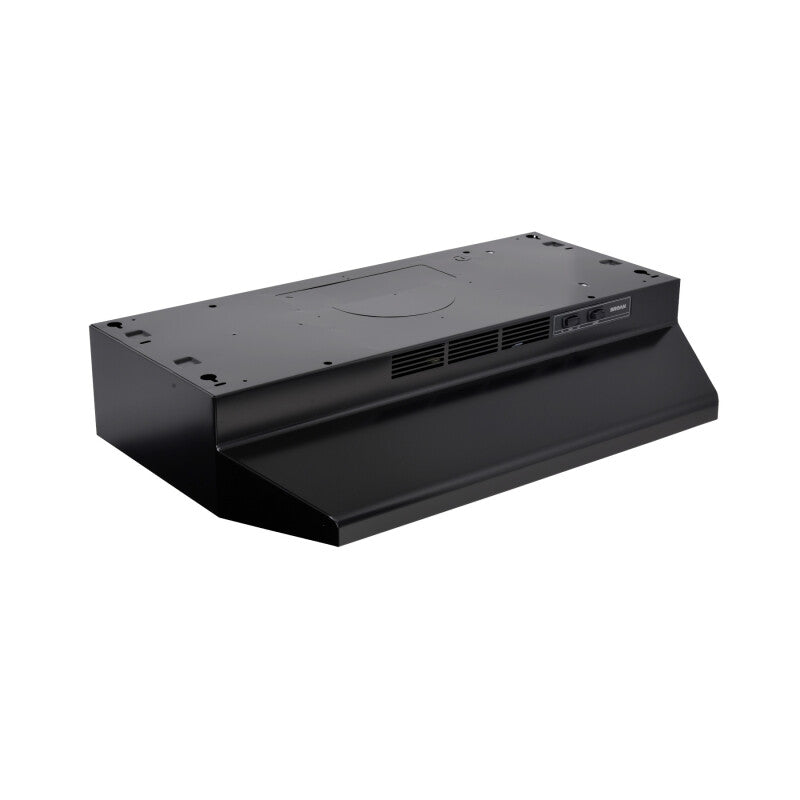

Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood

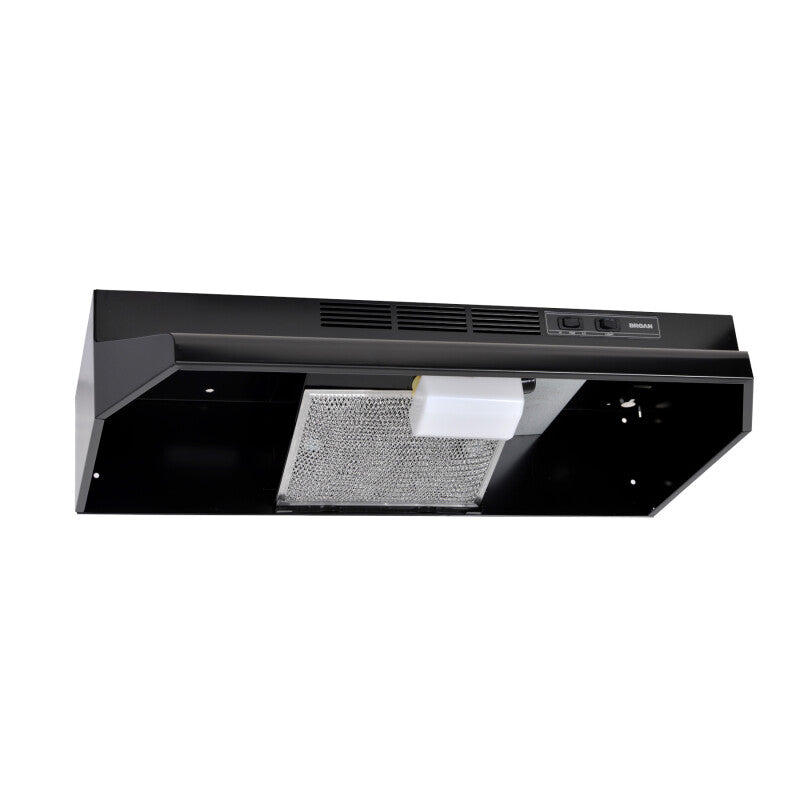

Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
Includes a 3-1/4 in. x 10 in. damper/adapter for easy installation (7 in. adapter and damper sold separately)
Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
One year limited warranty
UL listed and HVI 2100 certified
Designed for LED, 75w max, not included. If using incandescent bulb, purchase light guard # S99110437 separately.
