Product Details for Broan BCSD142WW

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Other

Filter Type Open Mesh
Heat Sentry™ No
HVI Certified Yes
Lighting Type Halogen
Sound Level (Sones) 1.5
Light Bulb Wattage 50
Light Levels 2
Material Steel
Switch Control Type Rocker
Rated Voltage 120
Country of Origin Mexico
Rated Amps 1.4
Capture Efficiency 97.4
CFM 300 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) GU10 MR16
Manufacturer Warranty 1 Year
Wattage 168

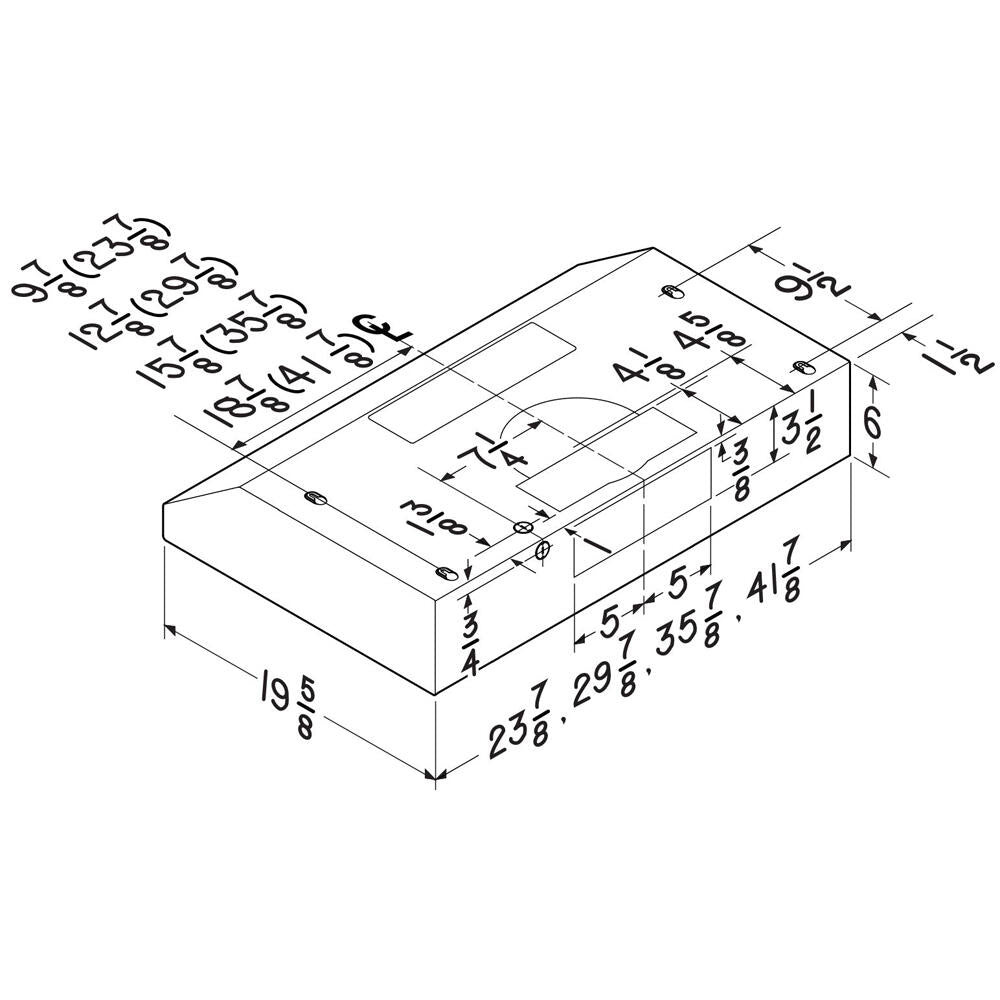

Dimensions & weight

Width 42 in.
Height 6 in.
Length 19.63 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 11 in.
Shipping Length 24.63 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.86 ft³
Dimensional Weight 35.58 lbs.
Total of Cubes 2.86 ft³
Total of Dimensional Weight 35.58 lbs.

Description

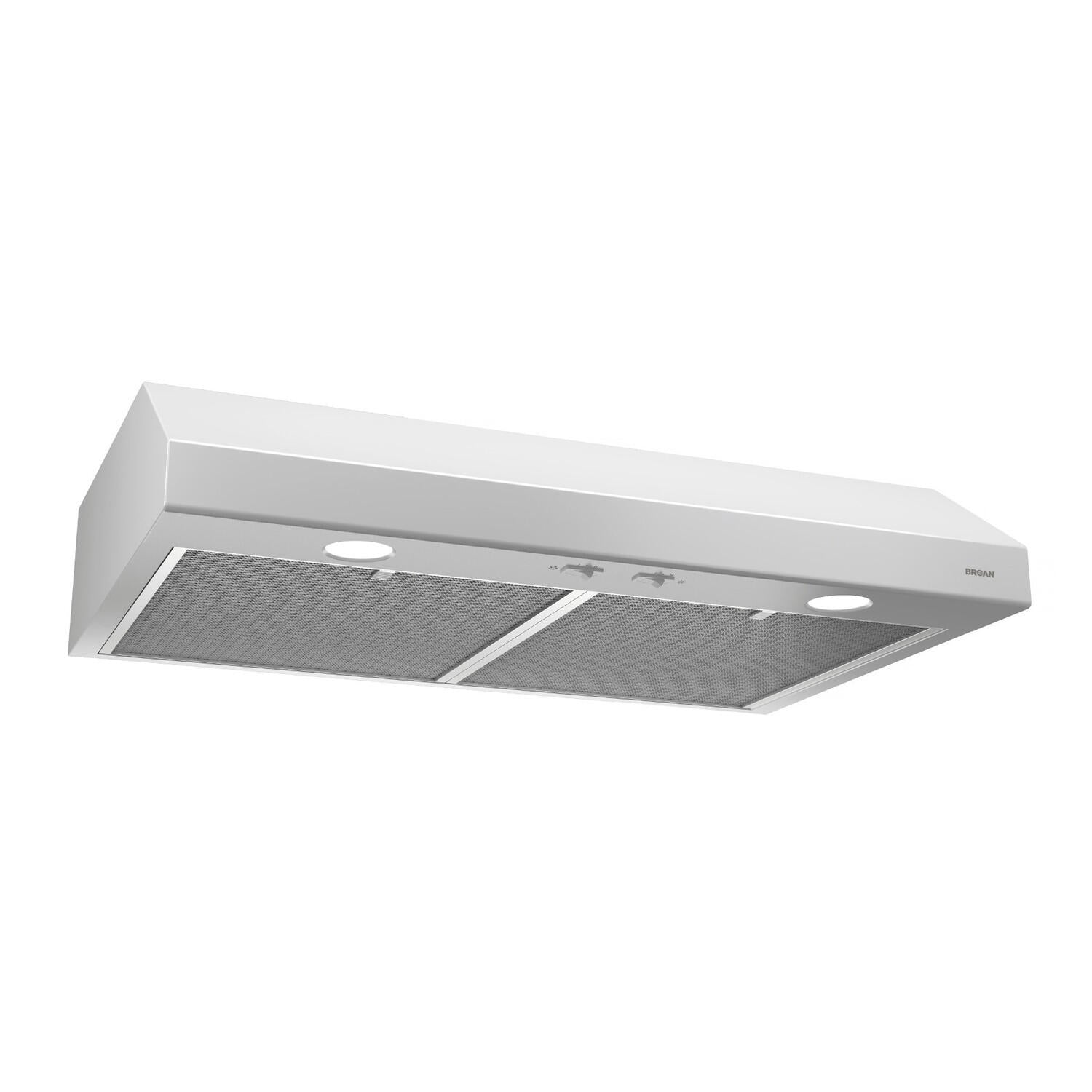

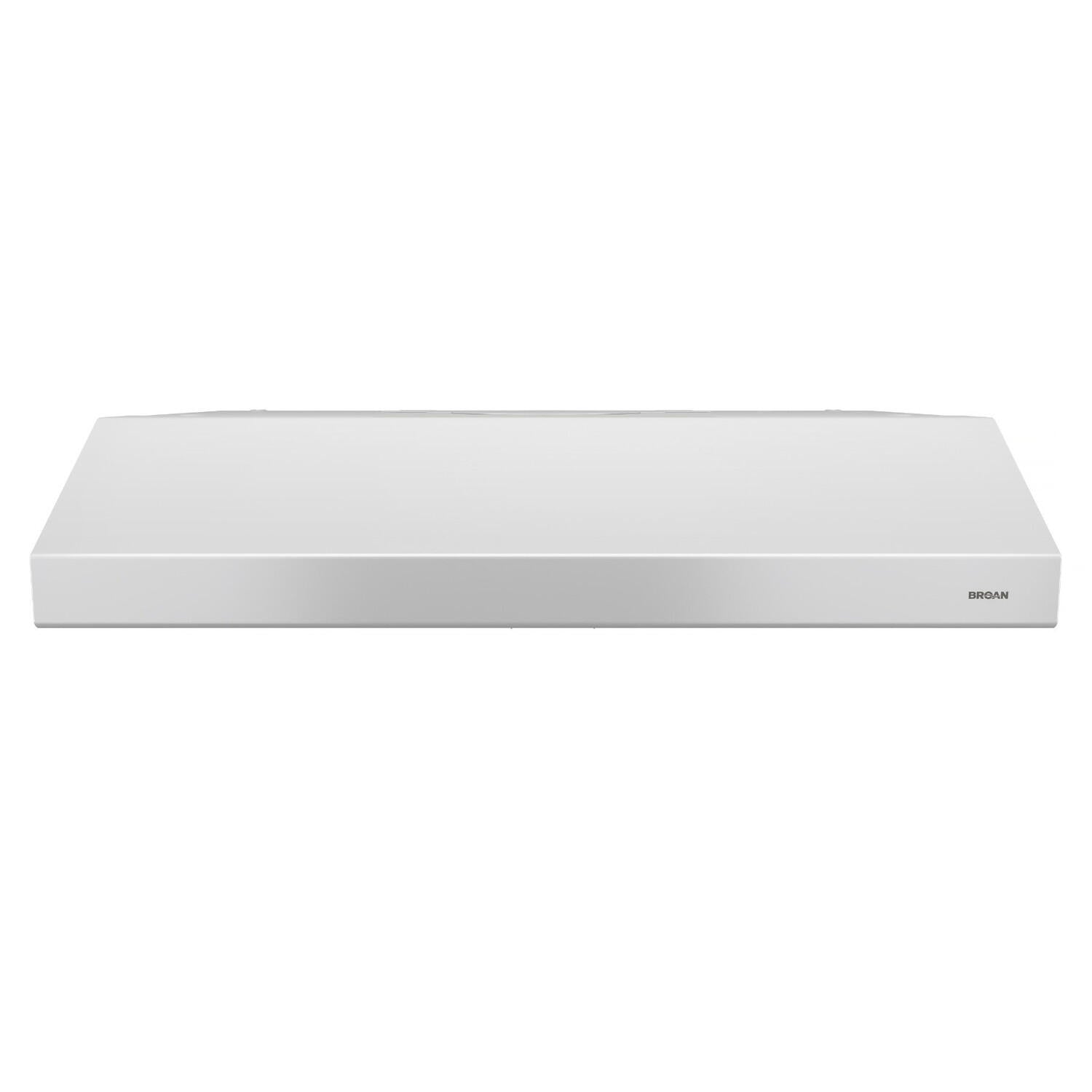

Glacier 42-Inch 300 Max Blower CFM 5 Sones White Range Hood



Product Features

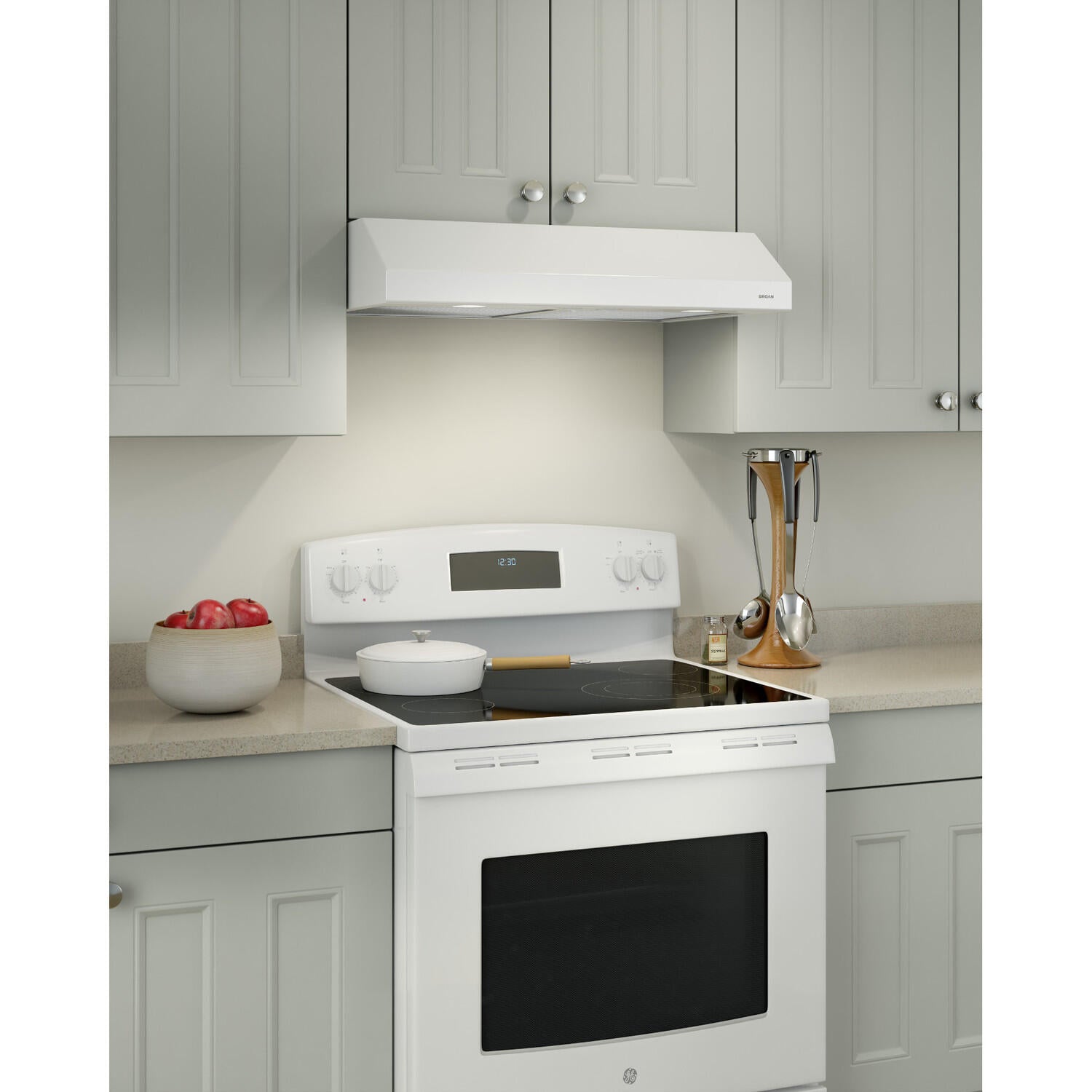

  • Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
  • Hidden rocker switches adjust fan speed and lighting levels
  • Captur system and 300 Max Blower CFM is 97.4% efficient in removal of smoke and odor from cooking
  • Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HFP42)

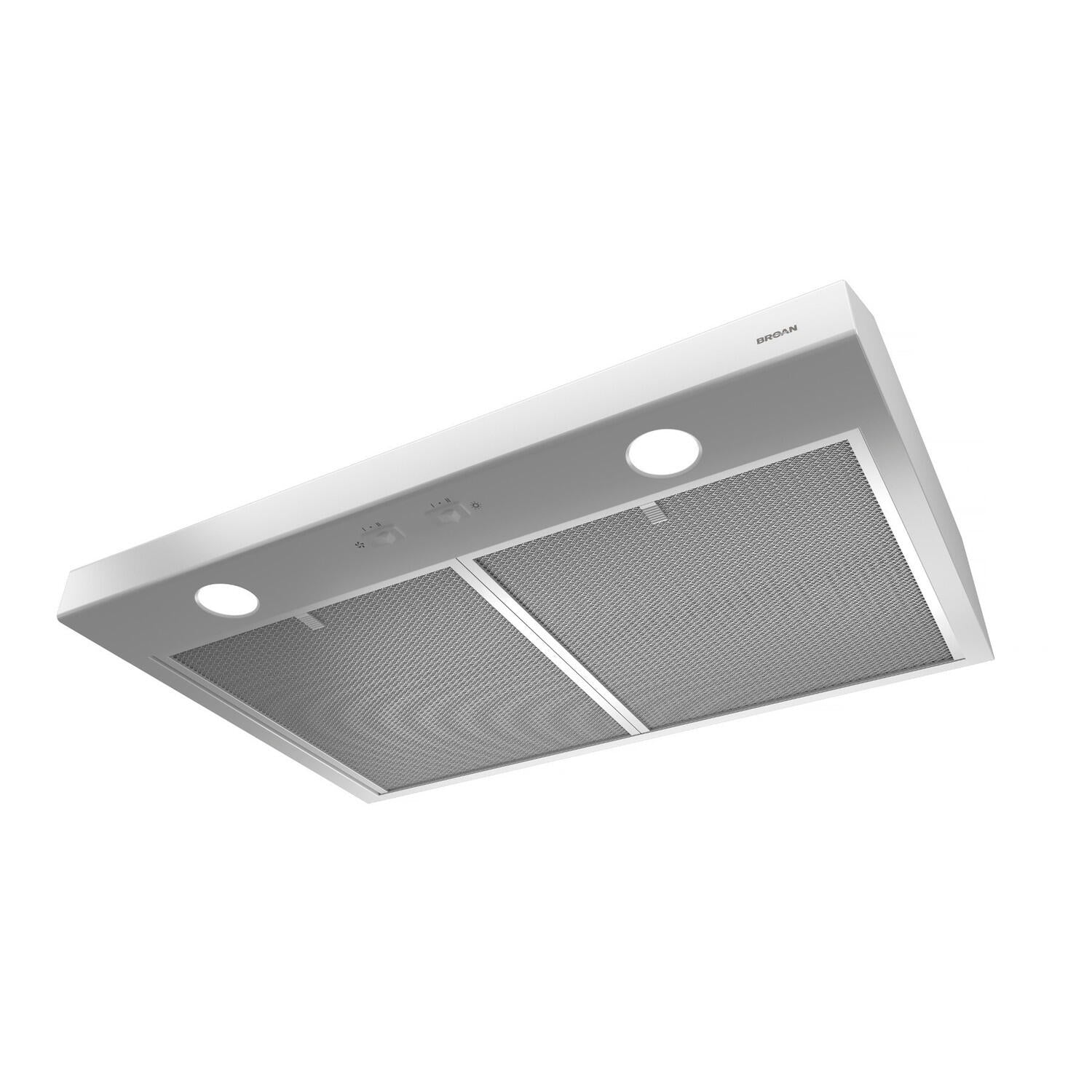

  • 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
  • 2-halogen bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
  • 1-year limited manufacturer’s warranty
  • EZ1 system enables easy single-person installation in up to half the time of traditional methods
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
