Product Details for Broan BCDJ142WH

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Product details

Filter Type Aluminum MicroMesh with Antimicrobial Protection
Heat Sentry™ Yes
HVI Certified Yes
Sound Level (Sones) 0.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulbs Included Yes
Light Levels 3
Material Aluminum
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Rated Voltage 120
Boost Mode No
Minimum Height Above Cook Top 8"
Rated Amps 1.4
Product Depth 19.625
Product Height 6"
Product Width 42"
Built-In Timer No
Capture Efficiency 98.5
CFM 400
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168

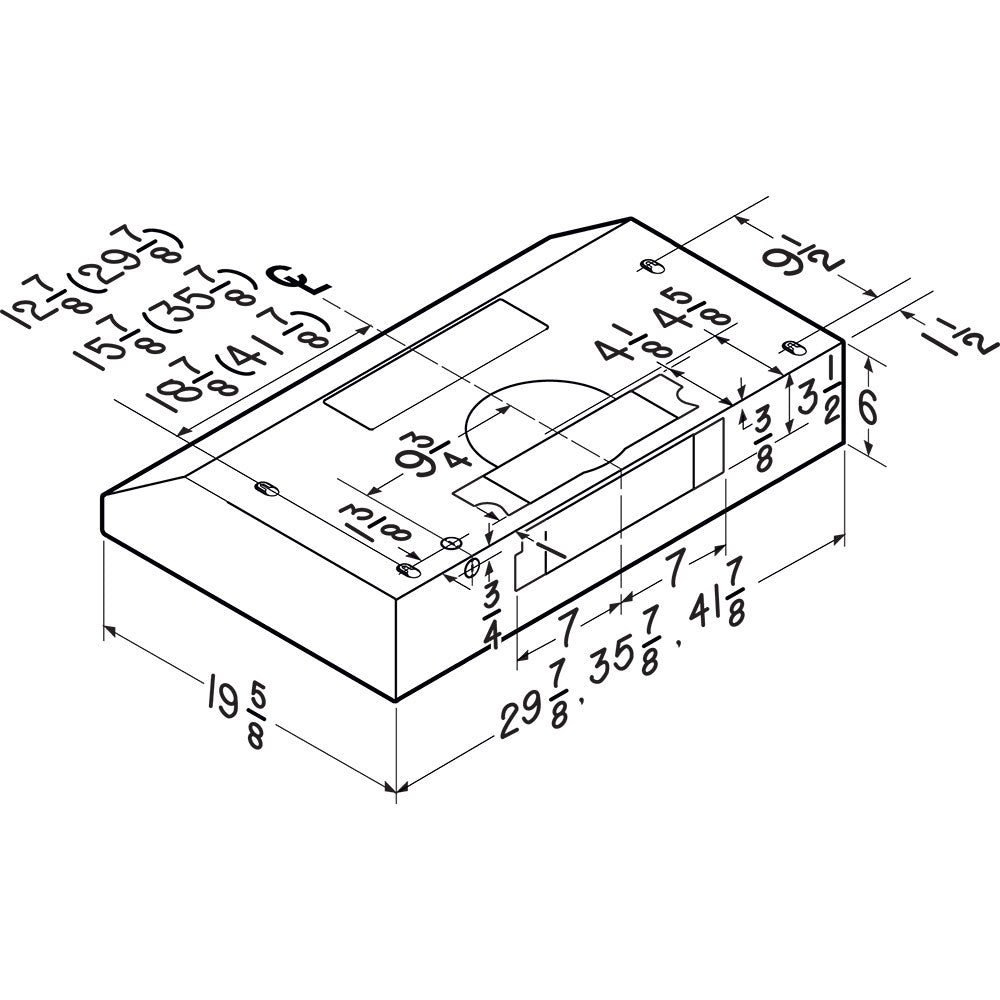

Dimensions & weight

Width 42 in.
Height 6 in.
Length 19.63 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 11 in.
Shipping Length 24.63 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.86 ft³
Dimensional Weight 35.58 lbs.
Total of Cubes 2.86 ft³
Total of Dimensional Weight 35.58 lbs.

Description

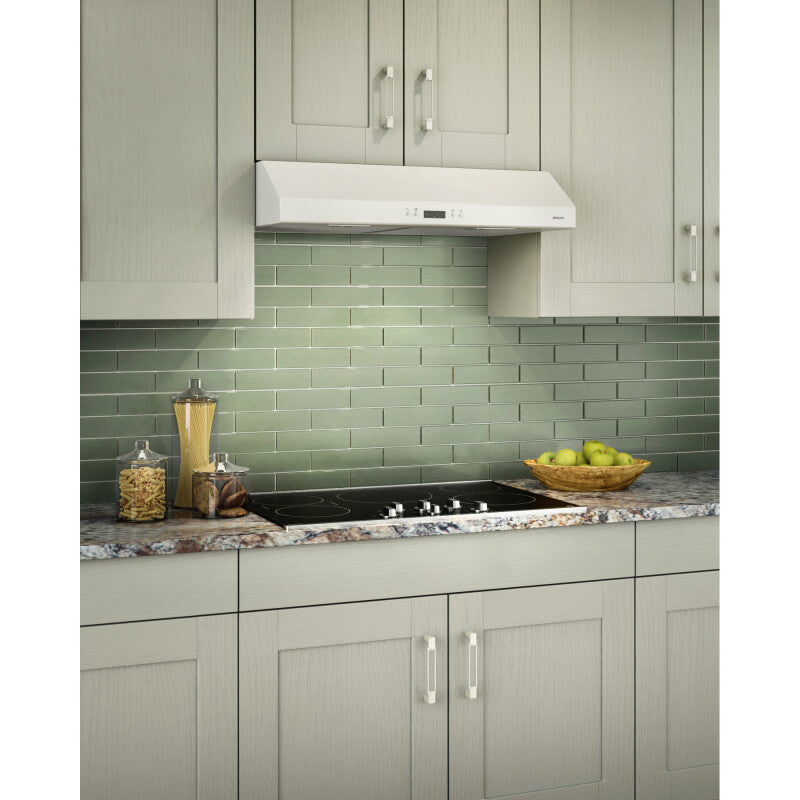

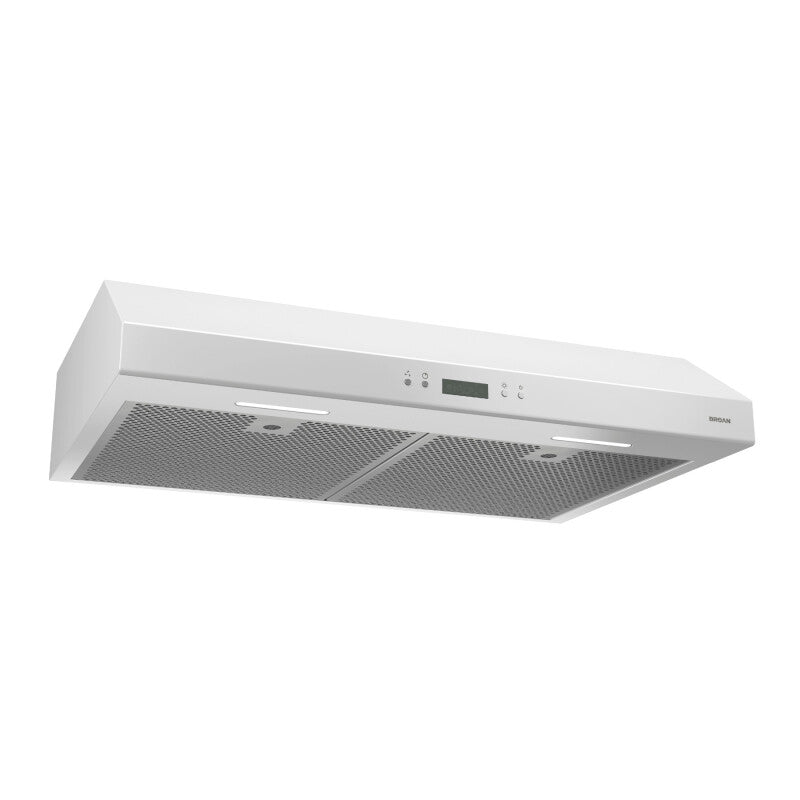

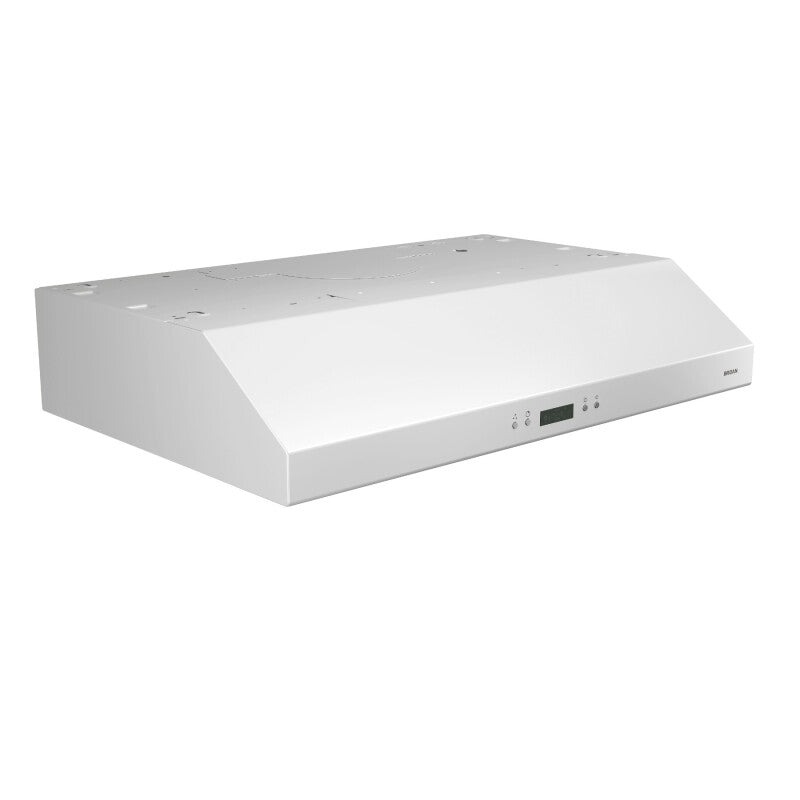

Broan(R) 42-Inch Convertible Under-Cabinet Range Hood w/ Heat Sentry(R), 400 CFM, White



Product Features

  • Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed

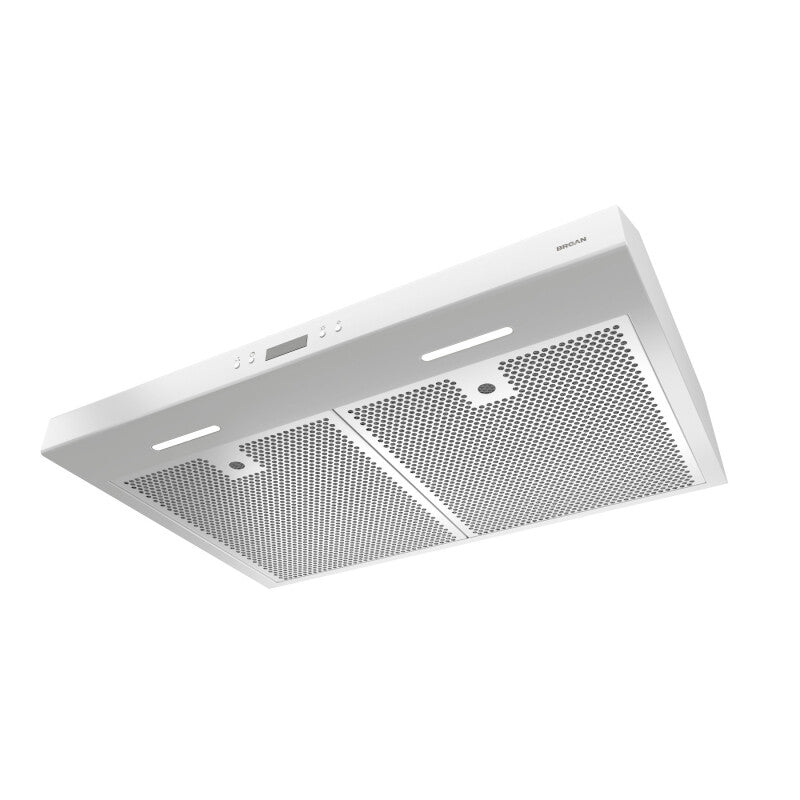

  • Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
  • The filter clean reminder ensures they will always maintain a high level of efficiency
  • EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM
  • Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry® and delay off
  • Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
