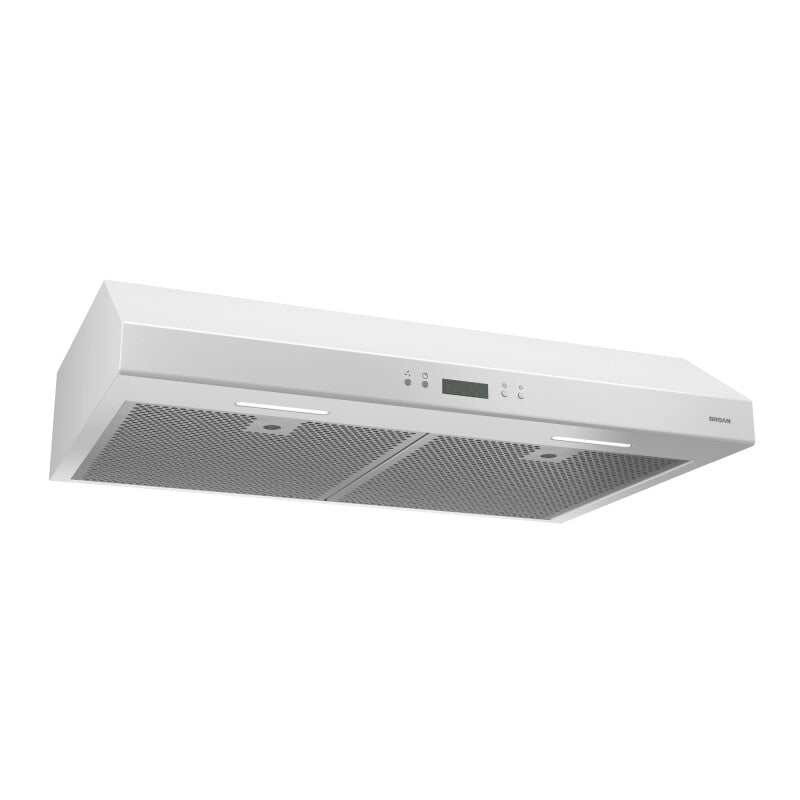

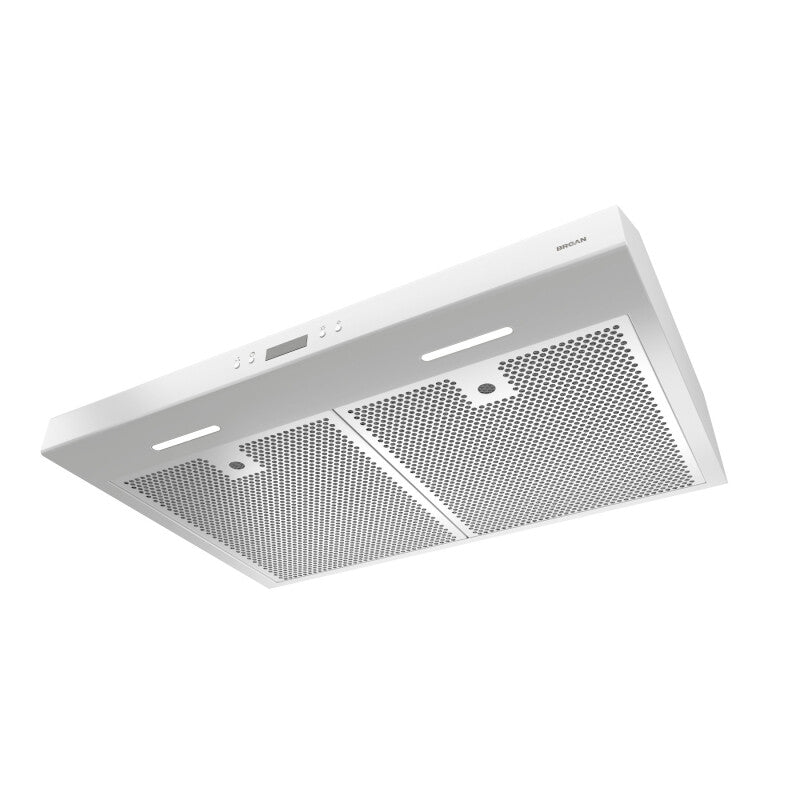

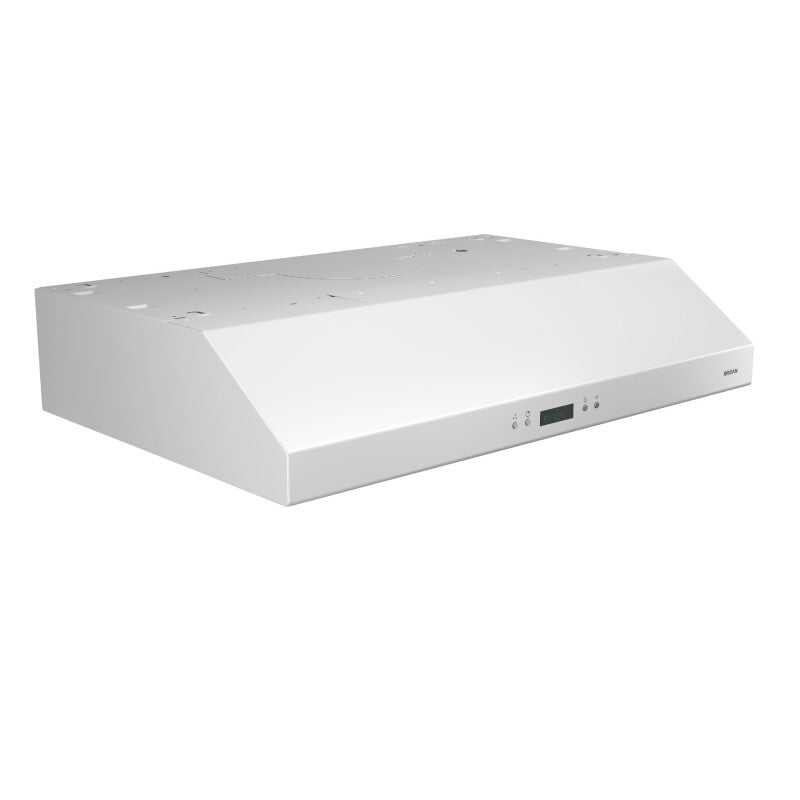

Product Details for Broan BCDJ130WH

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Other

Filter Type Deluxe Micro Mesh
Heat Sentry™ Yes
Lighting Type LED
Sound Level (Sones) 0.5
Damper Included No
Light Bulb Wattage 4.5
Light Levels 3
Material Steel
Switch Control Type Push Button with LCD
Rated Voltage 120
Rated Amps 1.4
Capture Efficiency 98.5
CFM 450 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168

Dimensions & weight

Width 30 in.
Height 6 in.
Length 19.63 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.04 ft³
Dimensional Weight 25.41 lbs.
Total of Cubes 2.04 ft³
Total of Dimensional Weight 25.41 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width 24 in.
Shipping Depth 39 in.
Shipping Height 23.5 in.
Shipping Weight 40 lb.

Description

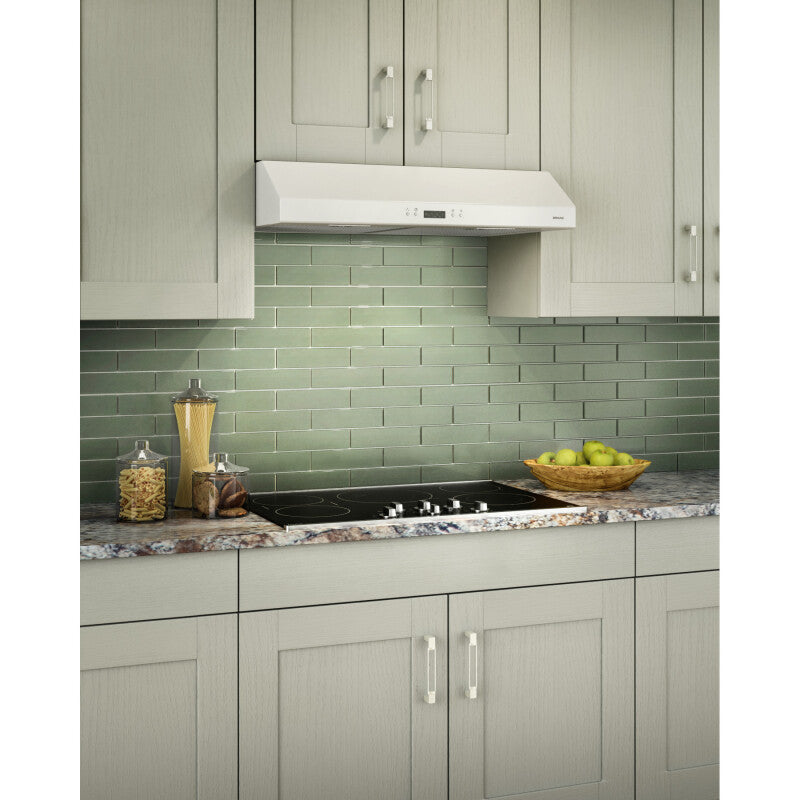

The clean, contemporary shape of Glacier complements any kitchen design. Impressive LED lighting and superior smoke and odor removal are a mere introduction to everything this hood has to offer. The LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs.


Product Features

  • The Captur system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
  • 450 Max blower CFM operates at 0.5 sones at normal speed
  • 3-Speed electronic push button control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry and delay off
  • Bright 3-level LED modules are supported by a 3-year warranty, illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
  • Broan Heat Sentry detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
  • Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
  • The filter clean reminder ensures they will always maintain a high level of efficiency
  • EZ1 system makes it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch (not included)
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Ductless capable with use of charcoal filters, sold separately
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)

Key Features

HVI Certified

UL Listed

1-Person Installation in Half the Time

From The Manufacturer
