Product Details for Broan BCDF136SS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Other

Filter Type Micro Mesh
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 1.5
Light Bulb Wattage 4.5
Light Levels 2
Material Steel
Speed Levels 3
Switch Control Type Capacitive Touch
Rated Voltage 120
Rated Amps 0.65
Capture Efficiency 98.1
CFM 375 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 78

Dimensions & weight

Width 36 in.
Height 6 in.
Length 19.63 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 11 in.
Shipping Length 24.63 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.45 ft³
Dimensional Weight 30.5 lbs.
Total of Cubes 2.45 ft³
Total of Dimensional Weight 30.5 lbs.

Description

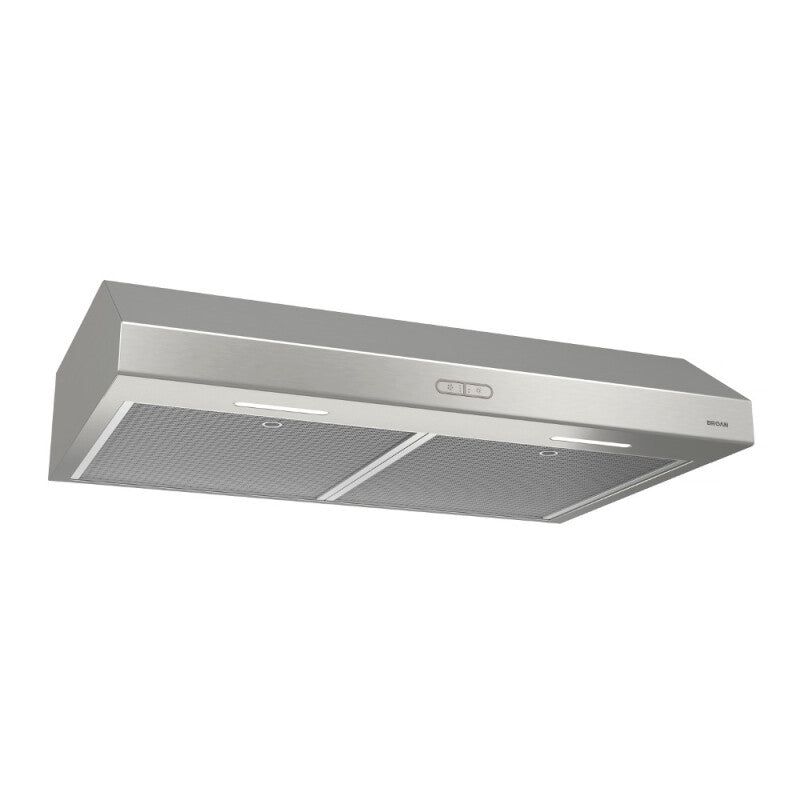

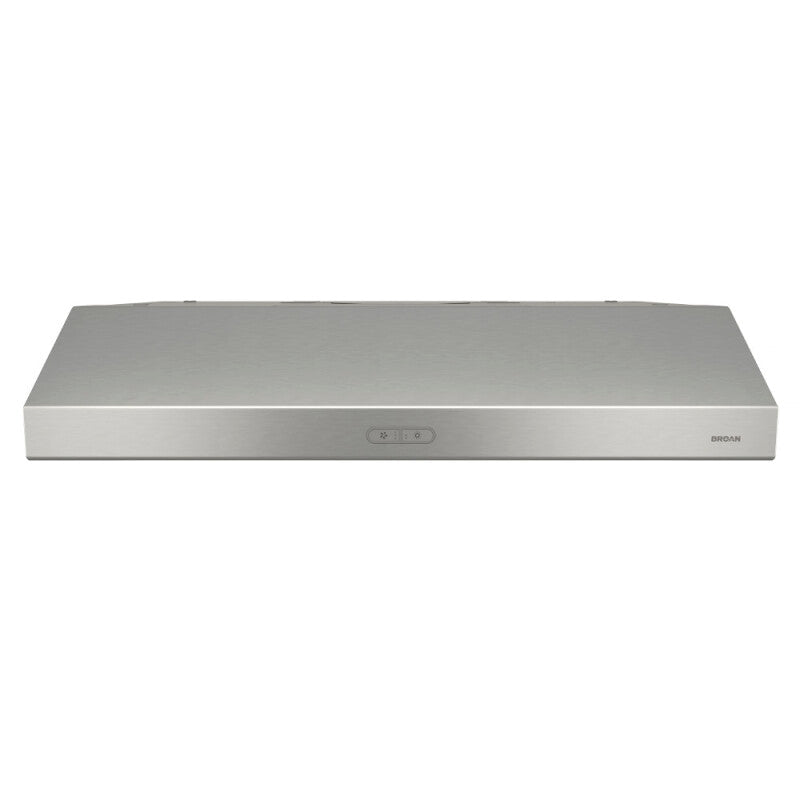

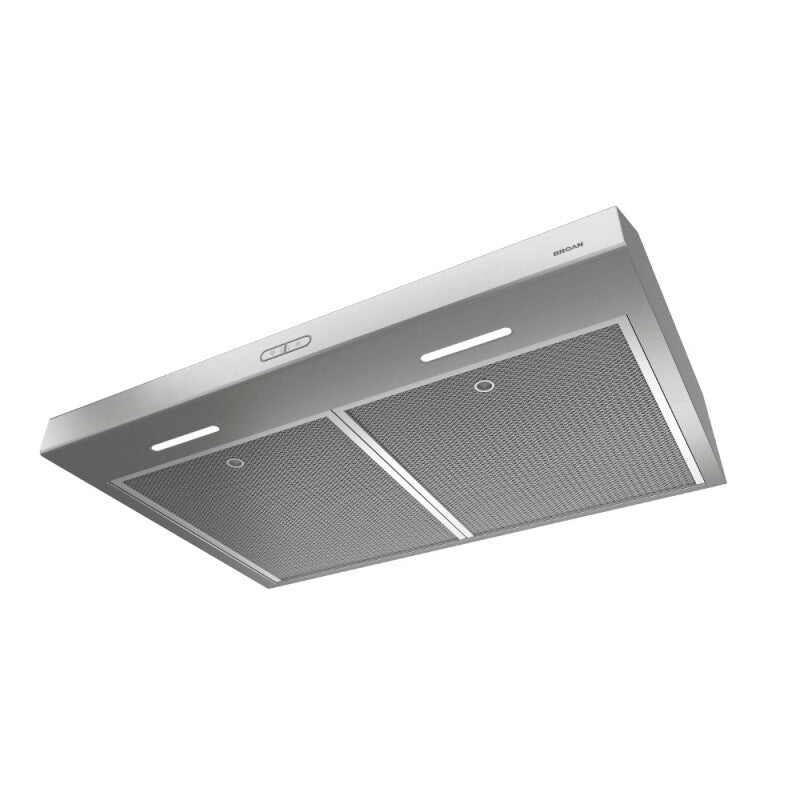

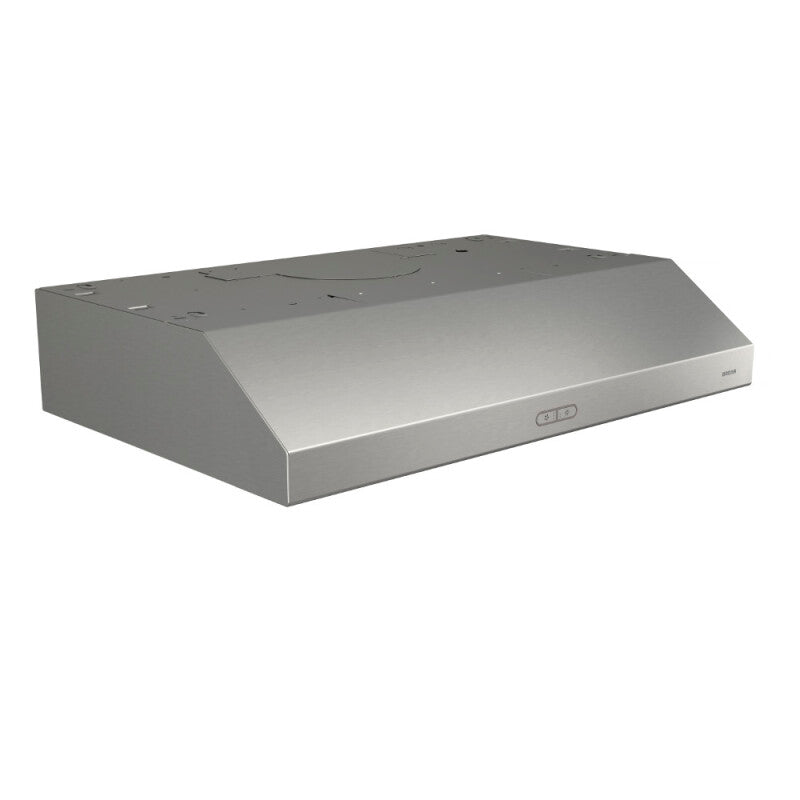

Broan(R) Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM, Stainless Steel



Product Features

  • Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
  • Tap-touch capacitive control features a smooth, easy-to-clean surface
  • Captur system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
  • Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
  • Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
  • Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
  • Hidden louvers on top of hood exhaust away from cabinetry
  • EZ1 system makes it easy for single-person installation in less than half the time of traditional methods
  • Limited 1 year warranty
  • Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
  • Non-duct capable with use of charcoal filters (model HPF36 [service part #S97020467]), sold separately
  • Comparable to NuTone model AHDA136SS
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)

Key Features

HVI Certified

UL Listed

1-Person Installation in Half the Time
