SKU: ALT236SS

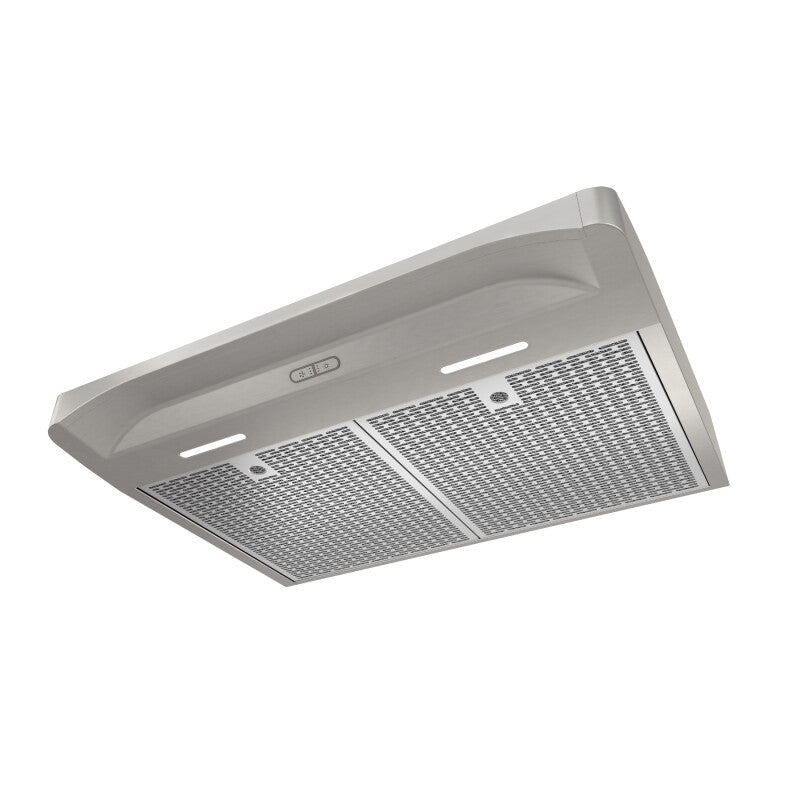

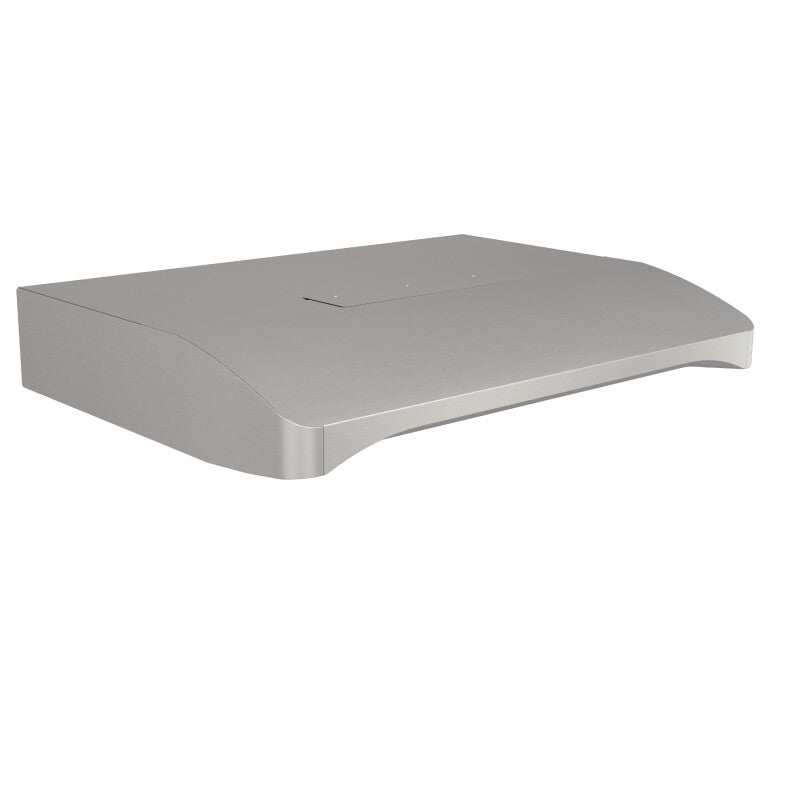

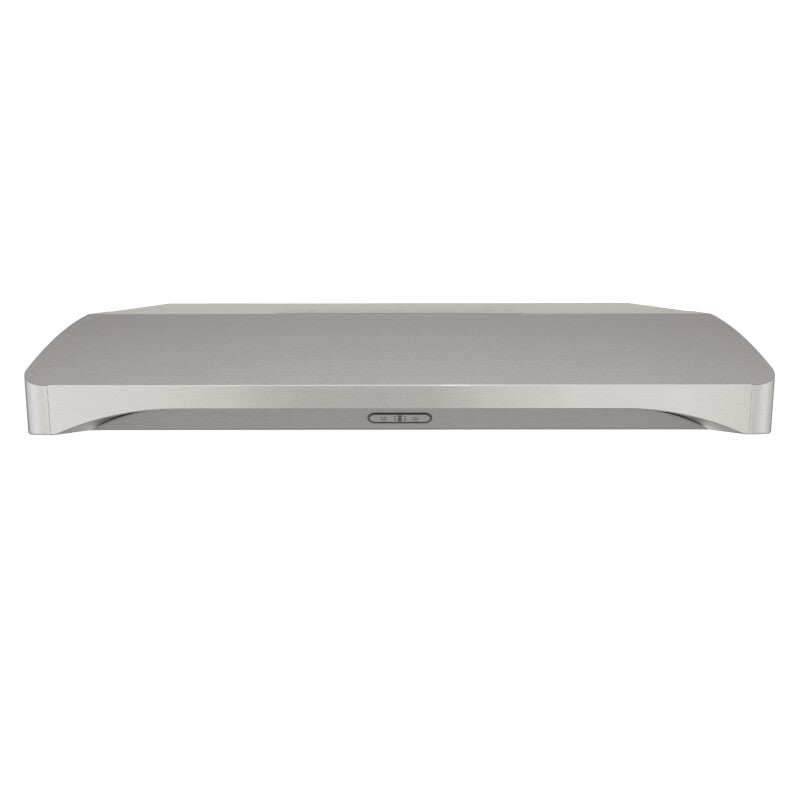

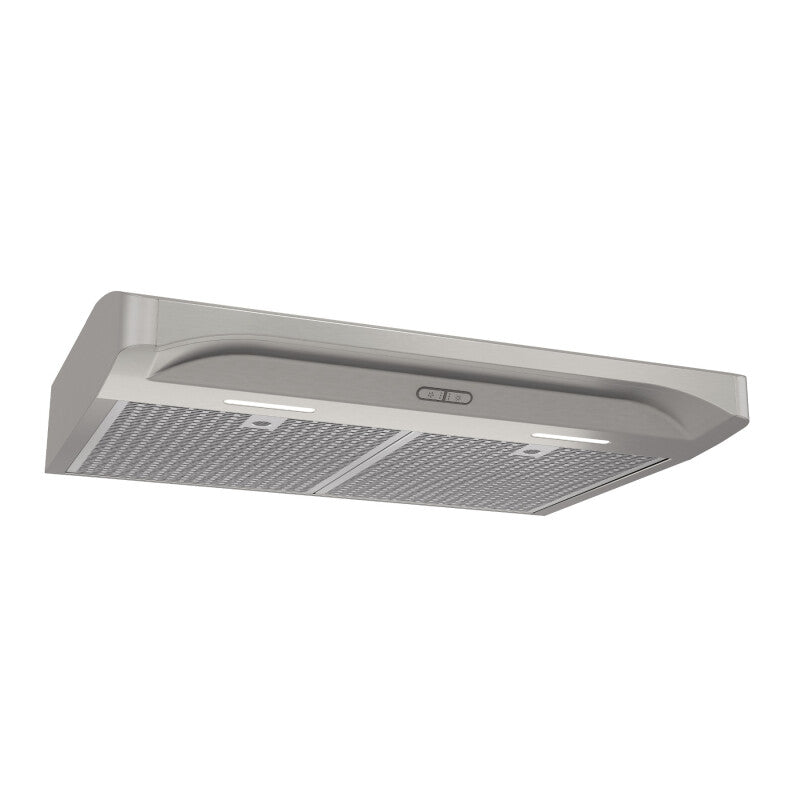

Broan ALT236SS Elite 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM Stainless Steel

Quick Specification More details

Width:
36"
Depth:
22"
Height:
5"
Type:
Under Cabinet Hoods

About this product

UL Listed
HVI Certified
Model replaced BQDD136SS
Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air

Summer Sale

Clearance

SKU: ALT236SS

Broan ALT236SS Elite 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower CFM Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
22"
Height:
5"
Type:
Under Cabinet Hoods

About this product

UL Listed
HVI Certified
Model replaced BQDD136SS
Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan ALT236SS

Technical Details

Other

Filter Type	Deluxe Micro Mesh
Heat Sentry™	No
HVI Certified	Yes
Lighting Type	LED
Sound Level (Sones)	1.5
Light Bulb Wattage	4.5
Light Levels	2
Material	Steel
Speed Levels	3
Switch Control Type	Capacitive Touch
Rated Voltage	120
Country of Origin	Mexico
Rated Amps	0.65
Capture Efficiency	98.1
CFM	375 Max
Diameter	7" Round
Vent Type	Convertible Built-In
Duct Direction	Horizontal/Vertical
Bulb (Recommended Type)	Integrated LED Module
Light Color Temp	3000
Manufacturer Warranty	1 Year, 3 Year LED module
Wattage	78

Dimensions & weight

Width	36 in.
Height	5 in.
Length	22 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	2.29 ft³
Dimensional Weight	28.49 lbs.
Total of Cubes	2.29 ft³
Total of Dimensional Weight	28.49 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	40 in.
Shipping Depth	7.2 in.
Shipping Height	27 in.
Shipping Weight	28 lb.

Description

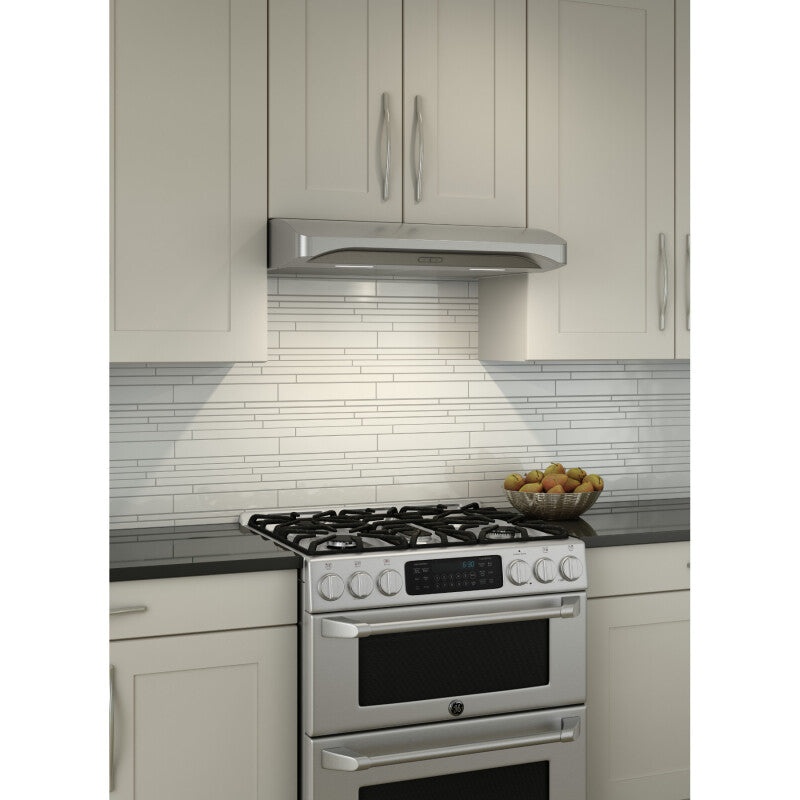

The sculpted lines of this Broan Elite under-cabinet range hood brings an exciting, new choice to typical range hood shapes. Wide curves and easy-to-use tap touch controls present a clean, striking design. LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs. Our premium 3-speed capacitive touch controls deliver a powerful CFM of up to 300 - quickly removing smoke, grease, and odors from your range top. Pair this Broan Elite 36-inch range hood with any broan range for the perfect combination in home cooking.

Product Features

Model replaced BQDD136SS
Captur systems 375 MAX Blower CFM quickly pulls smoke and cooking odors out of the air
Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
Bright, two-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
