SKU: ALT230WW

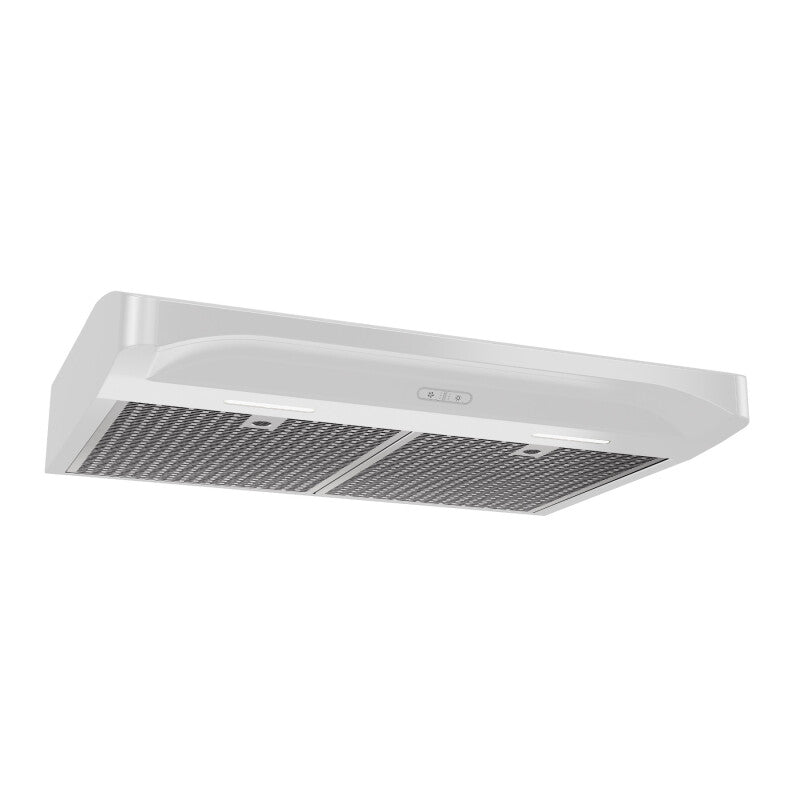

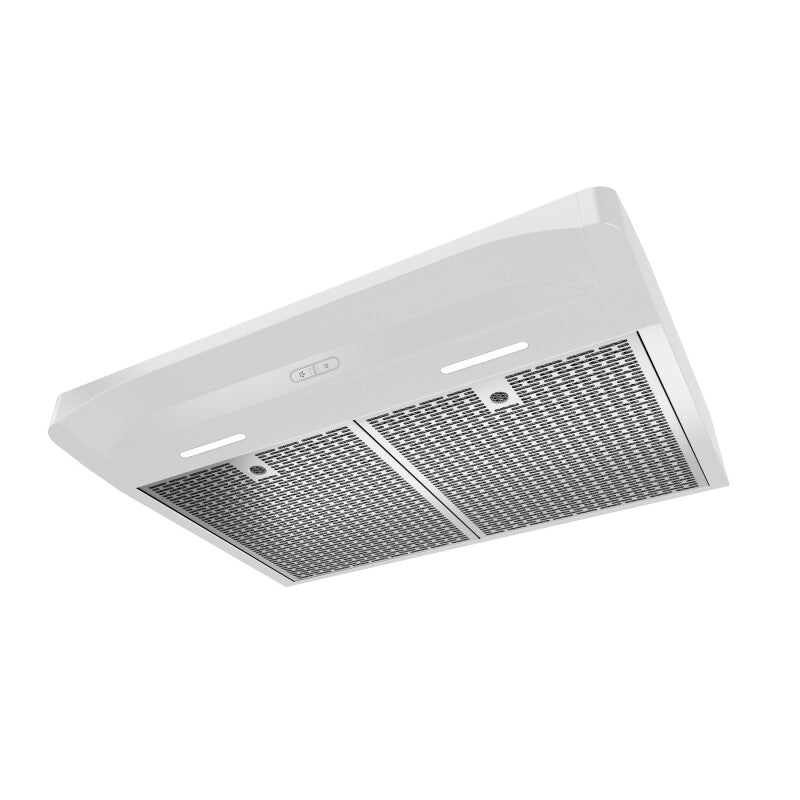

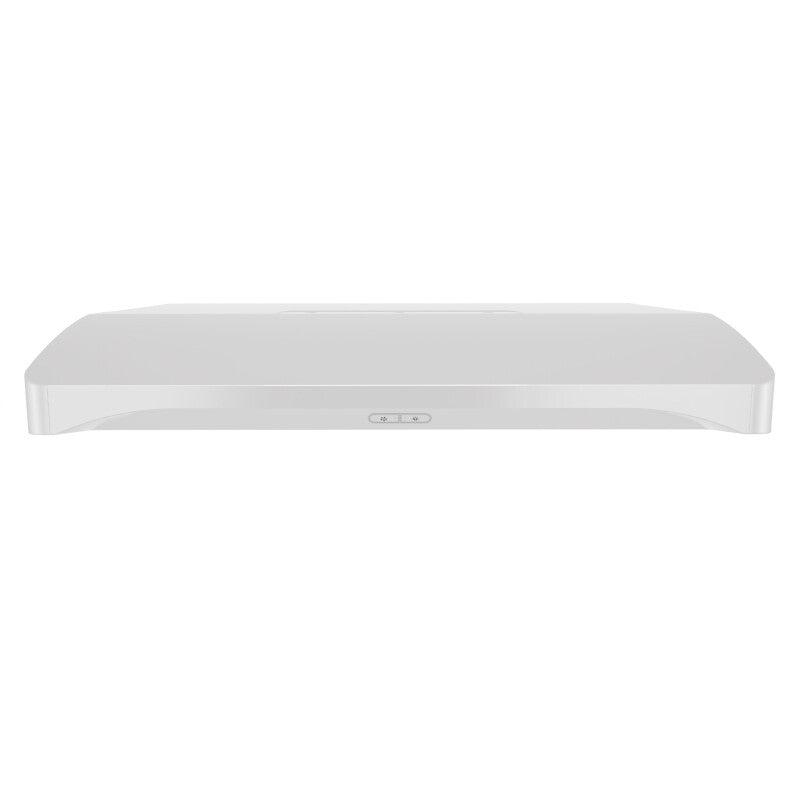

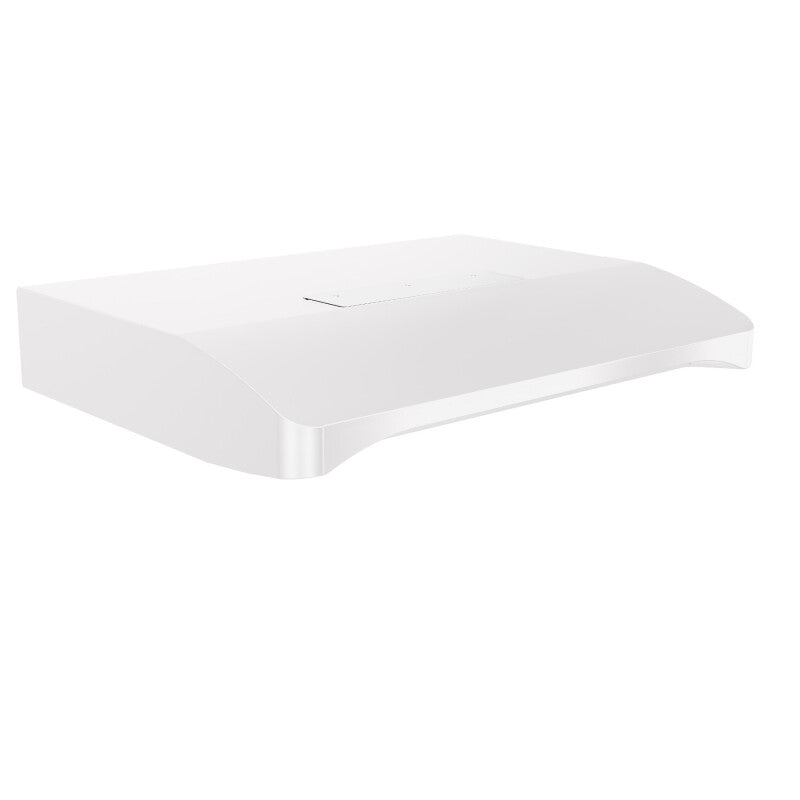

Broan ALT230WW Elite 30Inch Convertible UnderCabinet Range Hood, , 375 Max Blower CFM White

Quick Specification More details

Width:
30"
Depth:
22
Height:
5"
Type:
Under Cabinet Hoods

About this product

1-Person Installation in Half the Time

Summer Sale

Clearance

SKU: ALT230WW

Broan ALT230WW Elite 30Inch Convertible UnderCabinet Range Hood, , 375 Max Blower CFM White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
22
Height:
5"
Type:
Under Cabinet Hoods

About this product

1-Person Installation in Half the Time

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan ALT230WW

Technical Details

Product details

Filter Type	Deluxe Micro Mesh
Heat Sentry™	No
HVI Certified	Yes
Lighting Type	LED
UL Listed	Yes
ADA Compliance	Yes
Damper Included	No
ENERGY STAR® certified	No
Light Bulb Wattage	4.5
Light Bulbs Included	Yes
Light Levels	2
Material	Steel
Nightlight Or Nighlight Setting	No
Ductless Recirculation Capable	Yes
Ductless Filter Or Kit Included	No
Remote Operation Capable	No
Speed Levels	3
Switch Control Type	Capacitive Touch
Rated Voltage	120
Boost Mode	No
Country of Origin	Mexico
Rated Amps	0.65
Product Depth	22
Product Height	5"
Product Width	30"
Built-In Timer	No
Capture Efficiency	98.1
CFM	375 Max
Diameter	7" Round
Vent Type	Convertible Built-In
Duct Direction	Horizontal/Vertical
Bulb (Recommended Type)	Integrated LED Module
Light Color Temp	3000
Manufacturer Warranty	1 Year, 3 Year LED module
Wattage	78
Sound Level (Sones)	0.5

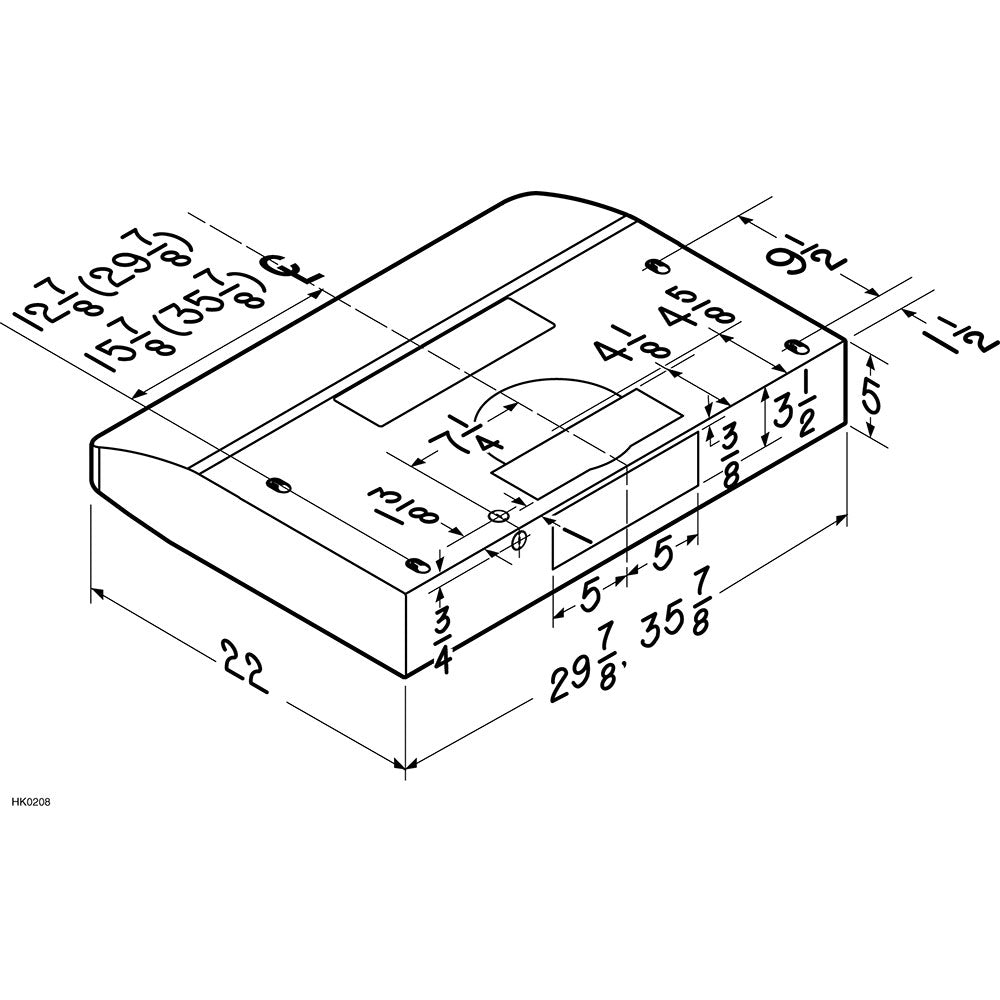

Dimensions & weight

Width	30 in.
Height	5 in.
Length	22 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.91 ft³
Dimensional Weight	23.74 lbs.
Total of Cubes	1.91 ft³
Total of Dimensional Weight	23.74 lbs.

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	34 in.
Shipping Depth	7.2 in.
Shipping Height	27 in.
Shipping Weight	26 lb.

Description

The sculpted lines of this Broan Elite under-cabinet range hood brings an exciting, new choice to typical range hood shapes. Wide curves and easy-to-use tap touch controls present a clean, striking design. LED modules included with this hood are the latest in LED cooktop illumination technology specially designed to operate in the elevated temperatures of cooking - offering bright lighting and lasting up to 25 times as long as a standard bulb and greater reliability than typical replacement LED bulbs. Our premium 3-speed capacitive touch controls deliver a powerful CFM of up to 300 - quickly removing smoke, grease, and odors from your range top. Pair this Broan Elite 30-inch range hood with any broan range for the perfect combination in home cooking.
