SKU: AE80S | UPC: 026715249268

Broan AE80S Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan White

Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan
Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan

Quick Specification More details

  • Width:
    12"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL Listed for use over tubs and showers with a GFCI circuit

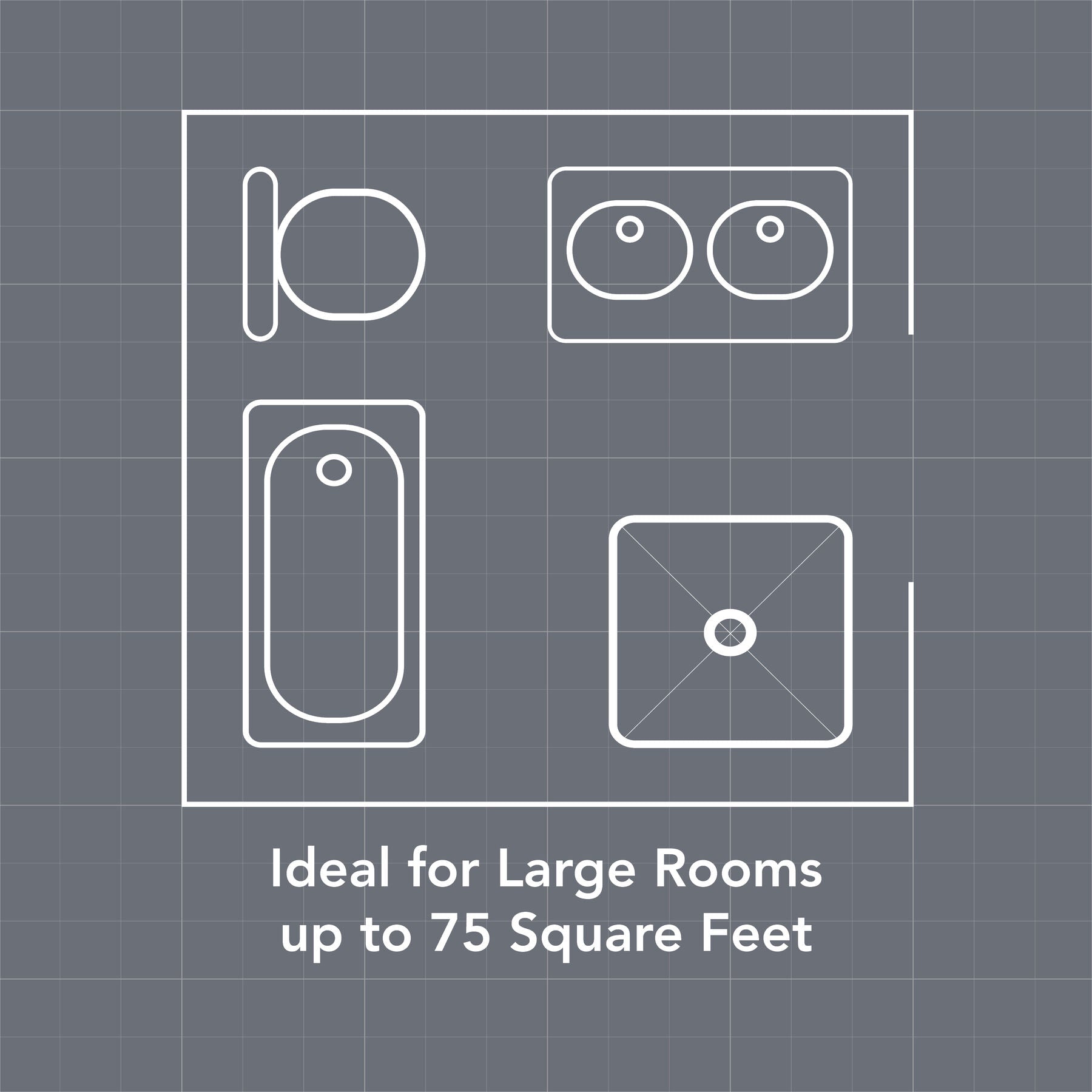

  • Powerful enough for rooms up to 75 sq. ft.

SKU: AE80S | UPC: 026715249268

Broan AE80S Flex™ Series 80 CFM 0.7 Sone Humidity Sensing Ventilation Fan White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    12"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL Listed for use over tubs and showers with a GFCI circuit
  • Powerful enough for rooms up to 75 sq. ft.

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan AE80S

Technical Details

Product details
CFM 80
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.5
Grille Width 12

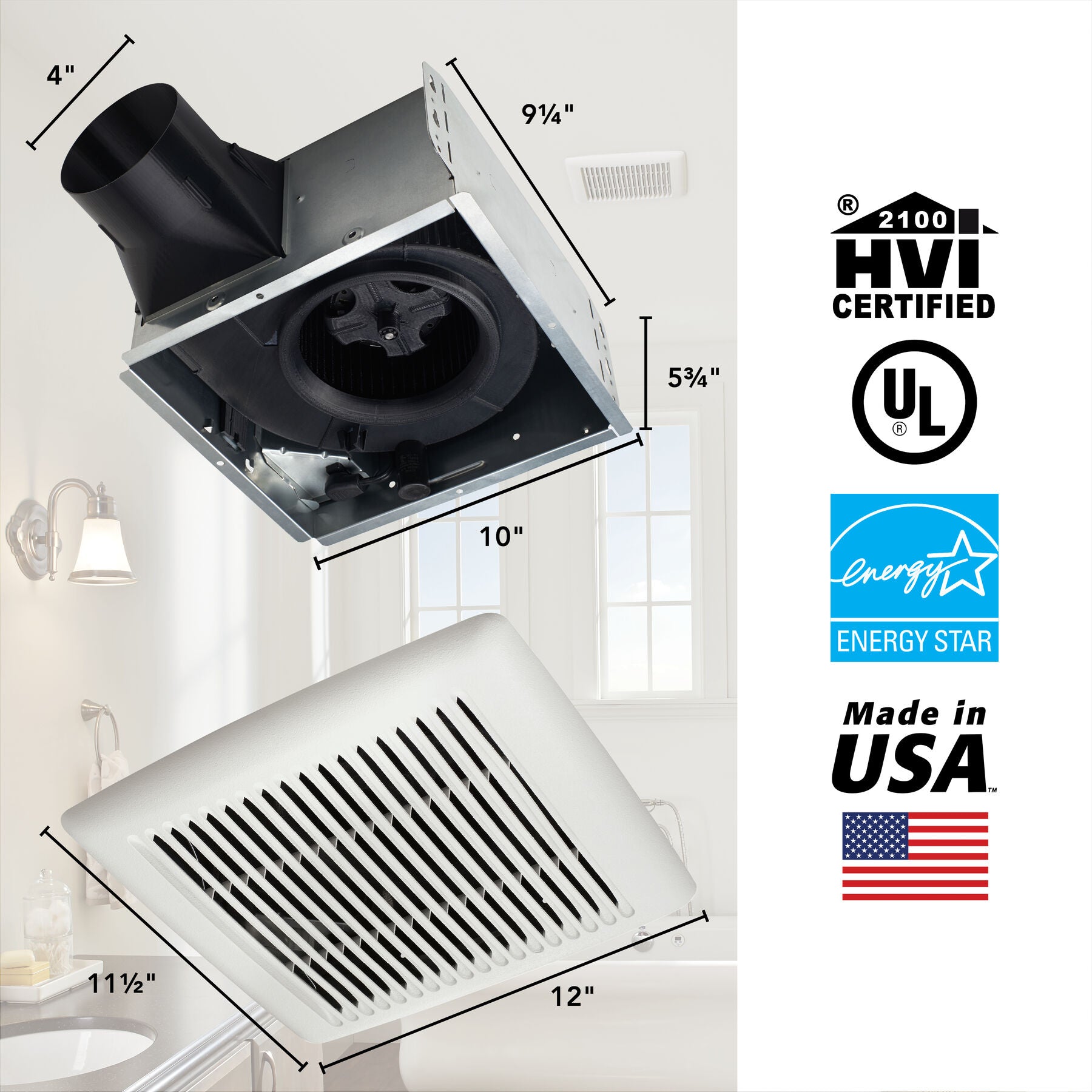

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 0.7
UL Listed Yes
Grille Finish White
Humidity Sensing Yes
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 75
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight
Width 12 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 17 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 0.37 ft³
Dimensional Weight 3.84 lbs.
Total of Cubes 0.37 ft³
Total of Dimensional Weight 3.84 lbs.

Description

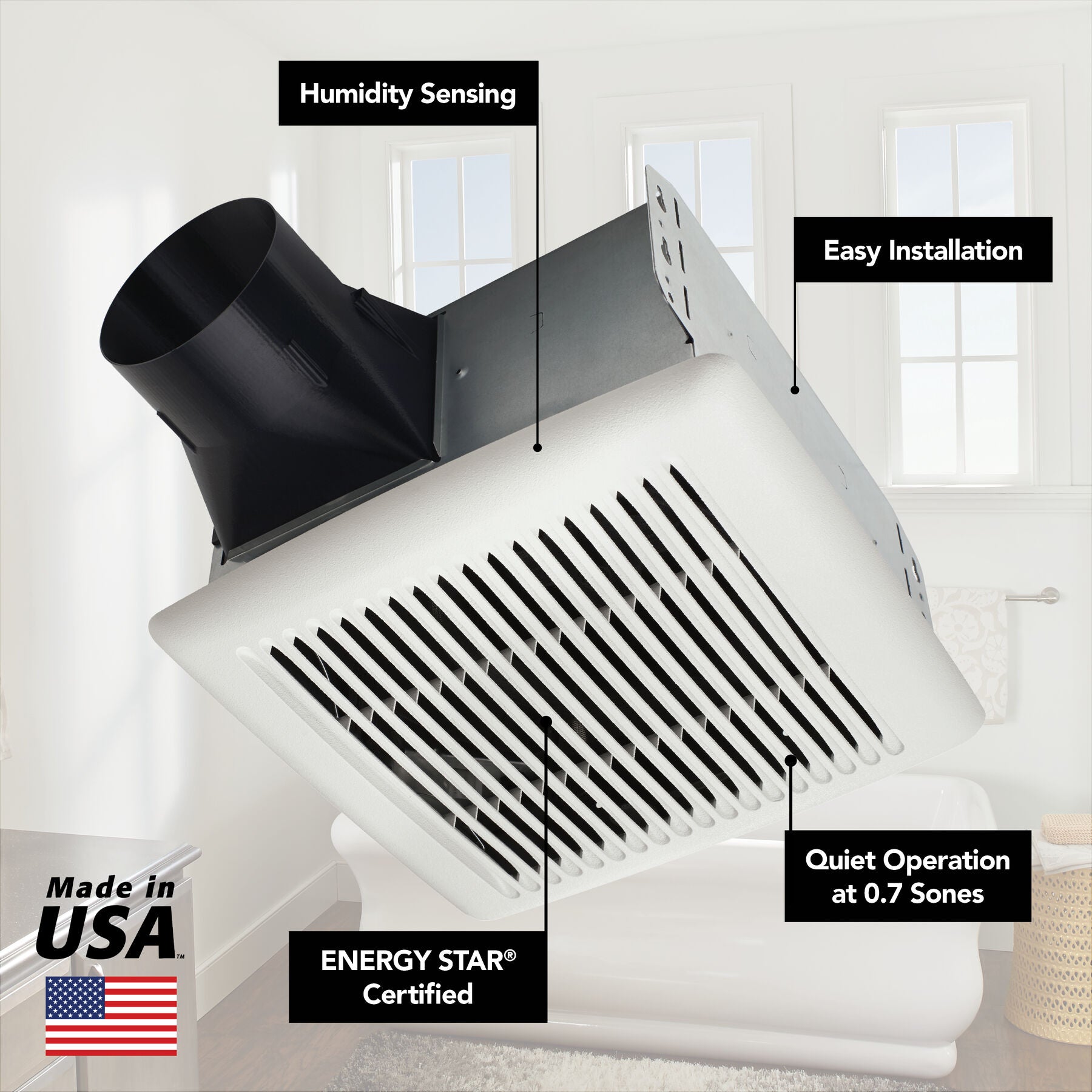

Broan® AE80S Roomside Series White 80 CFM Ceiling Exhaust Bath Fan, offers easy, room side installation, with No Attic Access Required. Ceiling mounted ventilation fan features foldable mounting ears and EzDuct™ connector for easy installation. The humidity sensing feature offers the flexibility to set a user-adjustable set-point to have moisture eliminated from the room without the need to turn the fan on manually. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 80 CFM and a very quiet 0.7 Sones.


Product Features

  • 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL Listed for use over tubs and showers with a GFCI circuit
  • Powerful enough for rooms up to 75 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • 0.7 Sones for Ultra quiet performance, you might not notice it's on
  • Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition

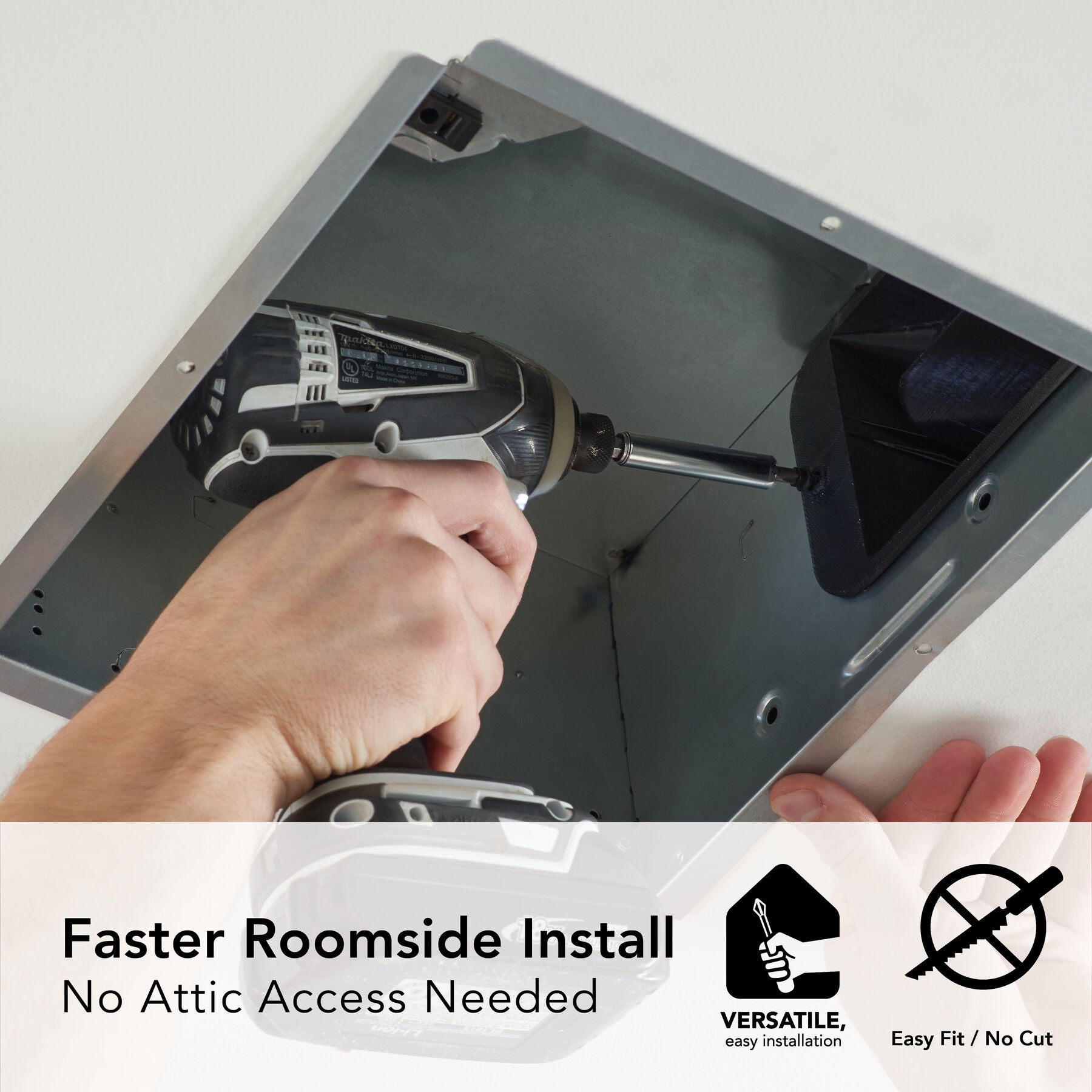

  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • ENERGY STAR® certified product
