Product Details for Broan AE80BF1
Technical Details
Product details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12 |

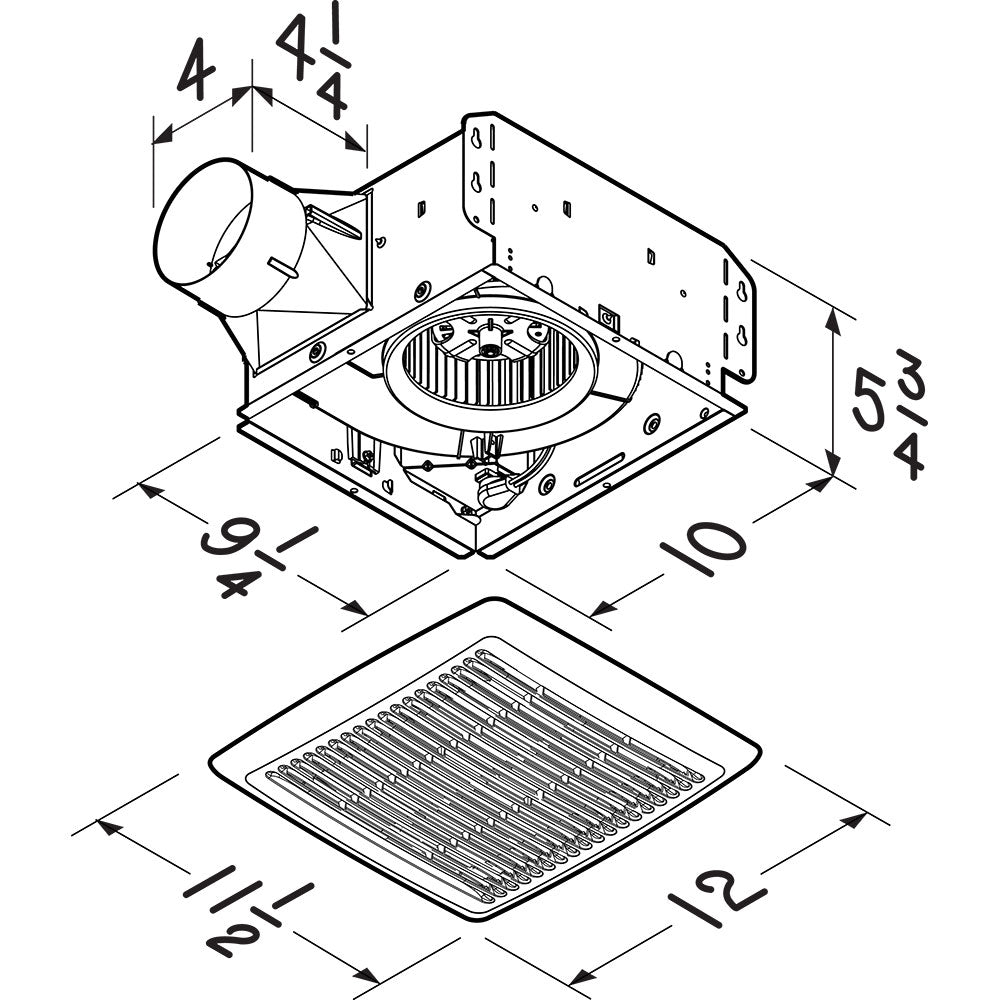

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & weight
| Width | 12 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 17 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.84 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.84 lbs. |
Description

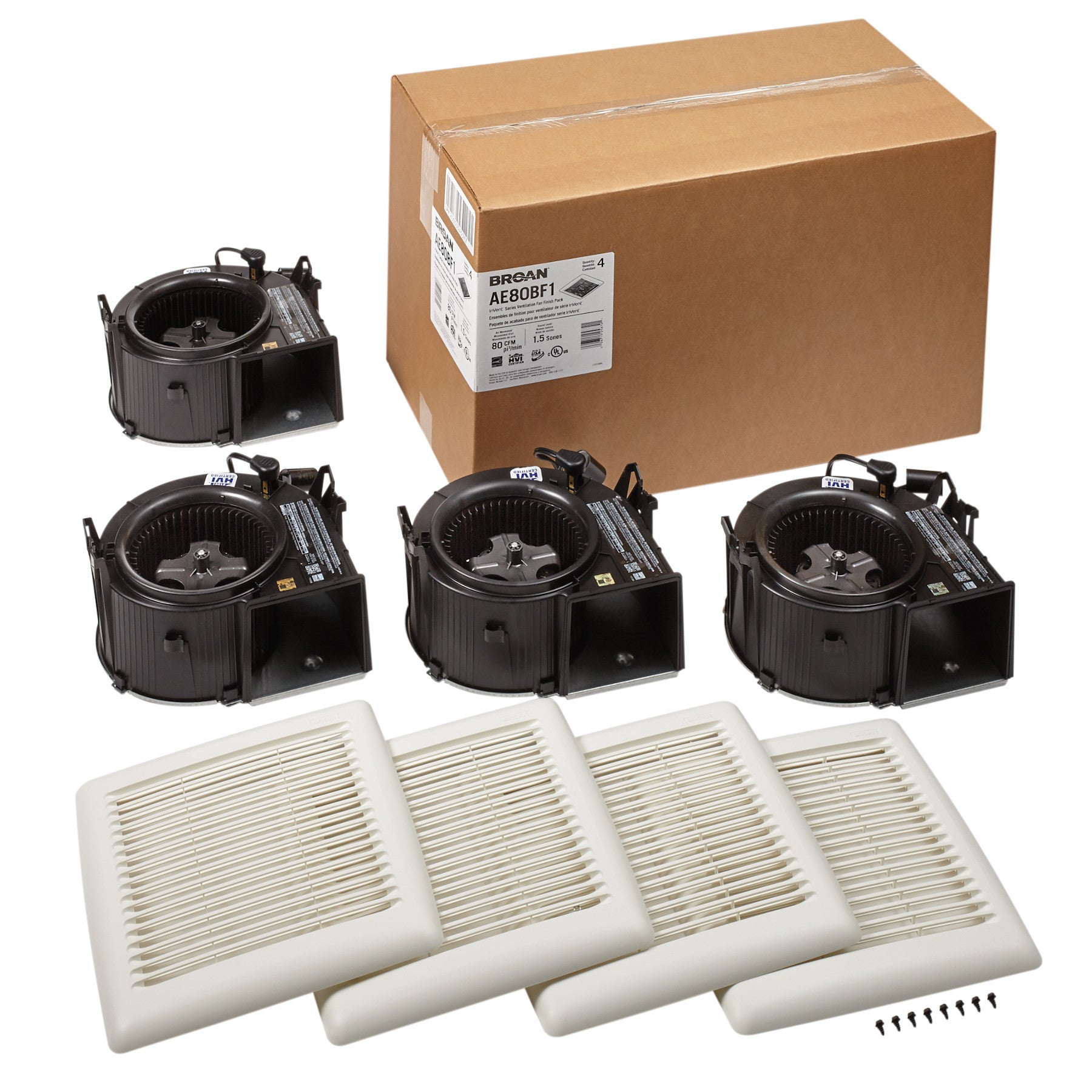

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.
Product Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Quiet performance, enough sound to know your fan is on.
- UL Listed for use over tubs and showers with a GFCI circuit
- Powerful enough for rooms up to 75 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- *Testing reflects total fan housing airtightness.
- TrueSeal™ Damper technology reduces air leakage up to 50%
- EzDuct™ connector can be installed from the room side, with no attic access required
- ENERGY STAR® Certified Product
