SKU: AE50110DCLF

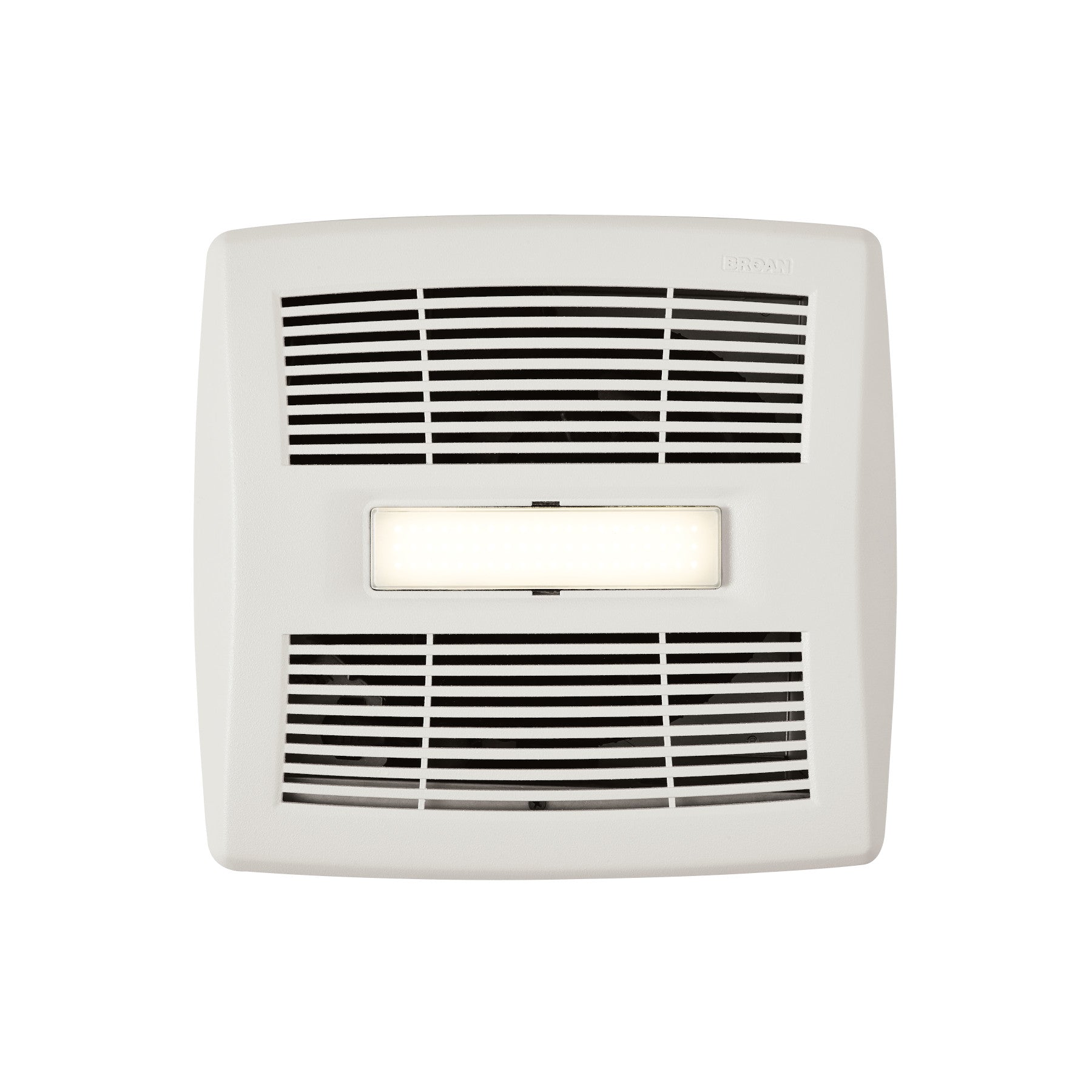

Broan AE50110DCLF Flex DC Series 5080110 Selectable CFM <0.30.40.9 Sones Ventilation Fan Light Finish Pack White

Quick Specification More details

Width:
12.5"
Depth:
5.75"
Height:
9.25"
Type:
Other

About this product

Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3500K energy efficient LED lighting to help illuminate your room
Can be installed in a wall if mounted 8-ft. or more above the floor
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

Summer Sale

Clearance

SKU: AE50110DCLF

Broan AE50110DCLF Flex DC Series 5080110 Selectable CFM <0.30.40.9 Sones Ventilation Fan Light Finish Pack White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
12.5"
Depth:
5.75"
Height:
9.25"
Type:
Other

About this product

Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3500K energy efficient LED lighting to help illuminate your room
Can be installed in a wall if mounted 8-ft. or more above the floor
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan AE50110DCLF

Technical Details

Product details

CFM	50-80-110
Duct Size	4
ENERGY STAR® certified	Yes
Grille Length	11.75
Grille Width	12.5

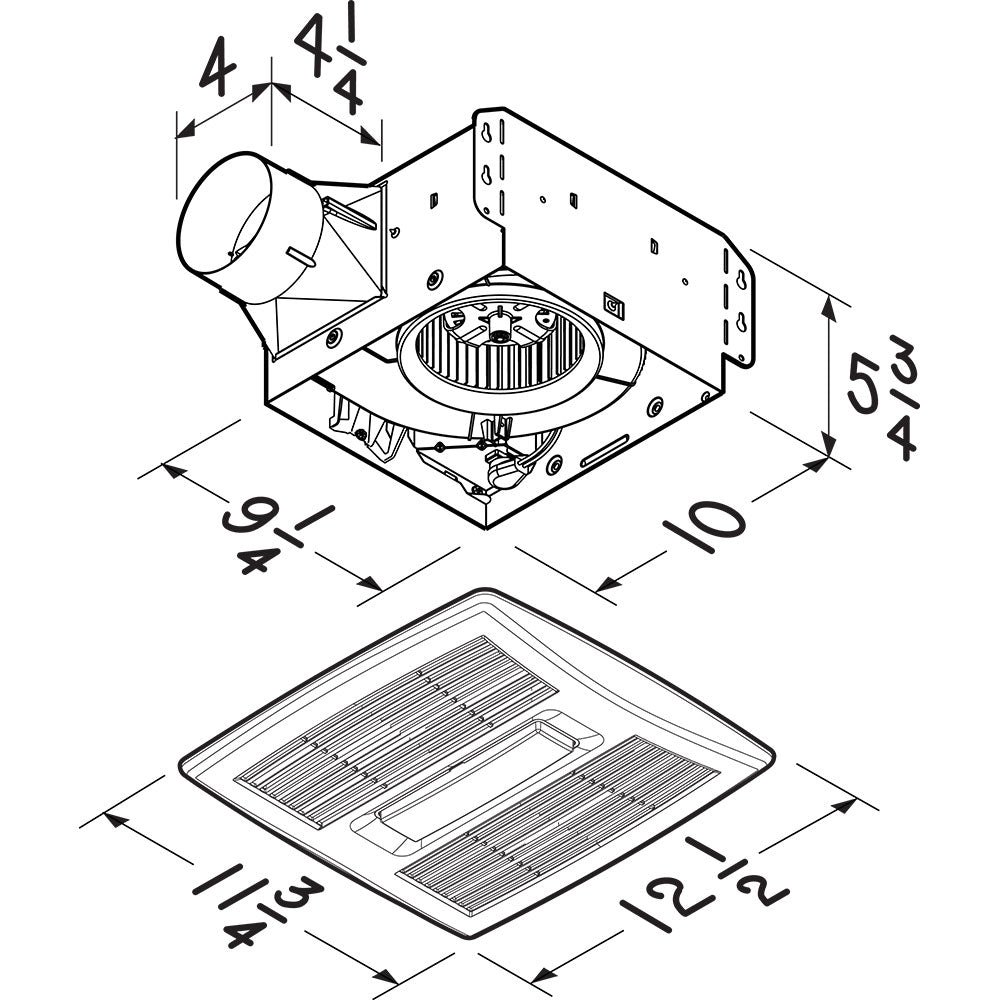

Housing Dimensions	9-1/4" x 10" x 5-3/4"
Sound Level (Sones)	0
UL Listed	Yes
Grille Finish	White
Humidity Sensing	No
Light Bulb Quantity	1
Motion Sensing	No
Motor Engineered For Continuous Operation	Yes
Night Light	No
Radiation Damper Available	Yes
Room Side Installation	Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	Yes
Heater Wattage	0
Recommended Room Size (Sq Ft)	105
Rated Amps	0.4
Voltage	120
Can Be Used To Comply With Title 24	No
Bulb (Recommended Type)	Integrated LED Module
Minimum Construction Space Required	2" x 6"
Manufacturer Warranty	3 Years
High Efficiency Luminaire	No
Minimum Recommended Flow	0

Dimensions & weight

Width	12.5 in.
Height	9.25 in.
Length	5.75 in.
Housing Dimensions	9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	17.5 in.
Shipping Height	14.25 in.
Shipping Length	10.75 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.38 ft³
Dimensional Weight	4.01 lbs.
Total of Cubes	0.38 ft³
Total of Dimensional Weight	4.01 lbs.

Description

Broan(R) Flex DC(TM) Series 50-80-110 Selectable CFM

Product Features

Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3500K energy efficient LED lighting to help illuminate your room
Can be installed in a wall if mounted 8-ft. or more above the floor
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
<0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
TrueSeal™ Damper technology reduces air leakage up to 50%
ENERGY STAR® certified product
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
