SKU: AE100BF1

Broan AE100BF1 Flex Series 100 CFM 1.0 Sones Ventilation Fan Finish Pack Energy Star White

Flex Series 100 CFM 1.0 Sones Ventilation Fan Finish Pack Energy Star

Quick Specification More details

  • Width:
    12"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 1.0 Sones for Quiet performance, enough sound to know your fan is on.
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

SKU: AE100BF1

Broan AE100BF1 Flex Series 100 CFM 1.0 Sones Ventilation Fan Finish Pack Energy Star White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    12"
  • Depth:
    5.75"
  • Height:
    9.25"
  • Type:
    Other

About this product

  • 1.0 Sones for Quiet performance, enough sound to know your fan is on.
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan AE100BF1

Technical Details

Product details
CFM 100
Duct Size 4
ENERGY STAR® certified Yes
Grille Length 11.5
Grille Width 12
Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available Yes
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 105
Rated Amps 0.3
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 3 Years
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight
Width 12 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 17 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 0.37 ft³
Dimensional Weight 3.84 lbs.
Total of Cubes 0.37 ft³
Total of Dimensional Weight 3.84 lbs.

Description

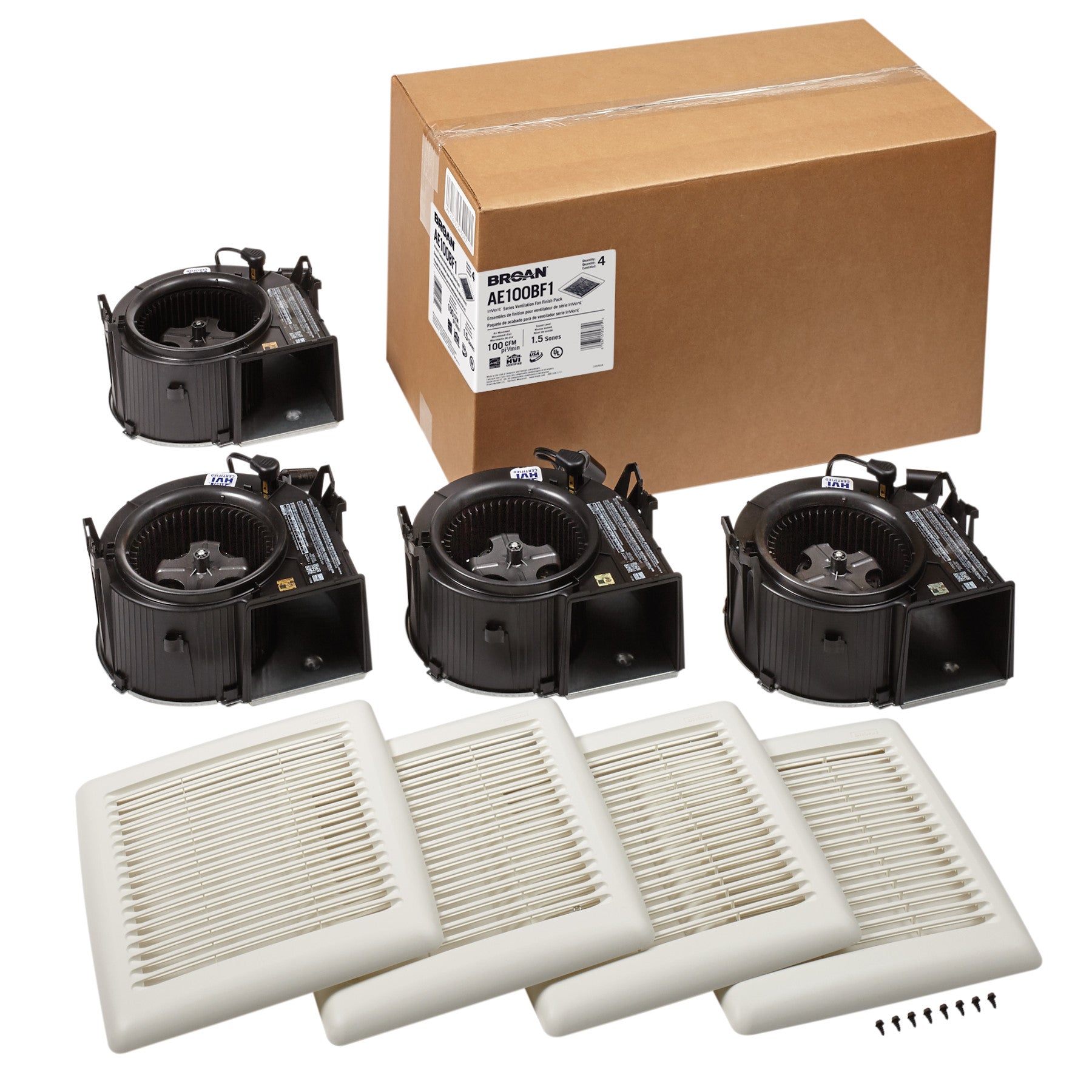

Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.


Product Features

  • 1.0 Sones for Quiet performance, enough sound to know your fan is on.
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • *Testing reflects total fan housing airtightness.
  • 100 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • ENERGY STAR® Certified for energy efficient operation
  • Powerful enough for rooms up to 90 sq. ft.
