Product Details for Broan A50L

Technical Details

Product details

CFM 50
Duct Size 4
ENERGY STAR® certified No
Grille Length 11.5
Grille Width 12.125

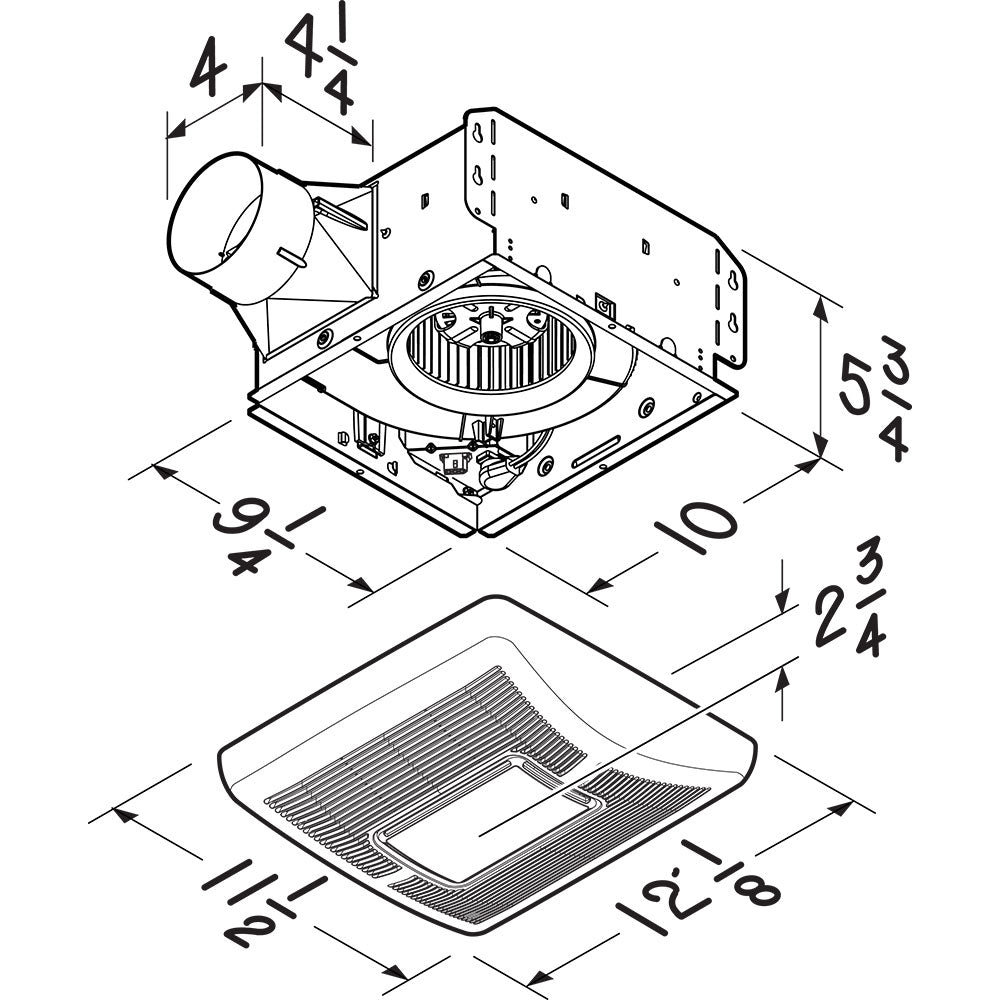

Housing Dimensions 9-1/4" x 10" x 5-3/4"
Sound Level (Sones) 1.5
UL Listed Yes
Grille Finish White Painted Enamel
Humidity Sensing No
Light Bulb Quantity 1
Motion Sensing No
Motor Engineered For Continuous Operation Yes
Night Light No
Radiation Damper Available No
Room Side Installation Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
Heater Wattage 0
Recommended Room Size (Sq Ft) 45
Rated Amps 1
Voltage 120
Can Be Used To Comply With Title 24 No
Bulb (Recommended Type) A19
Minimum Construction Space Required 2" x 6"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No
Minimum Recommended Flow 0

Dimensions & weight

Width 12.13 in.
Height 9.25 in.
Length 5.75 in.
Housing Dimensions 9-1/4" x 10" x 5-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 17.13 in.
Shipping Height 14.25 in.
Shipping Length 10.75 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.37 ft³
Dimensional Weight 3.88 lbs.
Total of Cubes 0.37 ft³
Total of Dimensional Weight 3.88 lbs.

Description

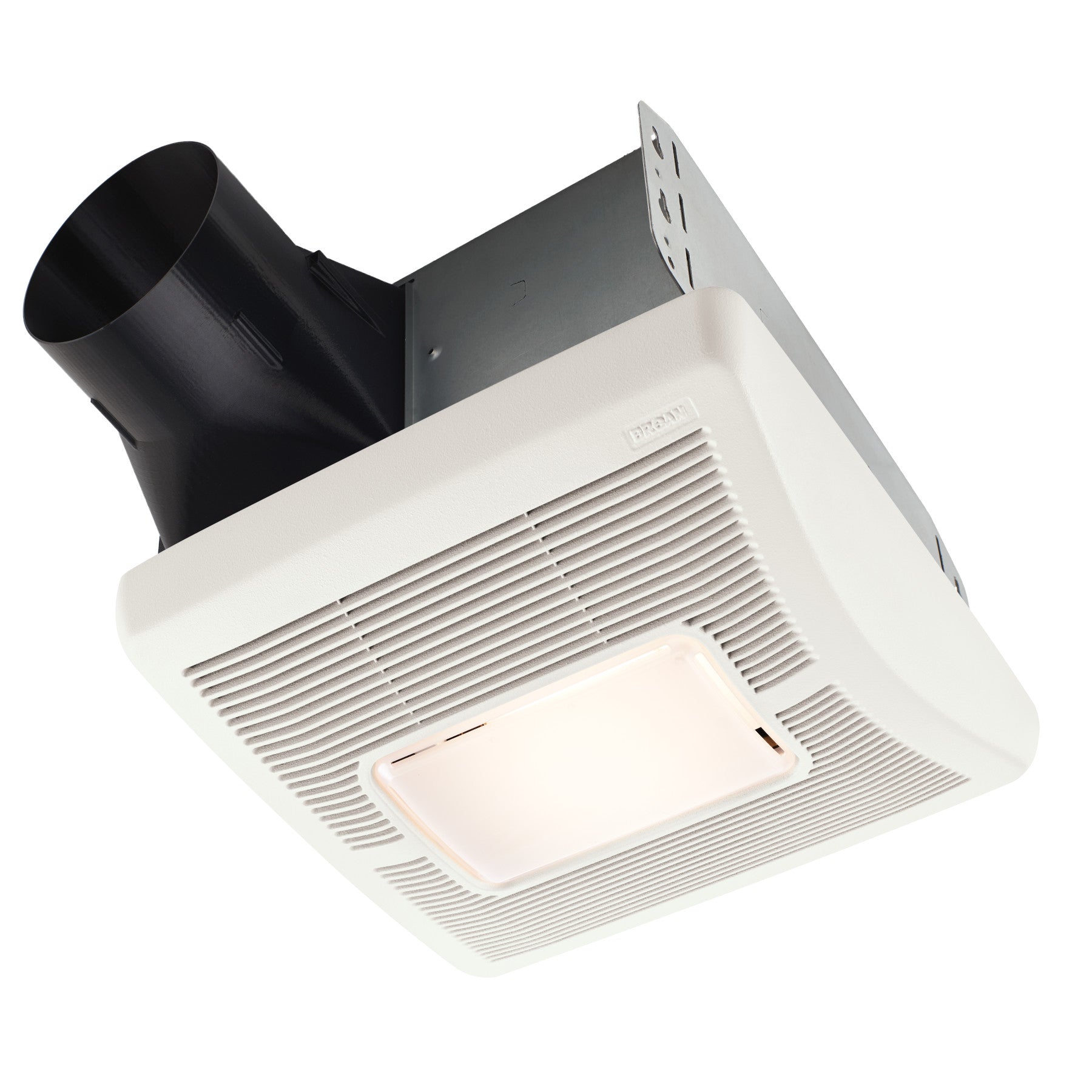

Broan Flex(TM) Series 50 CFM Single Speed Ceiling Room Side Installation Bathroom Exhaust Fan with Light



Product Features

  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 1.5 Sones for Quiet performance, enough sound to know your fan is on.

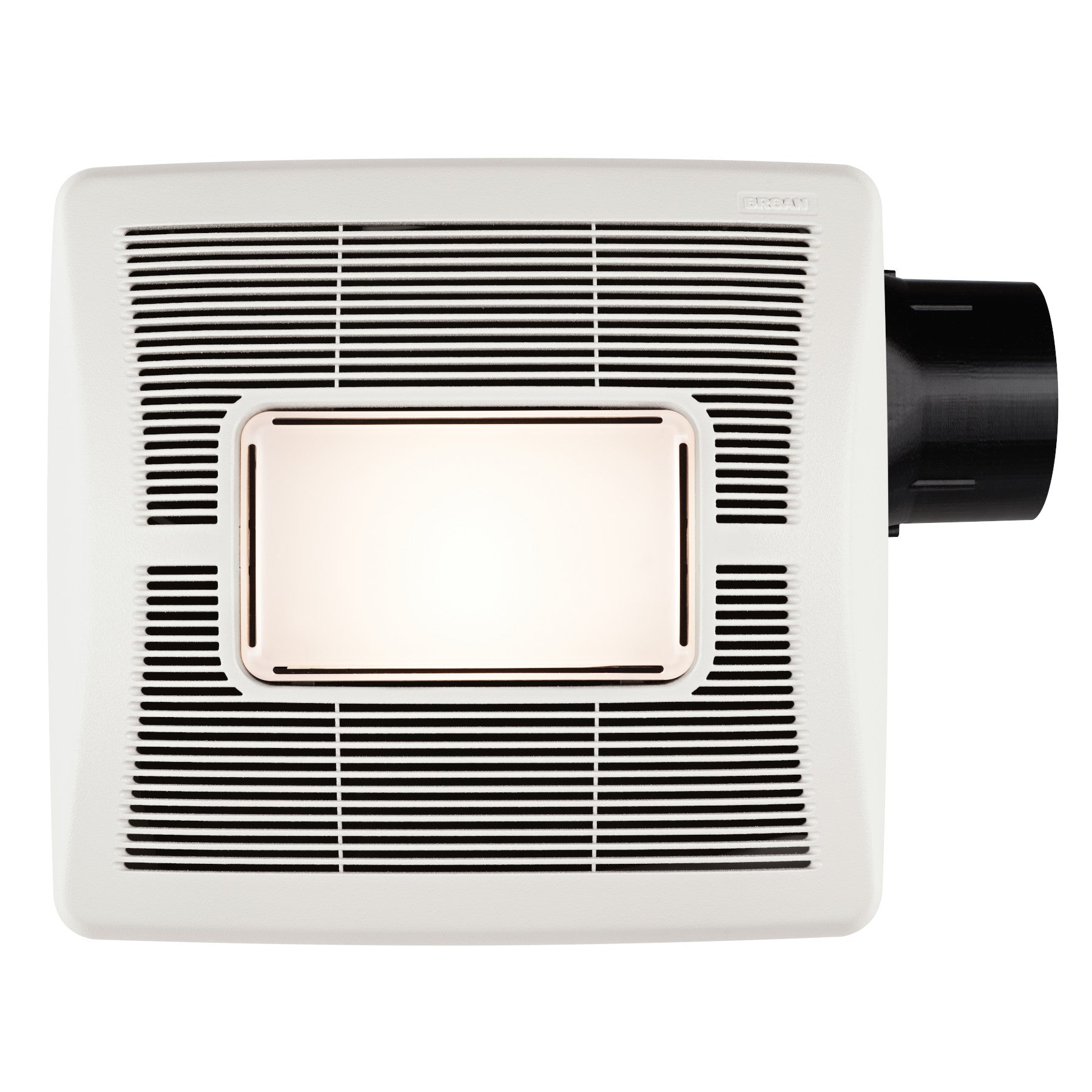

  • Uses one 100-watt maximum incandescent A19 type bulb or energy-efficient equivalent bulb with maximum overall length (M.O.L.) of 4.4 in. or less (bulb not included)
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use in insulated ceilings (type I.C.) and for use over bathtubs and showers when connected to a GFCI-protected branch circuit
  • Powerful enough for rooms up to 45 sq. ft.

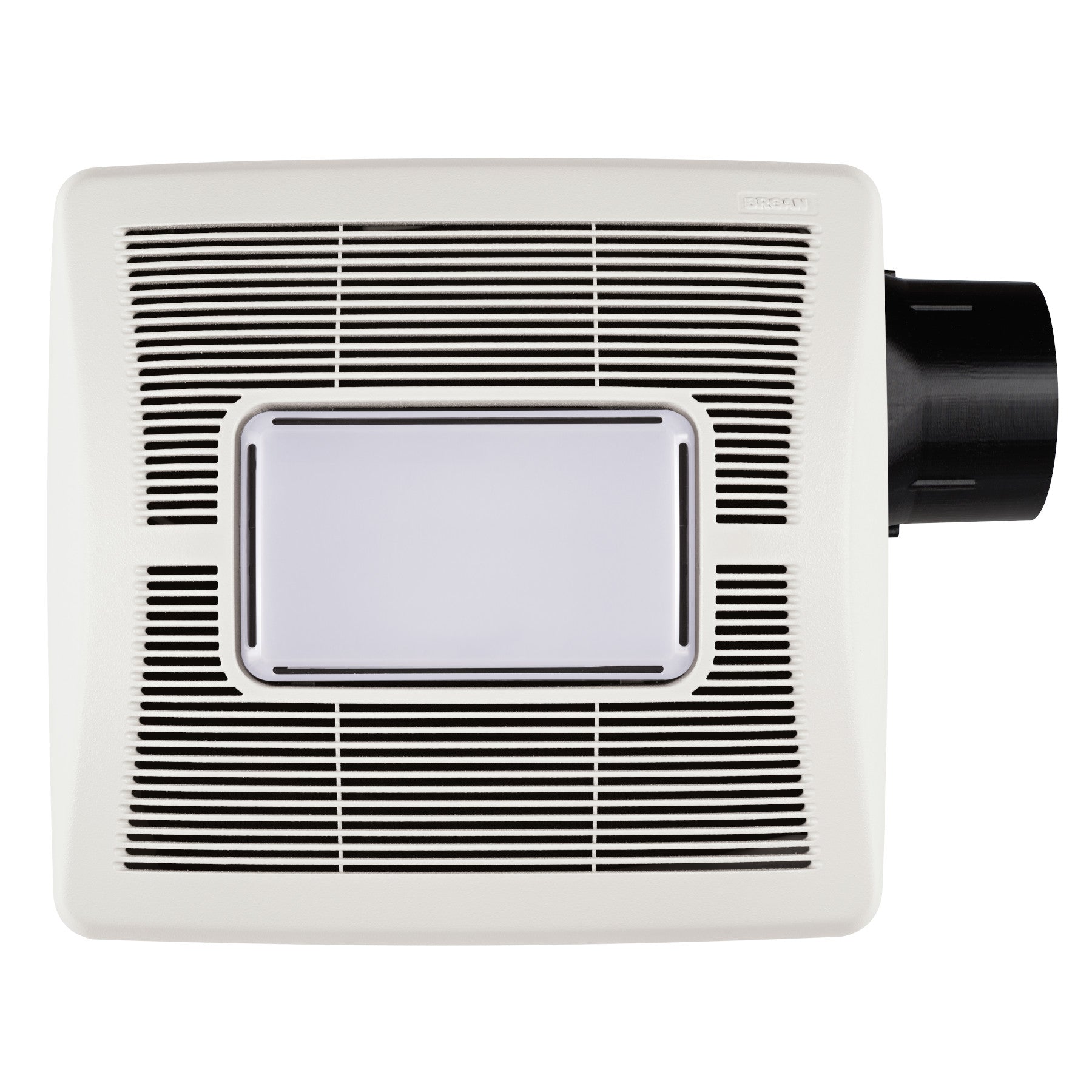

  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture

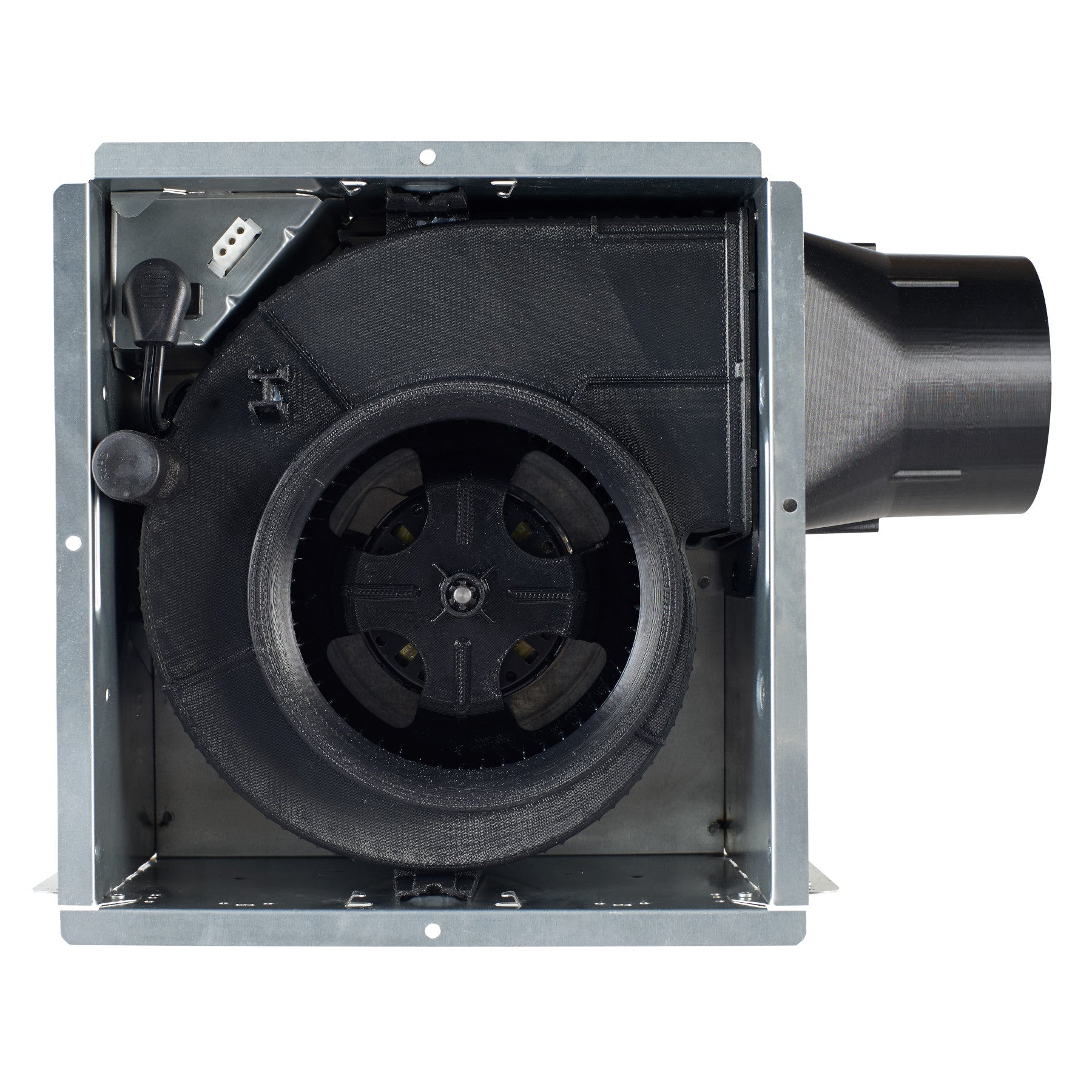

  • Permanently lubricated AC motor engineered for continuous operation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
