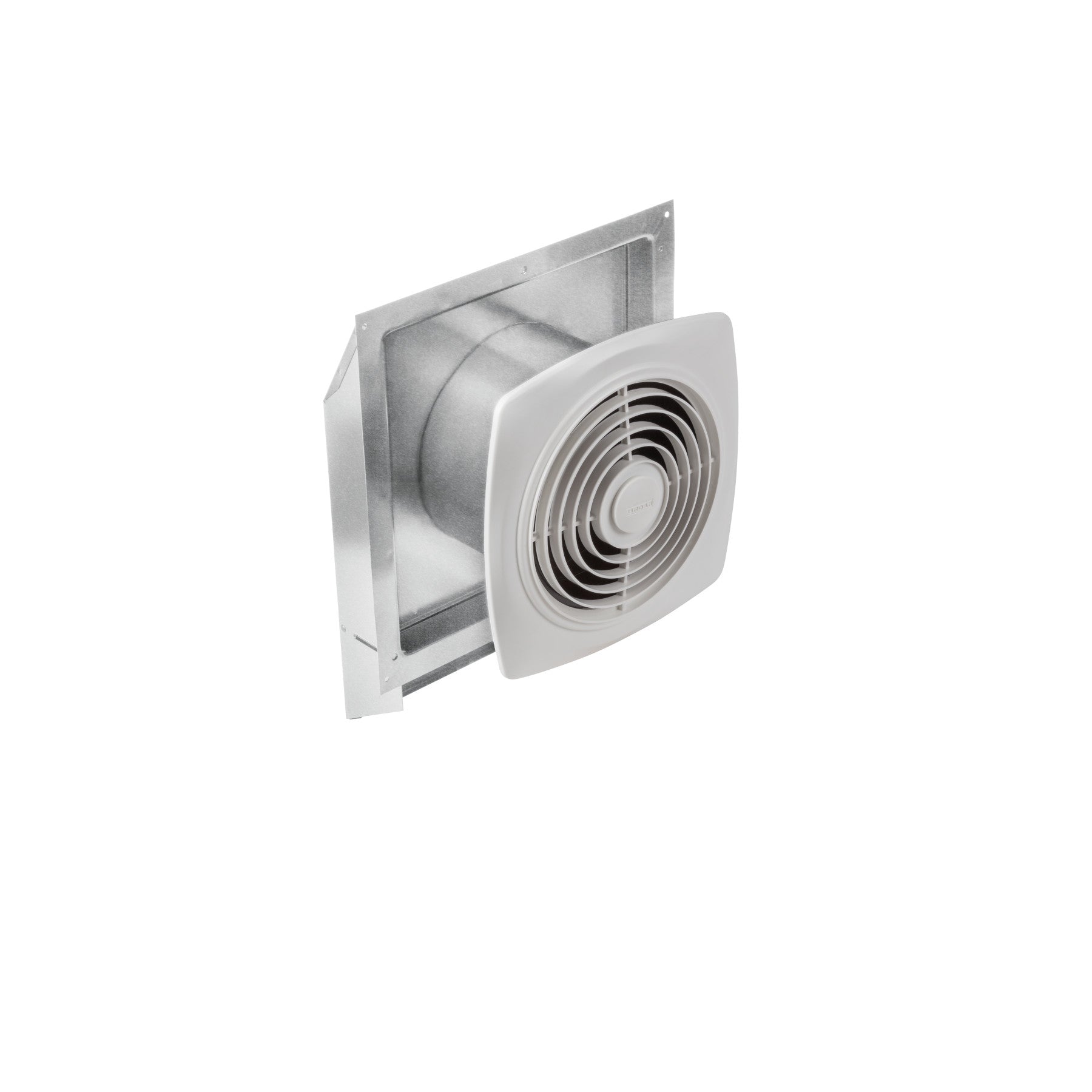

Broan 509 200 CFM Through-Wall Ventilation Fan White
Sale price
$146.12
Regular price
$224.97
Save
$78.85
/ 35% OFF
Quickship
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$146.12
Regular price
$224.97
Save
$78.85
/ 35% OFF
Product Details for Broan 509
Technical Details
Product details
| CFM | 200 |
| Duct Size | 8 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 11.5 |

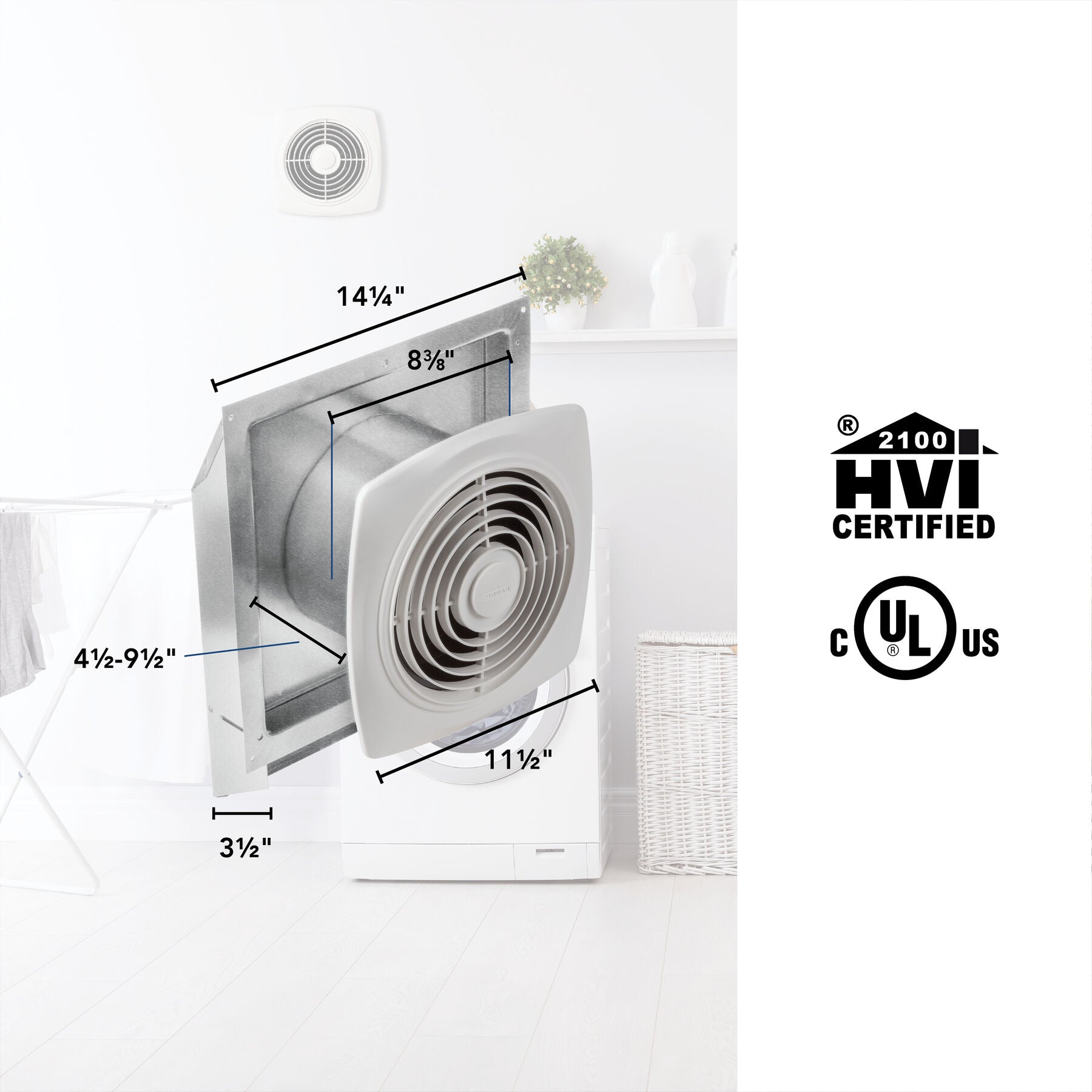

| Housing Dimensions | 14-1/4" x 14-1/4" x 9-1/2" |
| Sound Level (Sones) | 8.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 170 |
| Rated Amps | 1.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & weight
| Width | 11.5 in. |
| Height | 14.25 in. |
| Length | 9.5 in. |
| Housing Dimensions | 14-1/4" x 14-1/4" x 9-1/2" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 16.5 in. |
| Shipping Height | 19.25 in. |
| Shipping Length | 14.5 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.9 ft³ |
| Dimensional Weight | 9.38 lbs. |
| Total of Cubes | 0.9 ft³ |
| Total of Dimensional Weight | 9.38 lbs. |
Description
Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 200 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 195 sq. ft, including one car garages, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately.)
Product Features
- 200 CFM - ventilate up to 195 sq. ft.
- 8.5 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

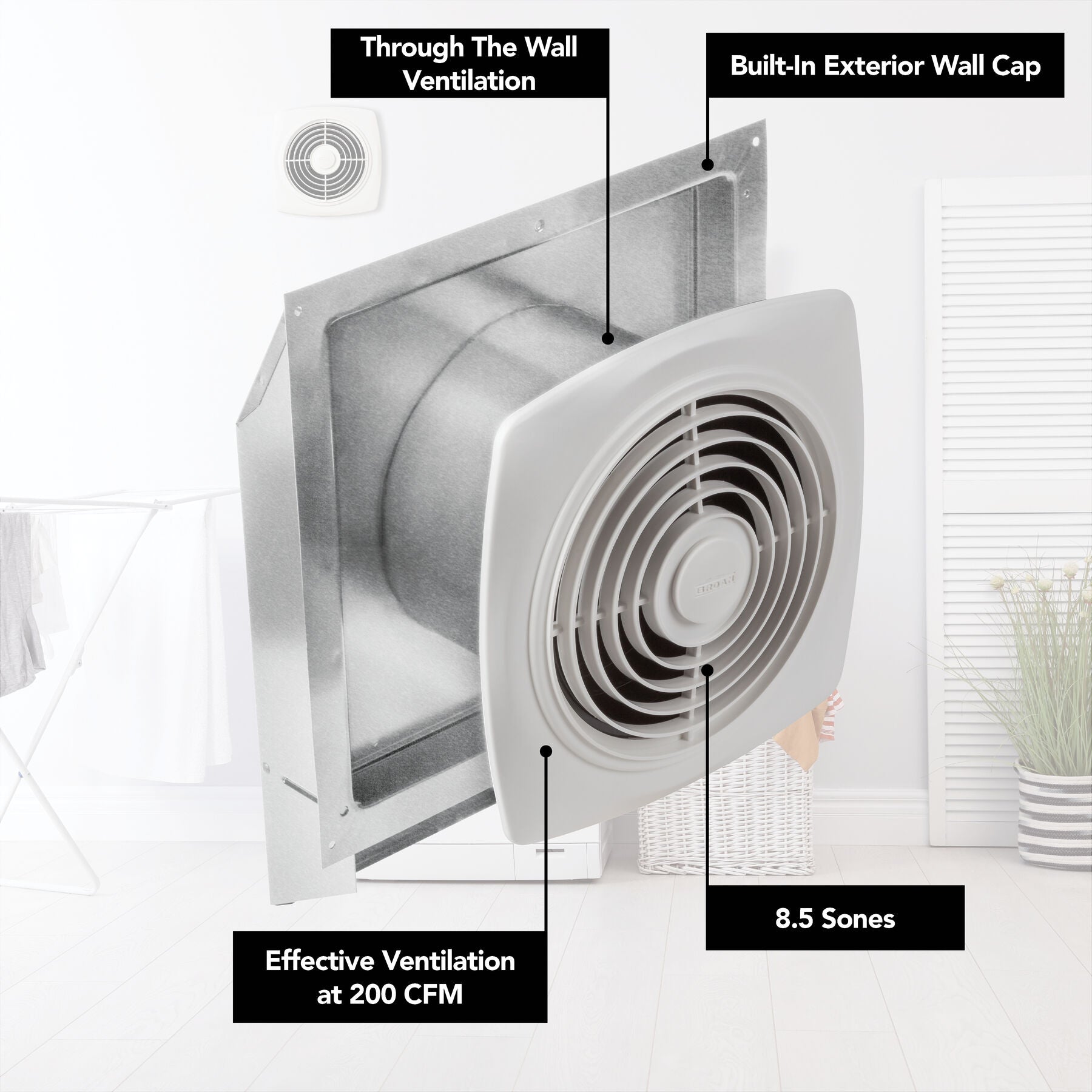

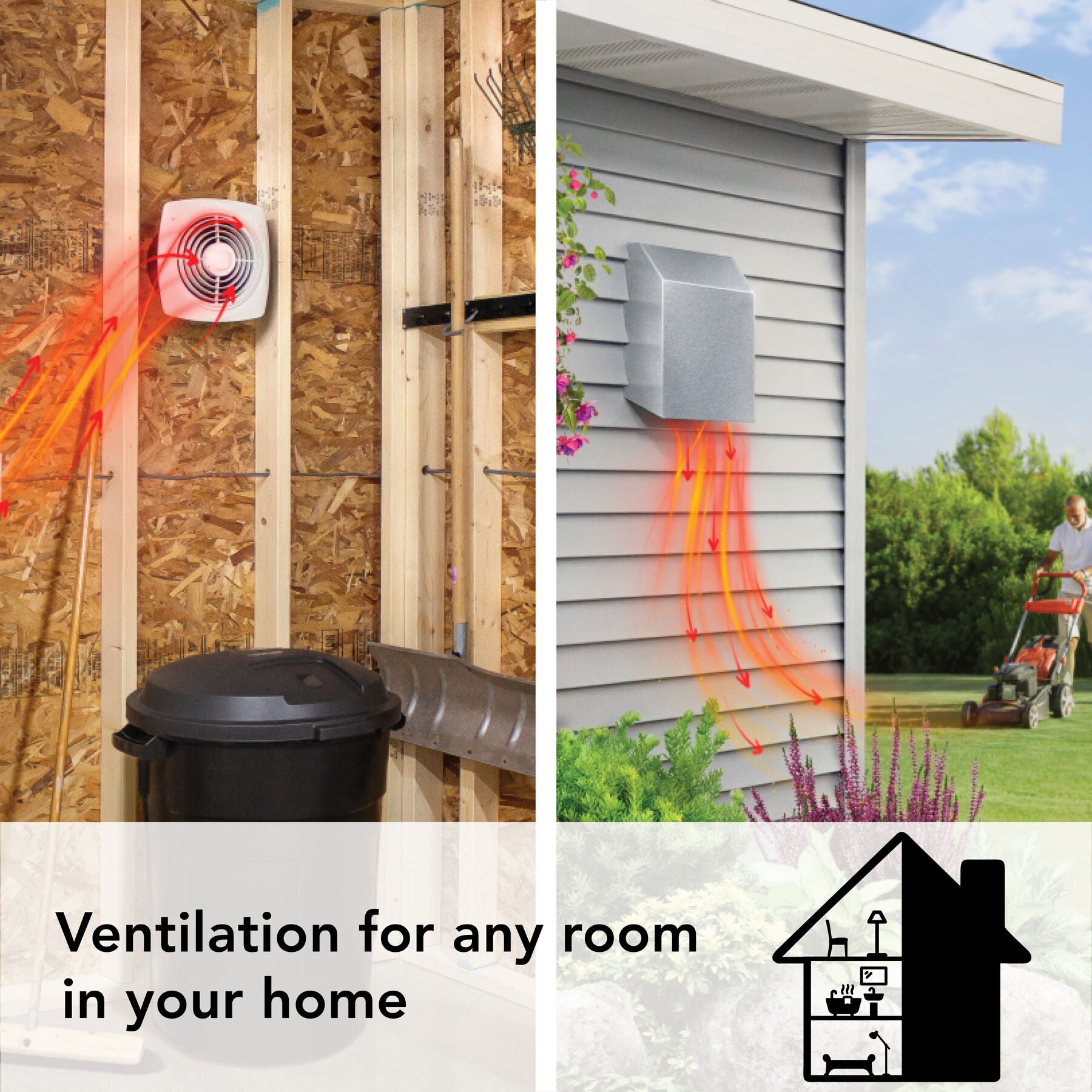

- Built-in exterior wall cap/vent, no ducting needed for installation

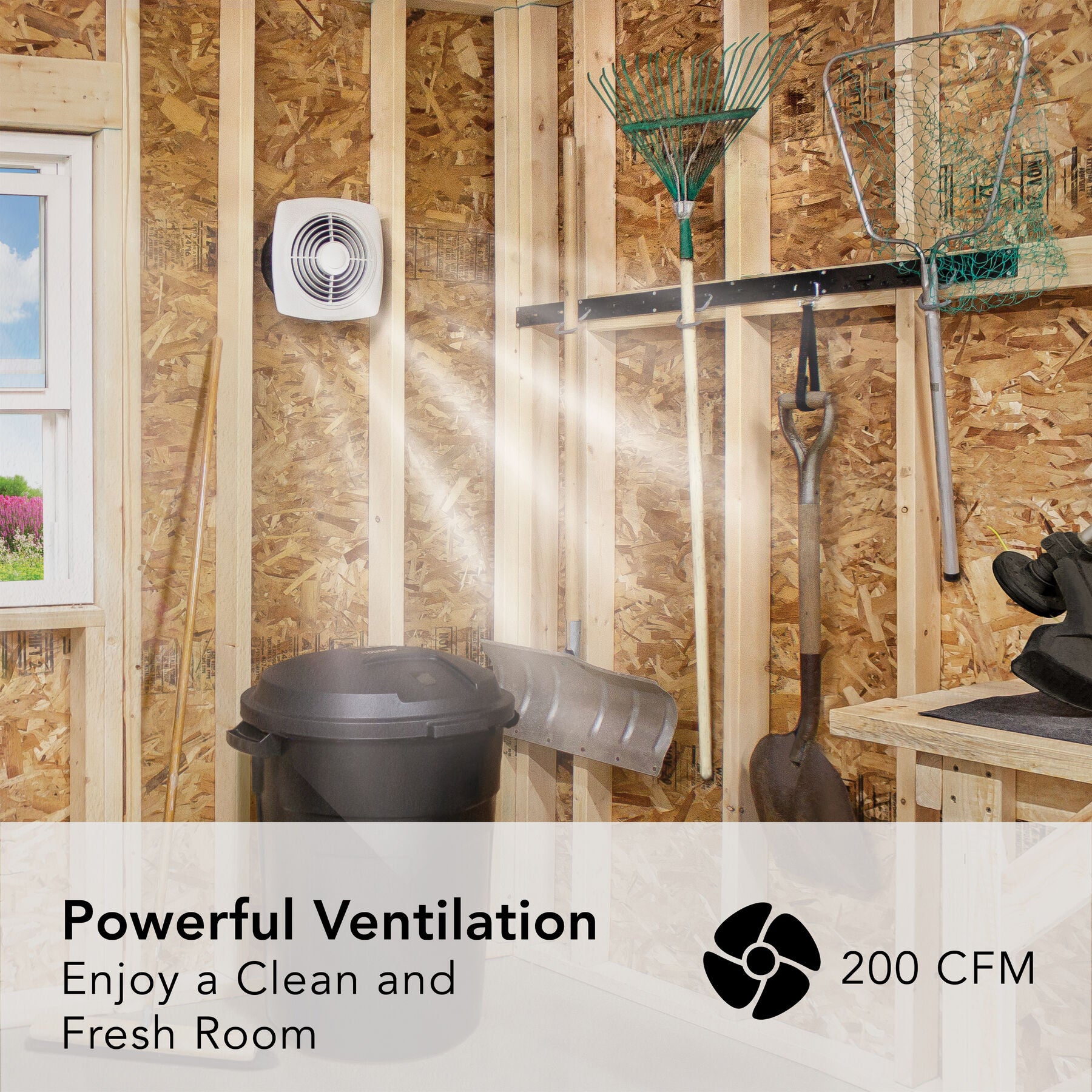

- Effectively ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 4½"–9½" thick
- Galvanized steel housing for superior protection against the elements and wear and tear
- Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (wall control sold separately)
- Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (wall control sold separately)
