SKU: 194 | UPC: 026715022656

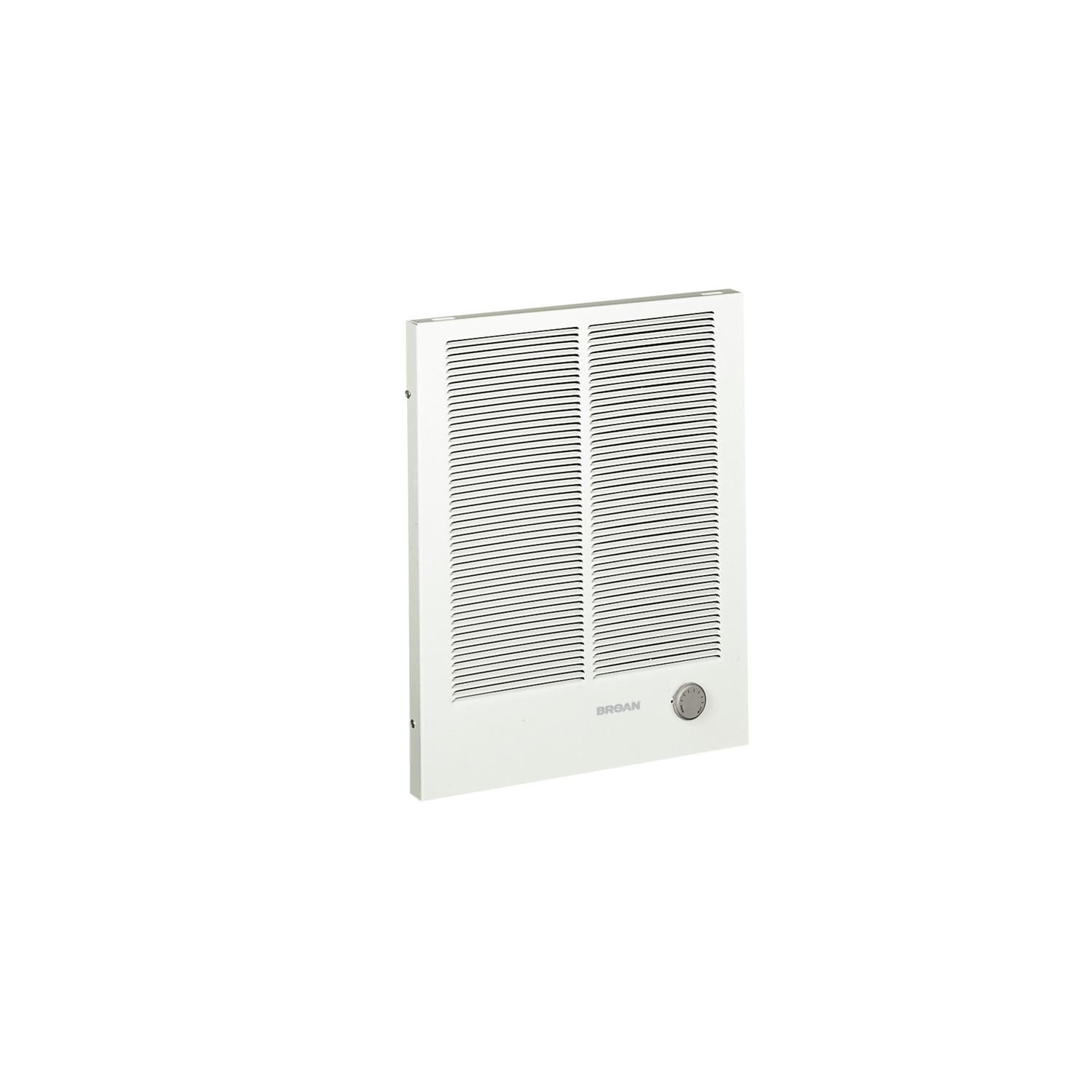

Broan 194 Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC White

Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC
Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC
Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC
Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC

Quick Specification More details

  • Width:
    16.38"
  • Depth:
    3.75"
  • Type:
    Other

About this product

  • 3,000-watt heater at 240 volts can be converted to produce 1,125 watts at 208 VAC, 1,500 watts at 240 VAC or 2,250 watts at 208 VAC
  • Adjustable, built-in heavy-duty disc-type thermostat with a security cover
  • Steel-sheathed, plate-finned, heavy-duty enclosed heating element provides quick and quiet heat
  • High-capacity, factory-wired design

SKU: 194 | UPC: 026715022656

Broan 194 Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    16.38"
  • Depth:
    3.75"
  • Type:
    Other

About this product

  • 3,000-watt heater at 240 volts can be converted to produce 1,125 watts at 208 VAC, 1,500 watts at 240 VAC or 2,250 watts at 208 VAC
  • Adjustable, built-in heavy-duty disc-type thermostat with a security cover
  • Steel-sheathed, plate-finned, heavy-duty enclosed heating element provides quick and quiet heat
  • High-capacity, factory-wired design
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Broan 194

Technical Details

Product details
Auto Shut-off Yes
cUL Listed No
Heater Type Fan-Forced Wall
Number Of Heat Settings Variable (Infinite)
Project Pack No
Thermostat Yes
UL Listed Yes
Coverage Area (sq ft) 200-300
BTU/hr at 120 Volts 0
BTU/hr at 208 Volts 7680
BTU/hr at 240 Volts 10204
Grille Dimensions - Width 16.375
Housing Length/Depth 3.75
Watts And Amps At 208 Volts 10.82
Watts And Amps At 240 Volts 12.5
Watts at 208 VAC 2250
Watts at 240 VAC 3000
Manufacturer Warranty 1 Year

Dimensions & weight
Width 16.38 in.
Length 3.75 in.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 21.38 in.
Shipping Length 8.75 in.
Source Calculation

Description

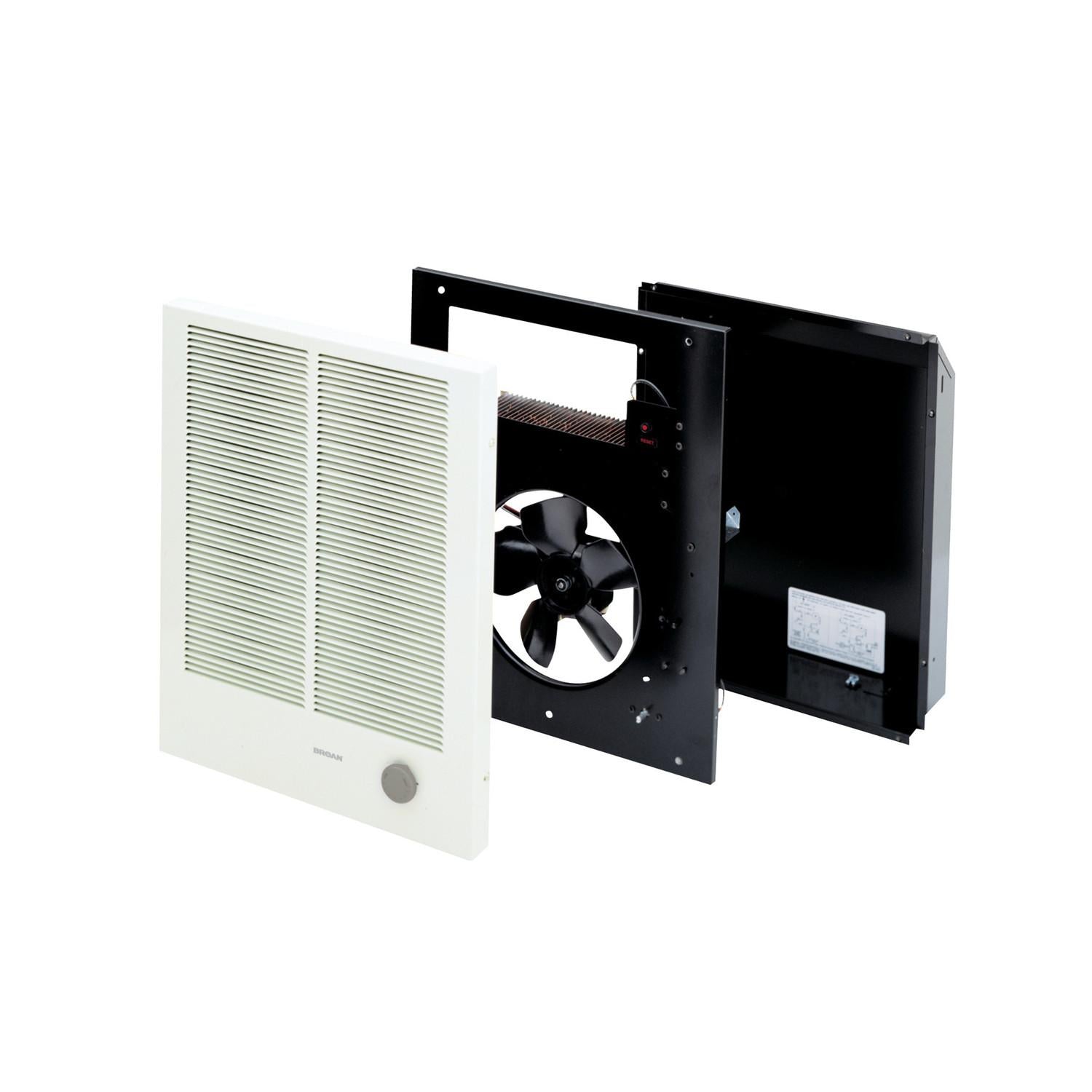

The 16-13/32 in. x 20-19/64 in. 3,000-Watt White High-Capacity Wall Heater comes with an adjustable, built-in heavy-duty disc-type thermostat for temperature regulation and a protective security cover. This wall heater offers a lubricated motor that helps provide years of convenient maintenance-free operation.


Product Features

  • 3,000-watt heater at 240 volts can be converted to produce 1,125 watts at 208 VAC, 1,500 watts at 240 VAC or 2,250 watts at 208 VAC
  • Adjustable, built-in heavy-duty disc-type thermostat with a security cover
  • Steel-sheathed, plate-finned, heavy-duty enclosed heating element provides quick and quiet heat
  • High-capacity, factory-wired design
  • Lubricated motor helps provide years of trouble-free operation
  • UL listed
