SKU: 110RDF | UPC: 026715146116

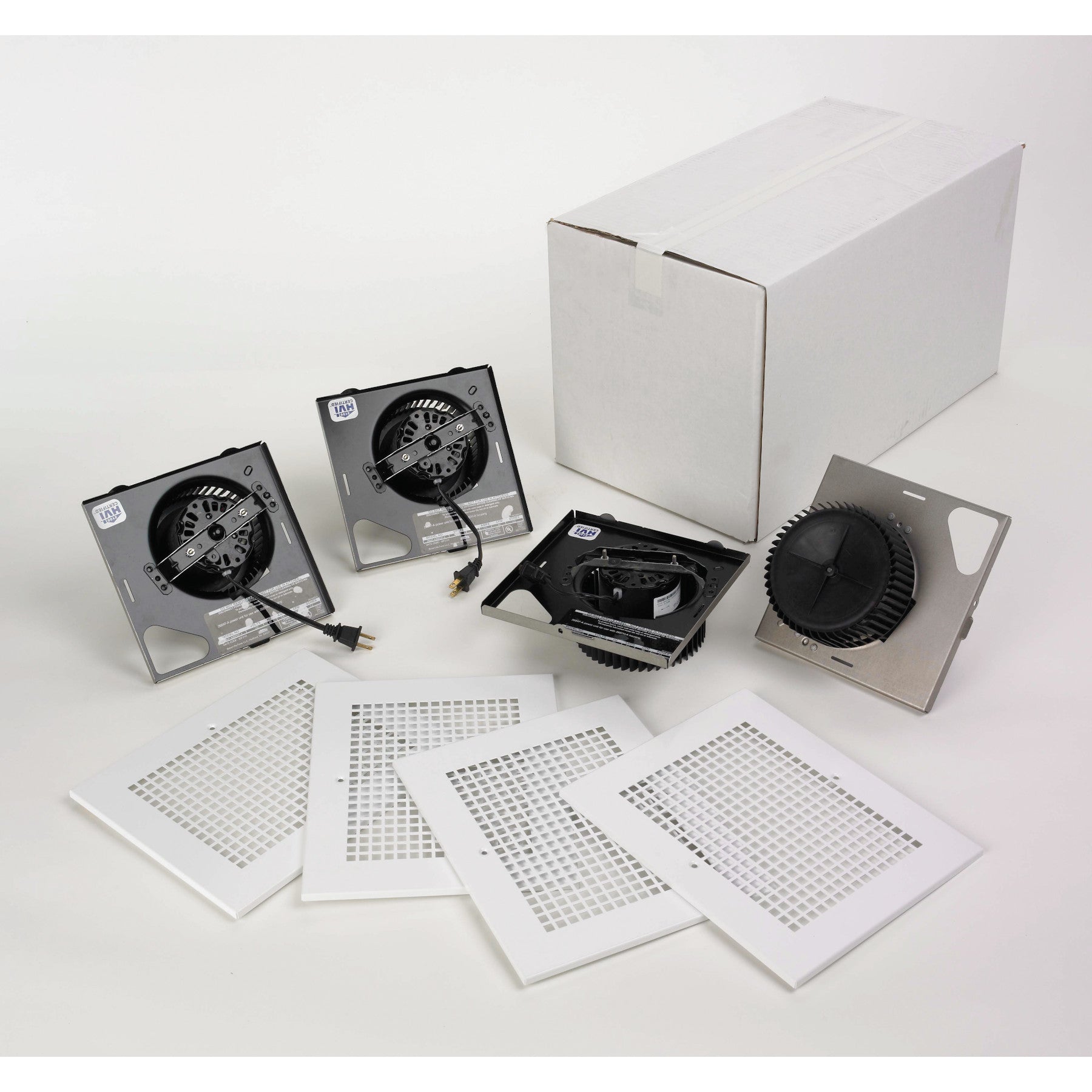

Broan 110RDF 110 CFM Ventilation Fan Blower Finish Pack with Metal Grille, 4.0 Sones White

Quick Specification More details

Width:
9.5"
Depth:
8.75"
Height:
8.25"
Type:
Blowers

About this product

110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
4.0 Audible Sones for privacy while using your bathroom
Built-in backdraft damper for easy duct connection
Warnock Hersey Listed

Summer Sale

Clearance

SKU: 110RDF | UPC: 026715146116

Broan 110RDF 110 CFM Ventilation Fan Blower Finish Pack with Metal Grille, 4.0 Sones White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
9.5"
Depth:
8.75"
Height:
8.25"
Type:
Blowers

About this product

110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
4.0 Audible Sones for privacy while using your bathroom
Built-in backdraft damper for easy duct connection
Warnock Hersey Listed

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Broan 110RDF

Technical Details

Product details

CFM	110
Duct Size	4
ENERGY STAR® certified	No
Grille Length	11.625
Grille Width	9.5
Housing Dimensions	8-1/4" x 8" x 8-3/4"
Sound Level (Sones)	4
UL Listed	Yes
Grille Finish	White
Humidity Sensing	No
Motion Sensing	No
Motor Engineered For Continuous Operation	No
Night Light	No
Radiation Damper Available	Yes
Room Side Installation	No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit	No
Heater Wattage	0
Recommended Room Size (Sq Ft)	105
Rated Amps	1.3
Voltage	120
Can Be Used To Comply With Title 24	No
Minimum Construction Space Required	2" x 10"
Manufacturer Warranty	1 Year
High Efficiency Luminaire	No

Dimensions & weight

Width	9.5 in.
Height	8.25 in.
Length	8.75 in.
Housing Dimensions	8-1/4" x 8" x 8-3/4"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	14.5 in.
Shipping Height	13.25 in.
Shipping Length	13.75 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.4 ft³
Dimensional Weight	4.13 lbs.
Total of Cubes	0.4 ft³
Total of Dimensional Weight	4.13 lbs.

Description

Broan(R) 110 CFM Ventilation Fan Blower Finish Pack with Metal Grille, 4.0 Sones

Product Features

110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
4.0 Audible Sones for privacy while using your bathroom
Built-in backdraft damper for easy duct connection
Warnock Hersey Listed
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Housing pack sold separately
Integral key-holed mounting brackets for easy secure installation
