Product Details for Bosch SHX65DM5N

Technical Details

Dimensions & weight

Weight 95

General

Number of Place Settings 16
List of Programs Auto, Normal, Speed 60, Favorite
Options Remote Start, Sanitize, EfficientDry
Programs & Options Exclusive to Home Connect Hand Wash, Energy Save, Fixed Zone, Half Load, Machine Care, Rinse
Silence Level 44 dB(A) re 1pW
Panel Ready Not Possible
Design Built-in
Handle Design Bar Handle
Installation Type Built-under
Toe Kick Color Black
Tub Material Stainless Steel
Color Not Applicable

Size and weight

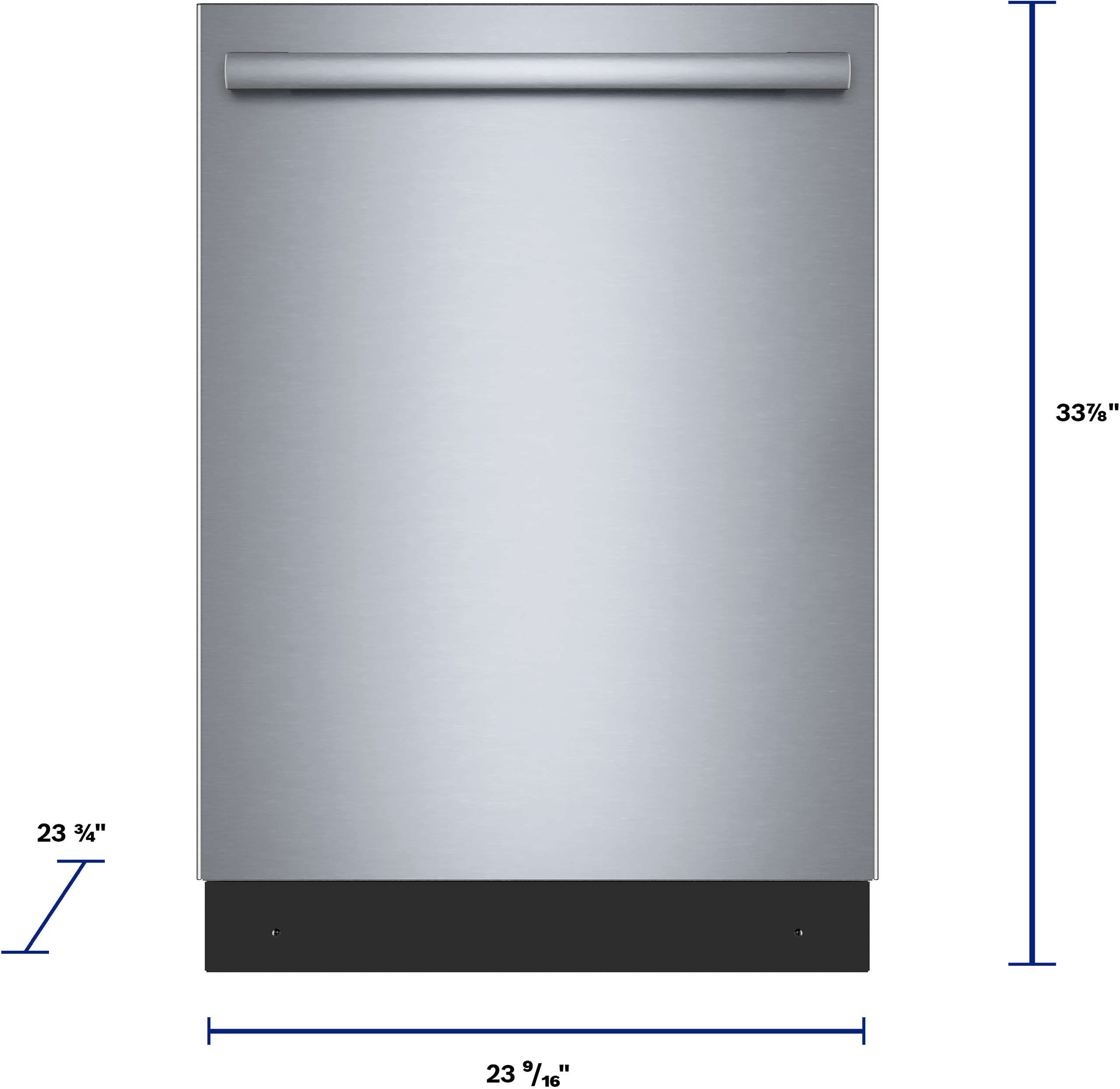

Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Net Weight 92.000 lbs
Adjustable Feet Yes, All Adjustable from Front

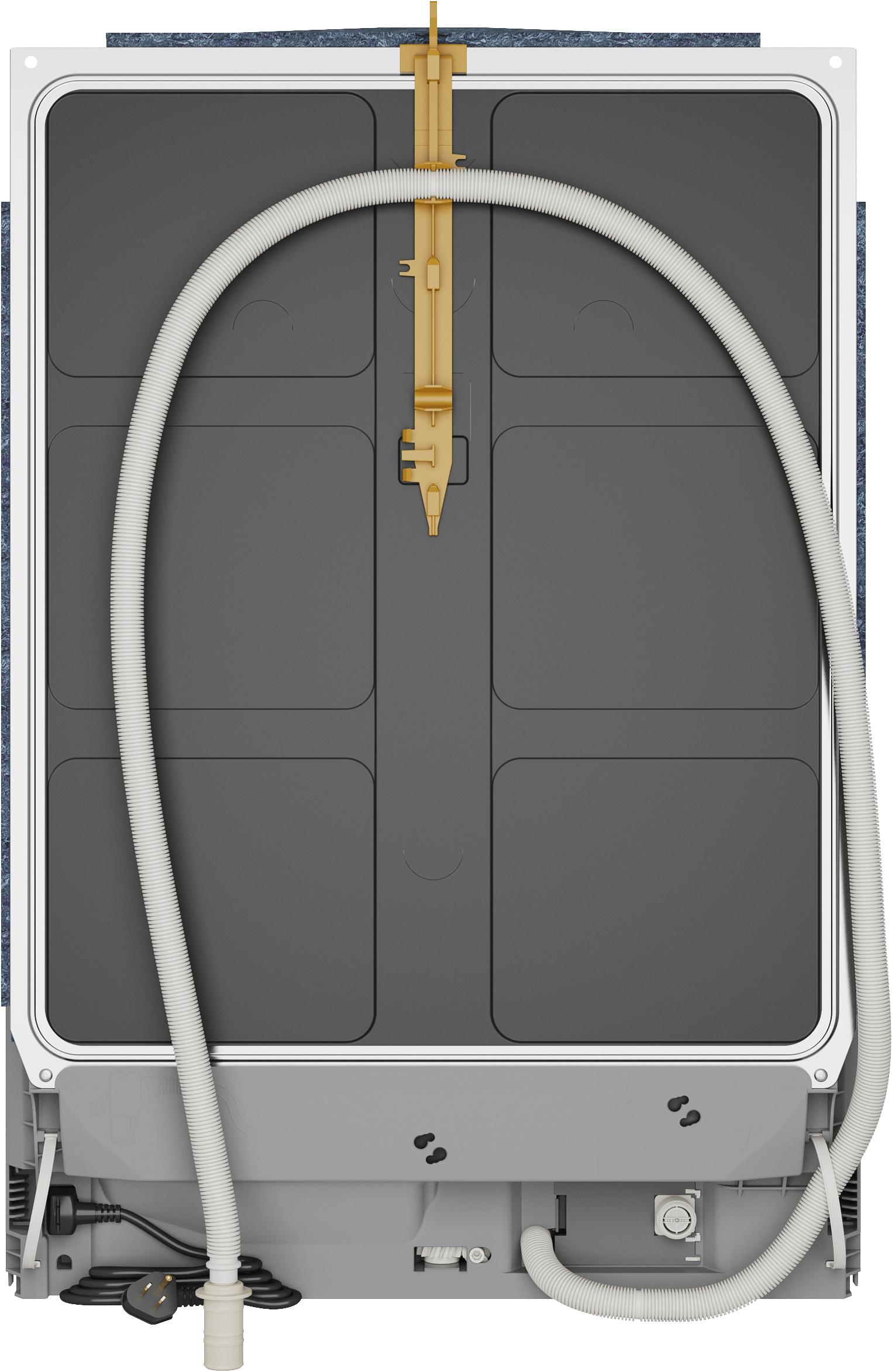

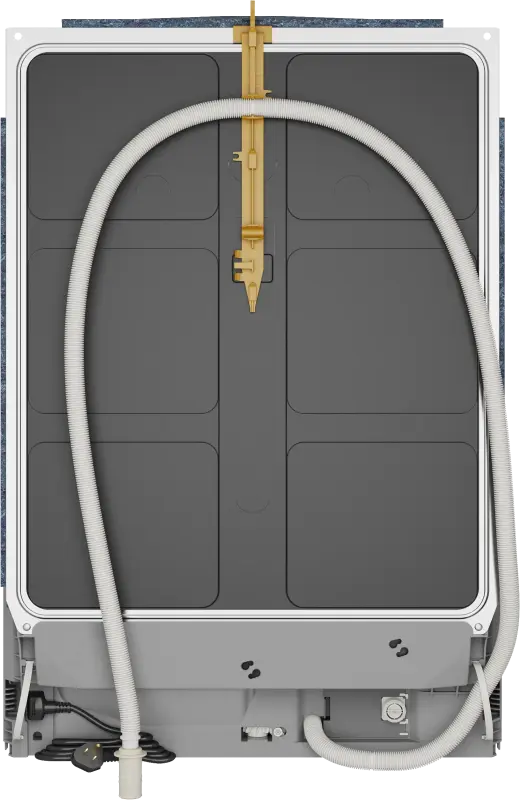

Length Outlet Hose (in) 78 3/4''
Power Cord Length 67''

Comfort and convenience

Status Indicator End of program audible
TimeLight® no
InfoLight® Red

Cleaning technology

Drying System AutoAir
Washing System PrecisionWash®, Zone Wash
NSF® Certified Sanitize Option yes
Eco silence drive yes
Aquasensor yes
Water management system no
Detergent detection no
Water Softener no

Energy and water

ENERGY STAR® certified yes
Total Annual Energy Consumption 240 kWh
Total Annual Water Consumption 688 gal

Connectivity

Home Connect™ yes
Home Connect Features Remote Monitoring and Control

Safety

AquaStop no
ChildLock No

Description

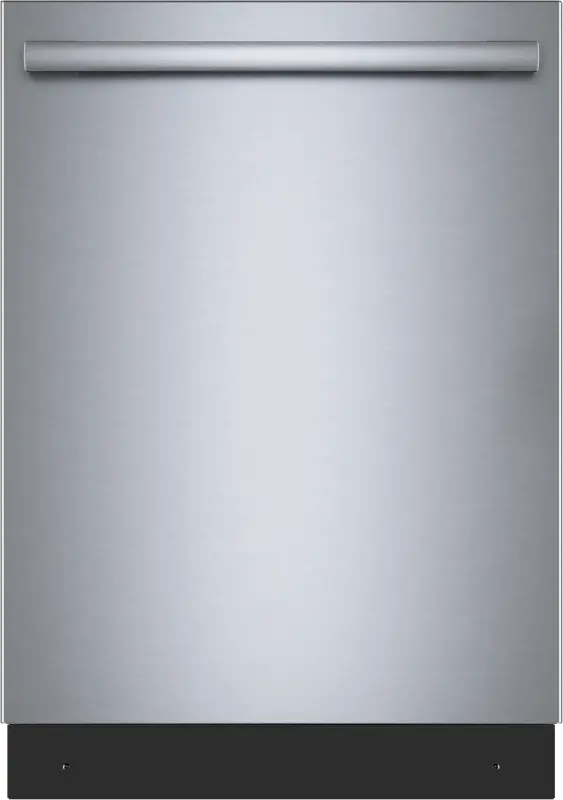

The Bosch 500 Series Dishwasher combines powerful performance, sleek design, and smart technology for an elevated kitchen experience. Its AutoAir drying system automatically pops open the door at the end of each cycle, letting in fresh air for drier, spotless dishes. At an ultra-quiet 44 dBA, it operates silently—perfect for open kitchens. The InfoLight projects a red beam on the floor so you’ll know it’s running. With Zone Wash technology, targeted spray zones tackle stubborn messes while preserving energy and water for lighter loads. The Wi-Fi enabled Home Connect app enhances convenience with remote control, additional wash options like Eco and Delicate, and smart cycle selection to match your load. The Rackmatic system and Standard 3rd Rack provide flexible space for up to 16 place settings, making loading easier and more efficient. Featuring a stainless steel tub, NSF-certified Sanitize option, 24/7 AquaStop leak protection, and an anti-fingerprint finish, this ENERGY STAR certified dishwasher uses only 3.2 gallons per cycle, offering clean, dry, and quiet performance every time.


Product Features

  • Details
  • Details
  • Details
  • Details

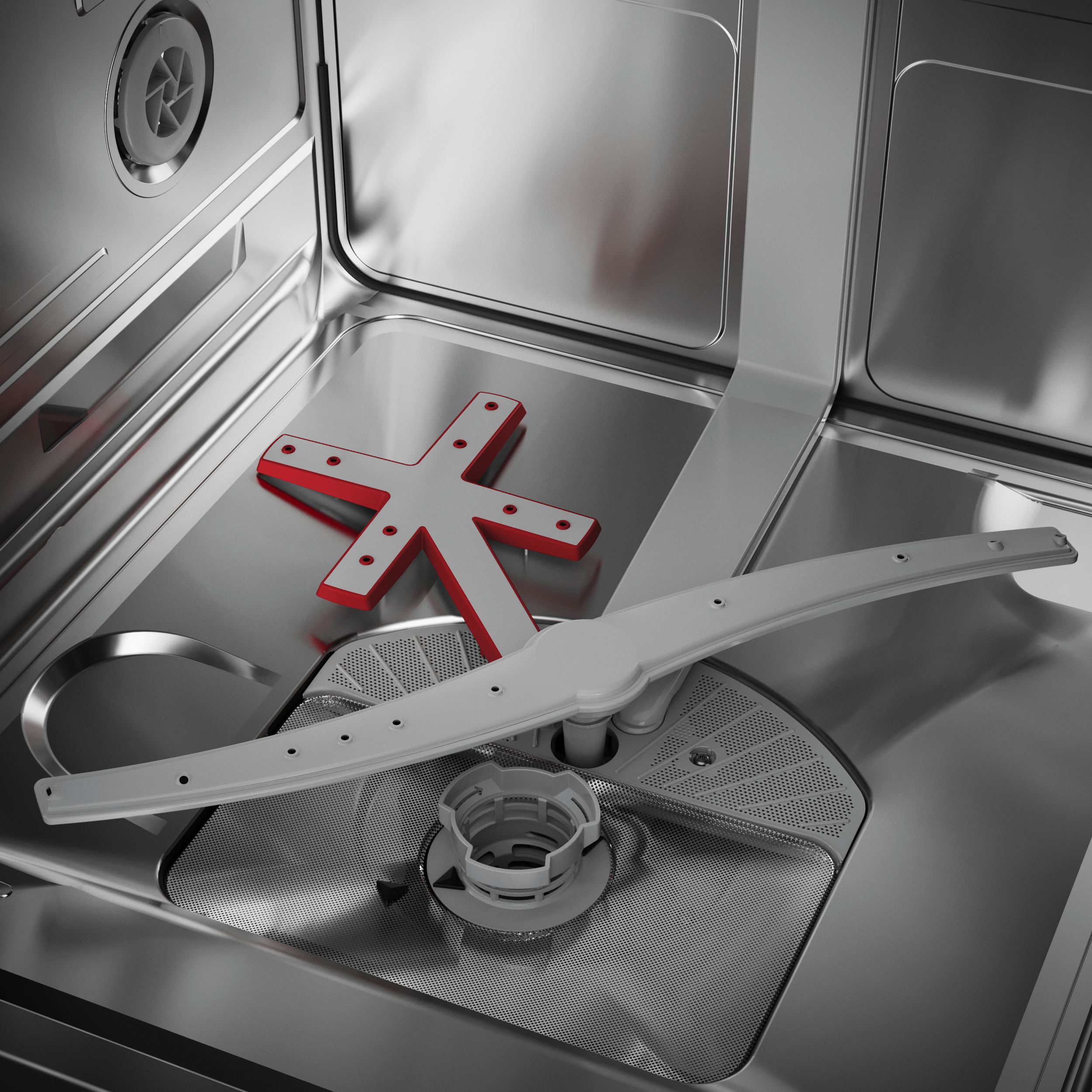

  • Zone Wash
    a dedicated intensive wash space for particularly challenging dishes and pots
  • Quality in every detail.
    Every dishwasher must pass 485 quality checks--including running every single one with water--before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.
  • Prevent leaks with AquaStop®
    An advanced leak prevention and containment system, AquaStop® features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected—even if you’re not at home.
  • This Bosch Dishwasher is ENERGY STAR® certified and energy efficient
    This Bosch dishwasher is ENERGY STAR® certified and meets or exceeds federal guidelines, for year-round energy savings
  • Enhance your cleaning experience with Wi-Fi enabled Home Connect.
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.

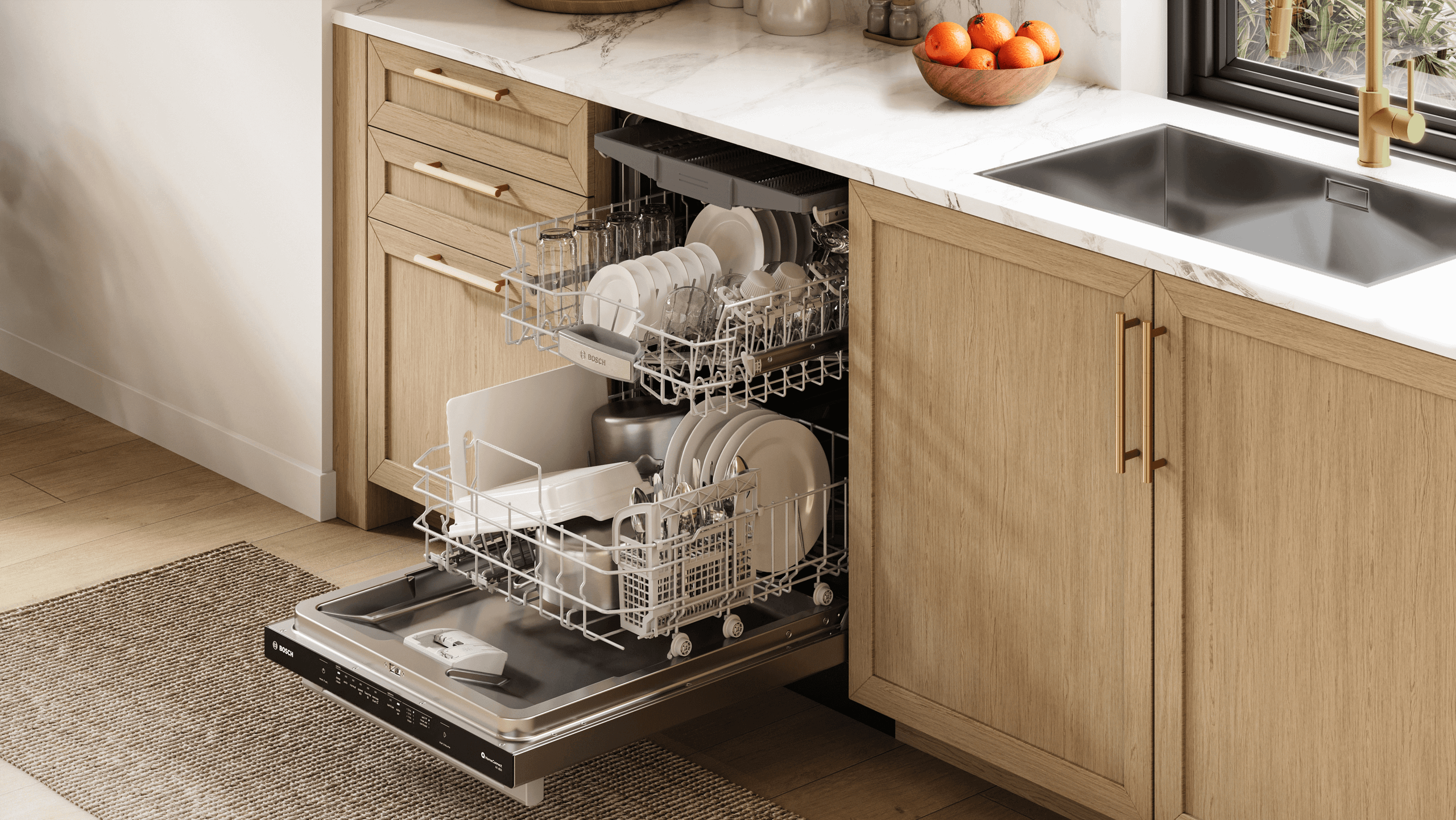

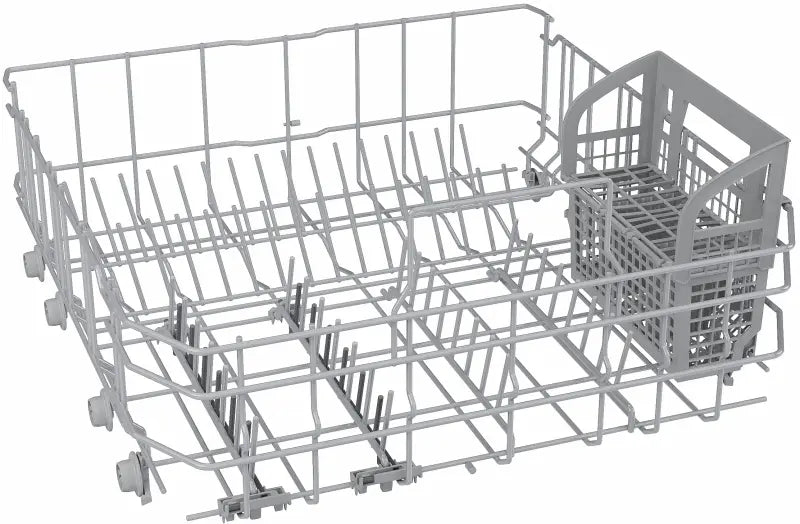

  • EasyGlide™ Racks
    provide a smooth glide on all three racks.
  • 44 dBA -- the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24” Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as OpenBrand Top 5 Market Share December 2025.
  • Enhance your cleaning experience with Wi-Fi enabled Home Connect®
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect®

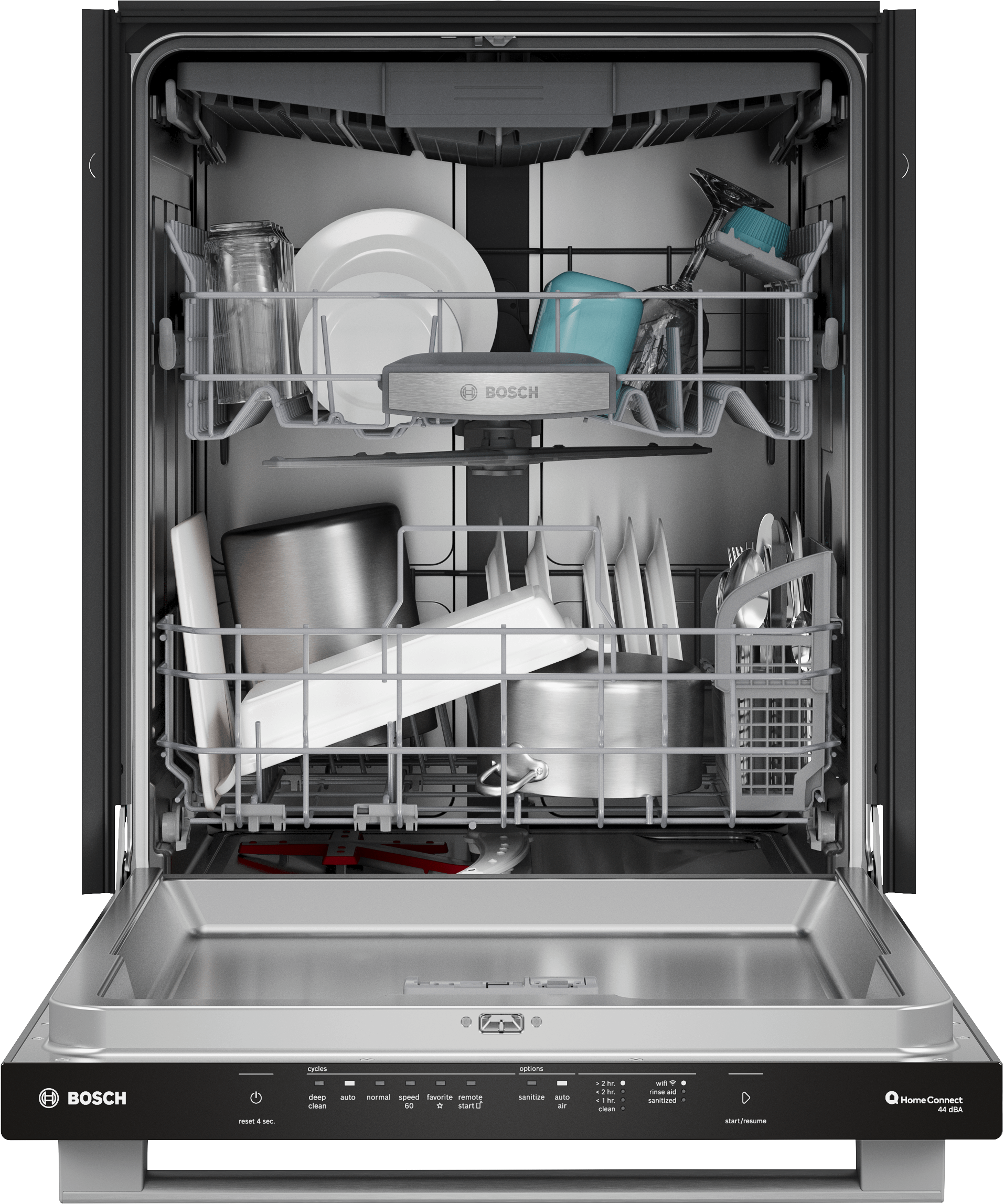

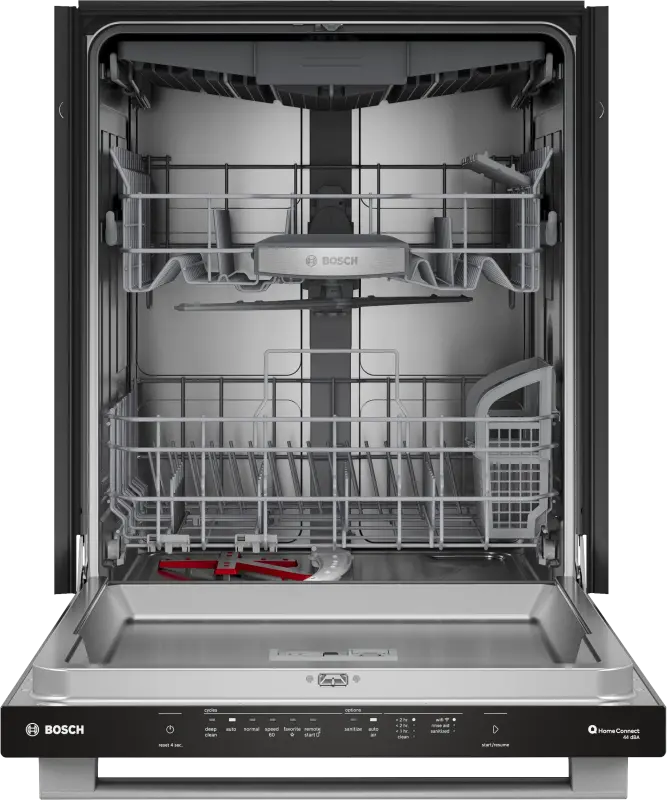

  • Fit in tall items with RackMatic®

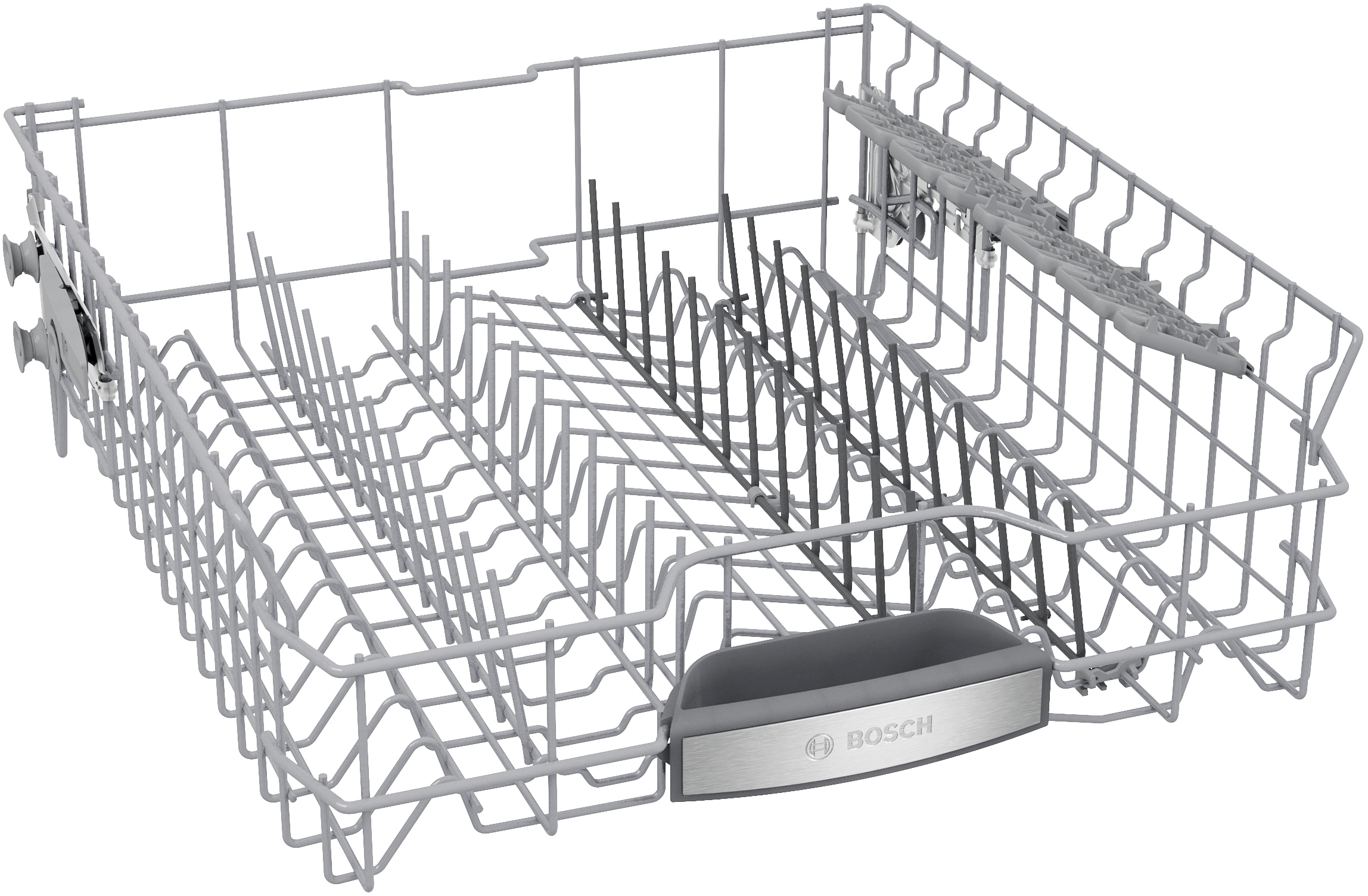

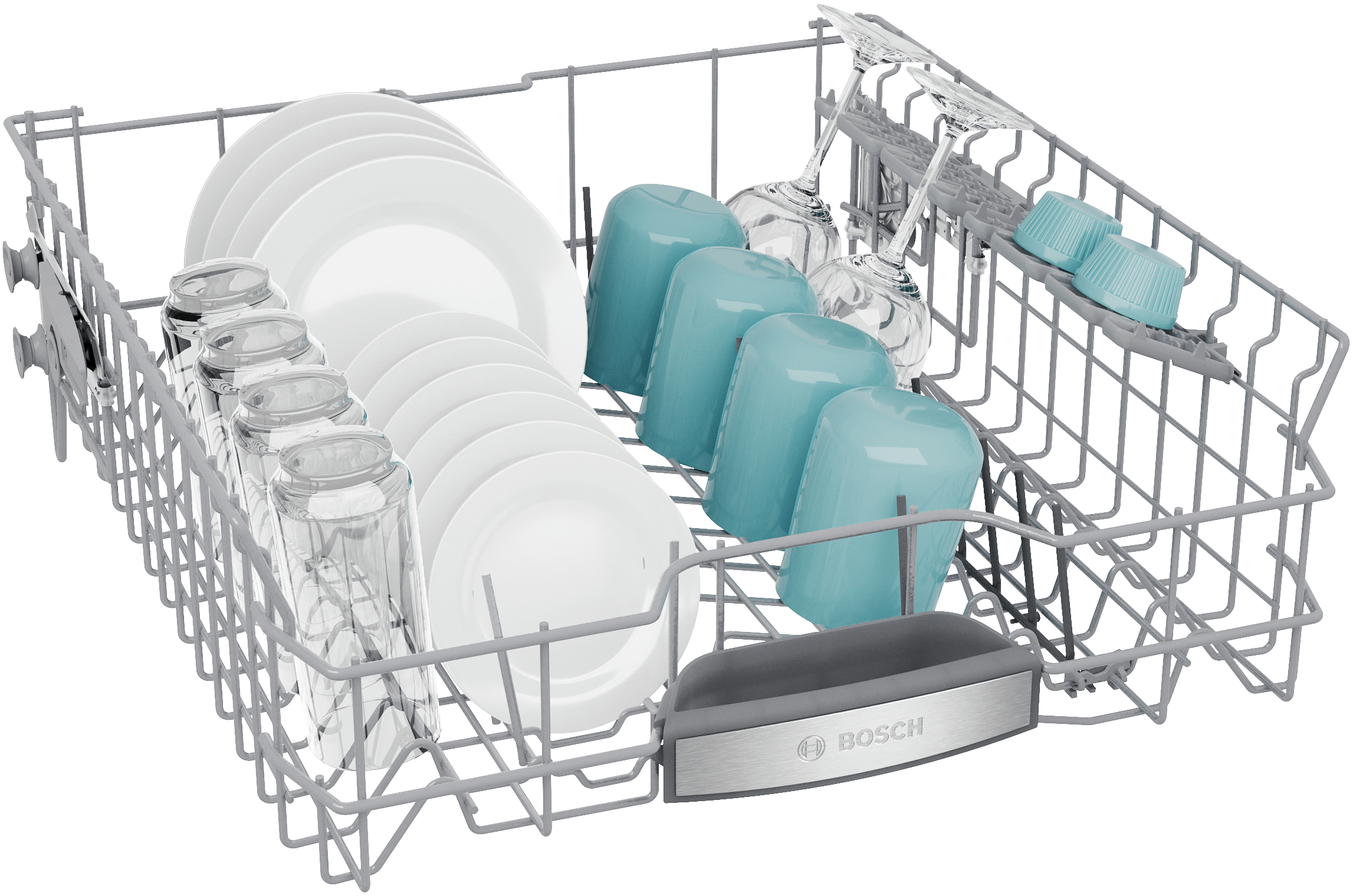

    RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

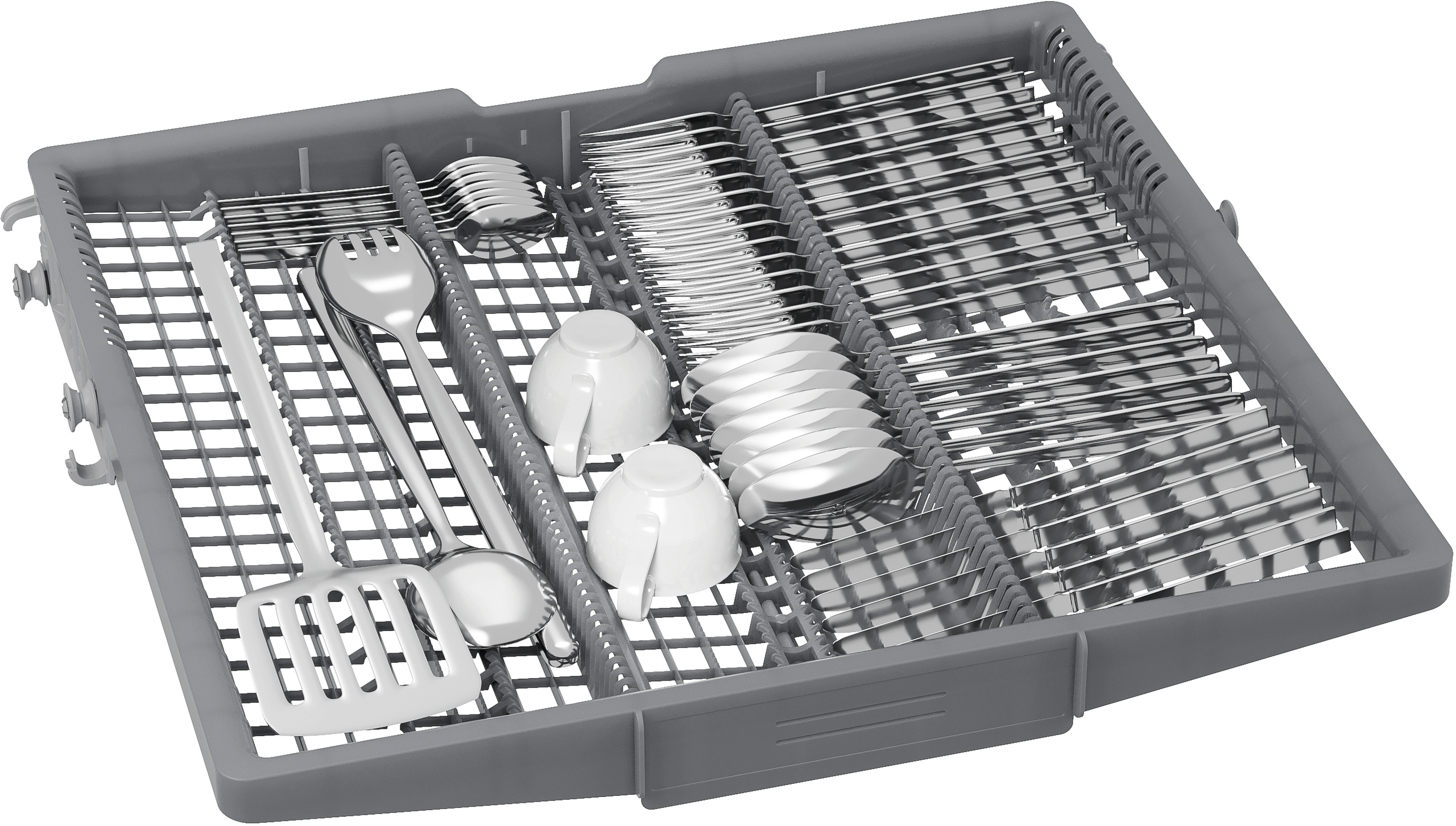

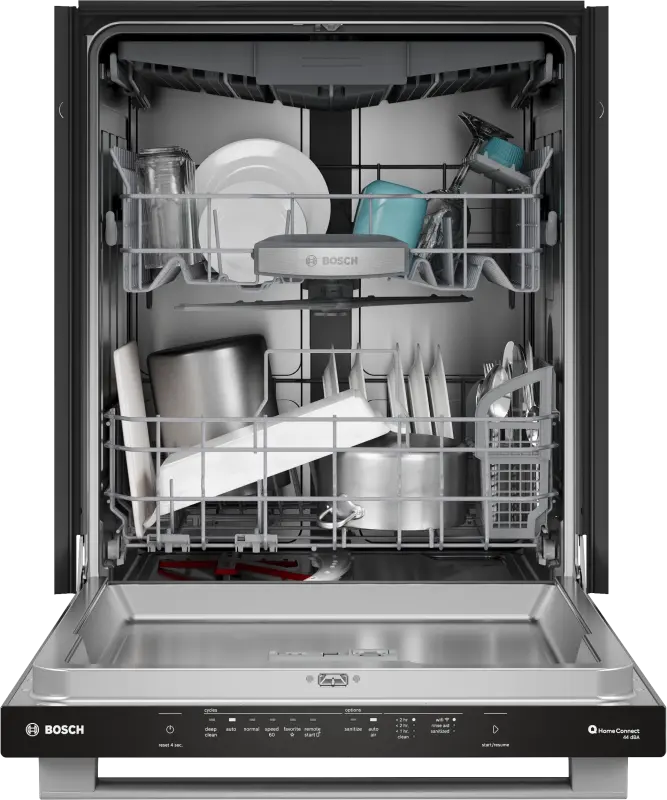

  • Loading flexibility with a 3rd rack dishwasher.

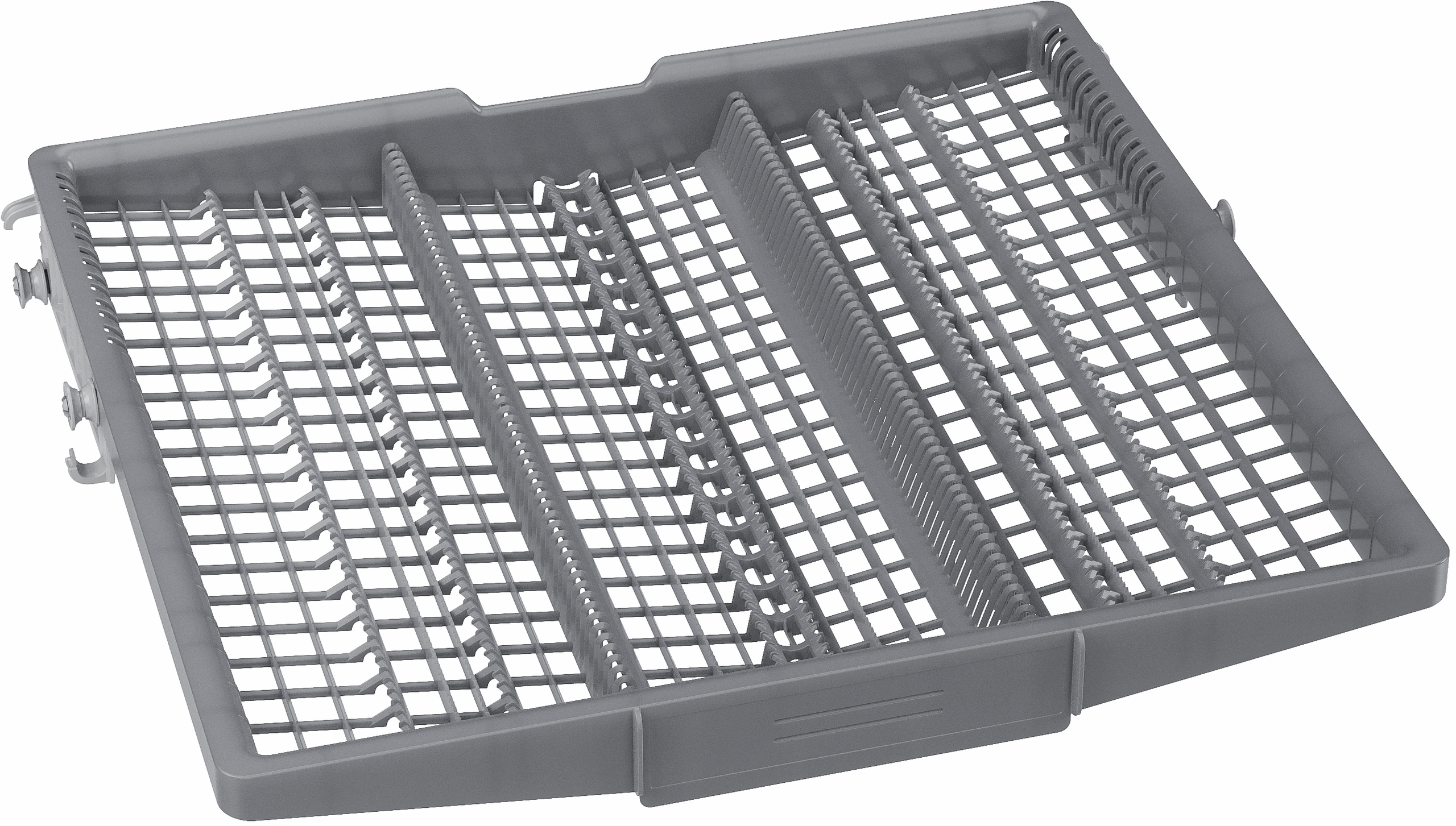

    The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.

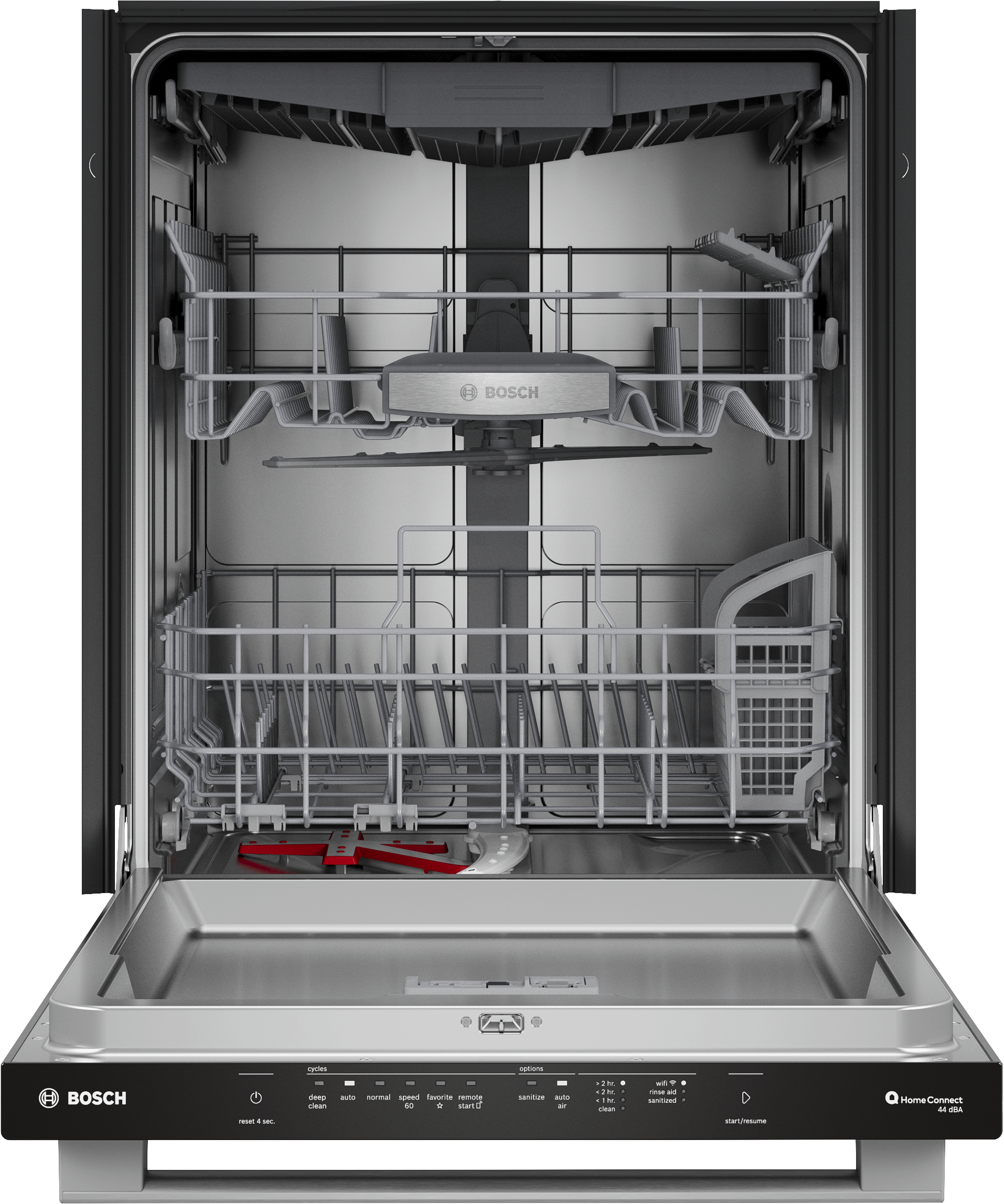

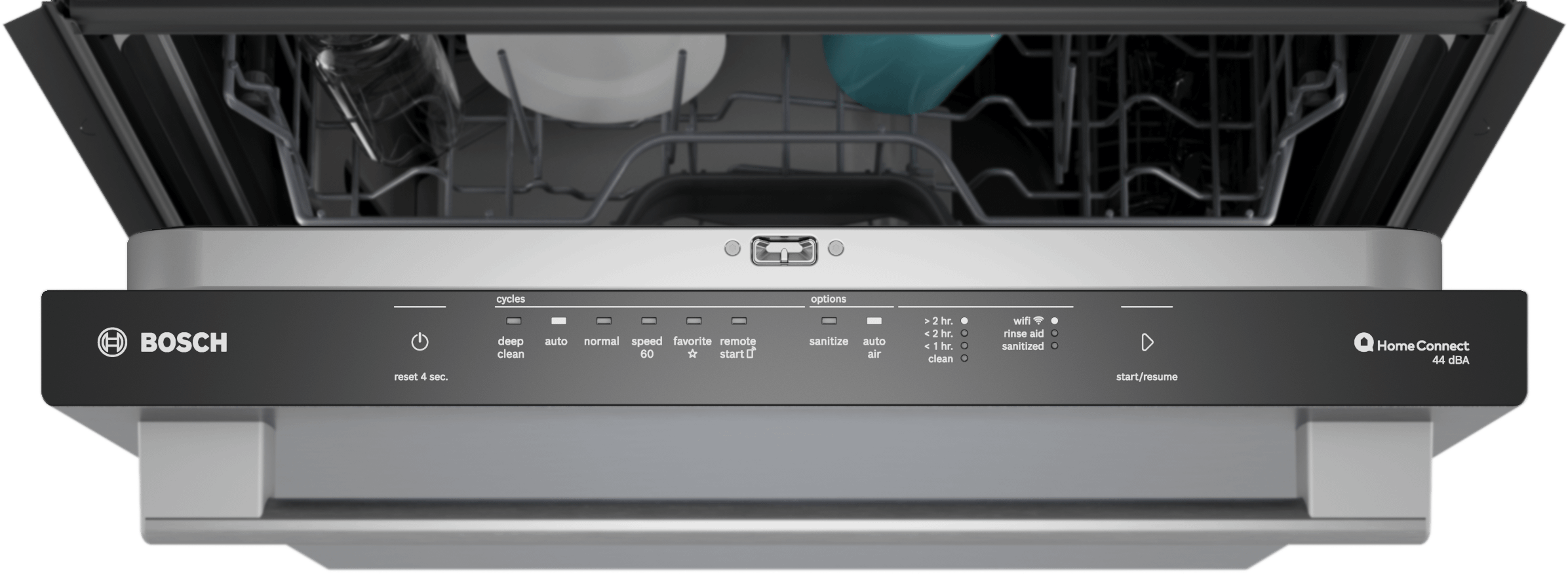

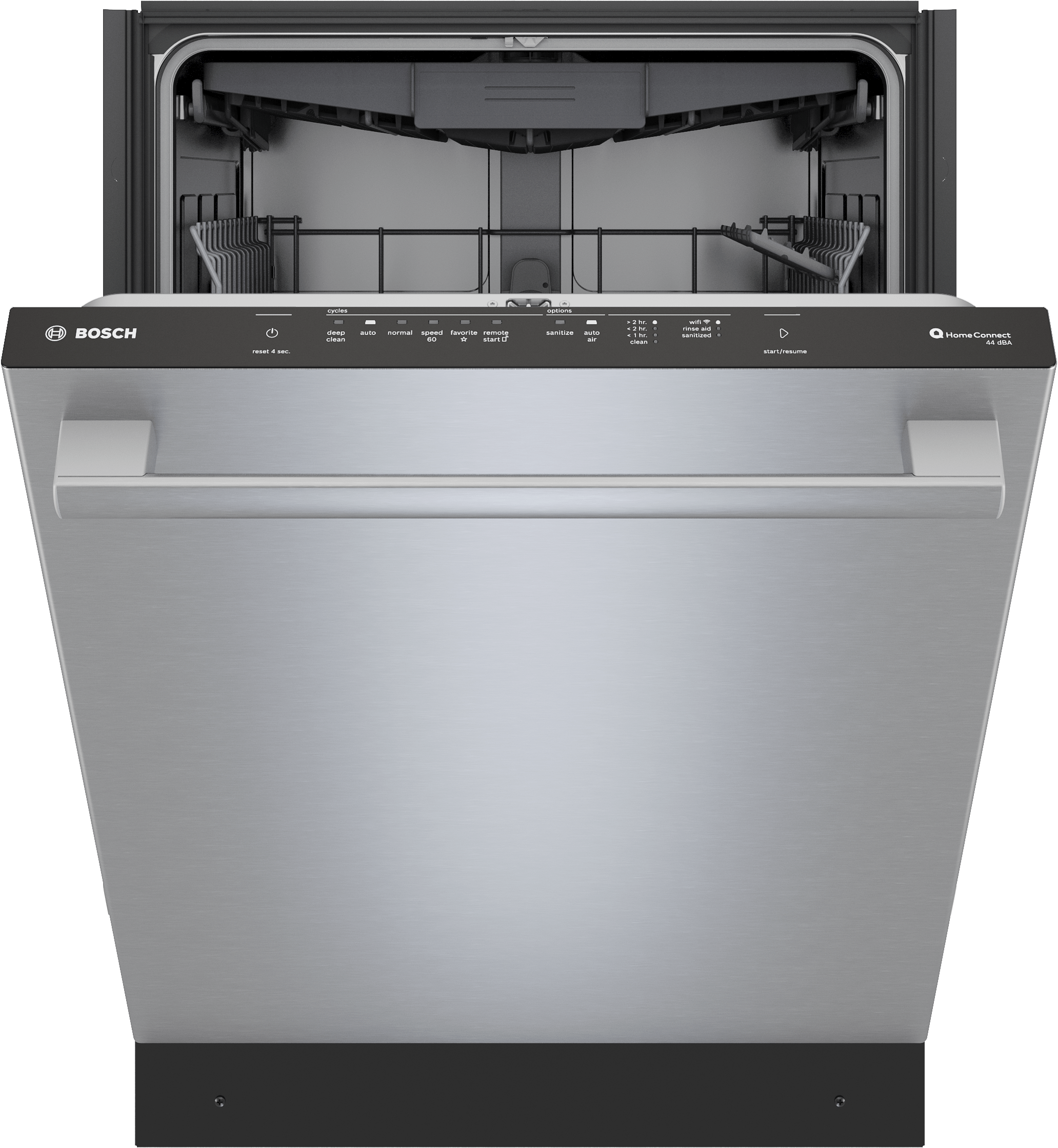

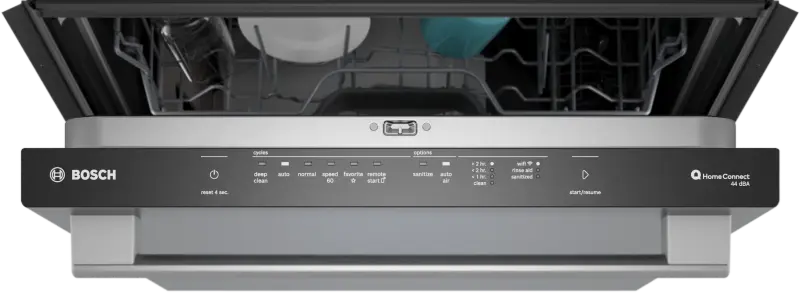

  • Sleek and Simple Touch Control Panel
    The touch control panel has been simplified to offer the cycles and options you use most - all at the touch of your fingertips.
