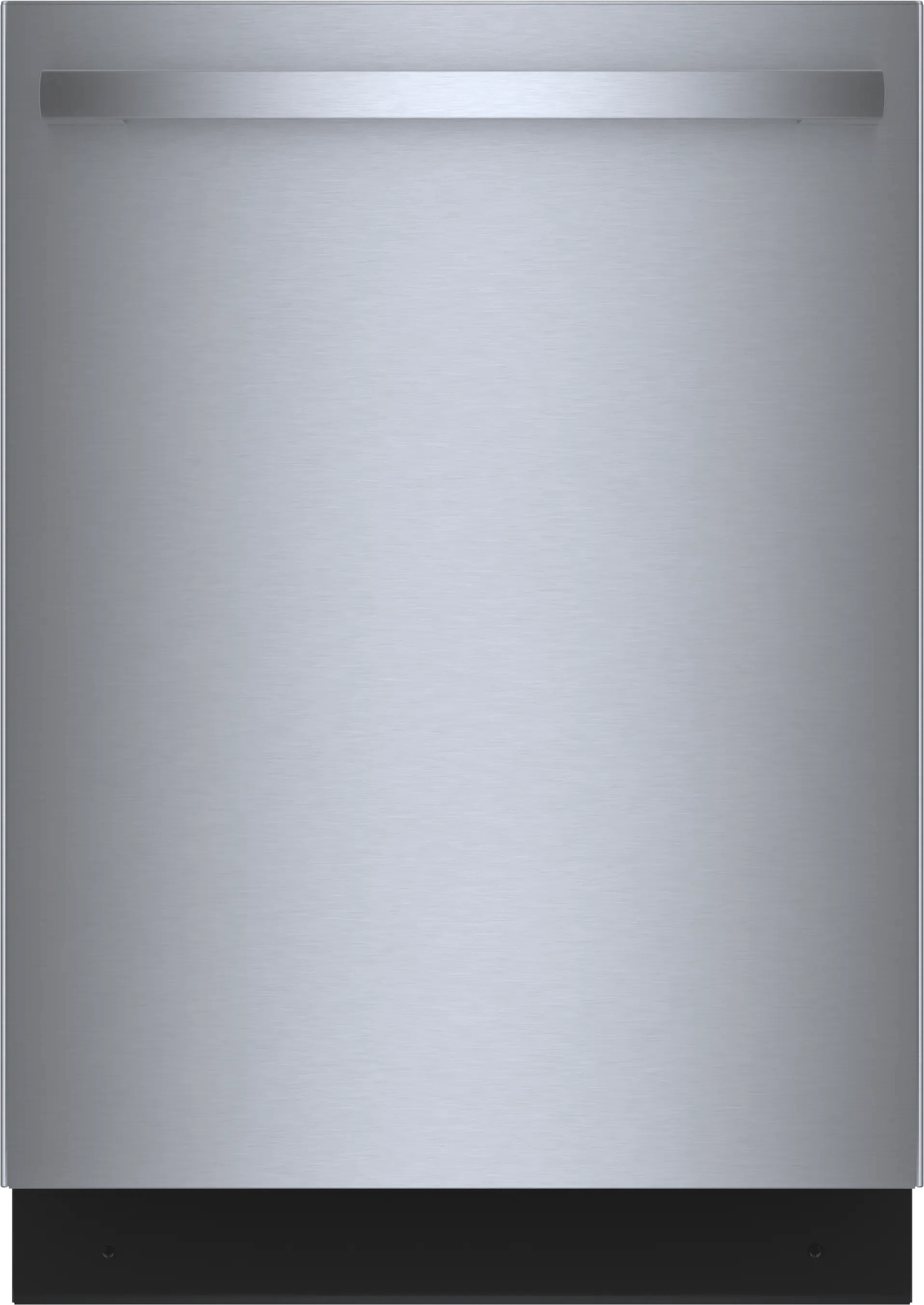

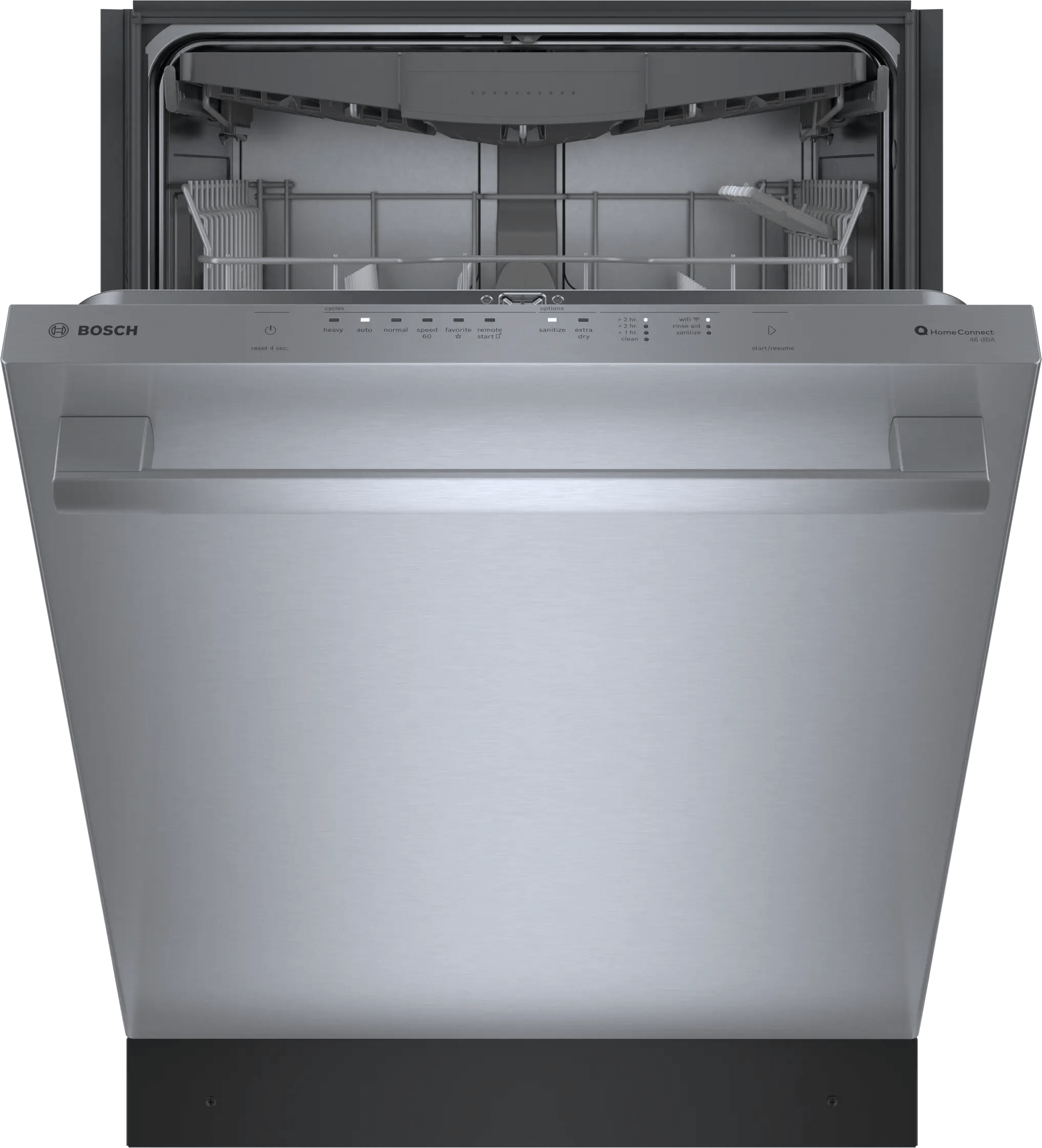

Product Details for BOSCH SHX53CM5N

Technical Details

General

Installation Type Built-under

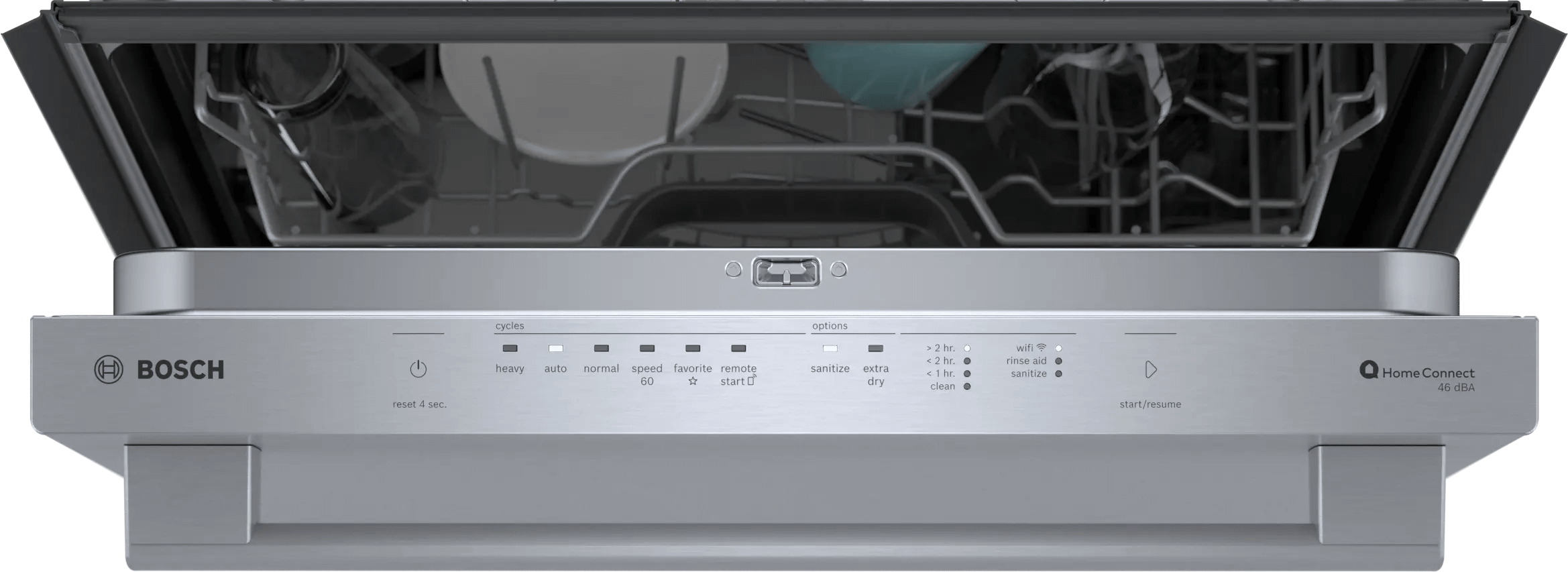

List of Programs Heavy, Auto, Normal, Speed 60, Favorite
Number of Place Settings 16
Silence Level 46 dB(A) re 1pW
Design Built-in
Color Stainless Steel Anti-fingerprint
Panel Ready Not Possible

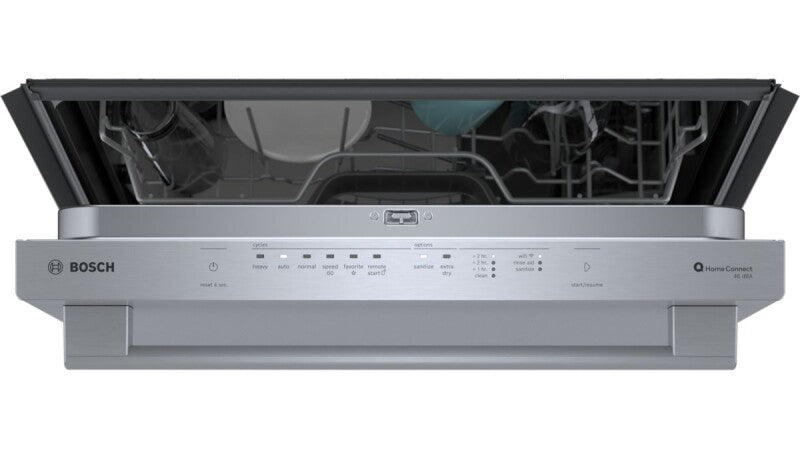

Options Remote Start, Sanitize, Extra Dry
Handle Design Bar Handle
Toe Kick Color Black
Tub Material Stainless Steel
Programs & Options Exclusive to Home Connect Hand Wash, Energy Save, Half Load, Machine Care, Rinse

Connectivity

Home Connect Features Remote Monitoring and Control

Safety

ChildLock No
AquaStop no

Warranty

Parts 1 Year
Labor 1 Year

Size and weight

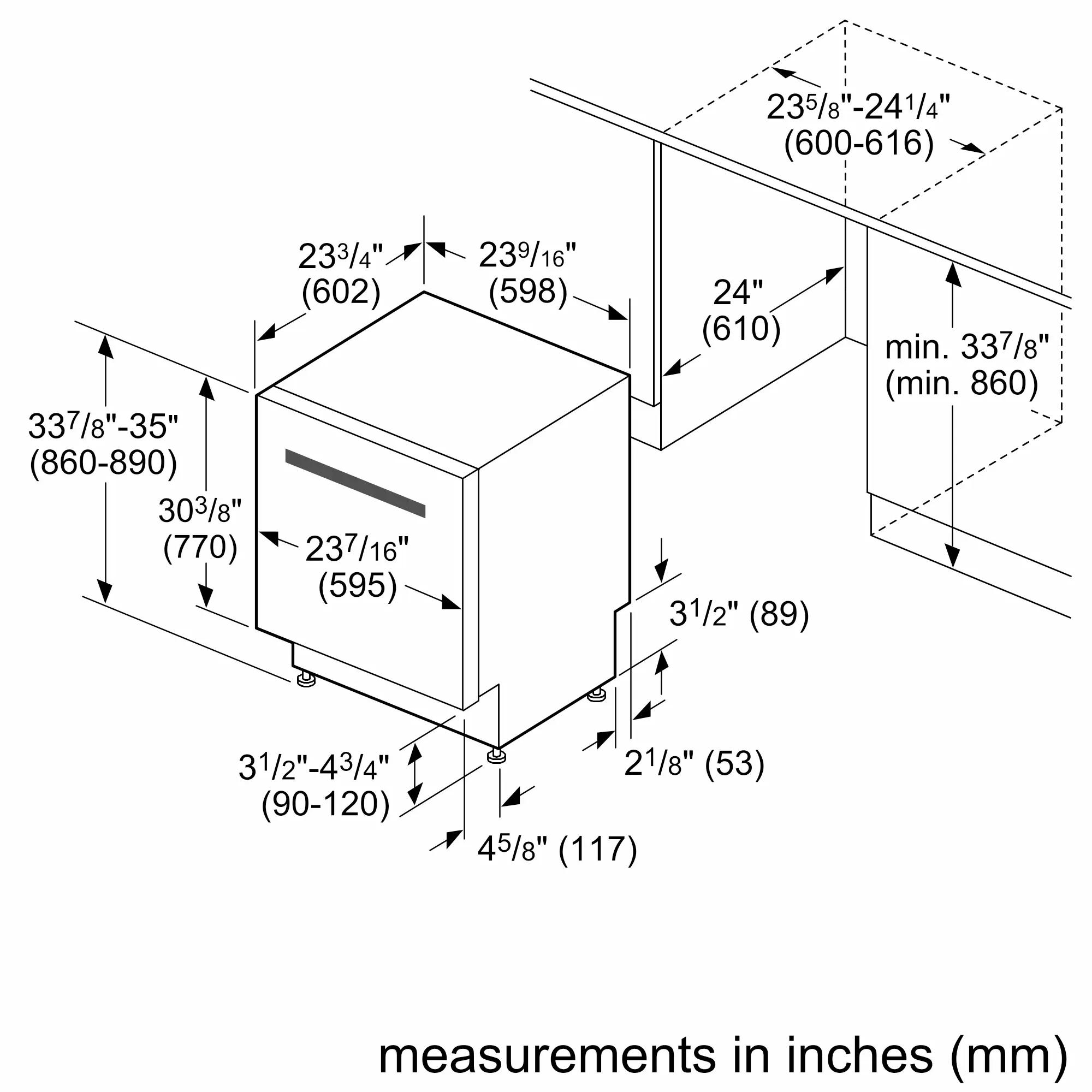

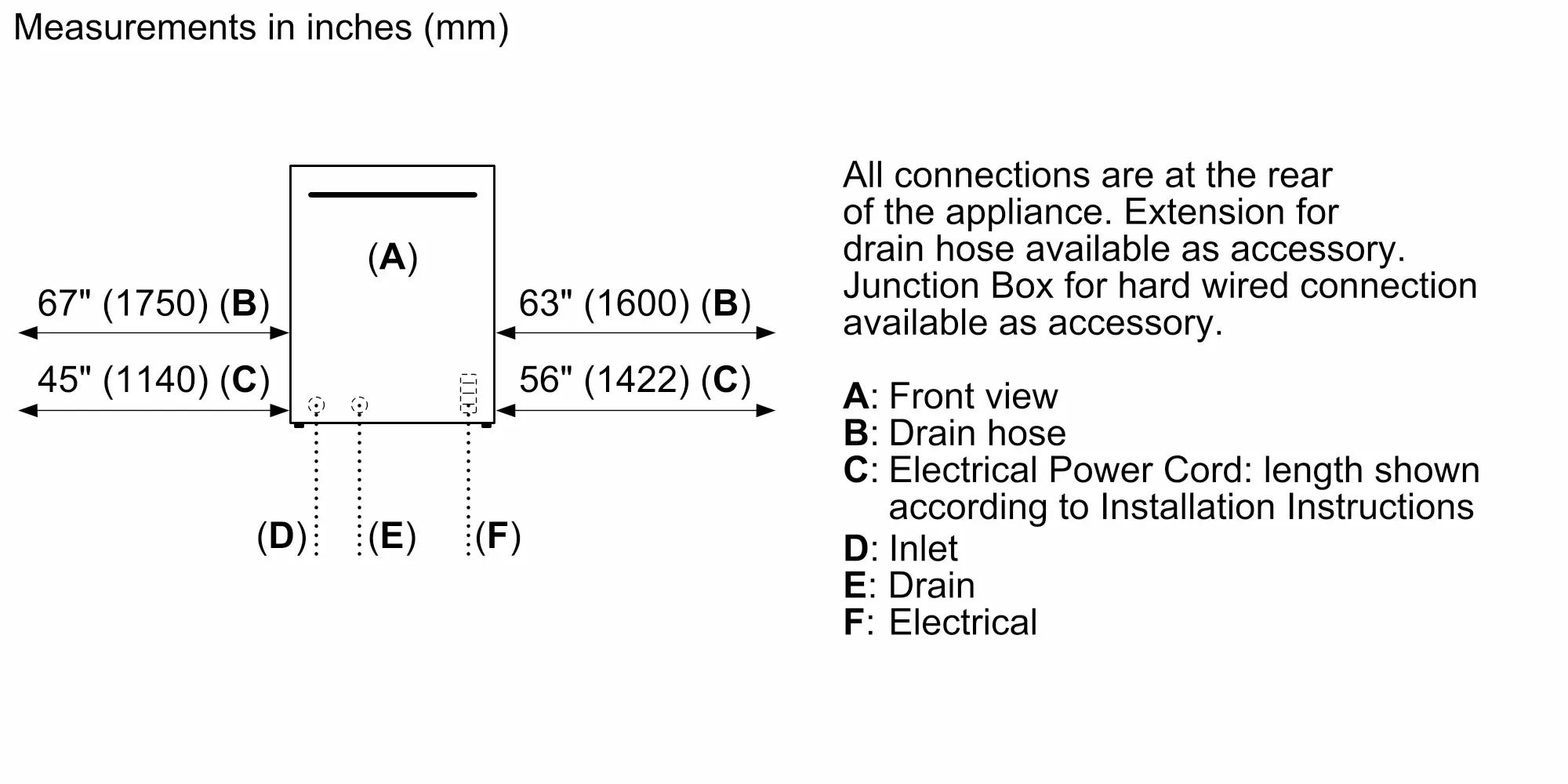

Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Adjustable Feet Yes, All Adjustable from Front

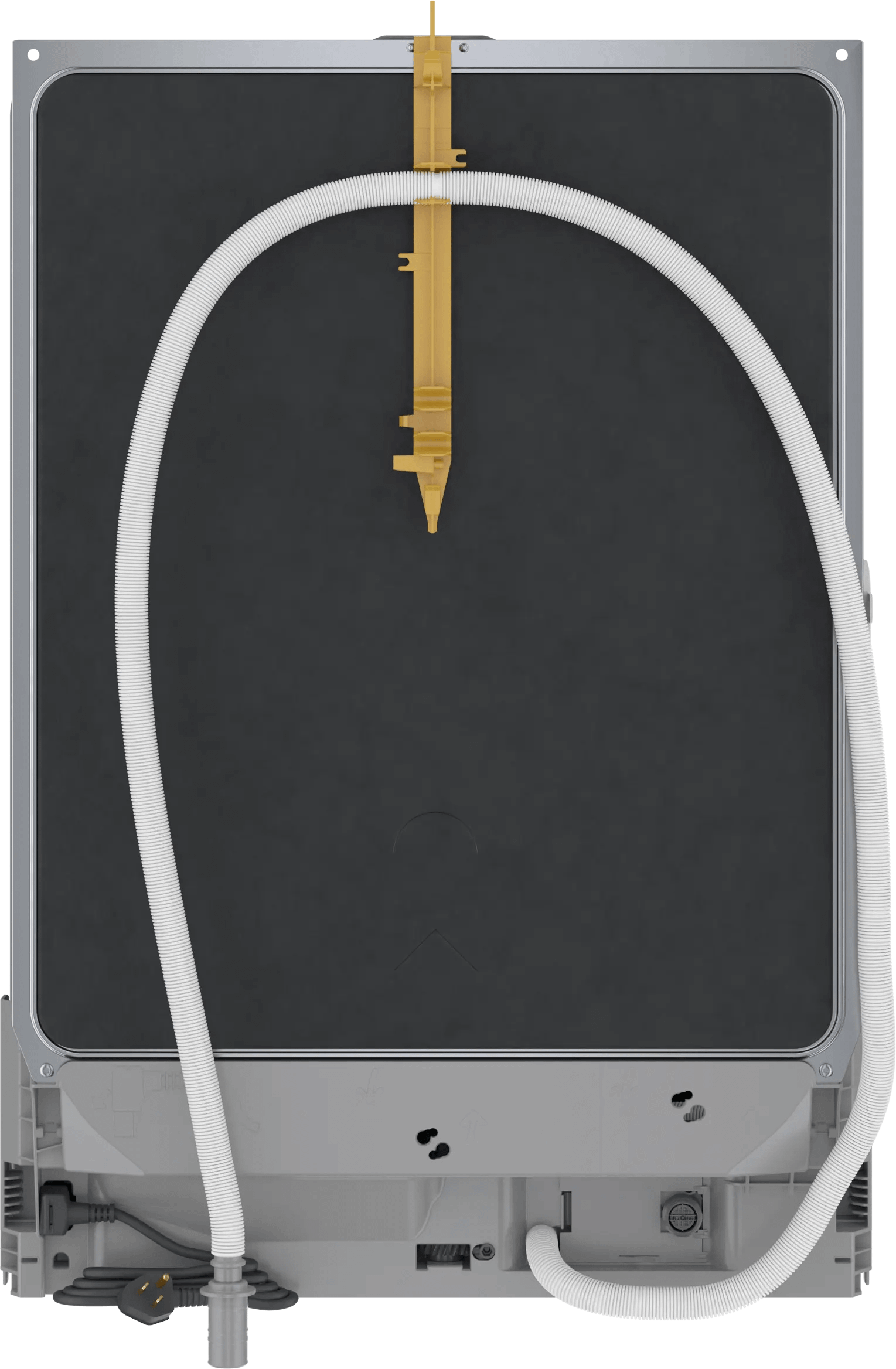

Length Outlet Hose (in) 78 3/4''
Power Cord Length 67''
Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Net Weight 92.000 lbs

Comfort and convenience

Status Indicator End of program audible

Cleaning technology

Drying System PureDry®
Eco silence drive yes
Aquasensor yes
Water management system no
Detergent detection no
Water Softener no
Washing System PrecisionWash®

Dimensions & weight

Width 23.56 in.
Height 33.88 in.
Length 23.75 in.
Weight 92 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.56 in.
Shipping Height 38.88 in.
Shipping Length 28.75 in.
Shipping Weight 132 lbs.
Total of Shipping Weight 132 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.97 ft³
Dimensional Weight 136.38 lbs.
Total of Cubes 10.97 ft³
Total of Dimensional Weight 136.38 lbs.

Energy and water

ENERGY STAR® certified no
Total Annual Energy Consumption 269 kWh
Total Annual Water Consumption 753 gal

Description

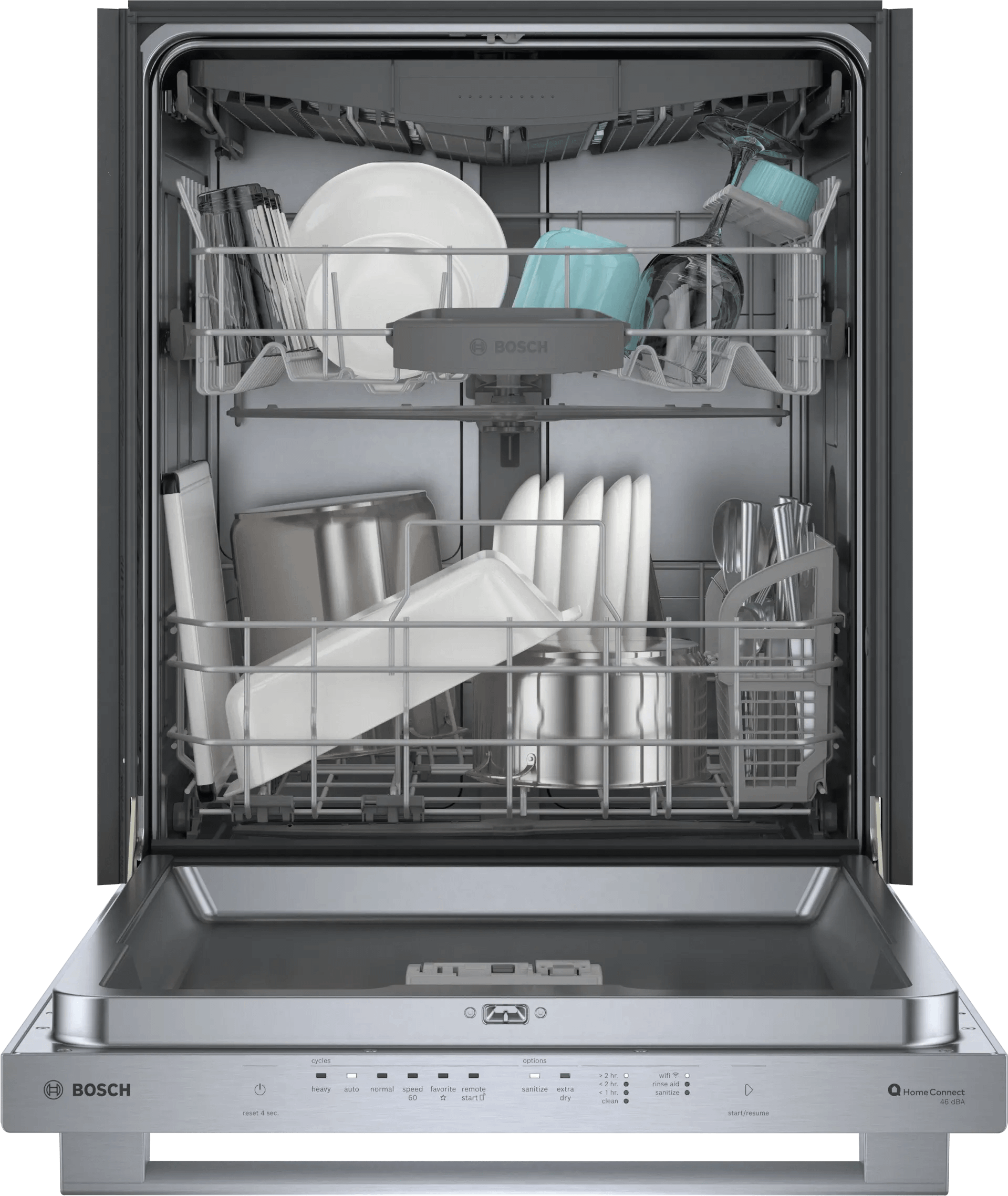

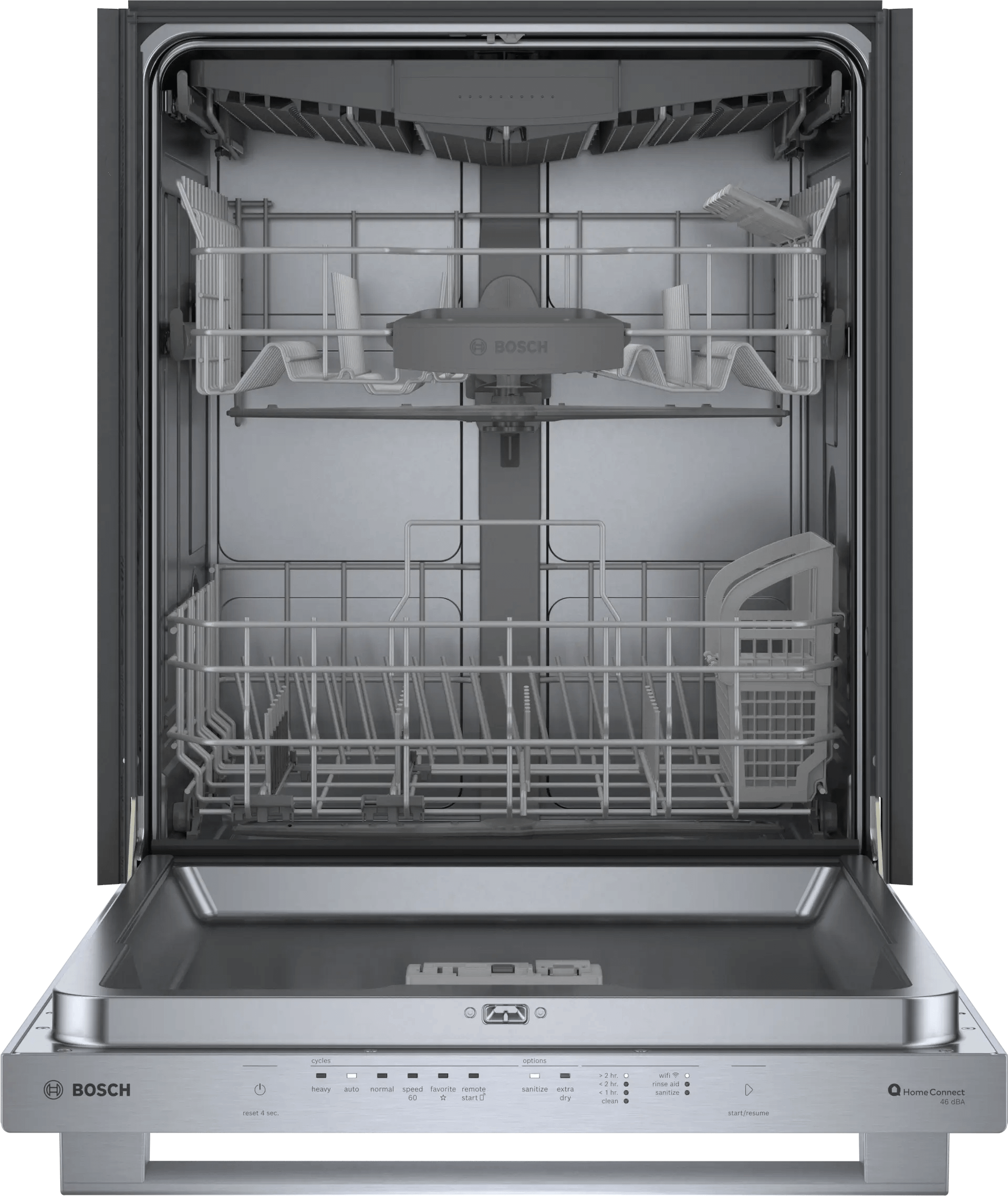

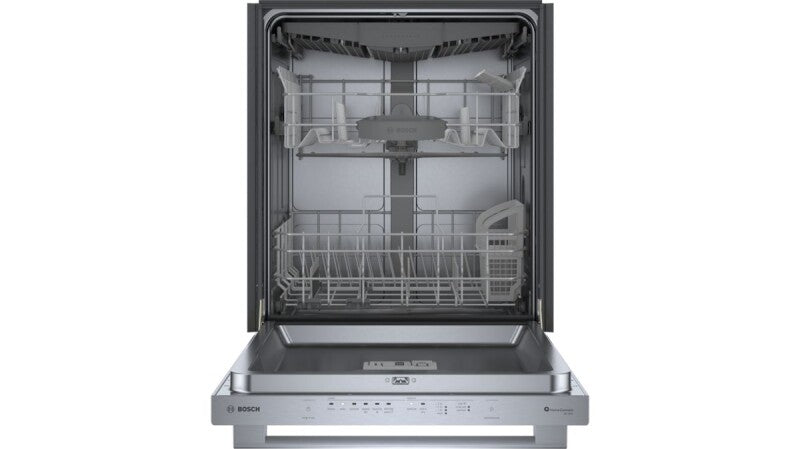

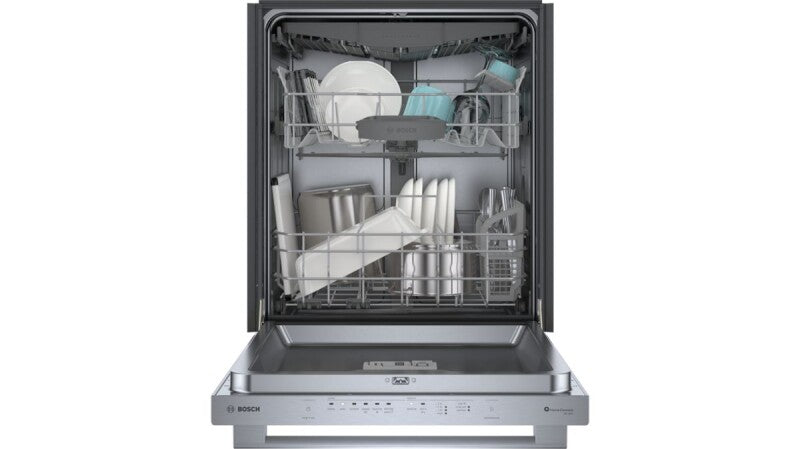

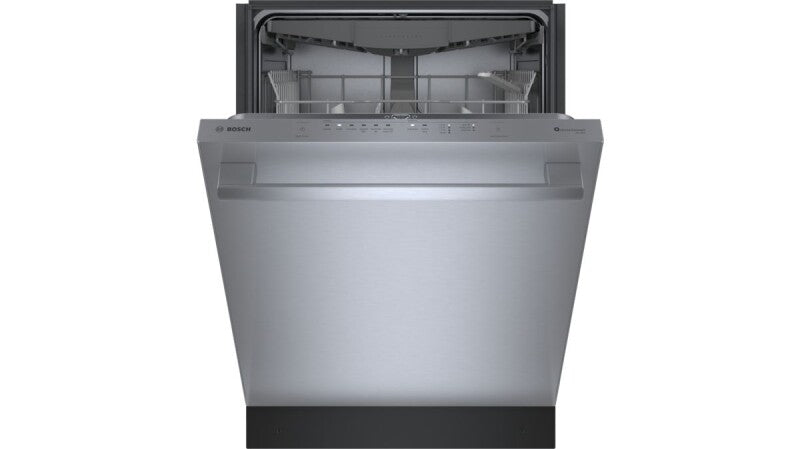

The Bosch 300 Series Dishwasher (model SHX53CM5N) offers a blend of efficiency and advanced features. Operating at a quiet 46 dBA, it ensures minimal noise disruption. The Standard 3rd Rack provides extra space for utensils and small items, enhancing loading flexibility. Equipped with PrecisionWash® technology, intelligent sensors and precision spray arms target every item for a thorough clean. The dishwasher also features Home Connect®, allowing for remote monitoring and control via smart devices. Additional highlights include the RackMatic® system for adjustable rack positions, the EasyGlide™ rack system for smooth operation, and the AquaStop® leak protection system for peace of mind. The PureDry® system ensures energy-efficient drying without the use of an exposed heating element, making it safe for plastics. With a capacity of 16 place settings, this dishwasher is designed to accommodate various dishwashing needs.



Product Features

  • Know when your dishwasher is running with InfoLight
    Based on our legendary sound reduction technology, our dishwashers are so quiet, we provide an InfoLight that projects a red light onto the floor (or a white light in the pocket handle on select models) to signal that a cycle is running. It turns off once the dishes are done.

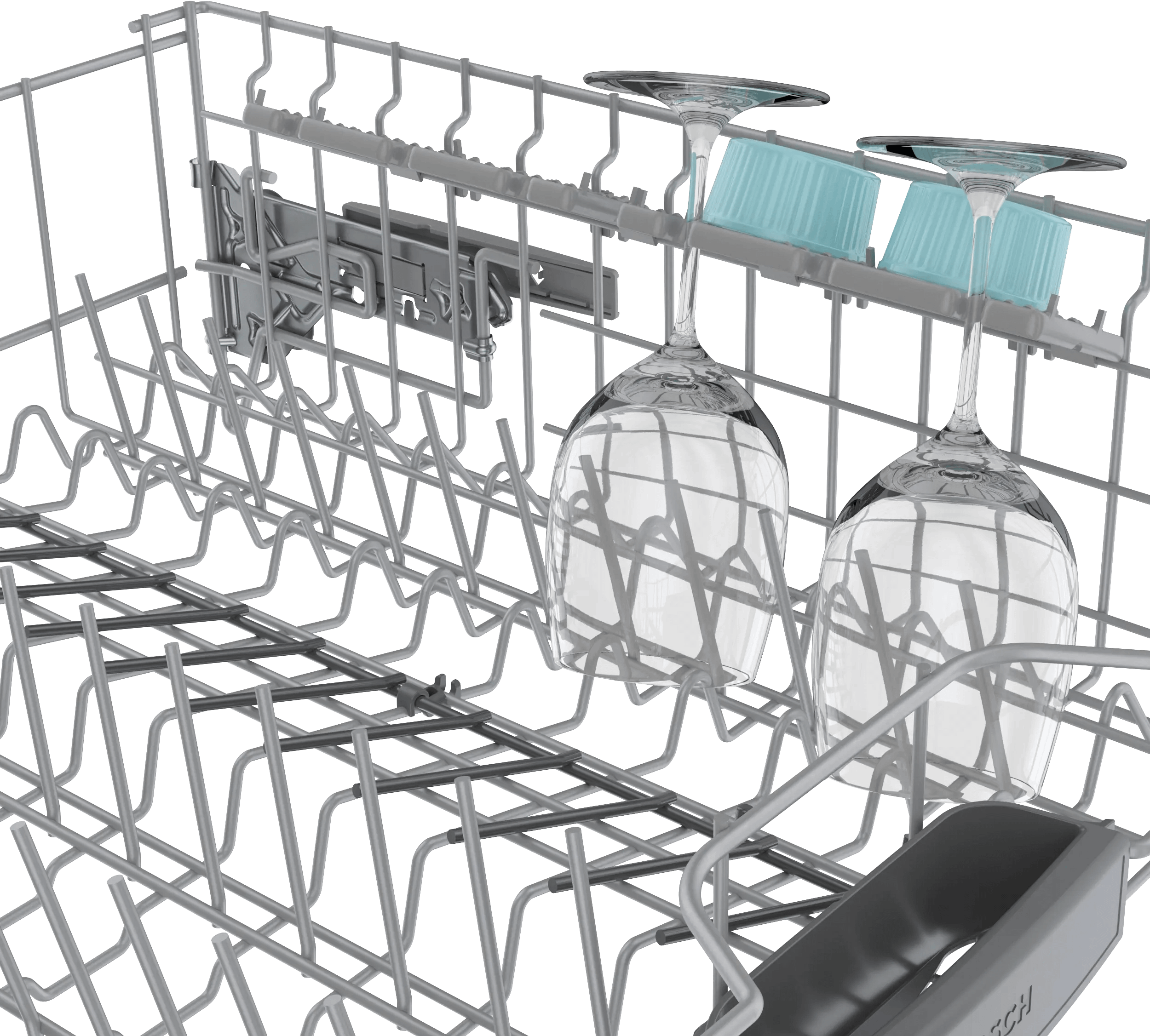

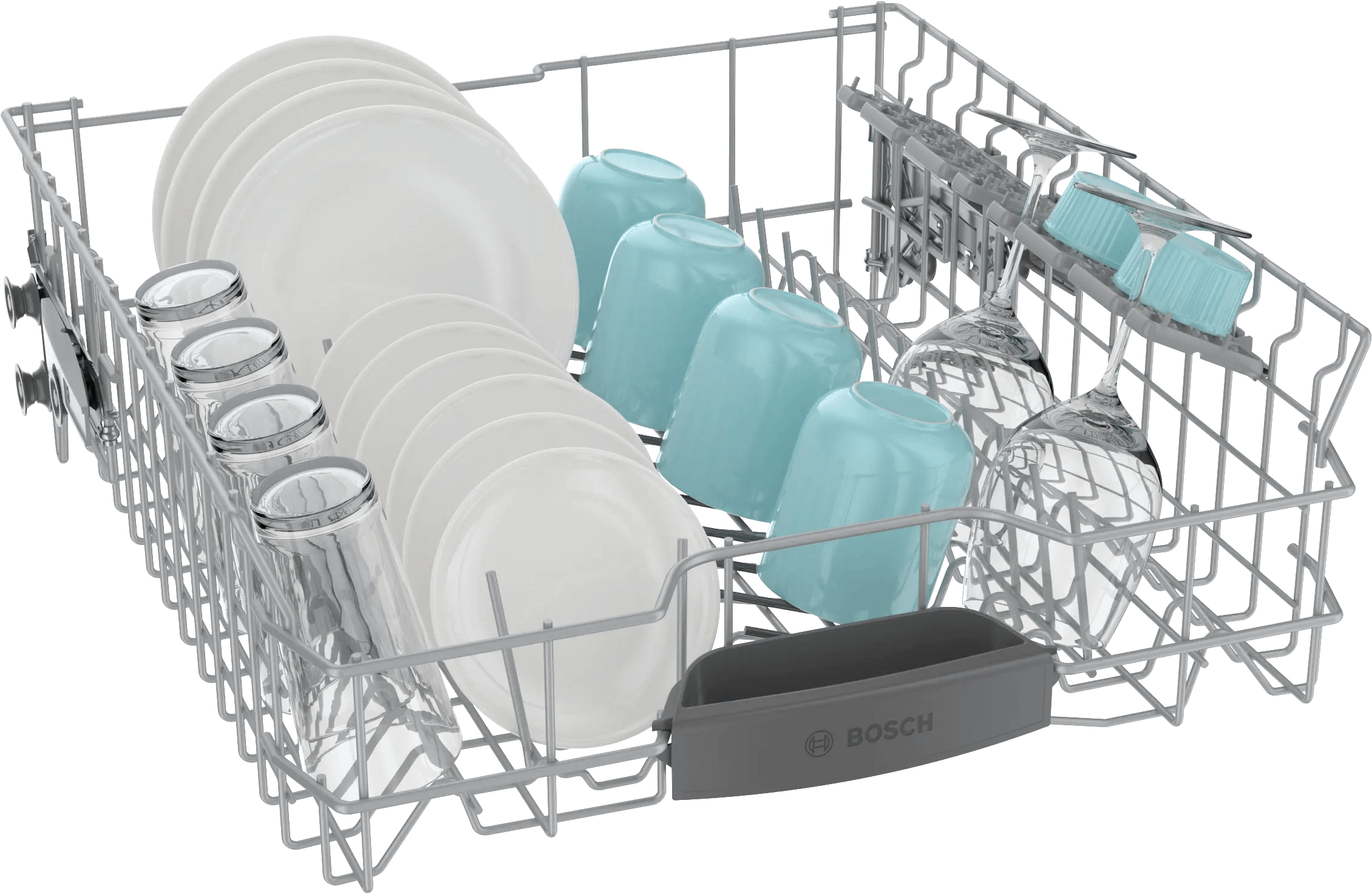

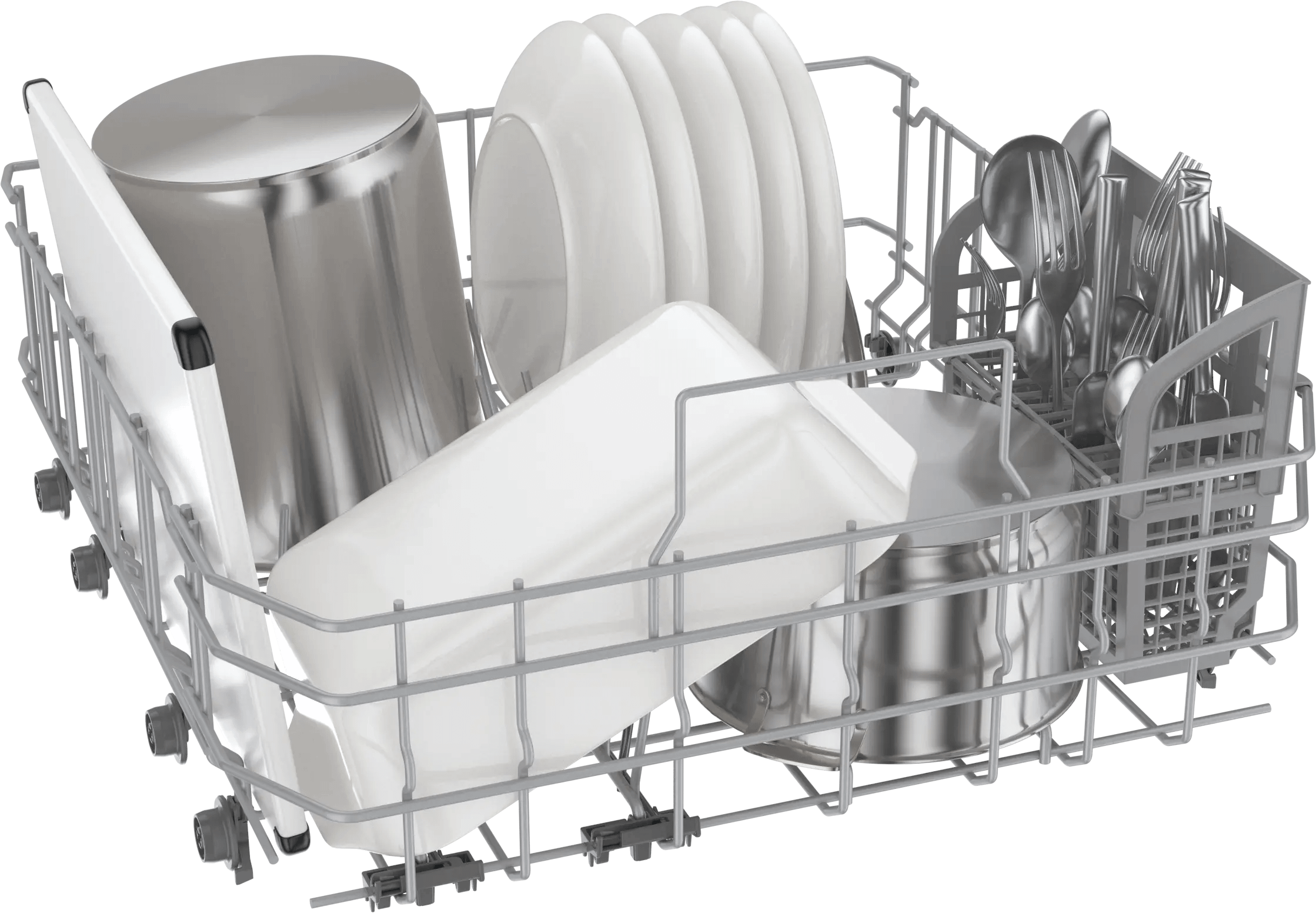

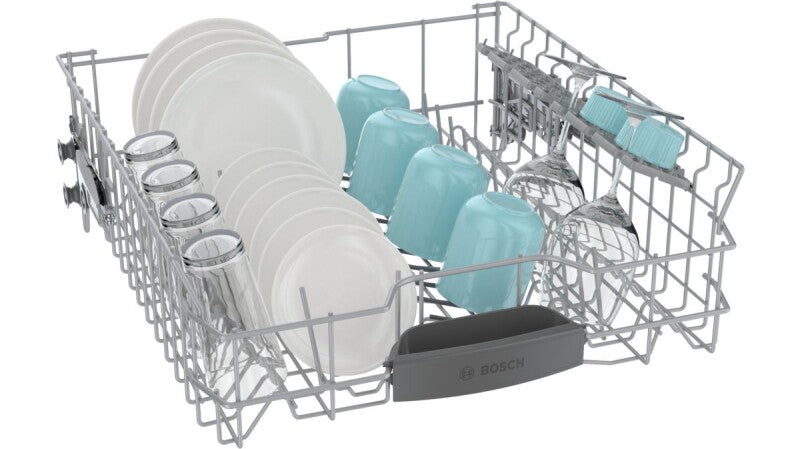

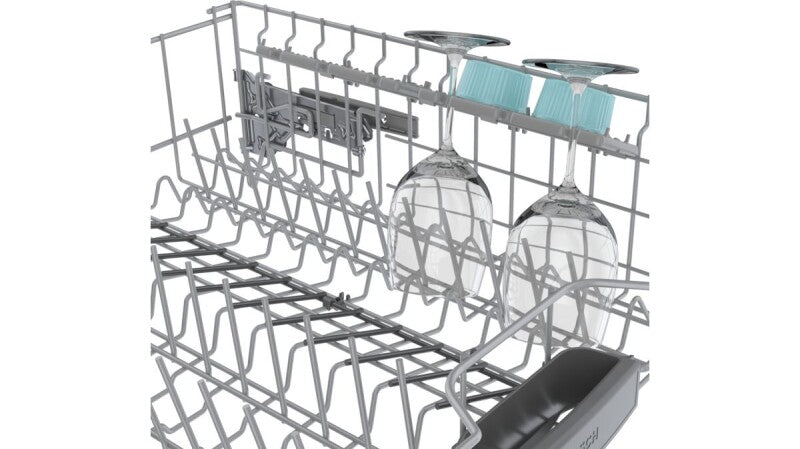

  • Fit in tall items with RackMatic
    RackMatic easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
  • 46 dBA - the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.
  • Not just dry, but PureDry
    PureDry is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
  • A smarter clean with PrecisionWash
    With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
  • Enhance your cleaning experience with Wi-Fi enabled Home Connect
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect

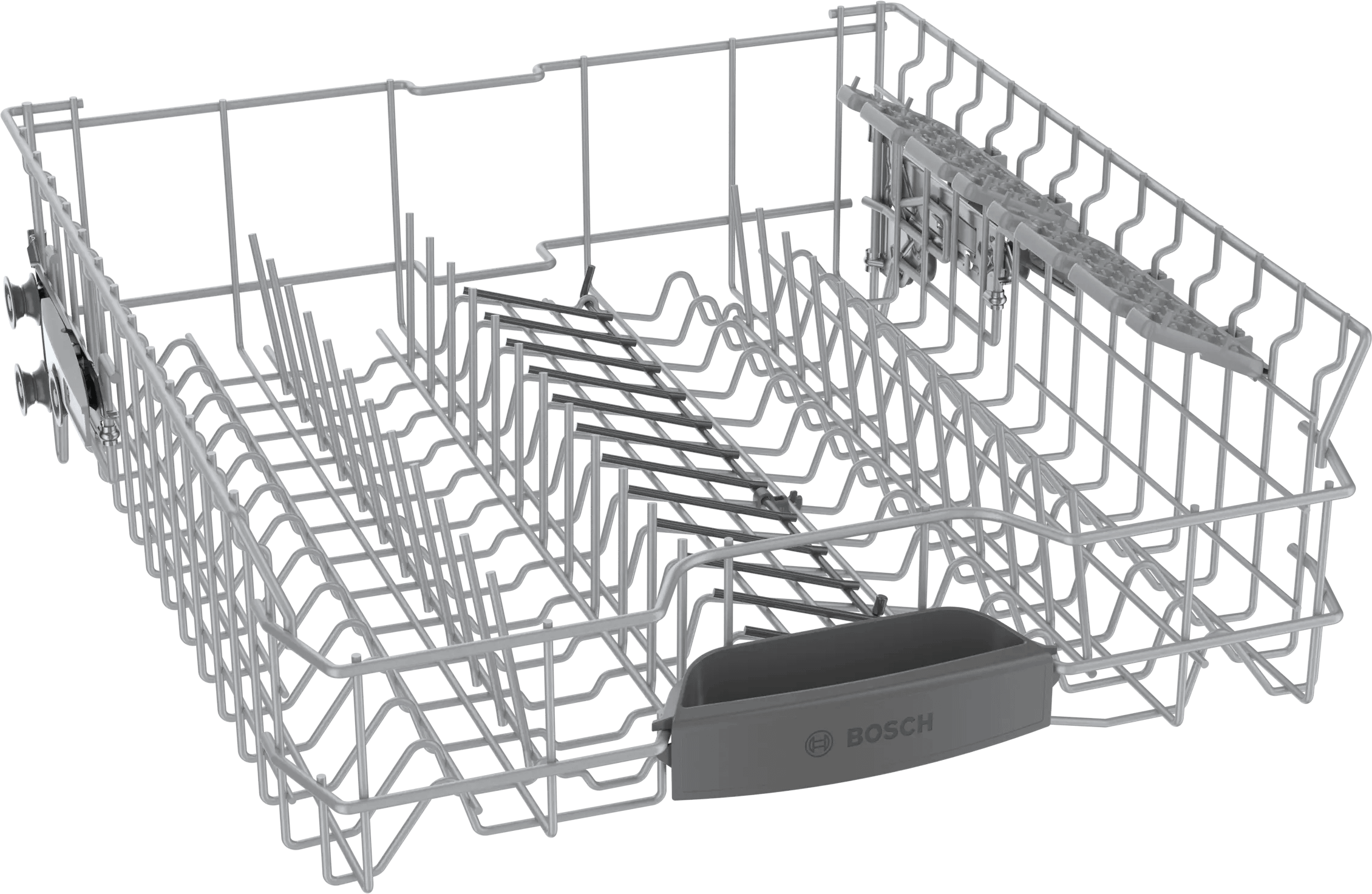

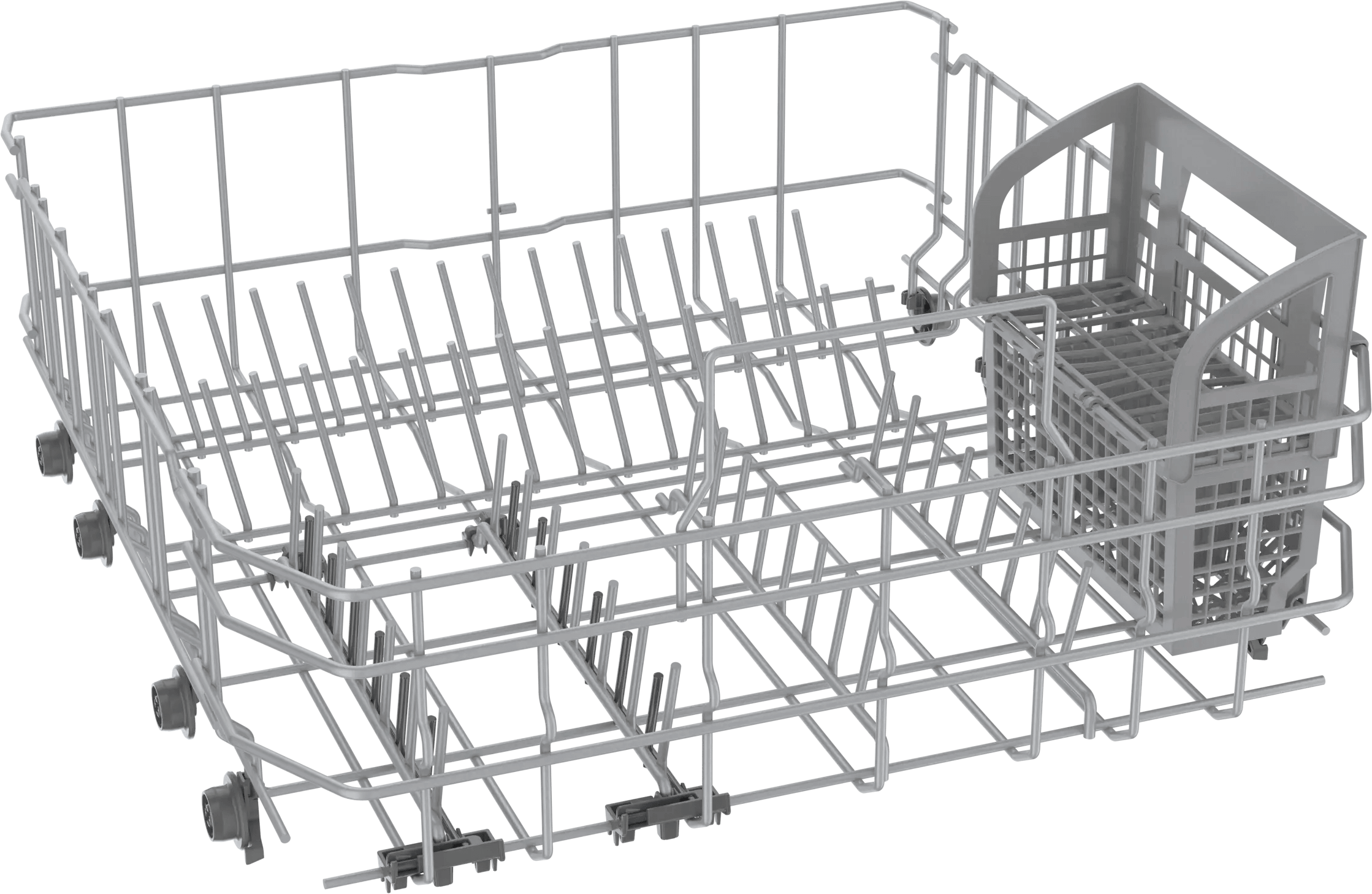

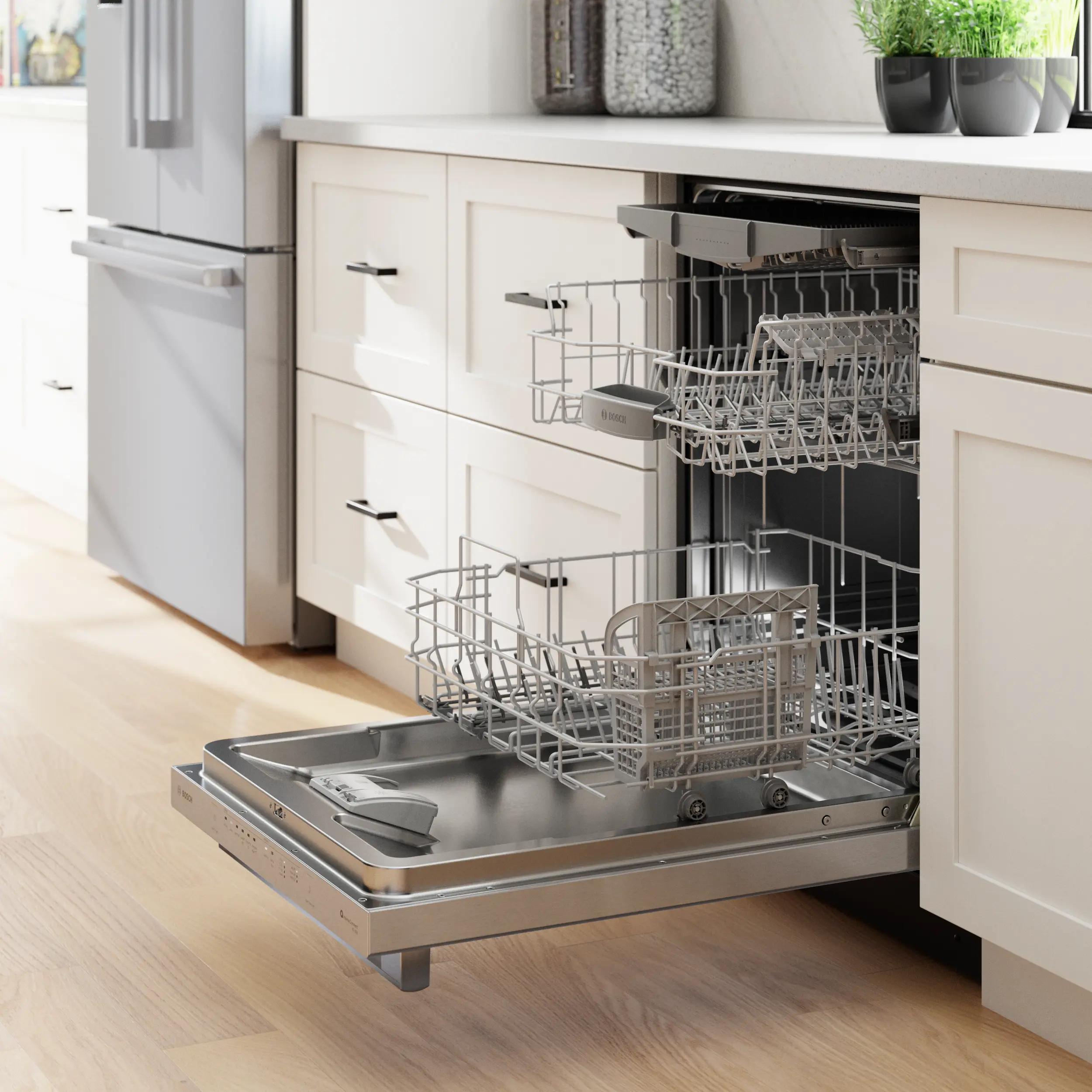

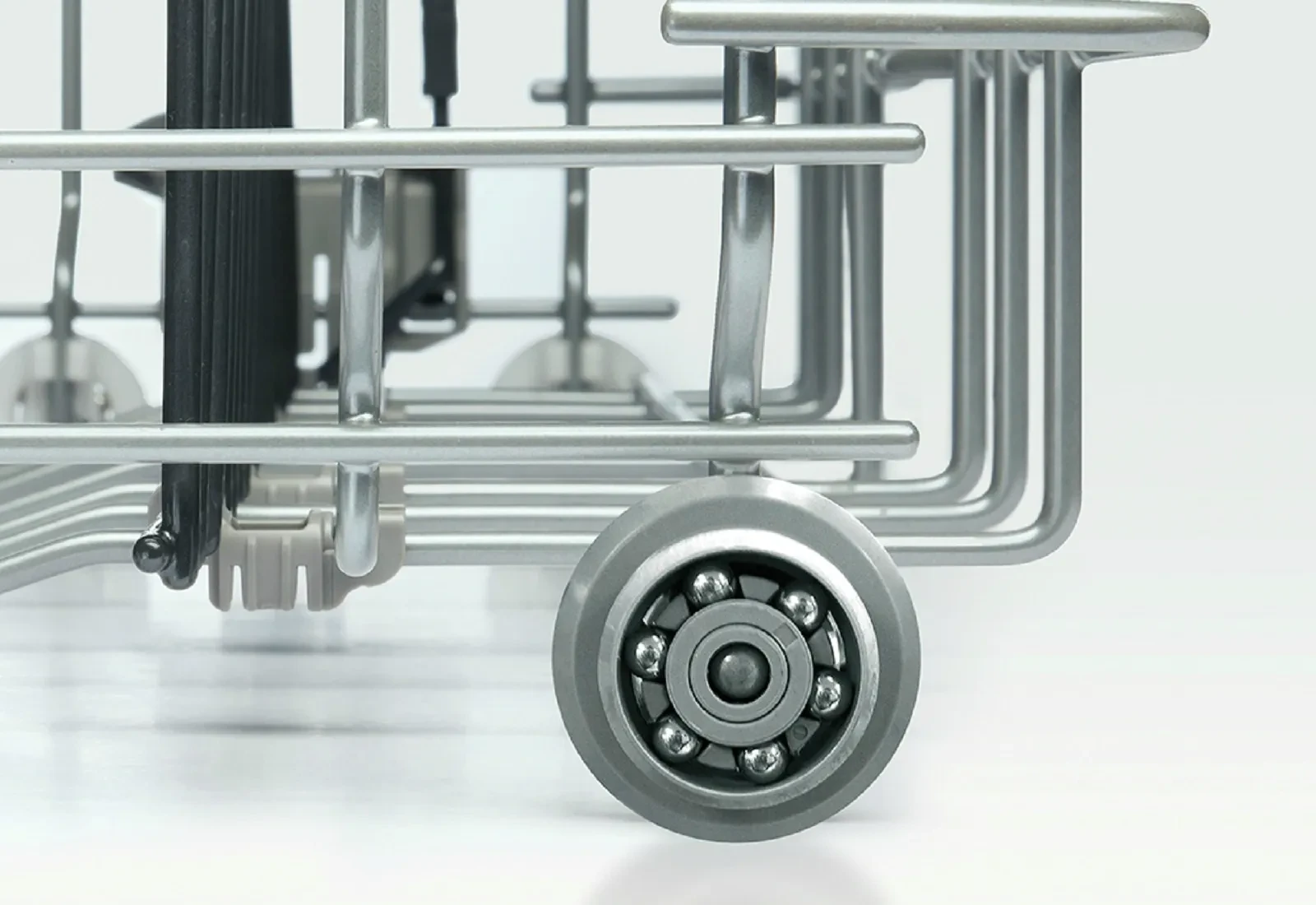

  • EasyGlide Racks: provide a smooth glide on all three racks.Close
    The EasyGlide rack system is redesigned to give you a smooth glide on all three racks—even when it’s fully loaded.
  • RackMatic: adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.Close
  • 10 years warranty: our promise against rust-through.Close
    We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).
  • Remarkably Quiet Operation at 46 dBA: creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*Close
  • PureDry: Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting.Close
  • Remarkably Quiet Operation at 46 dBA:
    creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*
  • Standard 3rd Rack:
    provides a convenient top rack for your utensils, giving the other racks more space for dishes.
  • EasyGlide Racks:
    provide a smooth glide on all three racks.
  • RackMatic:
    adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
  • 10 years warranty:
    our promise against rust-through.
  • EasyGlide™ Racks:
    provide a smooth glide on all three racks.
  • RackMatic®:
    adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.

Key Features

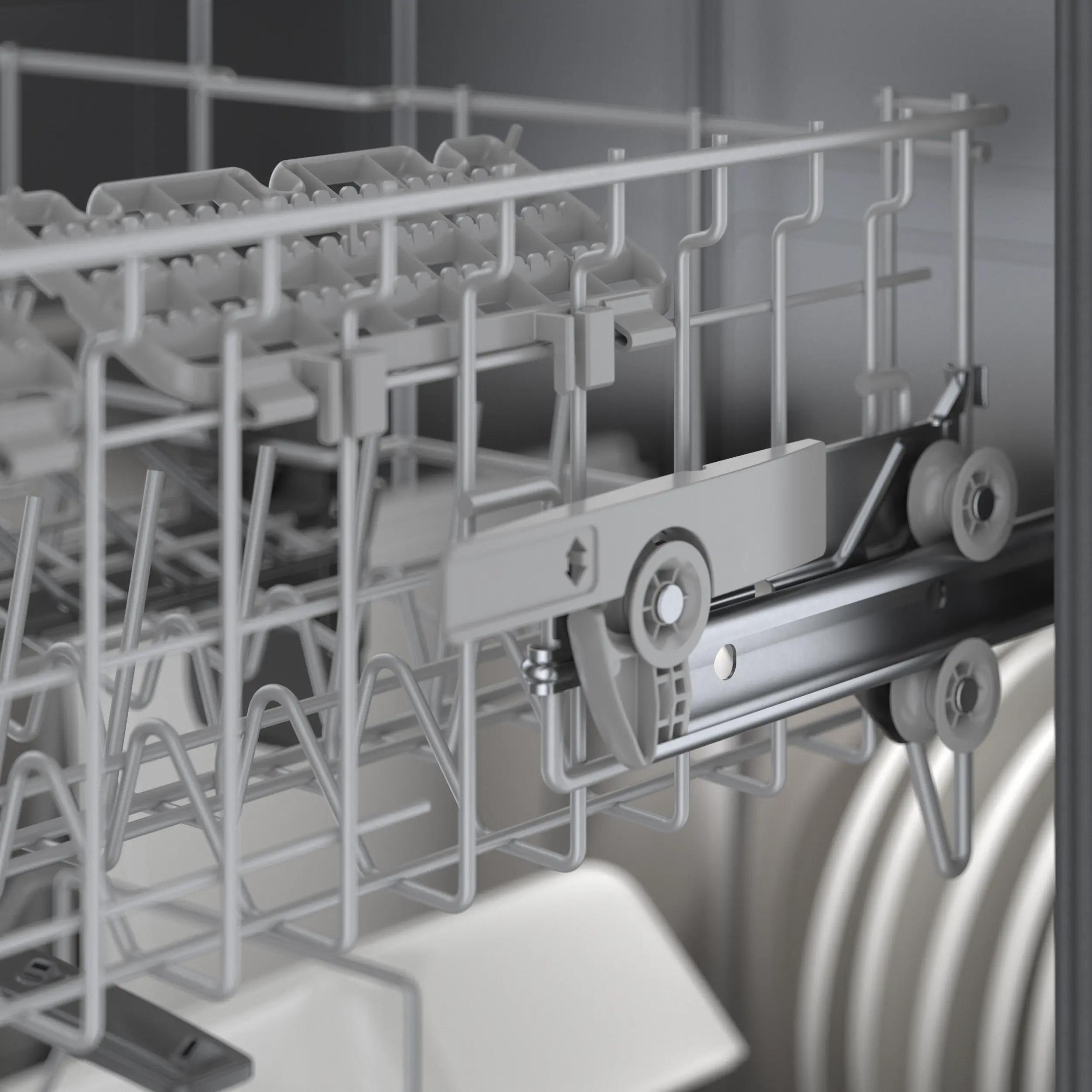

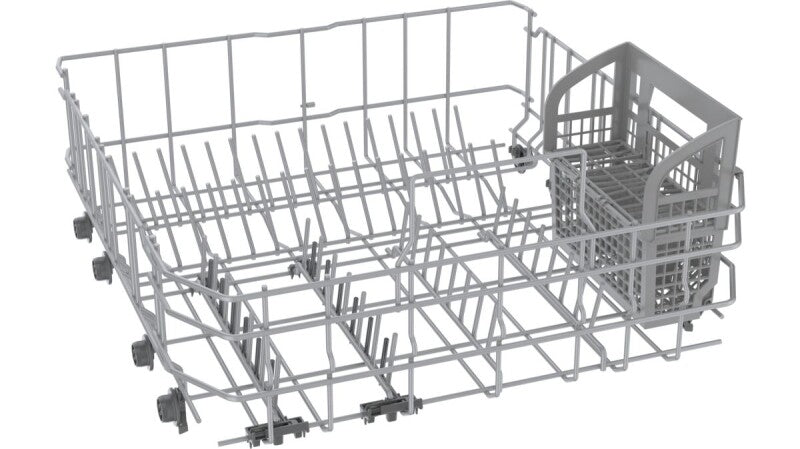

Newly redesigned EasyGlide rack system for a smooth glide on all three racks

The EasyGlide rack system is redesigned to give you a smooth glide on all three racks—even when it’s fully loaded.

10-Year Rust-Through Warranty.

We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

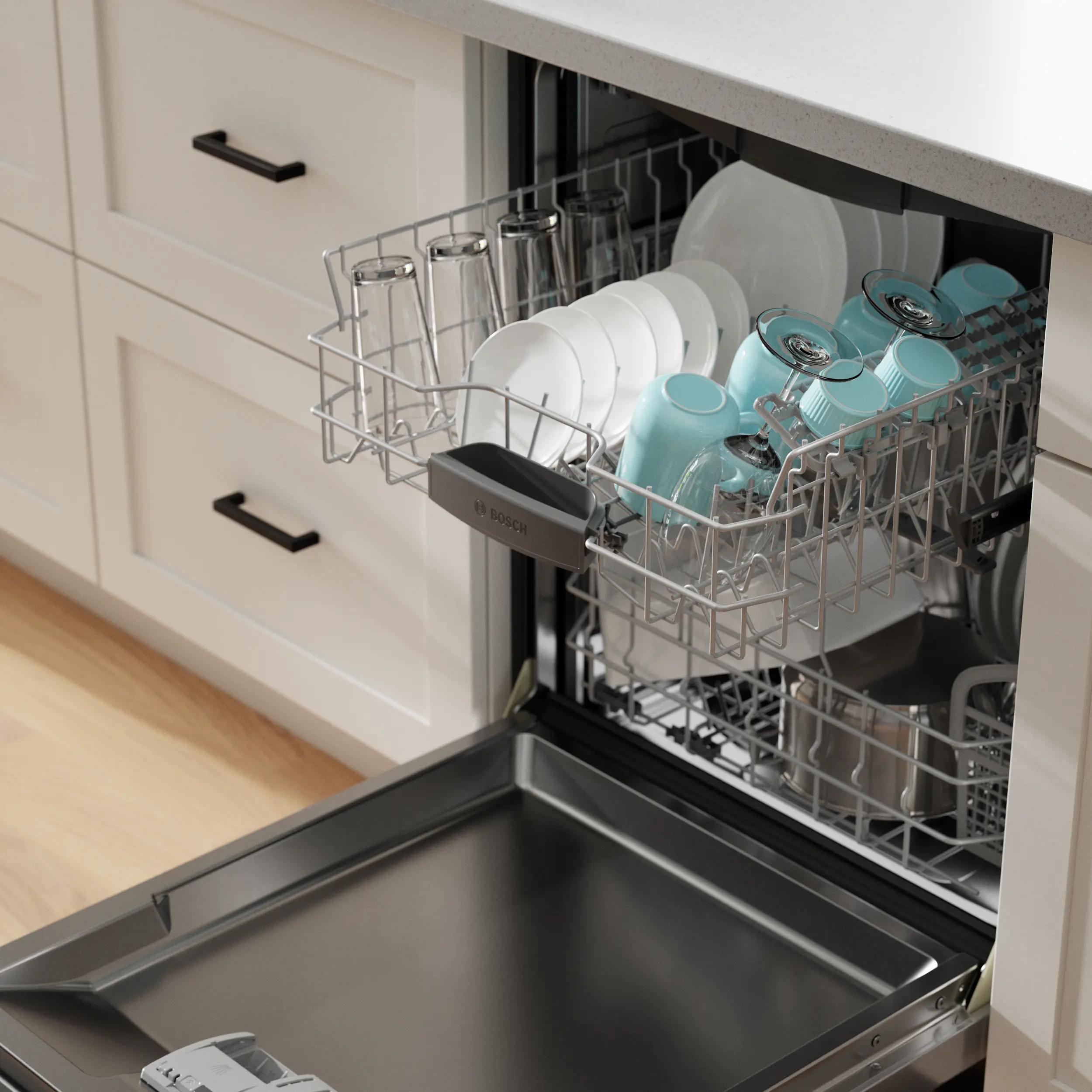

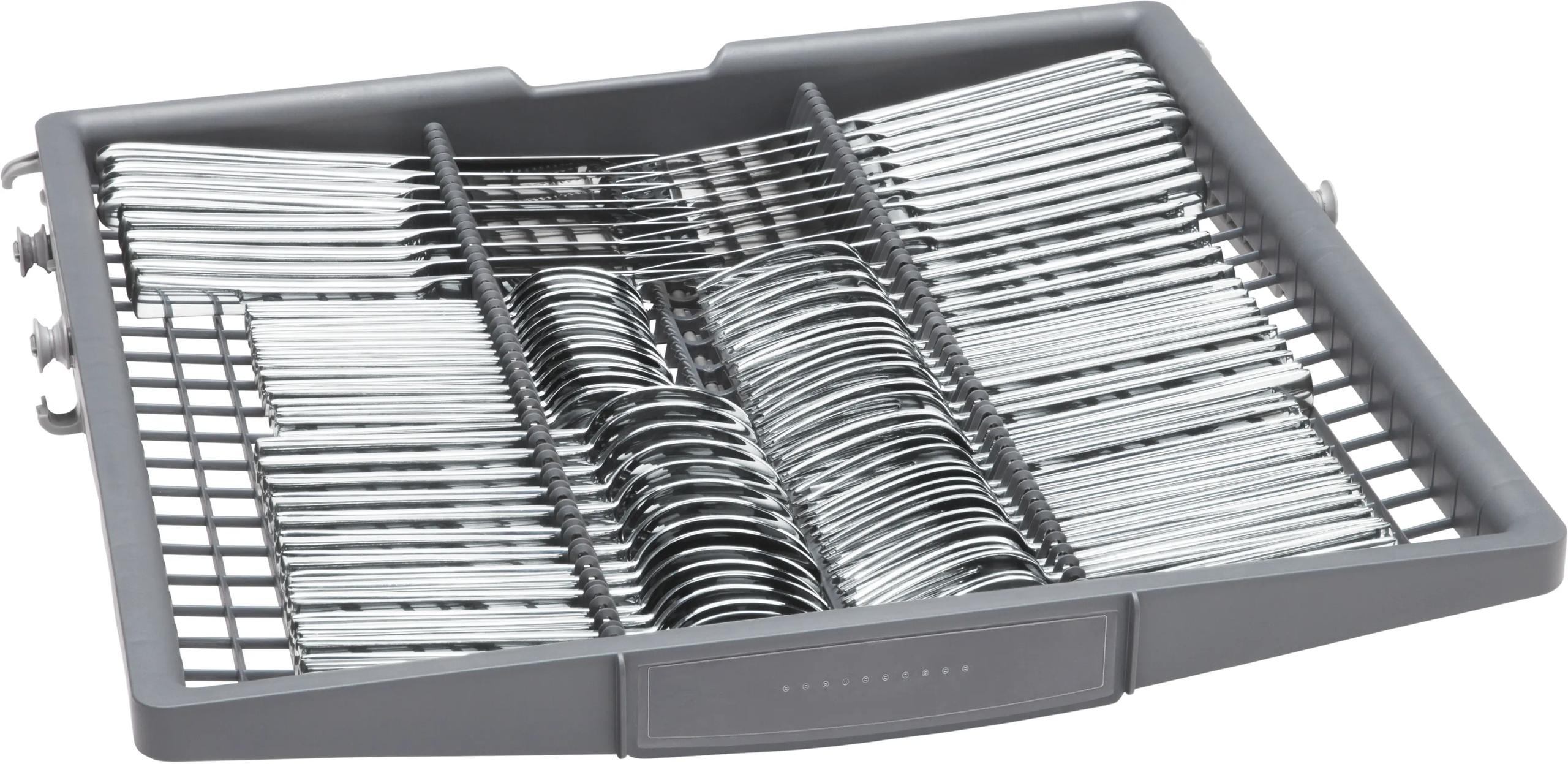

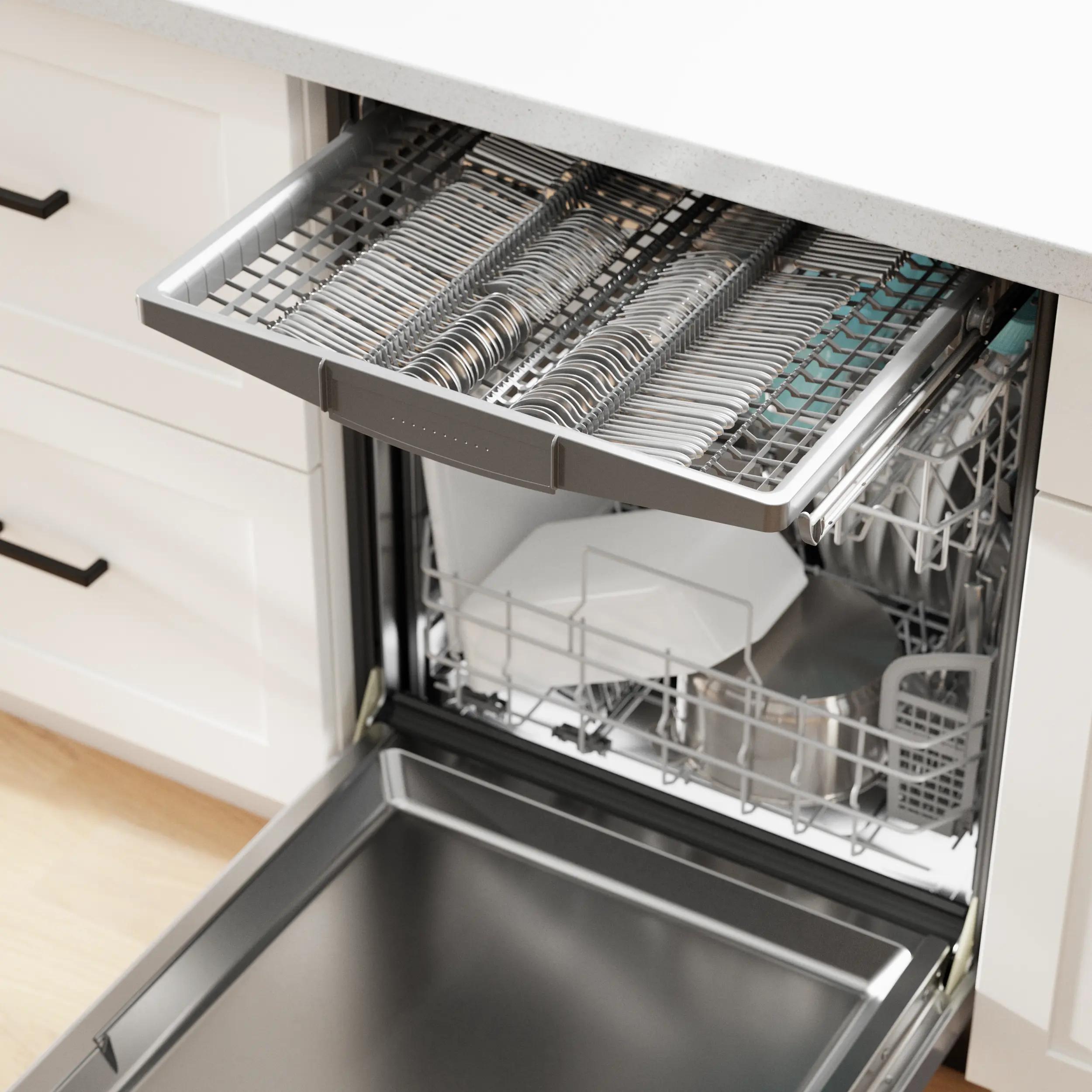

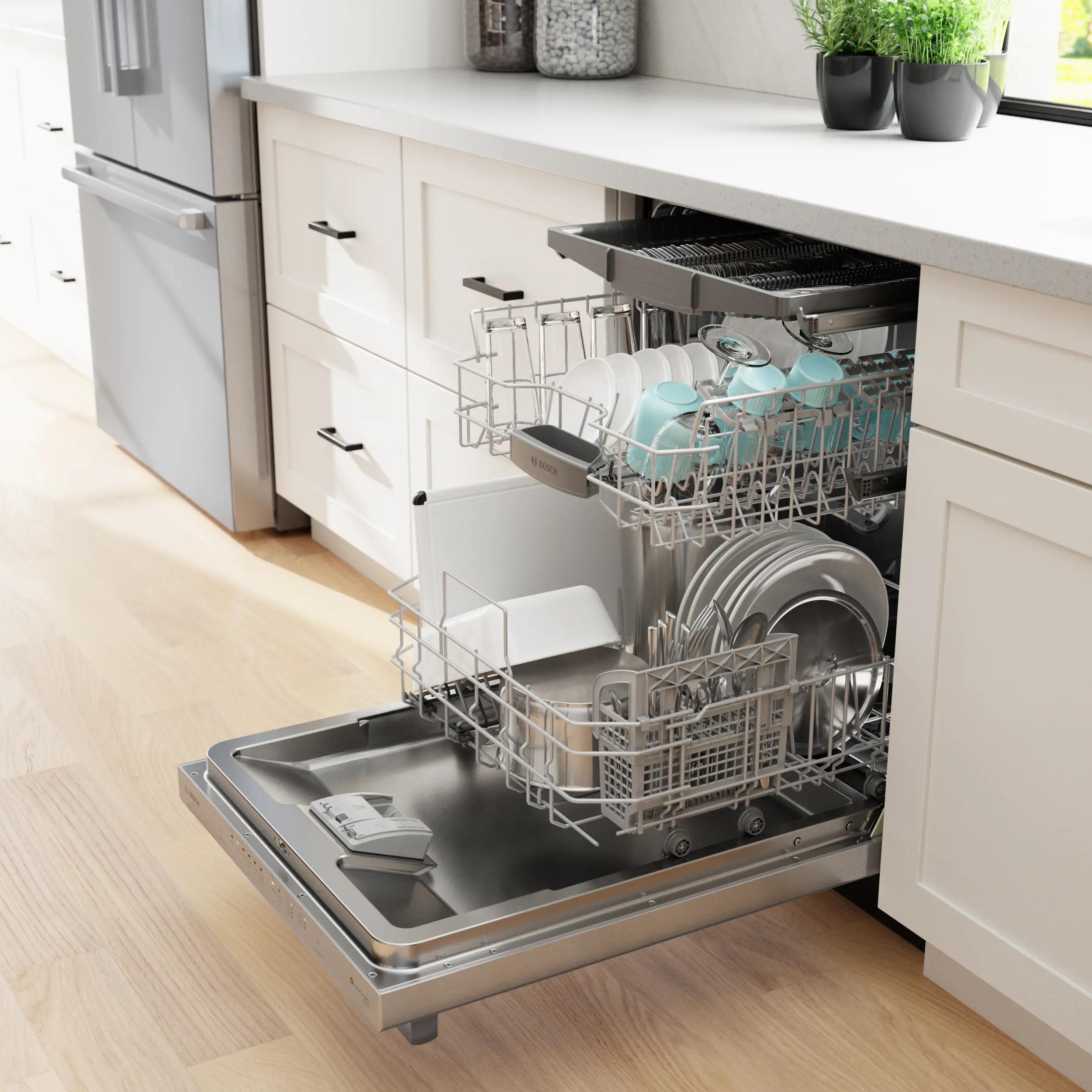

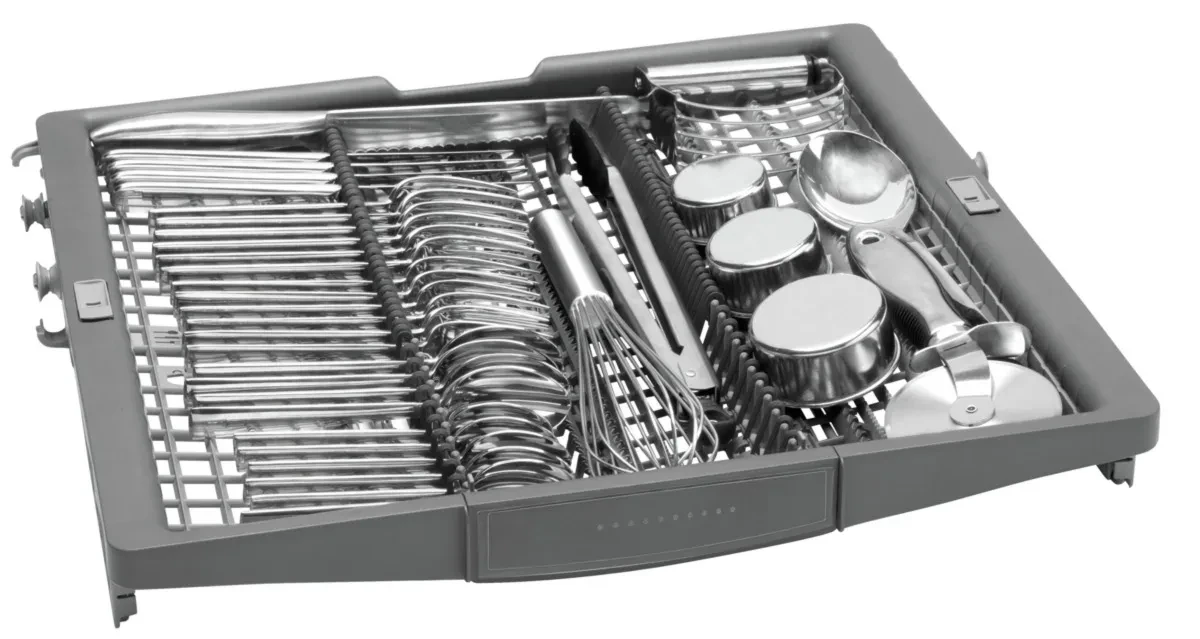

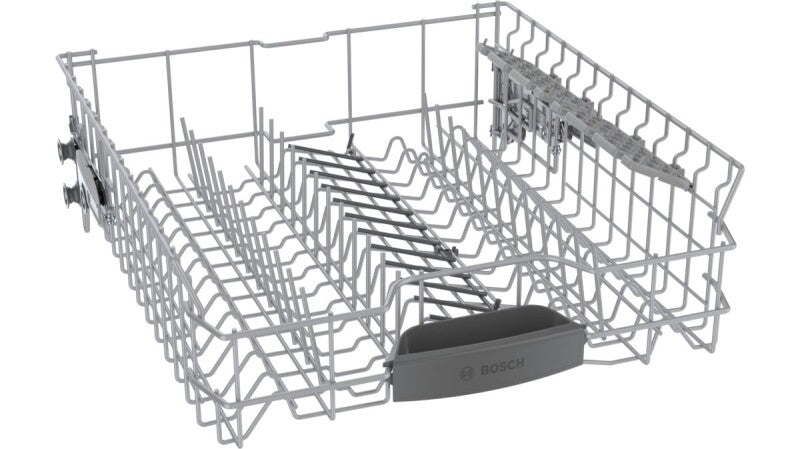

Loading flexibility with a 3rd rack dishwasher

The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.

Anti-fingerprint Stainless Steel doors

Provides protection against fingerprints, dirt & smudges so your kitchen always looks its best.
