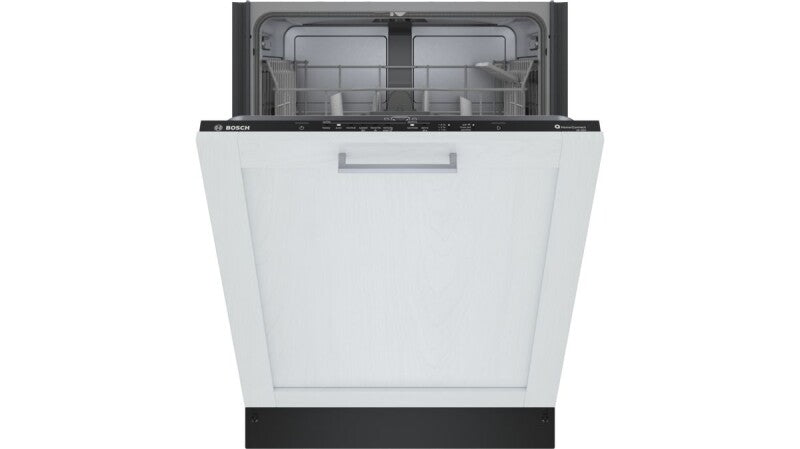

Product Details for Bosch SHV4AEB3N

Technical Details

General

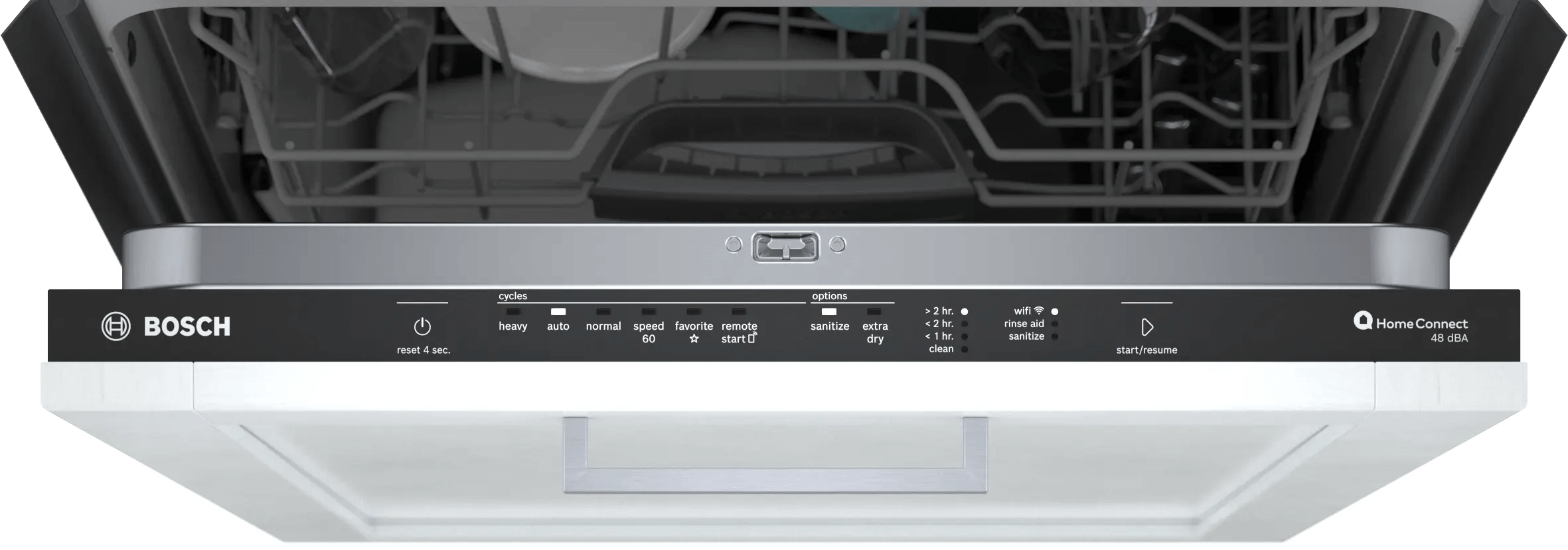

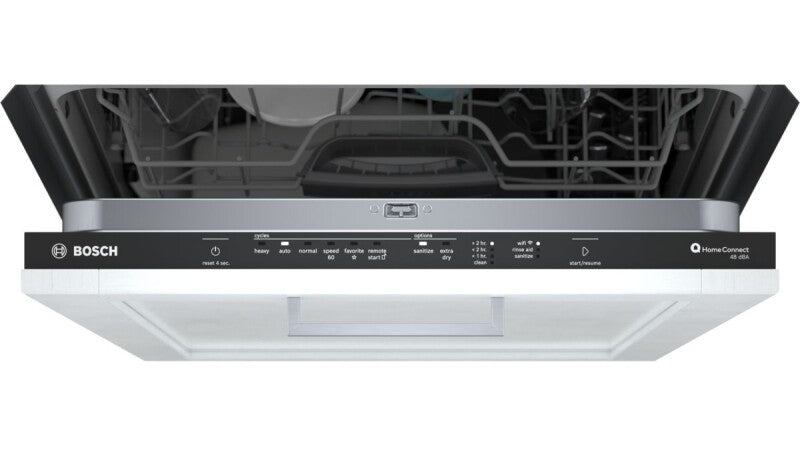

List of Programs Heavy, Normal, Speed 60, Favorite
Installation Type Full-integrated

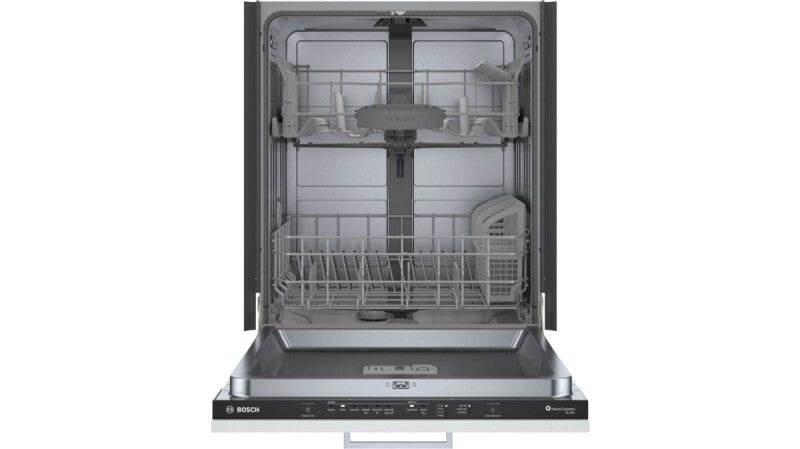

Number of Place Settings 14
Silence Level 48 dB(A) re 1pW
Design Built-in
Panel Ready Yes, Panel and Handle Sold Separately
Color Not Applicable
Options Remote Start, Sanitize, Extra Dry
Handle Design Custom Panel
Toe Kick Color Black
Tub Material Stainless steel with Polinox base
Programs & Options Exclusive to Home Connect Energy Save, Half Load, Silence on Demand, Speed on Demand VarioSpeed

Connectivity

Home Connect Features Remote Monitoring and Control

Safety

ChildLock No
AquaStop no

Warranty

Parts 1 Year
Labor 1 Year

Size and weight

Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Adjustable Feet Yes - all
Length Outlet Hose (in) 90 1/2''
Power Cord Length 67"
Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 21 5/8"
Net Weight 71.000 lbs

Comfort and convenience

Status Indicator End of program audible

Cleaning technology

Drying System PureDry®
Eco silence drive yes
Aquasensor yes
Water management system no
Detergent detection no
Water Softener no
Washing System PrecisionWash®

Dimensions & weight

Width 23.56 in.
Height 33.88 in.
Length 21.63 in.
Weight 71 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.56 in.
Shipping Height 38.88 in.
Shipping Length 26.63 in.
Shipping Weight 111 lbs.
Total of Shipping Weight 111 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.99 ft³
Dimensional Weight 124.18 lbs.
Total of Cubes 9.99 ft³
Total of Dimensional Weight 124.18 lbs.

Energy and water

Total Annual Energy Consumption 240 kWh
Total Annual Water Consumption 688 gal
ENERGY STAR® certified yes

Description

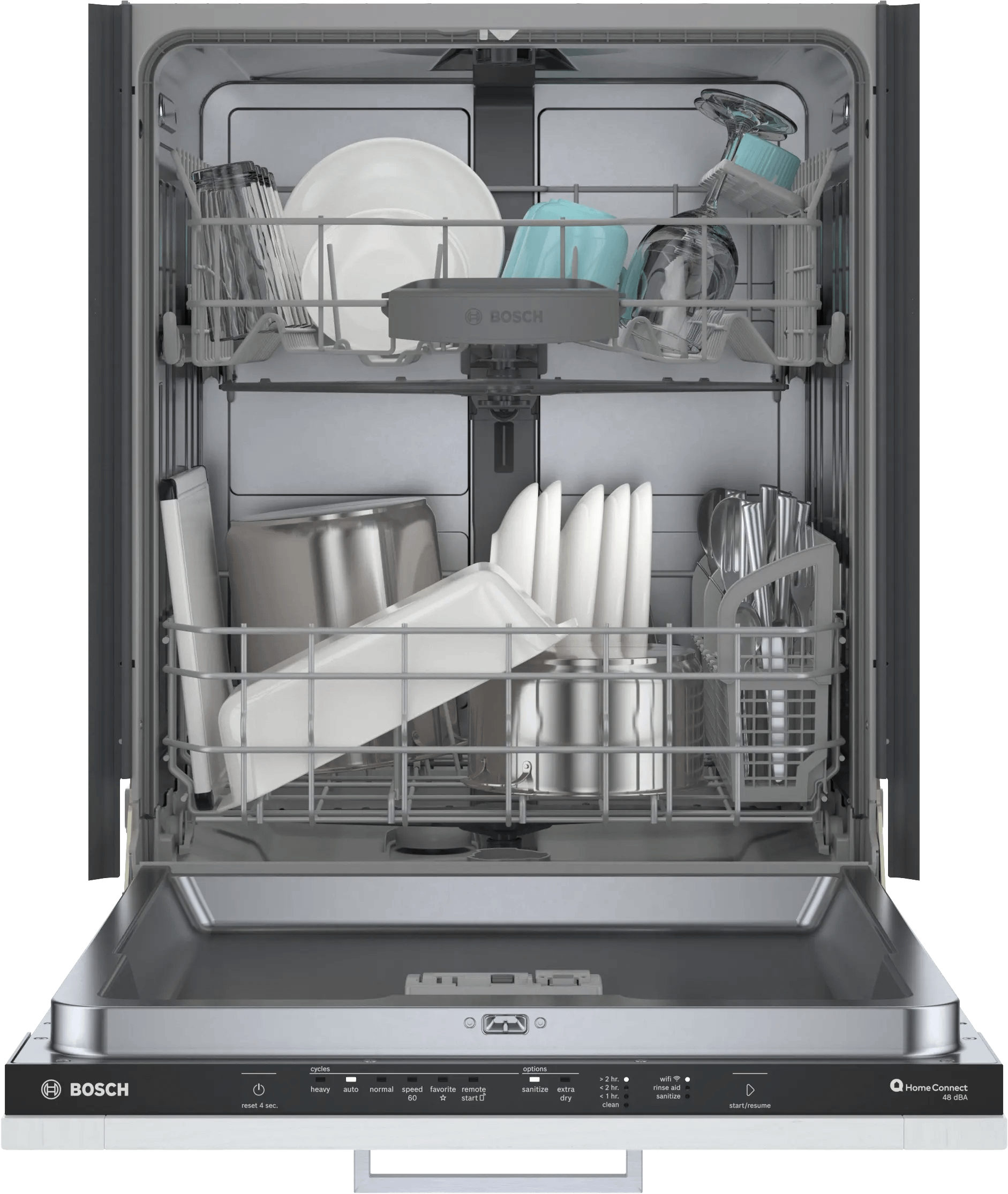

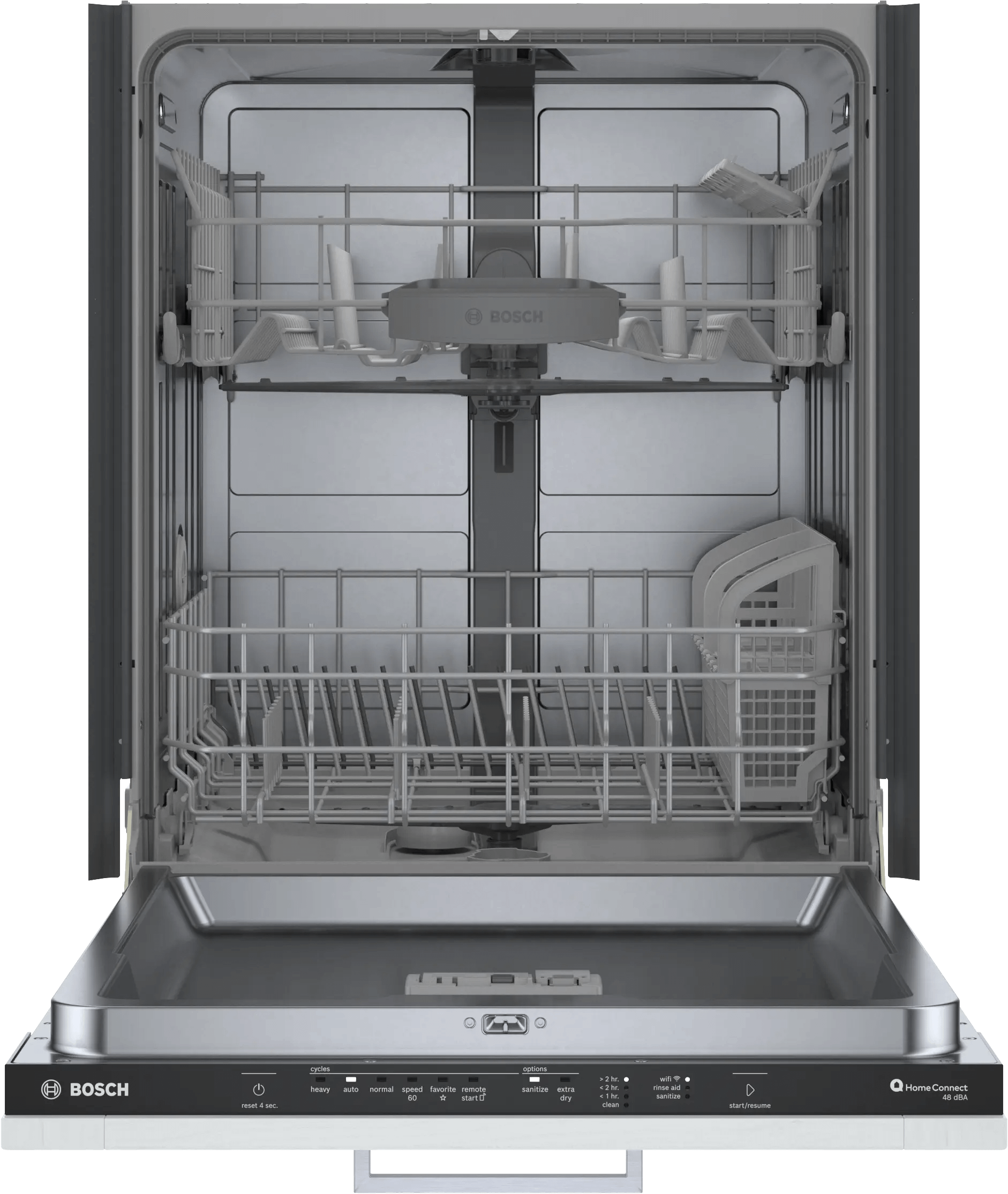

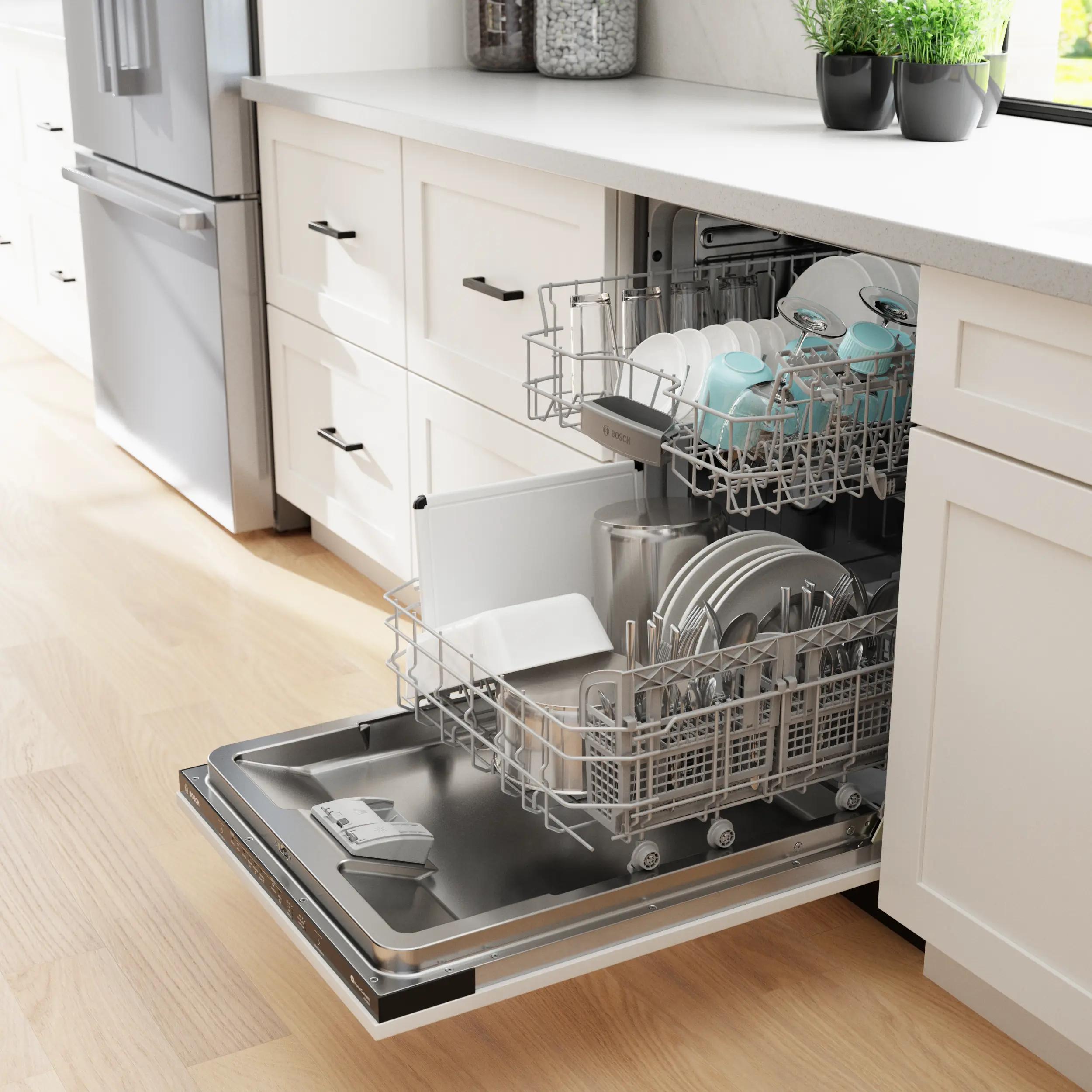

The Bosch SHV4AEB3N 100 Plus Series dishwasher offers a customizable panel-ready design, seamlessly integrating into your kitchen cabinetry for a sleek, uniform look. Its spacious interior accommodates up to 14 place settings, making it suitable for both daily use and entertaining. The RackMatic® system provides three height levels and nine possible rack positions, allowing for flexible loading of various dishware sizes. PrecisionWash® technology utilizes intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean, while PureDry® ensures energy-efficient drying without the use of an exposed heating element, making it safe for plastics. Operating at a quiet 48 dBA, this dishwasher won't disrupt your household activities. With Home Connect® integration, you can monitor and control your dishwasher remotely, access additional wash cycles, and receive notifications, enhancing your overall user experience.



Product Features

  • Enhance your cleaning experience with Wi-Fi enabled Home Connect
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect

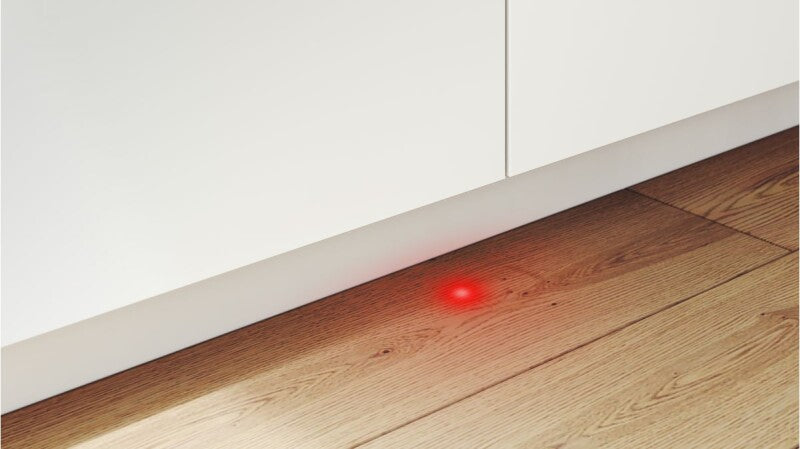

  • Know when your dishwasher is running with InfoLight
    Based on our legendary sound reduction technology, our dishwashers are so quiet, we provide an InfoLight that projects a red light onto the floor (or a white light in the pocket handle on select models) to signal that a cycle is running. It turns off once the dishes are done.

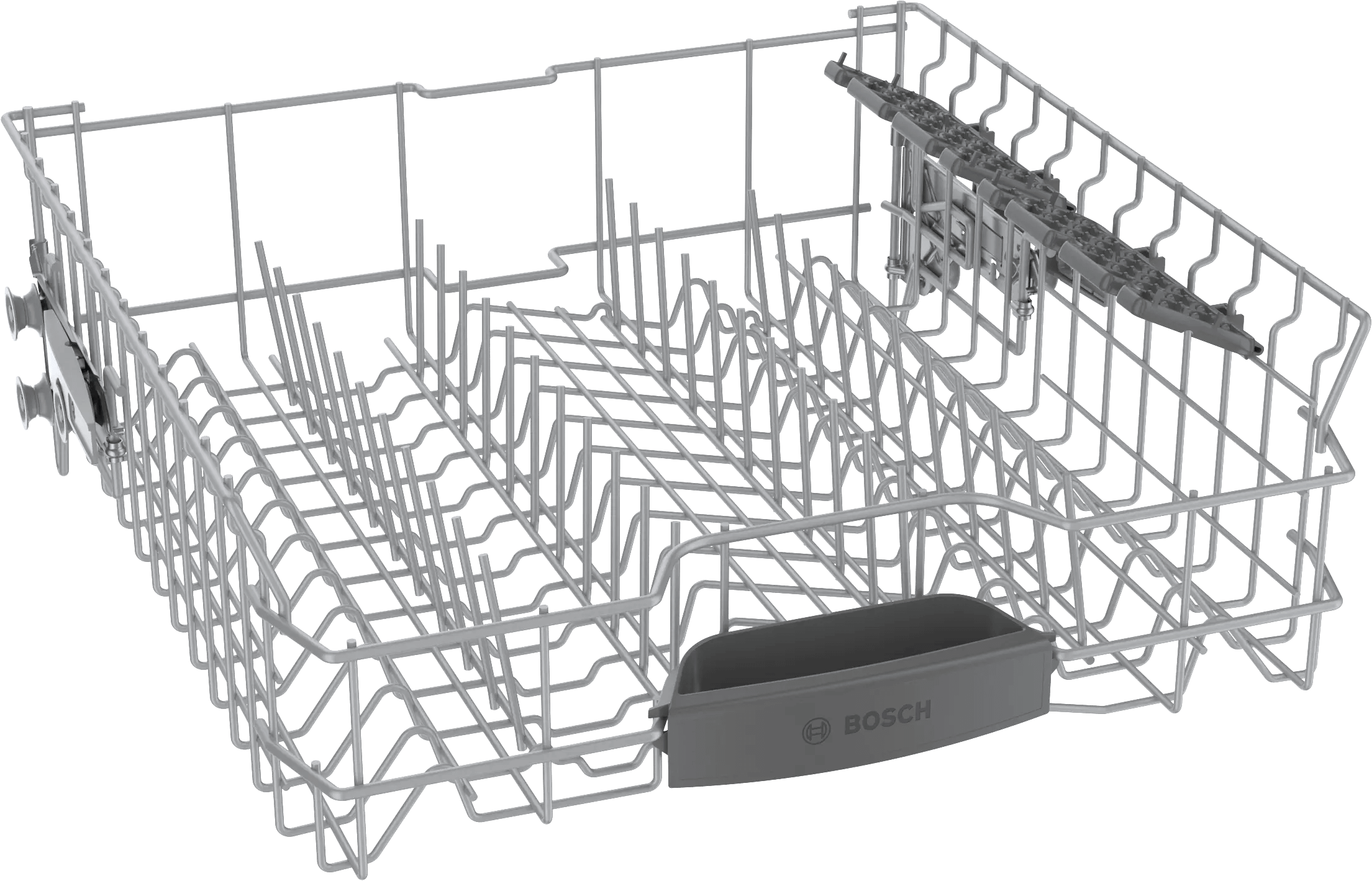

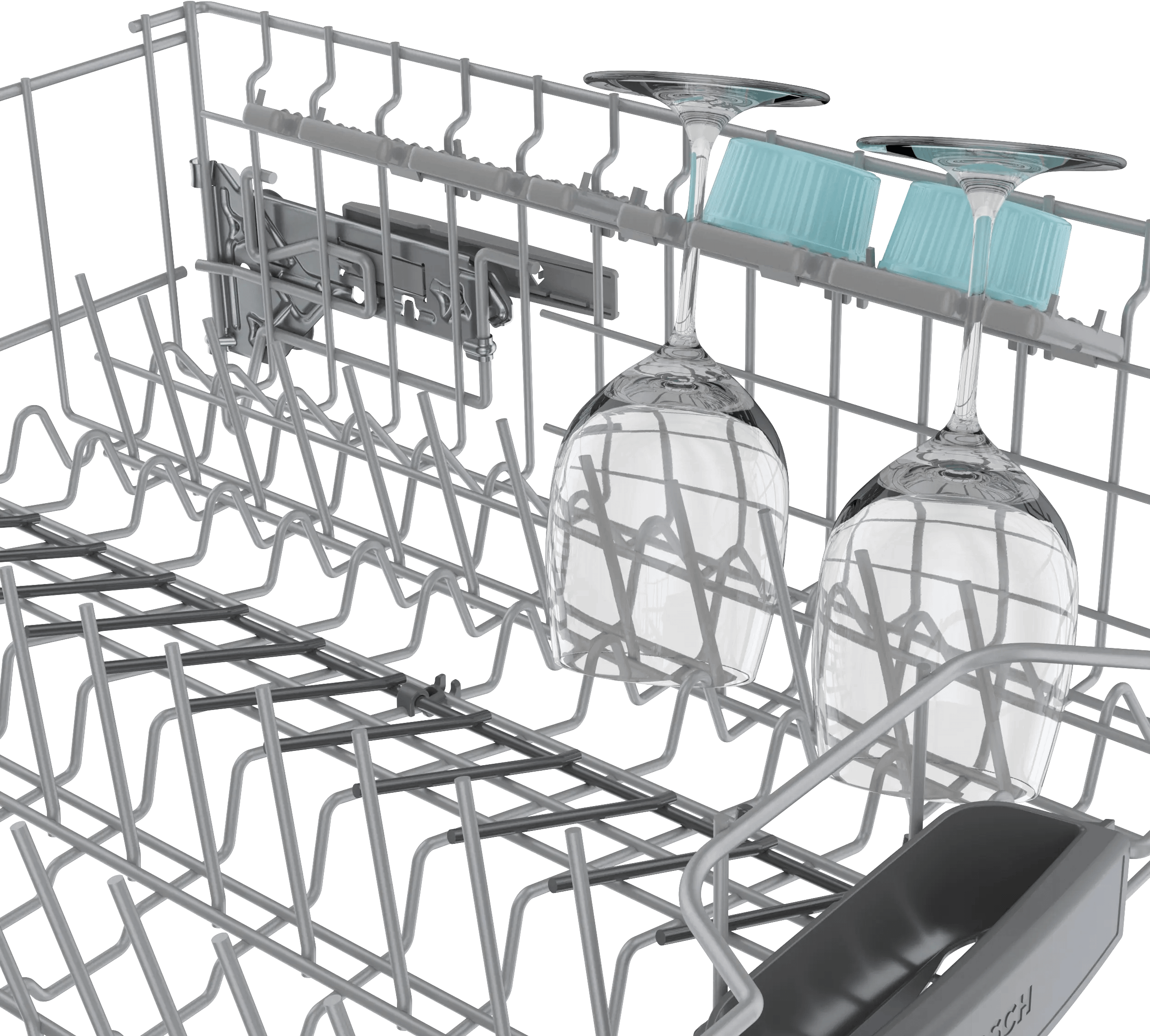

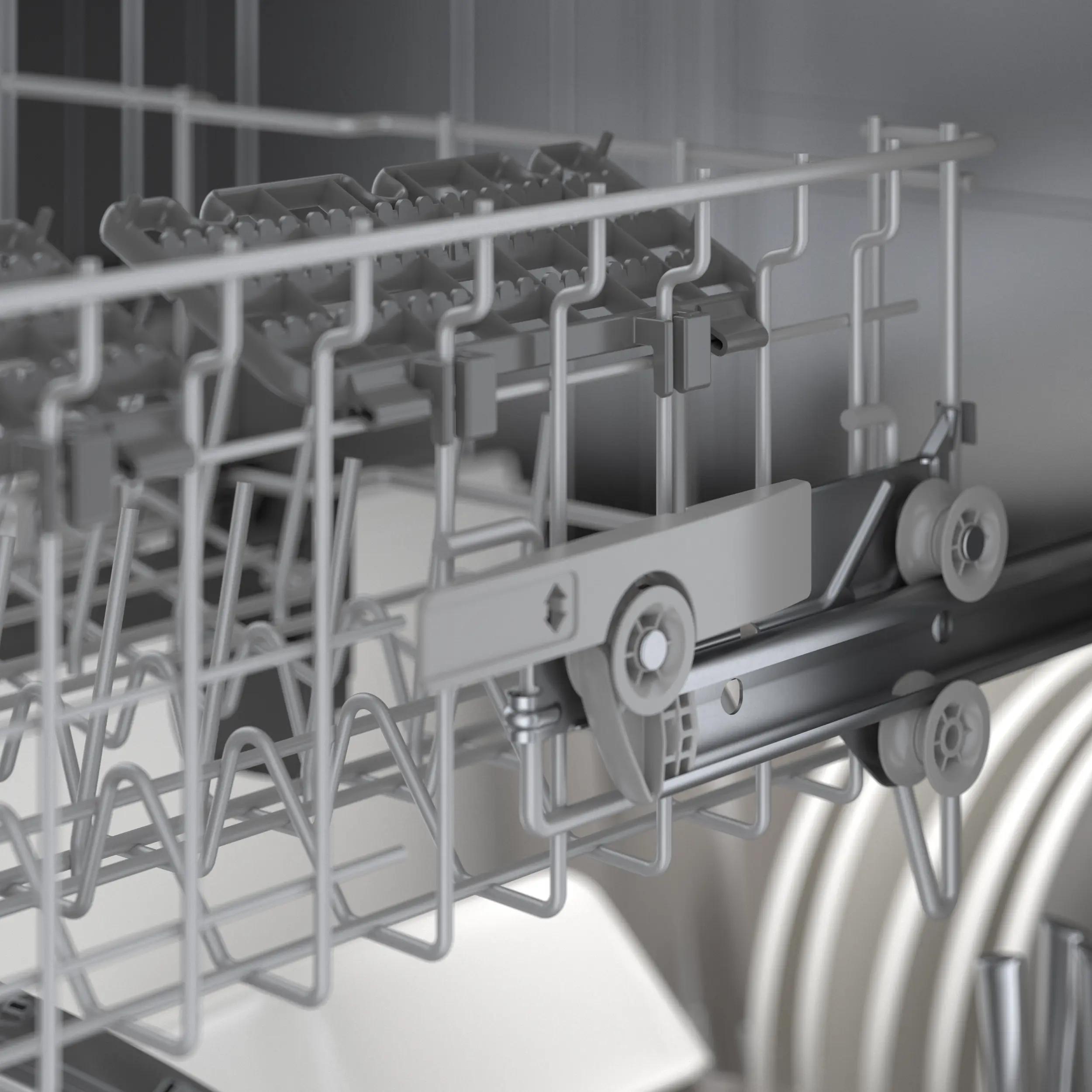

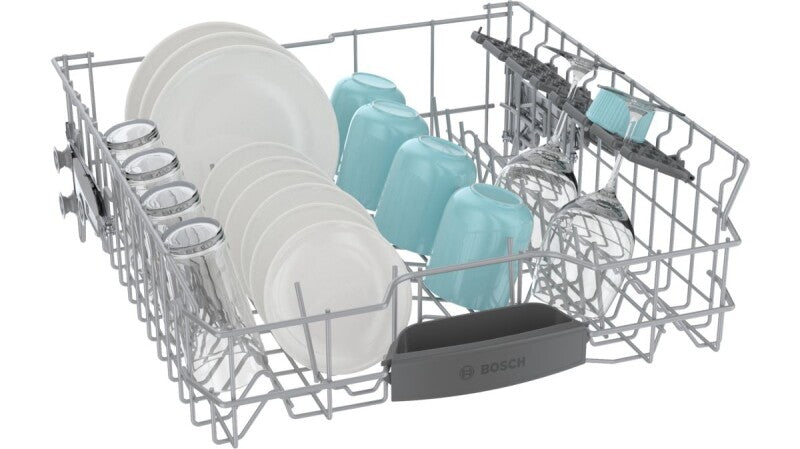

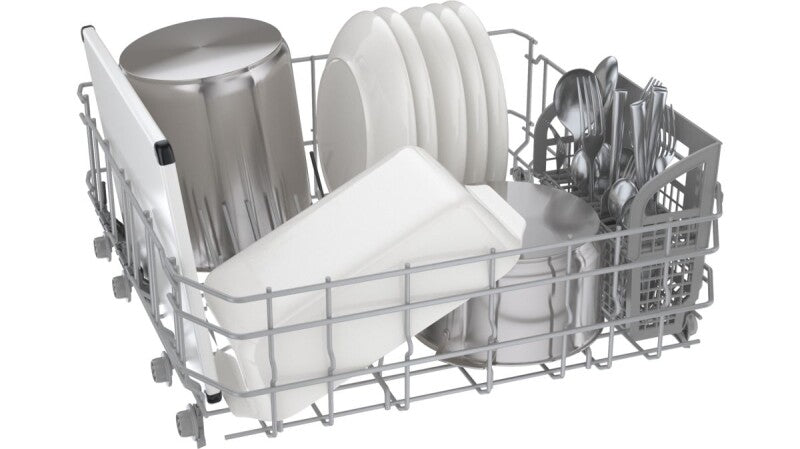

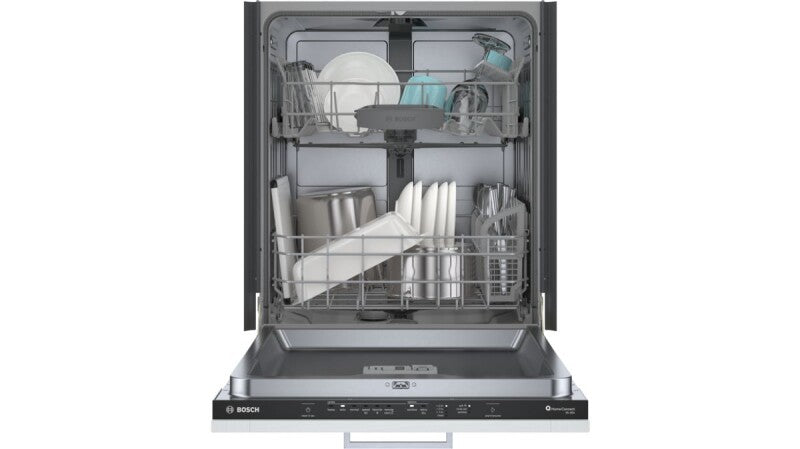

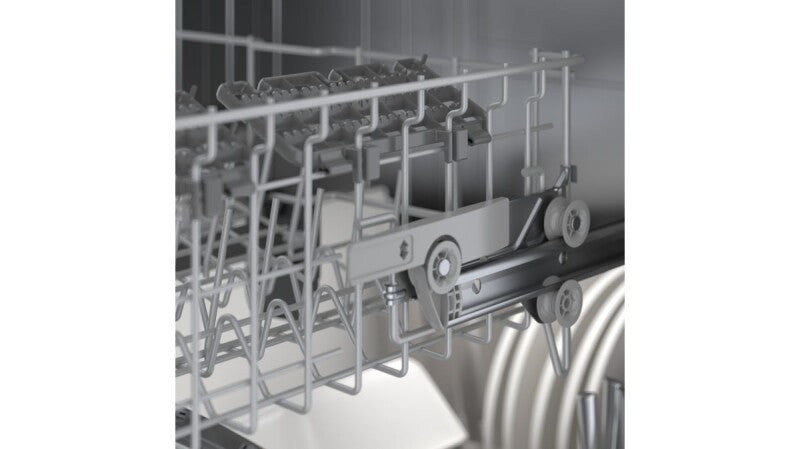

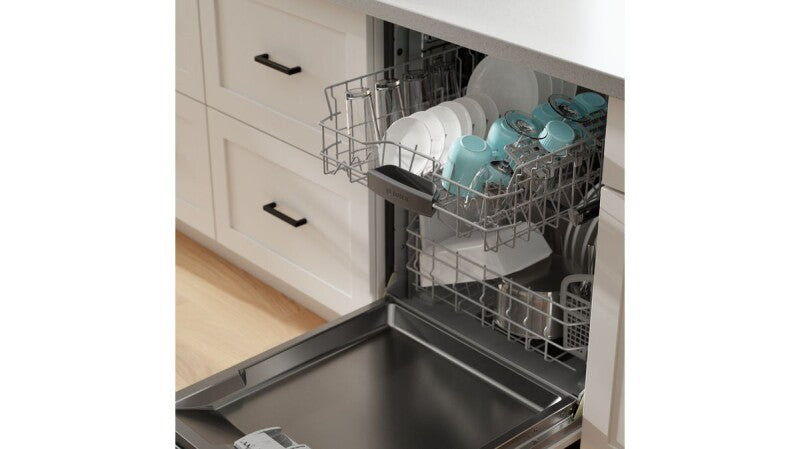

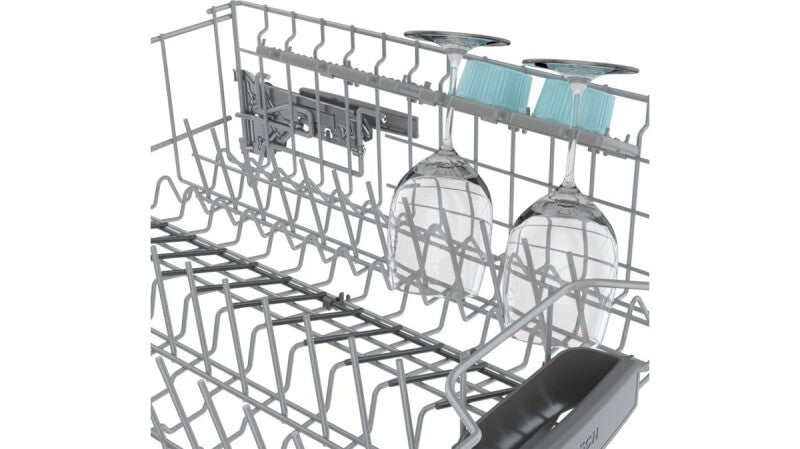

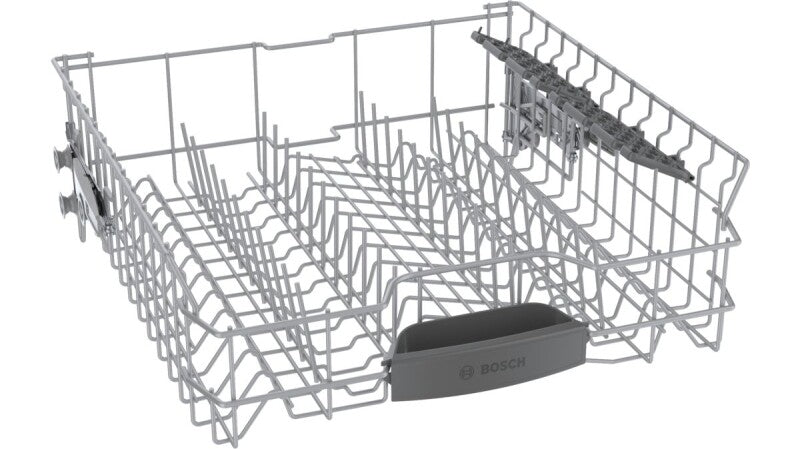

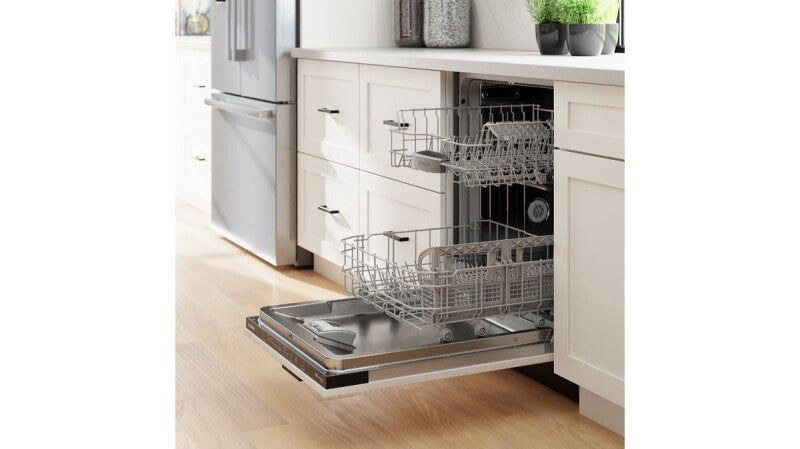

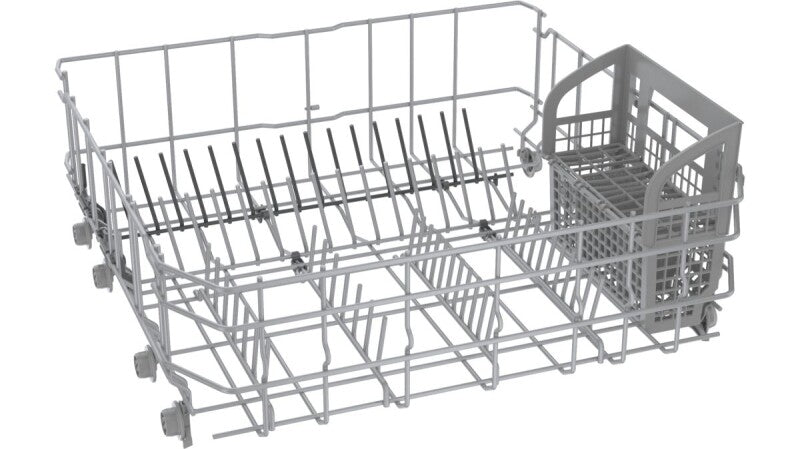

  • Fit in tall items with RackMatic

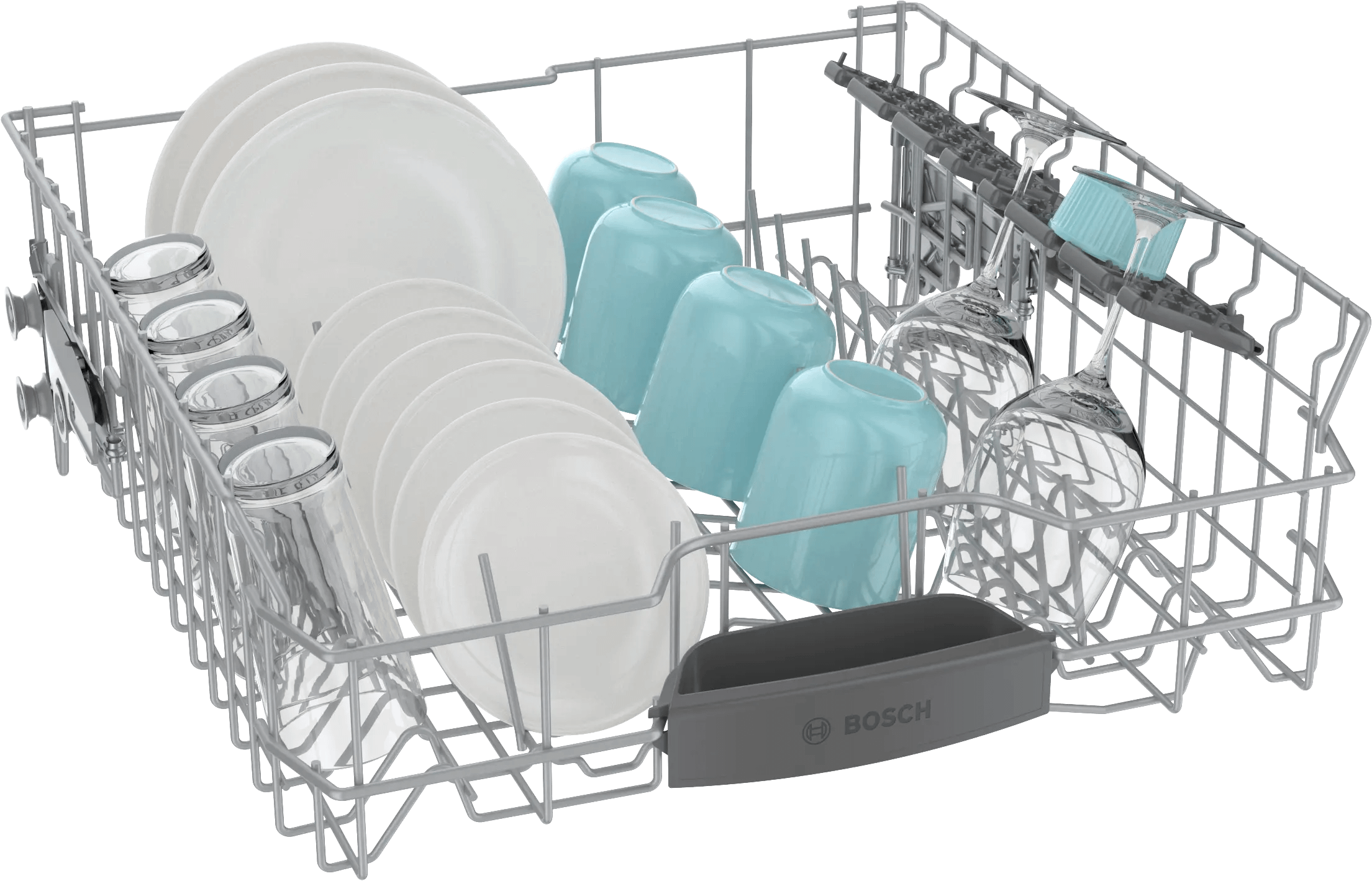

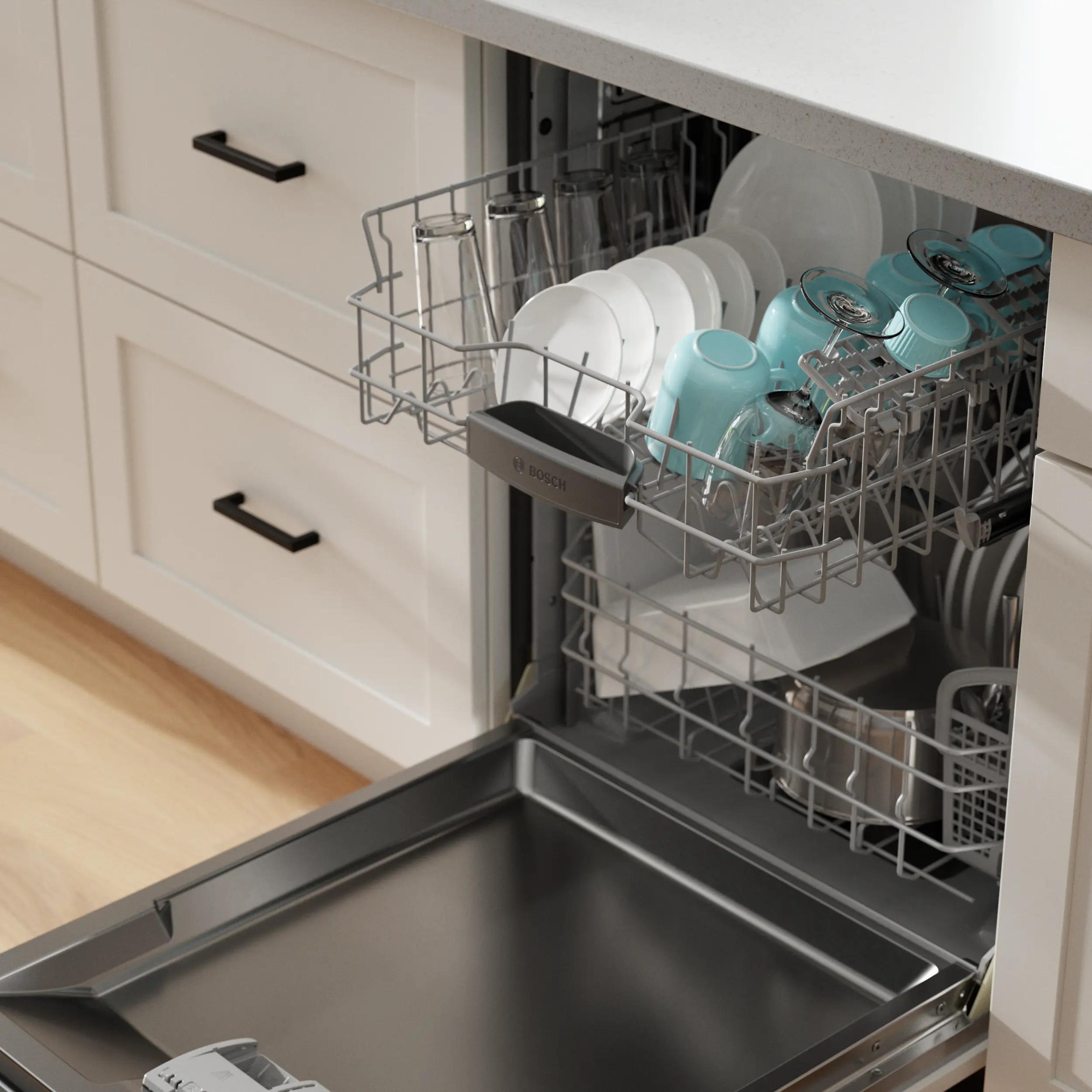

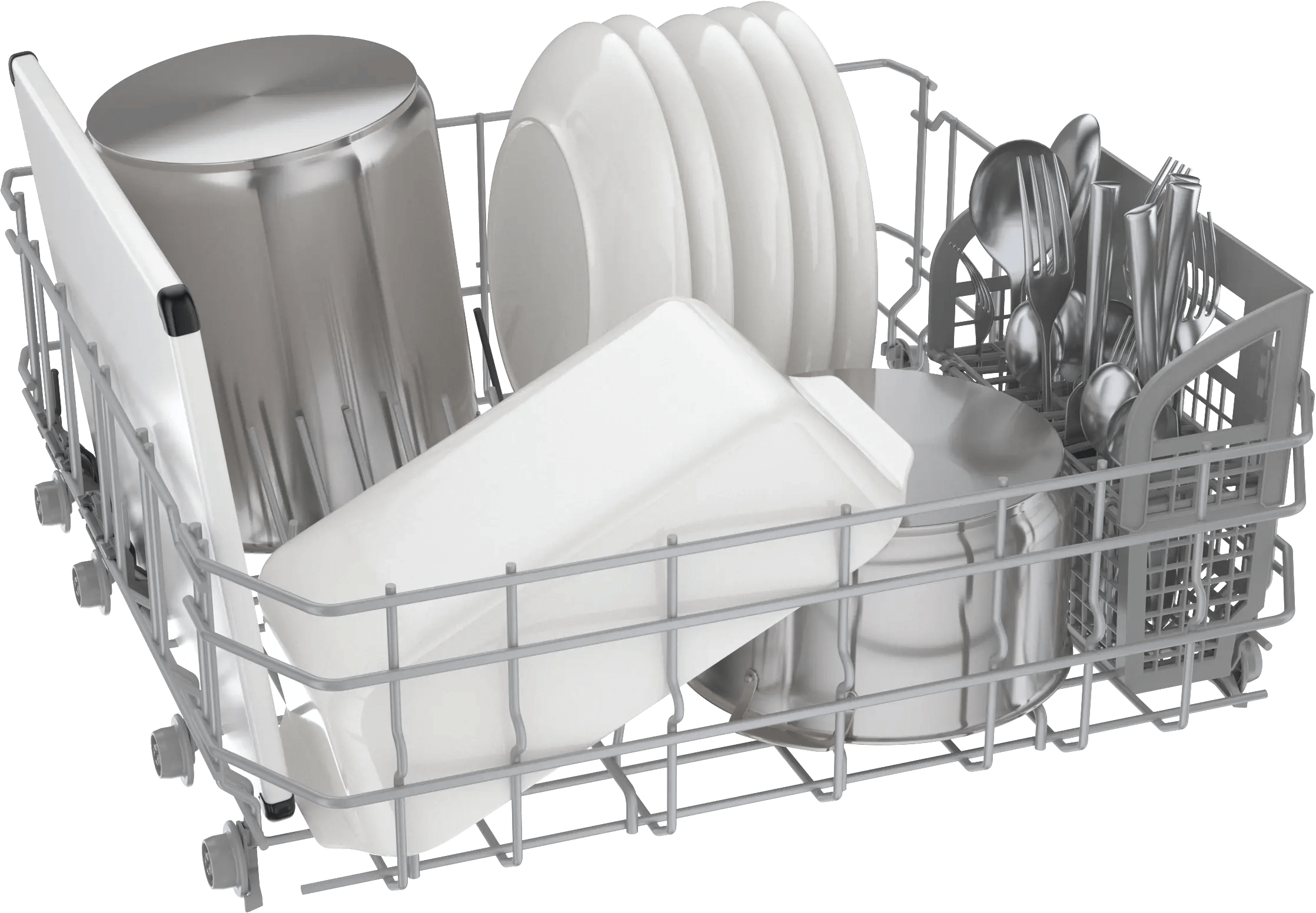

    RackMatic easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
  • Not just dry, but PureDry
    PureDry is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
  • A smarter clean with PrecisionWash
    With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
  • Protect your kitchen with the 24/7 Overflow Protection System
    Bosch’s exclusive 24/7 Overflow Protection System looks out for you even when the unit is off. If the water level ever gets too high, water is drained and the water inlet is closed.
  • 48 dBA -- the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.
  • Home Connect: access additional wash cycles to choose the right one for your needs with Smart Cycle.Close
  • RackMatic: adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.Close
  • 10 years warranty: our promise against rust-through.Close
    We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).
  • PureDry: Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting.Close
  • PrecisionWash: uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.Close
  • Home Connect:
    access additional wash cycles to choose the right one for your needs with Smart Cycle.
  • RackMatic:
    adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
  • 10 years warranty:
    our promise against rust-through.
  • PureDry:
    Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting.
  • PrecisionWash:
    uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.
  • Home Connect®:
    access additional wash cycles to choose the right one for your needs with Smart Cycle.
  • RackMatic®:
    adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
  • PureDry®:
    Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting.
  • PrecisionWash®:
    uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.

Key Features

10-Year Rust-Through Warranty.

We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

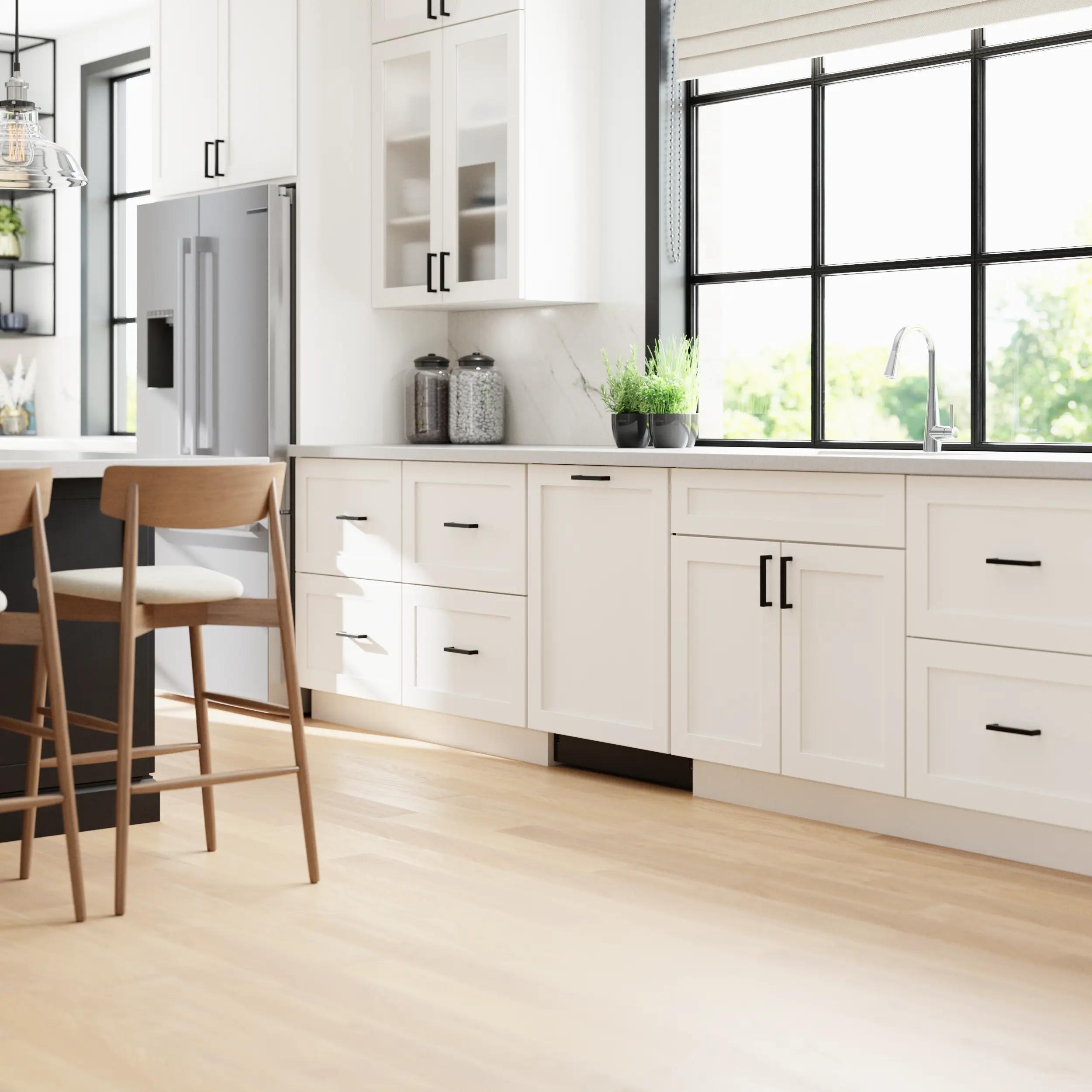

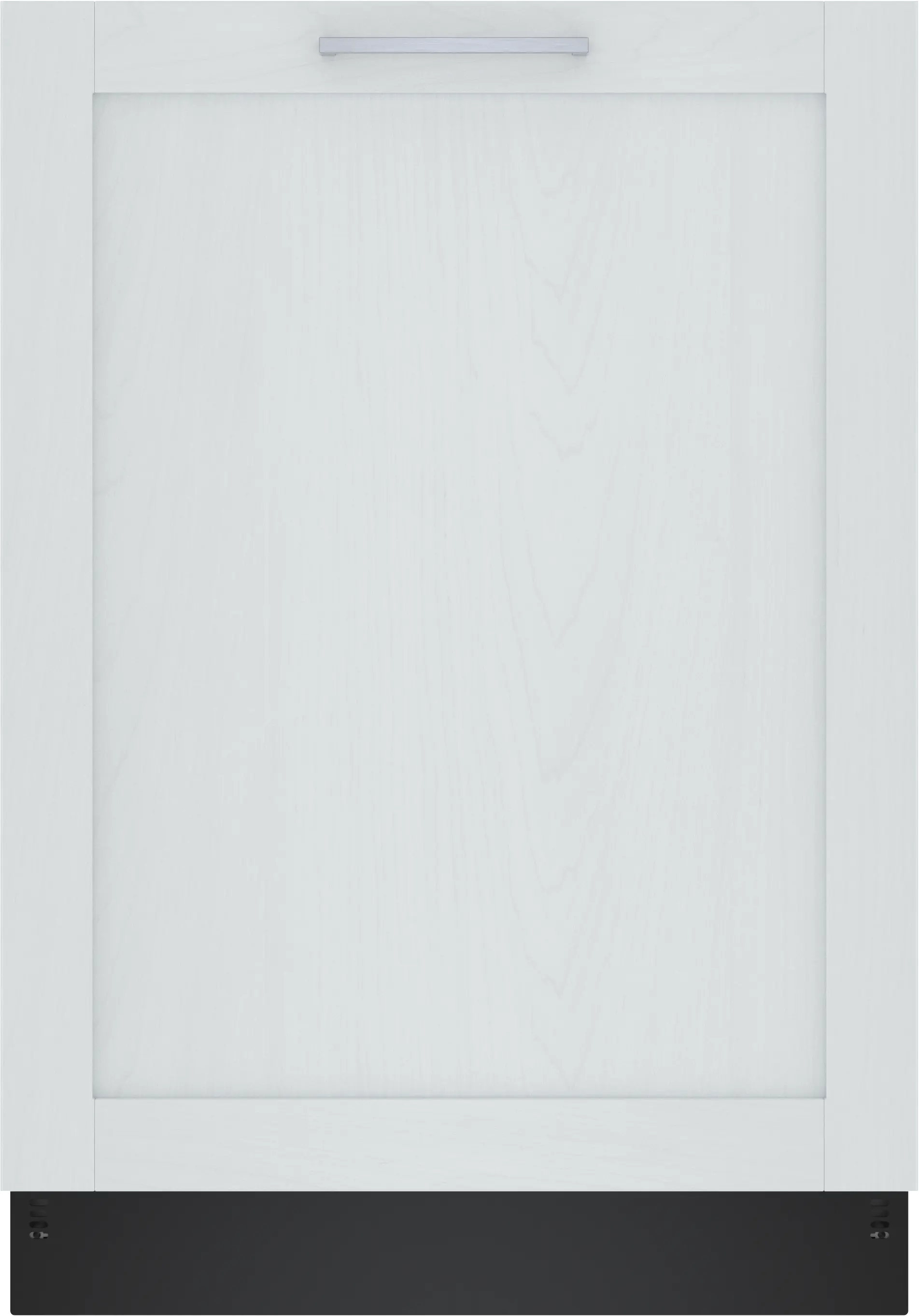

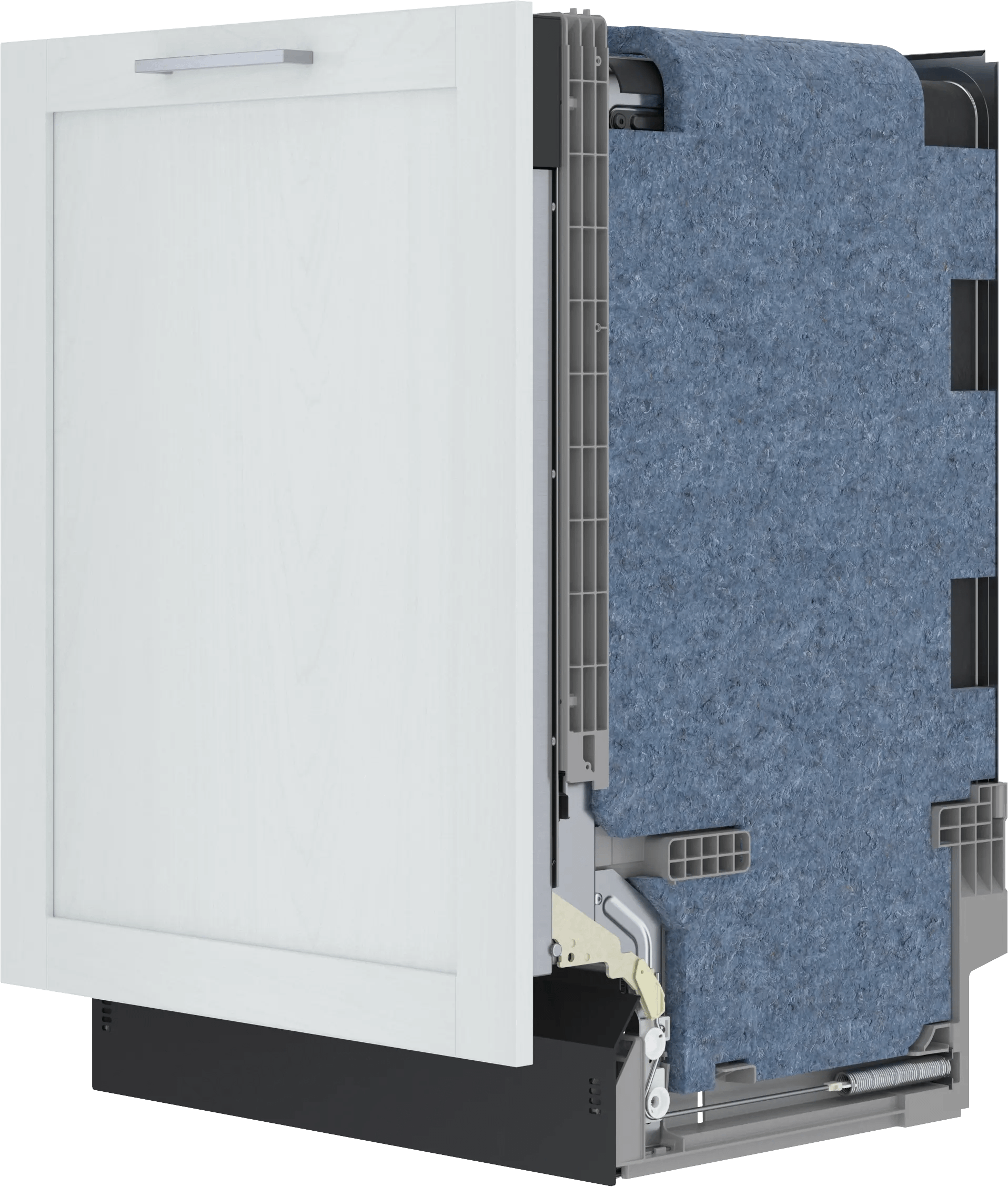

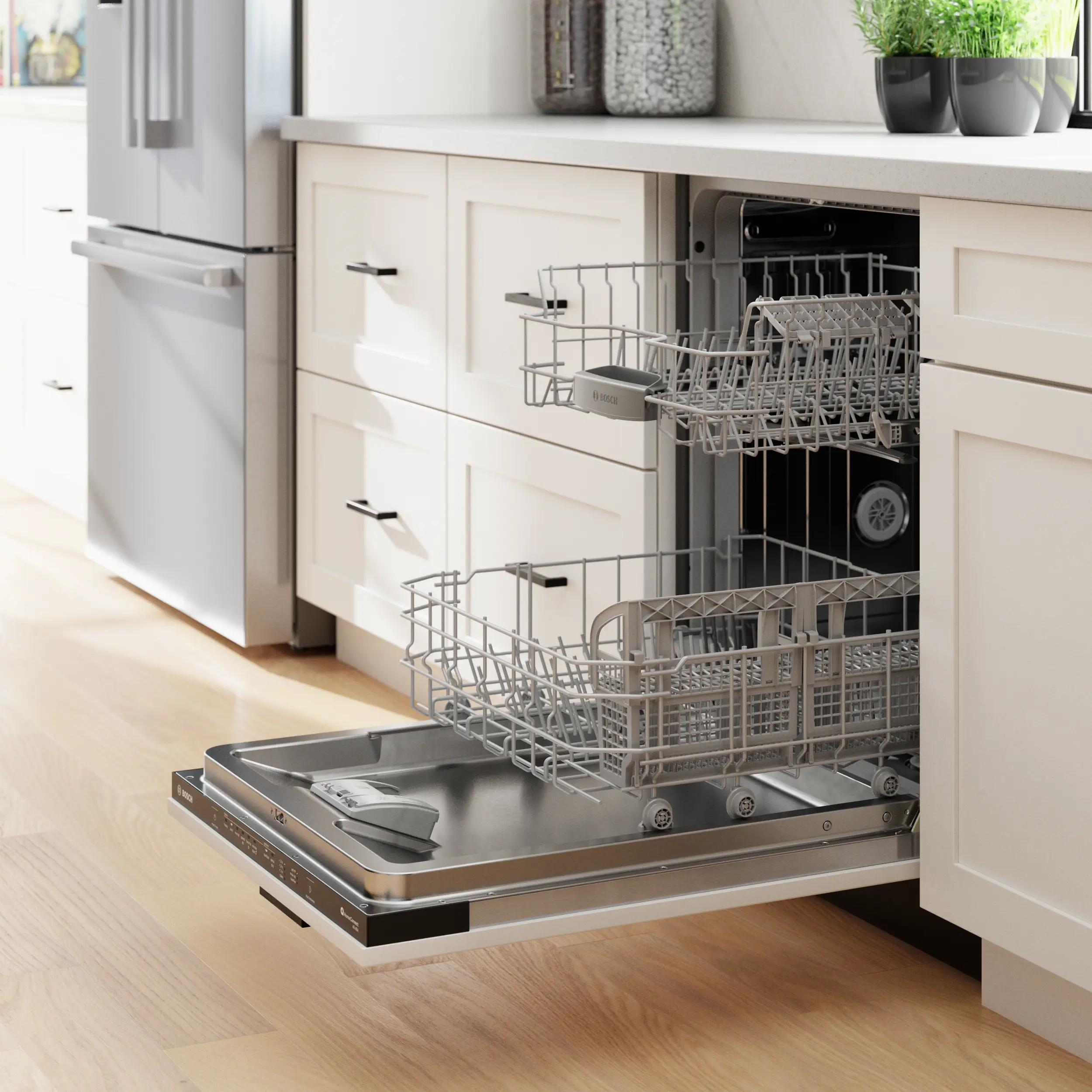

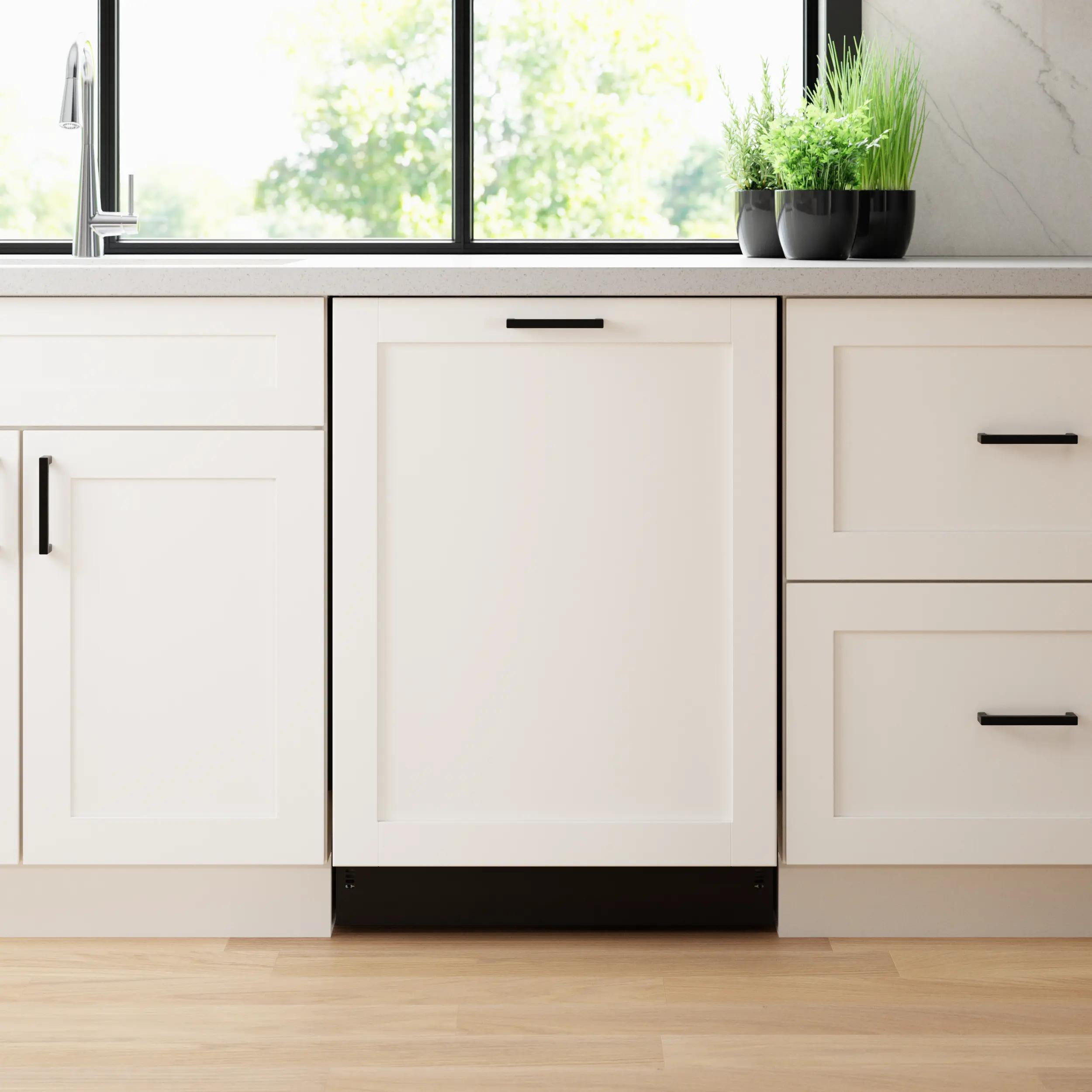

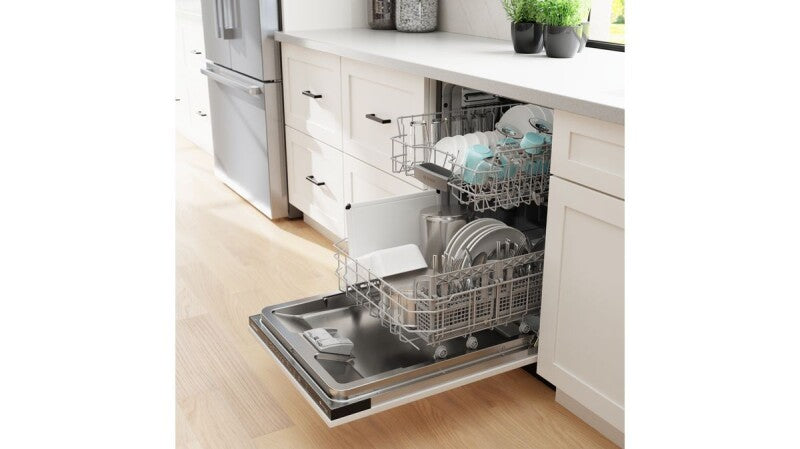

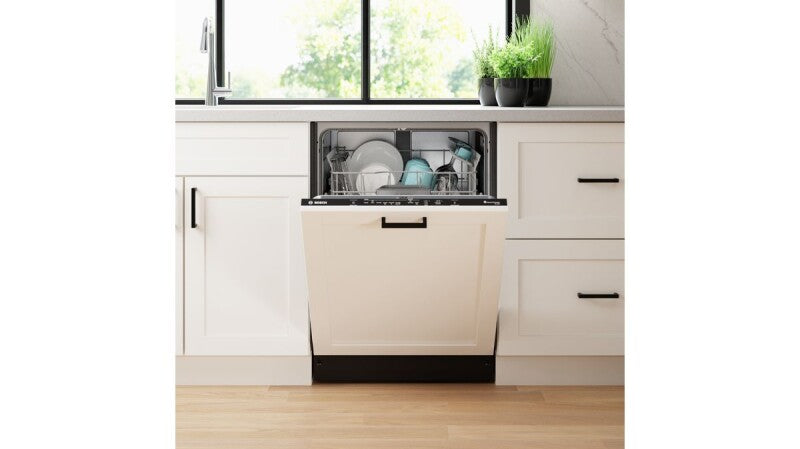

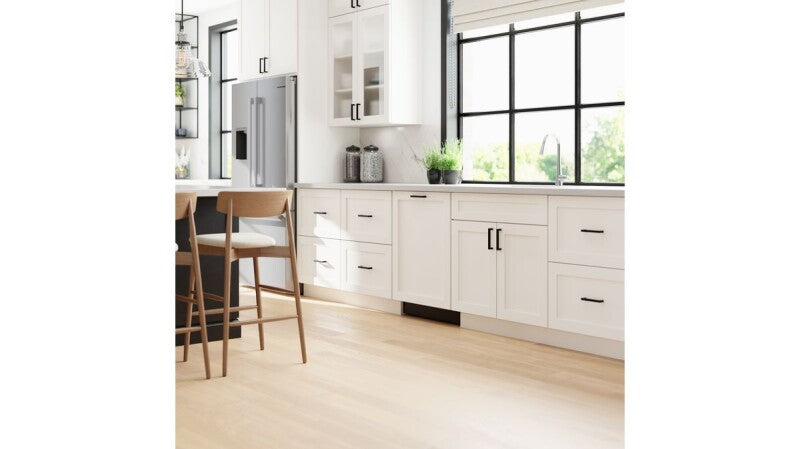

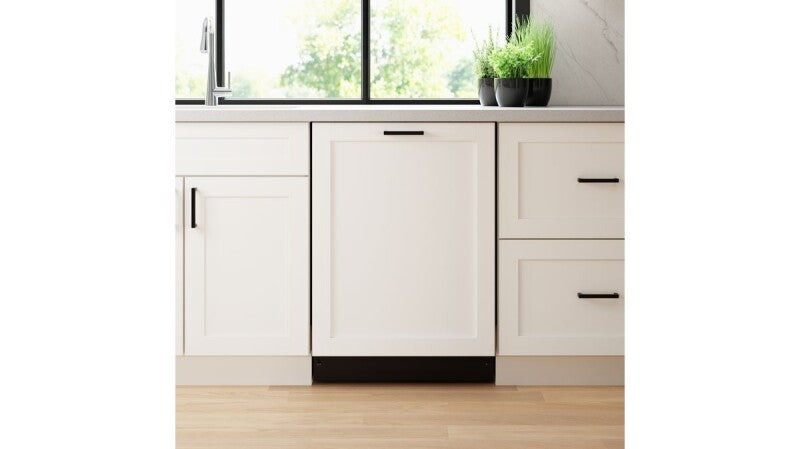

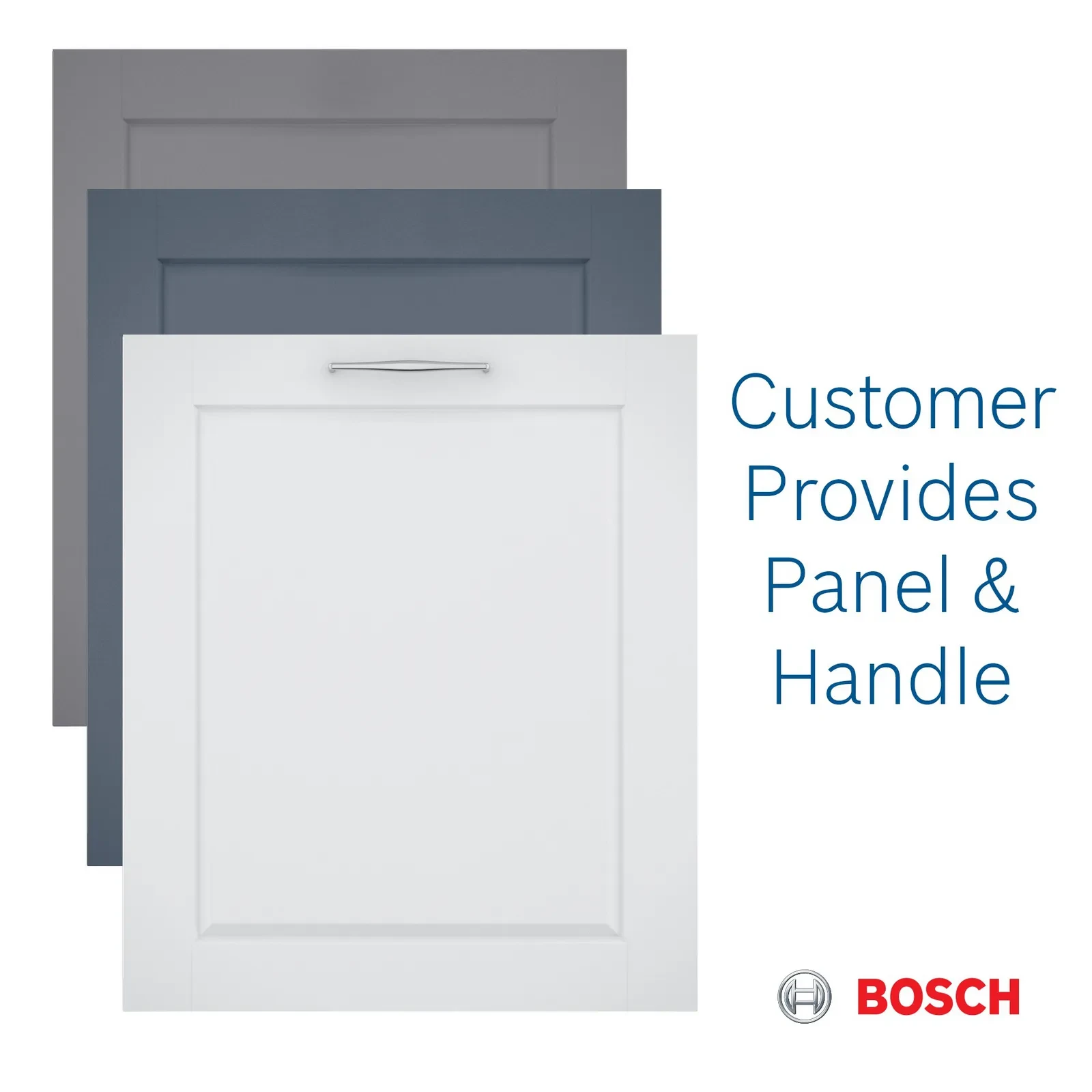

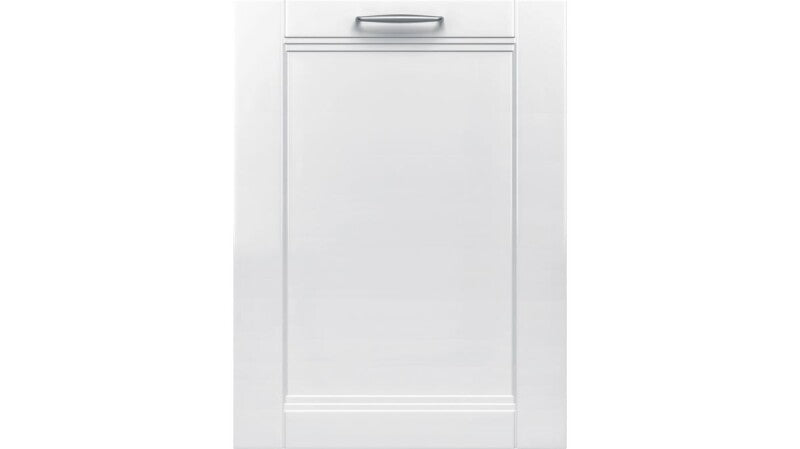

Custom Panel Dishwashers

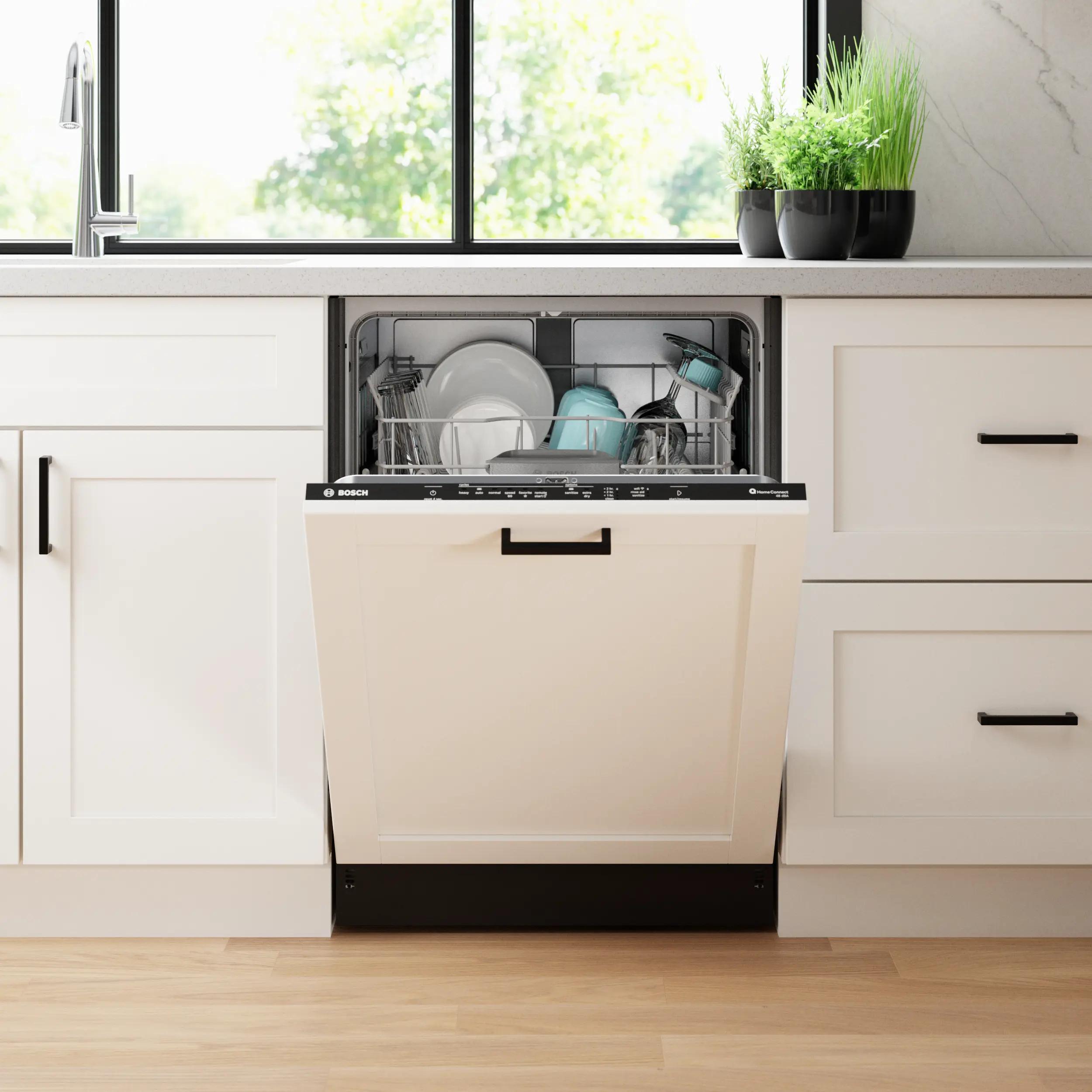

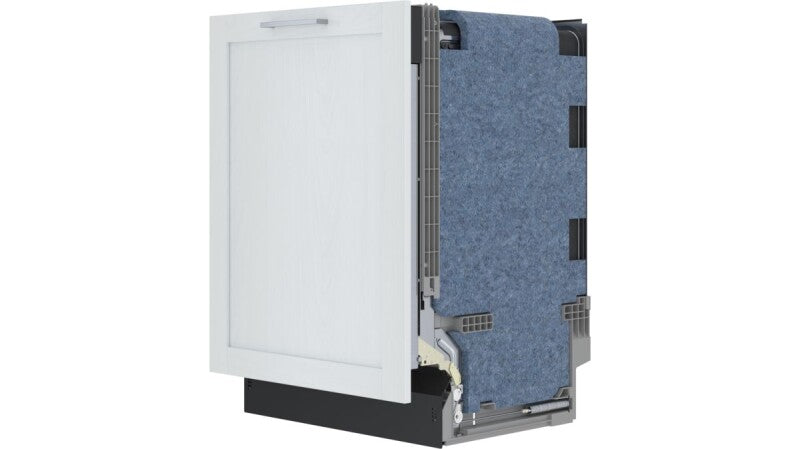

Seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry. The unique design allows for a fully flush install for a refined level of sophistication. For more information, select 'Installation Instructions' in the manuals and documents section.
