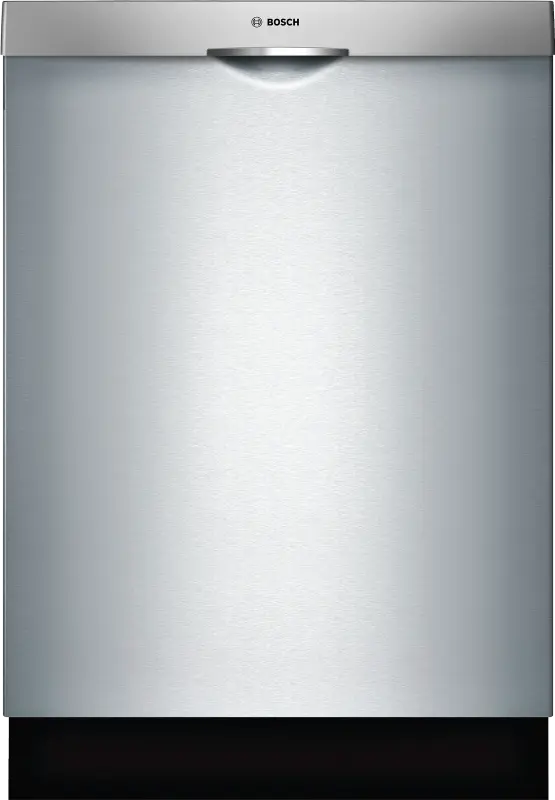

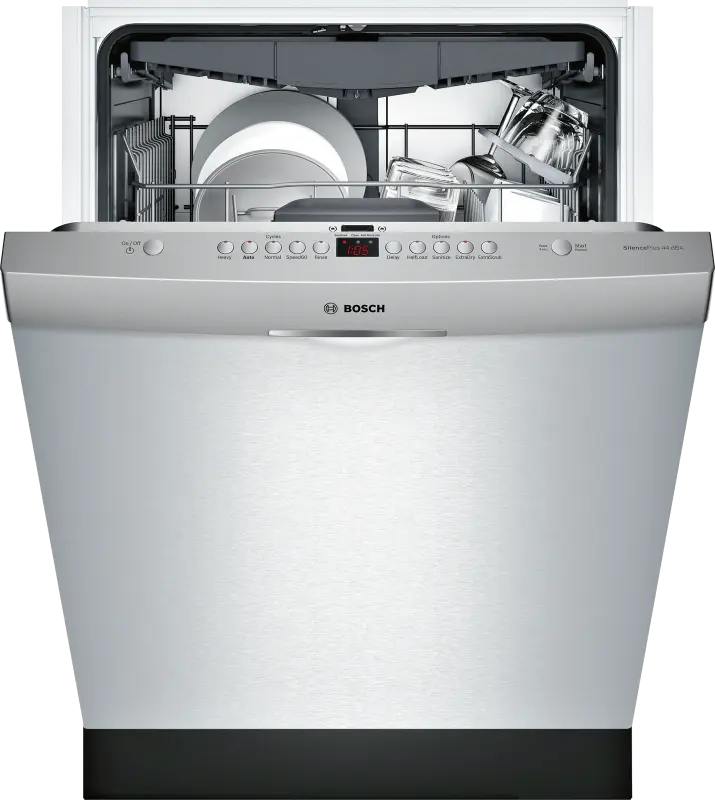

Product Details for Bosch SHS863WD5N

Technical Details

General

List of Programs Pots & Pans, Auto, Normal, 1 Hour, Rinse
Installation Type Built-under
Number of Place Settings 16
Silence Level 44 dB(A) re 1pW
Design Built-in
Color Stainless steel
Panel Ready Not Possible
Options Special option: Extra dry, Special option: Half Load, IntensiveZone, Sanitize
Handle Design Scoop Handle
Toe Kick Color Black
Tub Material Stainless Steel

Safety

ChildLock No
AquaStop no

Warranty

Parts 1 Year
Labor 1 Year

Size and weight

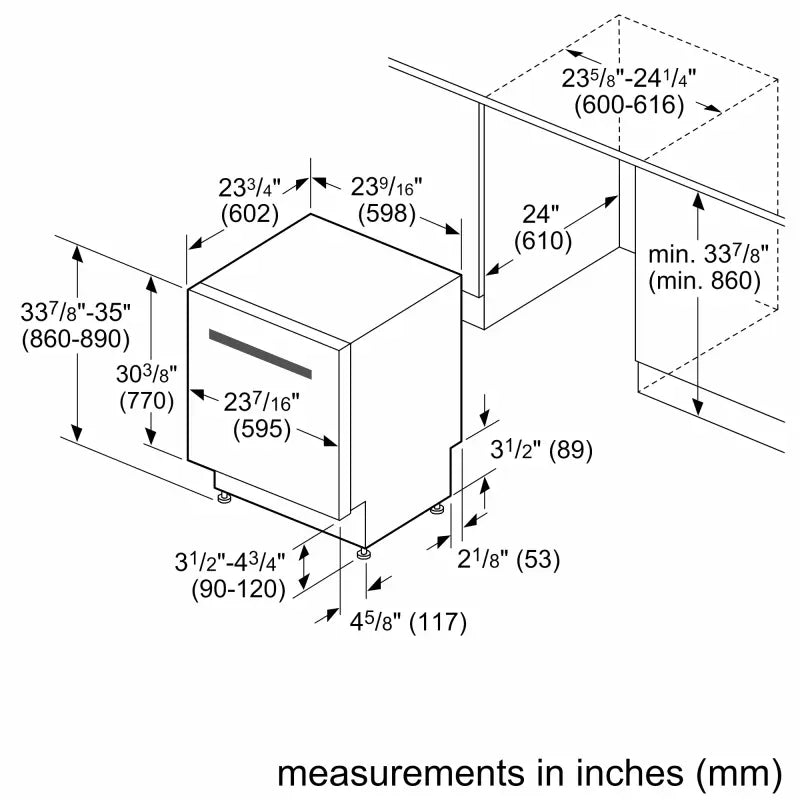

Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Adjustable Feet Yes, All Adjustable from Front

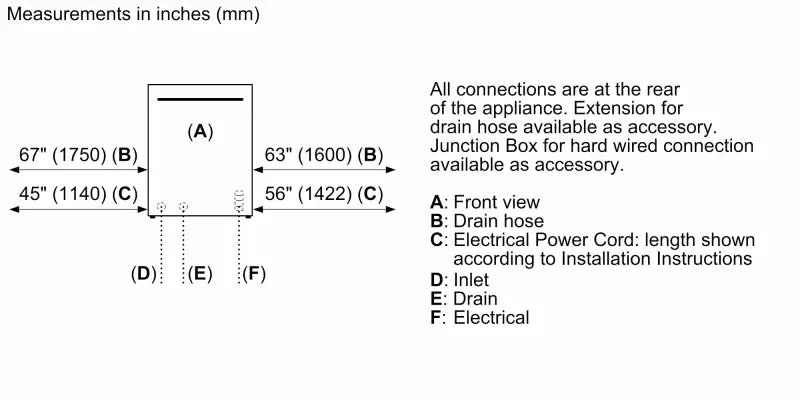

Power Cord Length 67''
Length Outlet Hose (in) 78 3/4''
Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Net Weight 85.000 lbs

Comfort and convenience

Status Indicator End of program audible, InfoLight red, Sanitized LED US, Time remaining indic. internal
Status Indicator End of program audible

Cleaning technology

Drying System PureDry®
Eco silence drive yes
Aquasensor yes
Water management system no
Detergent detection no
Water Softener no
NSF® Certified Sanitize Option yes
Washing System PrecisionWash®

Dimensions & weight

Width 23.56 in.
Height 33.88 in.
Length 23.75 in.
Weight 85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.56 in.
Shipping Height 38.88 in.
Shipping Length 28.75 in.
Shipping Weight 125 lbs.
Total of Shipping Weight 125 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.97 ft³
Dimensional Weight 136.38 lbs.
Total of Cubes 10.97 ft³
Total of Dimensional Weight 136.38 lbs.

Energy and water

ENERGY STAR® certified no
Total Annual Energy Consumption 269 kWh
Total Annual Water Consumption 624 gal

Description

Bosch Dishwasher with 3rd Rack and Effortless™ Operation


Product Features

  • RackMatic Adjustable Upper Rack
    The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

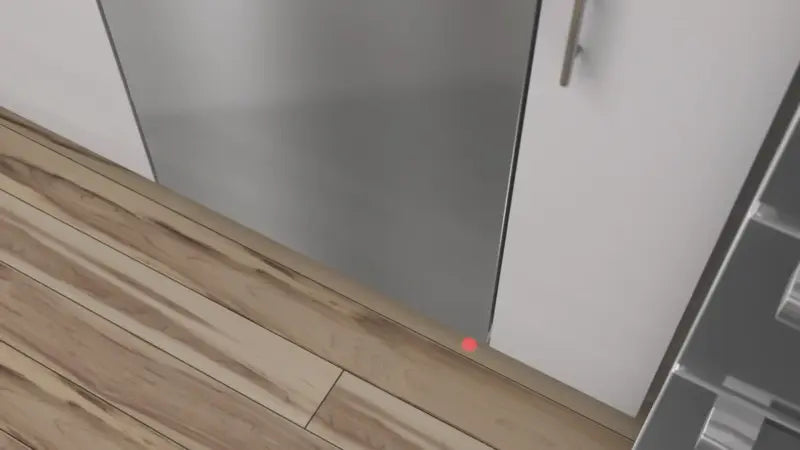

  • InfoLight -a light that tells you when your dishwasher is running
    InfoLight projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
  • A smarter clean with PrecisionWash
    With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
  • 44 dBA -- the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2023.

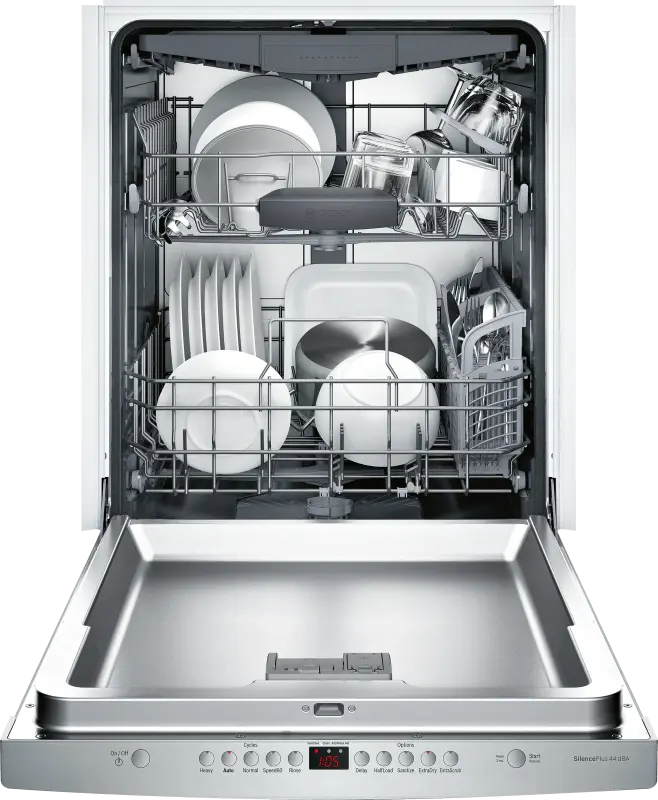

  • Loading flexibility with a 3rd rack dishwasher.
    The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.
  • PrecisionWash: uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.Close
  • 10 years warranty: our promise against rust-through.Close
    We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).
  • Remarkably Quiet Operation at 44 dBA: creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*Close
  • Standard 3rd Rack: provides a convenient top rack for your utensils, giving the other racks more space for dishes.
  • PrecisionWash:
    uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.
  • 10 years warranty:
    our promise against rust-through.
  • Remarkably Quiet Operation at 44 dBA:
    creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*
  • Standard 3rd Rack:
    provides a convenient top rack for your utensils, giving the other racks more space for dishes.
  • PrecisionWash®:
    uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.

Key Features

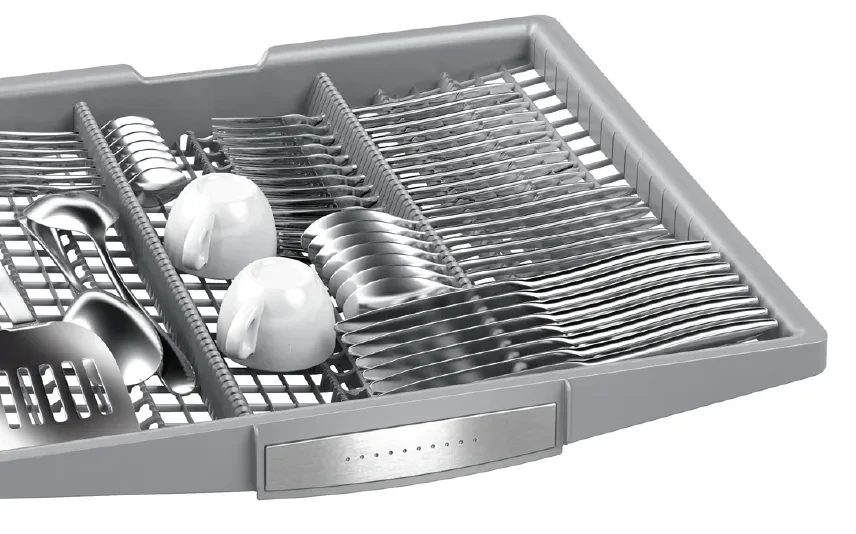

A 3rd rack to meet your loading needs.

With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks

10-Year Rust-Through Warranty.

We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

24h Delay Start Timer for a later start time

Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.

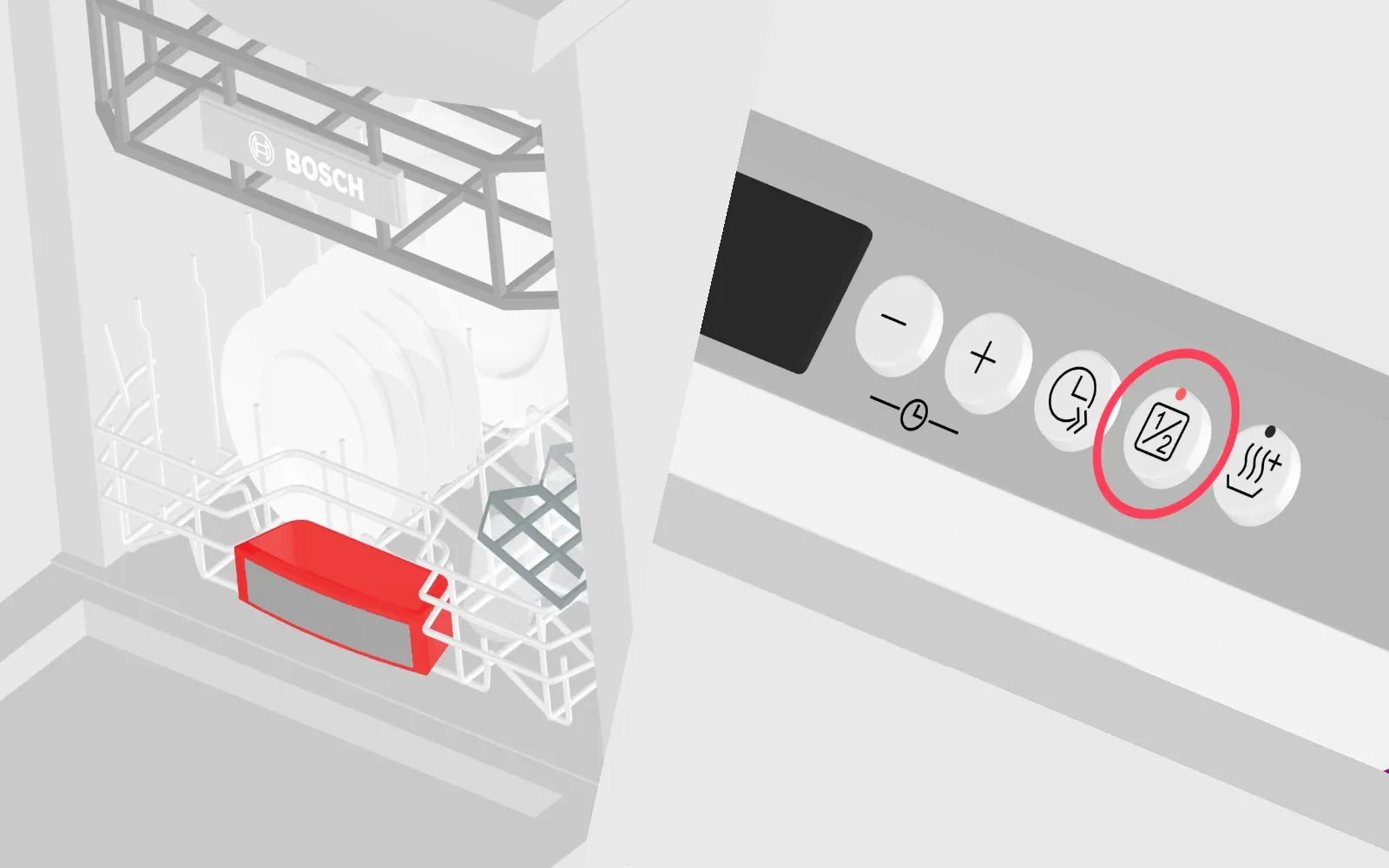

When you don't have a full load of dishes.

The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher’s capacity.

The quietest dishwasher brand in the U.S.*

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
