Sale price $1,413.07 Regular price $2,099.97 Save $686.90 / 32% OFF

Product Details for Bosch SHP78DM5N

Technical Details

General

Design Built-in
Installation Type Built-under
Panel Ready Not Possible
Silence Level 42 dB(A) re 1pW
List of Programs Heavy, Auto, Normal, Speed 60, Favorite
Number of Place Settings 16
Options Remote Start, Sanitize, Crystal Dry
Handle Design Pocket Handle
Tub Material Stainless Steel
Toe Kick Color Black
Programs & Options Exclusive to Home Connect Hand Wash, Energy Save, Half Load, Machine Care, Rinse
Color Not Applicable

Size and weight

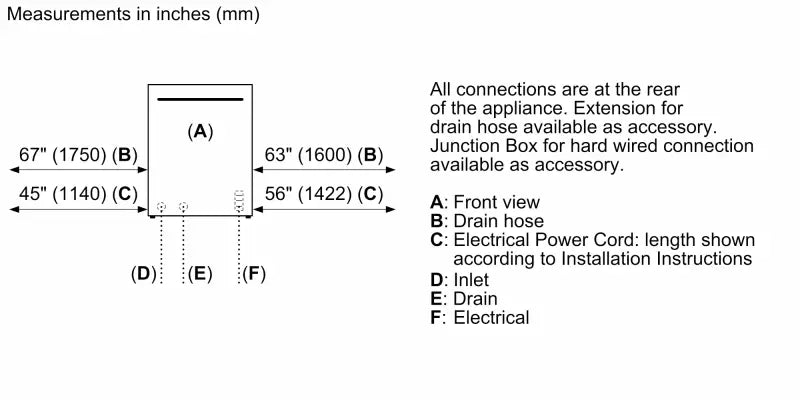

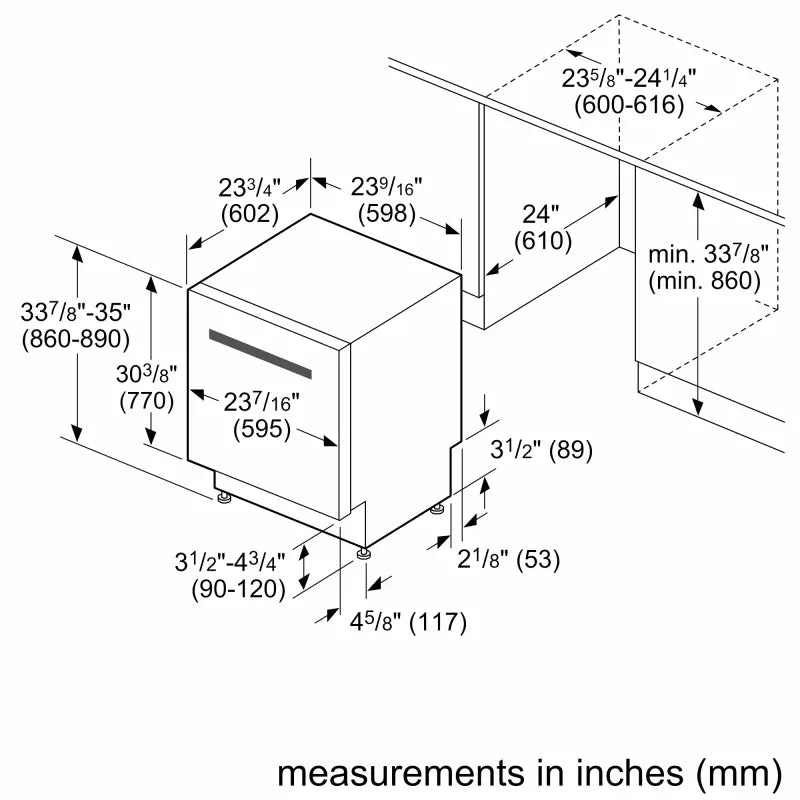

Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Net Weight 92.000 lbs
Adjustable Feet Yes, All Adjustable from Front
Length Outlet Hose (in) 78 3/4''
Power Cord Length 67''

Comfort and convenience

Status Indicator End of program audible
TimeLight® no

Cleaning technology

Drying System CrystalDry®, PureDry®
NSF® Certified Sanitize Option yes
Eco silence drive yes
Aquasensor yes
Detergent detection no
Water management system no
Water Softener no
Washing System PrecisionWash®

Connectivity

Home Connect™ yes
Home Connect Features Remote Monitoring and Control

Safety

AquaStop no
ChildLock No

Dimensions & weight

Width 23.56 in.
Height 33.88 in.
Length 23.75 in.
Weight 92 lbs.
Net Weight 92.000 lbs
Length Outlet Hose (in) 78 3/4''
Power Cord Length 67''

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.56 in.
Shipping Height 38.88 in.
Shipping Length 28.75 in.
Shipping Weight 132 lbs.
Total of Shipping Weight 132 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.97 ft³
Dimensional Weight 136.38 lbs.
Total of Cubes 10.97 ft³
Total of Dimensional Weight 136.38 lbs.

Energy and water

ENERGY STAR® certified yes
Total Annual Water Consumption 688 gal
Total Annual Energy Consumption 240 kWh

Description

The Bosch 800 Series dishwasher has our state-of-the-art CrystalDry technology, for the ultimate dry even on plastics. Skip pre-rinsing with the ability to handle heavily soiled or delicate items with care-thanks to our intelligent sensors and PrecisionWash technology. The Flexible 3rd Rack provides extra space for utensils and small kitchen tools. Connect via Wi-Fi with Home Connect to access smart features like Smart Cycle and hands-free voice control with Amazon Alexa or Google Home.



Product Features

  • Enhance your cleaning experience with Wi-Fi enabled Home Connect®
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect®
  • Quality in every detail.
    Every dishwasher must pass 485 quality checks--including running every single one with water--before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.
  • Fit in tall items with RackMatic®
    RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

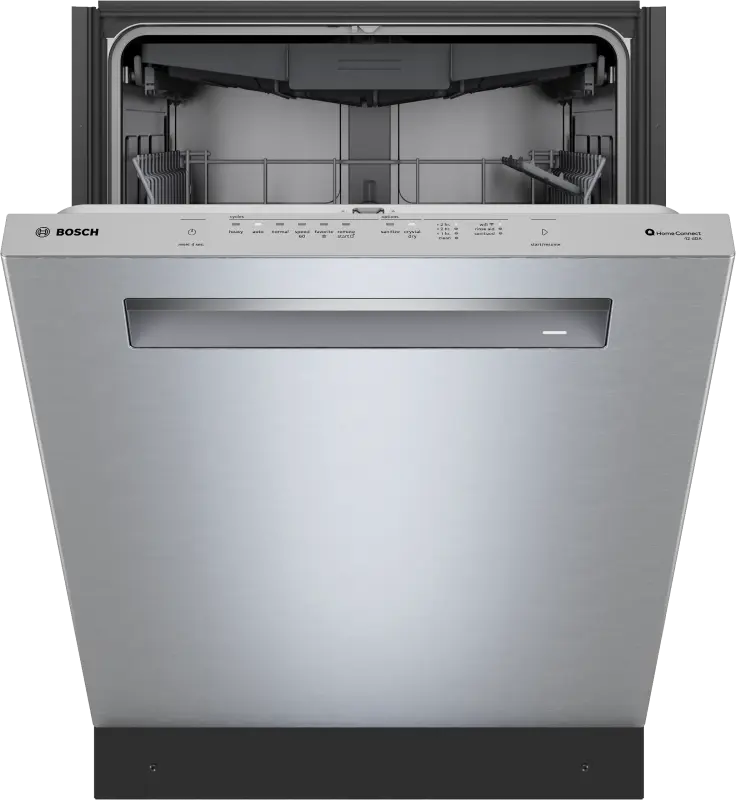

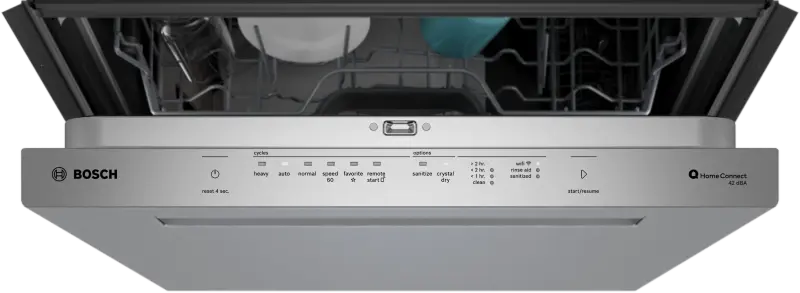

  • Sleek and Simple Touch Control Panel
    The touch control panel has been simplified to offer the cycles and options you use most - all at the touch of your fingertips.
  • EasyGlide™ Racks
    provide a smooth glide on all three racks.
  • This Bosch Dishwasher is ENERGY STAR® certified and energy efficient
    This Bosch dishwasher is ENERGY STAR® certified and meets or exceeds federal guidelines, for year-round energy savings

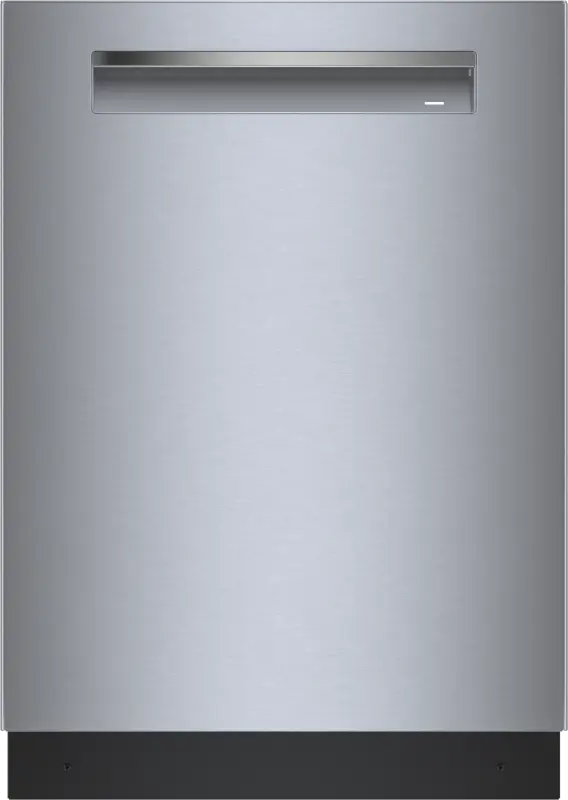

  • Pocket Handle
    Our pocket handle design offers a clean, handle-free look that seamlessly integrates into any kitchen style and installs flush. Available in stainless steel, white, black, and black stainless steel.
  • The ultimate dry with CrystalDry™
    At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry™ technology transforms moisture into heat up to 176˚F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.
  • 42 dBA -- the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.
  • A smarter clean with PrecisionWash®
    With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
  • The Flexible 3rd Rack provides a versatile space for utensils
    The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.
  • Not just dry, but PureDry®
    PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
  • Prevent leaks with AquaStop®
    An advanced leak prevention and containment system, AquaStop® features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected—even if you’re not at home.
  • Beautiful Stainless Steel Interior
    Bosch uses quality materials that deliver excellent performance and are built to last.
  • Enhance your cleaning experience with Wi-Fi enabled Home Connect.
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
