| Griddle zones | electric |
| Worktop type | gas |
| Gas zones | 6 burners |
| Size | 48 in |
| Cooking zones | 7 |

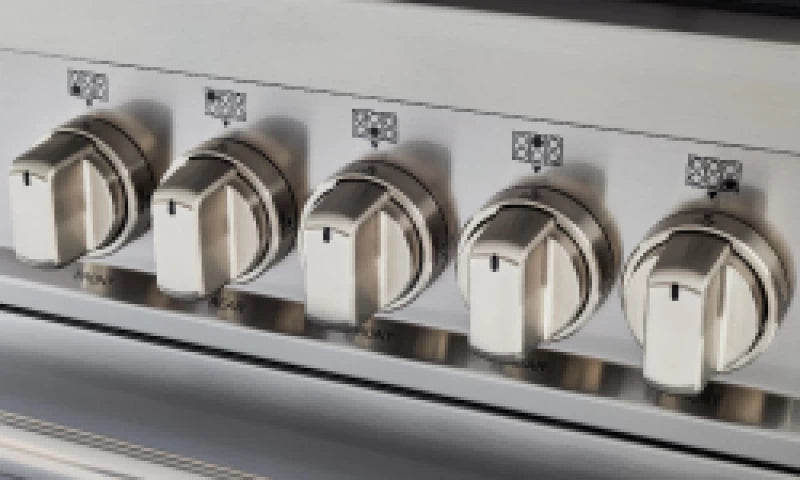

| Knobs | solid metal |
| Burner type | brass |
| Thermocouple safety device | yes |
| Grates | cast iron |
| Continous grating | yes |
| One-hand ignition | yes |
| Backguard | yes |
| Wok ring | yes |
| Simmer ring | yes |
| Number of gas zones | 6 burners |
| Power burners | 1300 BTU/h - 19 000 BTU/h (2) |
| Rapid burner | 2500 BTU/h - 10 400 BTU/h (1) |
| Medium burner | 1500 BTU/h - 5900 BTU/h (2) |
| Griddle drip tray | yes |
| Griddle power | 1100 W |
| Simmer burner | 750 BTU/h - 3500 BTU/h (1) |
| Griddle dual control | yes |
| Oven configuration | double |
| Oven convection system | dual diagonal with heating element |
| Oven fuel | electric |
| Main oven type | electric pyrolytic |
| Main oven broiler type | electric |
| Main oven volume | 4.6 ft³ |
| Auxiliary oven broiler type | electric |
| Auxiliary oven type | electric conventional |
| Main oven functions | bake |
| Auxiliary oven functions | bake |
| Auxiliary oven volume | 2.4 ft³ |
| Cooling fan | yes |
| Inner oven door | triple |
| Removable inner glass | yes |
| Food probe | yes |
| Oven levels | 7 |
| Door hinge | soft-close |
| Sliding shelves | 2 sets of telescopic glides |
| Tray | 1 enamelled |
| Wire-shelves | 2 each cavity |
| Grill trivet for tray | yes |
| Oven lights | double lateral |
| Door hinges | soft-close |
| Legs | stainless steel |
| Electrical requirements | 120/240V 60 Hz - 8500W 40 A |
| Electrical supply | 120/240V 60 Hz - 8500W 40 A |
| Number of Boxes | 1 |
| Shipping Width | 51.5 Inch |
| Shipping Height | 42.5 Inch |
| Shipping Length | 29.5 Inch |
| Shipping Weight | 375 lbs |
| Total of Shipping Weight | 375 lbs |
| Source | Manufacturer |
| Cubic Feet Measurement | 26 ft³ |
| Dimensional Weight | 323.19 Ibs |
| Total of Cubes | 26 ft³ |
| Total of Dimensional Weight | 323.19 Ibs |

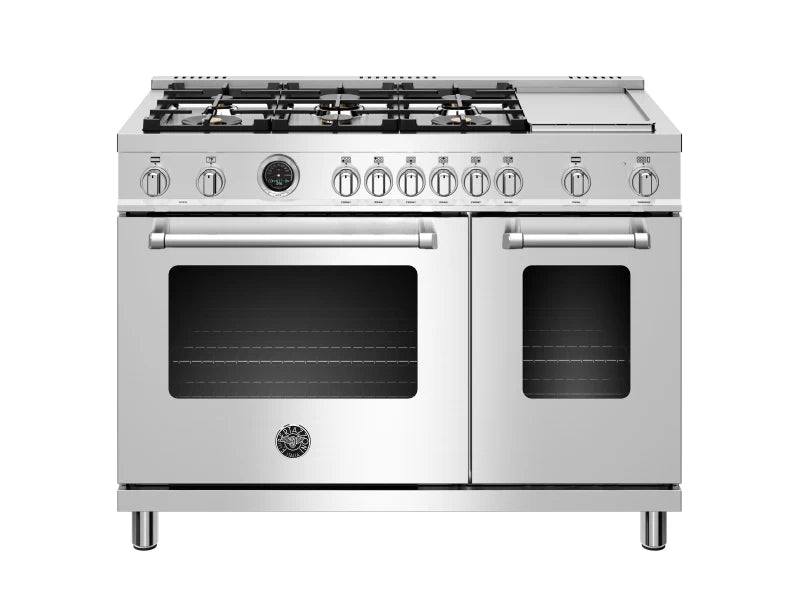

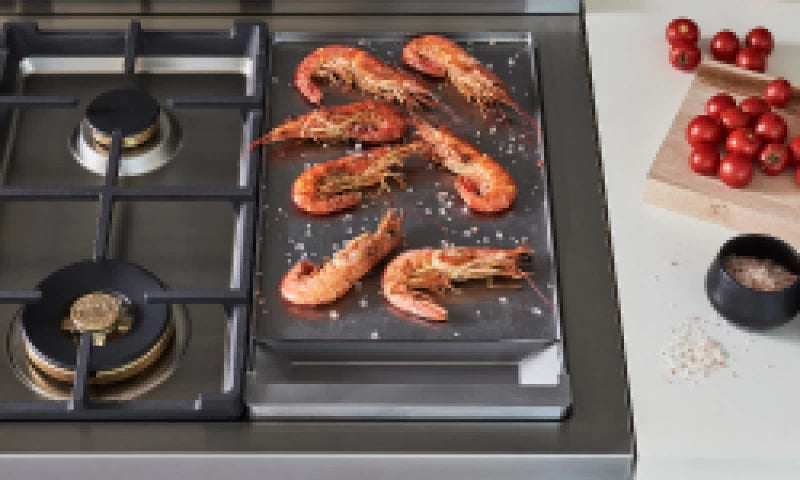

Bertazzoni Master Series ranges are precision-engineered for performance and design that will bring a professional touch to your kitchen. The cooktop is designed for versitility and efficiency. The dual-ring power burner is a high-efficiency burner with separately controlled flames can handle both delicate simmering and powerful searing with 750 to 19,000 BTU. All Bertazzoni ranges include a gas conversion kit for LP. The range also features a convenient electric griddle in stainless steel to offer even more cooking space and options. Bertazzoni's exclusive brass burners are designed and manufactured in Italy. The brass body of the burner creates a individual flame for the most precise heat delivery. Included in the center of the dual-ring power burner is a brass cap embossed with the beautiful winged-wheel corporate brand for a sophisticated and unique look. The oven features a gas broiler with an extra-wide European convection fan for balanced air-flow. This allows ensures even heat distribution for single and multi-level roasting and baking. The useful self-clean cycle incinerates all grease and dirt residues in the oven cavity and returns the oven to its original shine. Included with the oven is a telescopic glide shelf and soft-close door hinges for easy one handed operation. The door features edge-to-edge tempered glass windows to minimize heat loss. The range features large round metal knobs and unique handles that match perfectly with the many other Master Series products offered by Bertazzoni.
