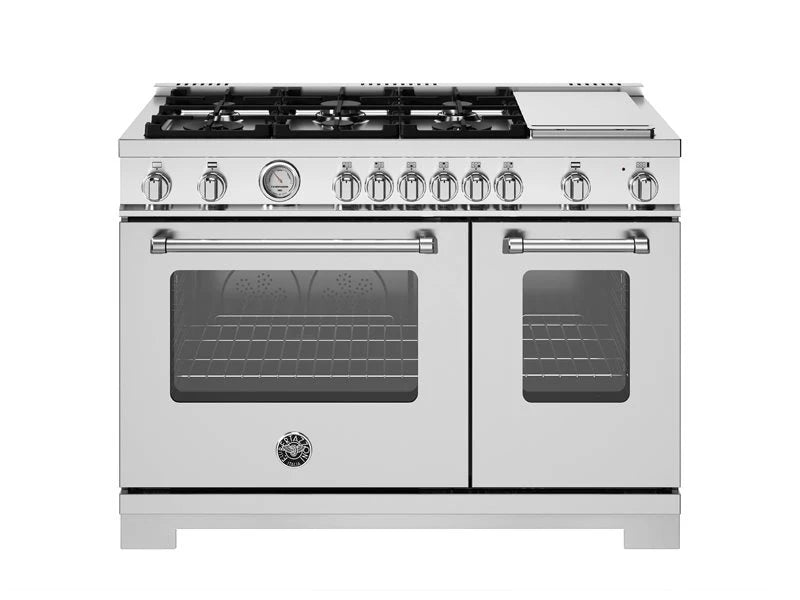

Product Details for Bertazzoni MAS486GGASXV

Technical Details

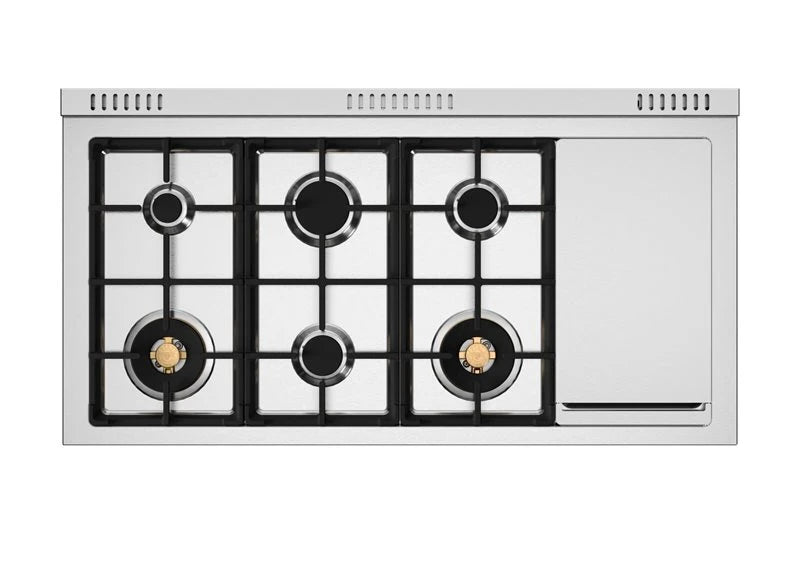

Worktop

Size 48 in
Cooking zones 7
Griddle zones electric
Worktop design stainless steel with seamless edges

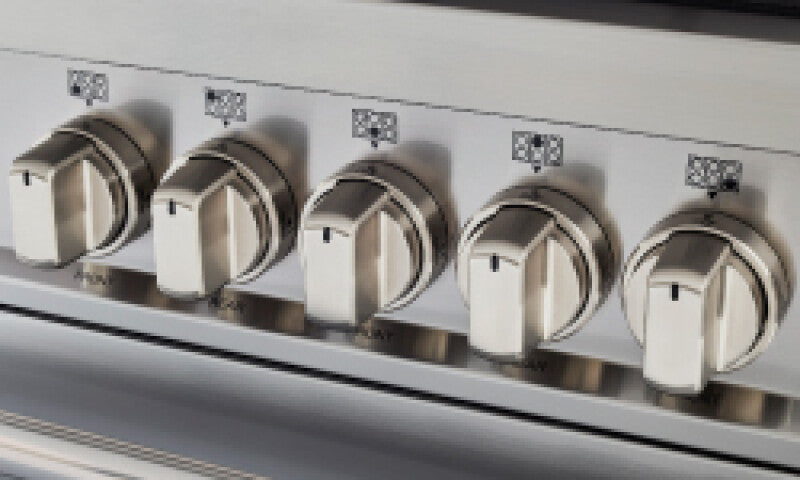

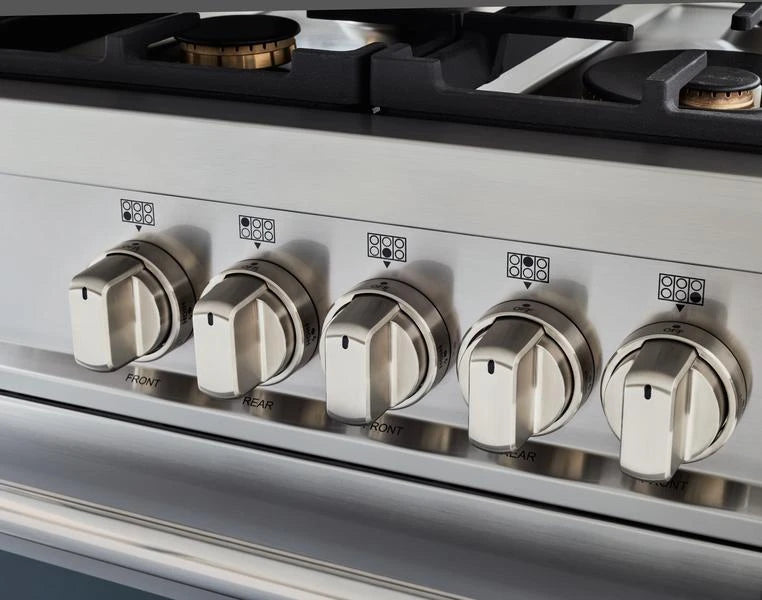

Worktop controls metal knobs
Knobs metal
Burner type aluminum
Grates cast iron
Thermocouple safety device yes
One-hand ignition yes
Backguard yes
Simmer ring yes
Continous grating yes
Number of gas burners 6 burners
Worktop type gas electric griddle

Cooking zones

Power burners 2 x 1300 BTU - 19000 BTU
Rapid burner 2500 BTU - 10400 BTU
Medium burner 2 x 1500 BTU - 5900 BTU
Simmer burner 750 BTU - 3500 BTU
Griddle power 1100 W

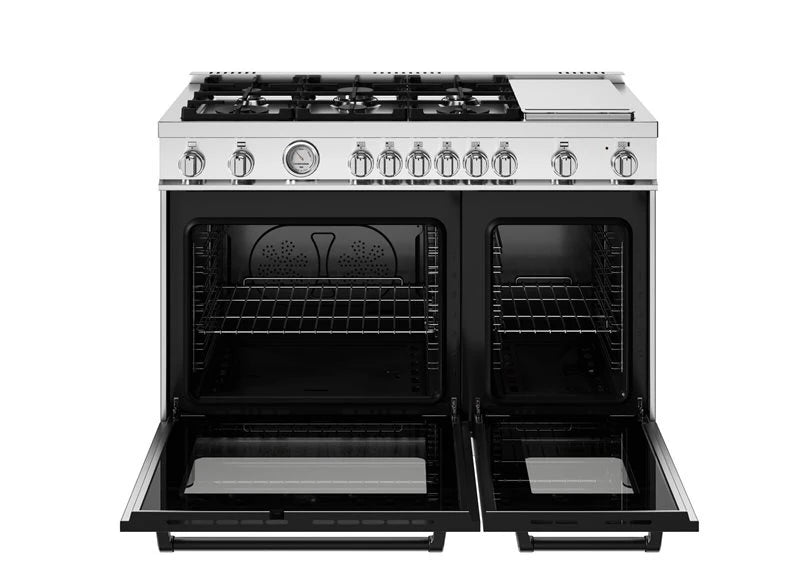

Oven cavity

Oven configuration double
Oven fuel gas
Oven convection system dual horizontal fans
Main oven broiler type gas
Main oven volume 4.7 ft³
Auxiliary oven type gas
Main oven type gas conventional
Auxiliary oven functions bake
Auxiliary oven volume 2.4 ft³
Oven controls knobs
Inner oven door triple glass
Cooling fan yes
Oven levels 7
Door hinges soft-motion
Wire-shelves 4 full size
Removable inner glass yes
Tray 1 baking tray with grill trivet
Grill trivet for tray yes
Oven lights double side mounted
Main oven functions bake broiler convection bake

Bottom

Legs stainless steel

Technical specifications

Electrical supply 110V 60 Hz - 1200W
Absorbed current (A) 10 A with dedicated circuit

Warranty

Parts 2 Year
Labor 2 Year

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 51.5 Inch
Shipping Height 42.5 Inch
Shipping Length 29.5 Inch
Shipping Weight 375 lbs
Total of Shipping Weight 375 lbs
Source Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 26.06 ft³
Dimensional Weight 323.99 Ibs
Total of Cubes 26.06 ft³
Total of Dimensional Weight 323.99 Ibs

Description

The new Bertazzoni ranges are superb cooking appliances designed, engineered and made in Italy. All Bertazzoni appliances integrate seamlessly into style-harmonized suites for a true, high-performing kitchen.


Product Features

  • 6 Aluminum burners with up to 19000 BTU and stainless steel griddle with cover
  • Counter Depth design allows ranges to sit flush with cabinetry for seemless installation
  • 19000 BTU Power burner with dual ring flame delivering fastest time-to-boil in its class
  • Stainless steel worktop is formed from one piece to allow easy cleaning with no gaps, joints, or screws
  • European Convection Oven
  • Oven door with edge-to-edge tempered glass and soft-motion hinges

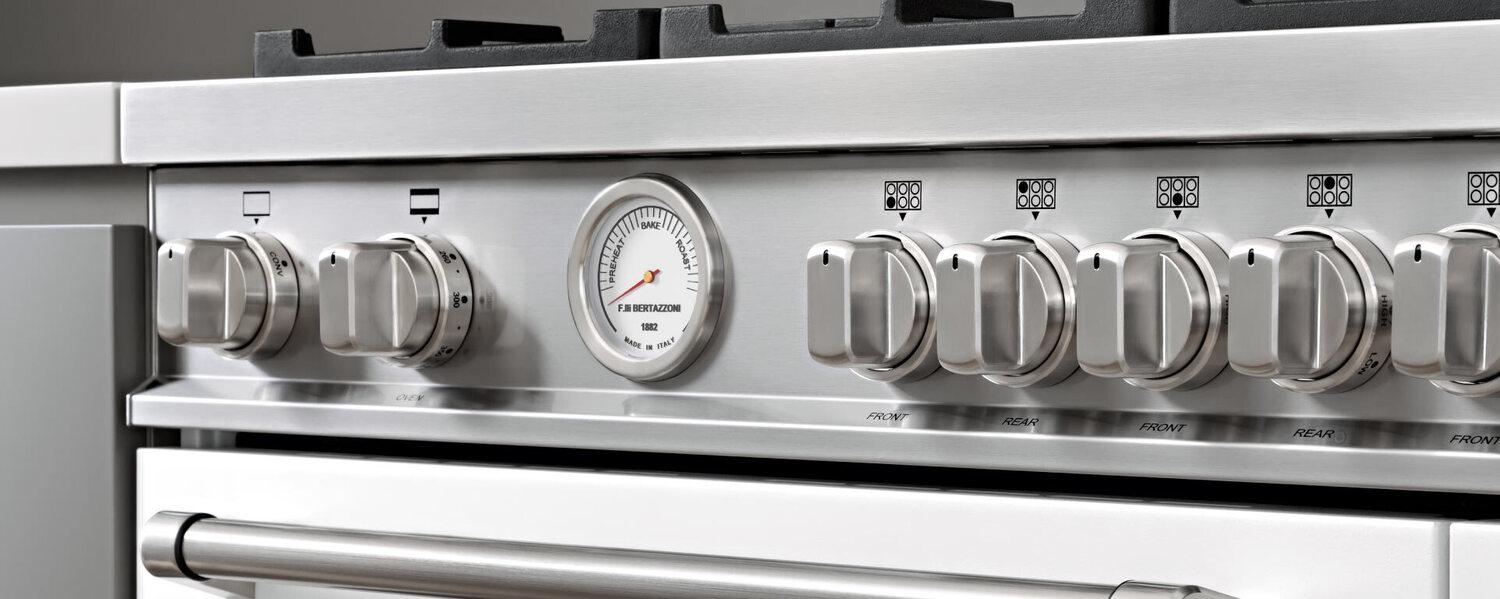

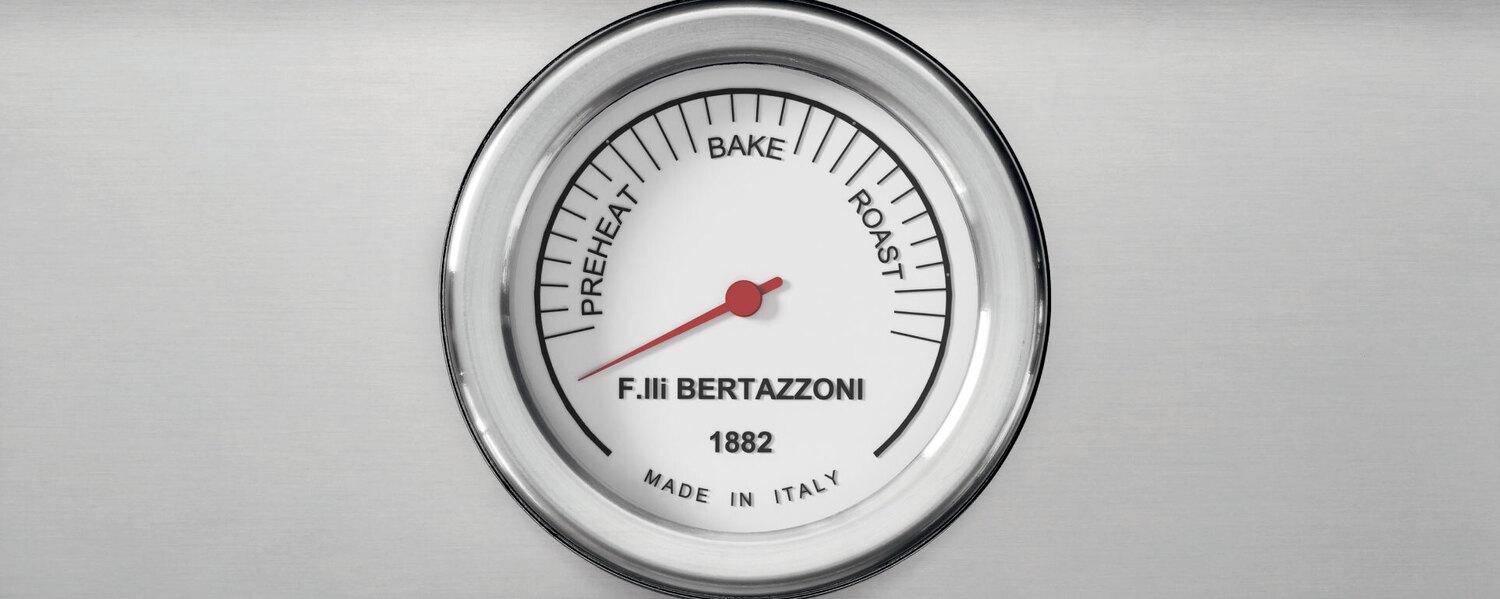

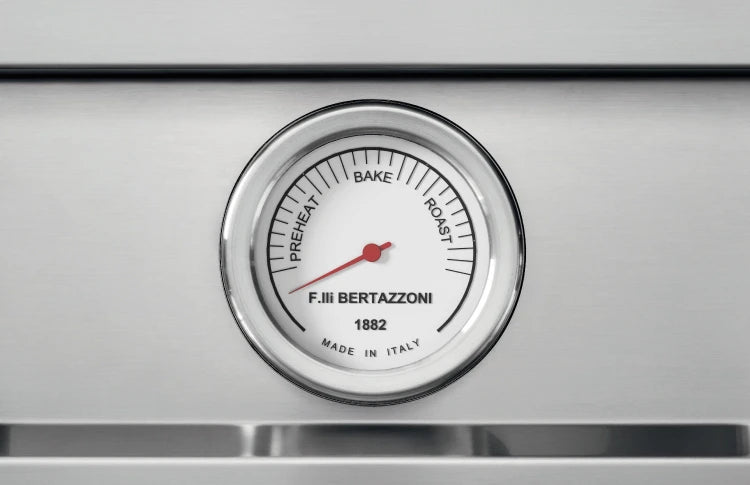

  • Elegant temperature gauge for control of oven temperature during pre-heating and baking
  • 1" stainlesss steel backguard for sleek design and integration into any kitchen.
  • Counter Depth Worktop and Range
    Bertazzoni’s Counter-Depth Ranges are expertly crafted to blend perfectly with your kitchen cabinetry, offering a sophisticated, streamlined look that enhances the overall design of your space.
  • Best in Class Burners
    Experience culinary precision and safety with Bertazzoni's best-in-class burners, expertly engineered for rapid boiling, energy efficiency, and precise simmering control.
  • Thermocouple Gas Safety System
    Bertazzoni’s Thermocouple Gas Safety System shuts off gas flow instantly if a flame is extinguished, ensuring top-tier safety and reliability. Every burner is independently equipped for unparalleled protection and peace of mind.
  • Category Leading Range Oven Cavity
    Discover unparalleled cooking precision with Bertazzoni’s counter-depth ranges, featuring the largest oven cavities in their category.
  • Discover Collezione Metalli for Master Series
    Now you can add an exquisite personal touch to your Master Series appliances with the new Collezione Metalli Décor set.
