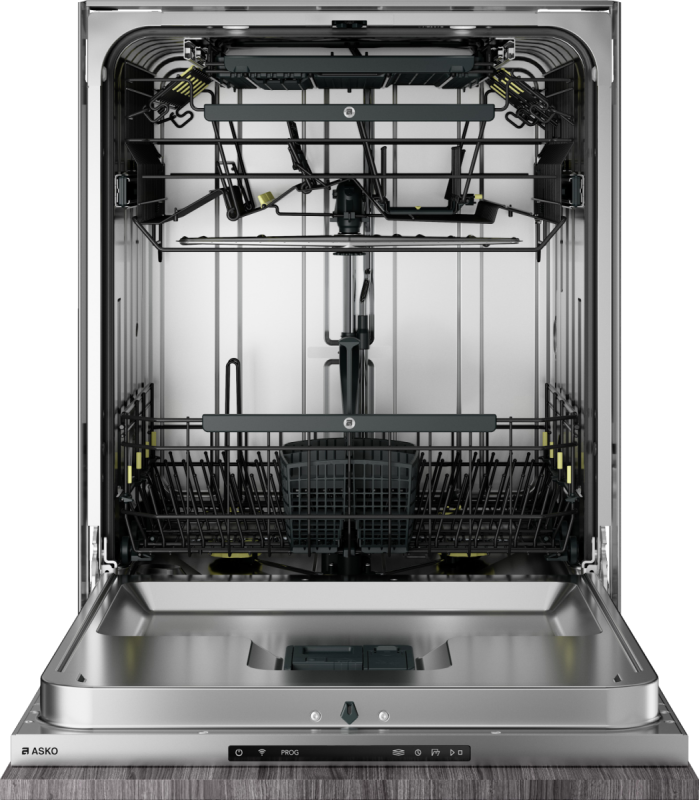

Name: ASKO DSD565 Dishwasher
Brand: ASKO
SKU: DSD565-KT
Price: 1551.0 USD
Availability: InStock

Key Specs

Type: Built-in dishwashers
Width: 23.937 Inch
Depth: 21.81 Inch
Height: 32.25 Inch

More details

Translation missing: en.products.product.product_variants

ASKO DBI663IS Built-in Dishwasher

ASKO DBI663ISSOF Built-in Dishwasher

ASKO DBI664IXXLS Built-in Dishwasher

ASKO DBI675THXXLS Built-in Dishwasher

ASKO DBI663PHS Built-in Dishwasher

ASKO DBI675PHXXLS Built-in Dishwasher

$1,551.00 $1,749.00 Save $198.00

Check Delivery Options

In stock - Quickship

Quantity:

Extended Protection

5 Year Major Appliance True Extended under $2,500.00
$195.99
3 Year Major Appliance True Extended under $2,500.00
$131.99
Decline Protection

Specifications
Manuals & Guides
Features
Reviews

Number of place settings	16 pcs
Number of racks	3
Upper rack type	Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
Size	XL
Residual heat	Residual heat
Auto Door Open Drying™	Auto Door Open Drying™
Automatic dosing system	No
Installation	Panel ready
Series	Logic
Construction and performance
8 Steel™ - Vital parts of the dishwasher made in stainless steel	Yes
No need to rinse the dishes thanks to Super Cleaning System™	Yes
Automatic water-softener for better washing performance	No
Number of spray arms	3 pcs
Number of spray zones	9
Cleaning systems	Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level.
Use and flexibility
Number of place settings	16 pcs
Number of racks	3
Top tray	Easy height adjustment With telescopic rails Handle Guide rails with ball bearings Removable
Upper rack type	Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
Upper rack height adjustable	Yes
Upper basket	Perfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left
Middle basket	Without middle basket
Lower rack type	Exclusive
Lower rack	Foldable/divisible rear pin row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc.
Automatic dosing system	No
Interior light	Yes, 2 LED lights
Interaction and control
Possible to control via Wi-Fi	Yes, integrated
Type of display	LCD display
Status Light™ - Visual indication of dishwashing progress	Yes
Remaining time indication	Yes
Wash end indication	Displayed with sound and light
Language settings	Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch
Functions, programs and modes
Programs	Intensive program Rinse and hold programme Sanitize Auto wash Standard Time program Quick Pro wash Self cleaning
Delayed start	Possible to delay up to 24 hours
Options and modes	Time set Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses
Design and integration
From the front adjustable door spring	Yes
From front adjustable rear foot	Yes

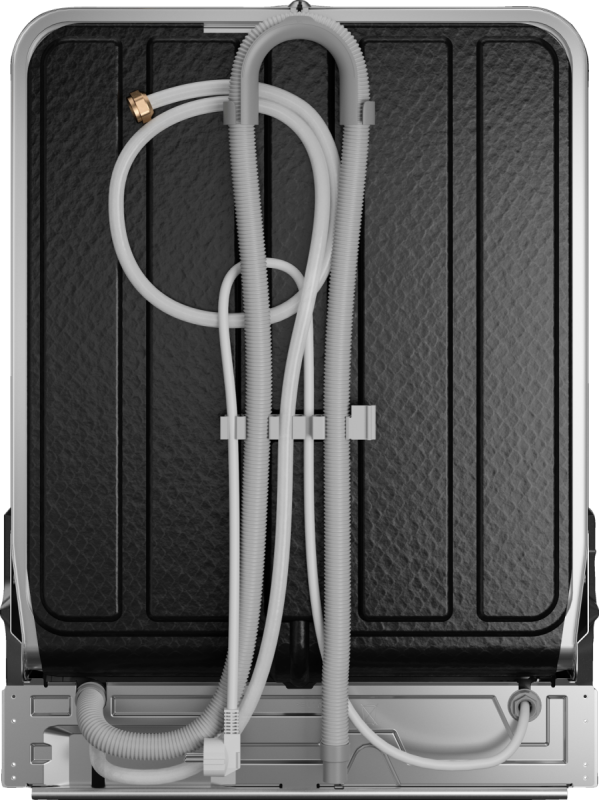

Installation	Velcro strips for easy mounting and adjustment of the separate custom door Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip
Sliding door	Yes
Possible to install elevated	Yes
Custom door size	Custom door size 720-800
Min. niche width	24 ''
Min. niche height	32 5/16 ''
Depth (incl. wall spacing)	21 7/8 ''
Height setting	2 1/16 ''
Safety and maintenance
Aqua Safe™	Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protecion - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump
Aqua Safe™ system	Yes
Child safety	Kid Safe™ - Lockable controls
Indication of low level of rinse-aid	Notification in display
Technical data
Water connection	Hot&cold water
Adapter for water connection	No
Max. temperature of inflow water	140 °F
Noise level (max)	40 dB(A)
Reference programme	1
Duration of standard programme	125 min
Estimated yearly energy consumption	220 kWh
Energy consumption - normal program	1 kWh
Estimated annual water consumption	647.5 gal
Water consumption	3 gal
Power consumption in standby mode	0.5 W
Plug type	USA
Connected load	1300 W
Voltage (V)	120 V
Number of phases	1
Fuse	15 A
Frequency	60 Hz
Required inlet water pressure psi	0,03-1
Net weight	90.4 lb
ISO 9001 certified manufacturer	Yes
Dimensions
Width	23 15/16 ''
Height	32 1/4 ''
Depth	21 13/16 ''
Maximum product height	34 5/16 ''
Length of electrical cord	71 7/16 ''
Depth with door open	48 15/16 ''
Length inlet hose	64 3/16 ''
Length outlet hose	90 9/16 ''
Logistic information
Packaging width	25 3/16 ''
Packaging height	35 1/16 ''
Packaging depth	26 3/4 ''
Gross weight	97 lb
Product code	740098
EAN code	3838782650666
Number of place settings	16 pcs
Number of racks	3
Upper rack type	Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
Size	XL
Automatic dosing system	No
Installation	Panel ready
Series	Logic
