SKU: DBI564PHS | UPC: 3838782641794

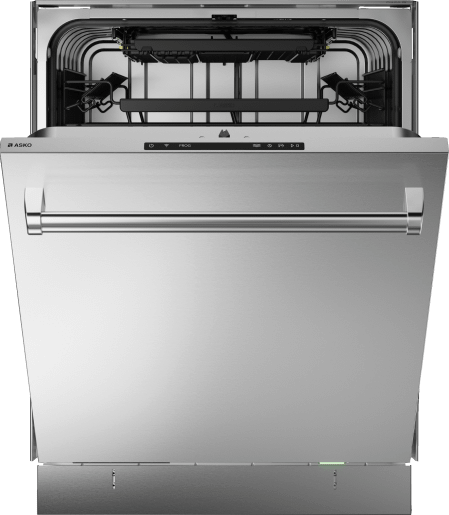

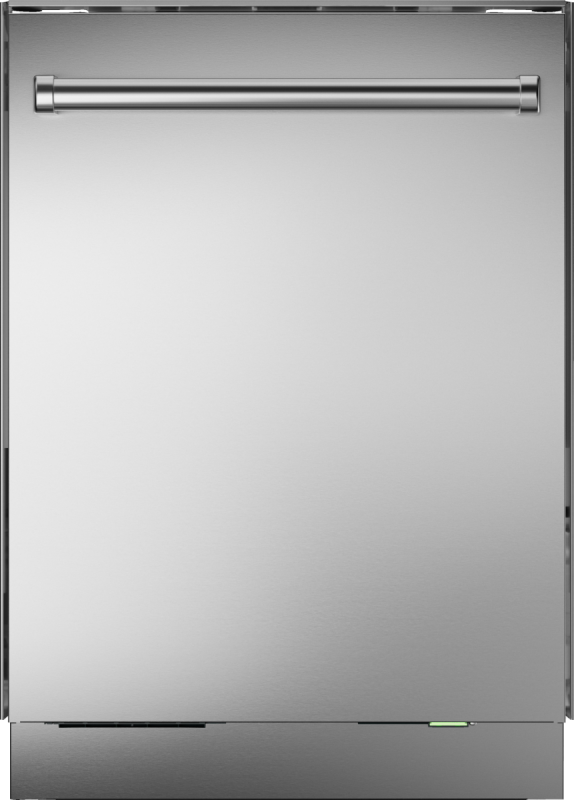

ASKO DBI564PHS Dishwasher

Quick Specification More details

Width:
23.94 Inch
Depth:
21.81 Inch
Height:
32.68 Inch
Type:
Built-In Dishwashers

About this product

Super Cleaning System(TM) (SCS(TM))
Turbo Combi Drying(TM) ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
Yes
8 Steel(TM)

SKU: DBI564PHS | UPC: 3838782641794

ASKO DBI564PHS Dishwasher

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.94 Inch
Depth:
21.81 Inch
Height:
32.68 Inch
Type:
Built-In Dishwashers

About this product

Super Cleaning System(TM) (SCS(TM))
Turbo Combi Drying(TM) ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
Yes
8 Steel(TM)

Product Details for ASKO DBI564PHS

Technical Details

Construction and performance

8 Steel(TM) - Vital parts of the dishwasher made in stainless steel	Yes
No need to rinse the dishes thanks to Super Cleaning System(TM)	Yes
Automatic water-softener for better washing performance	No
Number of spray arms	3
Number of spray zones	9
Cleaning systems	Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. Stainless steel spray arms Aqua Level(TM) Sensor No need to rinse the dishes thanks to Super Cleaning System(TM) Cutlery Spray(TM) - Extra dishwashing power for the cutlery basket

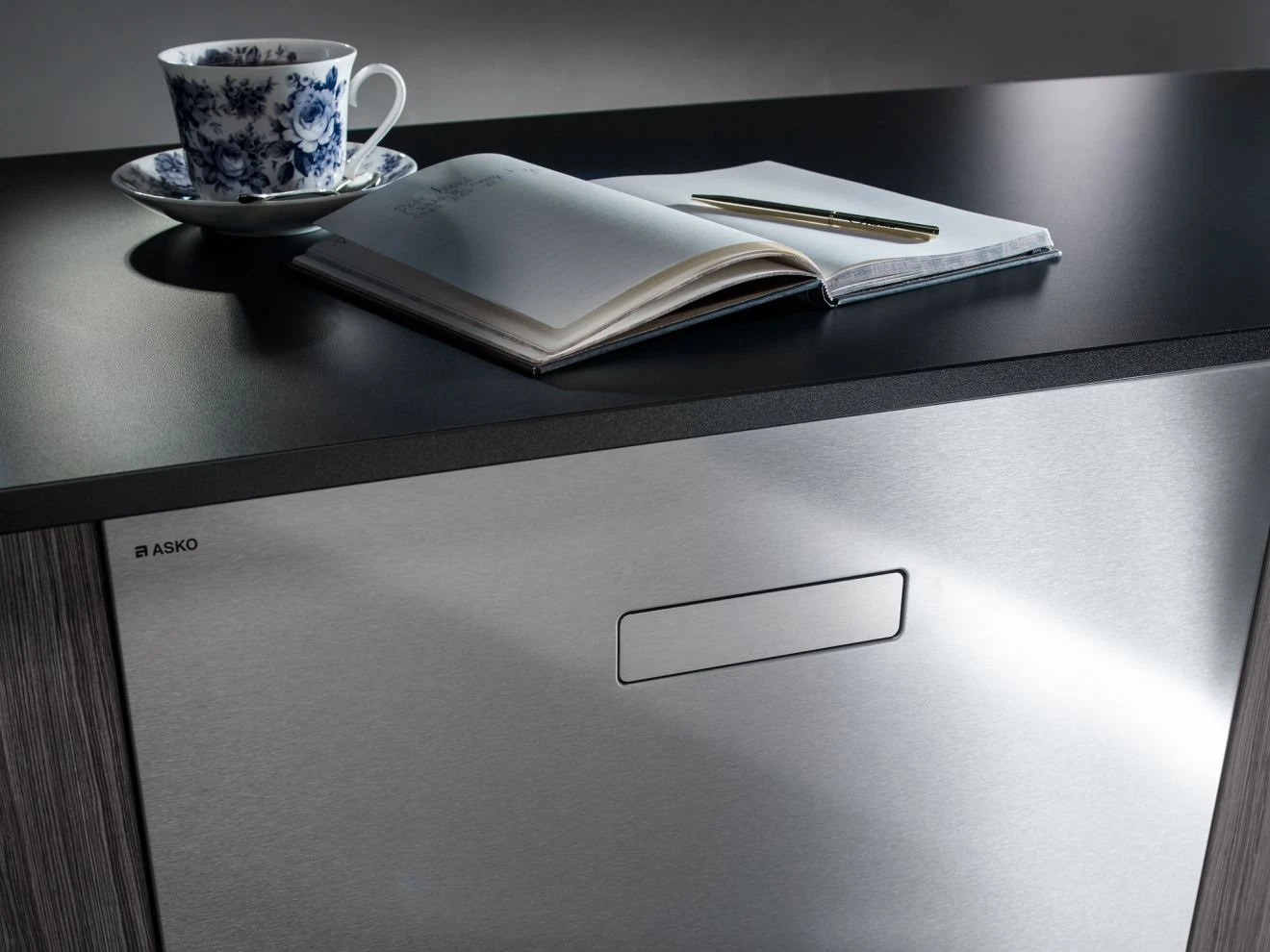

Exterior handle	SZW pro handle

Use and flexibility

Number of place settings	16
Number of racks	3
Top tray	Easy height adjustment Handle Removable

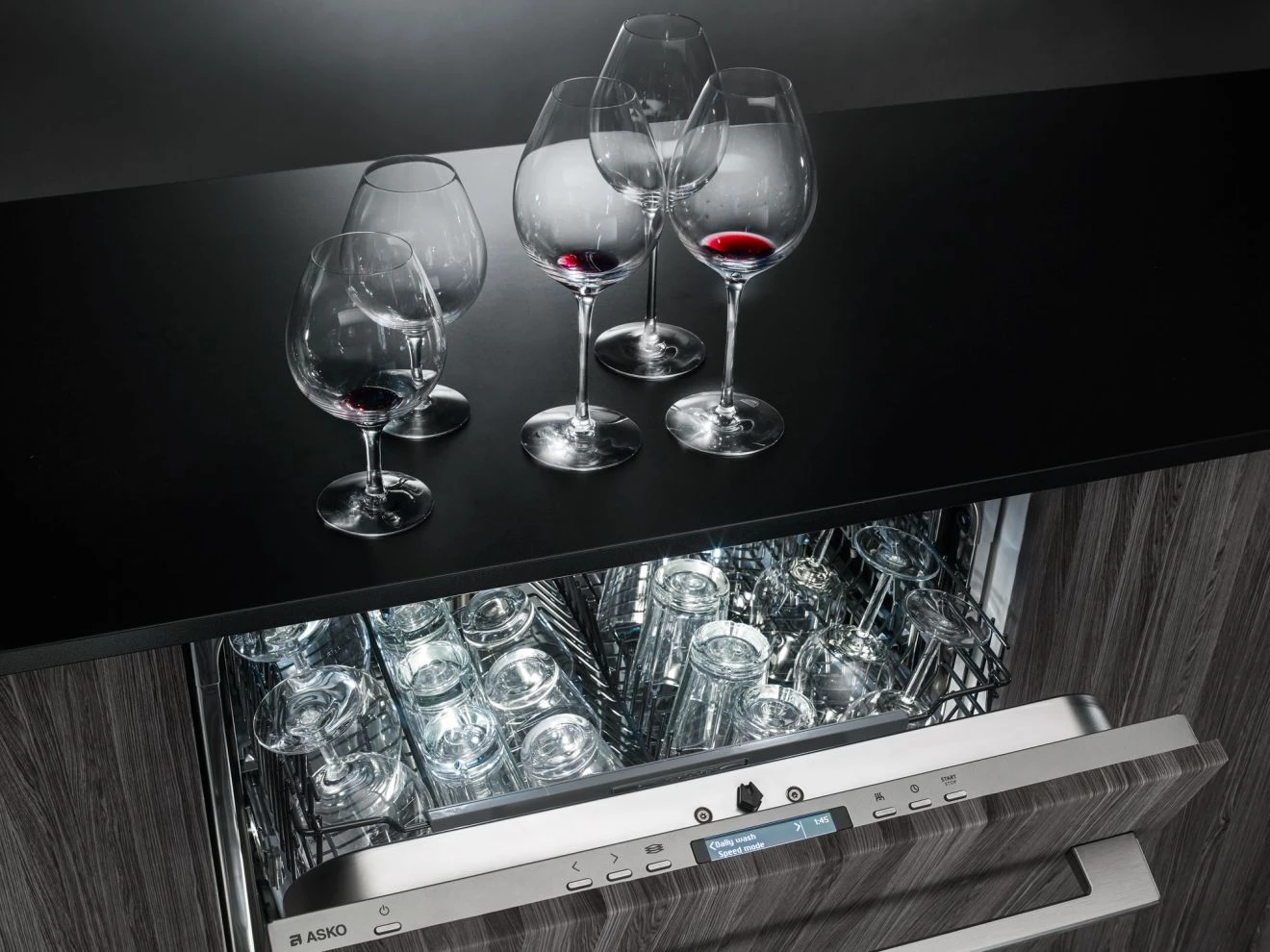

Upper rack type	Premium, fixed tines and foldable wine shelves
Upper basket system	Switch wheels
Upper basket	Standard knife stand Fixed glass support Fixed pin rows Foldable wine shelves to right Foldable wine shelves to left Handle with plastic logotype Small distance between the basket threads - makes loading easy and prevents small items to fall through
Middle basket	Without middle basket
Lower rack type	Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket

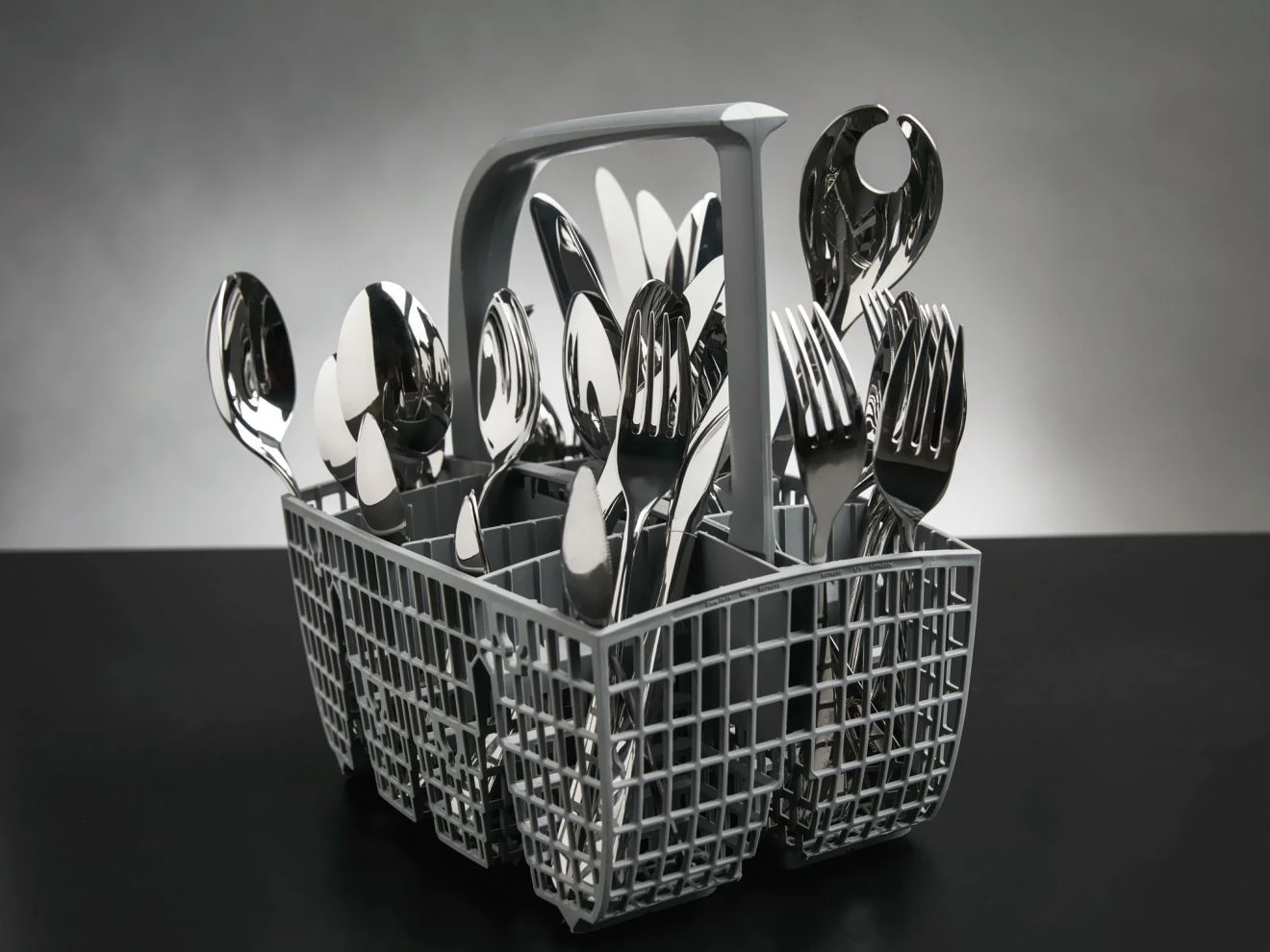

Lower rack	Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype Foldable/divisible rear pin row Cutlery basket
Automatic dosing system	No
Interior light	No

Interaction and control

Possible to control via Wi-Fi	No

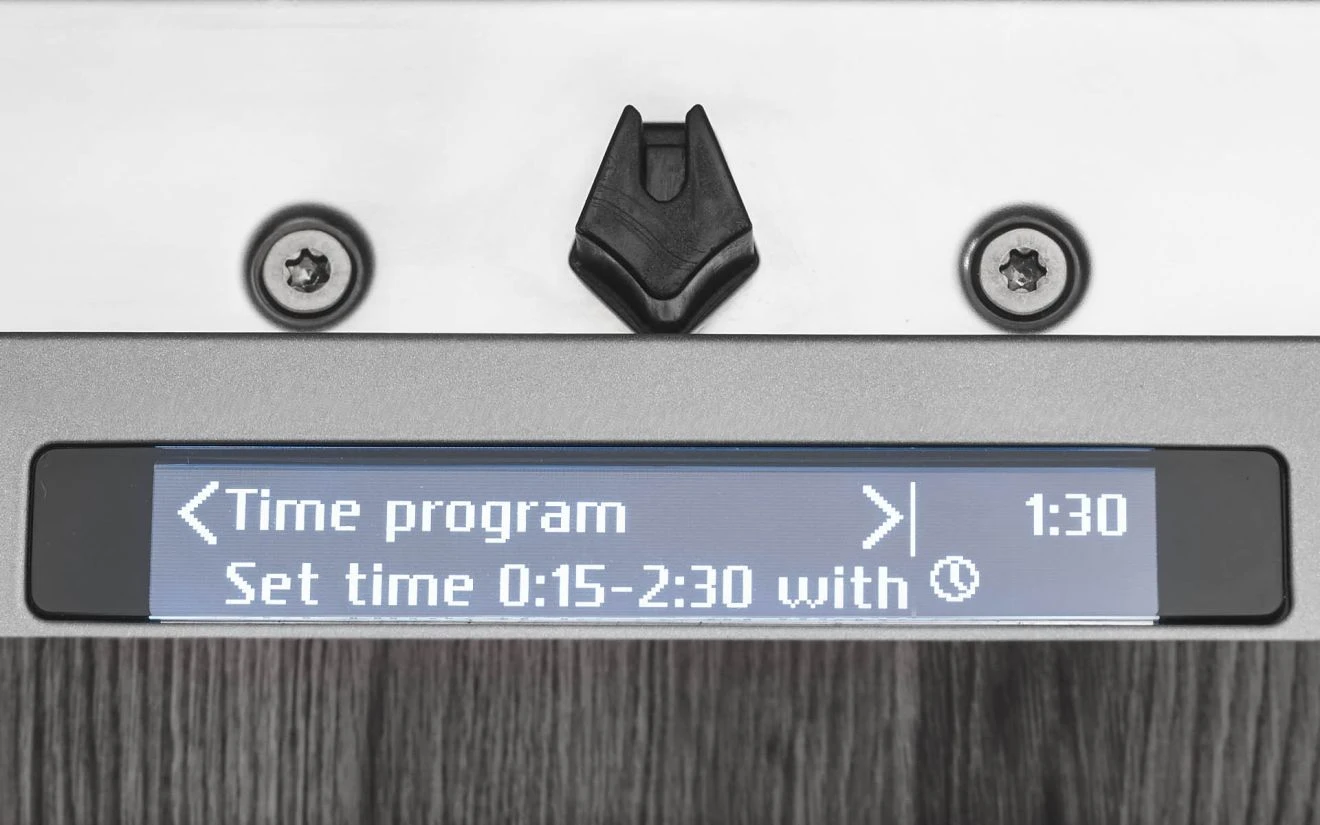

Type of display	LCD display
Status Light(TM) - Visual indication of dishwashing progress	Yes
Remaining time indication	Yes
Wash end indication	Displayed with sound and light
Language settings	Chinese simpified Chinese traditional Swedish Slovenian Slovak Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish Czech Ukrainian

Functions, programs and modes

Programs	Anti odour Sanitize Light wash Self cleaning Rinse and hold programme Time program Standard Intensive program Quick wash
Delayed start	Possible to delay up to 24 hours
Options and modes	Enable/disable automatic door opening Super Rinse(TM) - Two extra rinses Time set Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Heat Boost Mode

Design and integration

From the front adjustable door spring	No
From front adjustable rear foot	Yes

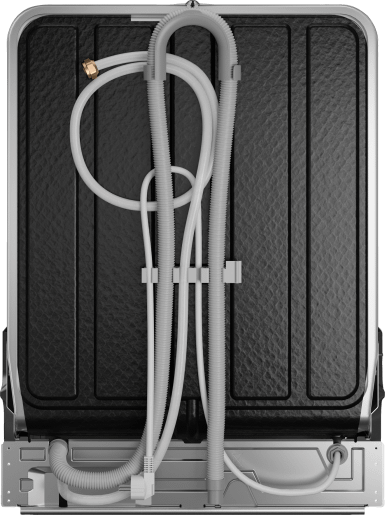

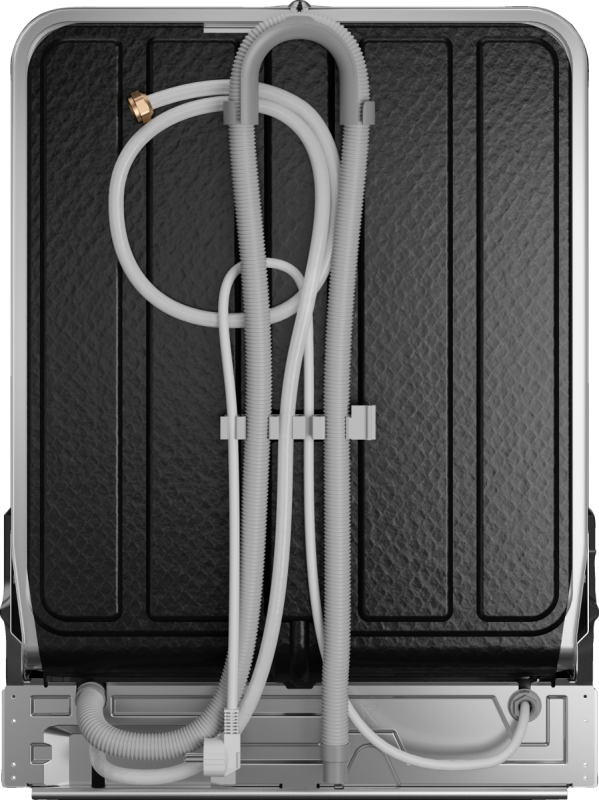

Installation	Steam protection strip Trim kit Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Multi fit outlet hose
Sliding door	No
Possible to install elevated	Yes
Min. niche width	23 15/16 ''
Min. niche height	32 11/16 ''
Depth (incl. wall spacing)	21 7/8 ''
Height setting	2 1/16 ''
Adjustable kick plate	No

Safety and maintenance

Aqua Safe(TM)	Anti Block(TM) - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level(TM) Sensor - Ensures an optimized water level Aqua Detect(TM) - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container
Aqua Safe(TM) system	Yes
Child safety	Kid Safe(TM) - Lockable controls
Indication of low level of rinse-aid	Notification in display

Technical data

Water connection	Hot&cold water
Adapter for water connection	No
Max. temperature of inflow water	140
Noise level (max)	42
Reference programme	1
Duration of standard programme	125
Estimated yearly energy consumption	220
Energy consumption - normal program	1
Estimated annual water consumption	647.5
Water consumption	3
Power consumption in standby mode	0.5
Plug type	USA
Connected load	1300
Voltage (V)	120
Number of phases	1
Fuse	15
Frequency	60
Required inlet water pressure psi	0
Net weight	92.6

Dimensions

Width	23 15/16 ''
Height	32 11/16 ''
Depth	21 13/16 ''
Maximum product height	34 13/16 ''
Length of electrical cord	71 7/16 ''
Depth with door open	46 7/8 ''
Length inlet hose	64 3/16 ''
Length outlet hose	90 9/16 ''

Logistic information

Packaging width	25 3/16 ''
Packaging height	35 1/16 ''
Packaging depth	26 3/4 ''
Gross weight	99.2
Product code	740091
EAN code	3838782641794
Noise level (max)	42
Number of place settings	16
Number of racks	3
Upper rack type	Premium, fixed tines and foldable wine shelves
Size	XL
Automatic dosing system	No
Installation	Built-in
Series	Logic

Features

Super Cleaning System(TM) (SCS(TM))
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One - and we call it the Super Cleaning System - or our best invention.
Turbo Combi Drying(TM) ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
Yes

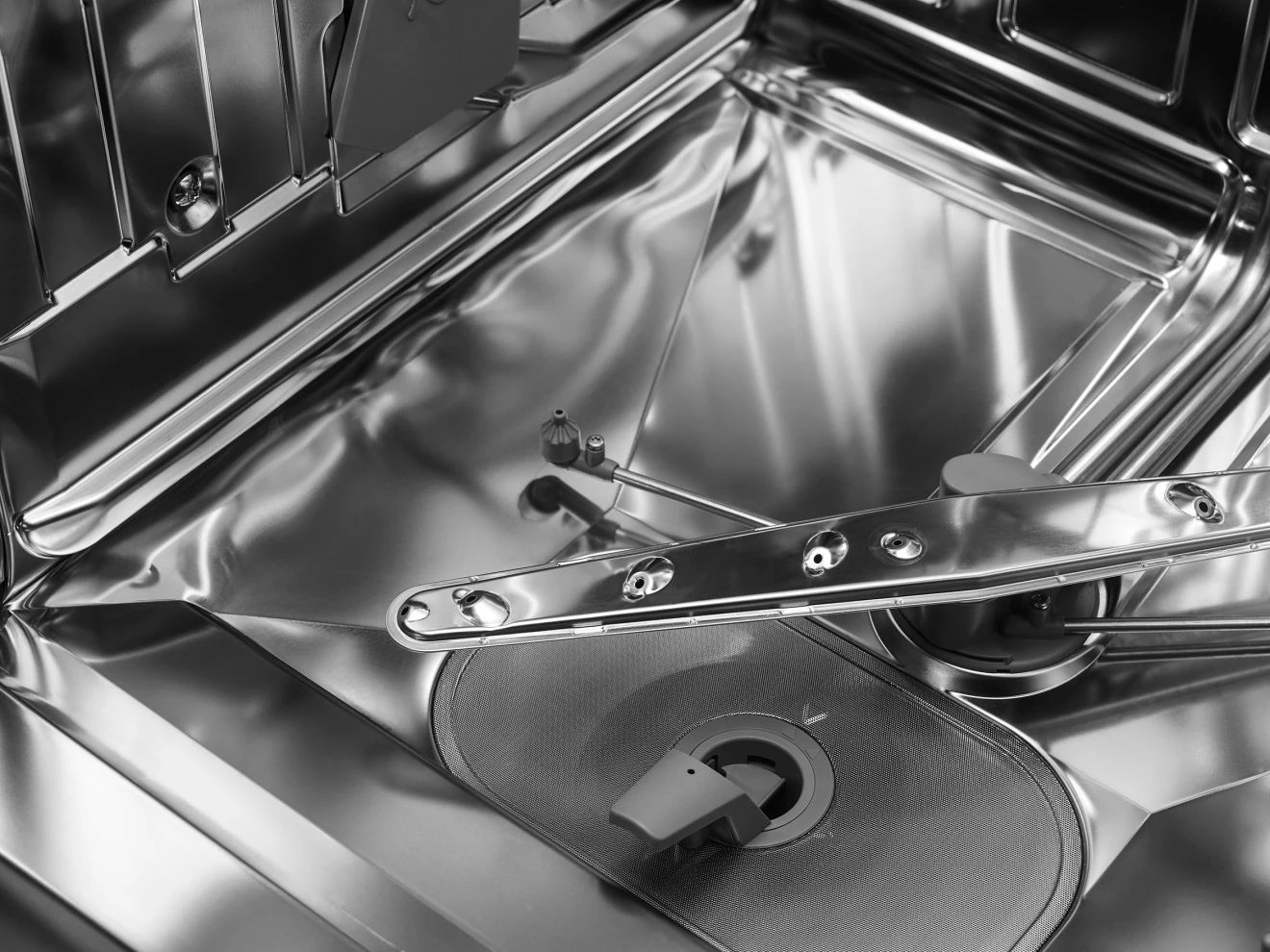

8 Steel(TM)

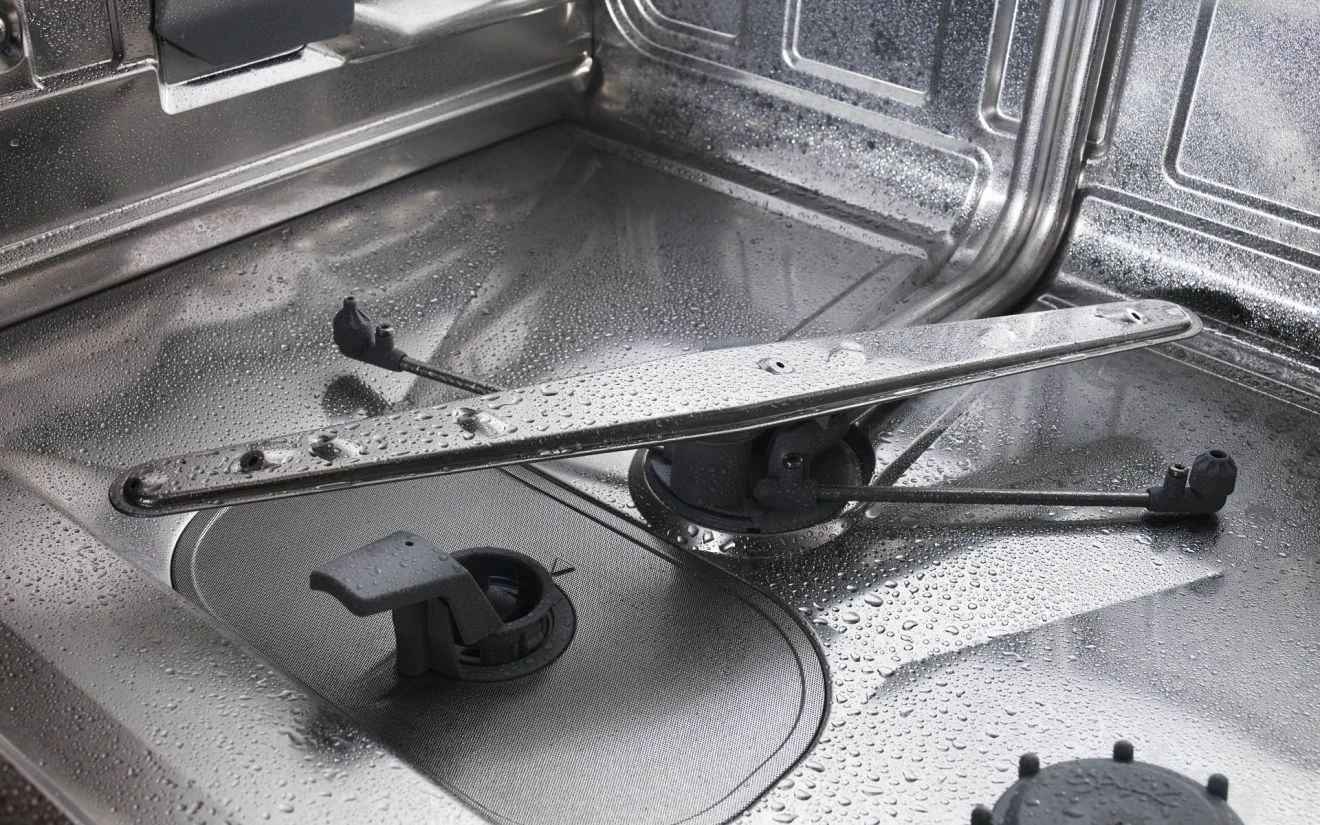

8 Steel(TM) - more steel less plasticNo other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Turbo Combi Drying(TM)

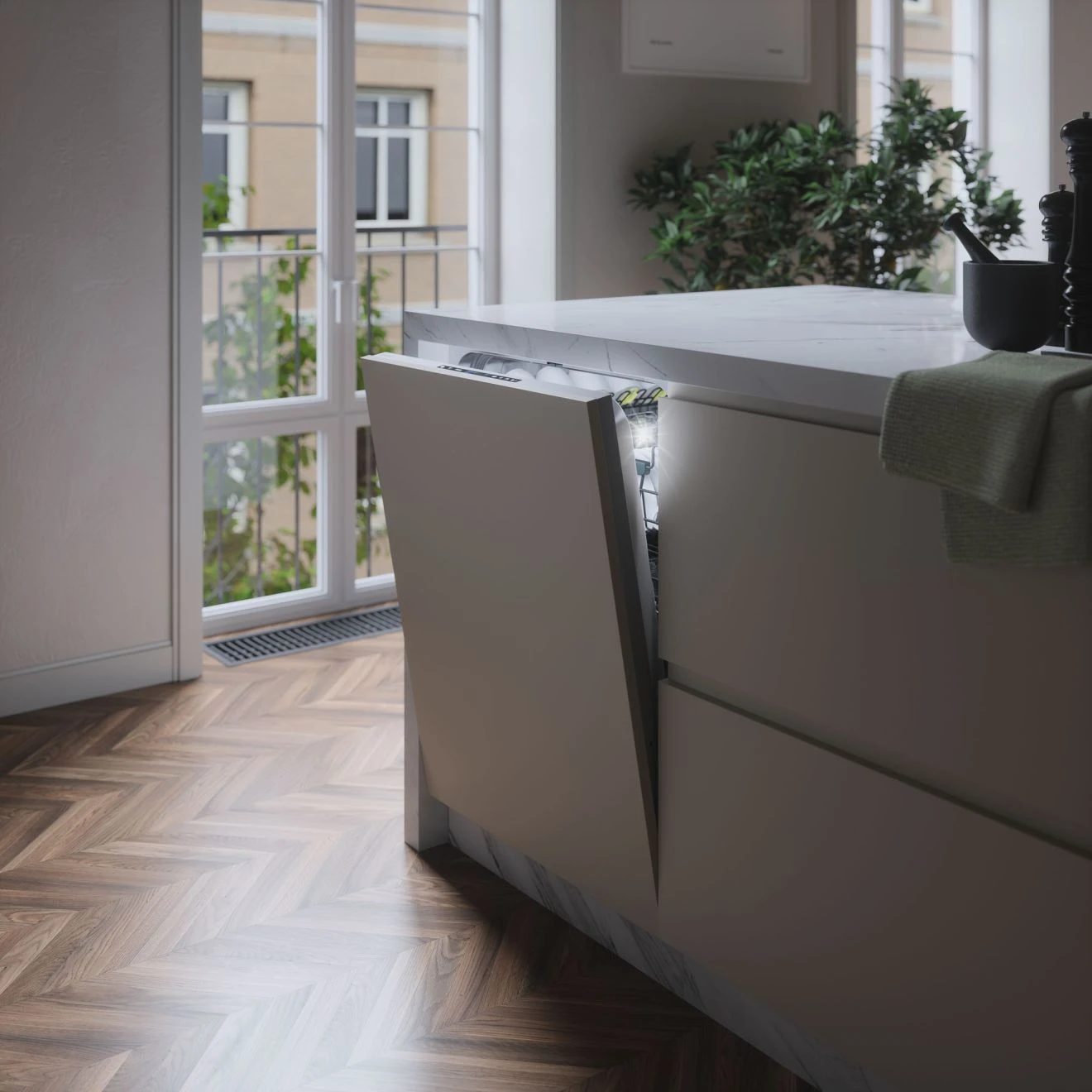

Turbo Combi Drying(TM) benefits from both the innovative Turbo Drying(TM) system and natural drying with dry indoor air. Our Turbo Drying(TM) system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Flexiracks(TM)
ASKO Flexiracks(TM) from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
XL dishwashers

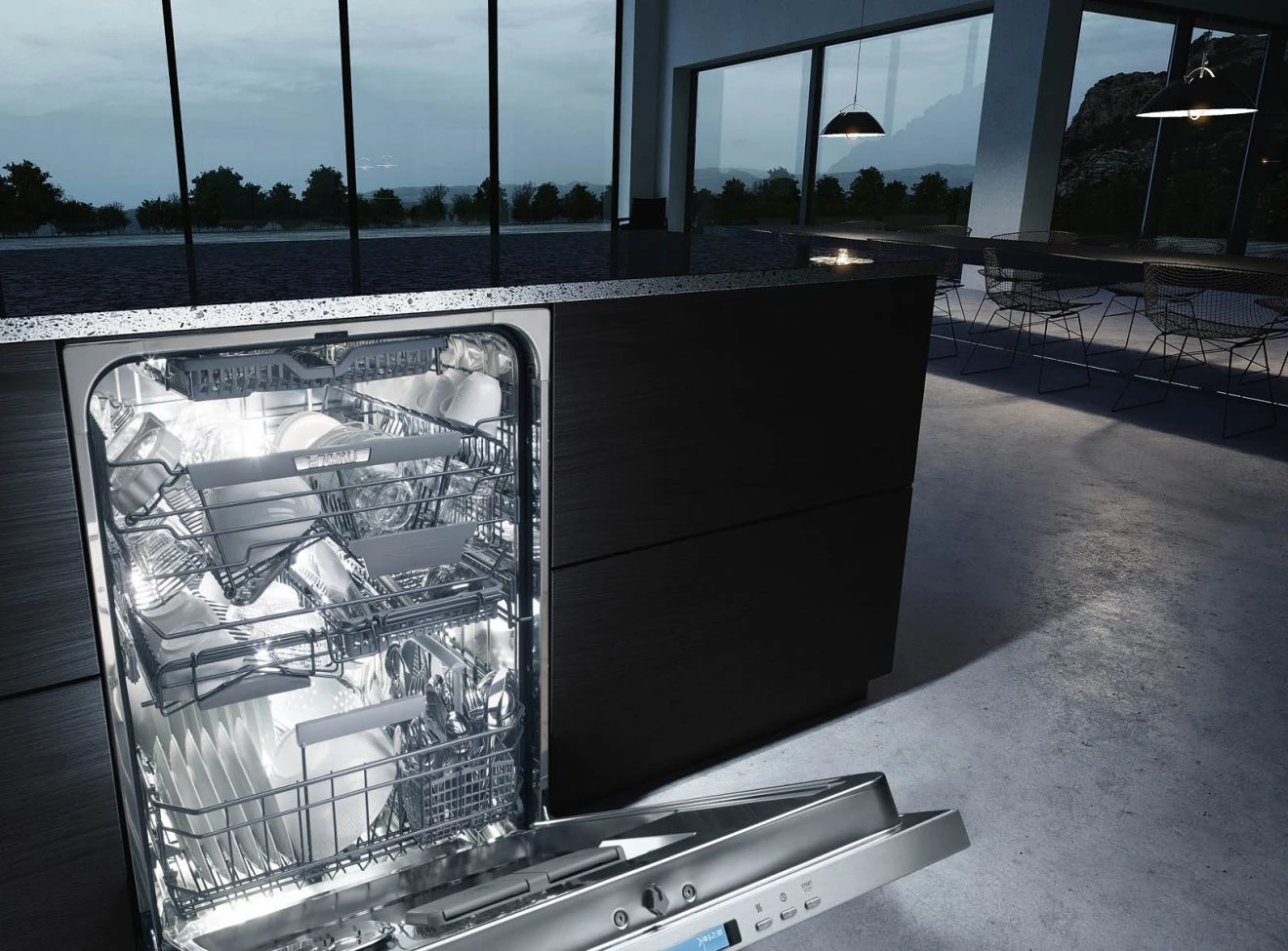

Our XL dishwashers have a loading height of 21-1/4". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

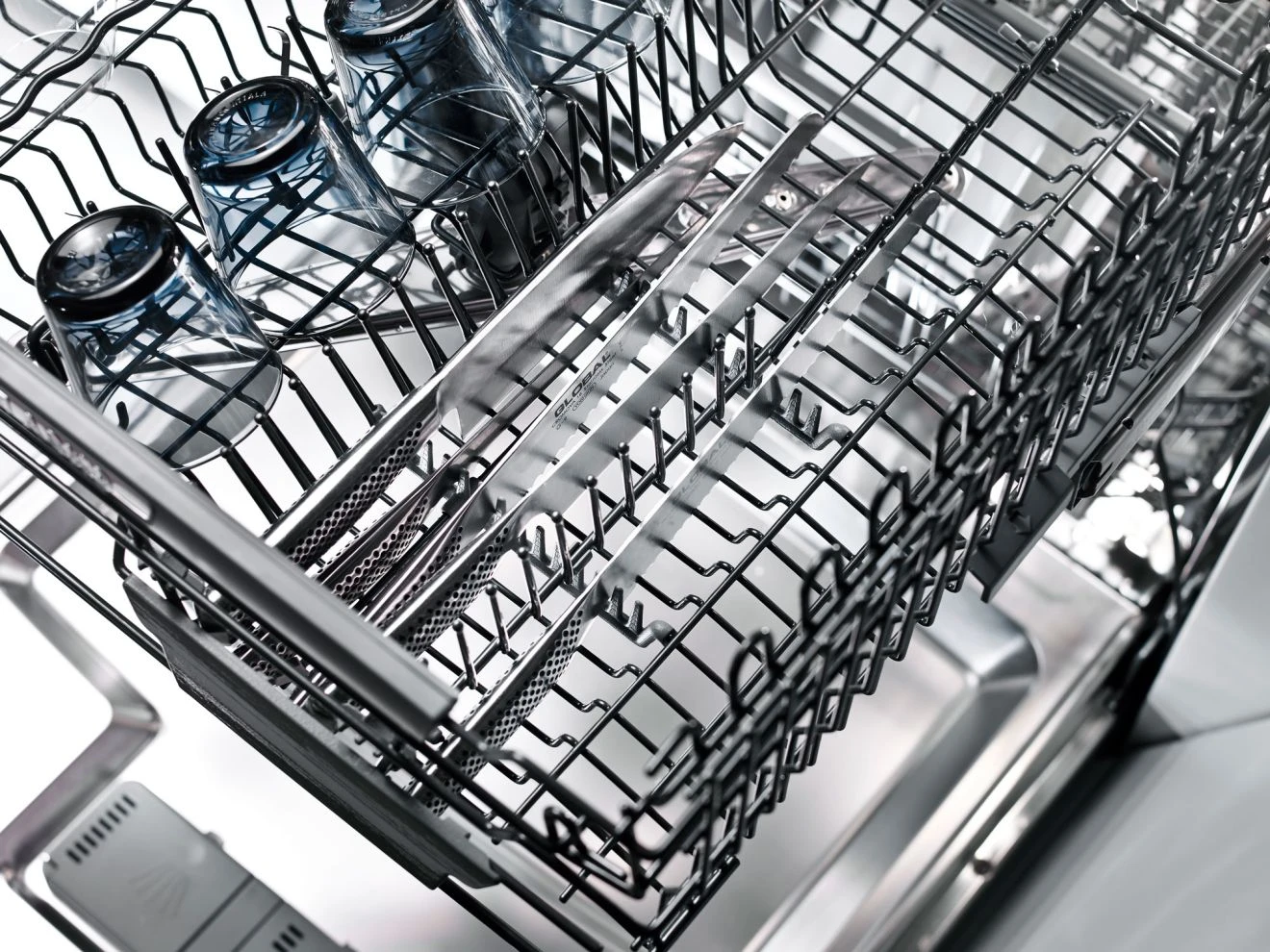

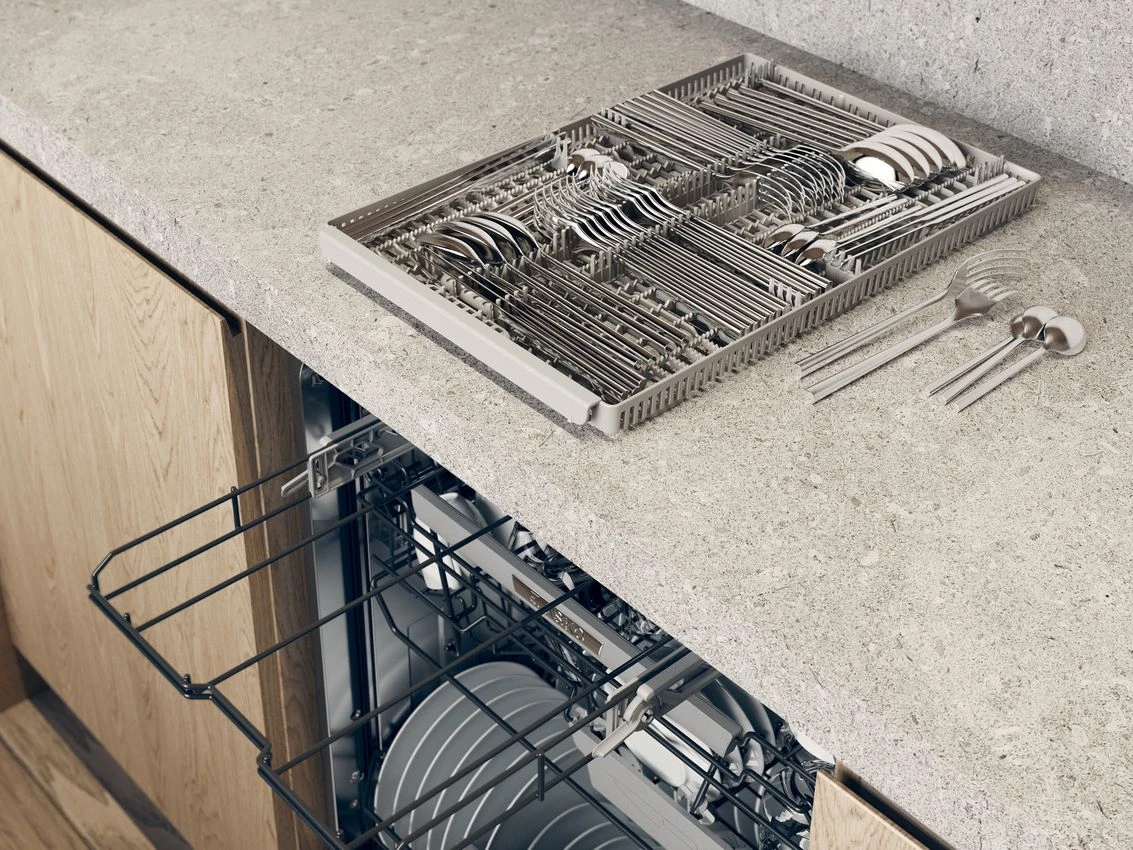

Top cutlery tray

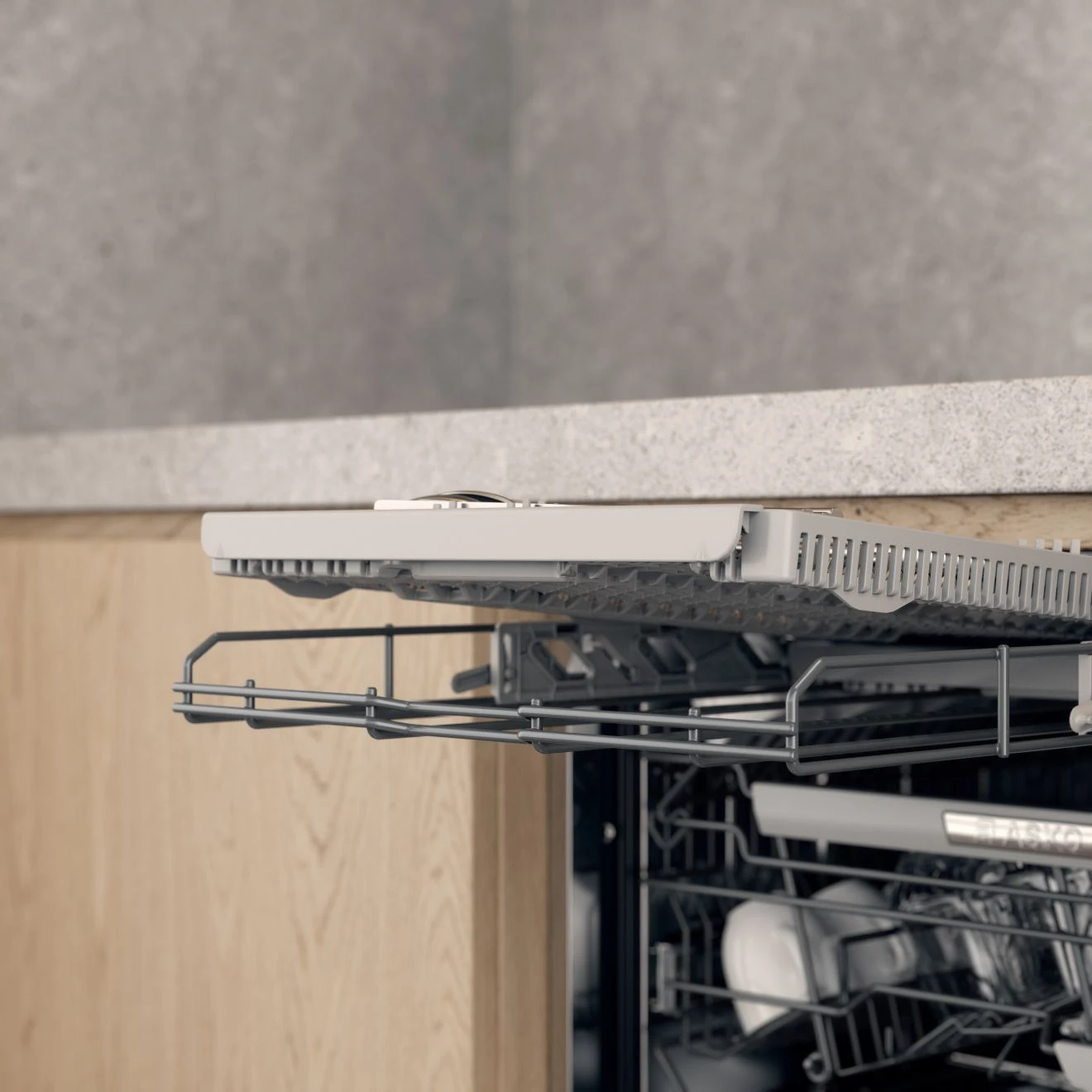

The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".

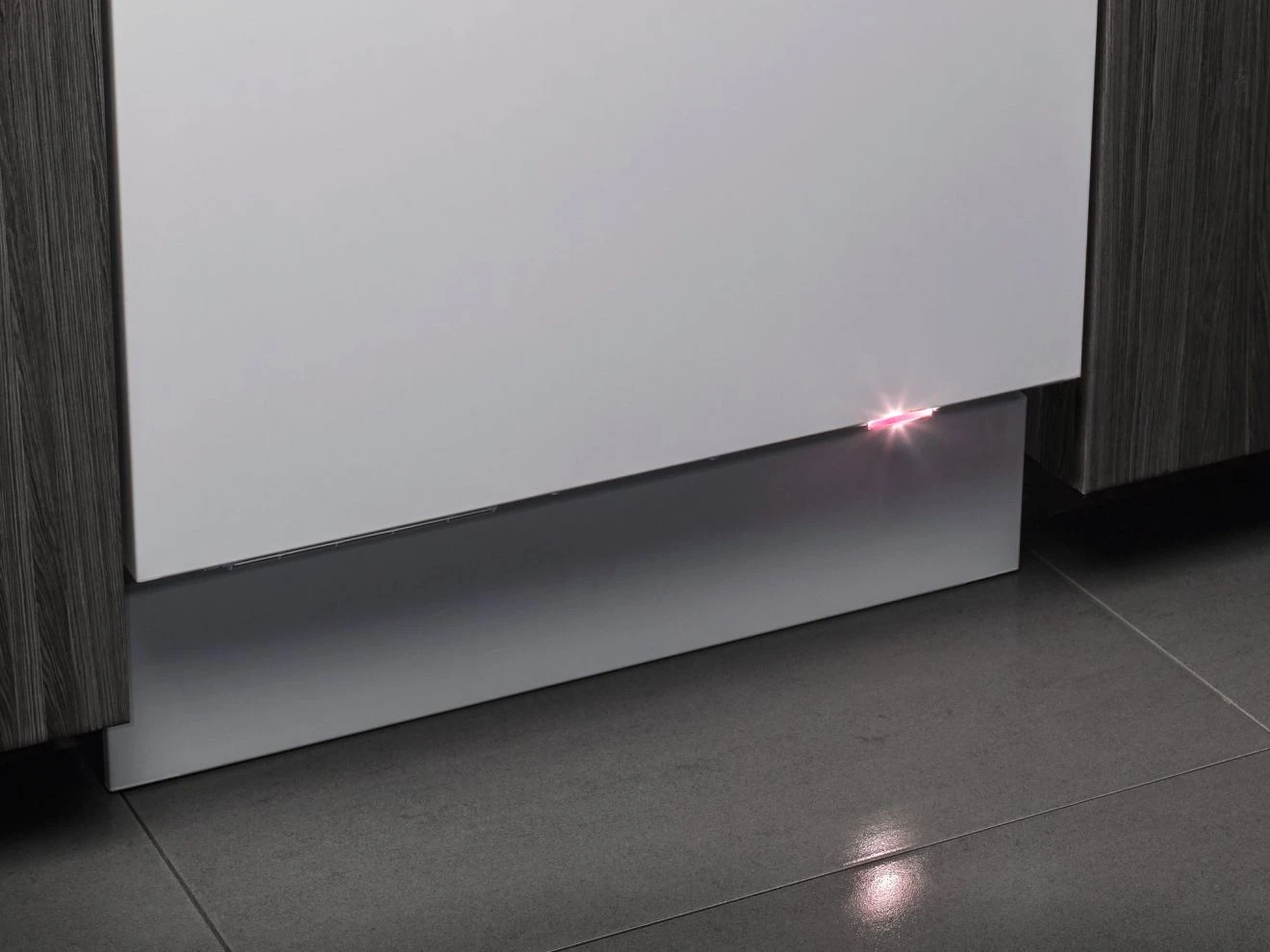

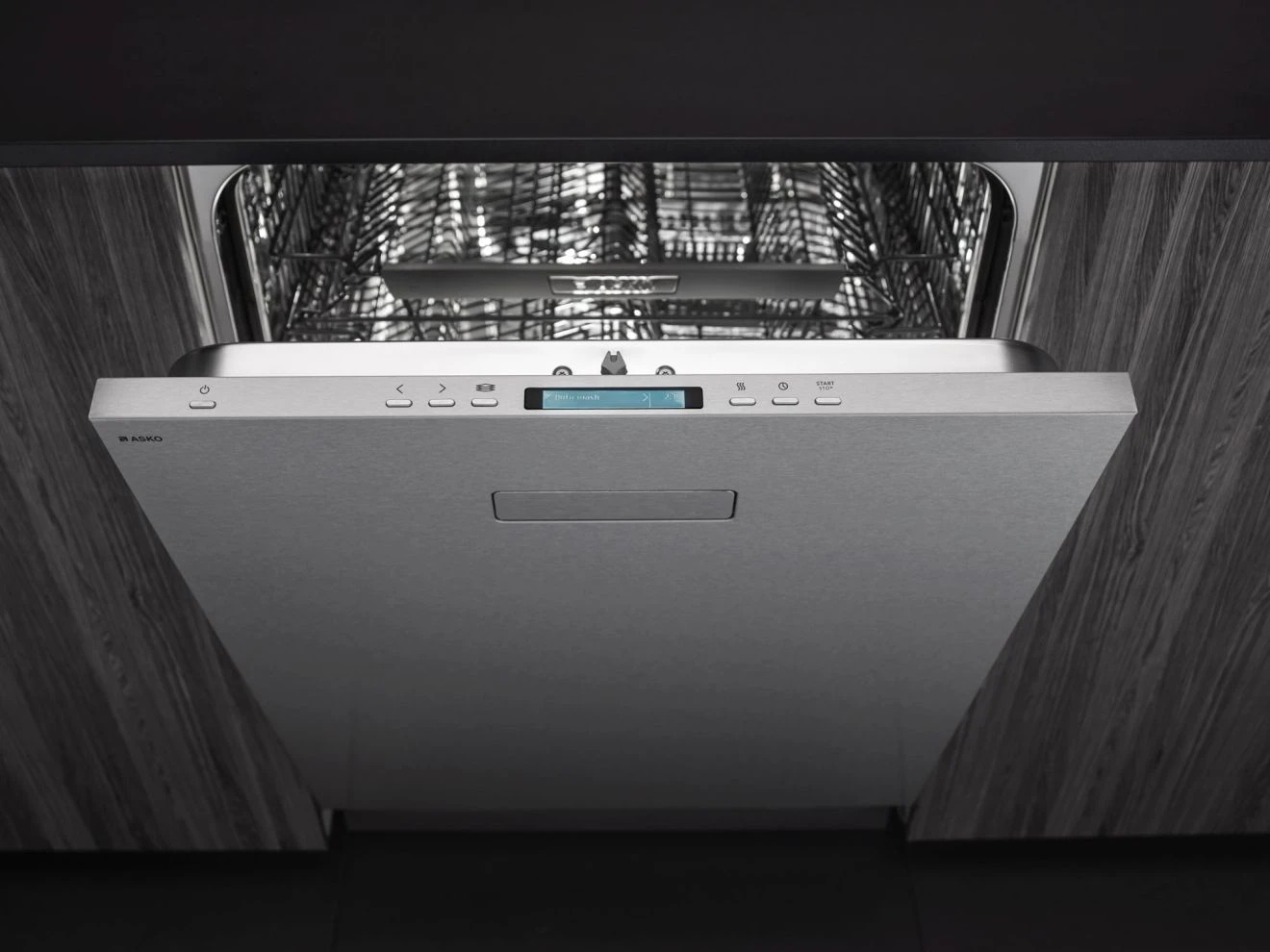

Status Light(TM)
ASKO s new generation dishwashers have Status Light(TM) -a small light placed in the bottom right corner to let you know the actual status of the program.
Instant Lift(TM)
Our InstantLift(TM) height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.

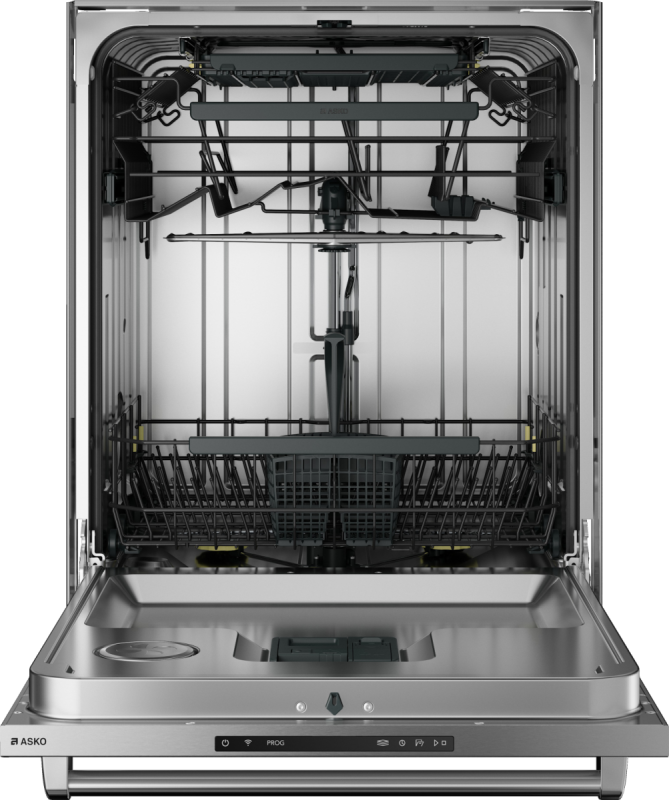

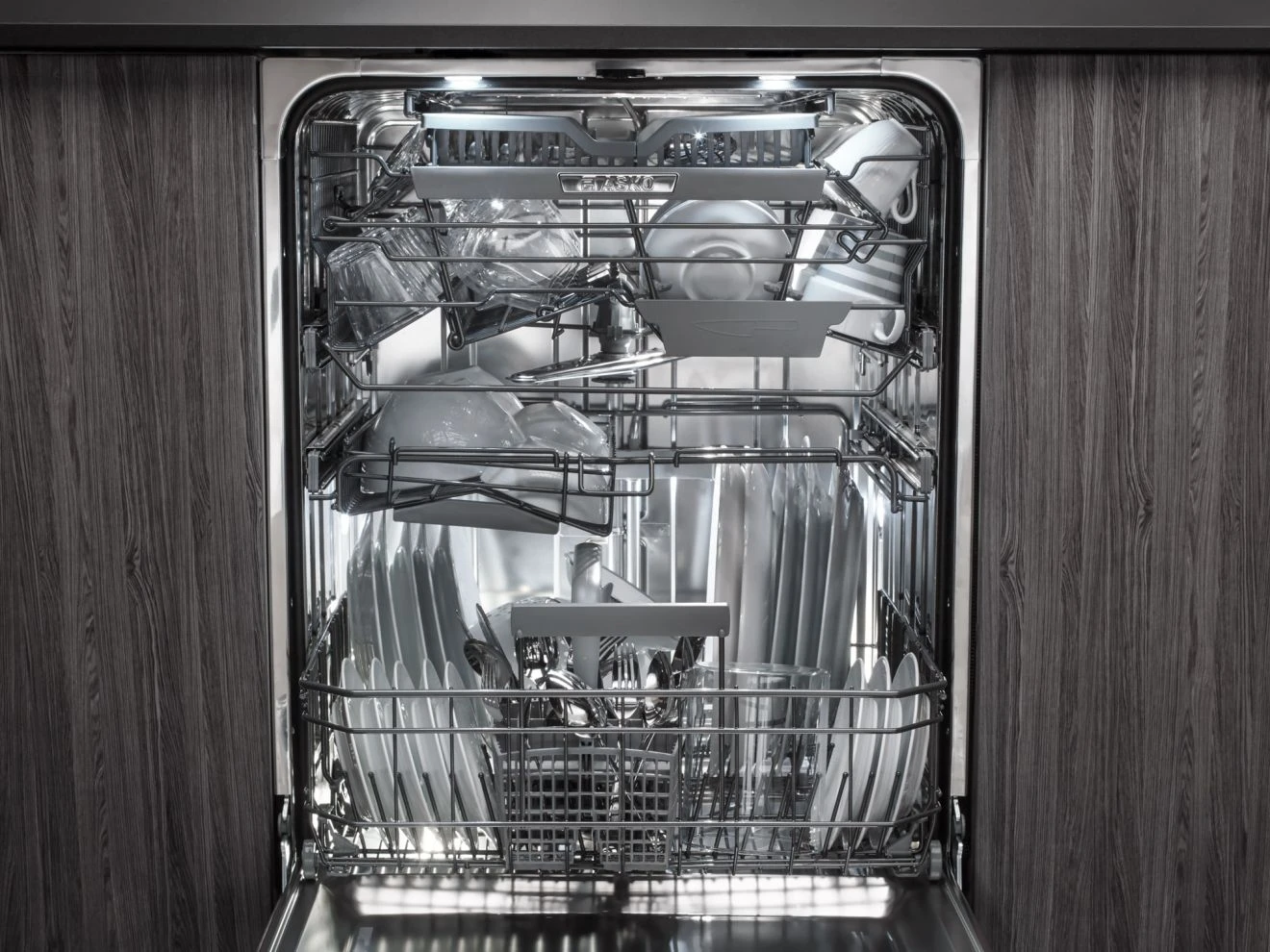

3 Level rack

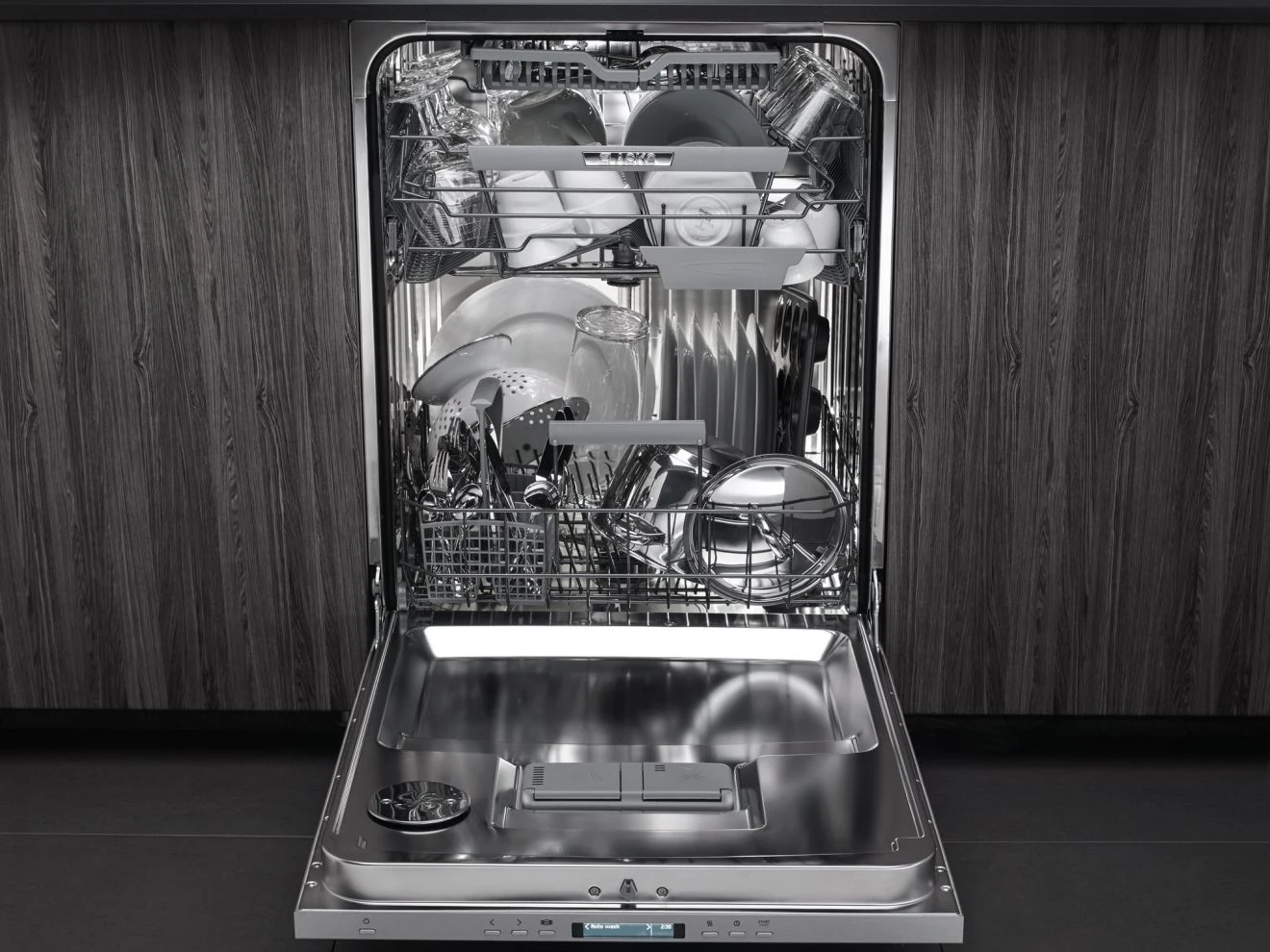

ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

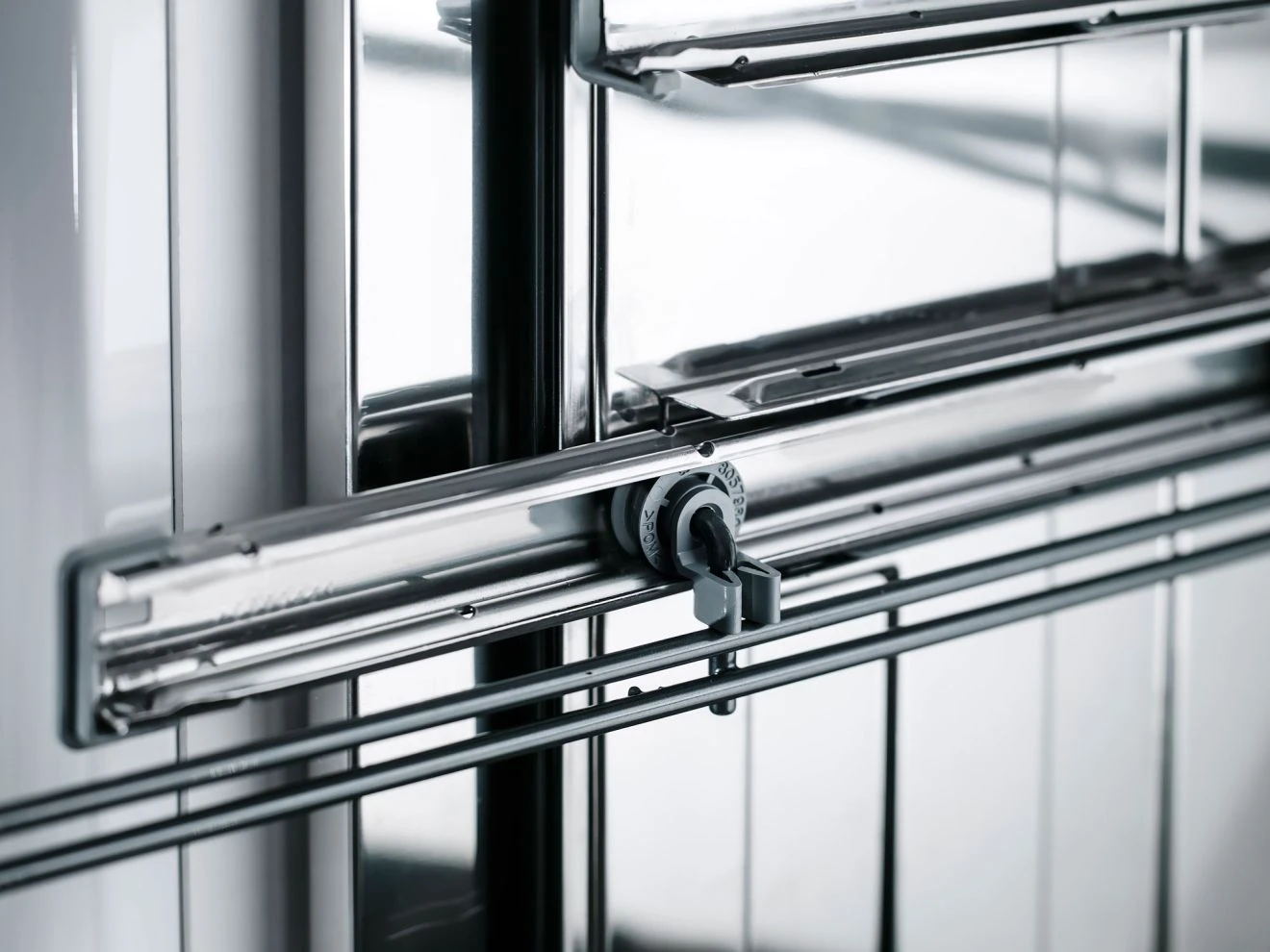

Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
16 - Loading capacity
The world s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Focus points

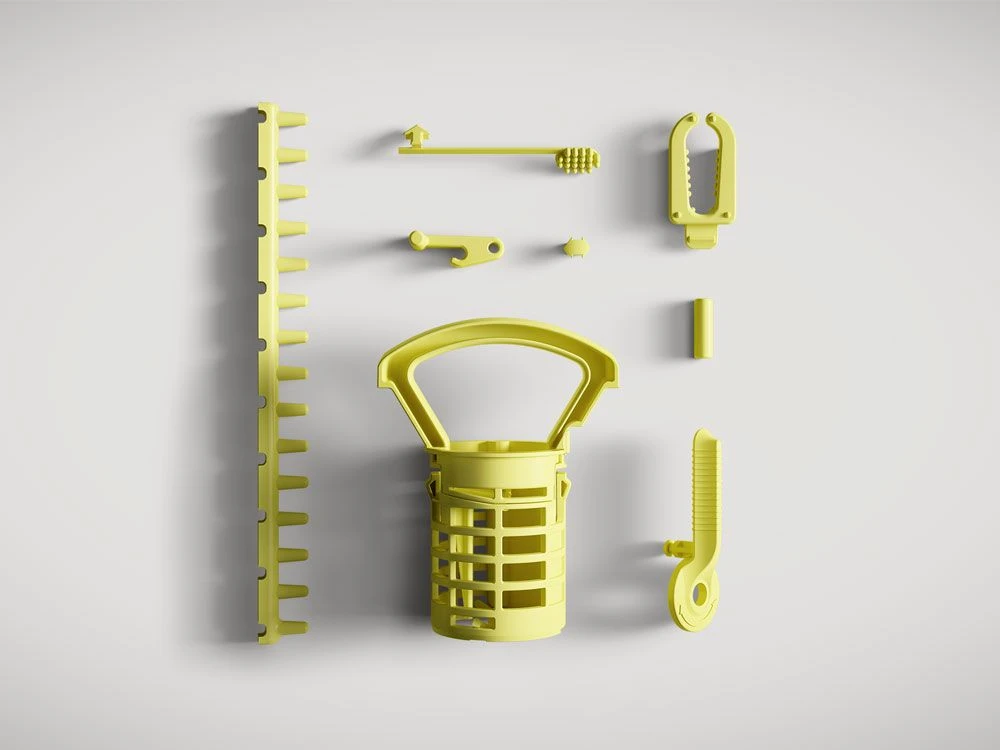

Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.

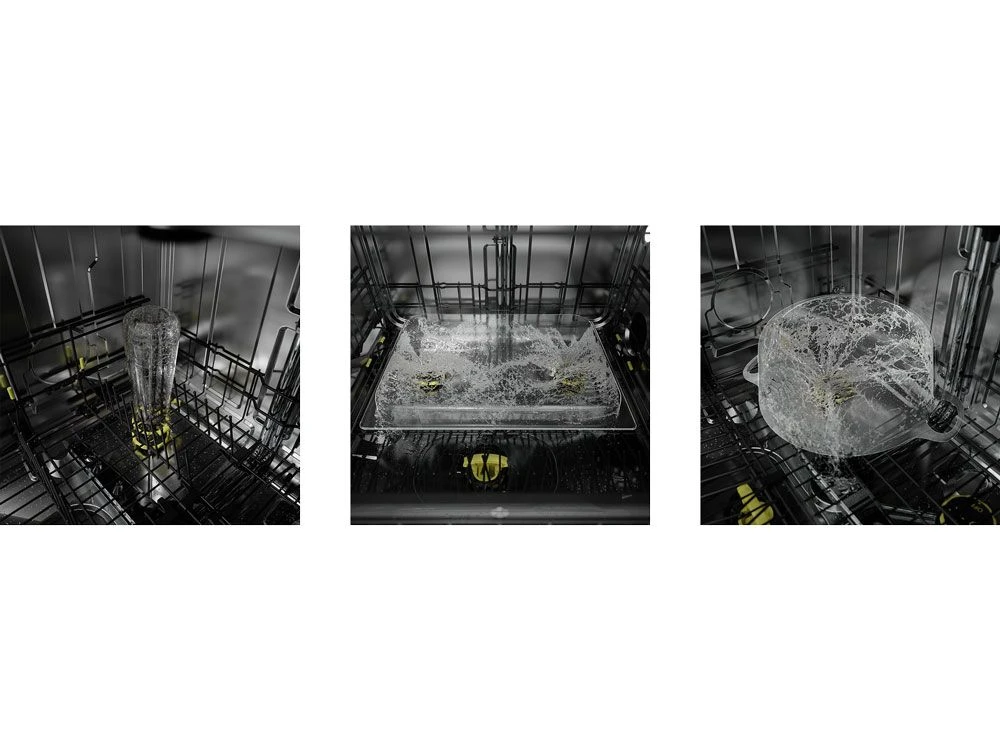

Adjustable power zones
Adjustable power zonesTo make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
20 years
Dishwashers designed to last for 20 years. Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.

Description

The DBI564PHS dishwasher combines high performance, style, and sustainability. Featuring a durable stainless steel exterior, this dishwasher is not only elegant but also resistant to stains and fingerprints. Its energy-efficient design helps reduce utility bills, while its advanced cleaning system ensures sparkling dishes after every wash. With multiple wash cycles, including eco-friendly options, it caters to all cleaning needs. The whisper-quiet operation makes it perfect for open-concept kitchens or households sensitive to noise. Easy-to-use digital controls and a spacious interior with adjustable racks make it user-friendly and versatile, fitting dishes of all sizes. This dishwasher is the ideal choice for busy households that value efficiency, convenience, and style.
