Sale price $1,664.99 Regular price $2,313.99 Save $649.00 / 28% OFF

Product Details for ZLINE 8654SN36

Technical Details

Other

Brand ZLINE Kitchen and Bath
Lighting LED Lights
Voltage 110V/60HZ
Motor High Performance 4-Speed Motor
Mount Type Wall Mounted
Speeds 4 Speeds
Control Type Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Warranty 3 Year Parts Warranty
Certifications ETL Listed

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Source Calculation
Shipping Width 41 Inch
Shipping Height 21 Inch
Shipping Length 28.8 Inch
Shipping Weight 120 lbs
Total of Shipping Weight 120 lbs

Dimensions & weight

Width 36 Inch
Height 16 Inch
Weight 80 lbs
Depth 23.8 Inch

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.93 ft³
Dimensional Weight 98.62 Ibs
Total of Cubes 7.93 ft³
Total of Dimensional Weight 98.62 Ibs

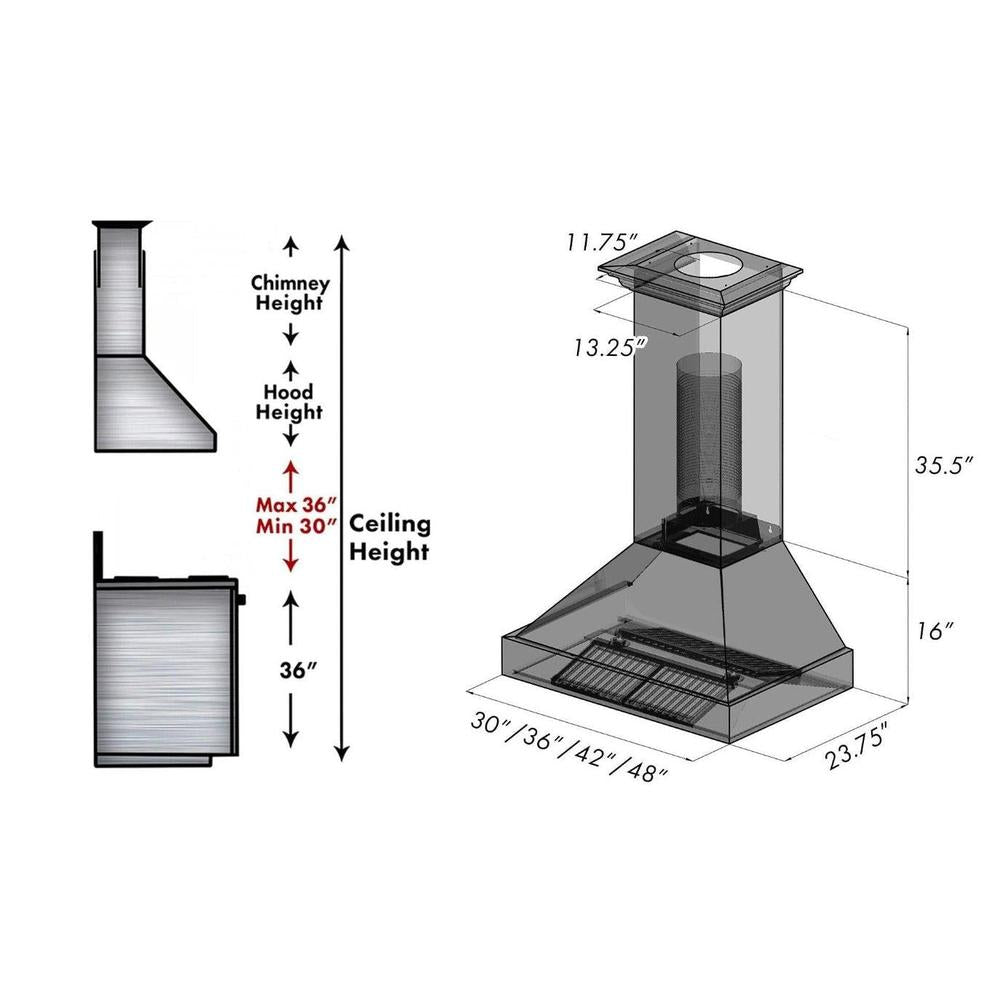

Dimensions

Dimensions: 36 in. W x 23.75 in. D x 16 in. H
Product Depth (in.): 23.8
Product Width (in.): 36
Product Height (in.): 16.0
Chimney Dimensions: 13.25" W x 11.75" D x 35.5" H

Details

Appliance Category: Wall Mount RH
Color/ Finish Family: Satin Stainless Steel
Airflow (Q/L/M/H): 280/420/560/700
Motor: High Performance 700 CFM/4-Speed Motor
Filters: Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type: Wall Mount
Number of Lights: 2
Number of Speeds: 4
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel: Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.): 80
Decibels: 30/41/49/52
Duct Size: 8
Voltage: 110
Amps: 5

Warranties & certifications

Certifications and Listings: ETL Listed
Manufacturer Warranty: 3 year parts, life-time motor warranty

Description

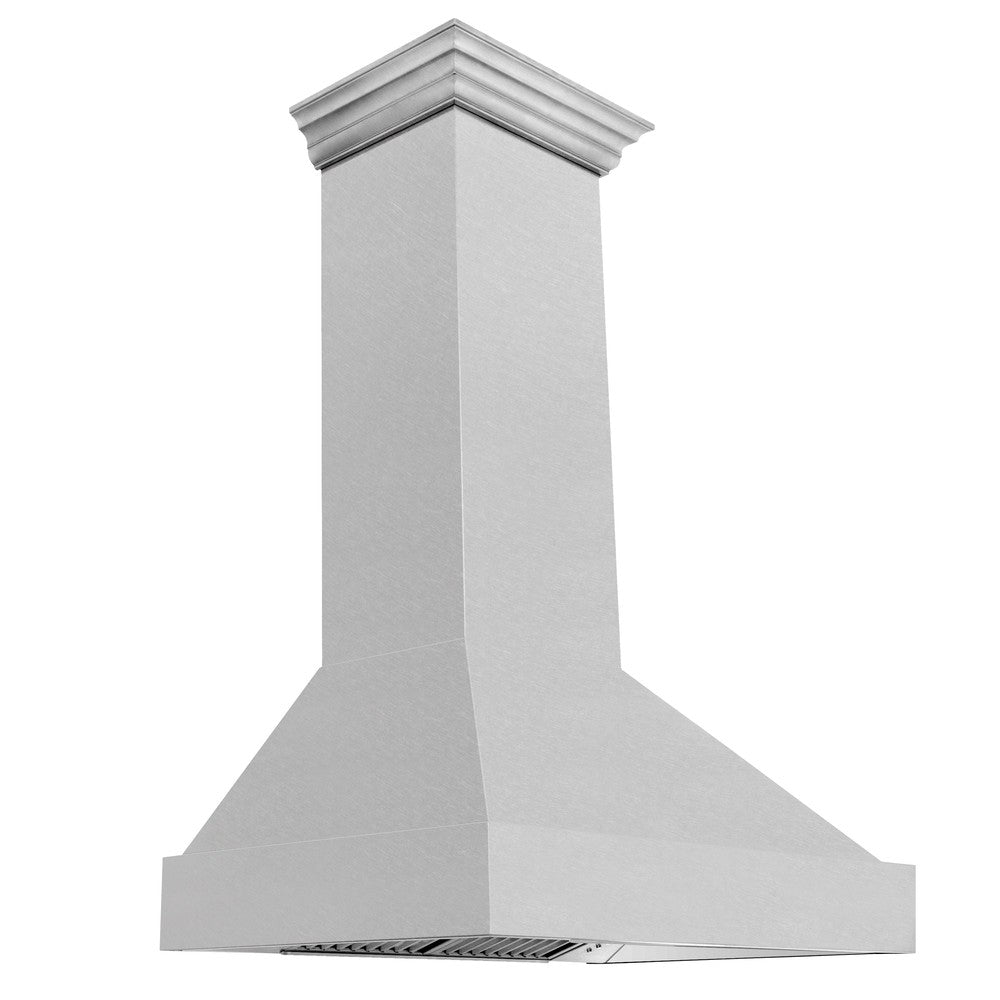

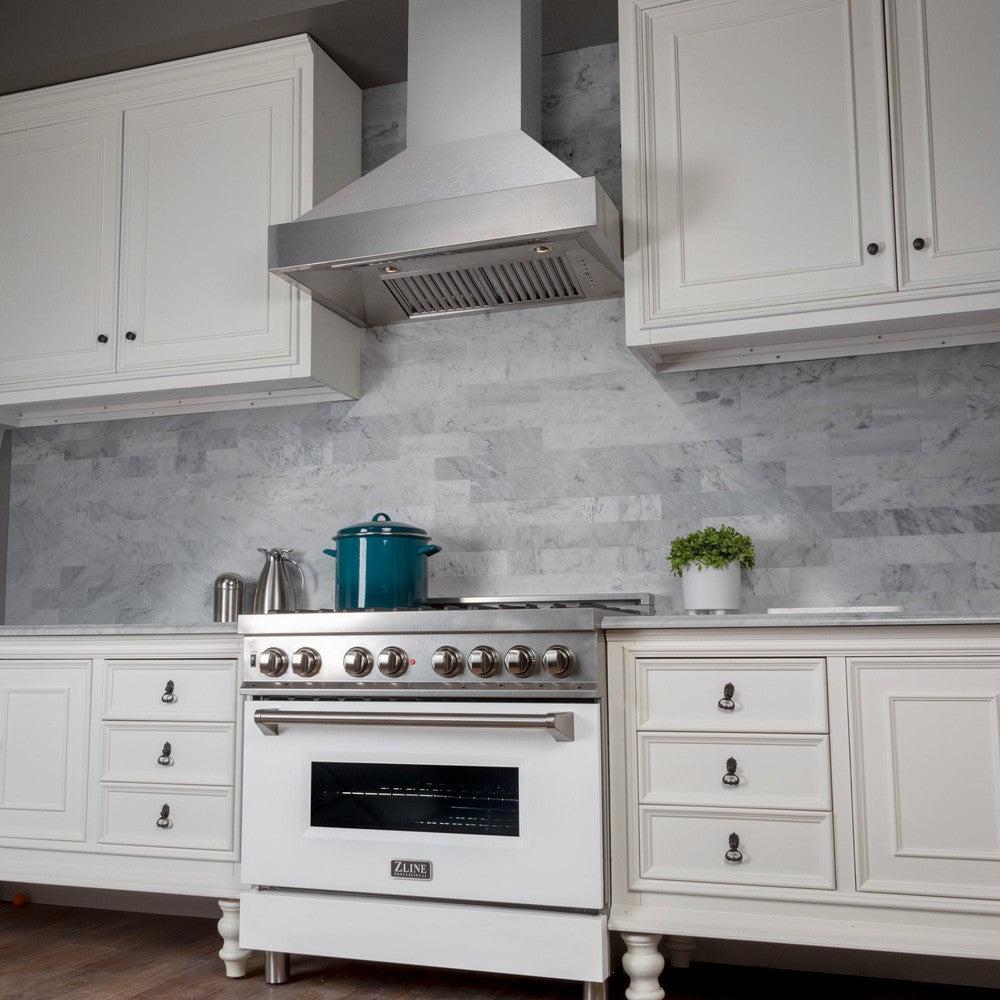

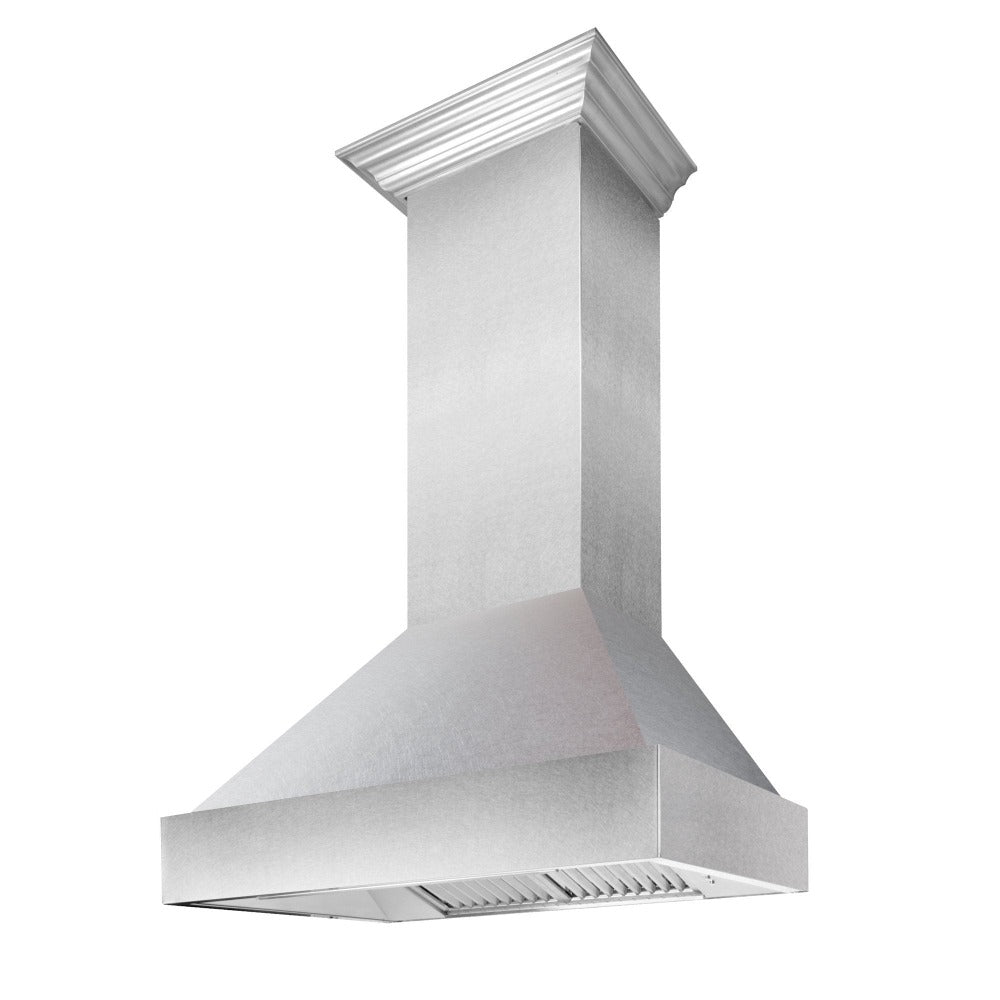

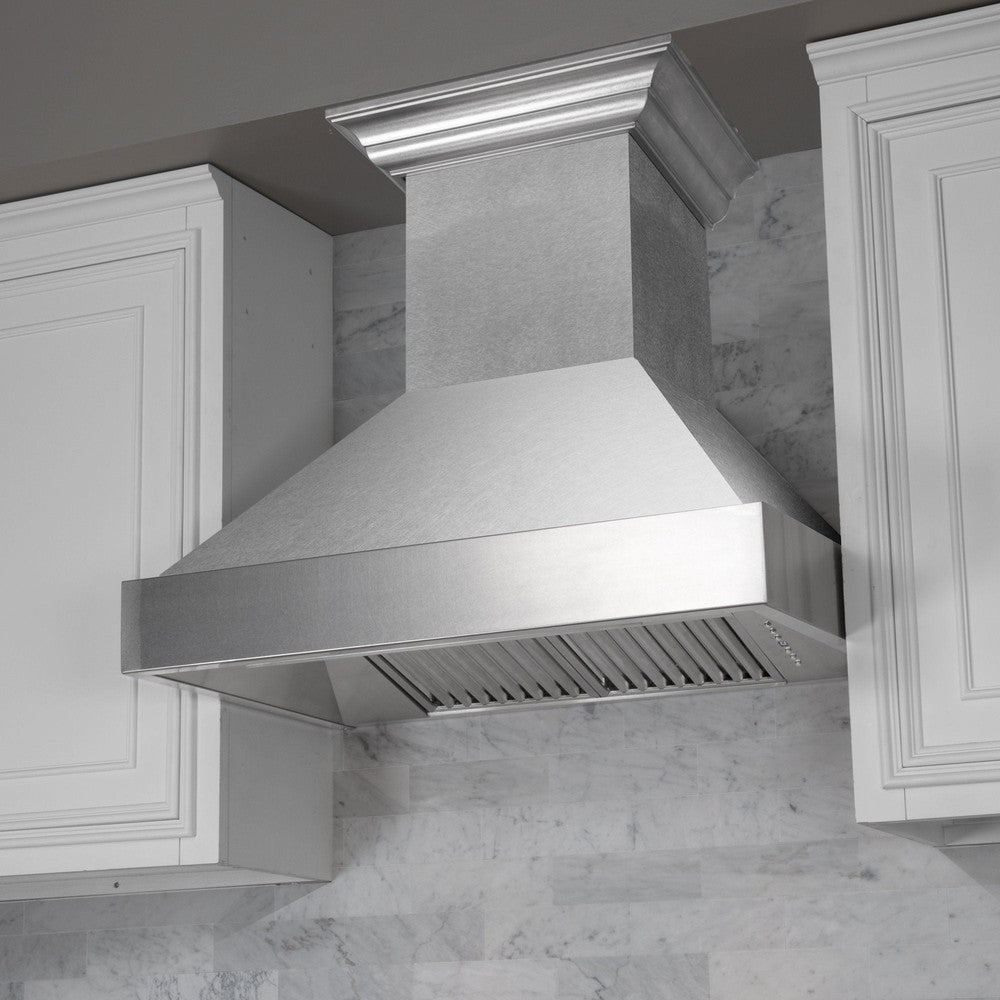

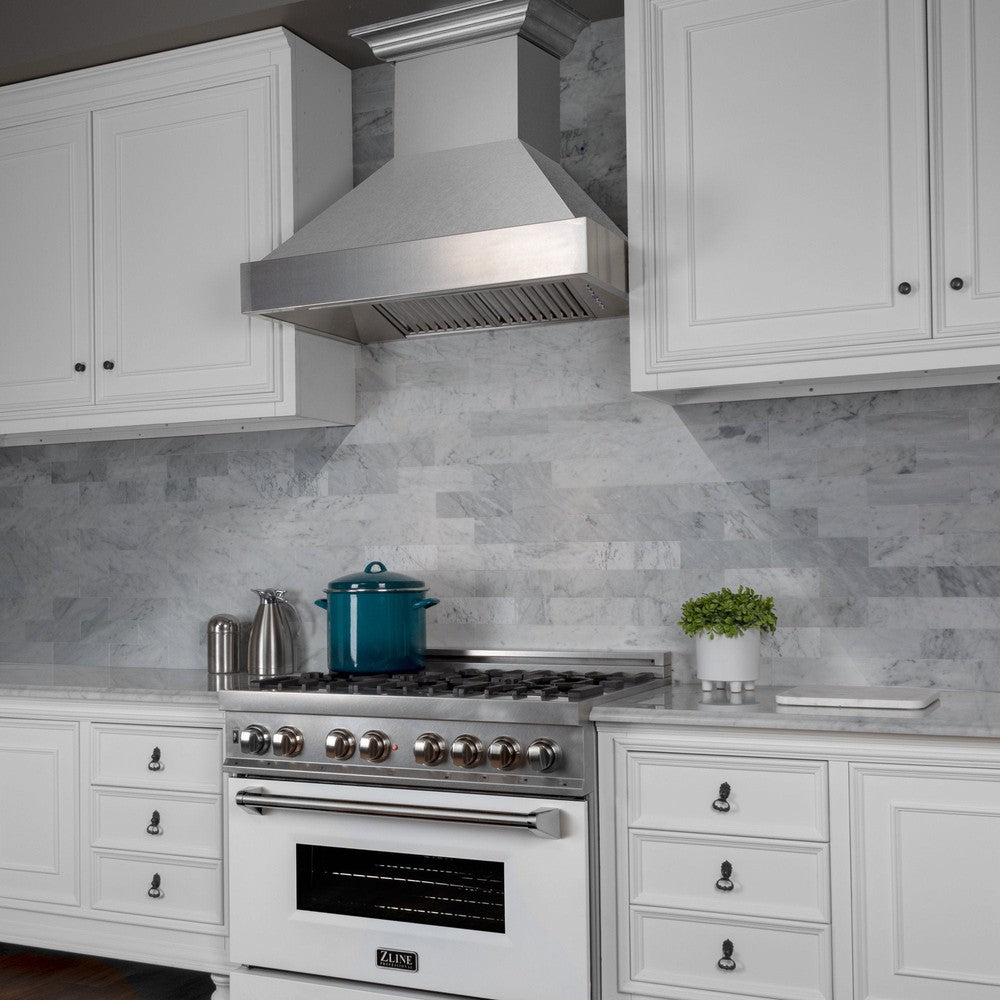

Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE 36 in. Satin Stainless Steel Wall Mount Range Hood (8654SN-36) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.


Product Features

  • Convenient Control Panel
    Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • 4-Speed Fan Control
    Choose the appropriate air flow among 280/420/580/700 CFM for your cooking situation
  • Powerful Ventilation
    The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
  • Satin Stainless Steel Finish

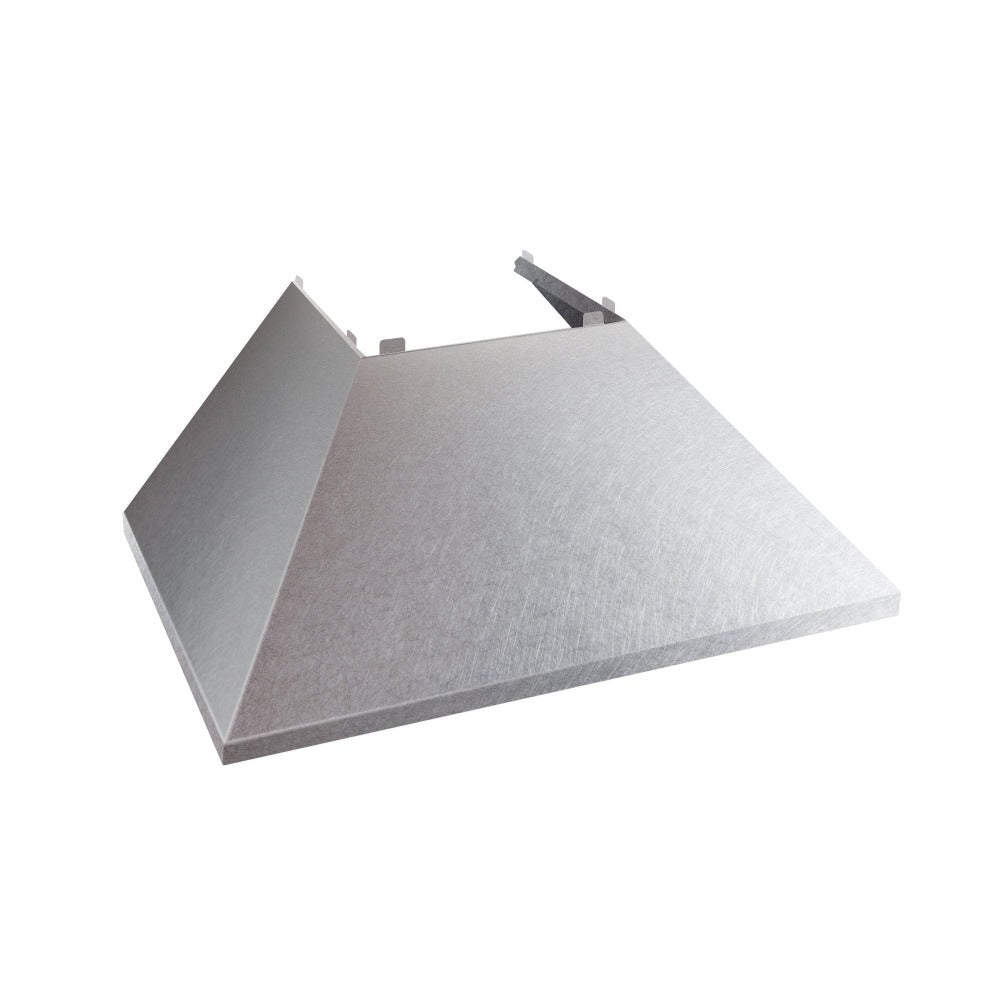

    ZLINE's Satin Stainless Steel finish is a circular, non-directional, professionally styled stainless steel that is rust, scratch, and fingerprint-resistant
  • A Revolutionary Design
    Created to combat the ongoing problem of stainless steel smudging, Satin Stainless Steel has a deeper, metallic gray hue that elevates your kitchen’s potential
  • Minimal Cleaning

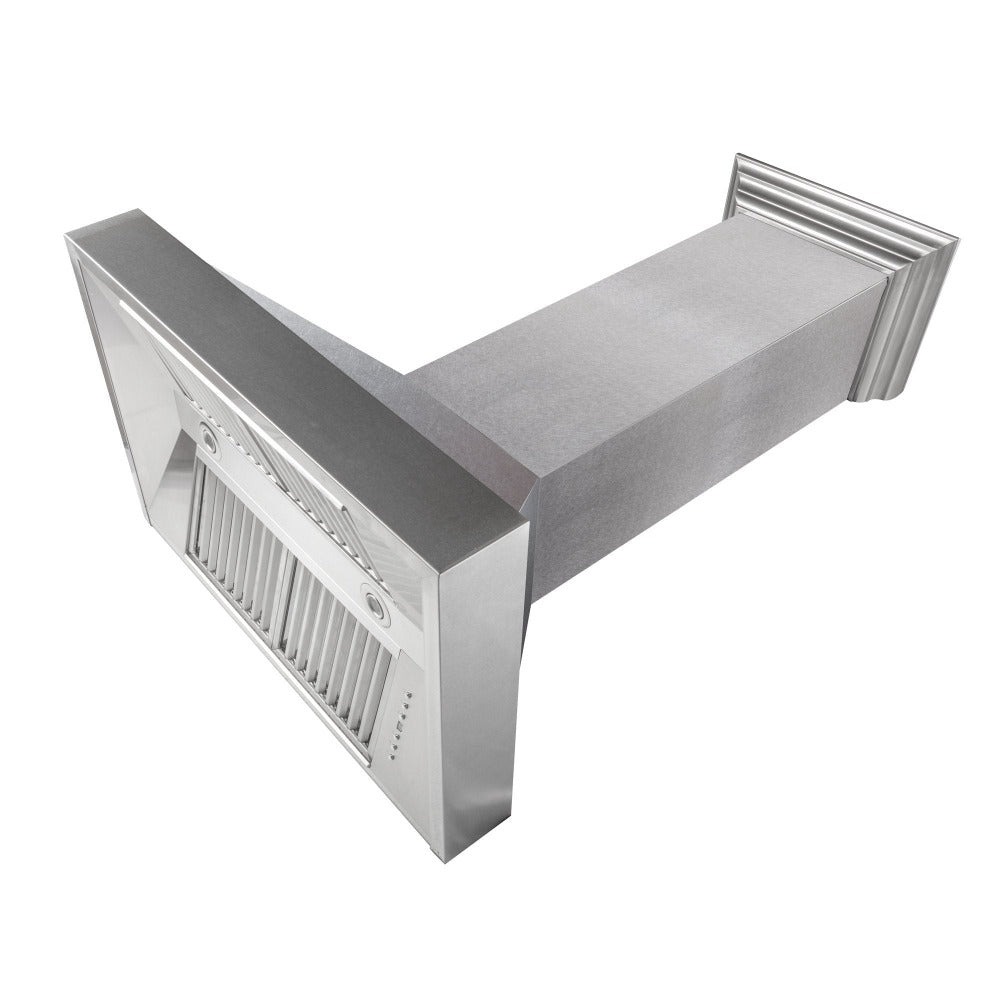

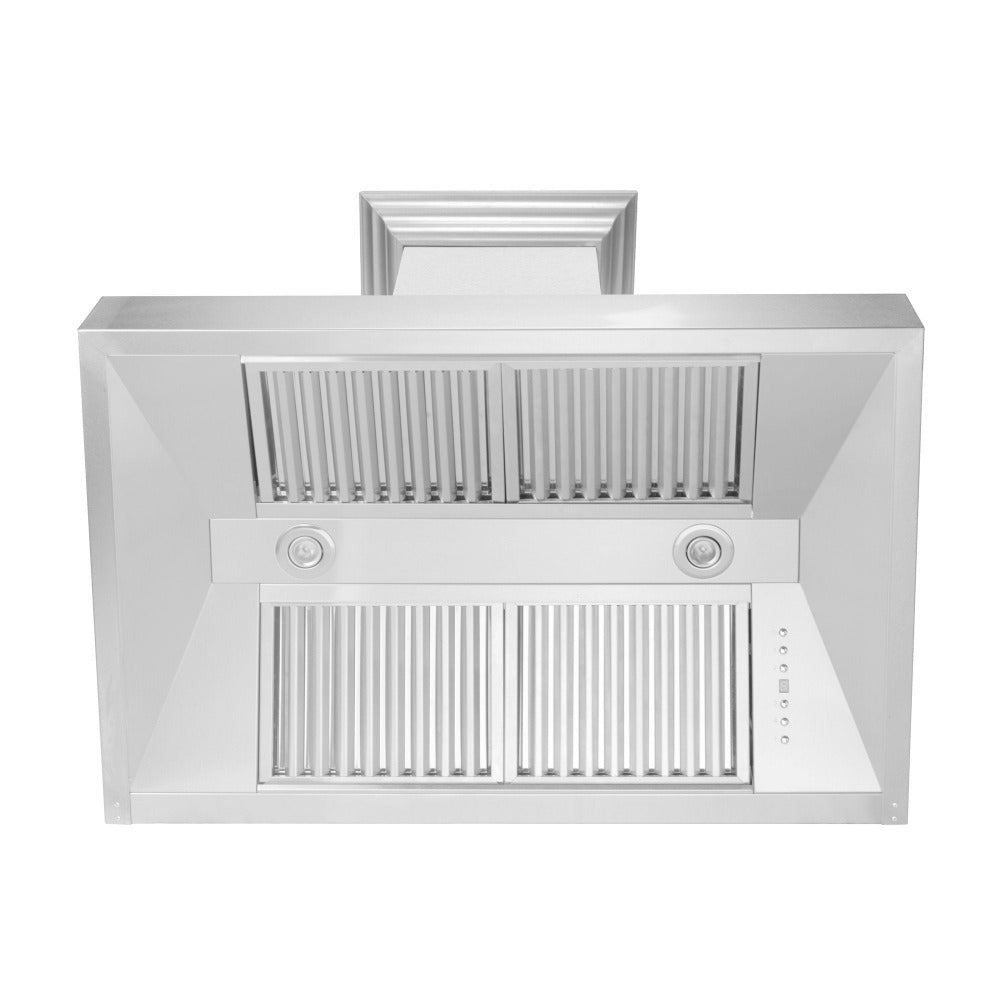

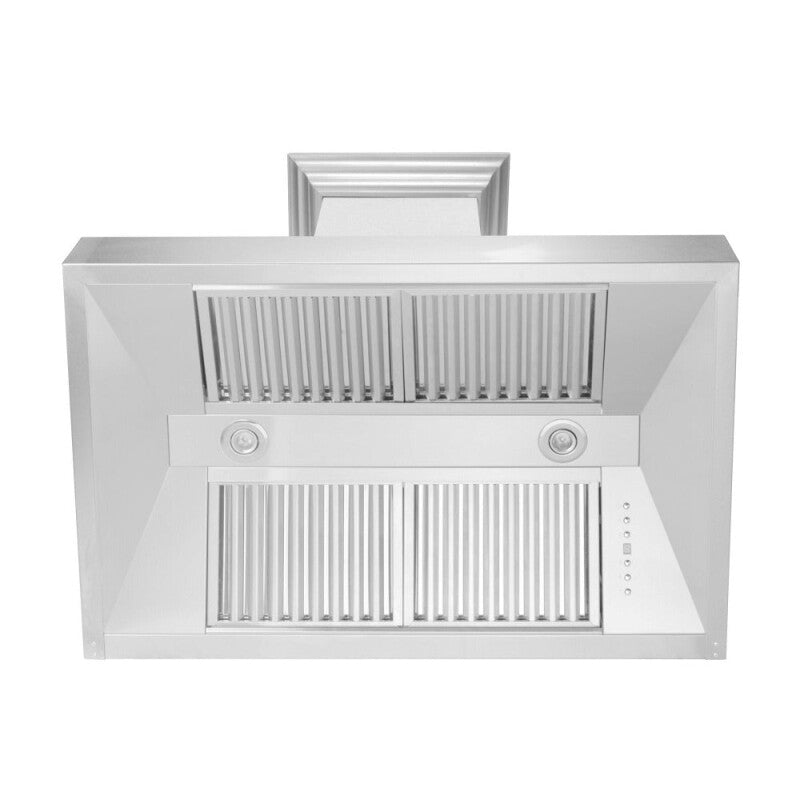

    This range hood includes dishwasher-safe stainless steel baffle filters that are simple to clean
  • LED Lighting

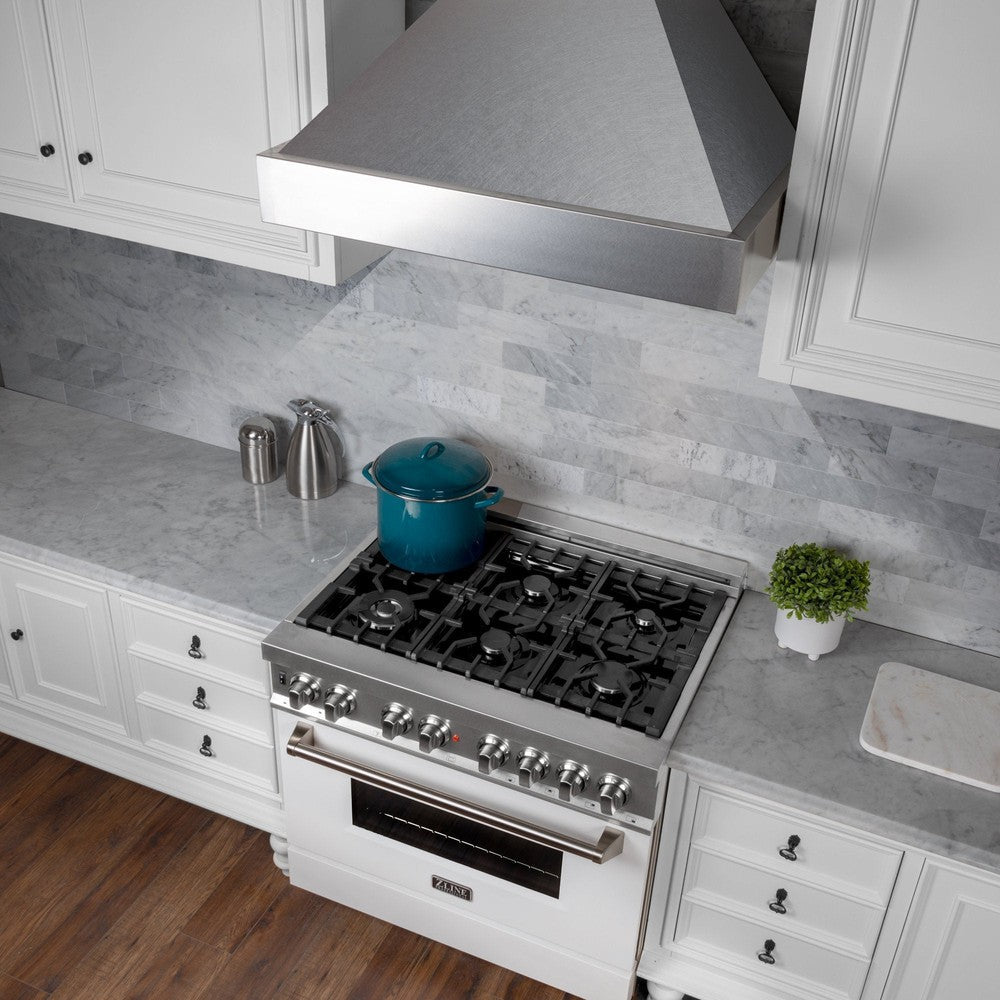

    This ZLINE range hood comes equipped with 2 energy-efficient LED lights to illuminate the cooking surface below
  • Easy Installation
    ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
  • Warranty
    ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
  • Additional Assembly Required
    This product ships in multiple boxes and will require minimal assembly upon arrival

Key Features

Lifetime Motor Warranty

Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty

Dishwasher Safe Baffle Filters

Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe

Built-in Led Lighting

Easily illuminate your cooking space with bright built-in LED lights
