Sale price $5,700.00 Regular price $6,753.97 Save $1,053.97 / 15% OFF

Product Details for MONOGRAM ZGP304NTSS

Technical Details

Weights & dimensions

Overall Width 29.875 in
Overall Depth 28.5 in
Overall Height 35.25 in
Interior Dimensions - Main Oven (WxHxD) (in.) 26-1/4 x 17-9/10 x 21-3/4
Height w/Legs Extended - Maximum Height 36.75 in
Cabinet Width 30 in
Height to Cooking Surface (in.) 35.25 - 36.75
Height w/ Legs Retracted - Minimum Height 35.25 in
Approximate Shipping Weight 391
Net Weight 351

Features

140 Deg. Simmer Burner All Burners - Adjustable
Cooking System Reverse Air Convection
Ignition System Electronic w/Auto Reignition
Broiler Pan and Grid Yes
Interior Oven Light 6 Halogen Lamps (Caterer Oven)
Convection Roasting Rack Yes
Oven Cleaning Type Steam Clean
Product Type Professional Range
Cooktop Type 4 Burners
Collection Statement
Lighting Customizable LED Bullnose and Knob Accent Lighting
Cooktop Surface Porcelain-Enamel
WiFi Connect Built-In
Extra Low Simmer All Burners - Adjustable
Oven Rack Positions (Single or Upper/Lower) 5
Control Type Digital Temperature LCD Display with Timer Display
Fuel Type All-Gas (Natural Gas)
Connected Capabilities Bluetooth,Amazon Alexa,Fresco,IFTTT,Innit,The Google Assistant,Sonos,Google Home
Cooking Technology Convection,All-Gas (Natural gas)
Cooktop Burner Grate Features Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Type 3 Sealed, Dual Flame Stacked,1 Sealed, Dual Ring Brass Accents (Removable)
Indicator Lights Burner On
Oven Control Features Delay Clean Option,Proof Mode,WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Steam Clean,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C° or F° Programmable,Auto Recipe Conver
Oven Cooking Modes Convection Bake Multi-Rack,Convection Roast,Warming,Proof,Precision Cooking Modes
Oven Rack Features 3 Oven Racks,2 Full Extension Racks
Short Description 30 Pro Range - All Gas with 4 Burners

Appearance

Oven Door Features Soft Close Door
Installation Semi-Flush Installation Capable
Design Style Statement Collection
Color Appearance Stainless Steel
Control Knobs Diecast Metallic (Included),Stainless Steel with Brass Accents

Accessories

Multi Ring Burner Caps (Brass) Included
LP Conversion Kit Included
Multi Ring Burner Caps (Black) Included
Optional Grill Accessory (Cast Iron) UXPRRGG
30/36 Monogram Knob Kit ZXPR36KKTSS (SS, qty. 9)

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 21.0; (3) 15.0
Electrical Requirements 120VAC;15A
Broiler Wattage 1050W
Top Burner BTU Rating - LP (000's BTU's) (1) 21.0; (1) 15.0; (2) 12.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 23.0 Bake / 18.0 Broil
Bake/Broiler BTU Rating - LP (000's BTU's) 21.5 Bake / 18.0 Broil
Hertz 60

Warranty

Labor Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks

Other

Interior Dimensions - Main Oven (WxHxD) (in.) 26-1/4 x 17-9/10 x 21-3/4

Dimensions & weight

Width 29.88 in.
Height 35.25 in.
Length 28.5 in.
Weight 351 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 40.25 in.
Shipping Length 33.5 in.
Shipping Weight 391 lbs.
Total of Shipping Weight 391 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 17.37 ft³
Dimensional Weight 215.92 lbs.
Total of Cubes 17.37 ft³
Total of Dimensional Weight 215.92 lbs.

Capacity

Total Capacity (cubic feet) 5.70 cu ft

Description

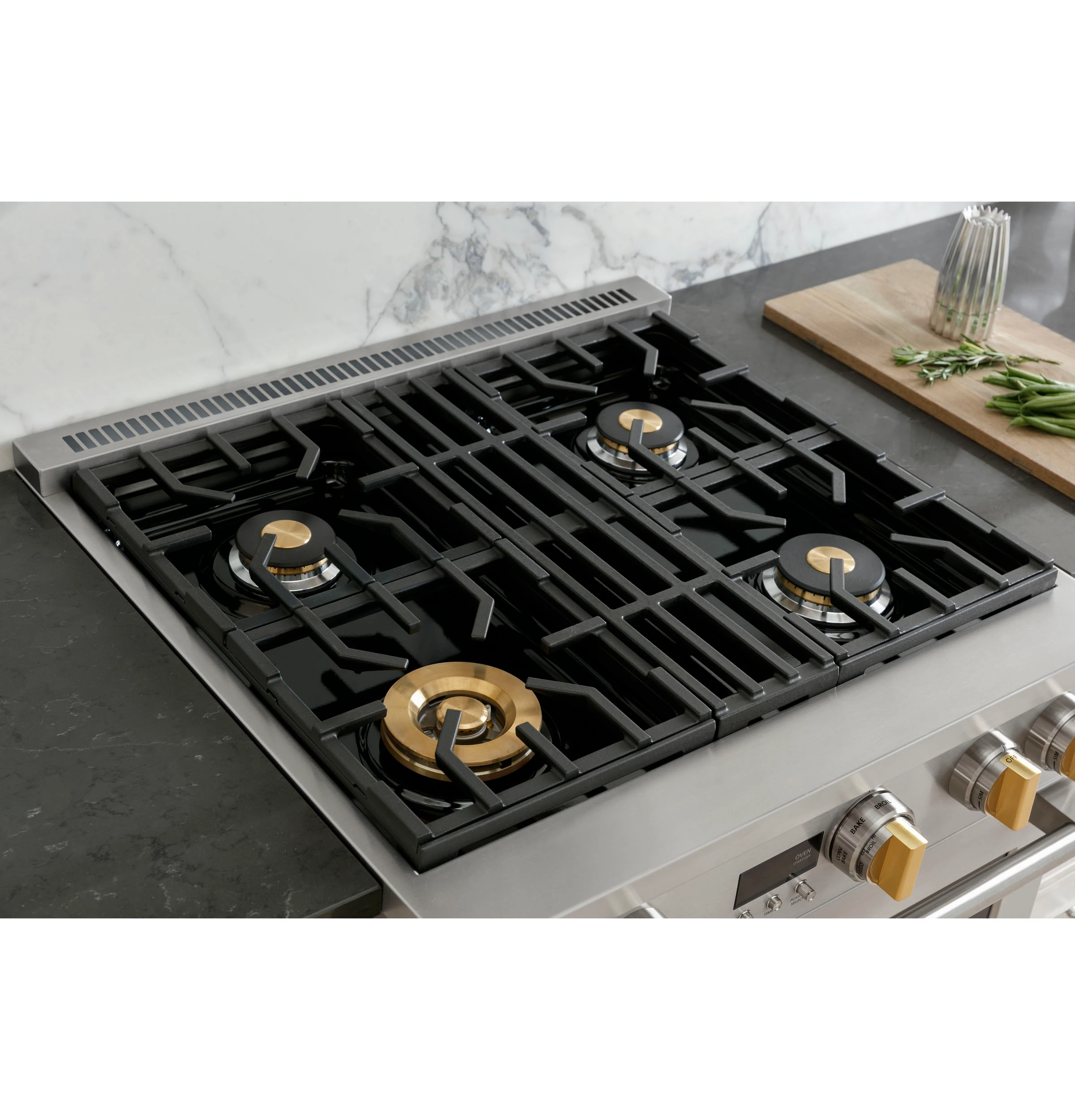

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

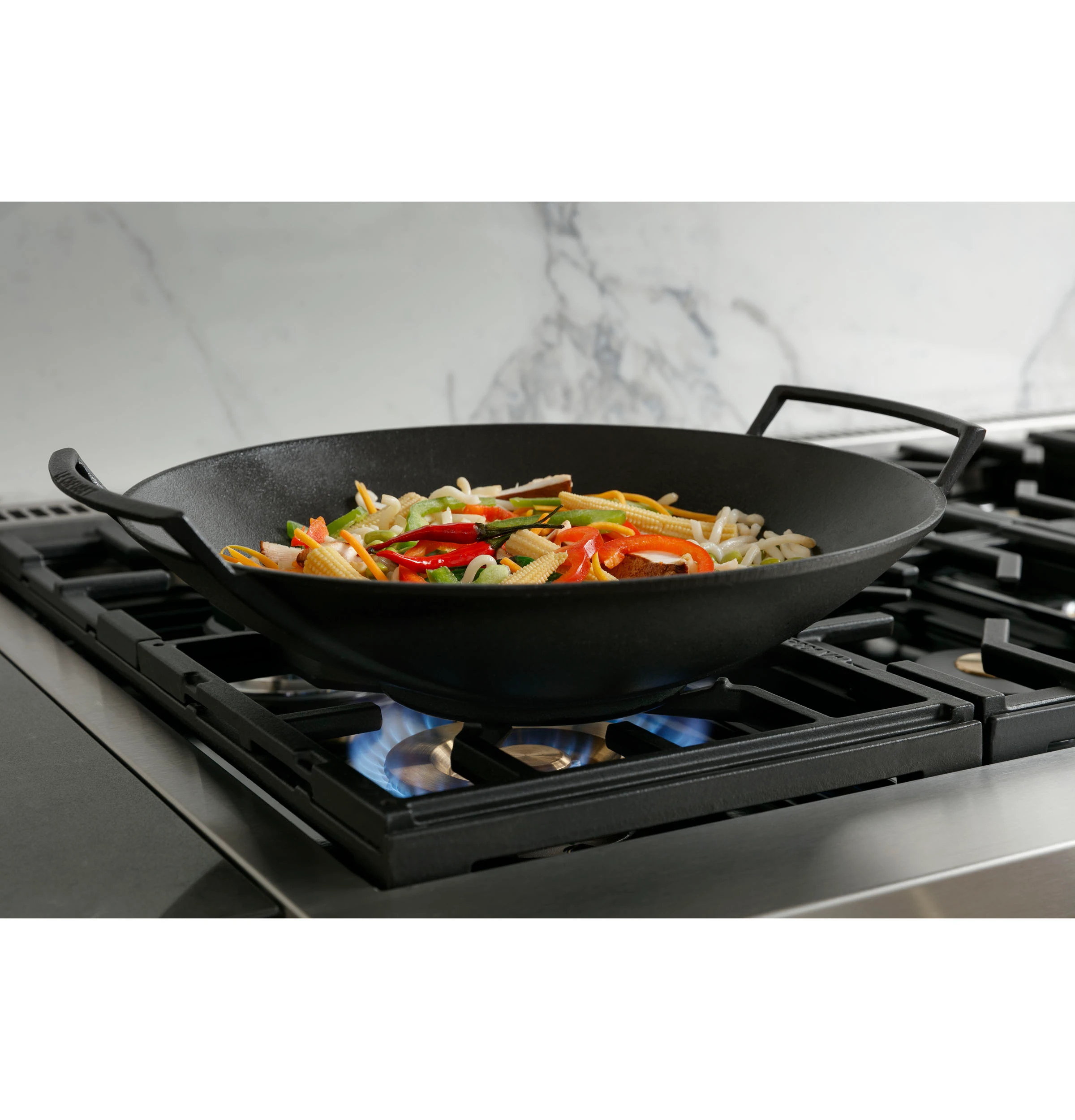

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

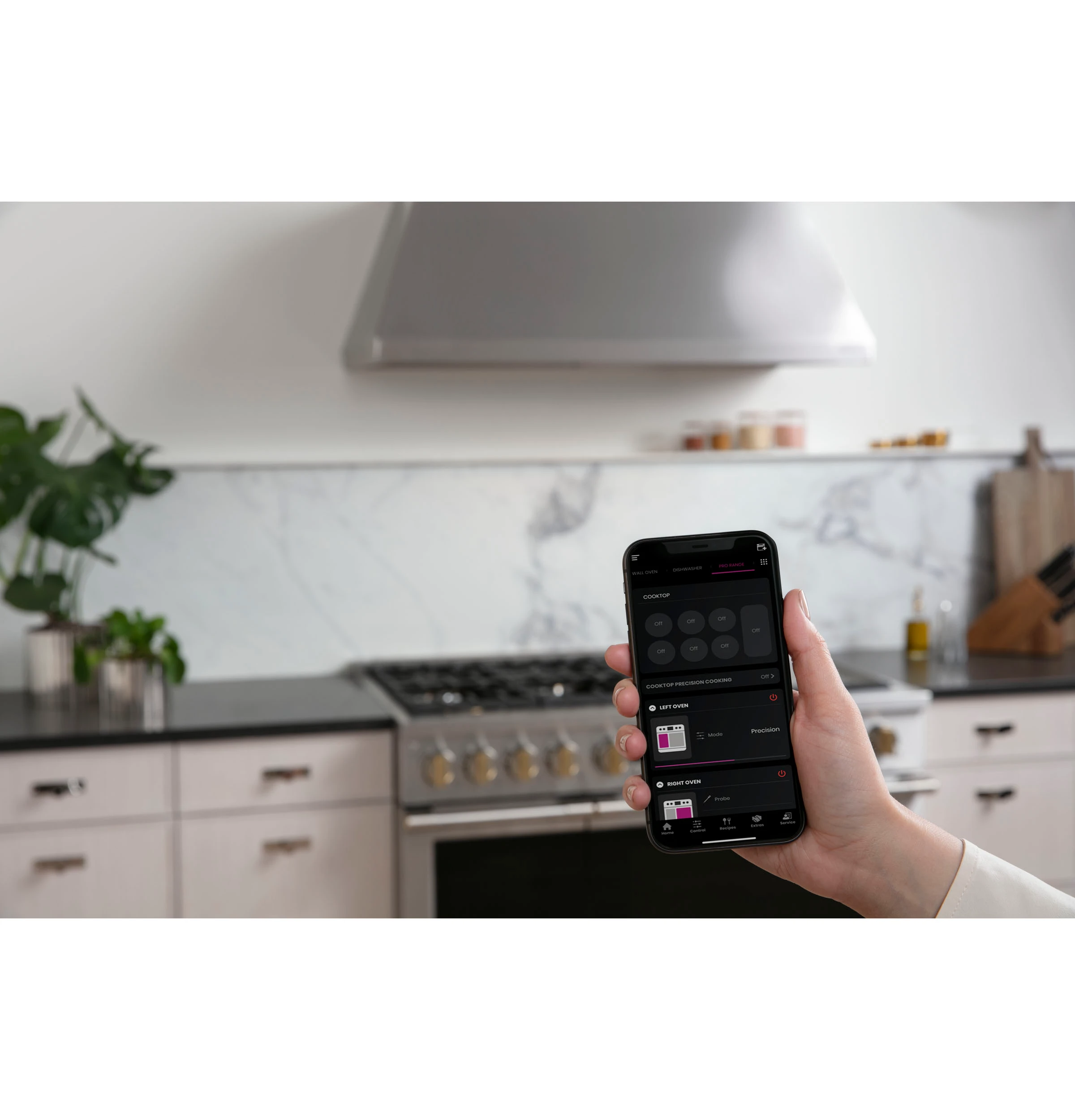

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

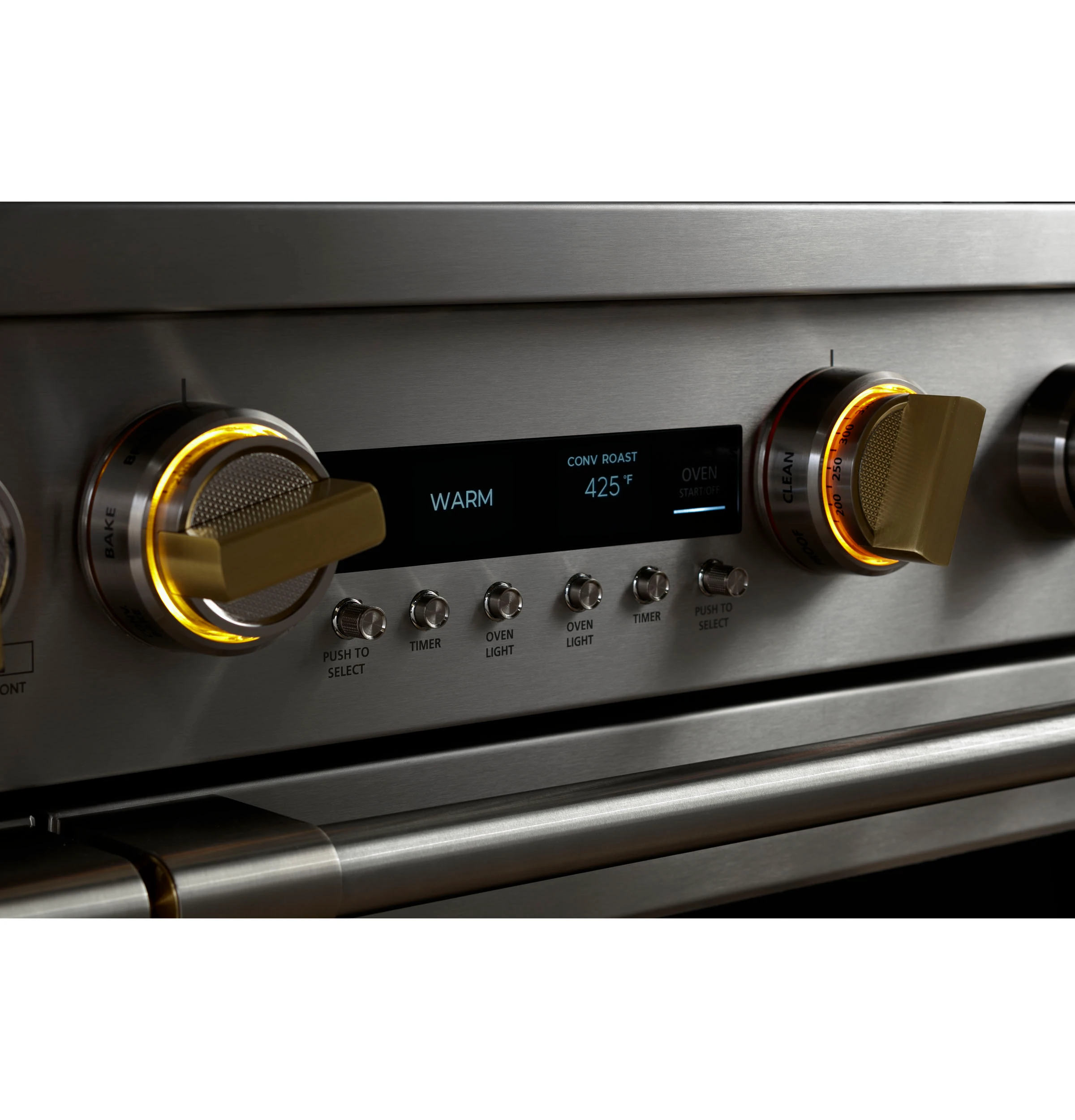

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

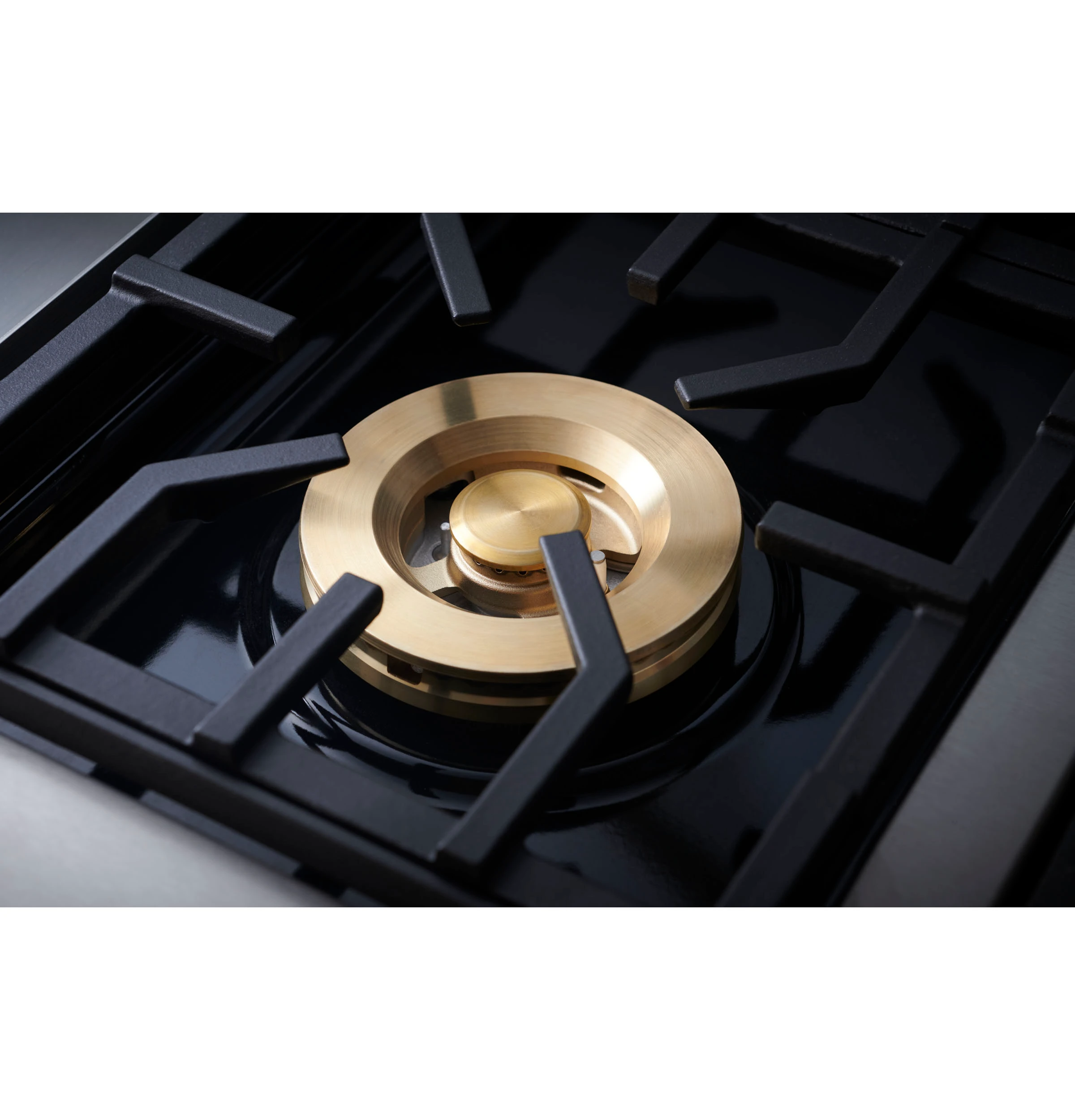

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

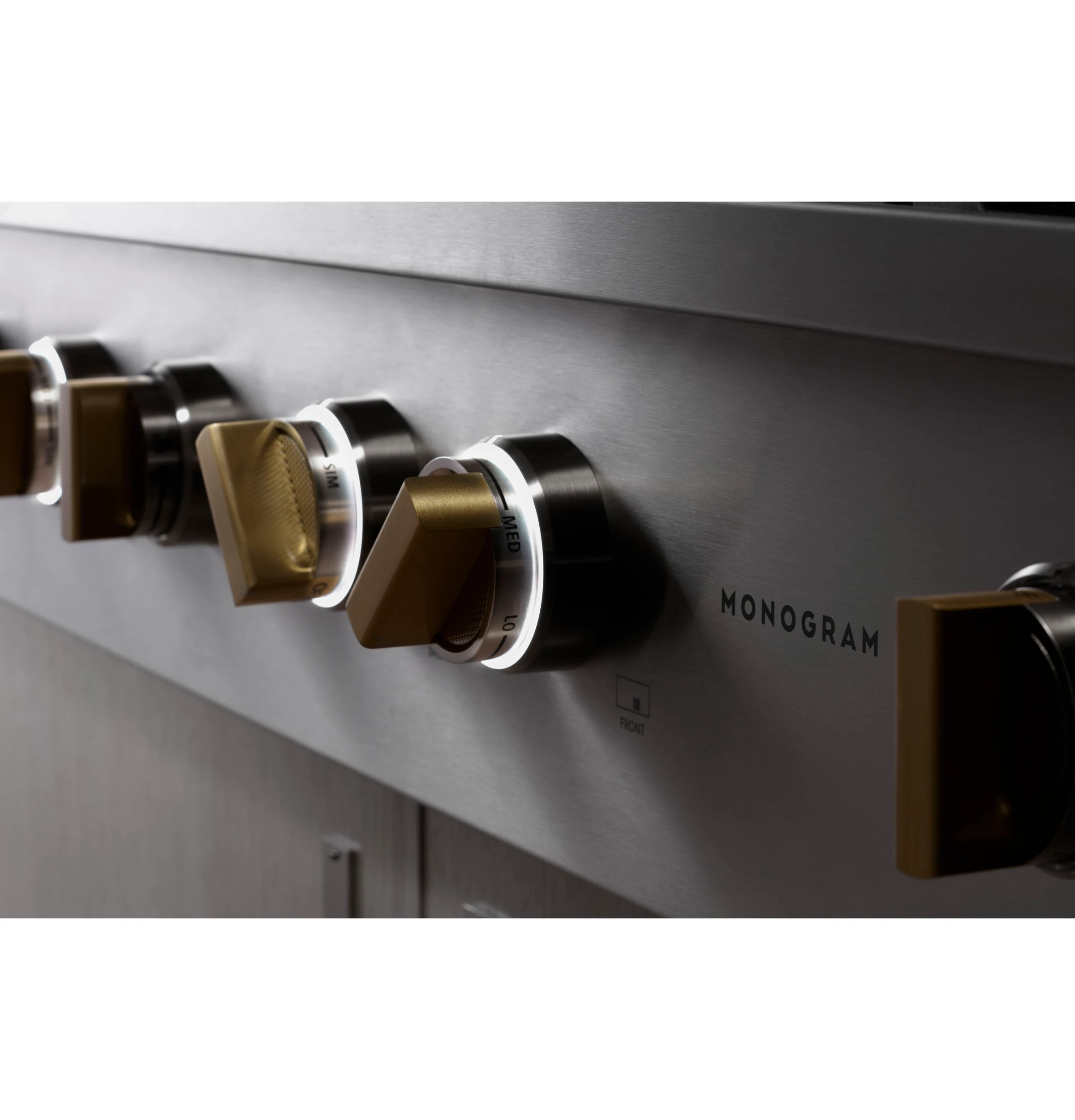

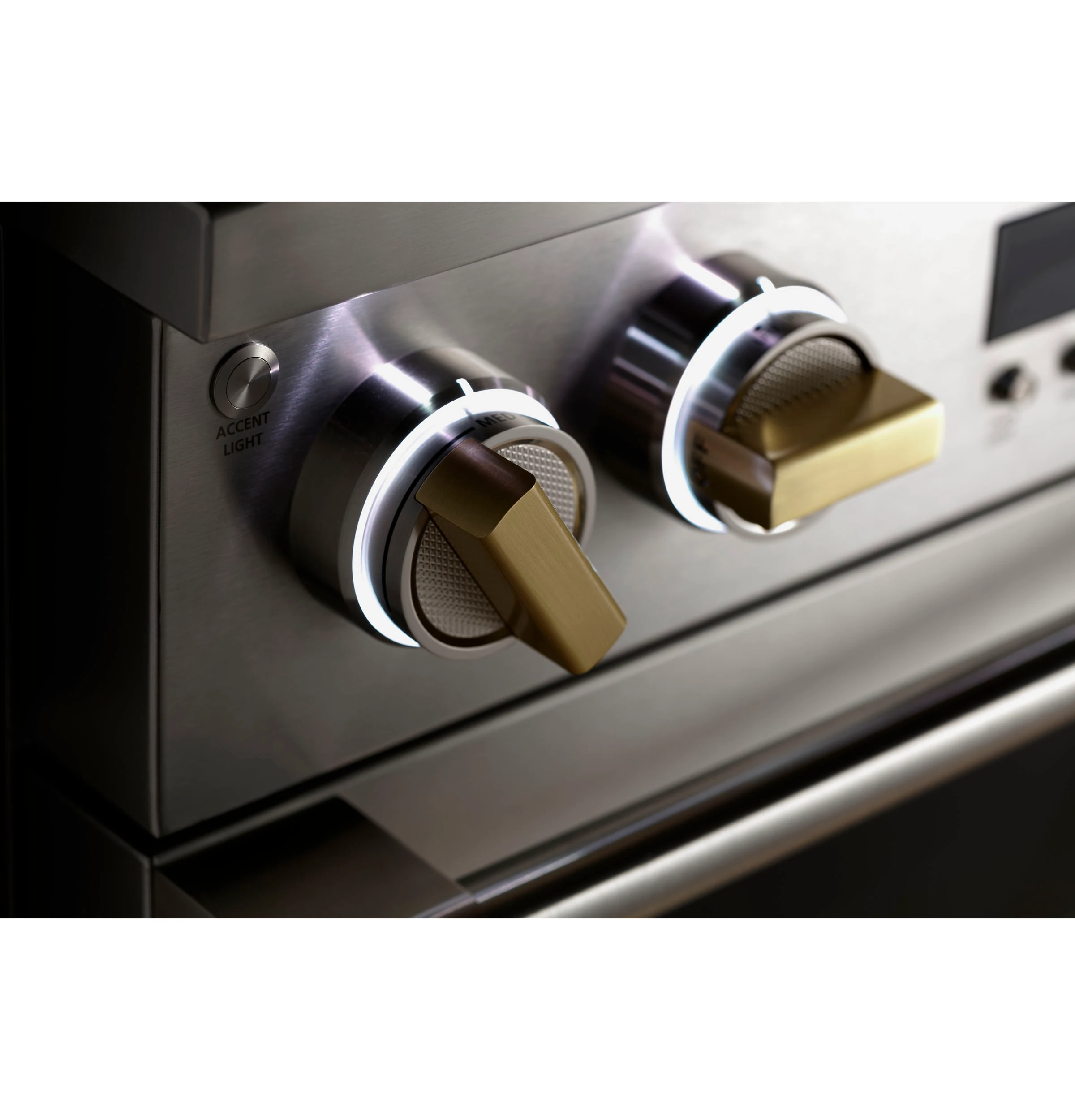

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

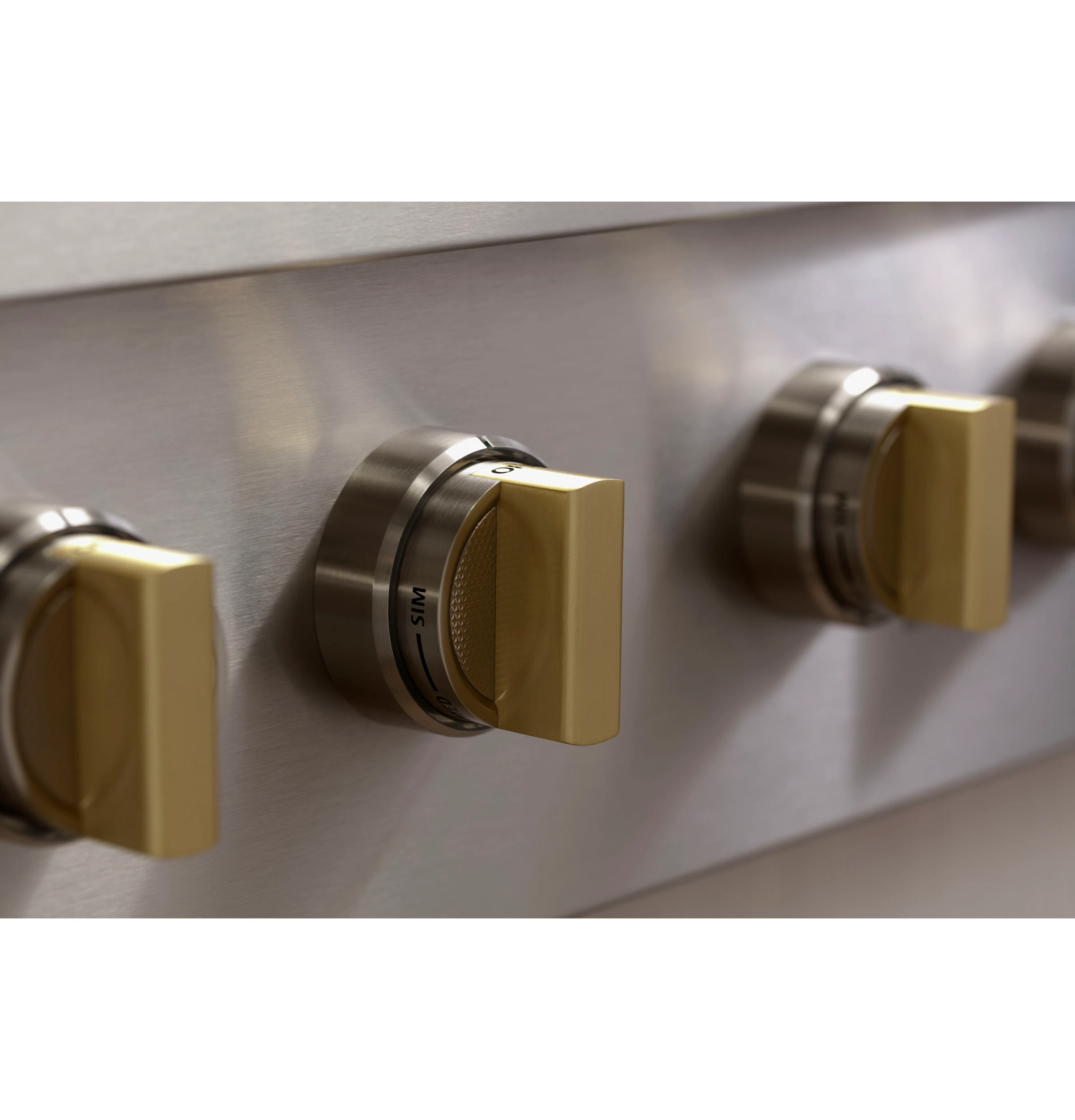

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

2 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access

Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

Precise Air Convection System
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow-forwards or backwards- depending on the oven mode being used



Product Features

  • Soft-Close Hinges
    Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
  • Seamless Stainless Top Frame
    Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
  • 2 Oven Racks (Full-Extension), 1 Low Profile
    Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
  • Precision Oven Modes with SmartHQ app
    Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
  • Precise Air Convection System
    Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow—forwards or backwards— depending on the oven mode being used
  • Precision Oven Modes with SmartHQ™ app
    Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

Key Features

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

WiFi Monitoring and Remote Control with the SmartHQ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive—Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
