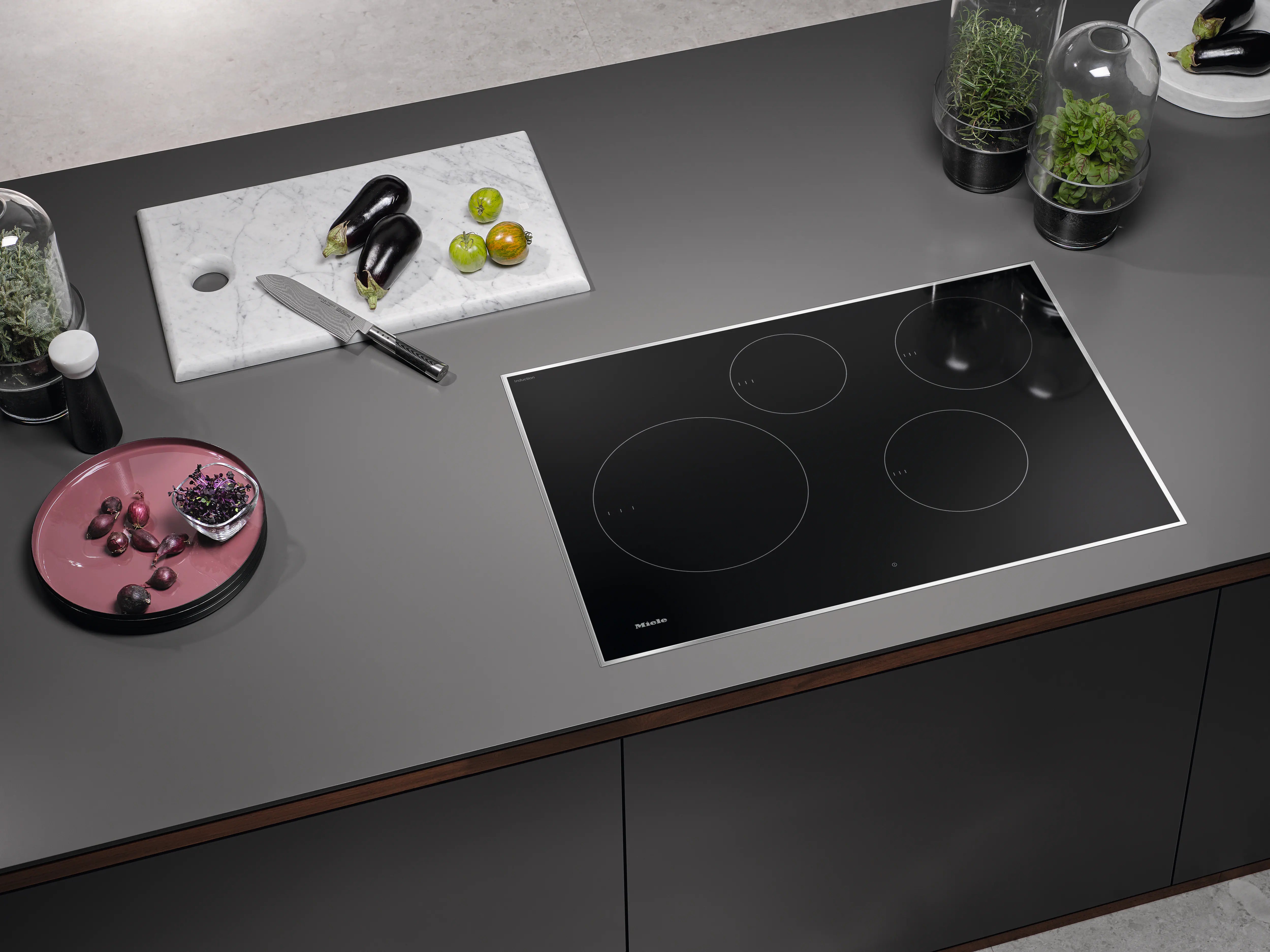

Miele KM7730FR 30-inch induction cooktop, operated with its own controls Clean Touch Steel

Quick Specification More details

Width:
1.21"
Depth:
0.85"
Height:
0.12"
Type:
Induction Cooktops

About this product

SmartSelect
Safety functions
TwinBooster
Convenient additional functions

SKU: KM7730FR | UPC: 4002516611493

Miele KM7730FR 30-inch induction cooktop, operated with its own controls Clean Touch Steel

$2,799.00 ~~$4,184.97~~ Save $1,385.97 / 33% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
1.21"
Depth:
0.85"
Height:
0.12"
Type:
Induction Cooktops

About this product

SmartSelect
Safety functions
TwinBooster
Convenient additional functions

Product Details for MIELE KM7730FR

Technical Details

Design

Ceramic surface color	Black
Independent of oven	TRUE
Elegant glass ceramic surface	TRUE
All-round stainless-steel frame	TRUE
Proud installation	TRUE

Heating type

Fuel type

Induction

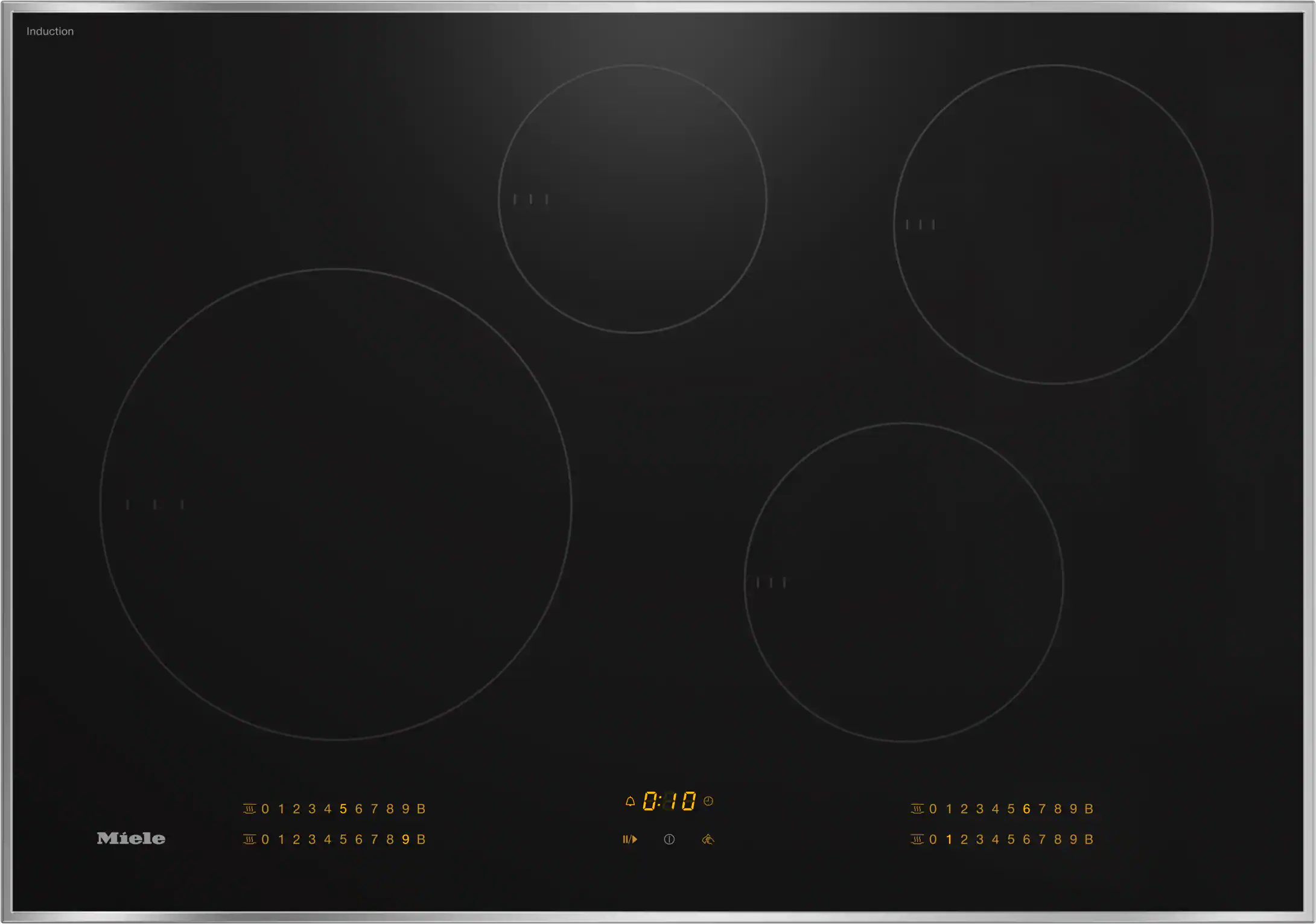

Cooking zone details

No. of rings	4
Number of cooking areas	0
Maximum number of pans	4

1st cooking zone/cooking area

Position	front left
Type	Variable cooking zone
Size in mm	Ø 180-280
Max. rating in W	2600
Max. booster rating in W	3000
Max. TwinBooster rating in W	3700

2nd cooking zone/cooking area

Position	rear left
Type	Variable cooking zone
Size in mm	Ø 100-160
Max. booster rating in W	1700
Max. TwinBooster rating in W	2200
Max. rating in W	1400

3rd cooking zone/cooking area

Position	rear right
Type	Variable cooking zone
Size in mm	Ø 140-190
Max. rating in W	1850
Max. booster rating in W	2500
Max. TwinBooster rating in W	3000

4th cooking zone/cooking area

Position	front right
Type	Variable cooking zone
Size in mm	Ø 140-190
Max. rating in W	1850
Max. booster rating in W	2500
Max. TwinBooster rating in W	3000

User convenience

Display color	Yellow
Automatic function	Con@ctivity 3.0
Networking with Miele@home	TRUE
Operation via touchpad sensors	SmartSelect
Pan/Pan-size sensors	TRUE
Permanent pan recognition	TRUE
Stop & Go function	TRUE
Wipe protection	TRUE
Recall function	TRUE
Minute minder	TRUE
AutoBoost	TRUE
Keep-warm function	TRUE
Individual setting options (e.g. acoustic signal tones)	TRUE

Technical data

Width in in. (mm)	30 5/8 (775)
Height in in. (mm)	3 1/8 (78)
Built-in height with mains connection box in in. (mm)	2 7/8 (71)
Depth in in. (mm)	21 1/2 (544)
Weight in lbs. (kg)	37 (17)
Power cord length in ft. (m)	3 (1.2)
Dimensions (H x W x D) in mm	3 1/8 (78) x 30 5/8 (775) x 21 1/2 (544)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	28 5/8 in (724 mm) x 20 1/2 in (518 mm)
Cutout dimensions width in in. (mm) with proud-mounted installation	28 5/8 in (724 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation	20 1/2 in (518 mm)
Total connected load in kW	6.600-7.600
Voltage in V	208-240
Frequency in Hz	50-60

Other

Total connected load in kW	6.60-7.60
Voltage in V	0
Frequency in Hz	60

Dimensions & weight

Width	1.21 in.
Height	0.12 in.
Length	0.85 in.
Weight	81.4 lbs.
Width	30.51 in.
Height	3.07 in.
Length	21.42 in.
Weight	81.36 lbs.
Gross Weight	44.23 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	6.21 in.
Shipping Height	5.12 in.
Shipping Length	5.85 in.
Shipping Weight	121.4 lbs.
Total of Shipping Weight	121.4 lbs.
Source	Calculation
Shipping Width	46.77 in.
Shipping Height	5.83 in.
Shipping Length	30.24 in.
Shipping Weight	121.36 lbs.
Source	Manufacturer
Total of Shipping Weight	121.36 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0 ft³
Dimensional Weight	0 lbs.
Total of Cubes	0 ft³
Total of Dimensional Weight	0 lbs.
Cubic Feet Measurement	4.77 ft³
Cubic Feet Measurement	1.16 ft³
Dimensional Weight	14.43 lbs.
Total of Cubes	1.16 ft³
Total of Dimensional Weight	14.43 lbs.

General information

Model number	KM 7730 FR
Manufacturer material number	12074200
EAN number	4002516611493
Marketing class	Silver

Cleaning convenience

Easy to clean ceramic glass

TRUE

Safety

Safety cut-out	TRUE
Lock function	TRUE
System lock	TRUE
Integrated cooling blower	TRUE
Overheating protection	TRUE
Residual heat indicator	TRUE

Standard accessories

Connection wire

TRUE

Description

The brand Miele KM7730FR delivers advanced functionality and elegant aesthetics with this 30-inch frameless electric cooktop. Designed with a modern ceramic glass surface, it features 5 HiLight radiant cooking zones, including a PowerFlex zone that accommodates larger cookware and allows flexible use. The intuitive DirectSelect Plus touch controls provide precise, direct access to power levels and settings for each zone. Residual heat indicators enhance safety, while Stop & Go functionality allows temporary pausing of cooking zones. Additional features include a Timer with auto shut-off, pan size recognition, and EasyClean ceramic glass for quick cleanup. The KM7730FR offers a stylish, flush design ideal for contemporary kitchens prioritizing precision and minimalist design.

Key Features

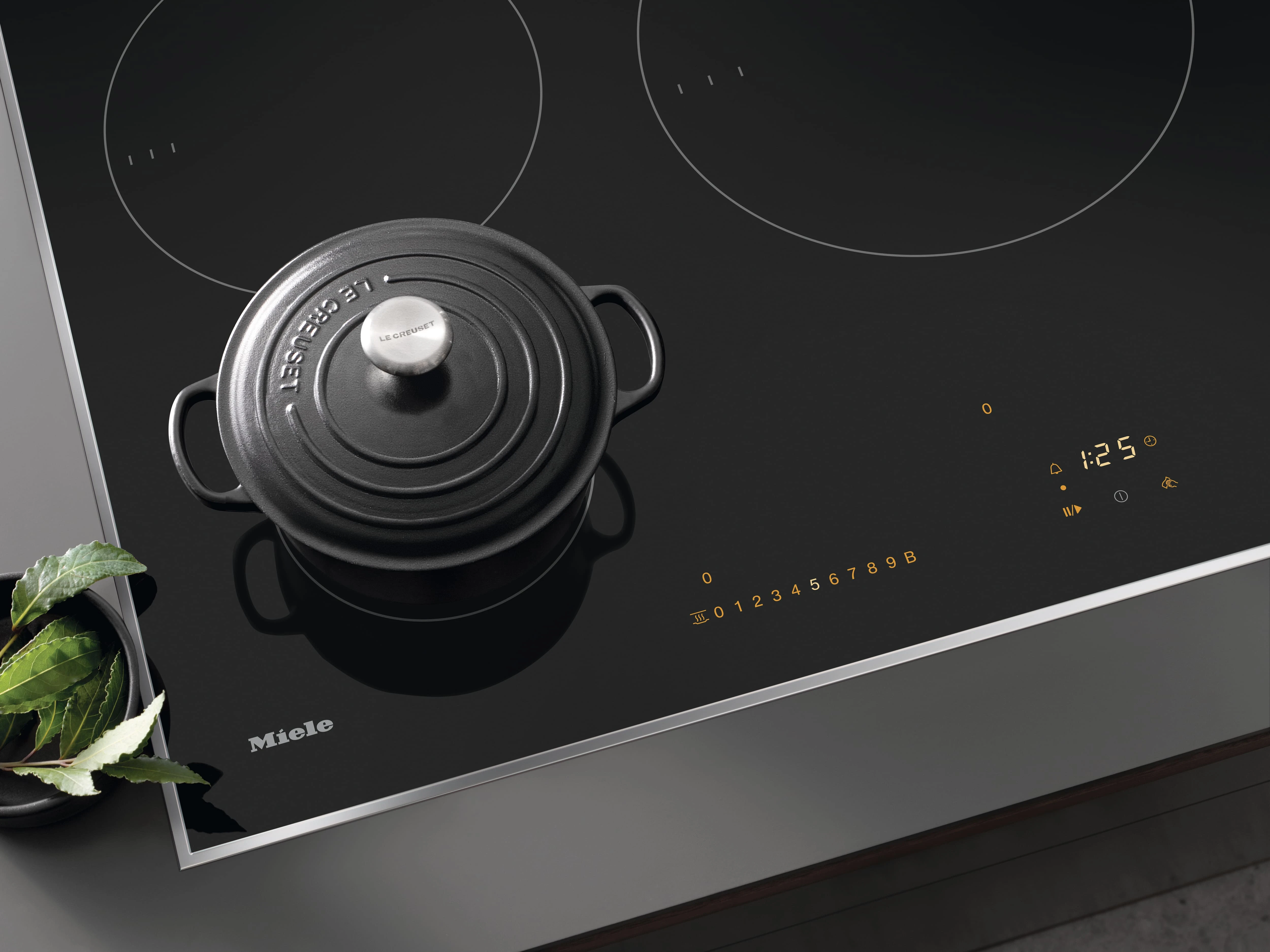

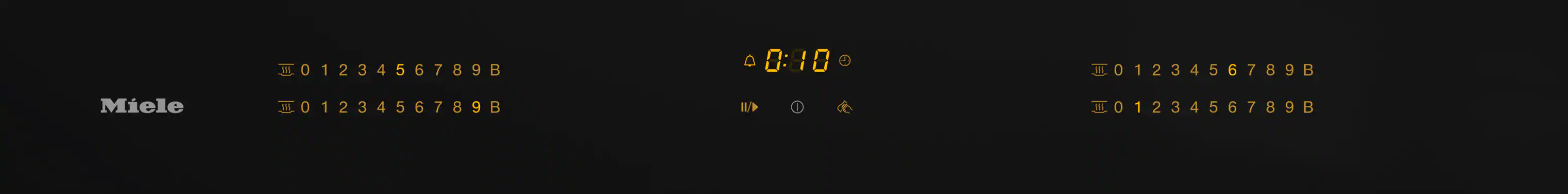

SmartSelect

Select power levels and cooking durations for each zone flexibly with SmartSelect. Each zone has its own easy-to-read numerical display with yellow backlighting. SmartSelect also makes it easier to set the timer. On the far left, you can set a separate short-term kitchen timer independently of cooking. In addition, you can set a switch-off timer for each zone, which automatically switches off the cooking zone when the time has elapsed.

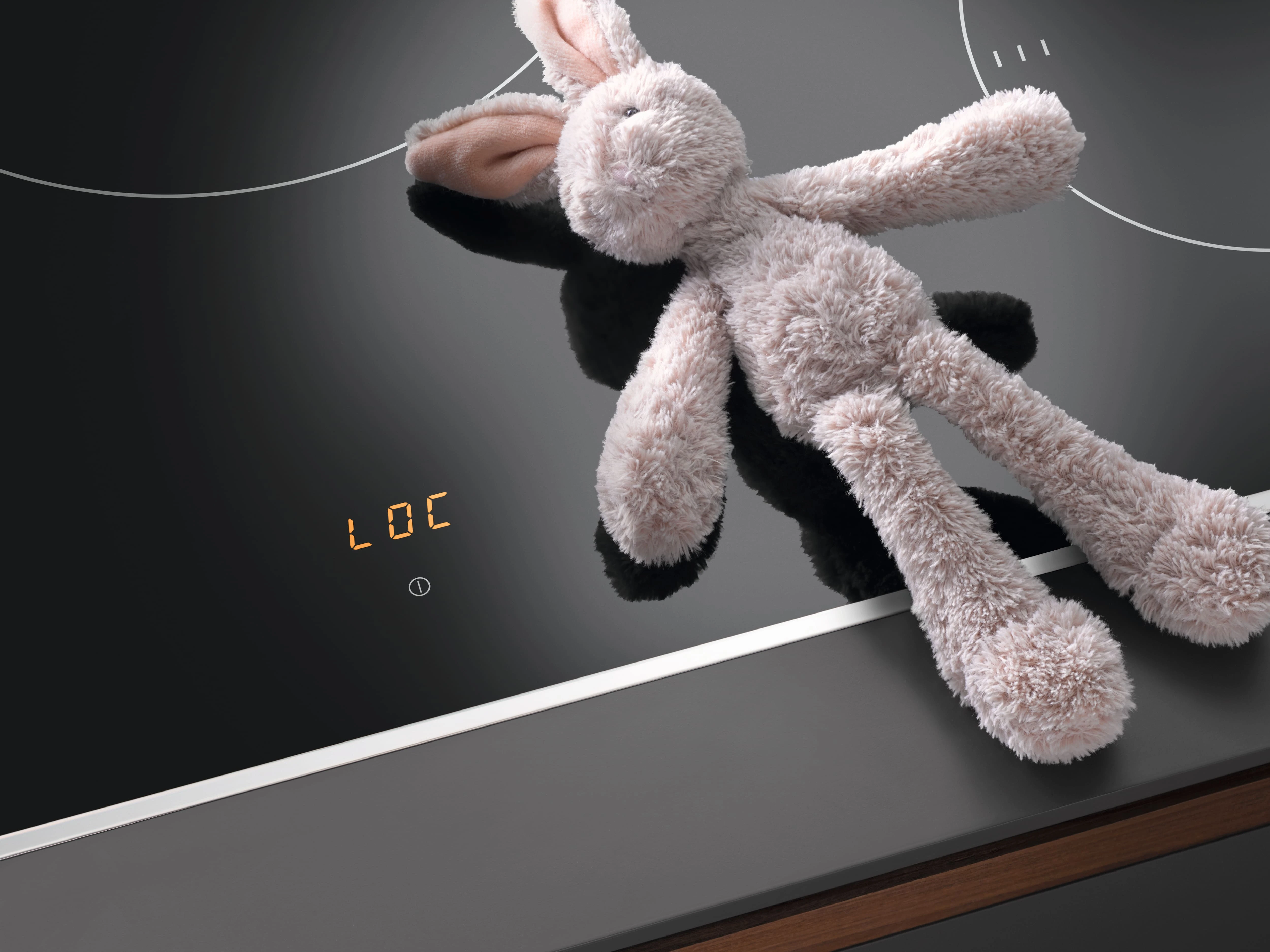

Safety functions

Optimum protection in every situation: The system lock reliably protects you from unauthorized or accidental switching on. If a cooking zone is operated for an unusually long time at the same power level or if there is no pot on a cooktop that is switched on, it switches off automatically. Another helpful tool worth noting is the residual heat indicator: It reminds you not to touch the cooking zones when they are still hot.

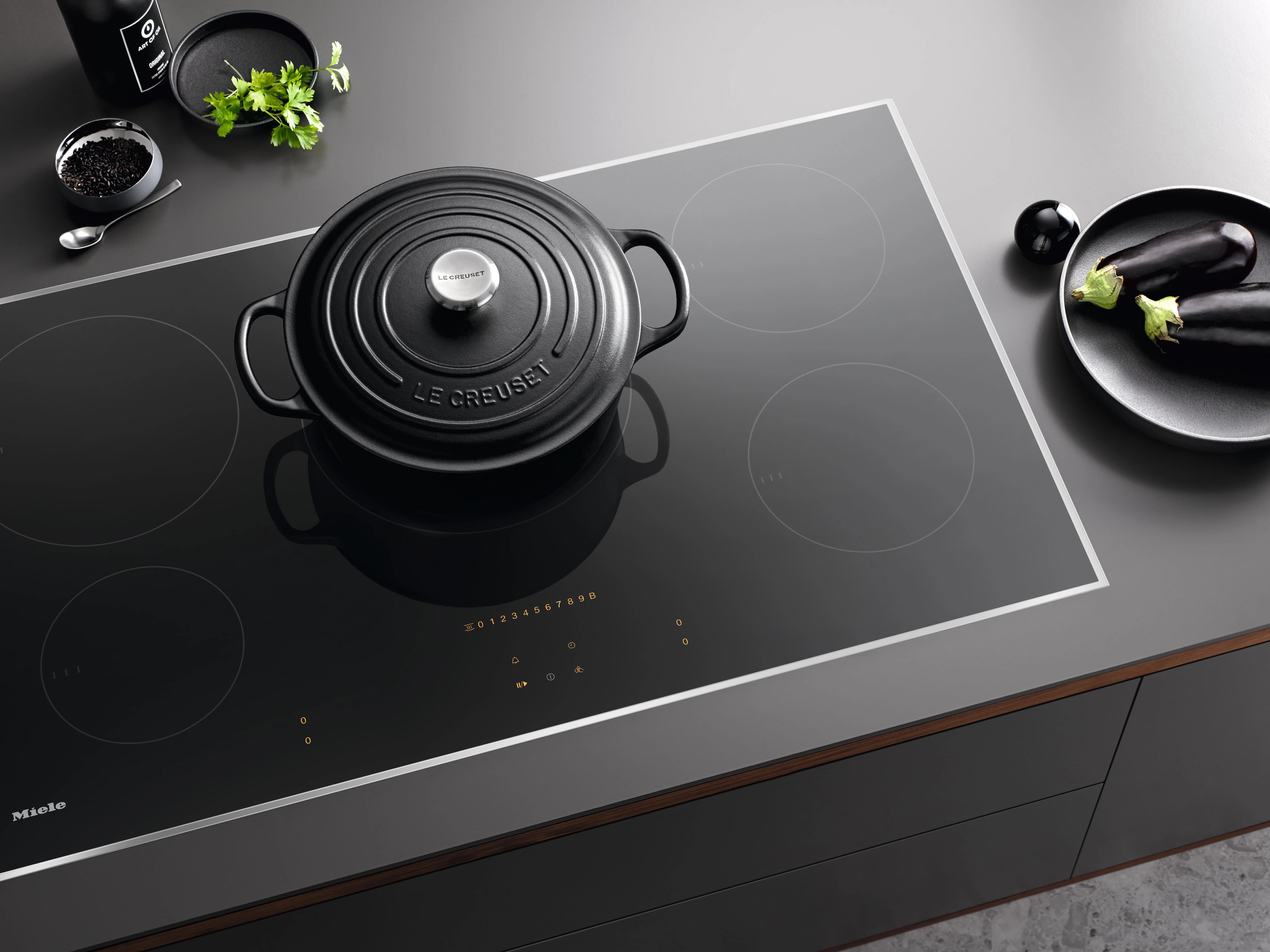

TwinBooster

When you need to get things done quickly, the exclusive TwinBooster function is an excellent aid. Harness the power of two cooking zones in one and heat up your favorite dishes in record time. Alternatively, distribute the induction power as required. This means you can now decide how quickly your food is ready, with complete flexibility.

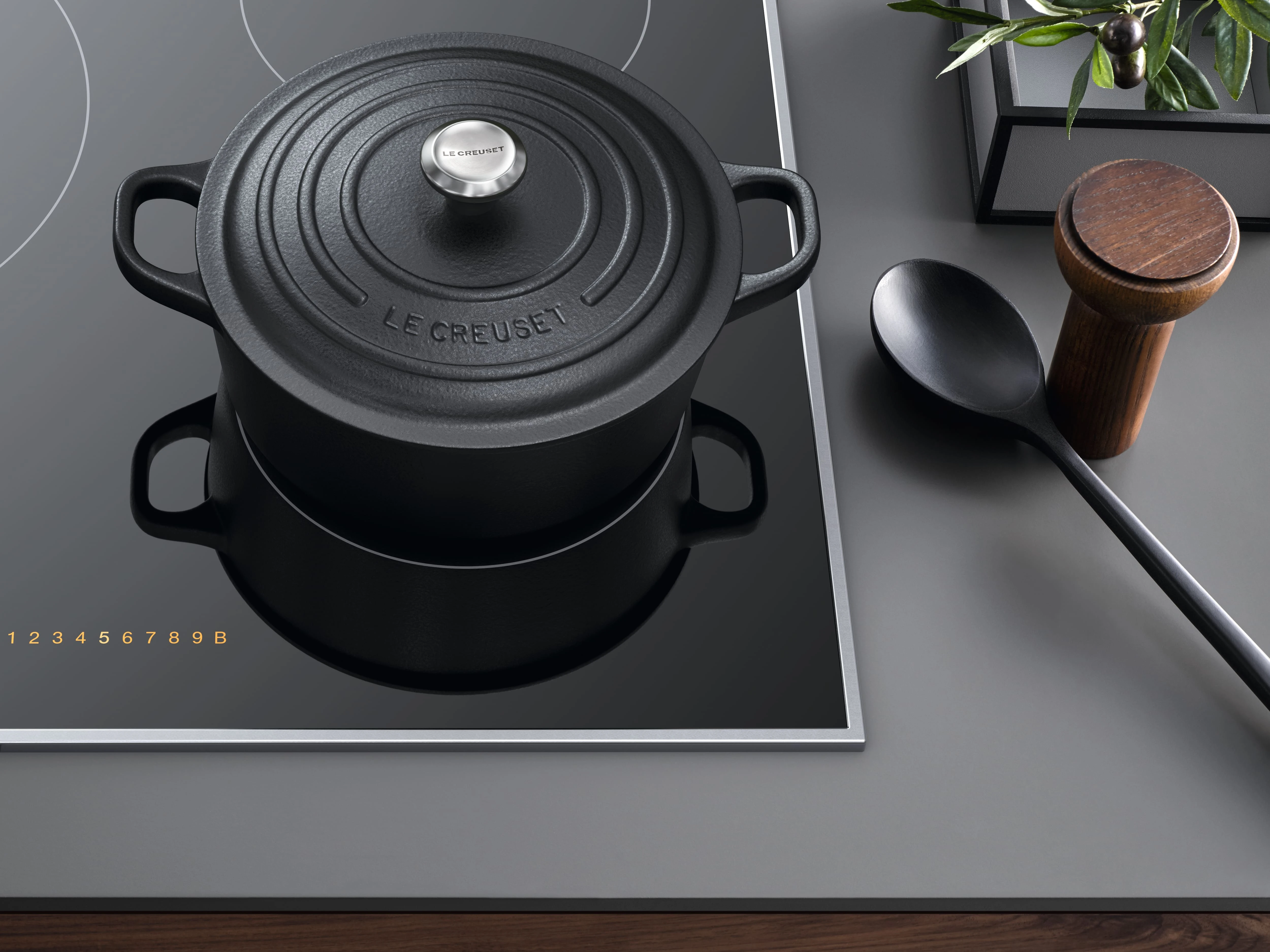

Convenient additional functions

More convenient cooking: With the Stop & Go function, you can reduce all cooking zones to power level 1 at the touch of a single button, so you can leave the cooktop unattended for a short time. Thanks to the automatic keeping warm function, your food stays at serving temperature. And another plus: If you set the timer, the cooking zone switches off automatically once this time has elapsed. The recall function saves your settings for 10 seconds.

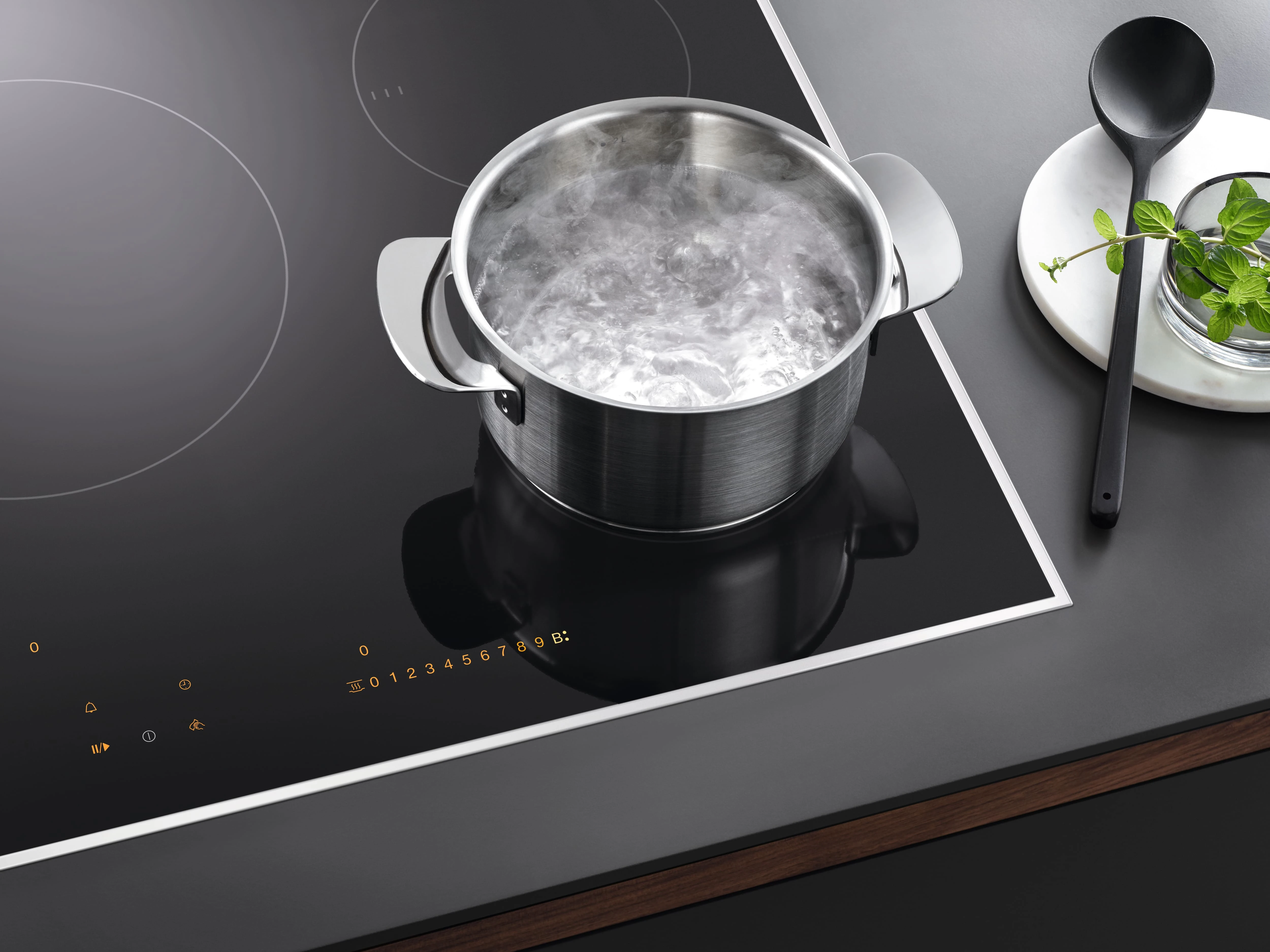

Permanent pan recognition

You just have to switch on the cooktop – if a pan has already been placed on one of the cooking zones, the corresponding control element is activated automatically. So you no longer have to turn on the individual cooking zones manually. What's more, the size of the pot or pan is recognized automatically – for extremely energy-efficient operation.

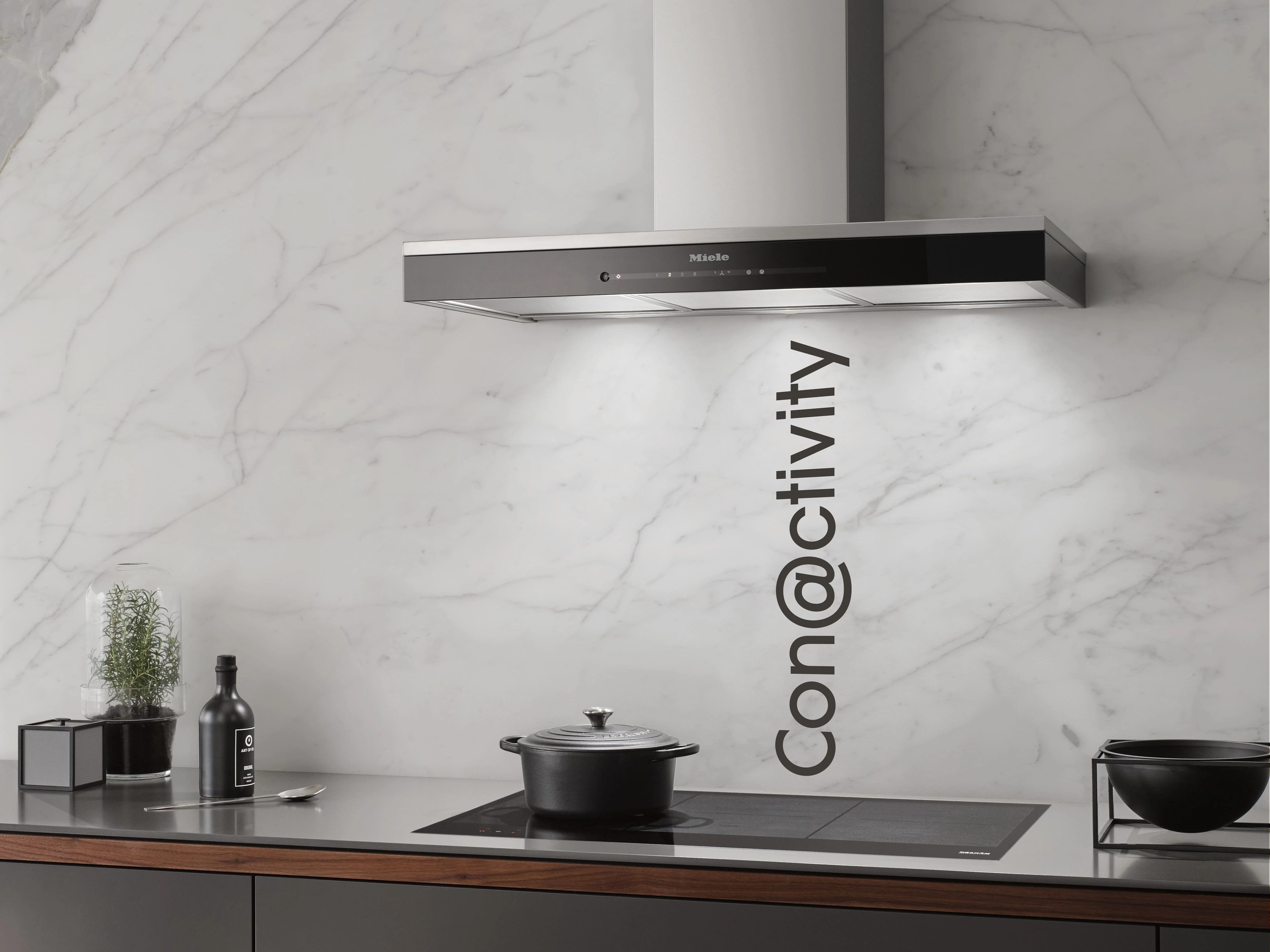

Con@ctivity 3.0

Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home

Domestic appliance networking with Miele@home

With our innovative Miele@home system, you can exploit the full potential of your Miele appliances and make your everyday life even smarter. All intelligent Miele domestic appliances can be networked conveniently and securely. Operation is simple – whether you use the Miele app, voice control, or integration into existing Smart Home solutions. The appliances are networked via a home Wi-Fi router and the Miele Cloud.
