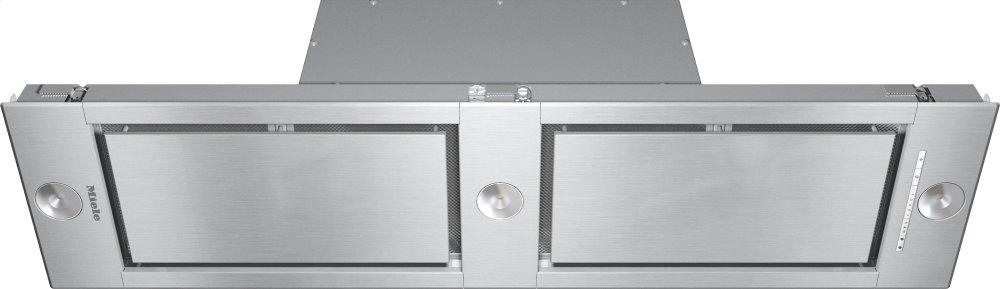

MIELE DA2628 DA 2628 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel
Out of stock
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Product Details for MIELE DA2628
Technical Details
General information
| Model number | DA 2628 |
| Manufacturer material number | 10876800 |
| EAN number | 4002516024439 |
Design
| Insert ventilation extractor | Yes |
| Color | Stainless steel |
| Edge extraction | Yes |
User convenience
| Miele@home | Yes |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| CleanCover | Yes |
| Con@ctivity | Yes |
Lighting
| Number x W | 3 |
| Light intensity in Lx | 700 |
| Color temperature in K | 3500 |
| Light dimmer function | Yes |
Exhaust air
| Air throughput in CFM in Booster | 483 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m /h) according to EN 61591 | 482.64 |
Technical data
| Canopy width in in. (mm) | 46 1/2 (1180) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 5/8 (293) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 |
| Net weight in lbs. (kg) | 34 |
| Length of electrical wire in ft. (m) | 4 |
| Standard plug fitted | Yes |
| Plug type | NEMA plug: 5-15 |
| Total connected load in kW | 0.363 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | Yes |
| Diameter of vent connection in in. (mm) | 6 |
Standard accessories
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
Features
- Customized kitchen design - fully integrated in 46 1/2 (1180) in (mm) width
- Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop. - Unique user convenience - Con@ctivity
- Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." - Energy-efficient and quiet
- filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated. - Elegant and efficient - edge vented panel
- Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours. - Manufactured with great care by Miele & Cie. KG
- Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher. - View manufacturer details: Miele & Cie. KG
- Safety information
- Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor. - Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Description
The brand Miele DA2628 is a premium stainless steel ventilation hood engineered for contemporary kitchen environments. It includes powerful extraction capabilities (CFM depending on duct configuration) to maintain clean air, while integrated energy-efficient LED lighting illuminates the cooktop for clear visibility. The user-friendly backlit touch control panel allows easy adjustment of fan speeds and lighting even under low-light conditions. Finished in high-grade stainless steel, the hood resists fingerprints and complements a wide range of décor styles. Designed to deliver performance and understated elegance, this hood combines visual appeal with practical ventilation and intuitive operation.
Manuals & Guides
Key Features
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
