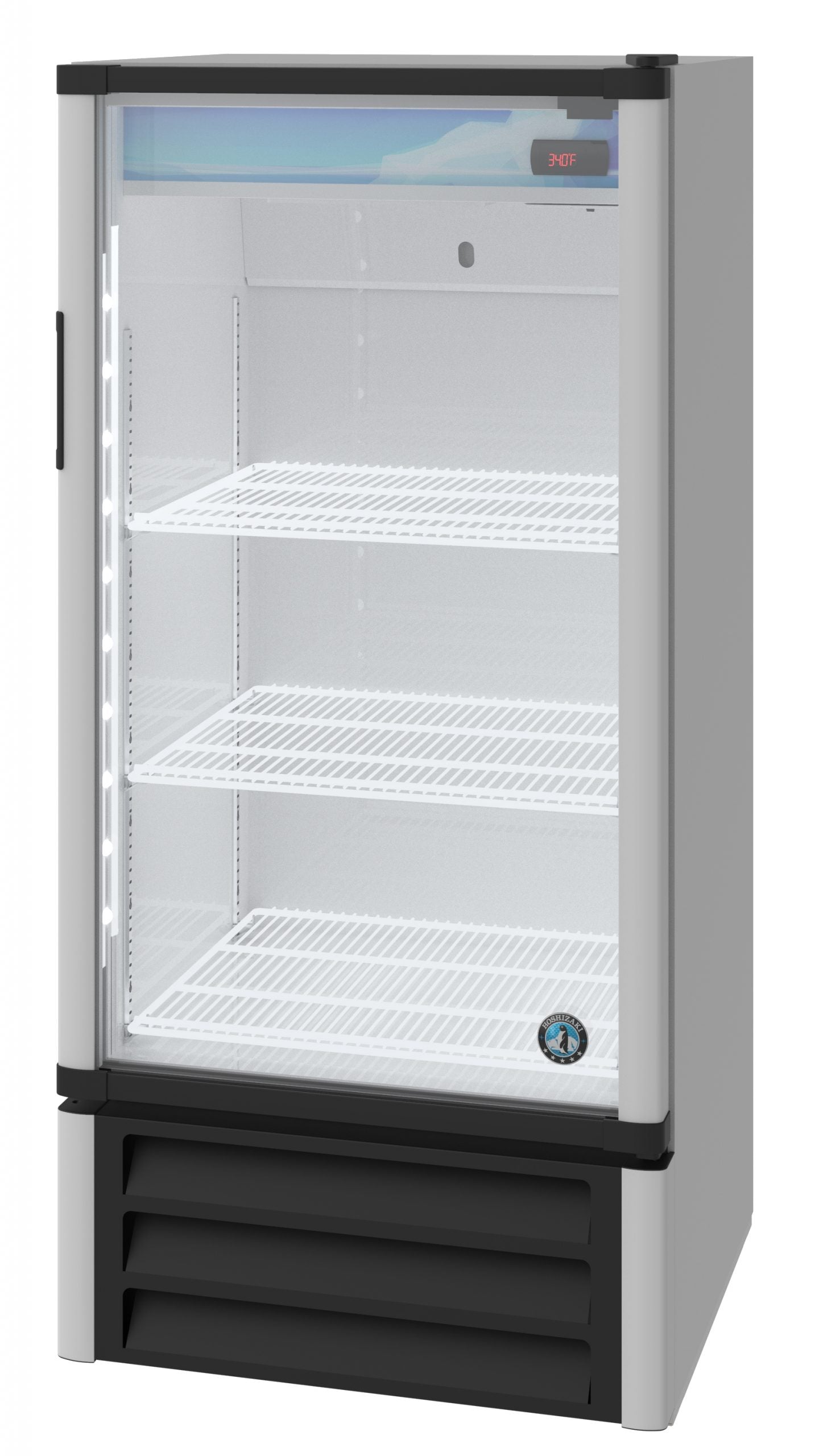

Hoshizaki RM10 Refrigerator, Single Section Glass Door Merchandiser Stainless Steel
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI RM10
Technical Details
Product details
| Electrical Specs | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.24 kwh/day, Amperage: 3.7, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 34 – 40°F, Refrigerant: R-134a |
| Refrigeration Data | Nominal Compres. of 1386 BTU/hr at 1/5 HP, Heat Rejection: 705 BTU/hr |
| Shipping Weight | 206 |
| Storage Specs | Nominal Storage Capacity: 10ft3, 20oz Bottle Capacity: 126, Door Opening: 46.875″ W x 43″ H , Depth with Door fully extended: 26.25″ D, Shelves Included: 3 |
Dimensions & weight
| Width | 25.5 in. |
| Depth | 22.75 in. |
| Height | 54 in. |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
Description
The RM-10 Glass Door Merchandiser is a Single Section Refrigerator with a Full Glass Swing Door is the perfect beverage or packaged product display for any operation. It boasts an impressive Storage capacity of 10ft3 (126: 20oz Bottles, or 288: 12oz Cans). The durable 1/5 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!
Product Features
- Discontinued – Replaced by RM-10-HC
- Dimensions: 25.5″ W x 22.75″ D x 54″ H
- Storage capacity of 10ft3 (126: 20oz Bottles, or 288: 12oz Cans)
- Nominal Compres. of 1386 BTU/hr at 1/5 HP
- Electrical consumption of 1.24 kWh/day at 3.7 Amps, 8 ft long cord with a 5 – 15P NEMA plug
- Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
- Large glass swinging door is energy efficient Low-E multi pane glass
- Door frame recessed handle
- Door is mounted on heavy duty hinges with self-closing mechanism
- Forced air evaporator for quick temperature pull down
- Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
- Silver painted aluminum exterior, white steel interior with stainless steel floor
- Electronic controller with visual and audio temperature alarms and LED display (°F or °C)
- R-134a refrigerant
- Energy efficient LED interior product lights
- Refrigerant flow is controlled with a capillary tube
- Includes (3) white epoxy coated wire coated wire shelves with product stops
- Stainless steel shelf clips adjustable in 1/2″ increments on anodized aluminum supports
- Standard with (4) 2″ Leveling Legs
- Optional kits: Additional epoxy shelf, price tag holder, organizer shelf, 4″ casters, 2.25″ casters
- 115v/60/1, 8 ft. cord and plug
- Shipping Crate: 30″ L x 28″ D x 60″ H at 206 lbs
- Automatic hot gas loop on front edge of cabinet prevents condensation
- Five Years compressor warranty, Three Years parts and labor warranty
