Product Details for GE APPLIANCES PTD9000SNSS

Technical Details

Weights & dimensions

Overall Depth 26.75 in
Cabinet Width 30 in
Overall Width 29.75 in
Overall Height 53 in
Net Weight 284 lb
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Approximate Shipping Weight 308 lb
Cutout Depth (in) 23.5
Depth with Door Open 48.75 in
Cutout Height (in) 51.8125
Cutout Width (in) 28.5

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Fuel Type Electric
Product Type Double Oven
Oven Interior Remote View Oven Camera
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Double Oven
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions (Both Ovens)
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air (Both Ovens)
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Scan-to-cook
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Bake Multi-Rack
Oven Cooking Modes Convection Roast
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes Dehydrate
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Features 10-Pass Dual Broil Element
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Interior Black Gloss Finish
Oven Interior Hidden Bake
Connected Capabilities Google Home
Oven Rack Features 2 Heavy-Duty Roller Racks (Both Ovens)
Oven Control Features Certified Oven Kosher Separation

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 240V ; 60Hz ; 24A
KW Rating at 240V 9
Amp Rating at 208V 40
Broiler Wattage 4300W
Amp Rating at 240V 40
KW Rating at 208V 6.8
Hertz 60

Appearance

Oven Door Features Soft-Close Hinges
Handle Color Brushed Stainless
Color Appearance Stainless Steel
Installation Side-by-Side
Handle Designer Style
Installation Above Warming Drawer
Oven Door Features Big View Oven Window

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack

Capacity

Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.00 cu ft

Other

Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 53 in.
Length 26.75 in.
Weight 284 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 58 in.
Shipping Length 31.75 in.
Shipping Weight 324 lbs.
Total of Shipping Weight 324 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.41 ft³
Dimensional Weight 303.44 lbs.
Total of Cubes 24.41 ft³
Total of Dimensional Weight 303.44 lbs.

Description

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades.Check on your food from anywhere without opening the oven door by live streaming video of your food on your smartphone.53 H x 29 3/4 W x 26 3/4 D


Product Features

  • Remote Temperature Probe
    Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App
  • Self-clean oven with optional steam clean
    Let your oven do the cleaning for you with two ways to eliminate baked on messes

Key Features

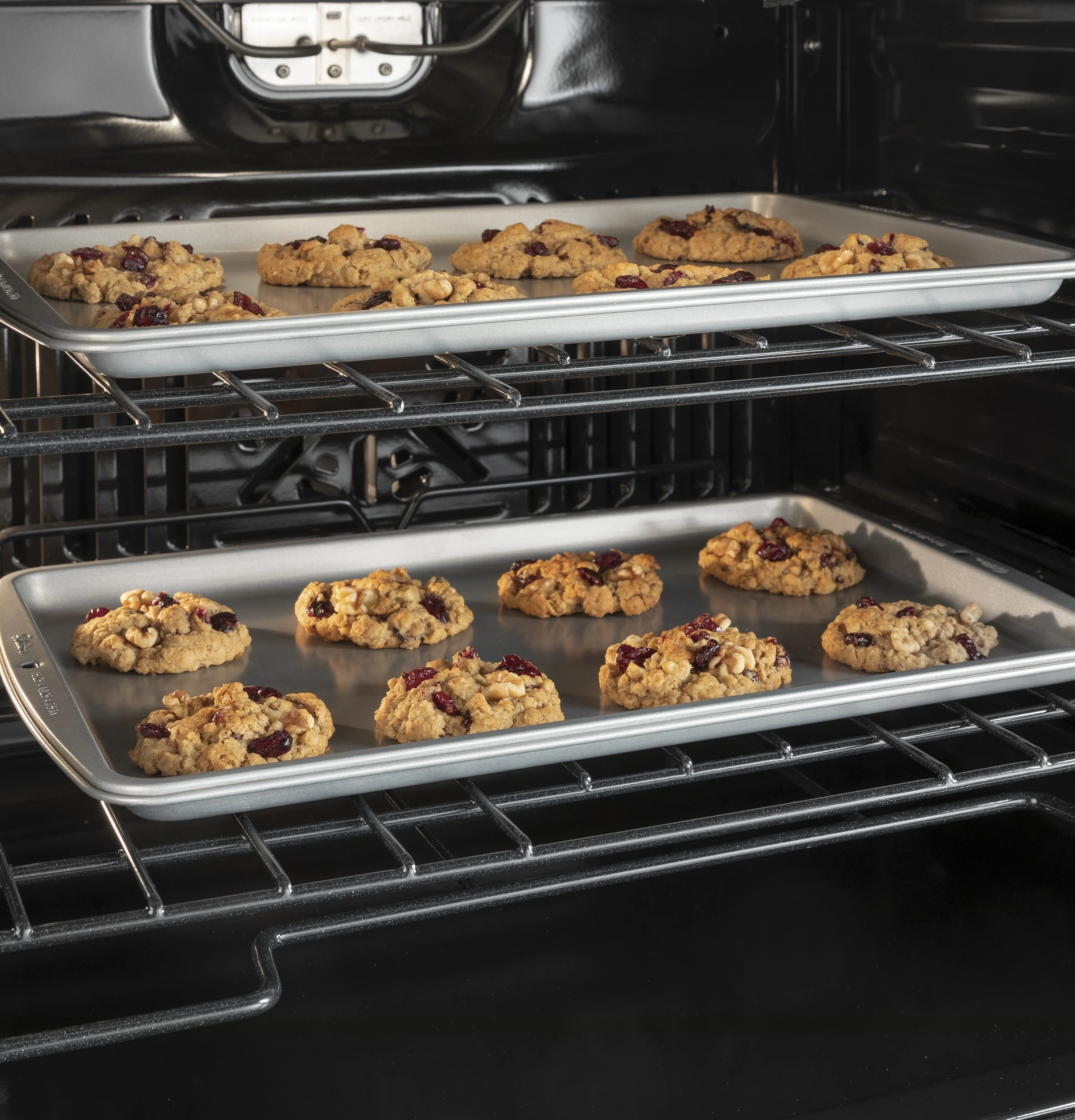

10-pass hidden bake element

Even baking is assured with heat that covers more surface area

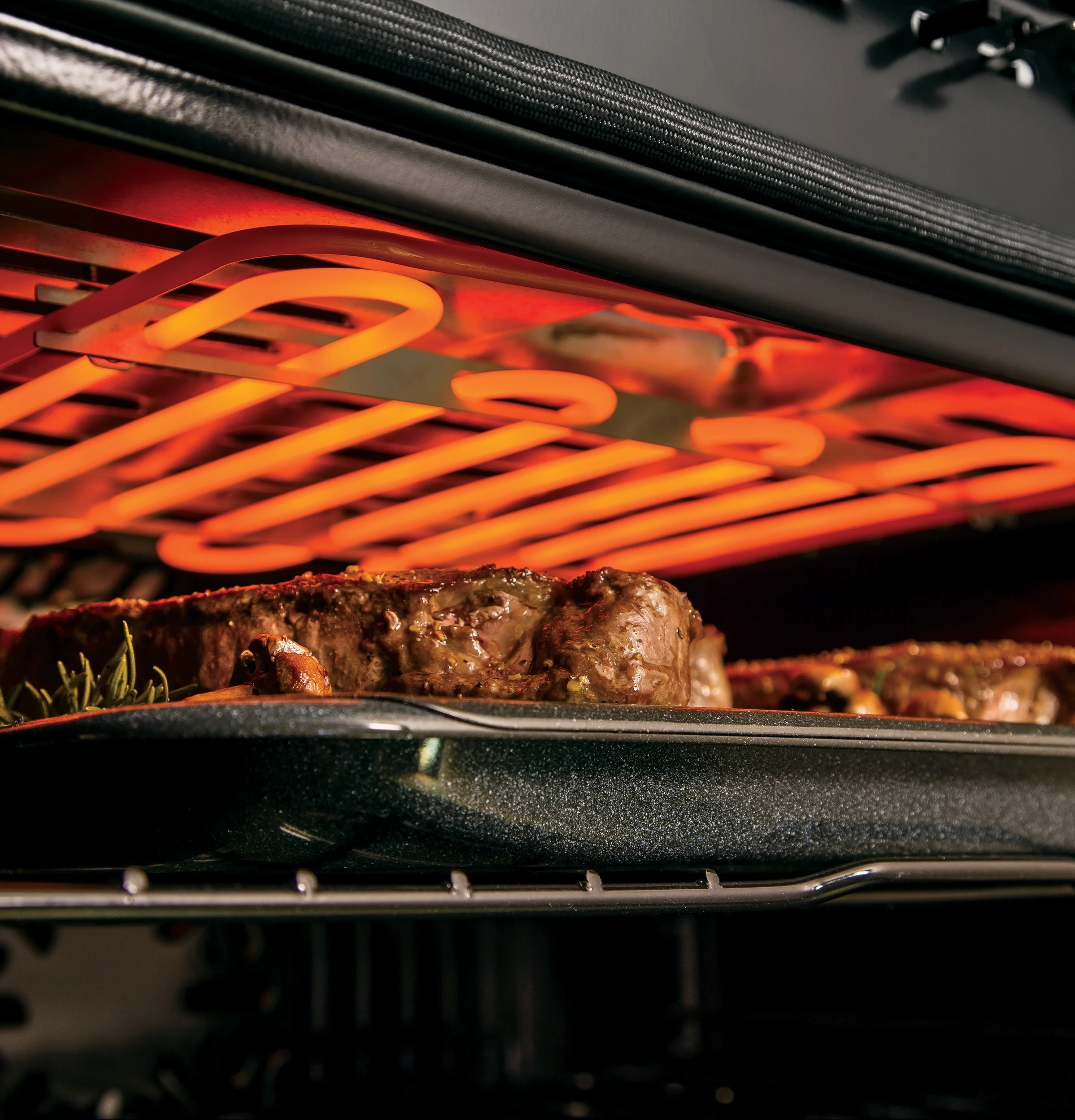

10-pass dual-broil element

Large and small dishes brown evenly with two, full-coverage elements

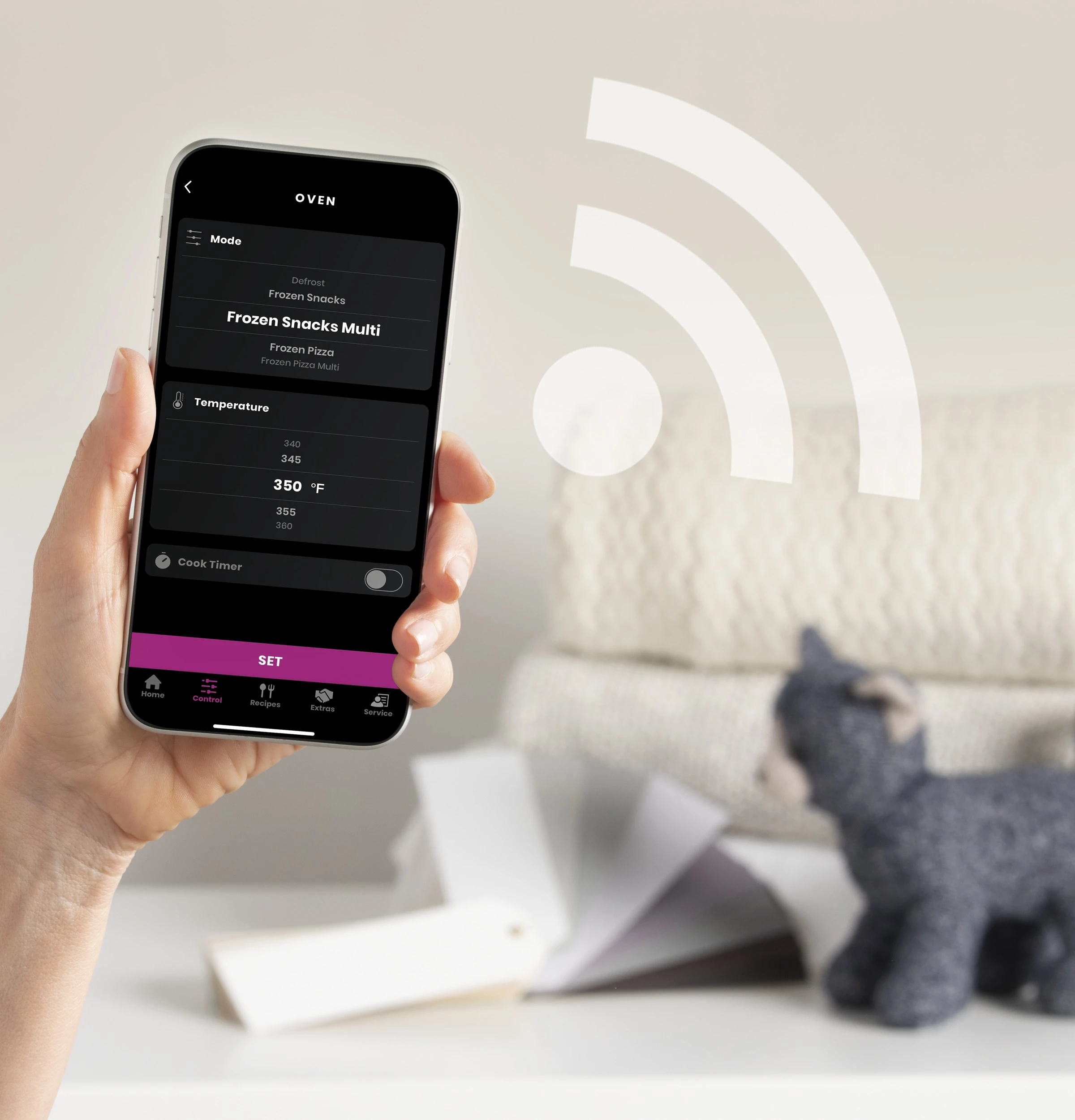

Built-In WiFi, Powered by SmartHQ App

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

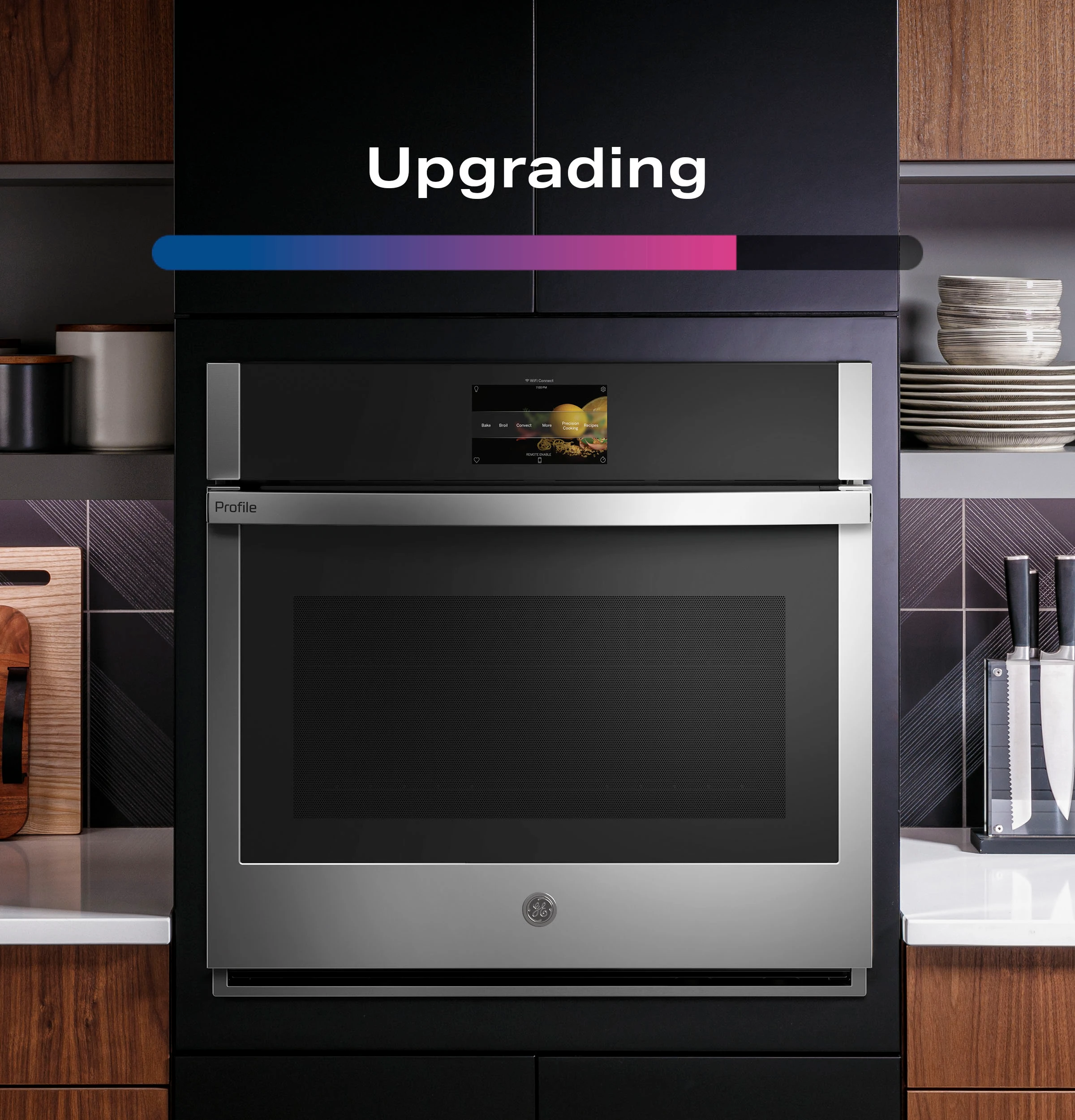

GE Profile Connect +

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

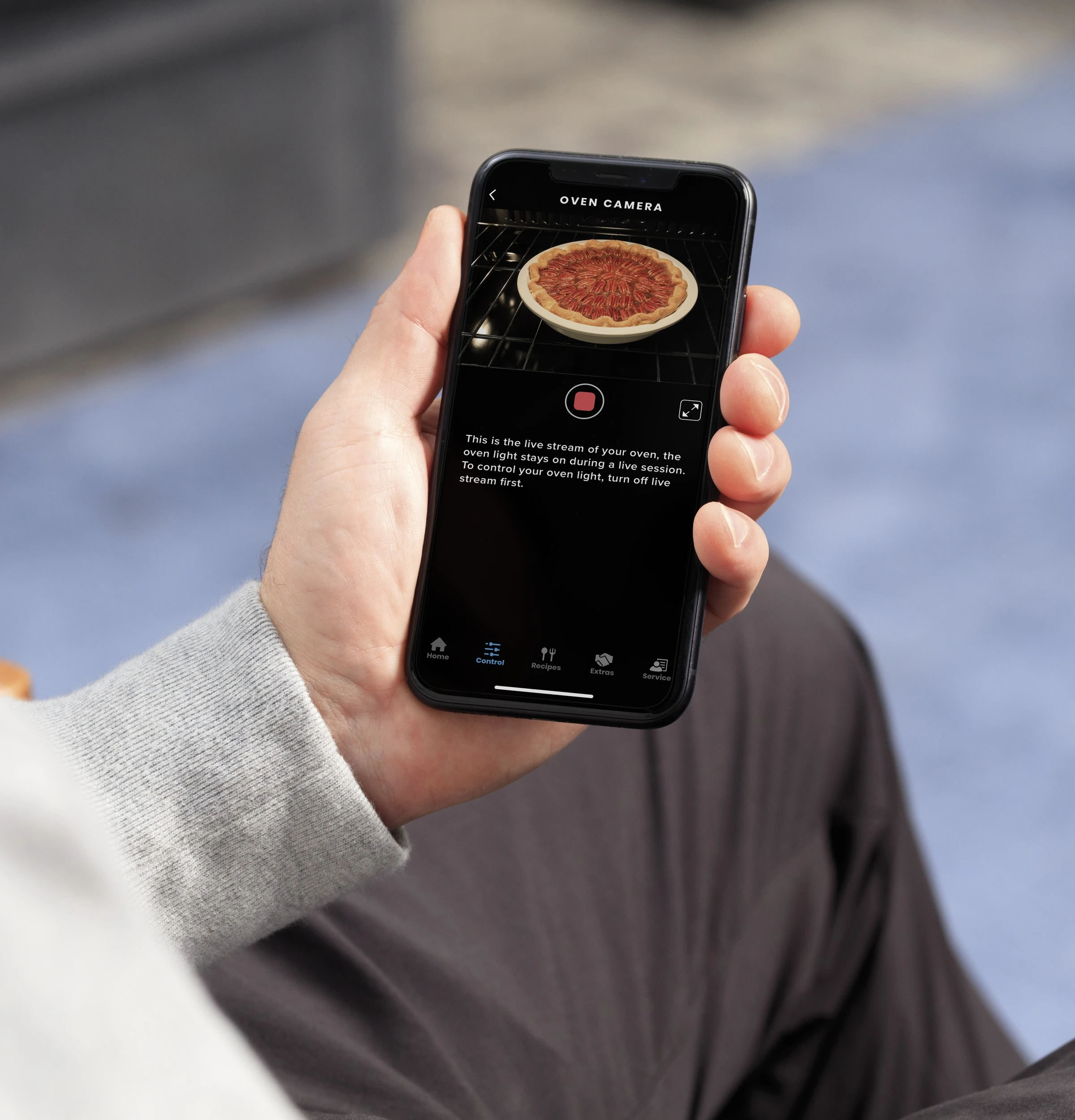

CookCam

Check on your food from anywhere without opening the oven door by live streaming video of your food on your smartphone

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

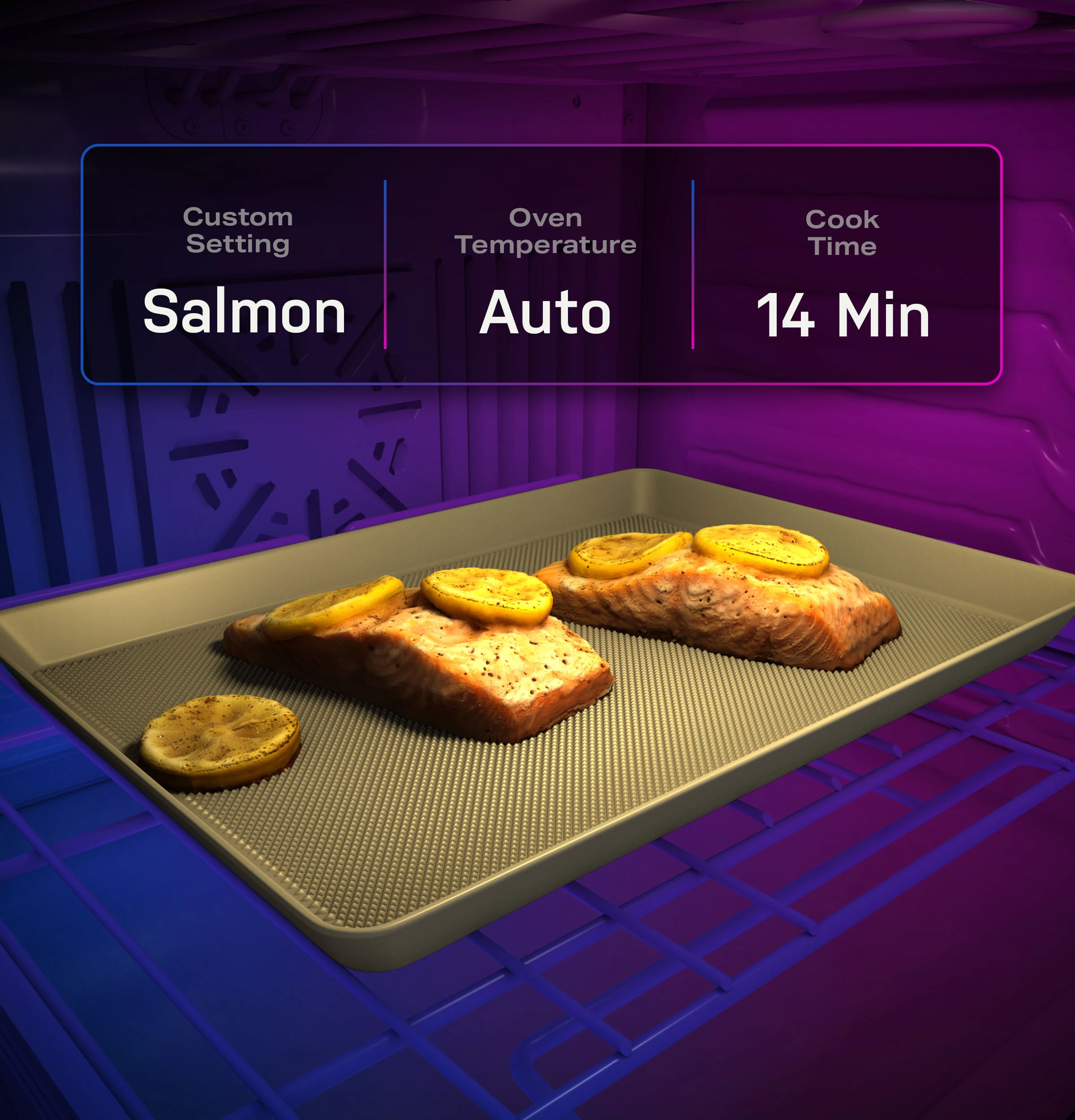

Precision cooking modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

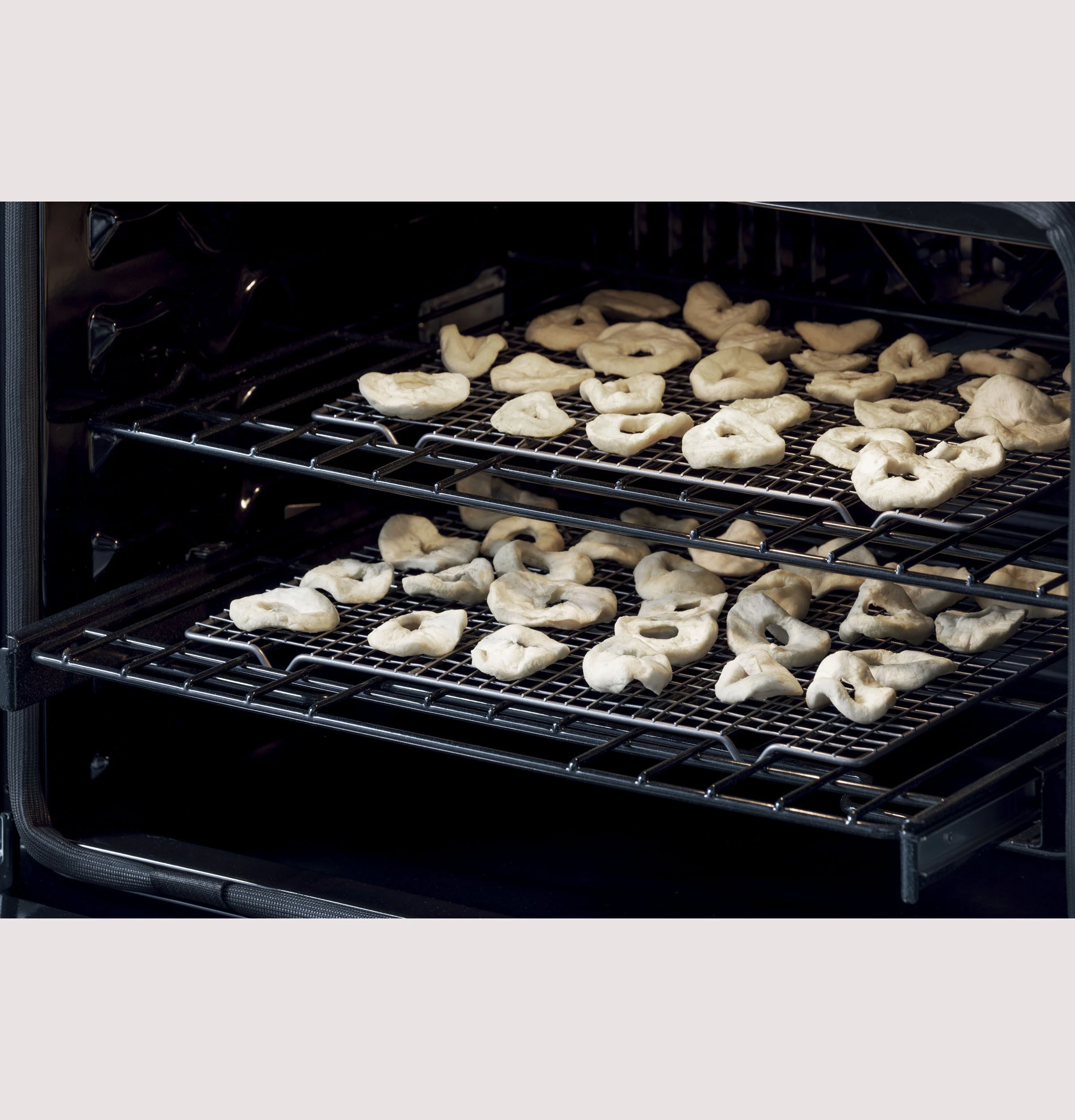

Dehydrate Mode

Make homemade chips, spices and dried fruits with a high-capacity dehydrator within your oven

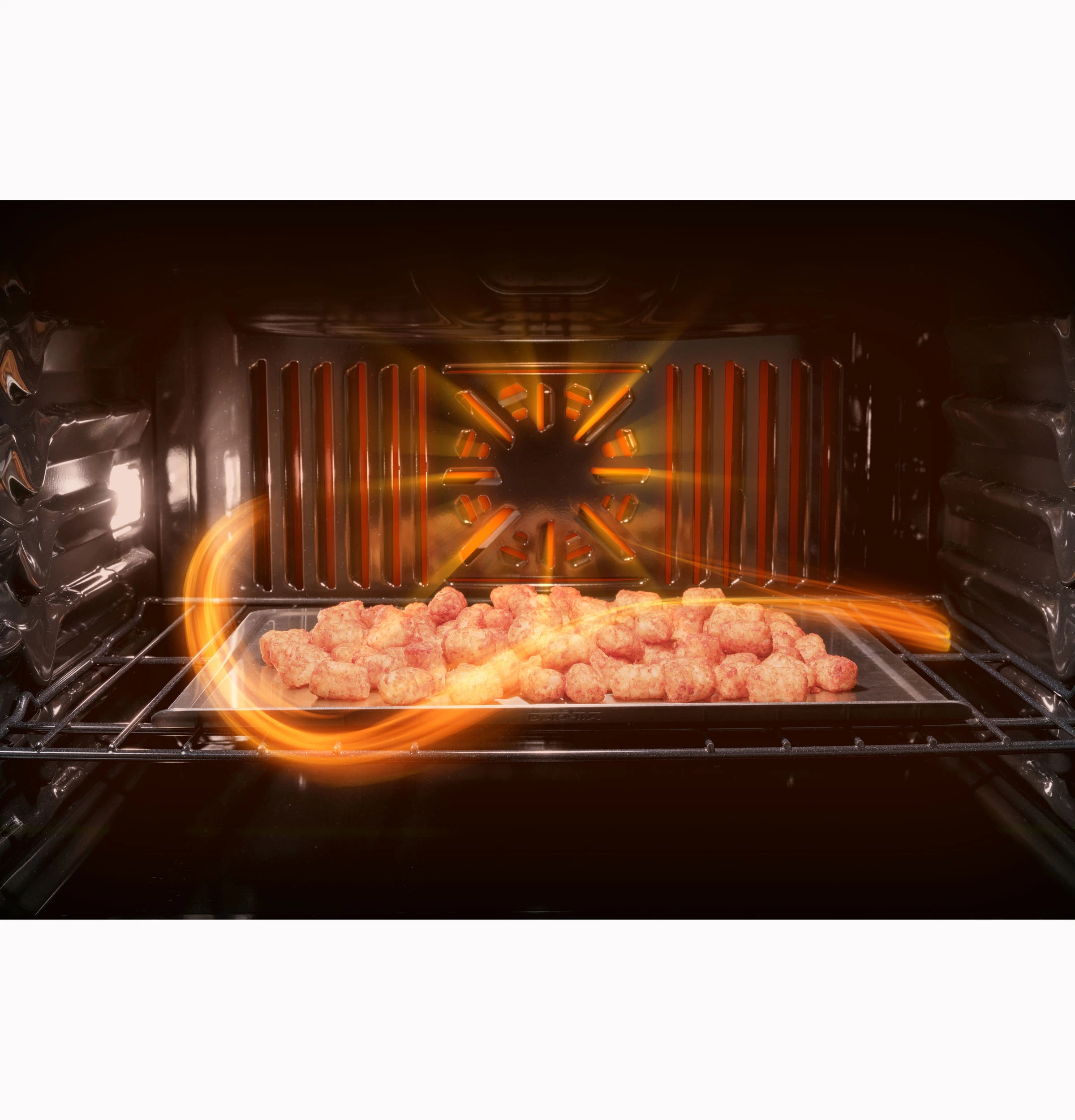

True European Convection with Direct Air

Faster more even results for roasts, chicken, turkey and other special-occasion favorites, with the only cooking system that delivers true top-down convection

No preheat options

Save time with a variety of precision cooking modes that eliminate the need for preheating

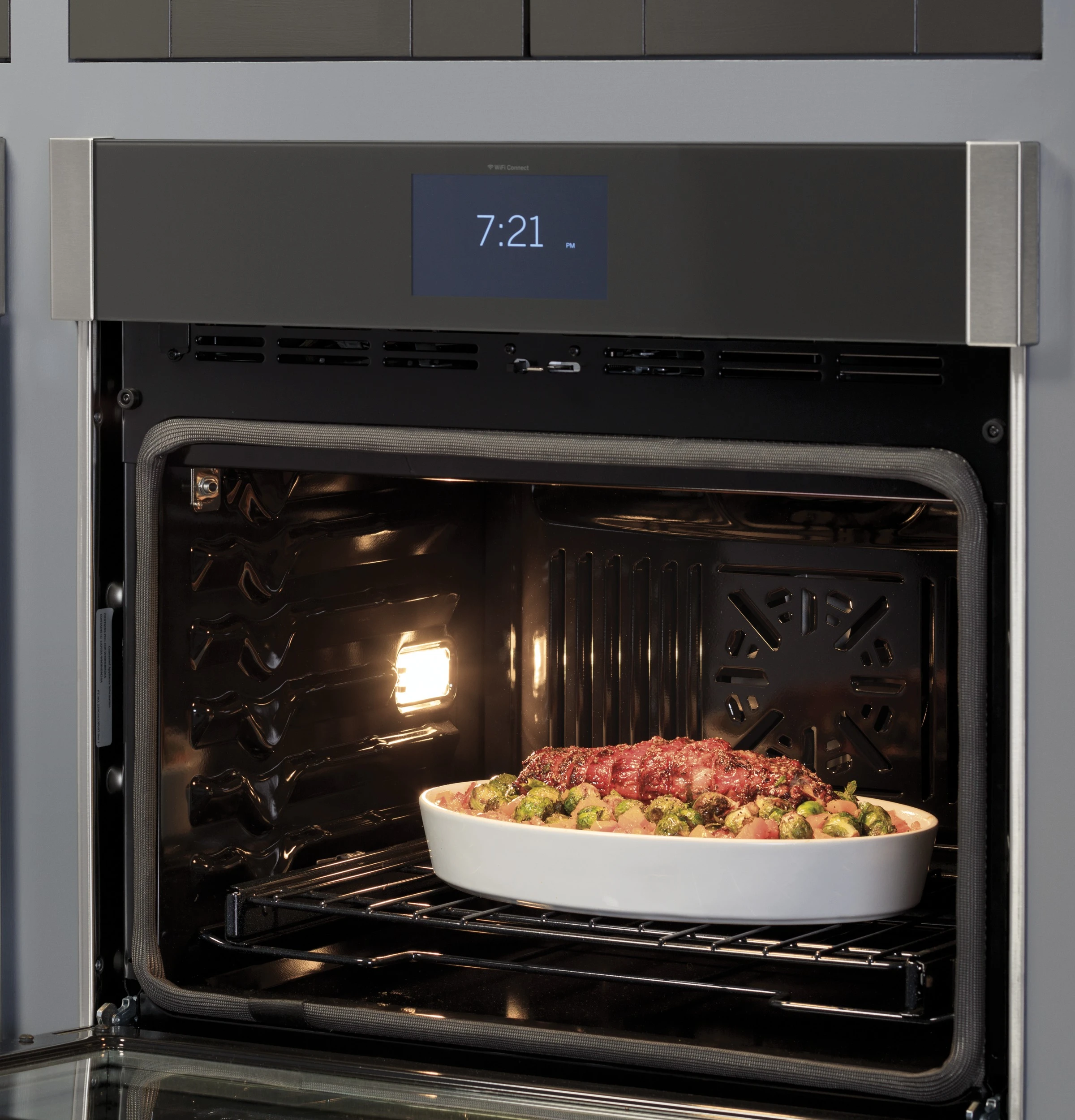

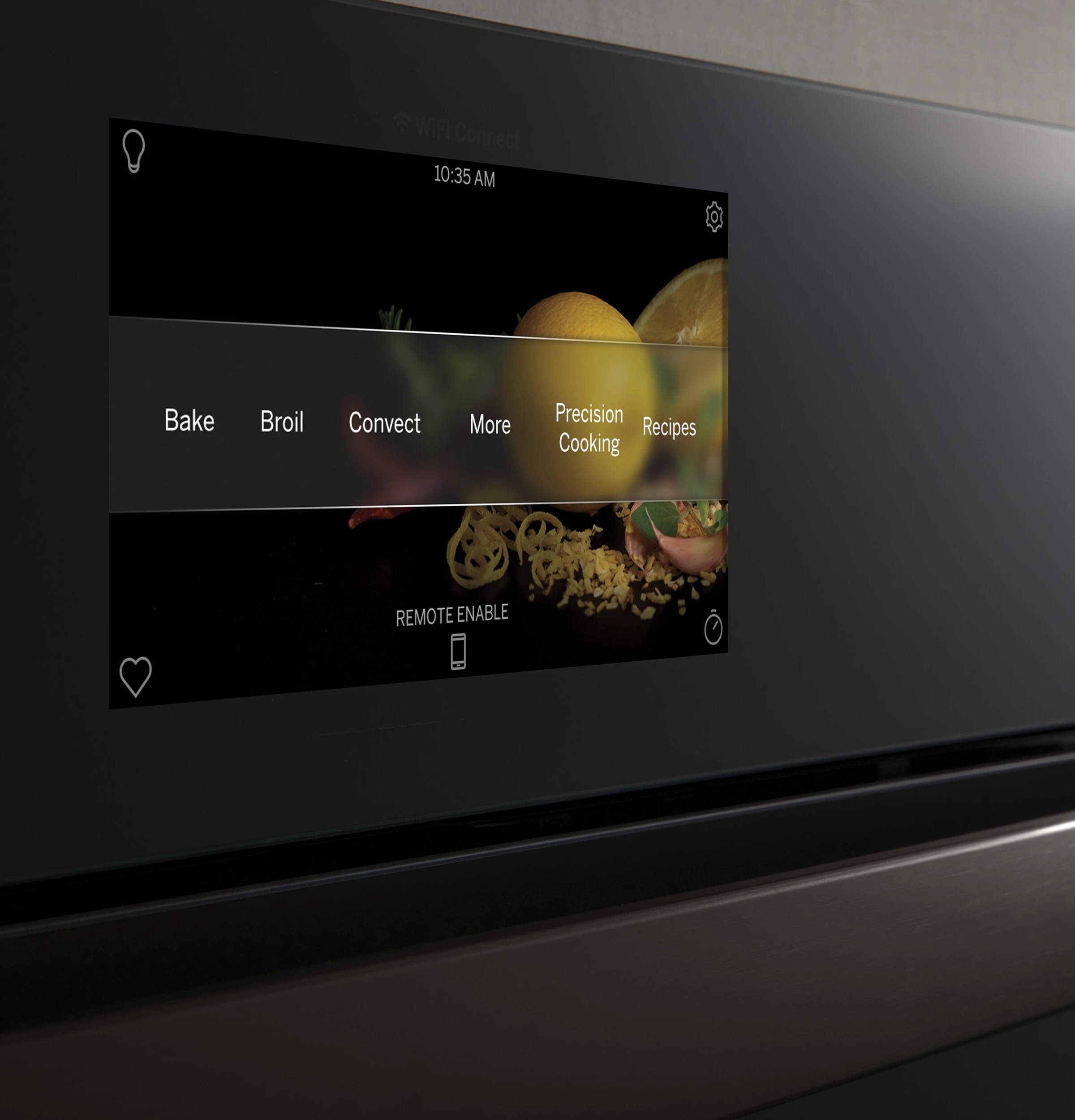

Brilliant Touch 7" Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

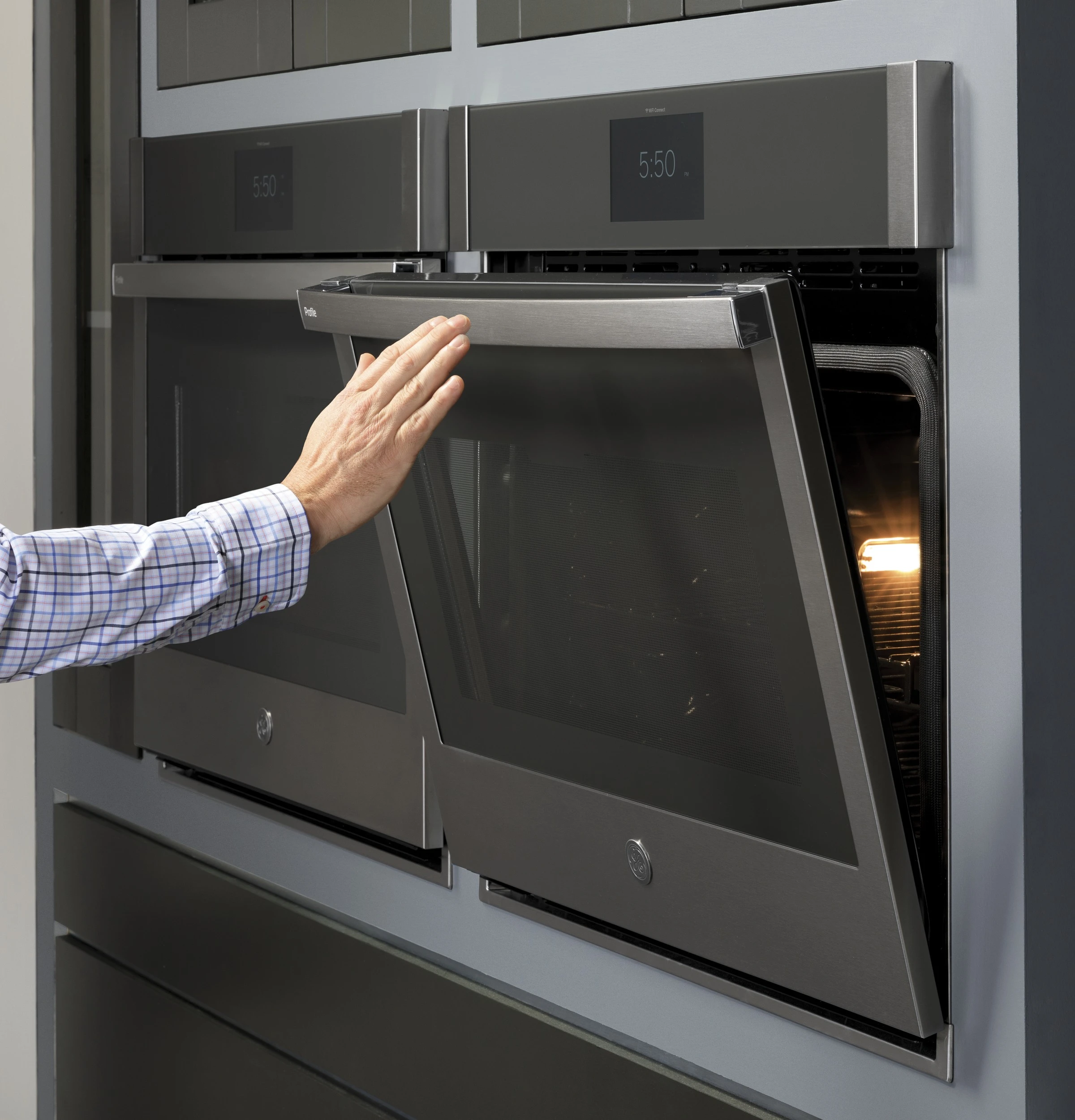

Soft-close door

Rest assured your oven door will always close softly, thanks to a special hinge that quietly eases it shut

CookCam™

Check on your food from anywhere without opening the oven door by live streaming video of your food on your smartphone

Brilliant Touch 7” Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

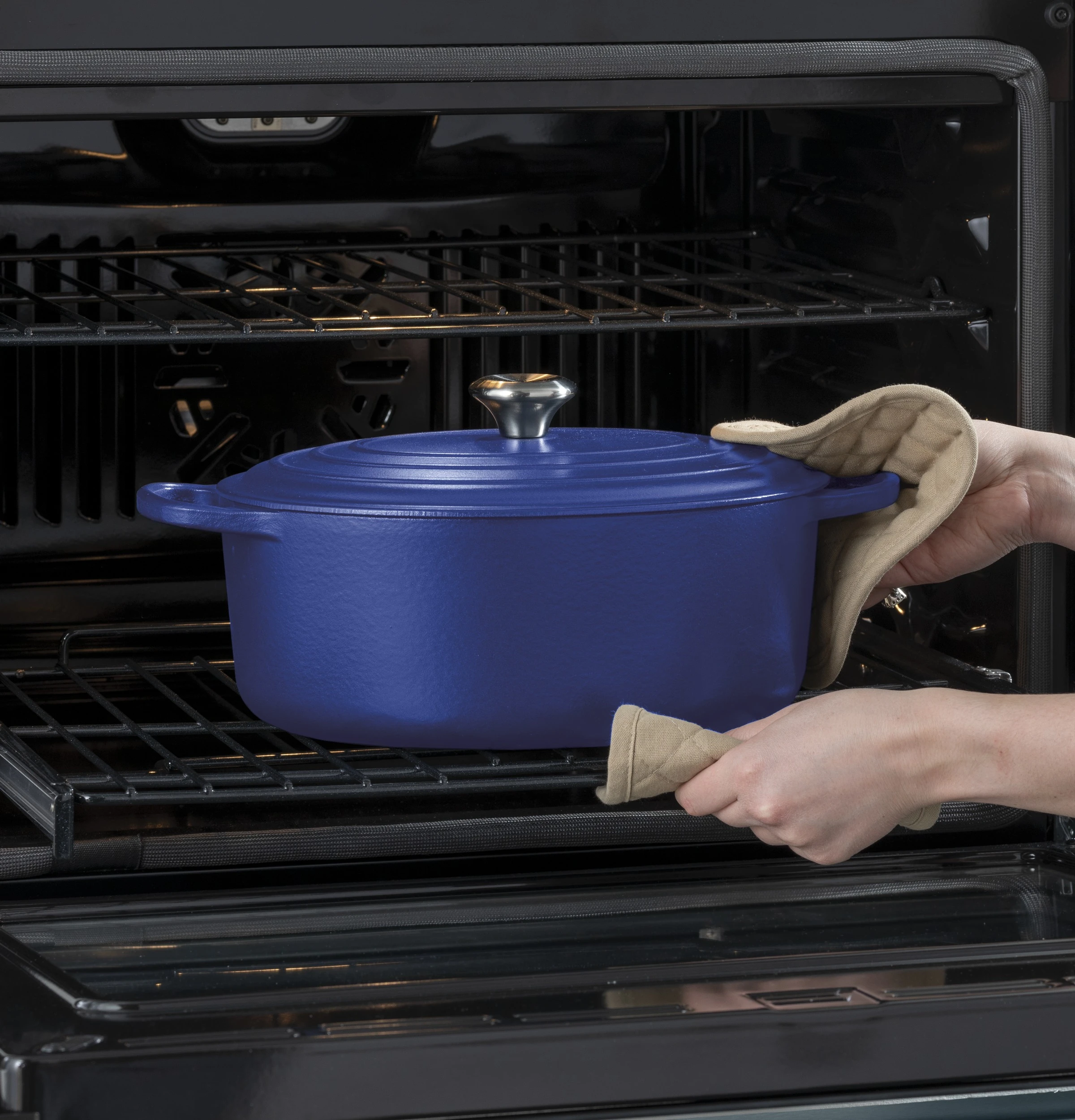

Heavy-duty smooth glide roller racks

Easily remove even the heaviest dishes with a roller rack that’s engineered to glide seamlessly out of the oven
