| Parts | 1 Year |
| Labor | 1 Year |
| Cabinet Width | 30 in |
| Overall Width | 30 in |
| Overall Height | 36.5 in |
| Overall Depth | 29.5 in |
| Net Weight | 224 lb |
| Depth Without Handle | 26.875 in |
| Approximate Shipping Weight | 244 lb |
| Cabinet Opening | 30 in |
| Height to Top of Rear Vent Trim | 37.625 in |
| Depth with Door Open | 47.5 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Installation | Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Handle Color | Black Stainless |
| Control Knobs | Black Stainless |
| Color Appearance | Fingerprint Resistant Black Stainless |
| Installation | Flush Appearance |
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | Black |
| Oven Control Features | Temperature Probe |
| Oven Rack Features | 3 Self-Clean Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Reversible Integrated Grill/Griddle (Included) |
| Connected Capabilities | The Google Assistant |
| Product Type | Slide-In Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 9,500 BTU Dual Oval |
| Dual Ring Burners | Yes |
| Interior Oven Light | 1 Incandescent |
| WiFi Connect | Built-In |
| Control Location | Front controls |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Control Type | Glass Touch |
| Burner - Left Front | 21,000 BTU Tri-ring Burner |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Configuration | Range with Smooth Glide Storage Drawer |
| OU Certified | No |
| Oven Cooking Modes | Warming |
| Cooktop Burner Type | Sealed |
| Grill | JXGRILL1 |
| Burner - Right Front | 15,000 BTU |
| Cooktop Surface | Gray |
| Self-Clean Oven Door Lock | Automatic |
| Connected Capabilities | Amazon Alexa |
| Connected Capabilities | IFTTT |
| Connected Capabilities | Fresco |
| Connected Capabilities | Innit |
| Connected Capabilities | DiGiorno |
| Connected Capabilities | Sonos |
| Cooktop Surface | Deep Recessed |
| Grill | Included |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Recipe Conversion |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Front Controls |
| Oven Control Features | In-Oven Broiling |
| Oven Cooking Modes | Convection Bake |
| Oven Cooking Modes | Convection Roast |
| Oven Cooking Modes | Frozen Pizza Single Rack (No Preheat) |
| Oven Cooking Modes | Frozen Pizza Multi Rack |
| Oven Cooking Modes | Frozen Snacks Single Rack (No Preheat) |
| Oven Cooking Modes | Frozen Snacks Multi Rack |
| Oven Cooking Modes | Proof |
| Oven Cooking Modes | No Preheat Air Fry |
| Oven Interior | 1 Incandescent Light |
| Connected Capabilities | Google Home |
| Cooking System | True Convection |
| Cooking Technology | True Convection |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Included |
| LP Conversion Kit | Included |
| Trim Kit | Optional |
| Trim Kit | JXFILLR1DD |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 (1) 15.0; (2) 9.5; (1)5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Electrical Requirements | 120V |
| Hertz | 60 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Cabinet Opening | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Width | 30 in. |
| Height | 36.5 in. |
| Length | 29.5 in. |
| Weight | 224 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 41.5 in. |
| Shipping Length | 34.5 in. |
| Shipping Weight | 264 lbs. |
| Total of Shipping Weight | 264 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 18.69 ft³ |
| Dimensional Weight | 232.39 lbs. |
| Total of Cubes | 18.69 ft³ |
| Total of Dimensional Weight | 232.39 lbs. |
| Total Capacity (cubic feet) | 5.60 cu ft |
This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

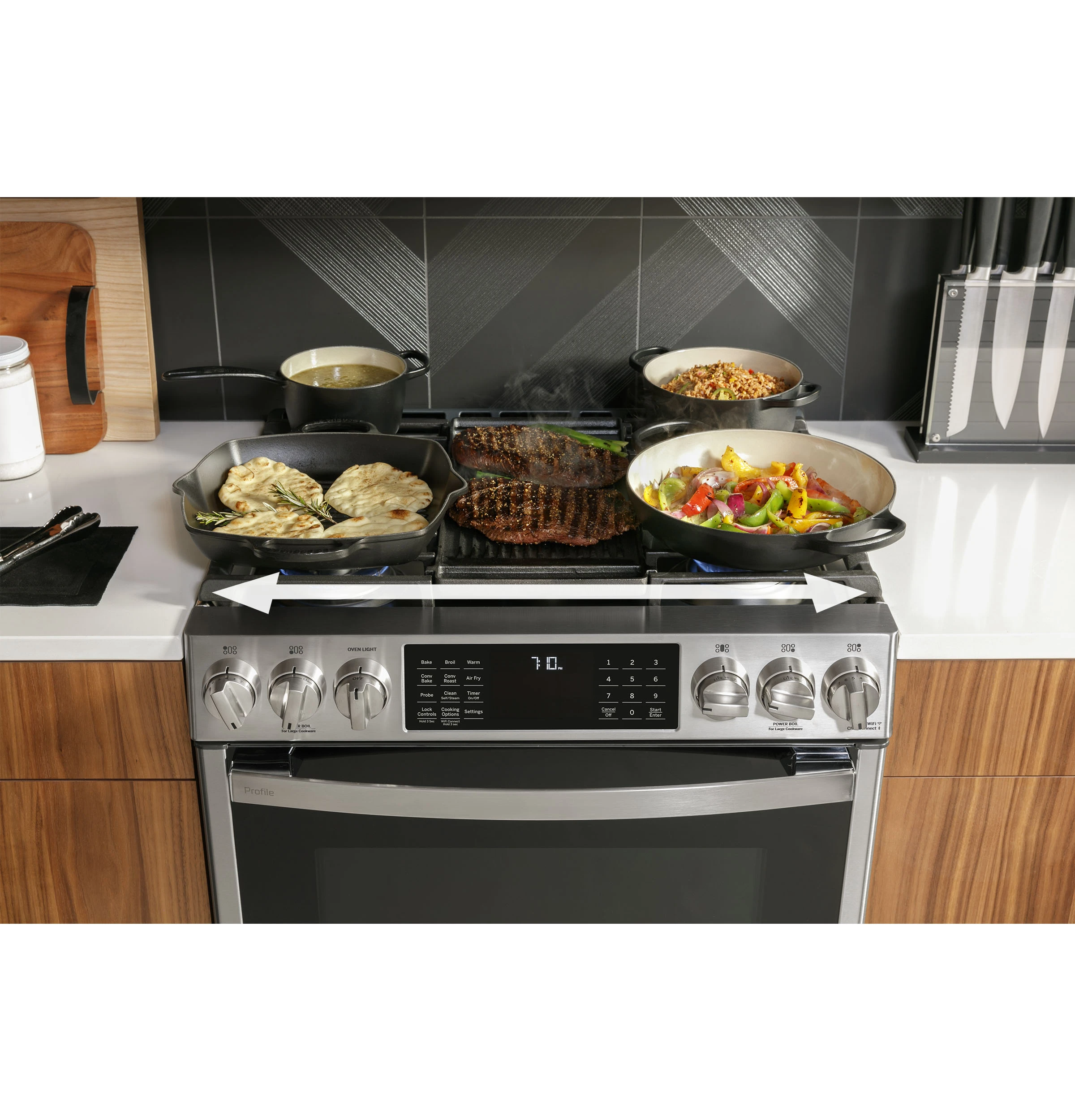

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

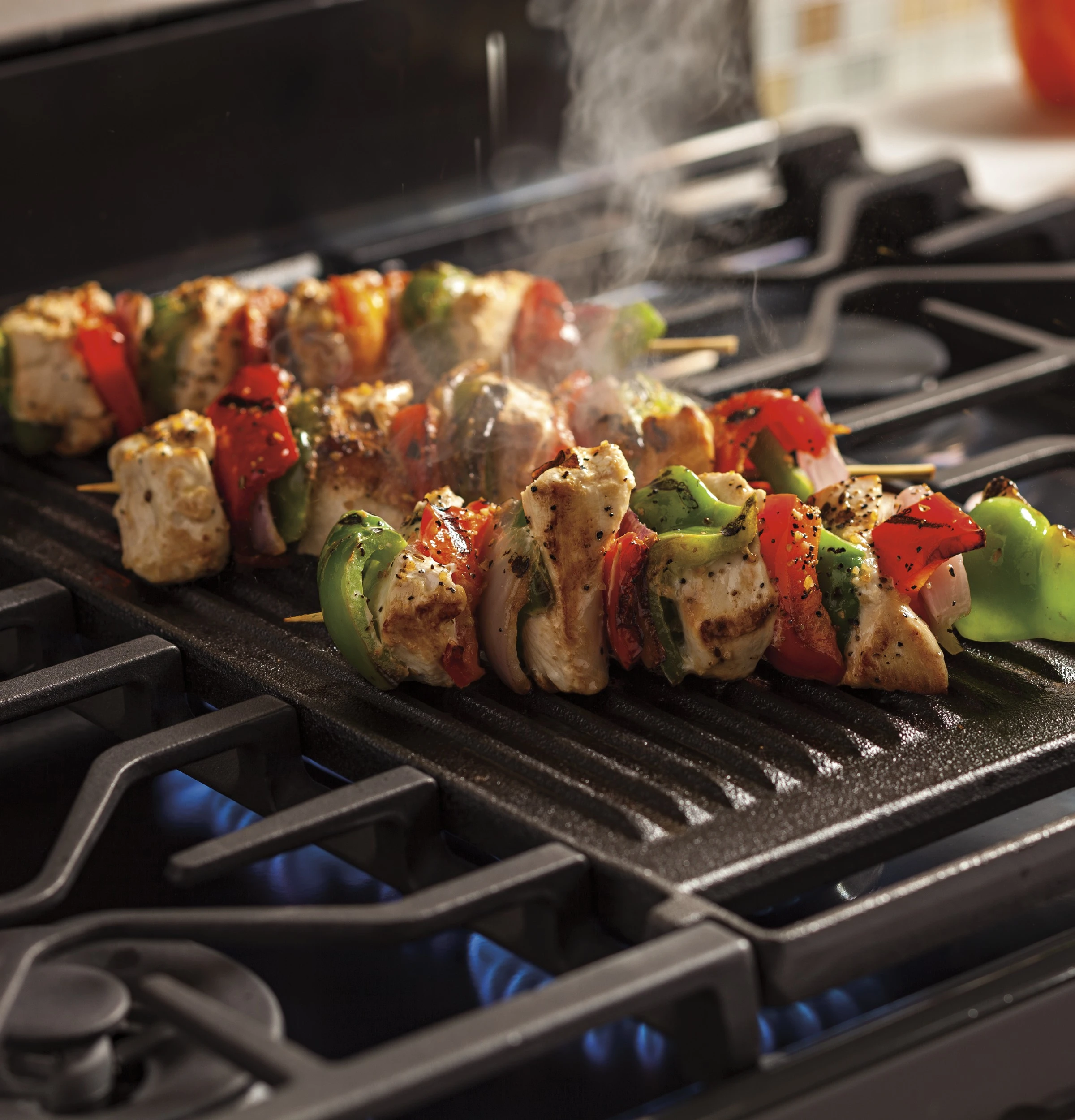

This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility

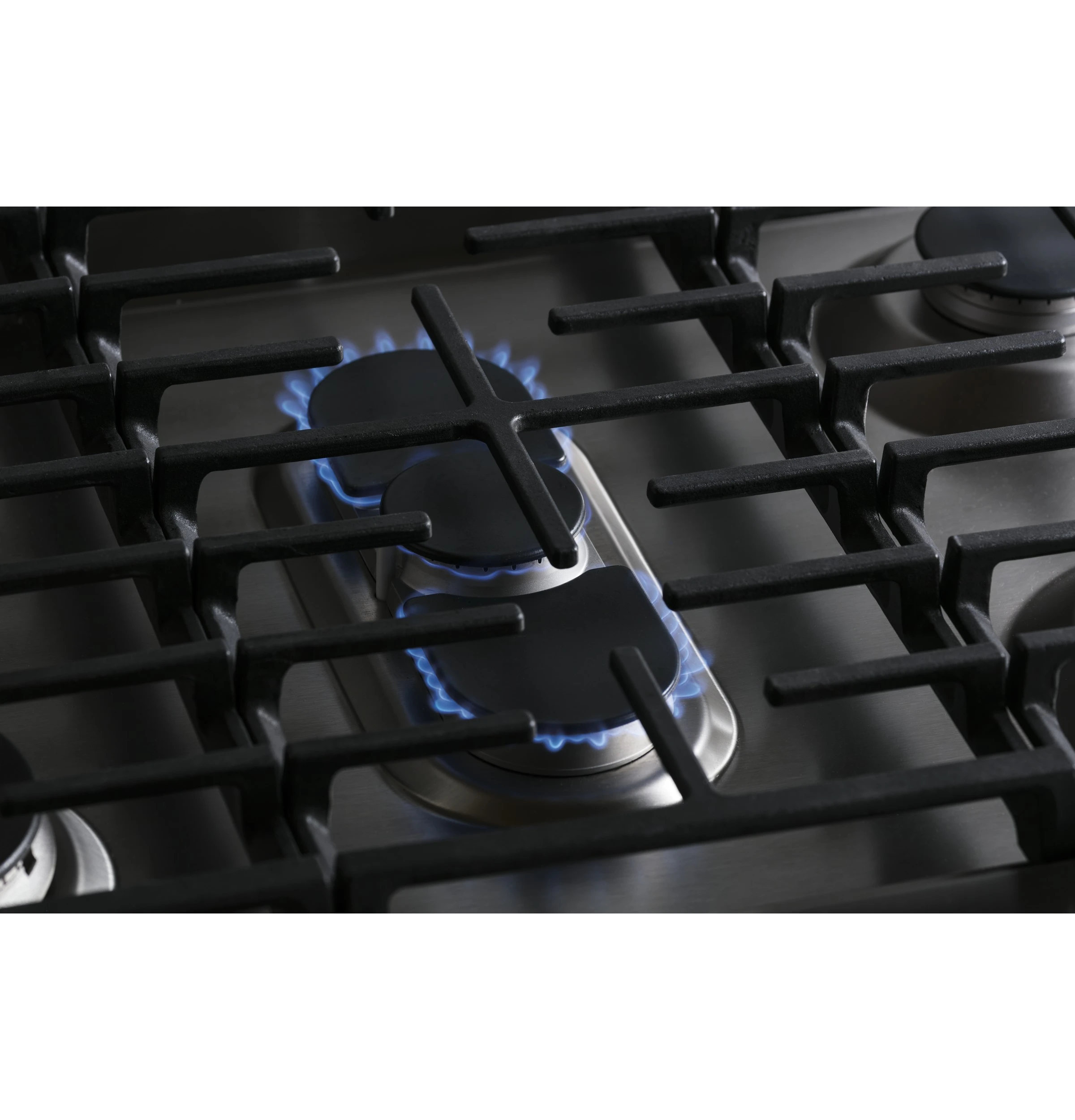

This flexible gas cooktop burner lets you choose between round and oval burner shapes

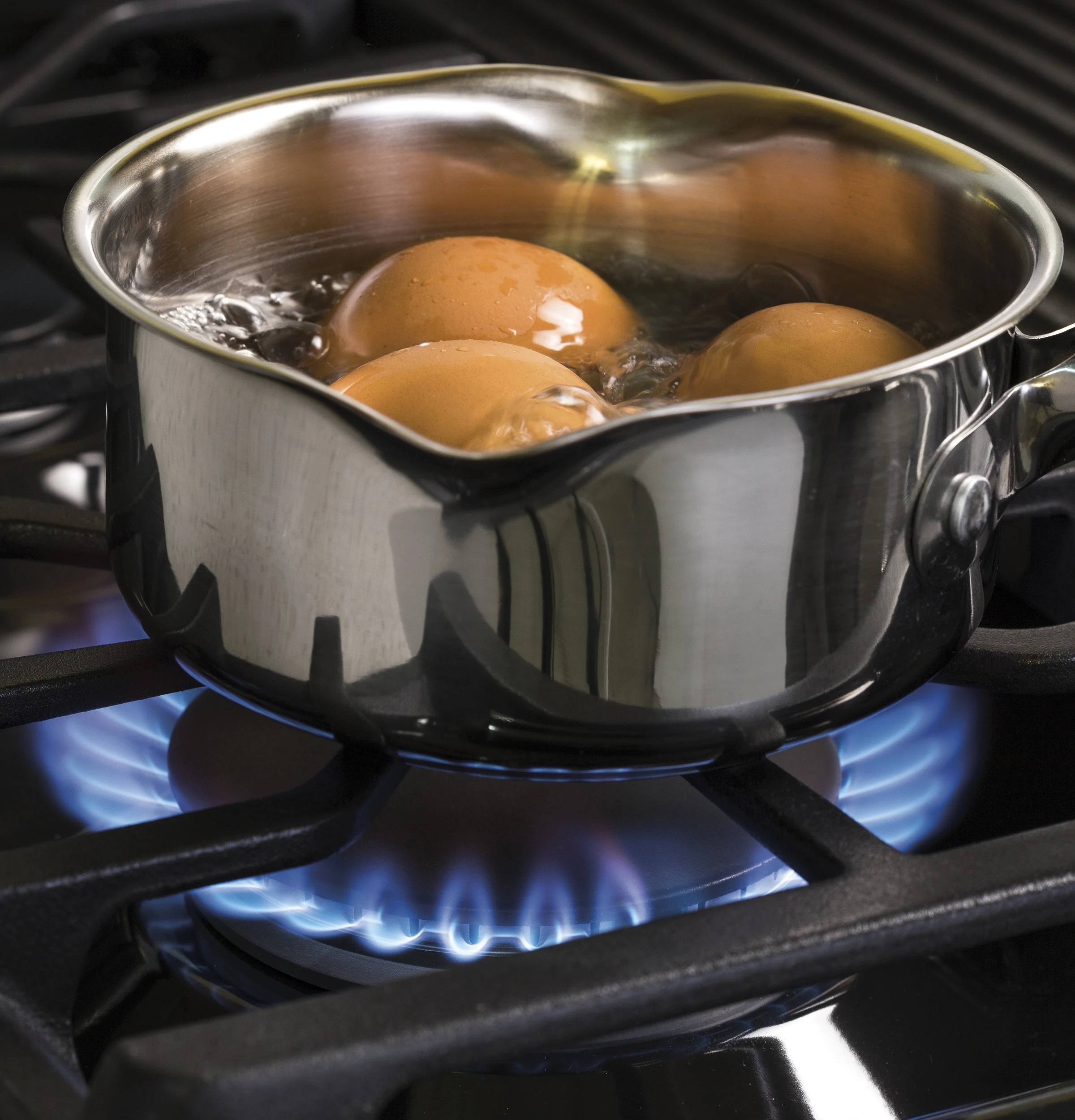

This 15,000-BTU power boil element produces intense heat to boil water fast

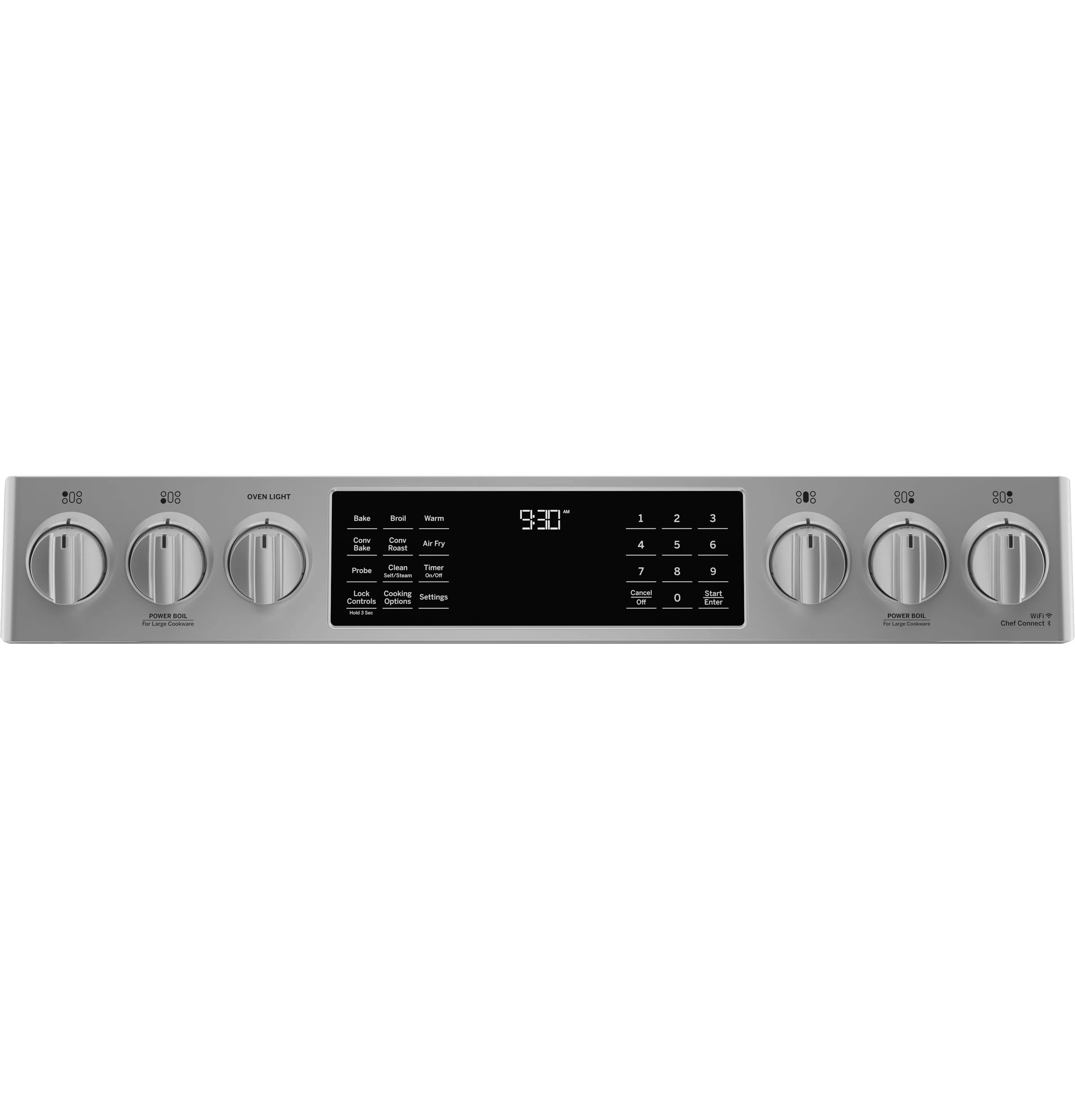

Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched

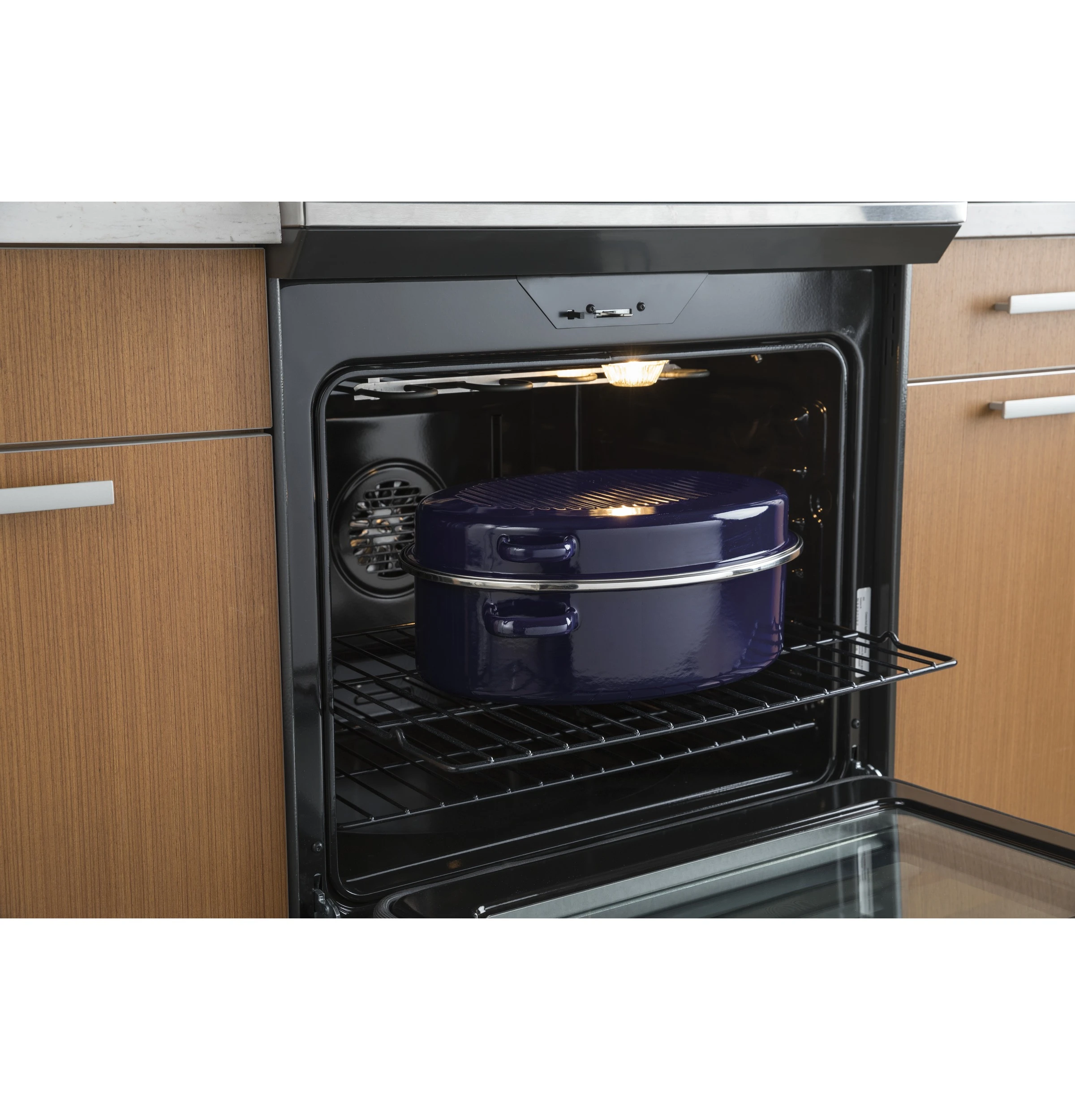

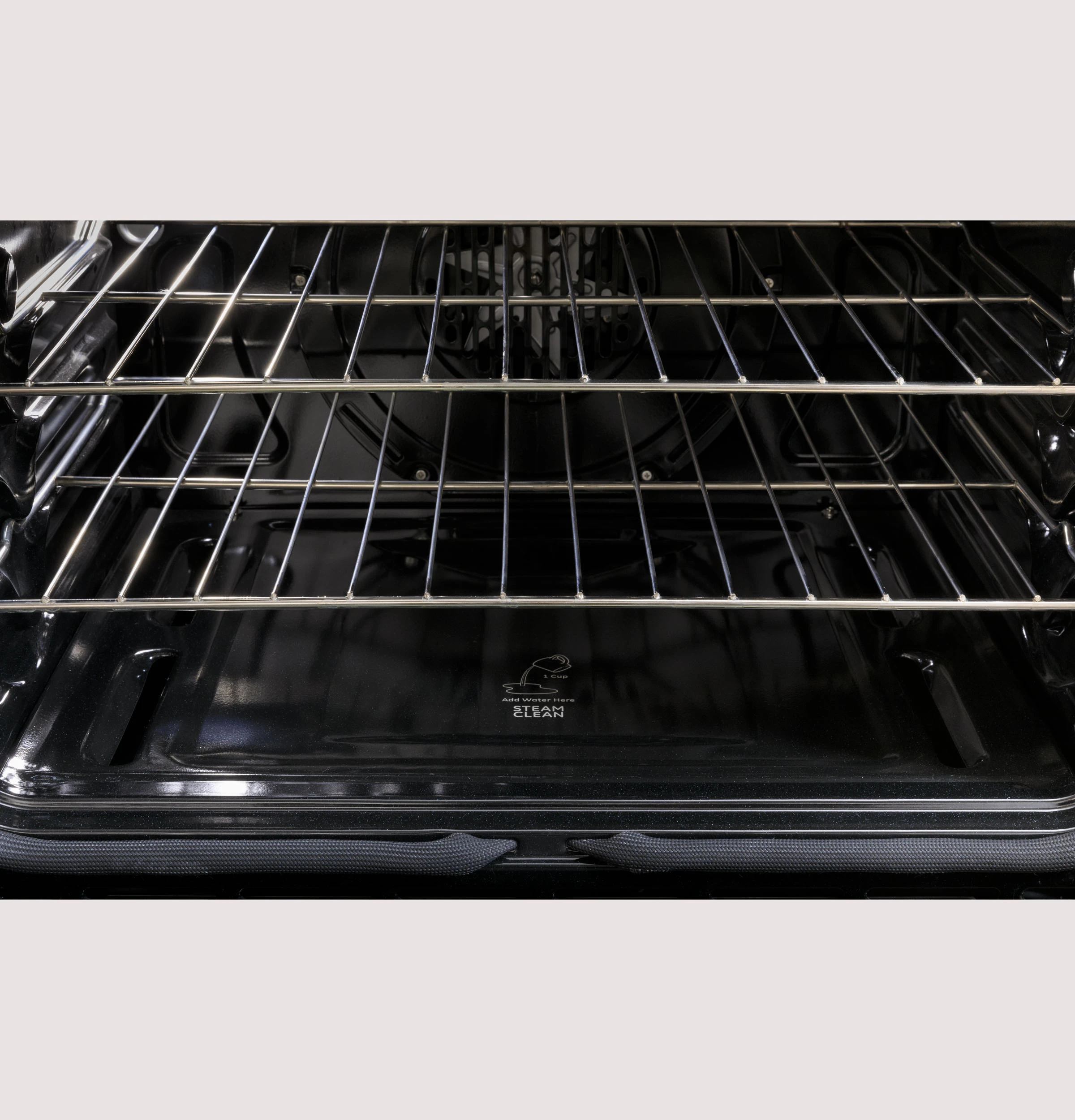

These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

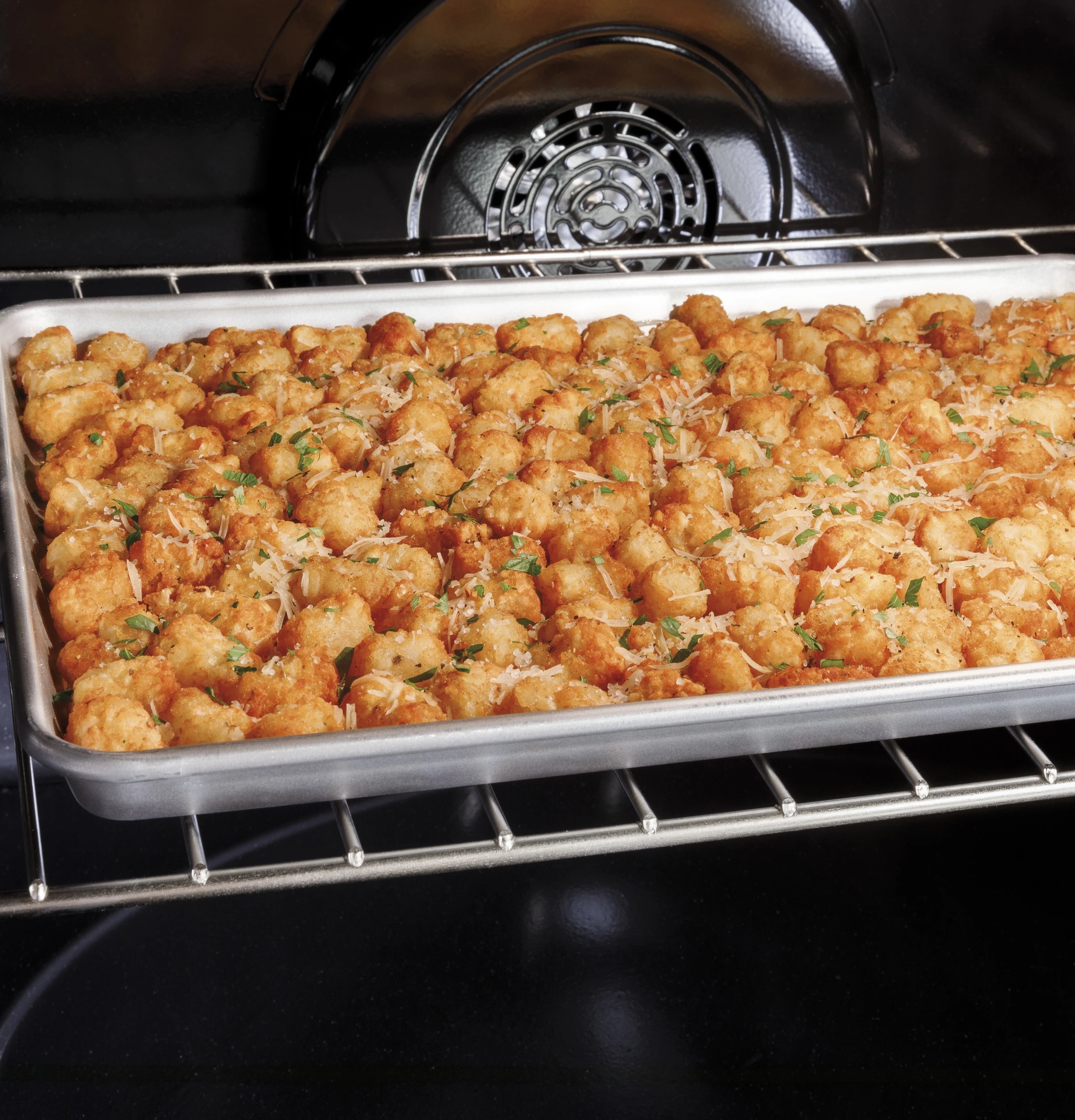

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

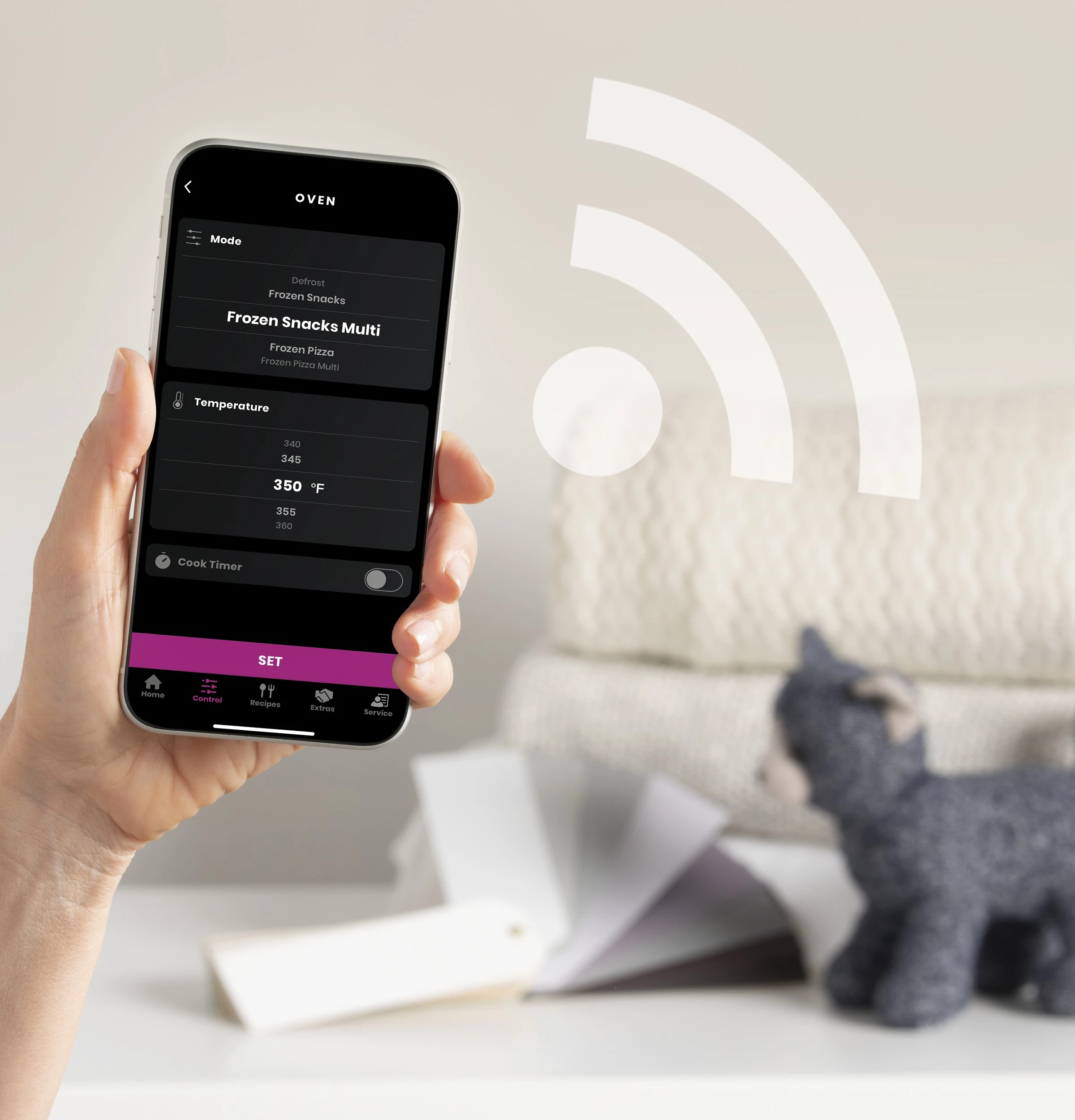

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

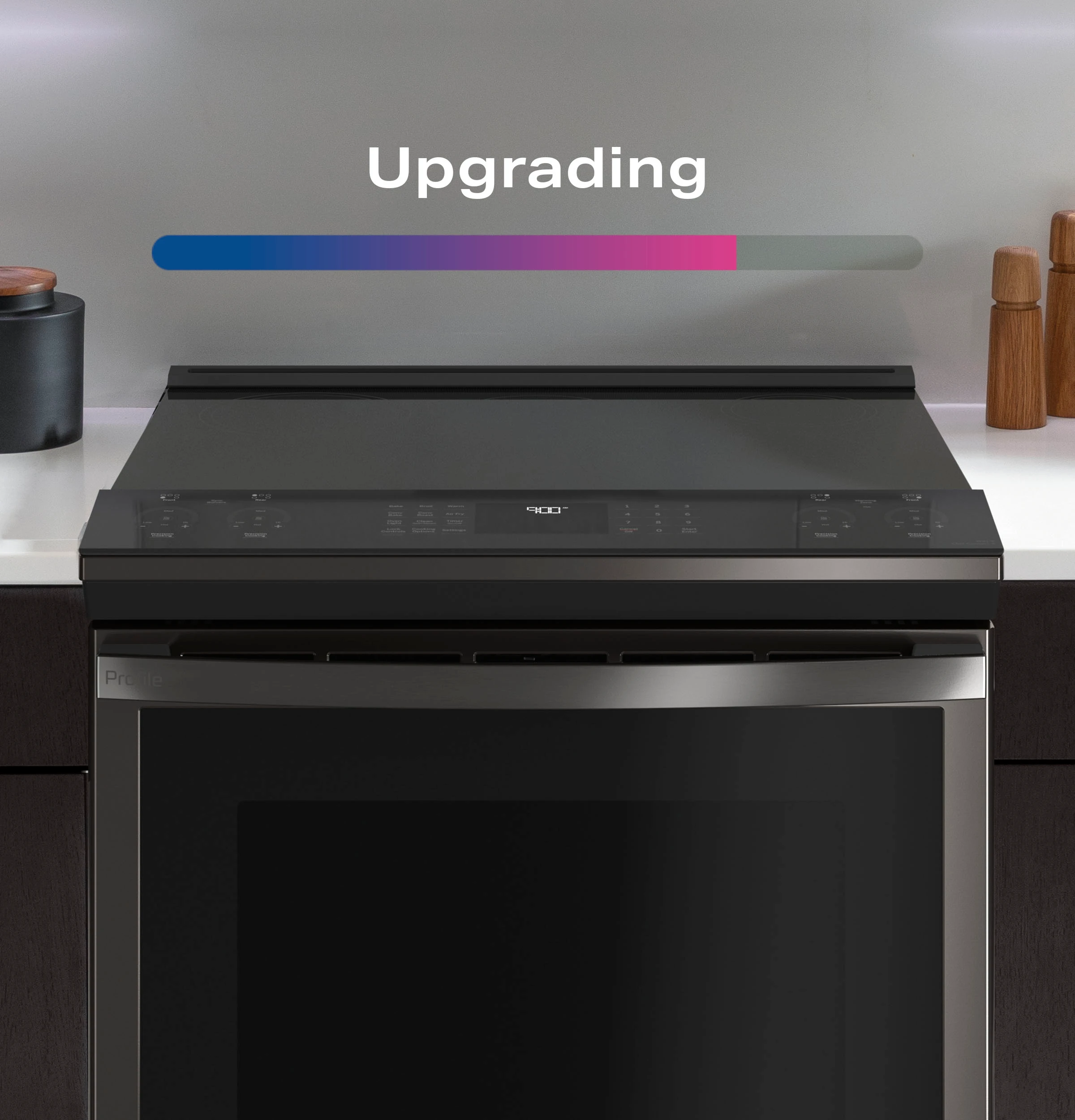

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

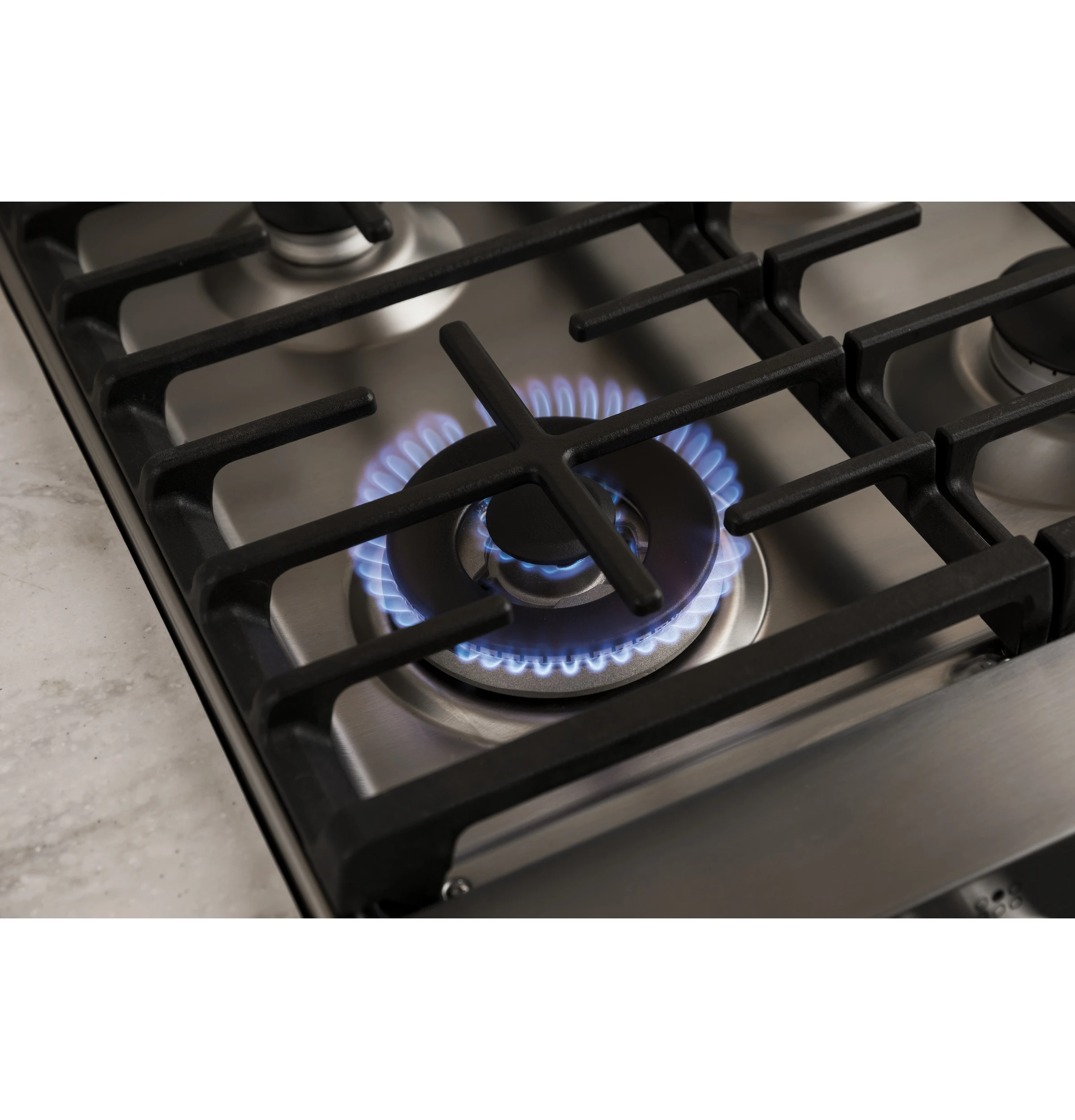

A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one

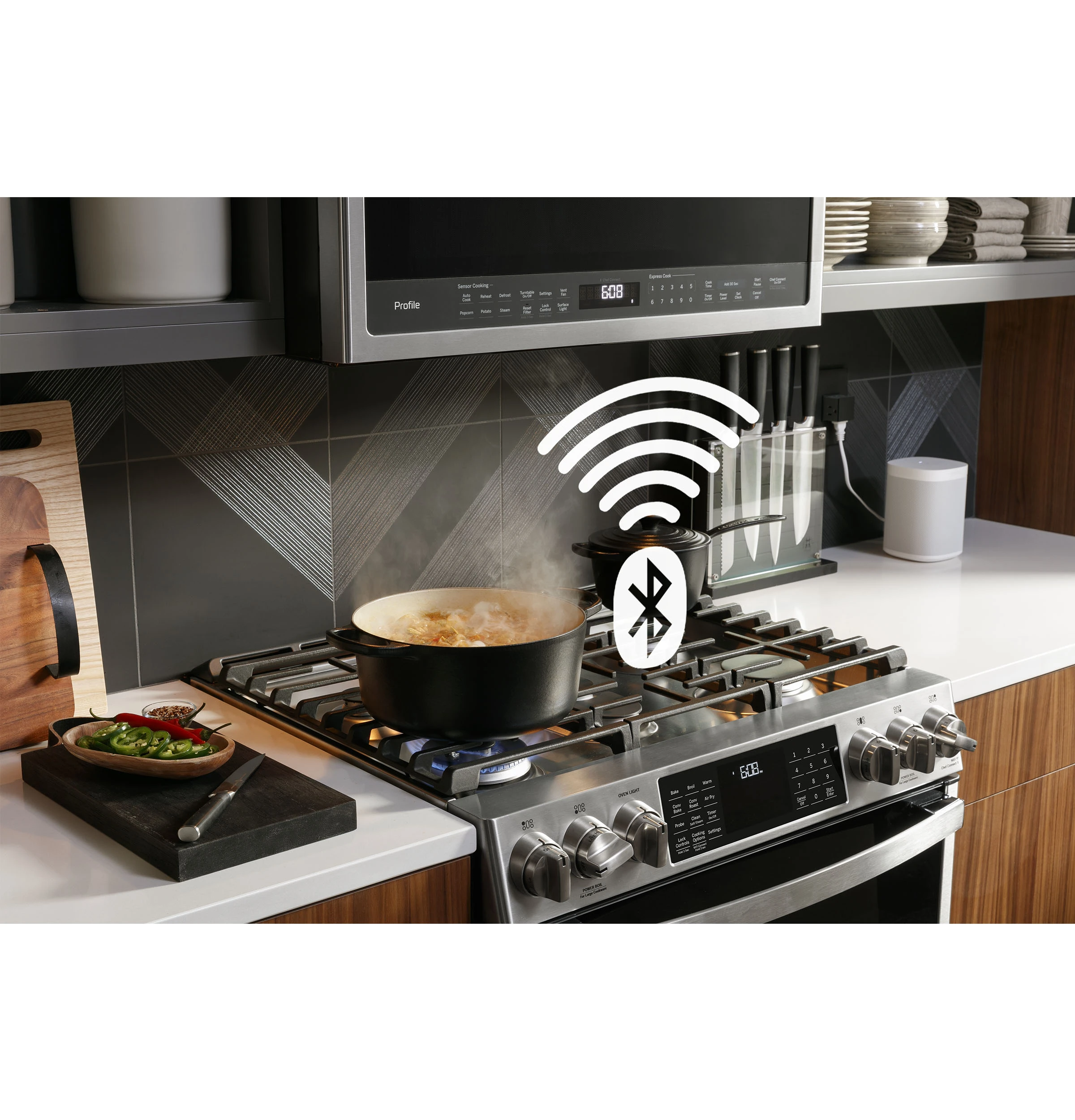

Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect
