SKU: JVW5361FJDS | UPC: 84691828822

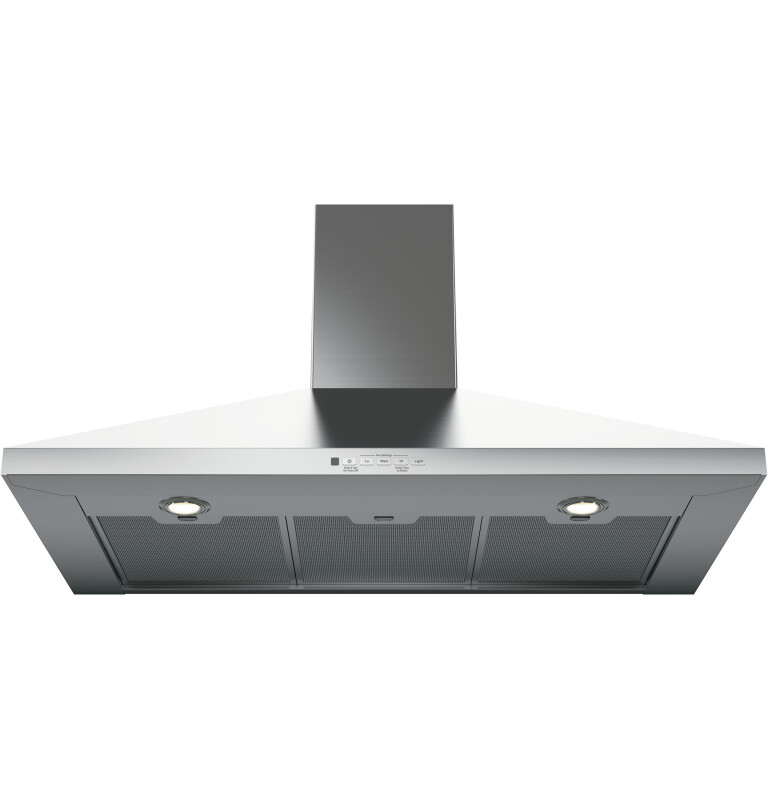

JVW5361FJDS Ge® 36" Wall-mount Pyramid Chimney Hood Fingerprint Resistant Black Slate

Quick Specification More details

Width:
36"
Depth:
18.5"
Height:
9.875"
Type:
Ducted Mount Hoods

About this product

Duct cover included
Easy do-it-yourself Installation
350-CFM venting system with boost
Electronic backlit controls

SKU: JVW5361FJDS | UPC: 84691828822

JVW5361FJDS Ge® 36" Wall-mount Pyramid Chimney Hood Fingerprint Resistant Black Slate

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
18.5"
Height:
9.875"
Type:
Ducted Mount Hoods

About this product

Duct cover included
Easy do-it-yourself Installation
350-CFM venting system with boost
Electronic backlit controls

Product Details for GE APPLIANCES JVW5361FJDS

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Weights & dimensions

Overall Depth	18.5 in
Overall Height	9.875 in
Overall Width	36 in
Cabinet Width	36 in
Net Weight	46 lb
Approximate Shipping Weight	54 lb

Dimensions & weight

Width	36 in.
Height	9.88 in.
Length	18.5 in.
Weight	46 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	41 in.
Shipping Height	14.88 in.
Shipping Length	23.5 in.
Shipping Weight	86 lbs.
Total of Shipping Weight	86 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	3.81 ft³
Dimensional Weight	47.31 lbs.
Total of Cubes	3.81 ft³
Total of Dimensional Weight	47.31 lbs.

Power / ratings

Watts	226
Hertz	60
Electrical Requirements	120V ; 60Hz ; 2.5A
Amp Rating at 120V	2.5

Features

Cooktop Lighting	Halogen
Fan Speed Control	4-Speed
Max CFM	350
Ducting	Vertical Only
Light Controls	On/Off/Night
Filter Cleaning	Dishwasher Safe
Exhaust Options	Vented to Outside
Product Type	Designer Hood
Remote Control	Optional (UXRC70)
6" Round Duct	Yes
Control Type	Electronic Touch
Control Location	Front
Blower Type	Internal
Removable Grease Filter(s)	Yes
CFM/ Sones Rating	340/5.1 (High Speed)
CFM/ Sones Rating	350/6.6 (Boost Speed)
CFM/ Sones Rating	150/1.0 (Working Speed)
Exhaust Options	Recirculating
Cooktop Lighting	1
Control Type	Backlit

Appearance

Blower / Light Switch Color	Backlit
Material	Metal
Color Appearance	Fingerprint Resistant Black Slate

Warranty

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

Economical / quiet

Venting Type

Convertible

Accessories

Optional Accessories	UXDC53FJDS - 10 (ft.) Ceiling Duct Cover Kit
Optional Accessories	UXRC70 - Remote Control
Optional Accessories	UXCF72 - Charcoal Filter
Optional Accessories	UXDC72FJDS - 9 (ft.) Ceiling Duct Cover Kit

Description

Easy do-it-yourself Installation

350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture

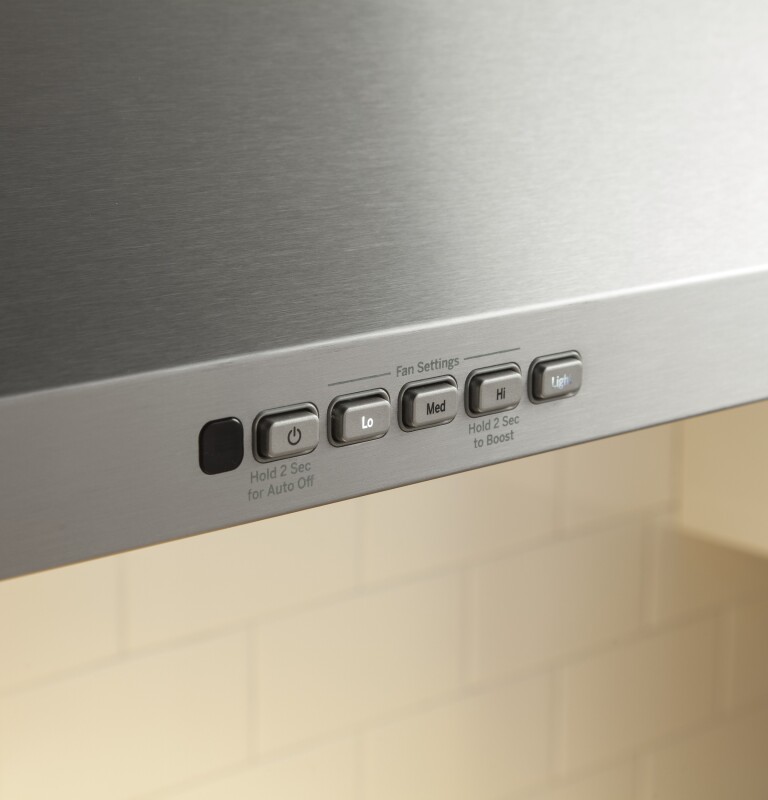

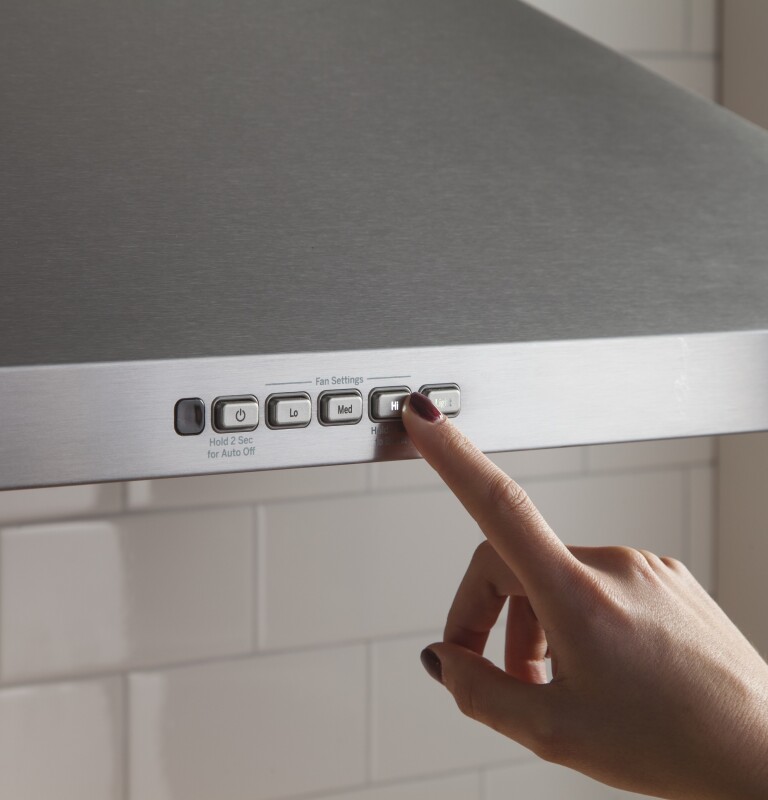

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display

Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface

Night light
Keep a dim light on for visibility at all hours

Convertible venting options
Select recirculating or external venting

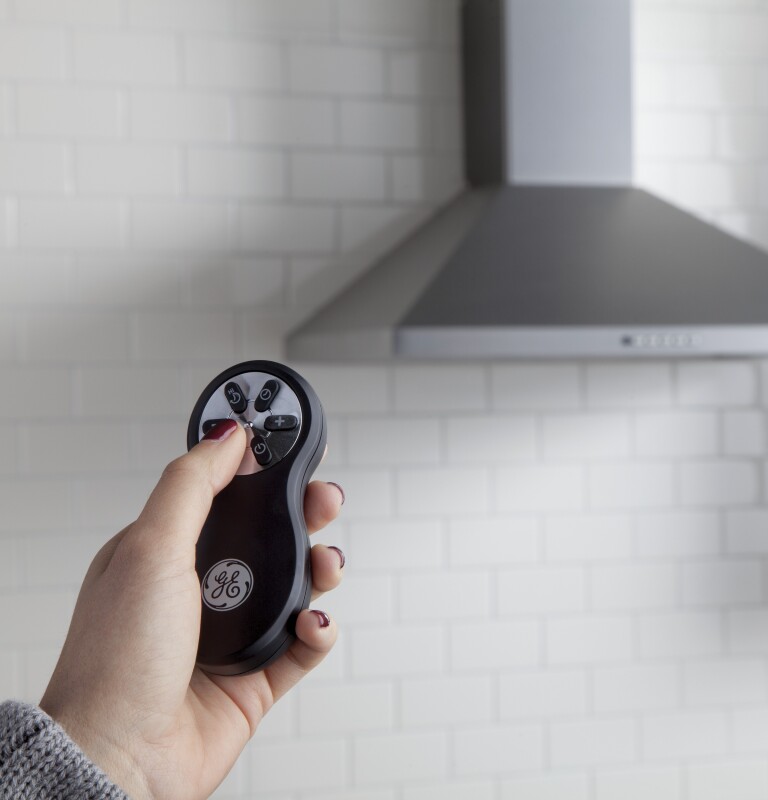

Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen

Auto-off
Set the vent hood to automatically shut off after 15 minutes

Dishwasher safe filter
Filters grease and is dishwasher-safe

Product Features

Duct cover included
Included duct cover reaches up to 9' ceilings and works with optional accessories to reach up to 10' - 8" ceilings
Night light
Keep a dim light on for visibility at all hours
Convertible venting options
Select recirculating or external venting
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Dishwasher safe filter
Filters grease and is dishwasher-safe
