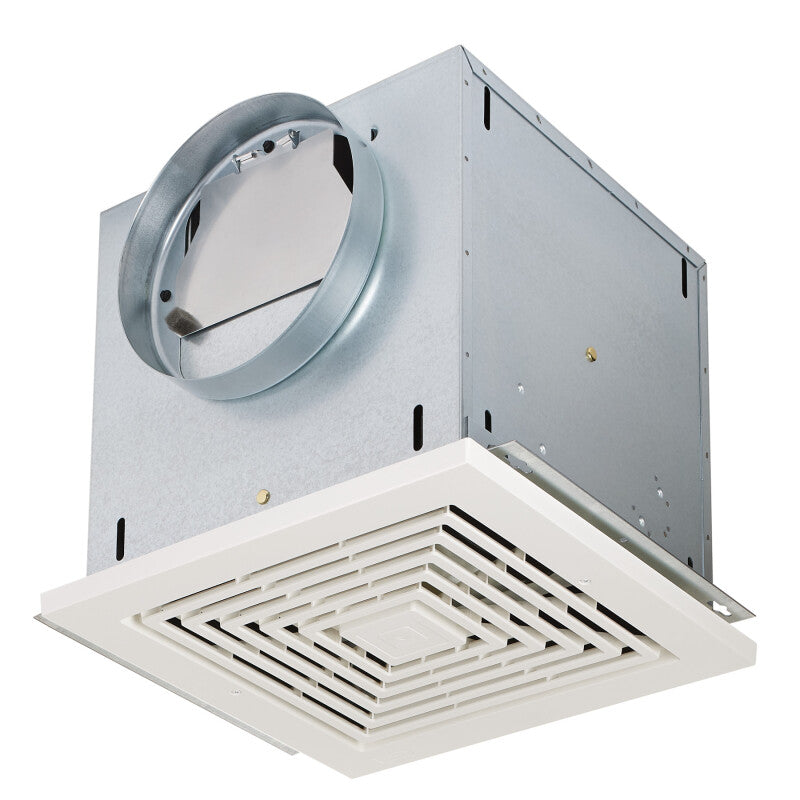

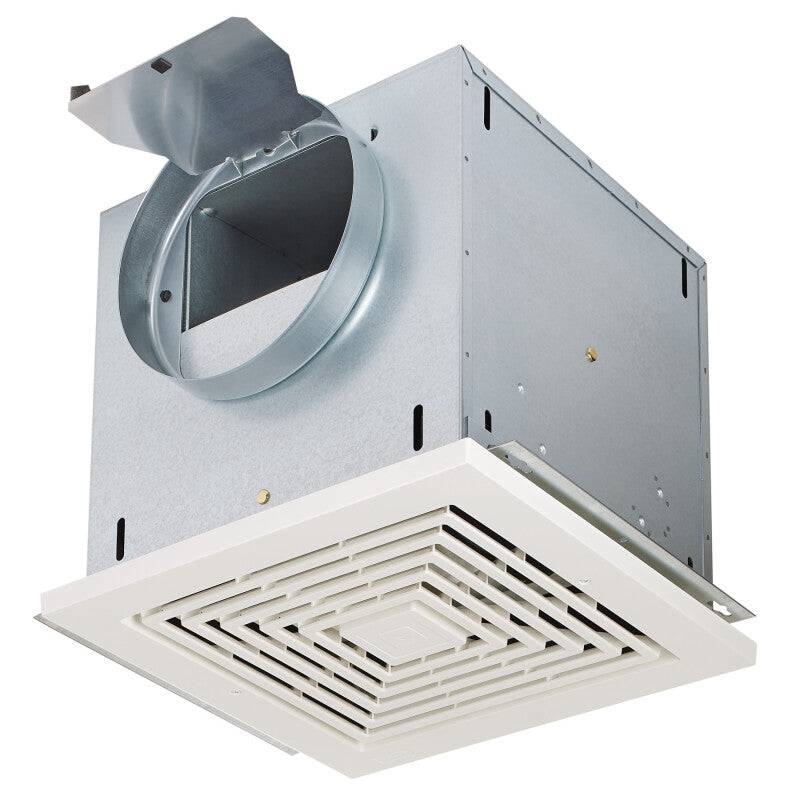

Broan L300E High-Capacity, Light Commercial 310 CFM Ceiling Mount Ventilation Fan, 2.5 Sones certified White
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Product Details for Broan L300E
Technical Details
Product details
| CFM | 310 |
| Duct Size | 8 |
| ENERGY STAR® certified | Yes |
| Grille Length | 14" |
| Grille Width | 14" |
| Sound Level (Sones) | 2.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Rated Amps | 0.7 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |

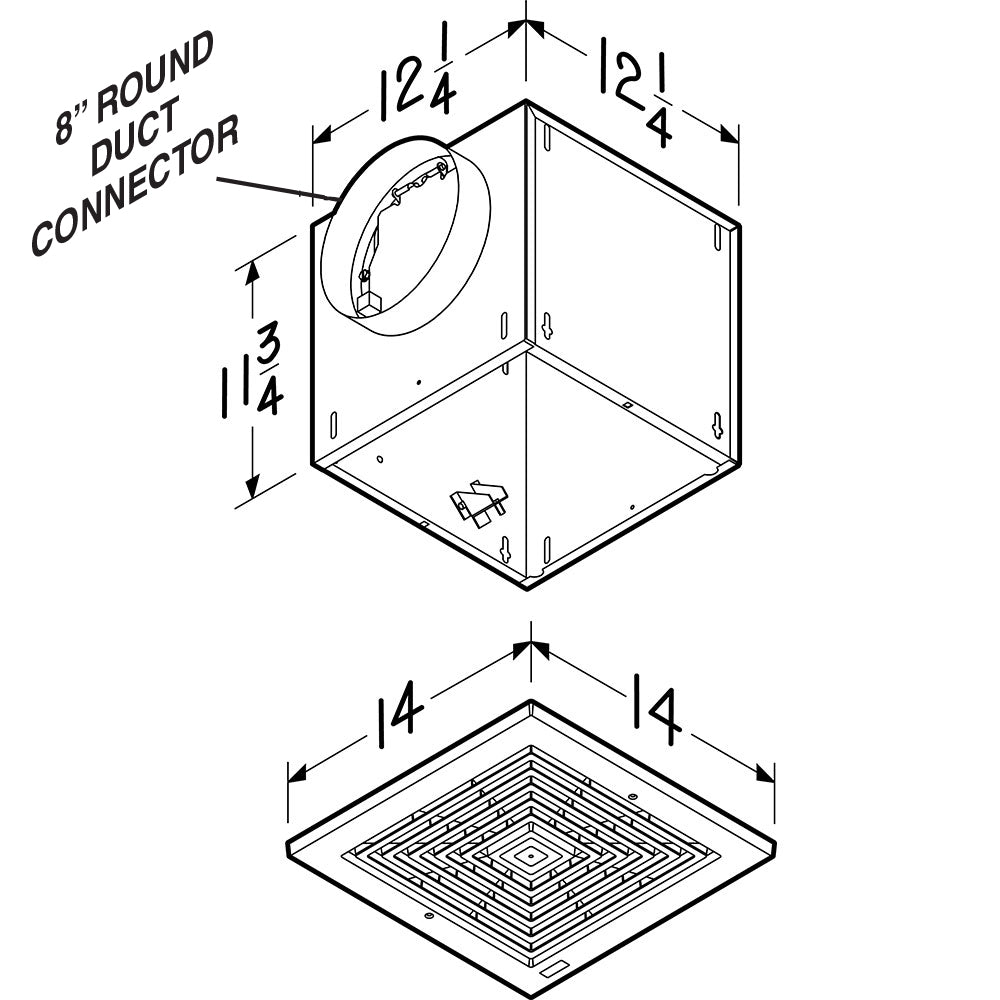

| Housing Dimensions | 12.25” x 12.25” x 11.75” |
Dimensions & weight
| Width | 14 in. |
| Height | 12.25 in. |
| Length | 11.75 in. |
| Housing Dimensions | 12.25" x 12.25" x 11.75" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 17.25 in. |
| Shipping Length | 16.75 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 1.17 ft³ |
| Dimensional Weight | 14.5 lbs. |
| Total of Cubes | 1.17 ft³ |
| Total of Dimensional Weight | 14.5 lbs. |
Description
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
Product Features
- 310 CFM, 2.5 sones ceiling mount commercial ventilation fan
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Duct Horizontally or vertically
- AMCA and HVI air and sound tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- Metal upgrade grille cover available (MG1)
- Radiation Damper available to prevent the spread of fire (Model RD1 sold separately)
- cULus Listed for safety and protection
- Standard 8" round ducting for all ENERGY STAR® certified models
- ENERGY STAR® certified
