Product Details for Broan L100EL
Technical Details
Product details
| CFM | 106 |
| Duct Size | 8 |
| ENERGY STAR® certified | Yes |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |

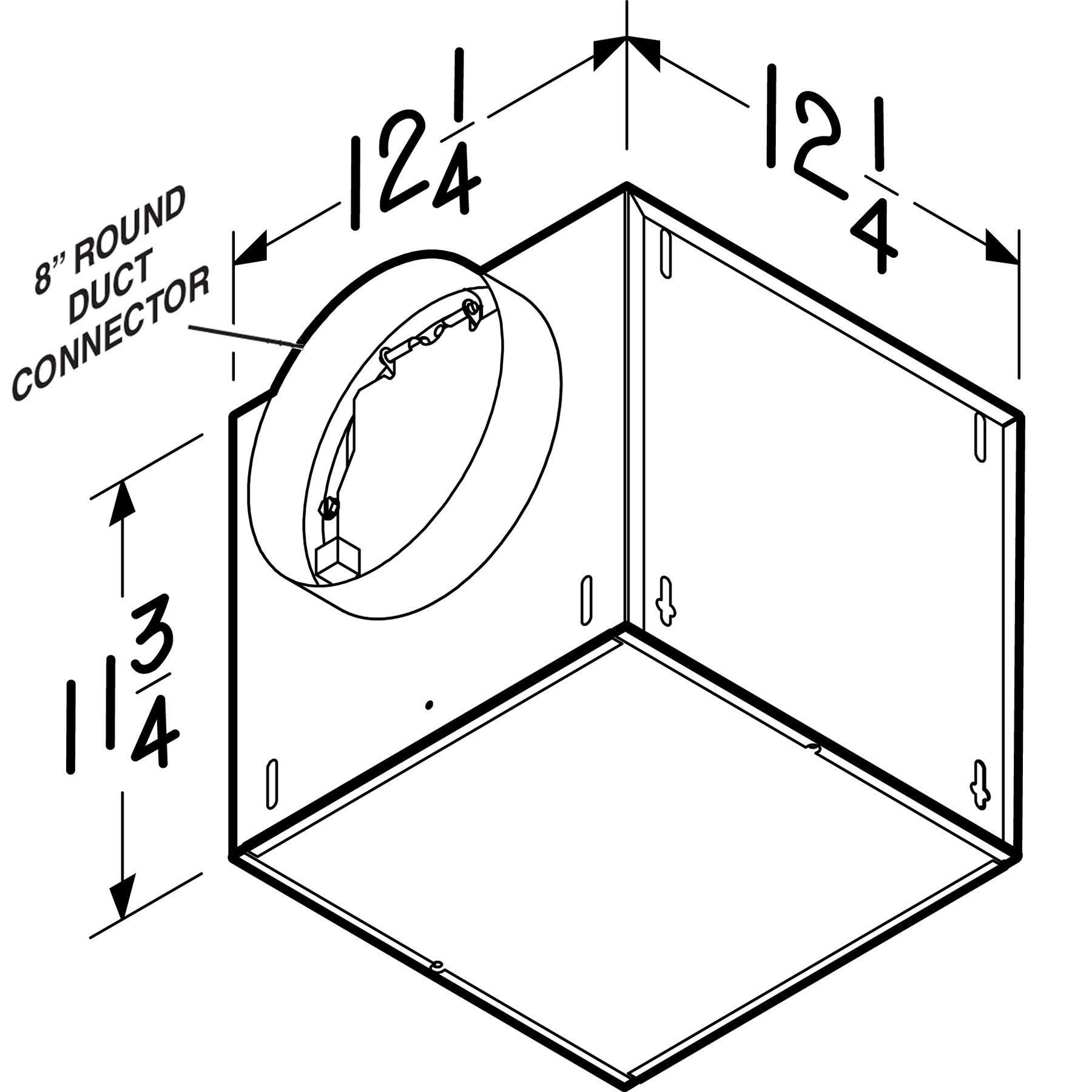

| Housing Dimensions | 12.25” x 12.25” x 11.75” |
Dimensions & weight
| Width | 12.25 in. |
| Height | 12.25 in. |
| Length | 11.75 in. |
| Housing Dimensions | 12.25" x 12.25" x 11.75" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 17.25 in. |
| Shipping Height | 17.25 in. |
| Shipping Length | 16.75 in. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 1.02 ft³ |
| Dimensional Weight | 12.69 lbs. |
| Total of Cubes | 1.02 ft³ |
| Total of Dimensional Weight | 12.69 lbs. |
Description
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
Product Features
- 106 CFM InLine commercial ventilation fan
- AMCA and HVI air tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- cULus Listed for safety and protection
- Standard 8" round ducting for all ENERGY STAR® certified models
- ENERGY STAR® certified
