Product Details for BOSCH HBL5754UC

Technical Details

General

Included Accessories 1 x oven racks /lower
Cooking Modes Convection, Combined Operation, Microwave, Convection Multi-Rack, Max Convection Broil, Broil, Warm
Total Number of Cooking Modes Secondary Cavity 11
Location of secondary cavity Bottom
Total Number of Cooking Modes Primary Cavity 28
Cooking Modes Second Cavity Proof, Half width broil, Roast, Convection Roast, Bake, Convection Bake, Pizza, Convection Multi-Rack, Convection Broil, Broil, Warm
Cavity Capacity 1.6 Cu Ft
Cavity Capacity Second Cavity 4.6 Cu Ft
Rotisserie no
Telescopic Rails yes
Steam Technology Not Applicable
Color Stainless Steel
Number of Cooking Modes 28
User Interface White LED, touch control
Cleaning System No
Door Options Standard Drop Down
Sensors Not Applicable
Cooking Modes Combinable with Steam Function Not Applicable
Water Intake Not Applicable
Cooking Modes that Combine with Microwave Function Not Applicable

Design

Door Color Material Stainless Steel, Black
Door Options Standard Drop Down
Door Opening Drop Down
Handle type Bow handle
Type of Control Rotary control, Touch Control

Size and weight

Product Packaging Dimensions (HxWxD) 55 3/4'' x 34'' x 31 1/2''
Overall Appliance Dimensions (HxWxD) (in) 49'' x 29 3/4'' x 23 1/2''
Required Cutout Size (HxWxD) (in) 45 5/8'' x 28 1/2'' x 23 1/2''
Net Weight 258.000 lbs
Cavity Capacity 1.6 Cu Ft

Technical specifications

Power Cord Length 60''
Volts 208-240 V
Watts 8400 W
Fuse protection 40 A

Comfort and convenience

Rotisserie no
Fast Pre-Heat no
Hotair 3D (even heat distribution on up to three levels)
Soft close door no
Cleaning System No
ADA Compliant (When Installed to ADA requirements) no
Sabbath Mode yes
Sensors Not Applicable

Dimensions & weight

Width 29.75 in.
Height 49 in.
Length 23.5 in.
Weight 270 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 54 in.
Shipping Length 28.5 in.
Shipping Weight 310 lbs.
Total of Shipping Weight 310 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.82 ft³
Dimensional Weight 246.45 lbs.
Total of Cubes 19.82 ft³
Total of Dimensional Weight 246.45 lbs.

Description

The Bosch Combination Wall Oven combines your favorite tools into one appliance. The lower oven is a convection oven, roaster, warming drawer and more.

Key Features

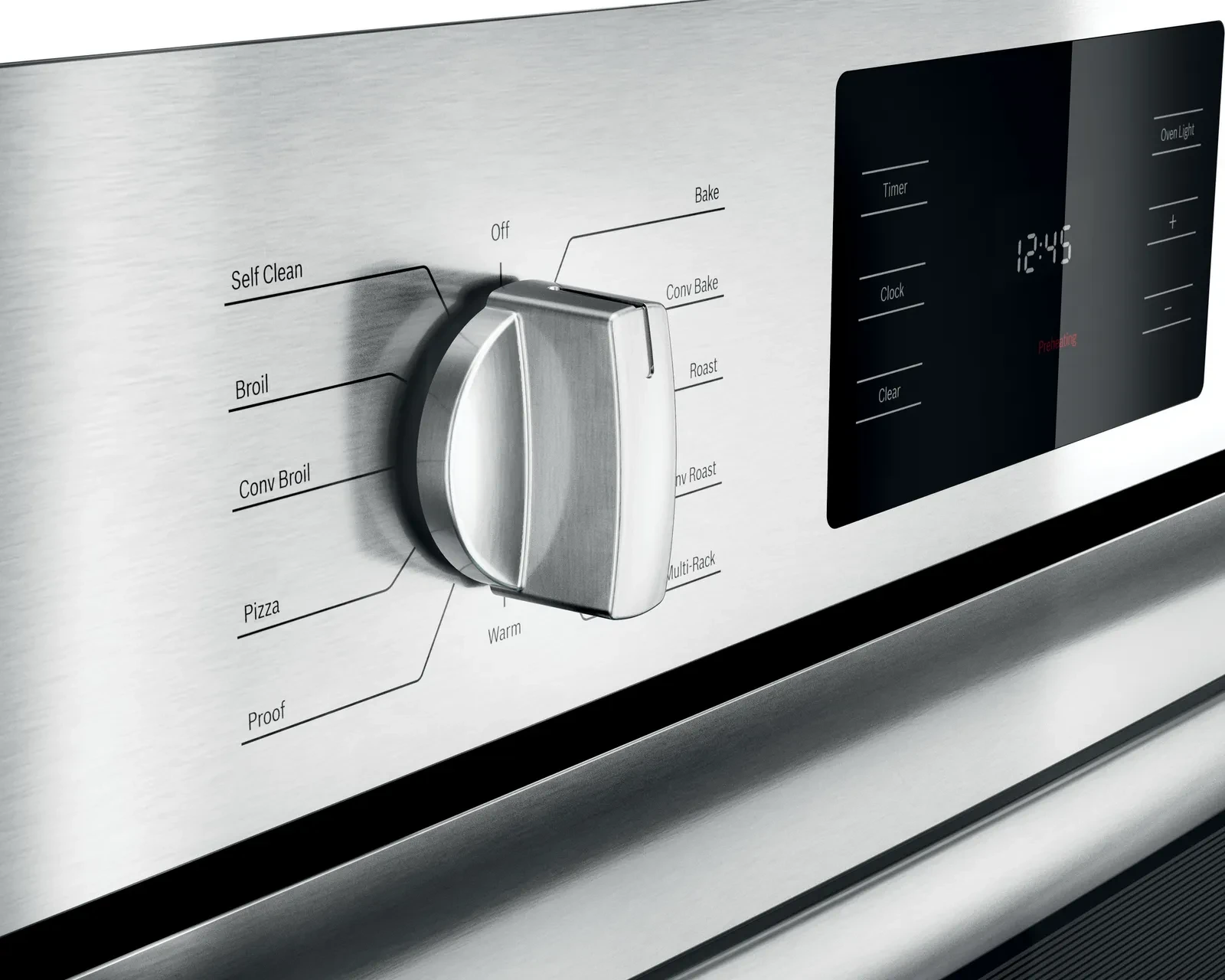

Metal knobs for stylish control

Ovens feature heavy duty metal knobs for temperature changes and cooking modes.

Flexible cooking with two types of ovens

A combination wall oven is the most versatile cooking option for those who want to customize their oven suite. The lower oven is a standard wall oven, while the upper oven option is up to you. Depending on your cooking habits and lifestyle, you can choose from an upper steam oven, speed oven, or microwave.

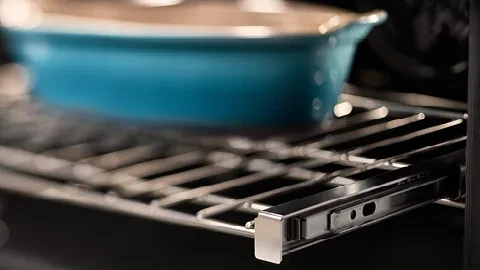

Support heavy dishes with a Telescopic Rack

The telescopic rack moves smoothly and supports heavy dishes and casserole pans with ease, making it effortless to pull out the racks.

Grill inside with the Broil mode

Broil mode uses intense heat radiated from the upper element and delivers the perfect char, sear, and grill without the mess. It is perfect for meats and bubbling crusts on casseroles.

Convection Multi-Rack (Convection Pro) for even baking on all racks

Convection Multi-Rack has a third heating element and a fan (regular Convection only has two heating elements) evenly circulates air around the cavity so you get consistently even golden results.

Pizza Mode with intense heat

Pizza mode mimics the intense heat of a pizza oven to deliver artisanal pies in your kitchen. Heat from the upper and lower elements is circulated throughout the oven by the convection fan.

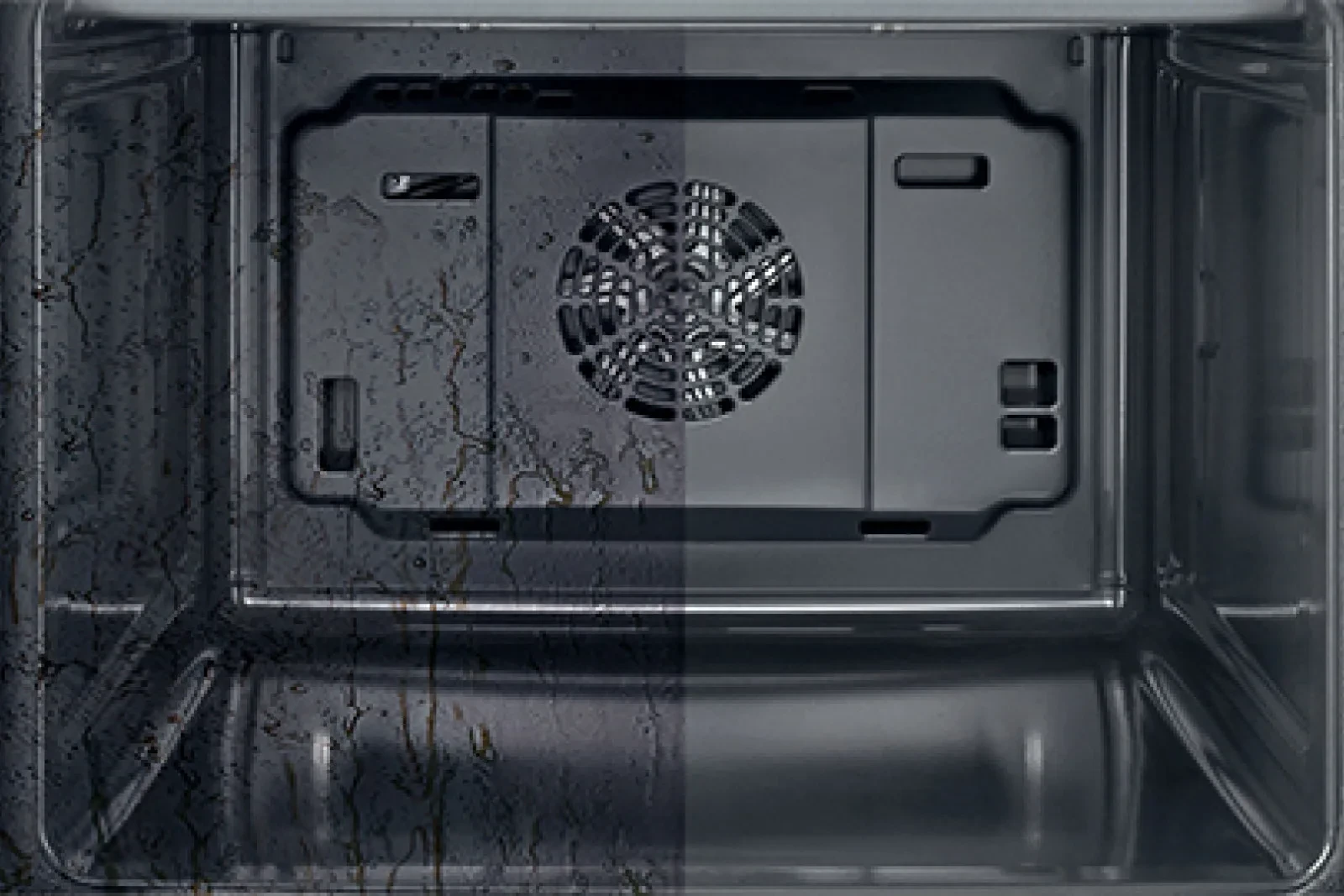

Self-Clean Mode for convenience

With all the cooking you'll do in a Bosch oven, clean-up should be your last worry. Our wall ovens have a 2, 3 or 4 hour self-clean cycle, for the ultimate convenience.

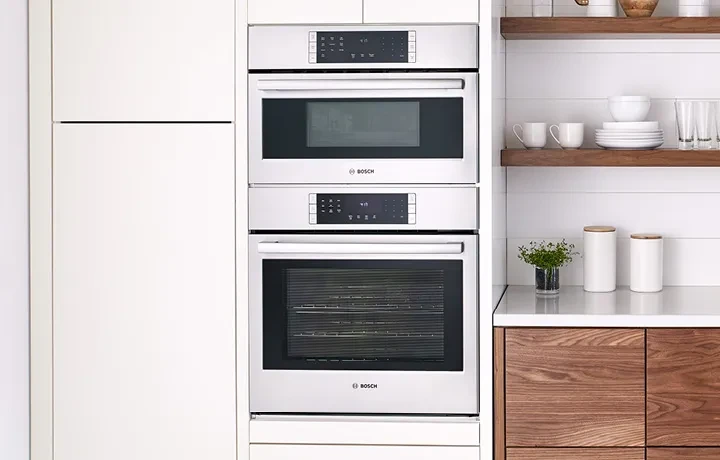

Fully flush installation

All Bosch wall ovens install completely flush with your cabinetry, so they blend in beautifully and never protrude.
