Sale price $1,900.00 Regular price $2,337.64 Save $437.64 / 18% OFF

Product Details for Summit SCR1841BPNRADA

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.5
Nominal Width 7.09
Width 6.99
Nominal Depth 9.45
Depth 9.25
Depth with door at 90(degree) 15.65
Capacity 2.7
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0
Amps 2.0
Voltage/Frequency 115
Weight 85.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101073668

Refrigerator features

Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Sound Level 34.2

Dimensions

Interior Height 8.46
Interior Width 5.02
Interior Depth 6.59
Compressor Step Height 1.87
Compressor Step Width 5.02
Compressor Step Depth 1.77

Features

  • 32" height is designed to fit under lower ADA compliant counters

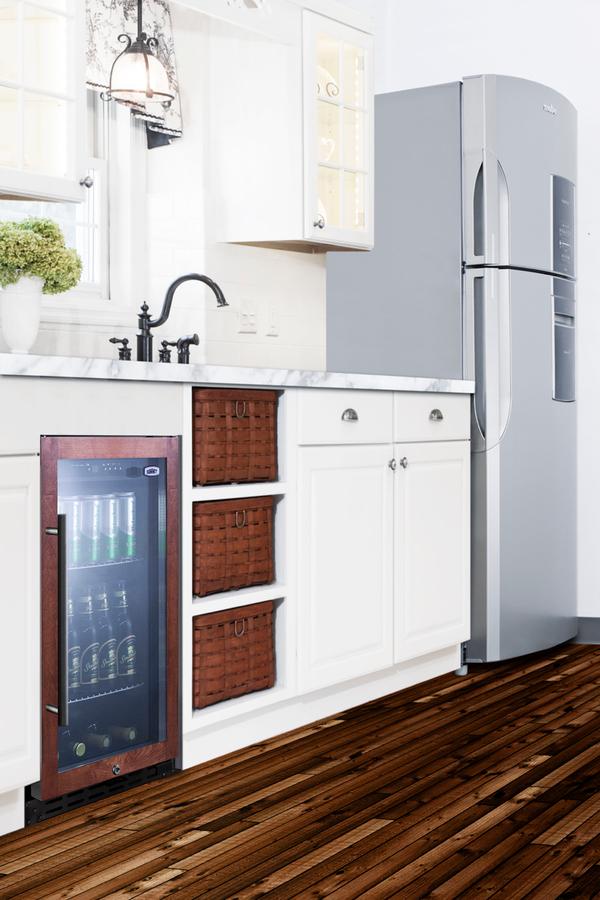

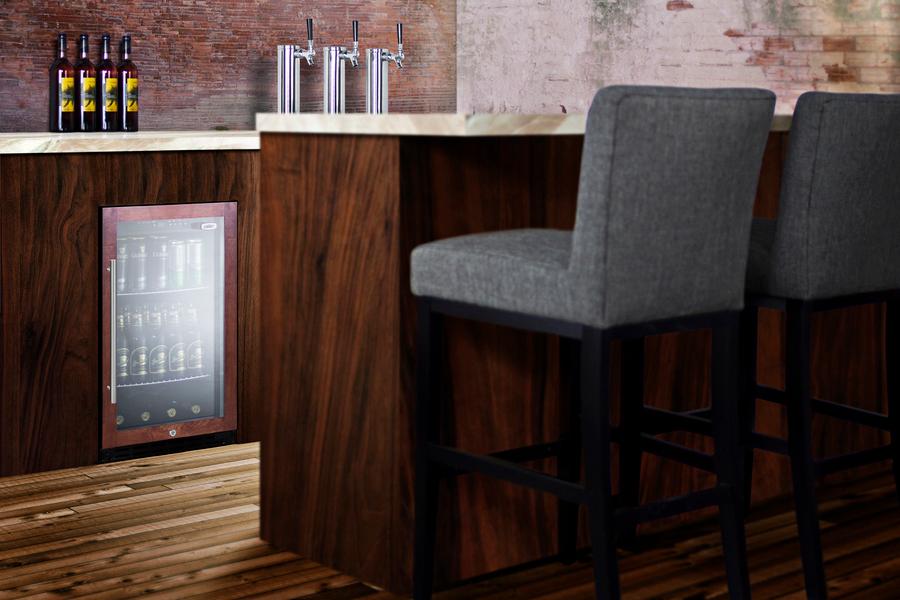

  • Make the best use of space by installing your appliance under the counter
  • ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

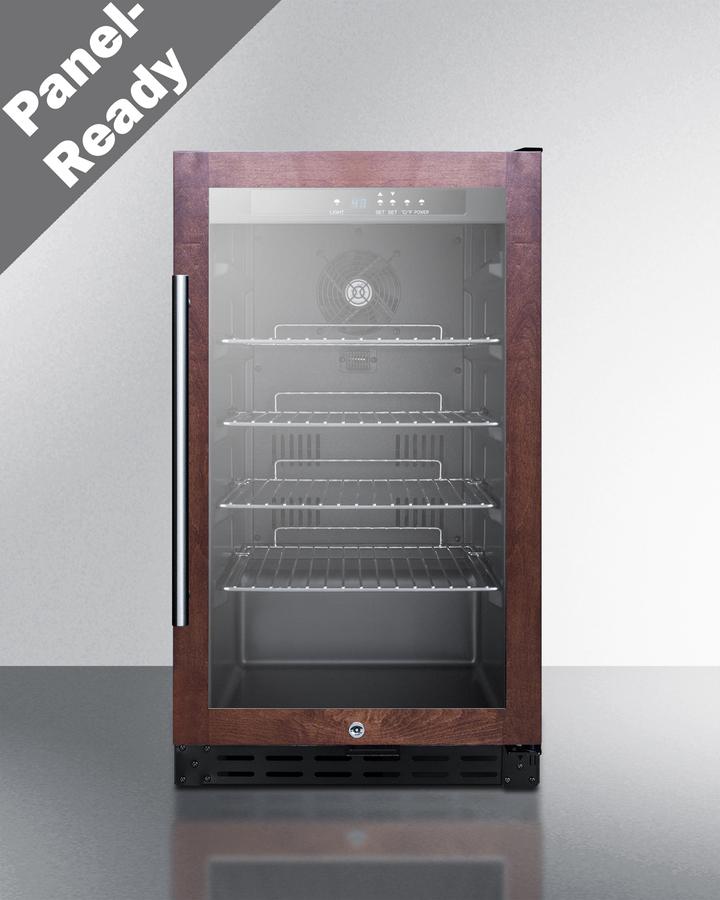

  • Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
  • Double pane tempered glass to provide an elegant display with added protection
  • Keyed security on the door

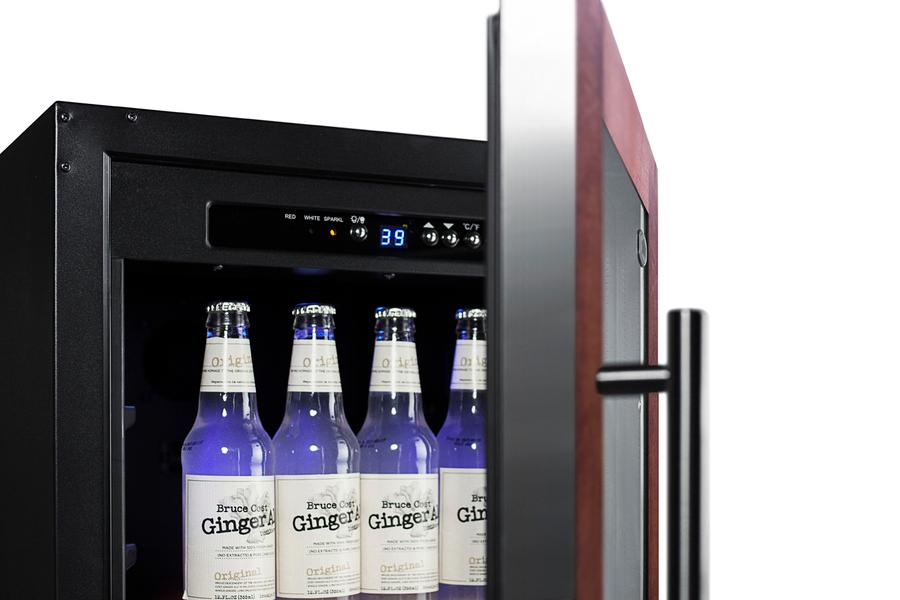

  • Electronic controls for precise temperature management.
  • Temperature readout can be shown in Celsius or Fahrenheit
  • Gentle illumination with an on/off switch
  • Reduced maintenance with the convenience of auto defrost
  • Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
  • Space saving design
  • Allows the unit to be used freestanding
  • Environmentally friendly design with no ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

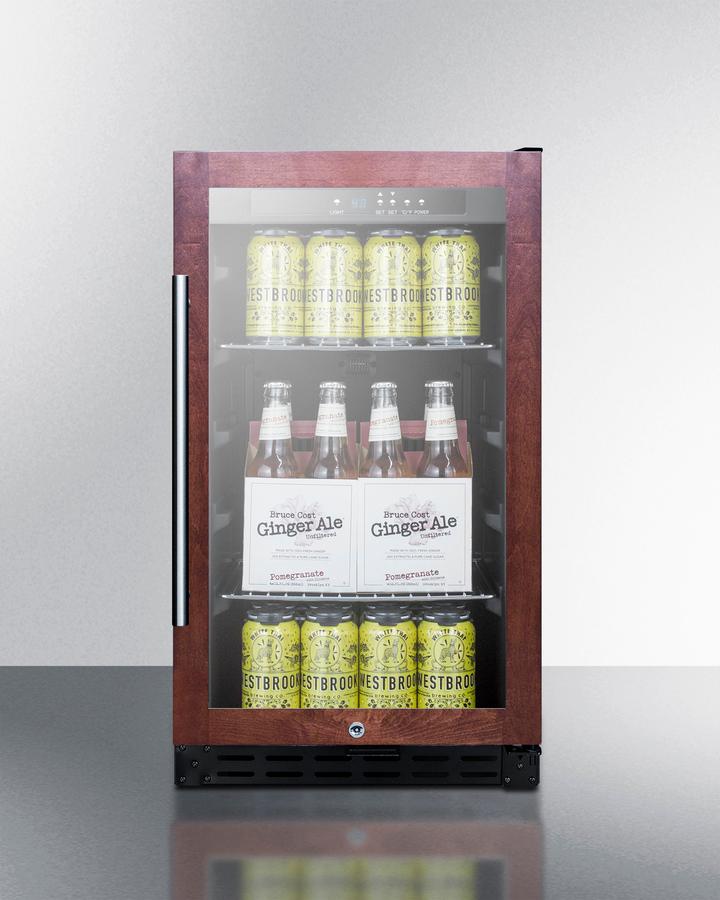

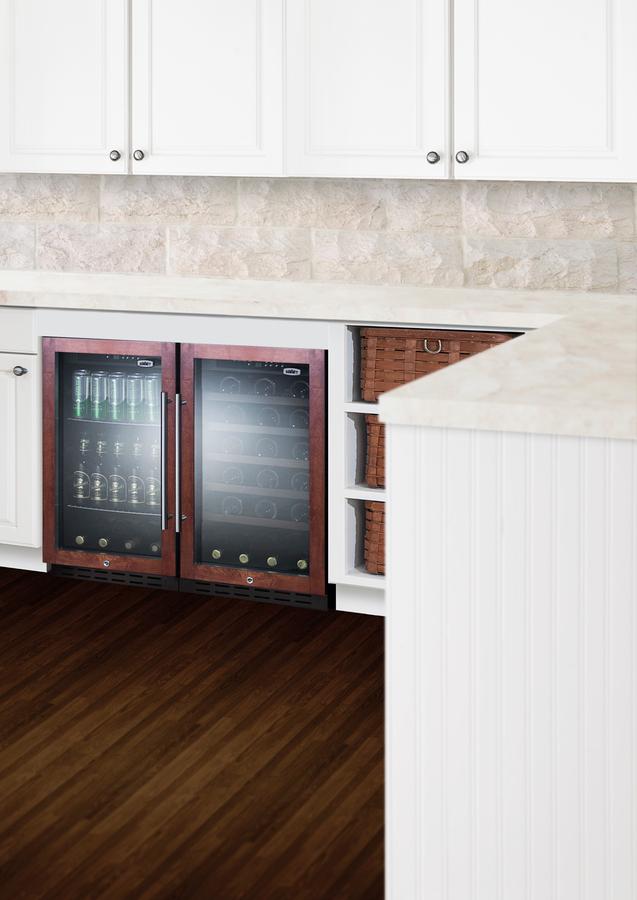

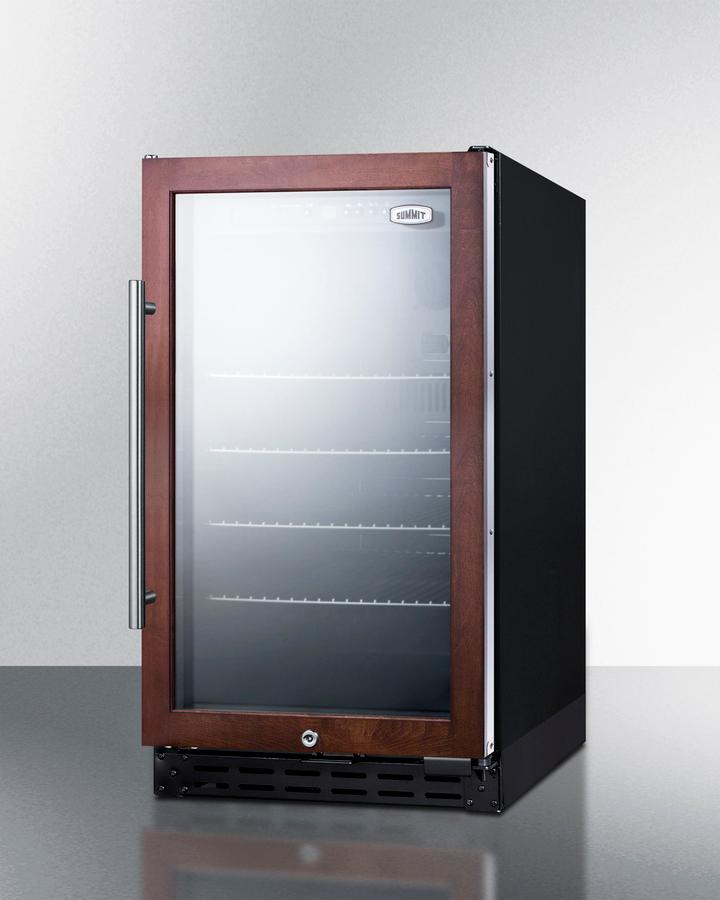

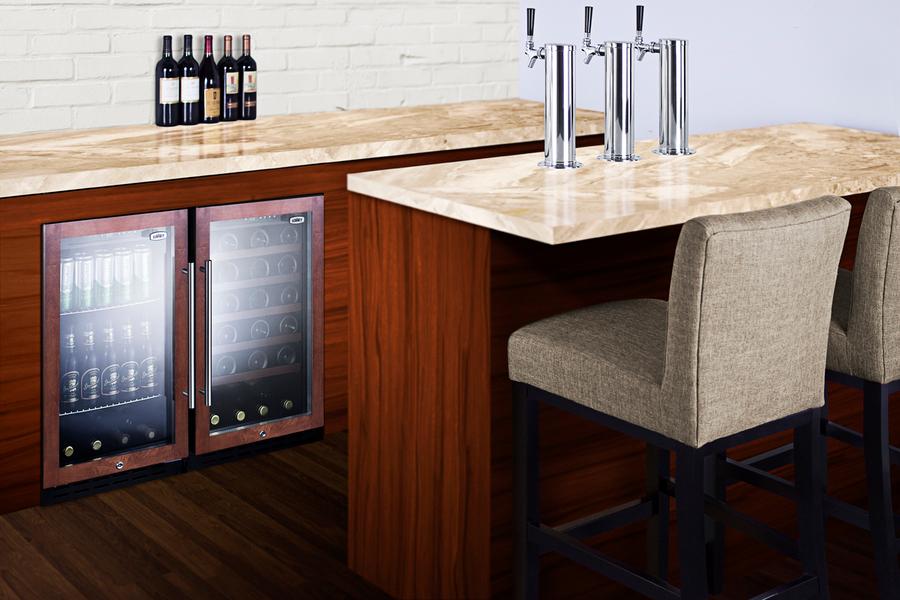

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting. The SCR1841BPNRADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD. Users provide their own handle. Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BPNRADA can be paired with our matching wine cellar, see the SWC1840BPNRADA. For this unit in a counter height, see the SCR1841BPNR. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
