Sale price $3,532.79 Regular price $4,170.00 Save $637.21 / 15% OFF

Product Details for Summit NOVA53PDC

Technical Details

Overview

Nominal Height 18.11
Height of Cabinet 17.91
Nominal Width 24.02
Width 23.92
Nominal Depth 11.02
Depth 10.73
Capacity 17.8
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 4.2
Voltage/Frequency 115
Weight 190.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101060187

Freezer

Door Swing Sliding
Interior Height 10.24
Interior Width 21.46
Interior Depth 8.27
Thermostat Type Digital
Refrigerant Type R290
Refrigerant Amount 3.17
High Side PSI 345.0
Low Side PSI 140.0
Wheels 4
Compressor Step Height 3.84
Compressor Step Width 3.1
Compressor Step Depth 8.27
Temperature Range -13

Features

  • UL-S listed to NSF-7 Standards for use in commercial establishments

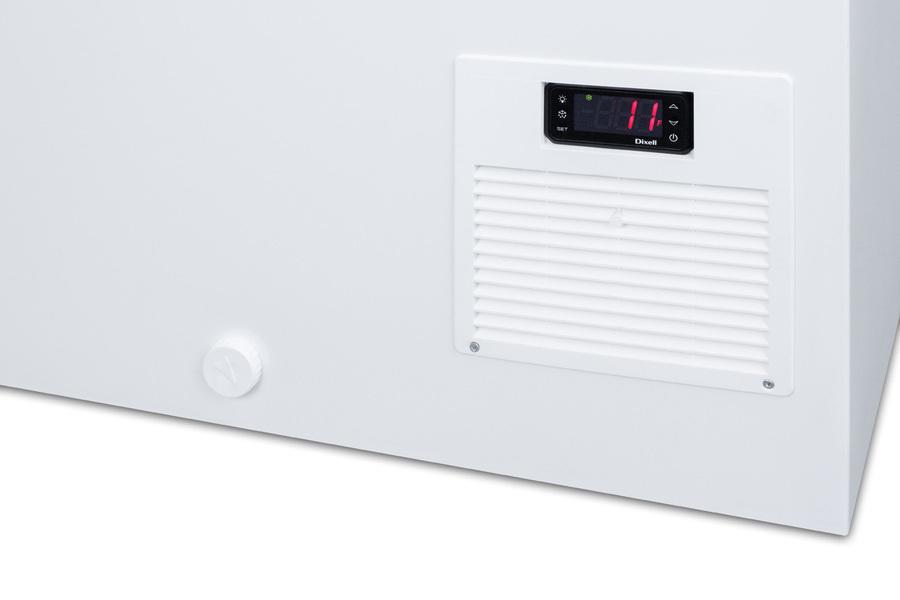

  • Electronic controls for precise temperature management
  • Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats
  • Durable polycarbonate sneezeguard is pre-installed

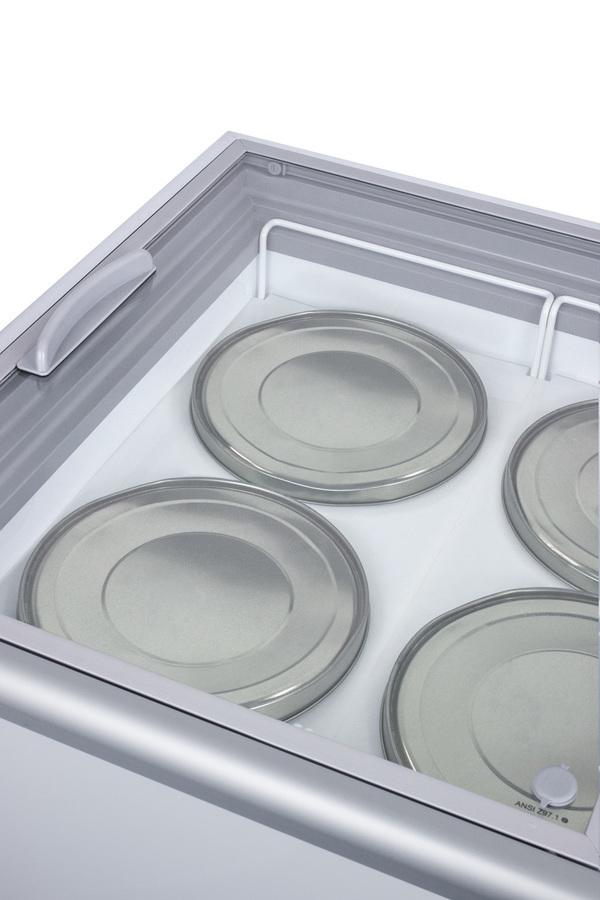

  • Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
  • Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets
  • 3" thick insulation helps to ensure items stay cold
  • Heavy duty wheels for smooth mobility (ship unassembled)
  • Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

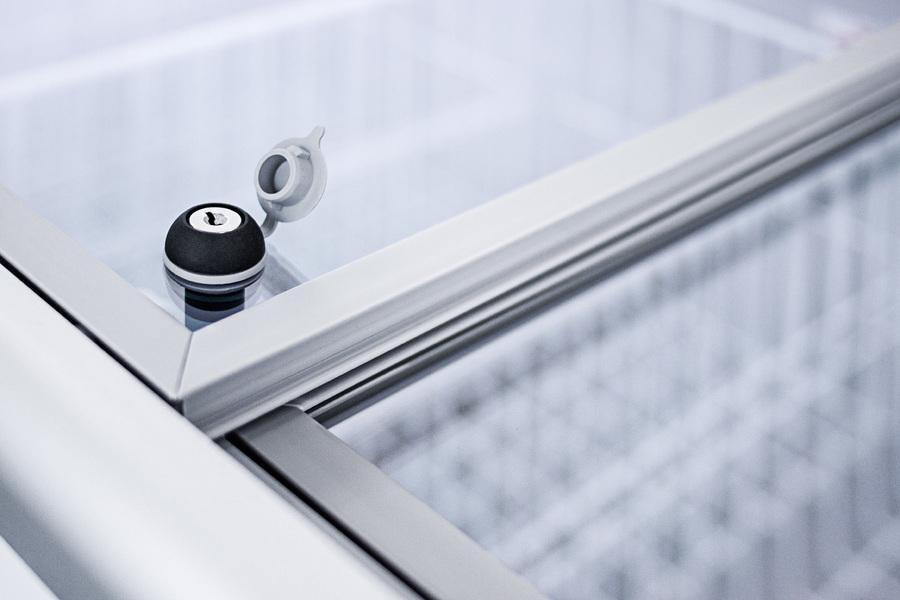

  • A keyed lock is included for optional use
  • Static cooling system for improved temperature stability
  • Offers improved temperature performance throughout the interior
  • Durable construction in a white finish for easy visibility
  • Sneezeguard light for added visibility
  • Environmentally friendly design with no ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

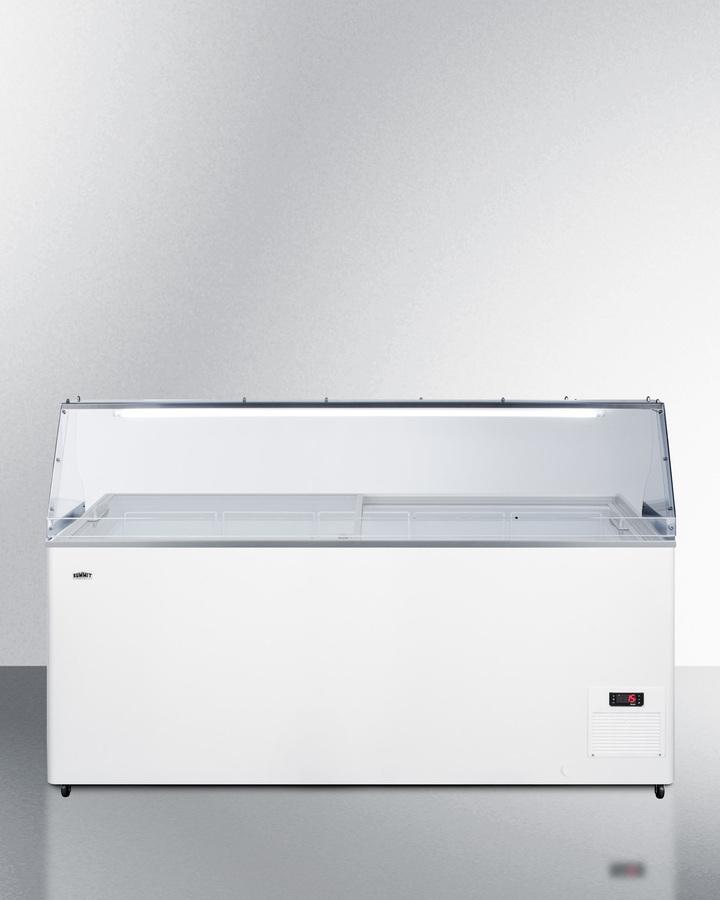

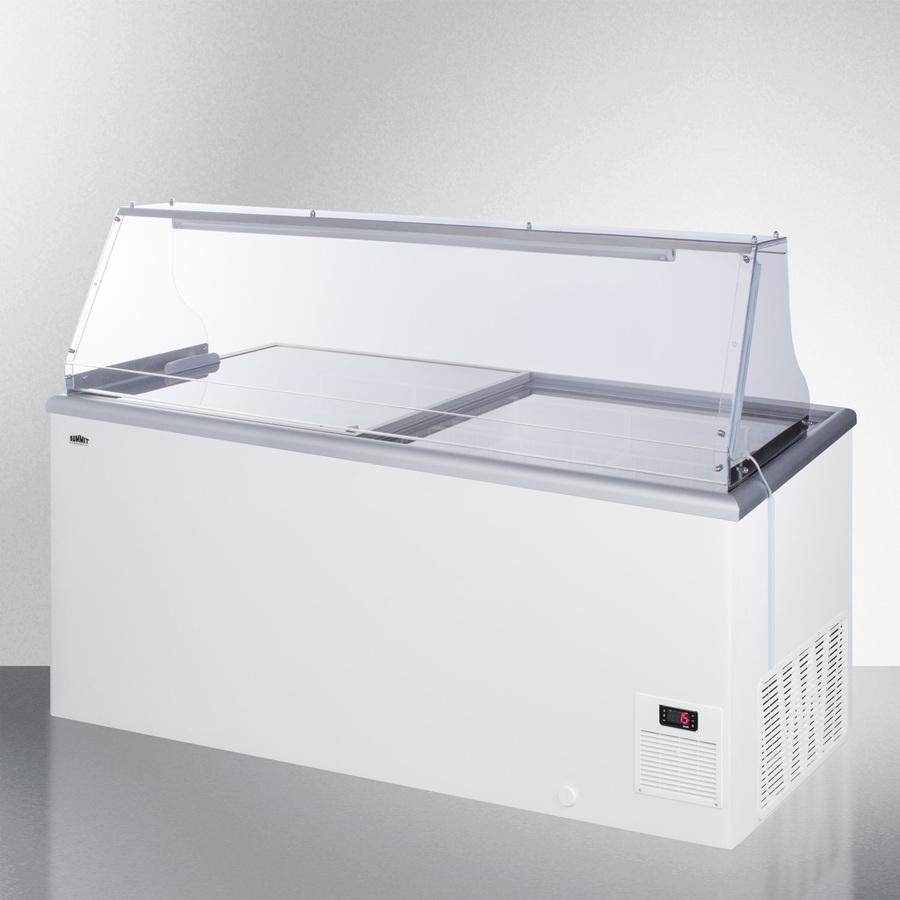

Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23 F to accommodate a variety of desserts. We pre-set the unit to -4 F. Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
