SKU: CGU486P3TD1 | UPC: 084691851257
In stock - Ships within 24 hours
Extended Protection
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
CAFE CXPR8HKPTBT CAFé™ 48" Brushed Black Handle & Knob Set for Pro Range and Rangetop Black
CAFE CXPR8HKPTBZ CAFé™ 48" Brushed Bronze Handle & Knob Set for Pro Range and Rangetop Bronze
CAFE CXPR8HKPTCG CAFé™ 48" Brushed Brass Handle & Knob Set for Pro Range and Rangetop Brass
CAFE CXPR8HKPTCU CAFé™ 48" Brushed Copper Handle & Knob Set for Pro Range and Rangetop Copper
CAFE CXPR8HKPTFB CAFé™ 48" Flat Black Handle & Knob Set for Pro Range and Rangetop Black
| App Filter - Cabinet Width | 48.0 |
| App Filter - Fuel Type | Gas |
| App Filter - Control Type | Rotary knobs |
| Design Style | Professional |
| Color Appearance | Matte Black |

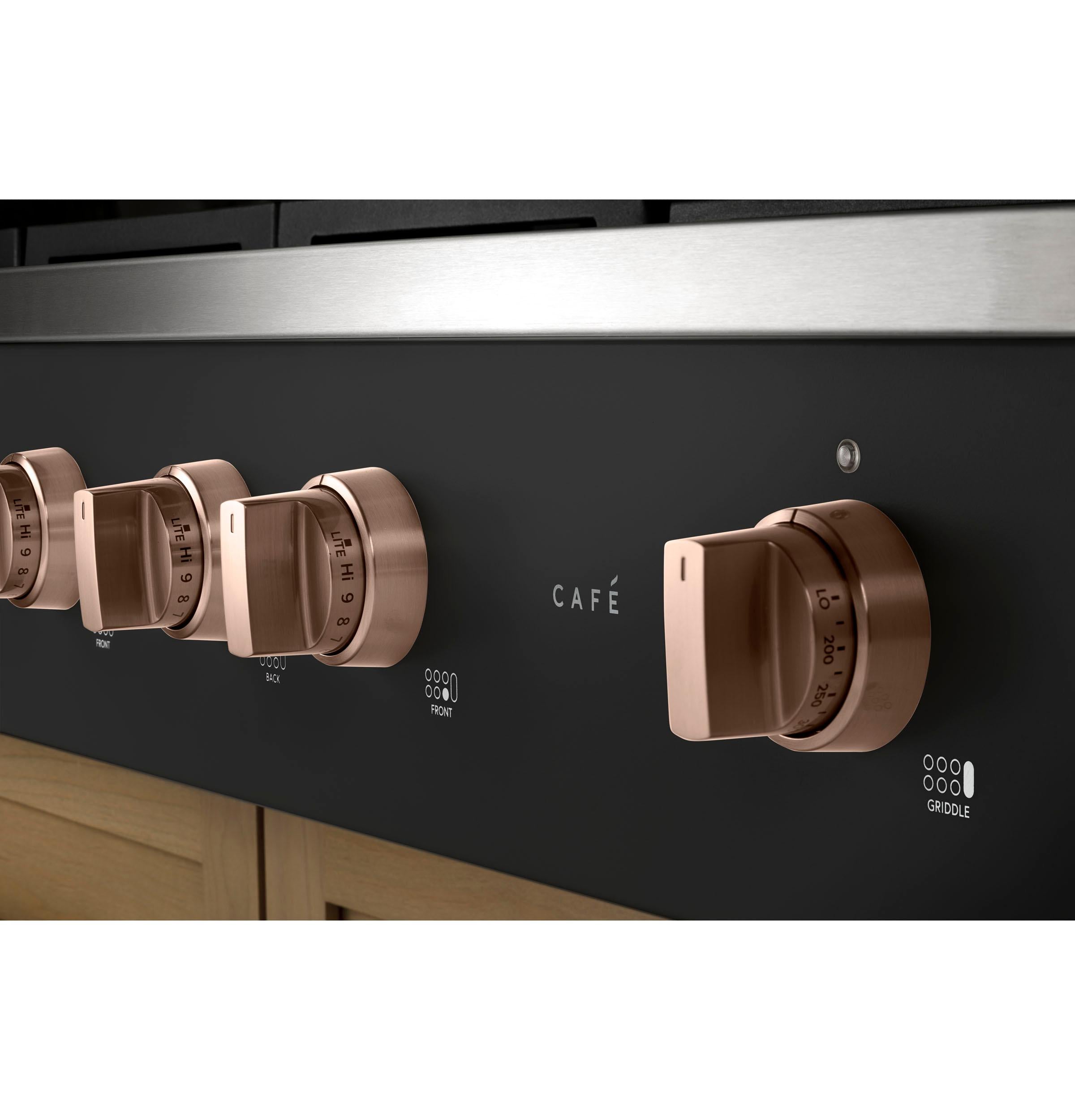

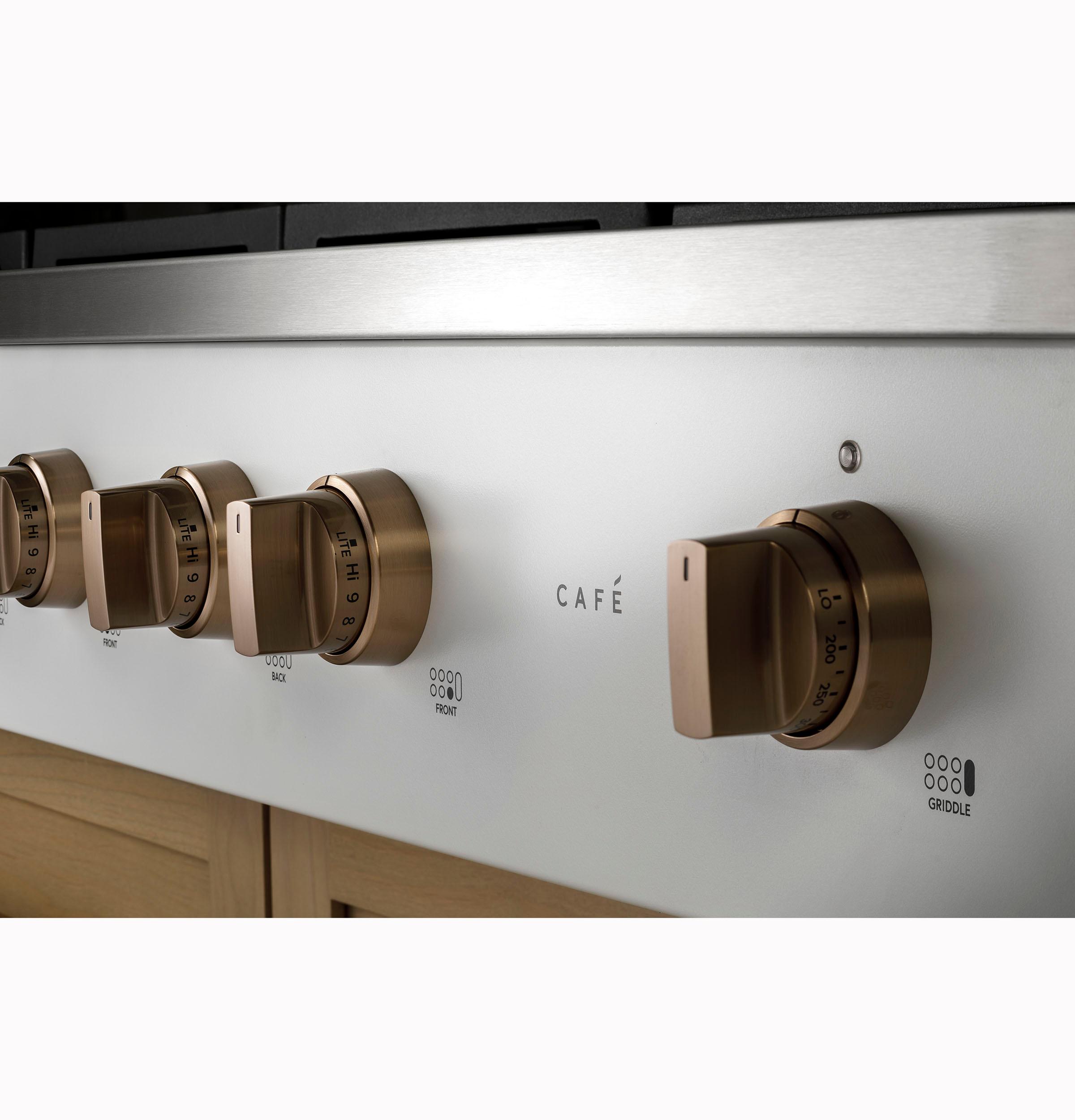

| Control Knobs | Dishwasher Safe Professional-Style Stainless Steel Appearance |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0 |
| Electrical Requirements | 120 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Volts/Hertz/Amps | 120 |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| High Altitude Kit | Natural Gas: WB28X39728; LP: WB28X39729 |
| Conversion Kit | Included - Nat. Gas to LP |
| Factory-installed island backguard | Yes |
| Optional Kits | CXPR8HKPTBT Brushed Black CXPR8HKPTBZ Brushed Bronze CXPR8HKPTCG Brushed Brass CXPR8HKPTCU Brushed Copper CXPR8HKPTFB Flat Black CXPR8HKPTSS Brushed Stainless |
| Griddle Cover | WB34X39889 |
| Optional Backguard | 12.0 |
| Cutout Height (in) | 8.0 |
| Overall Height | 8.5 |
| Cutout Depth (in) | 25.25 |
| Cabinet Width | 48.0 |
| Approximate Shipping Weight | 227 |
| Overall Width | 47.88 |
| Net Weight | 171 |
| Cutout Width (in) | 46.25 |
| Overall Depth | 27.5 |
| Dishwasher Safe Knobs | Yes |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 18 |
| Burner - Right Front | 10 |
| Fuel Type | Natural Gas |

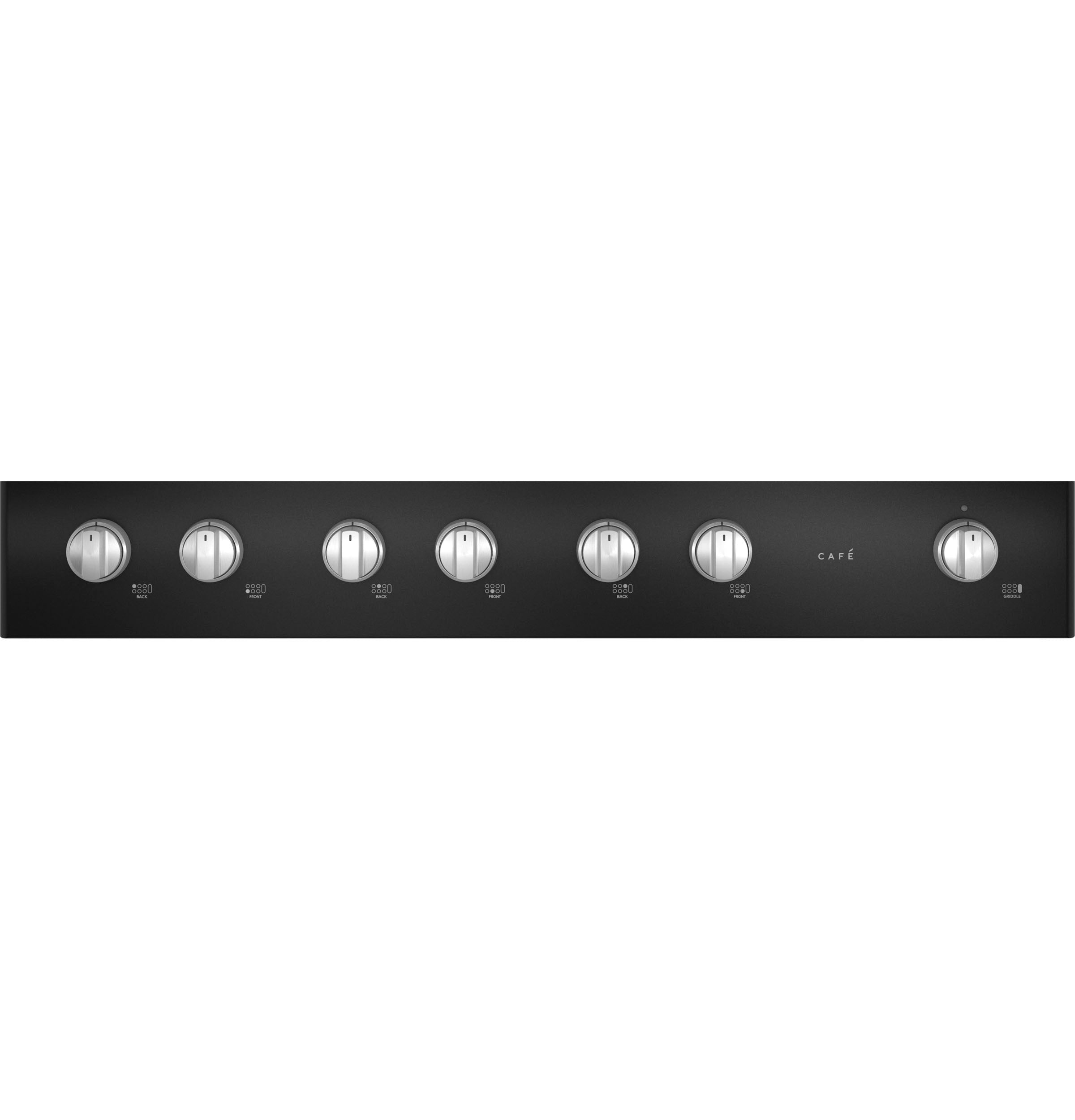

| Control Location | Upfront |

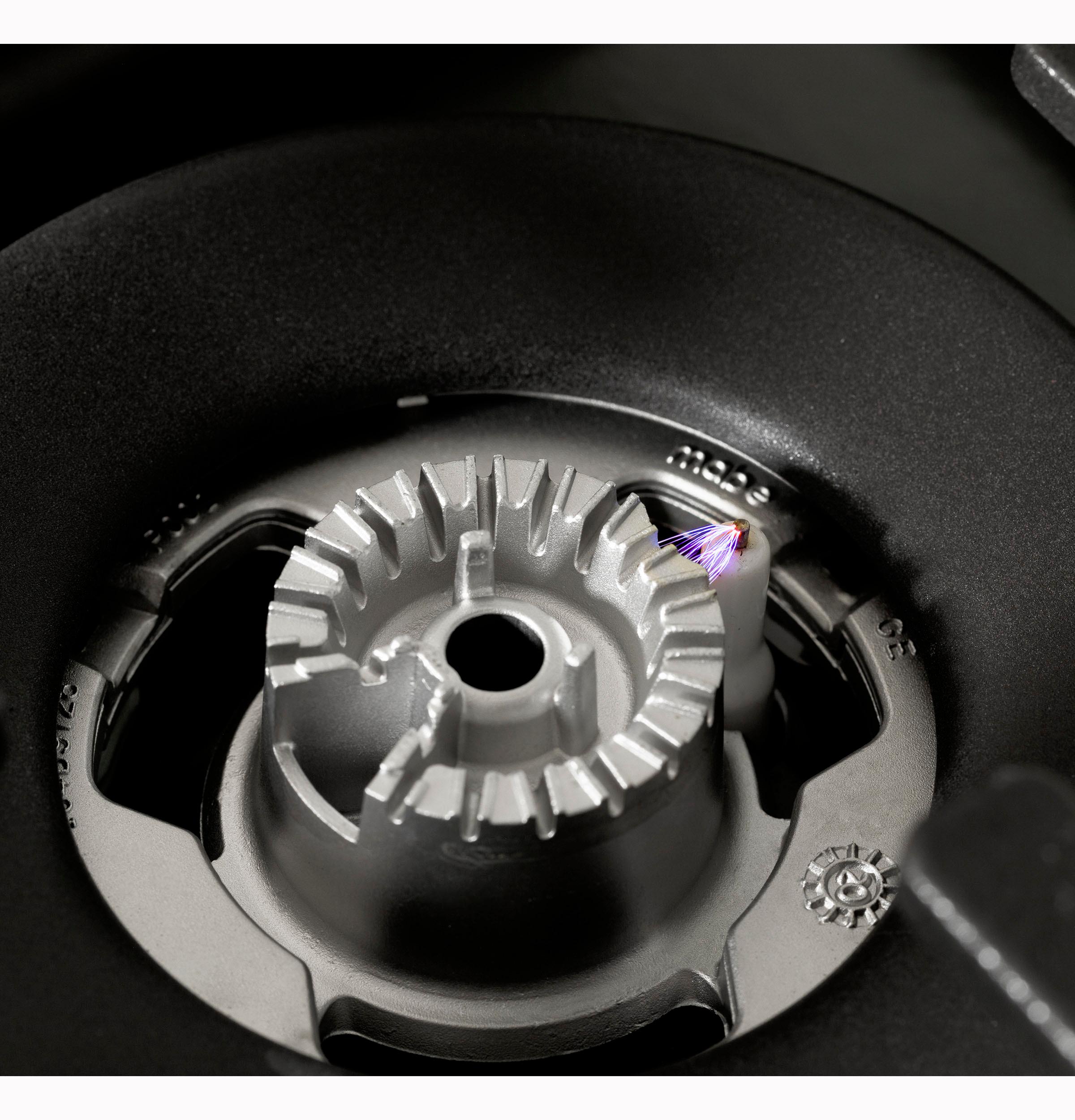

| Ignition System | Electronic w/Auto Reignition |
| Cooktop Type | Continuous Grates |
| Burner - Center | 12 |
| Cooktop Surface | Gray Porcelain-Enamel |
| Burner - Left Rear | 18 |
| Extra Low Simmer | All Burners - Adjustable |
| Automatic Re-Ignition | Yes |

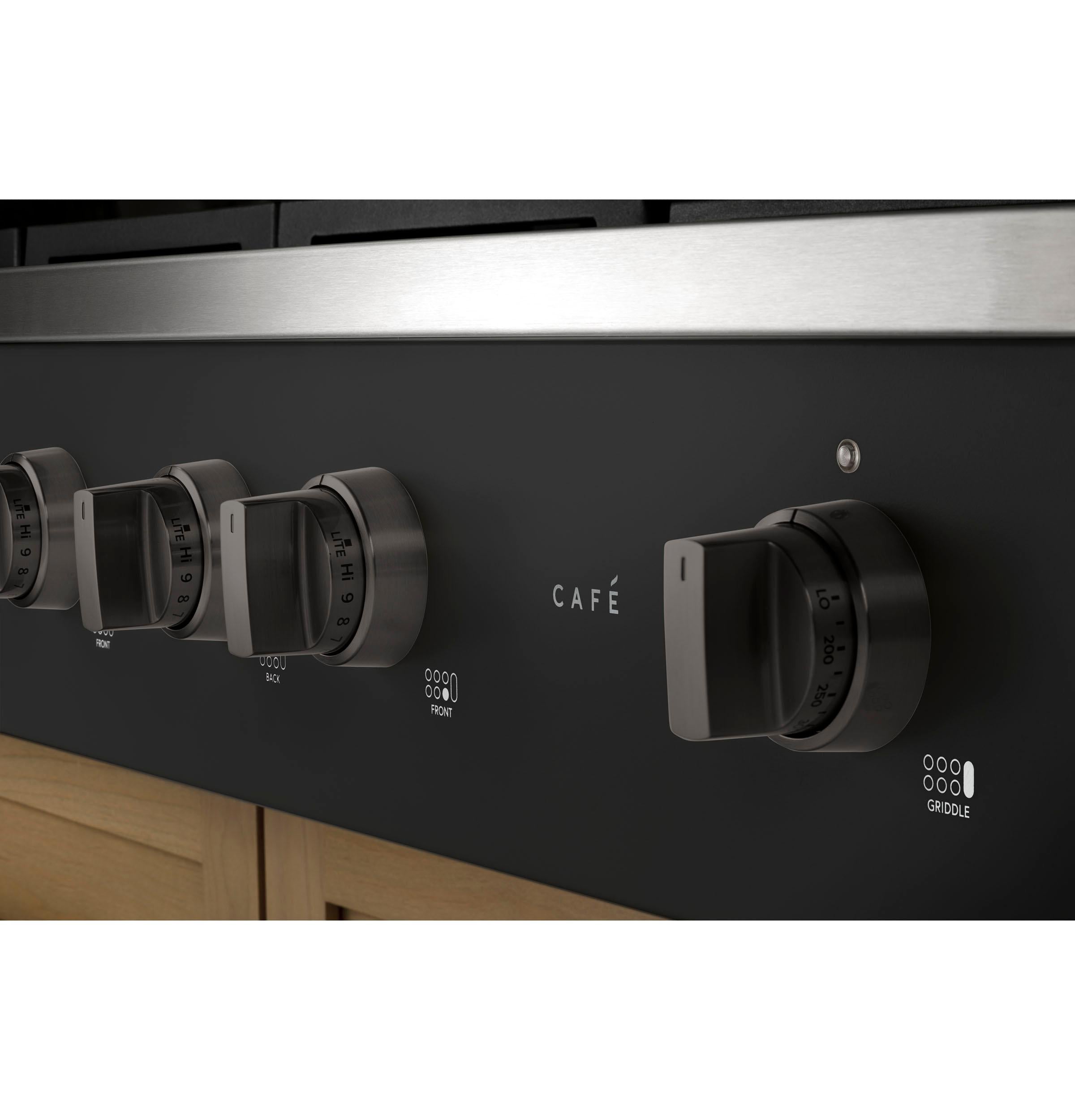

| Control Type | Manual Simmer (1-9) Hi |
| Cooktop Burner Grate Material | Heavy Cast |
| Griddle Indicator | Yes |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Matte Black Porcelainized Cast Iron |
| Griddle | 18 |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Configuration | 6 |
| Product Type | Rangetop |
| Burner - Left Front | 21 |

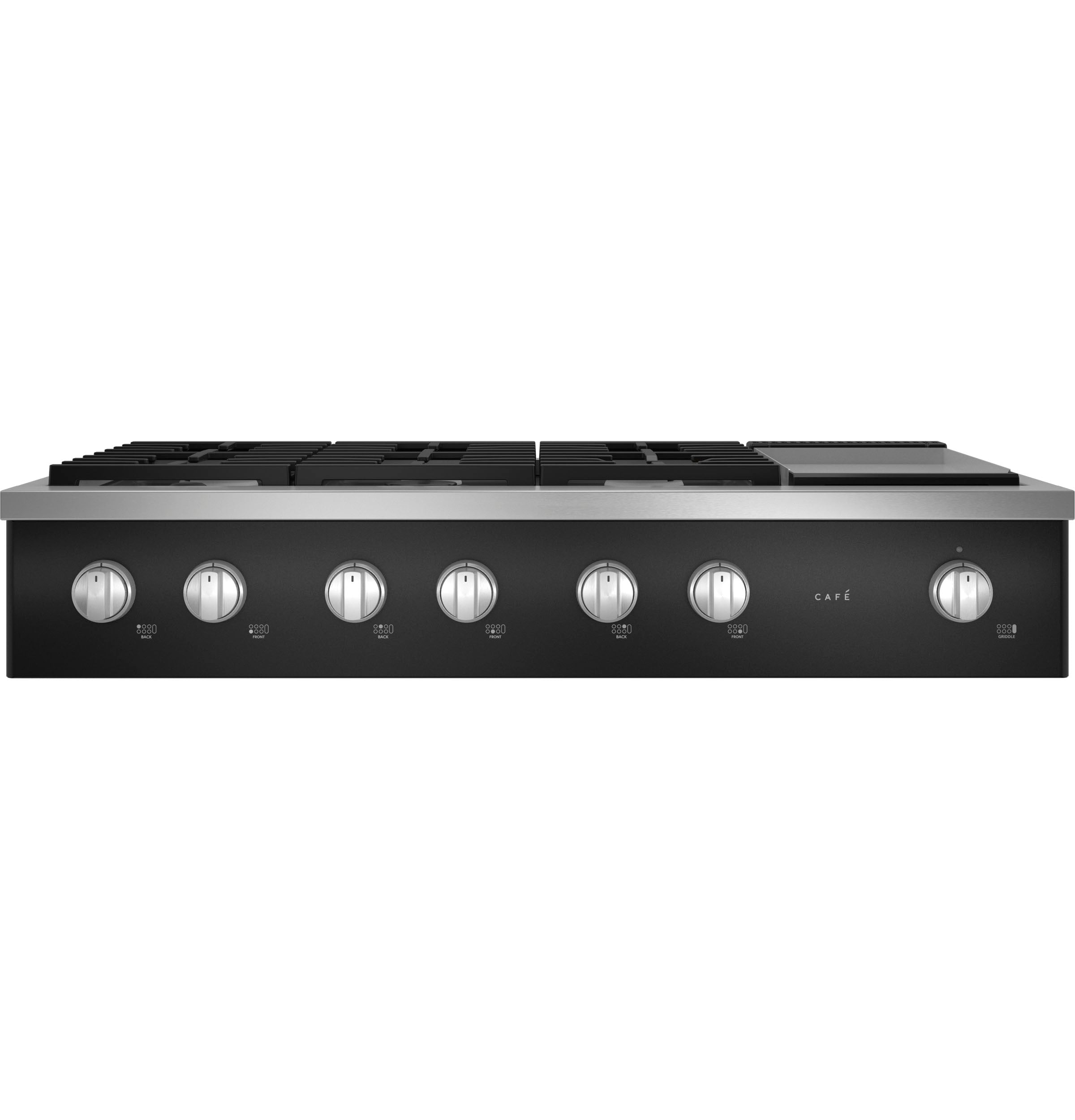

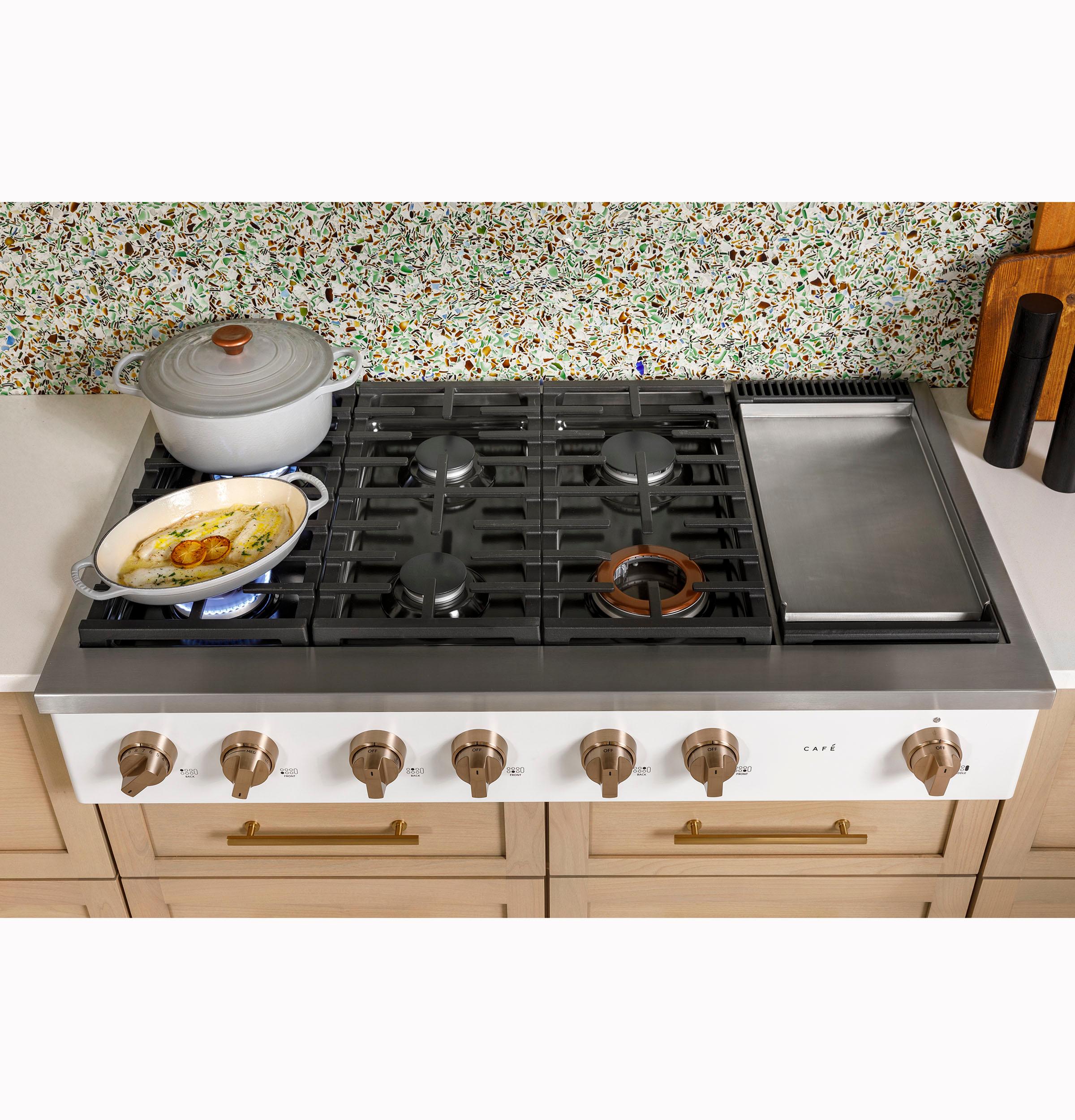

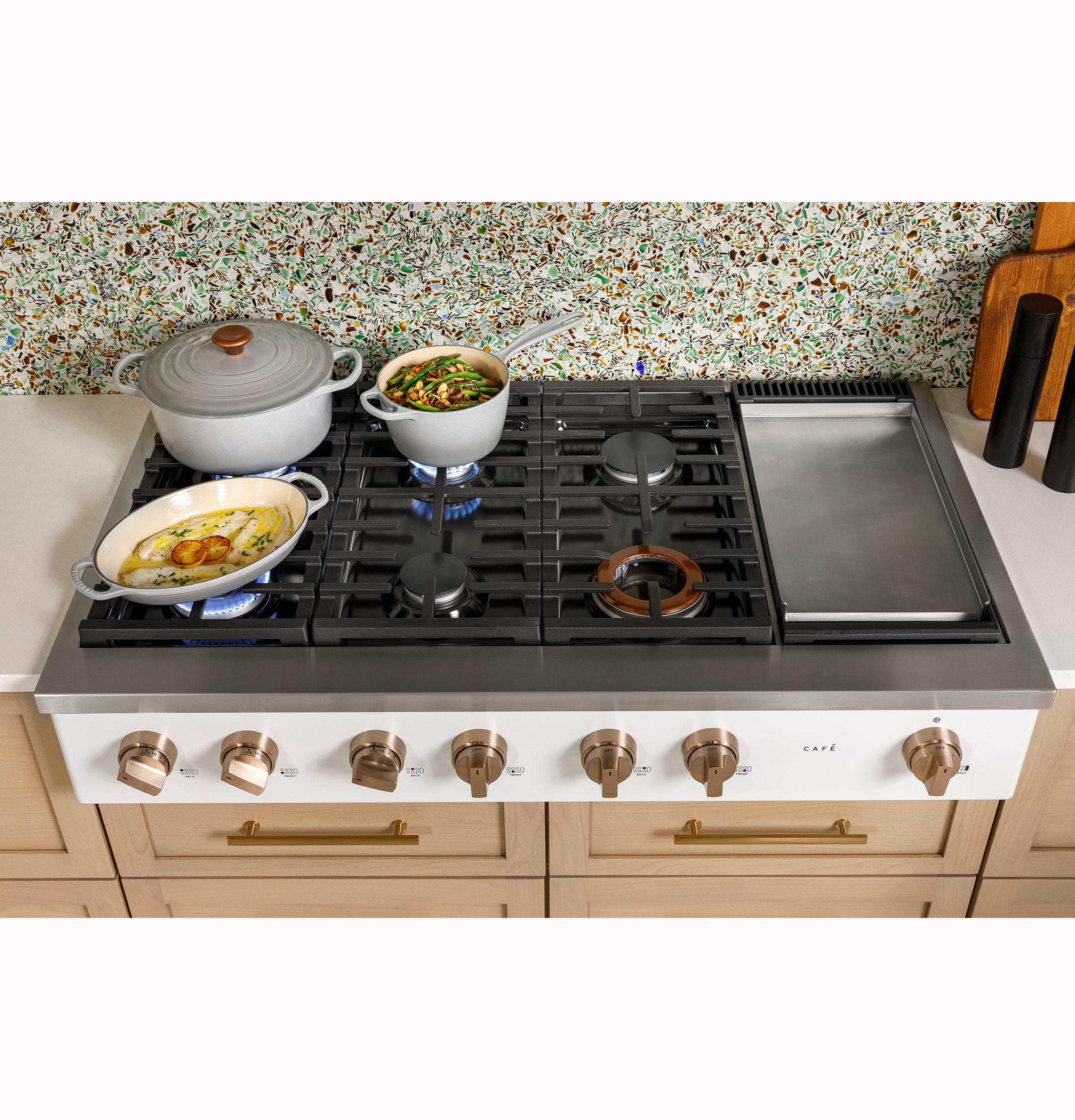

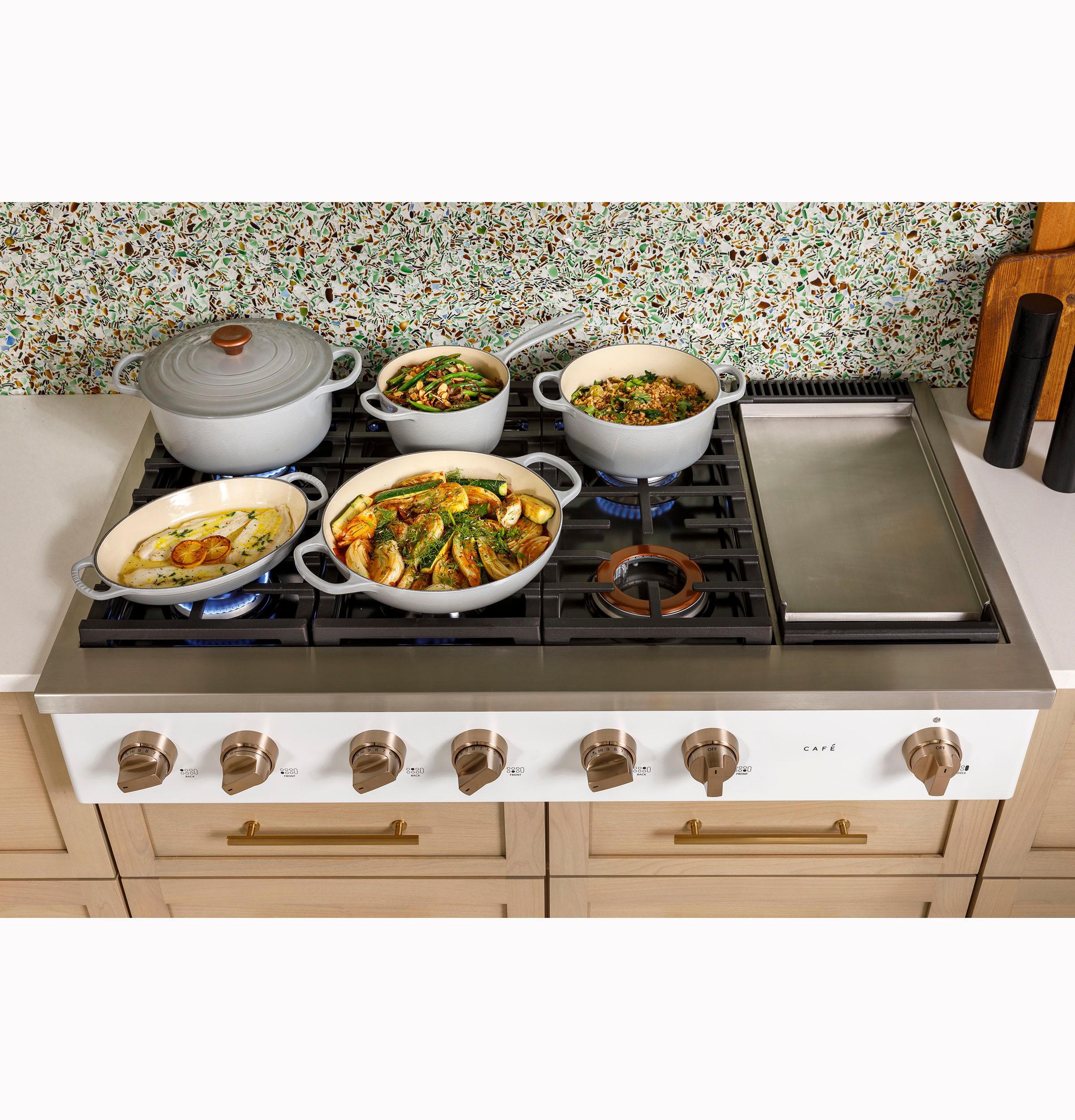

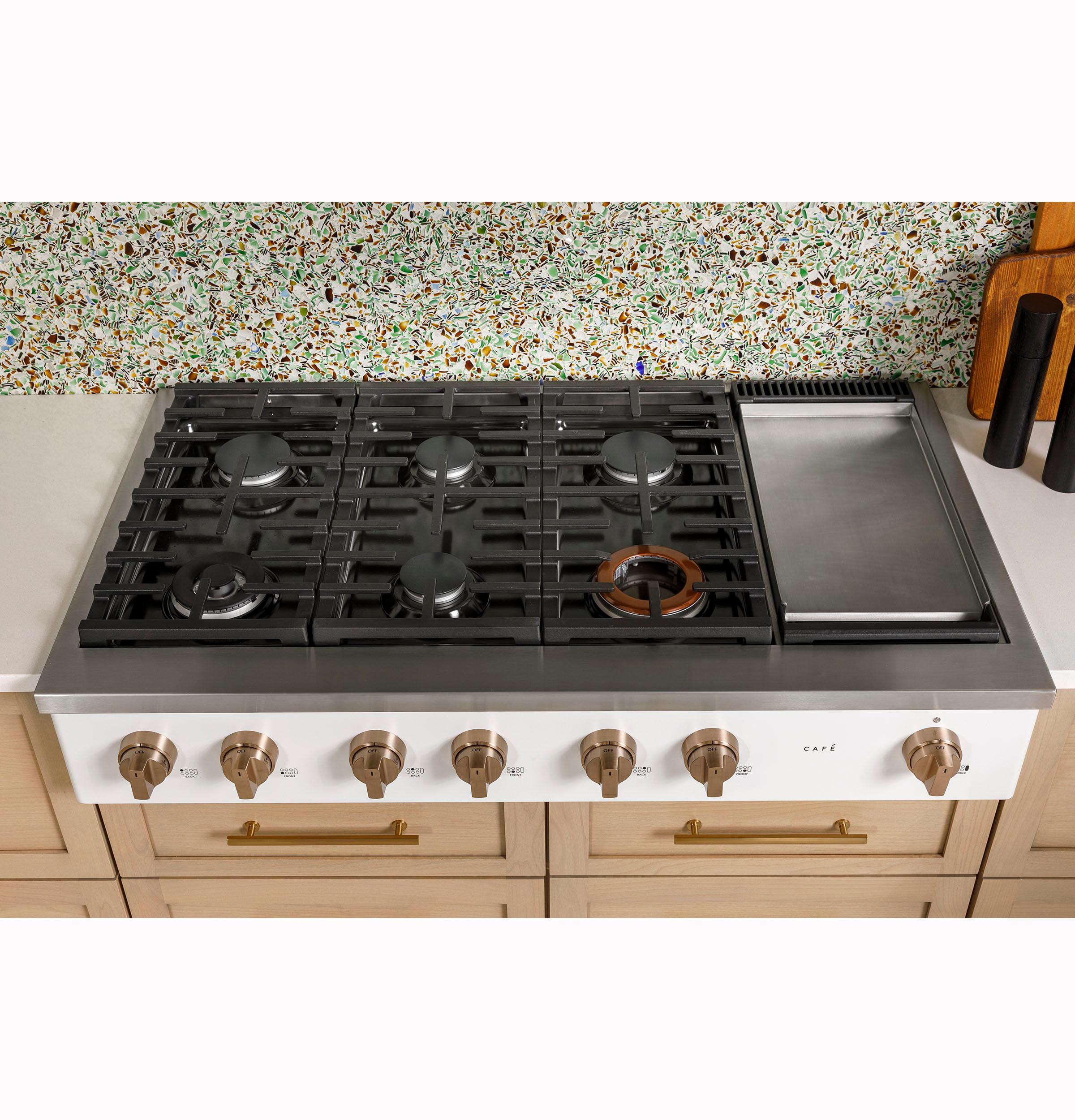

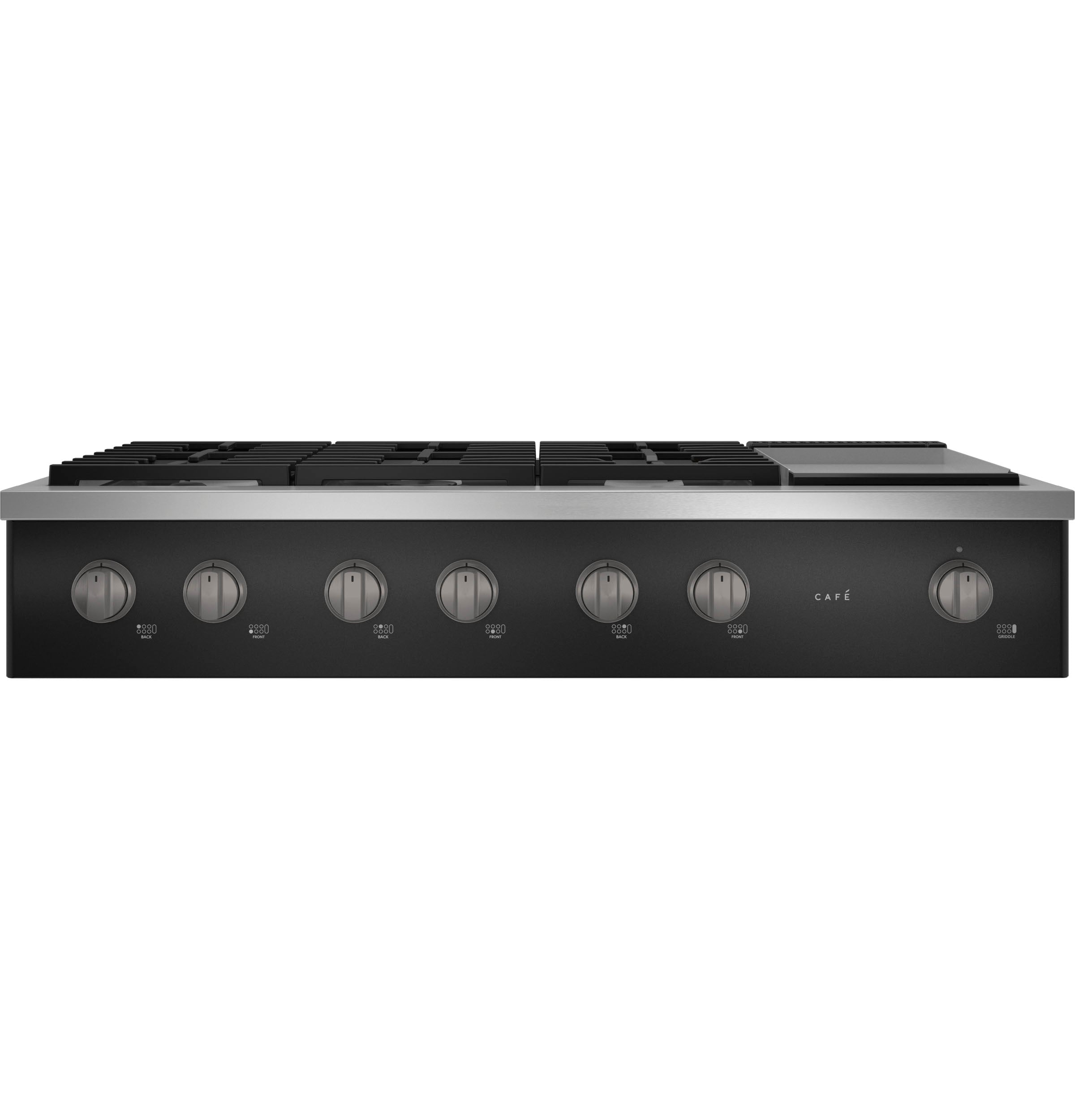

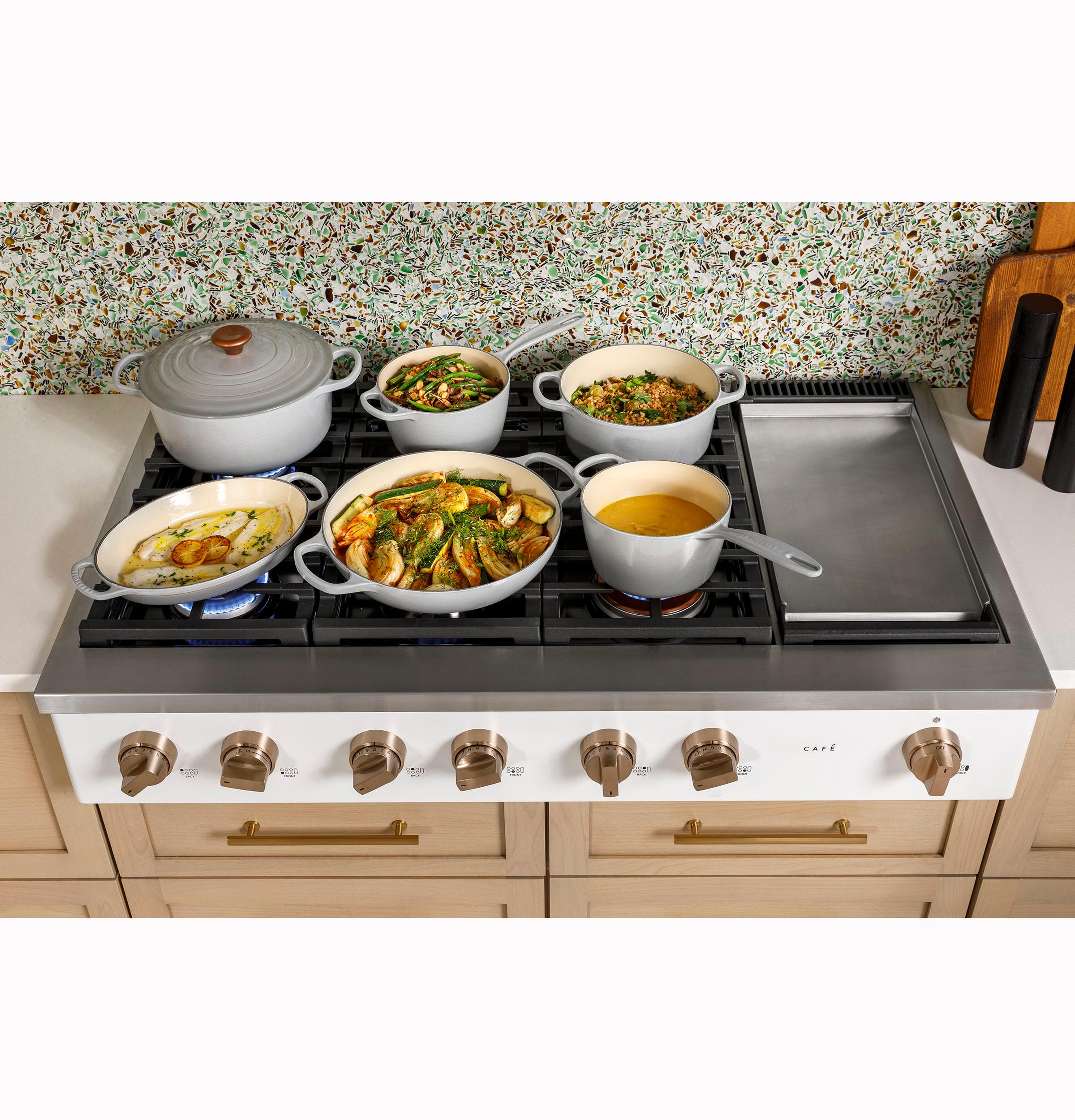

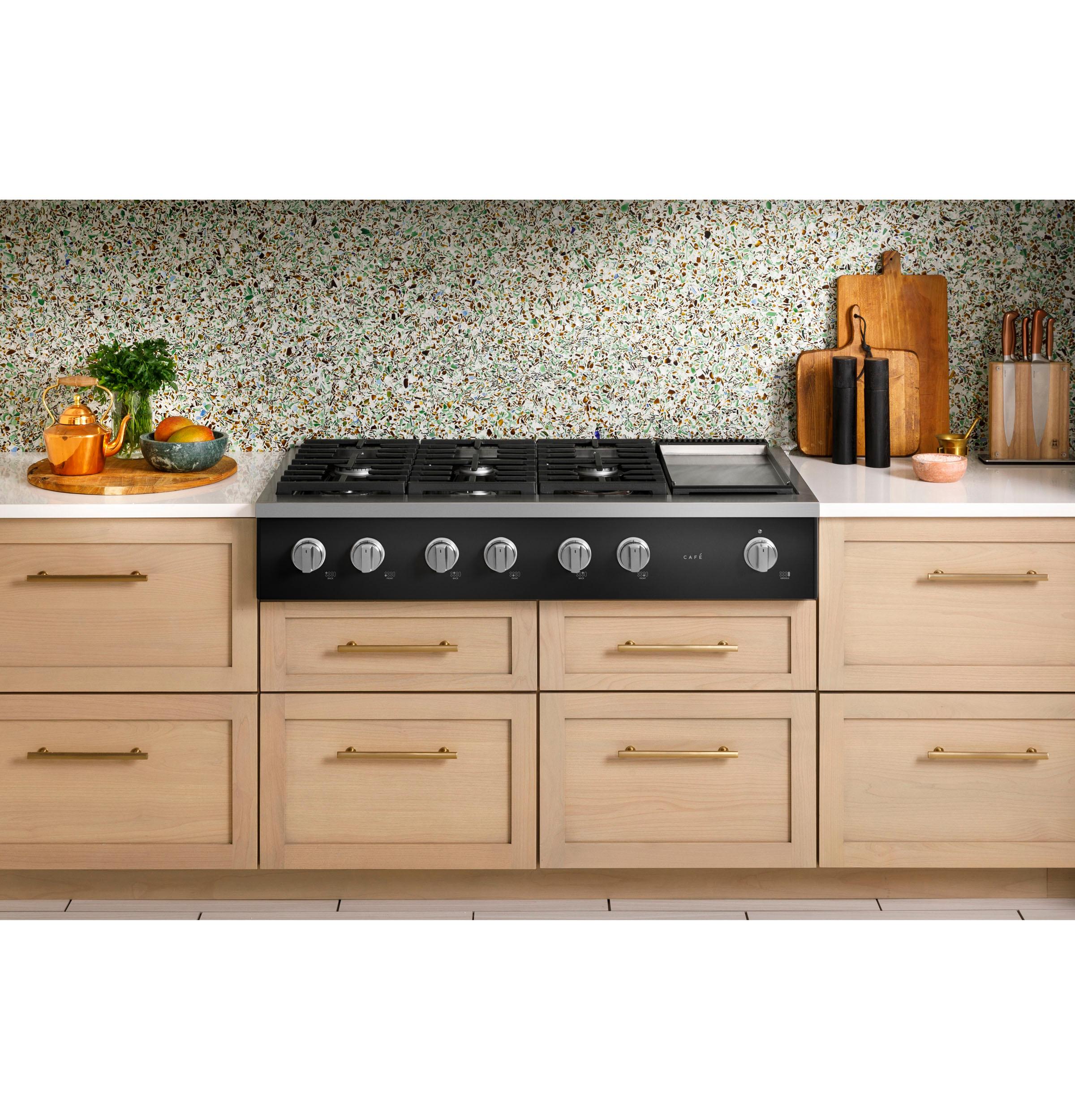

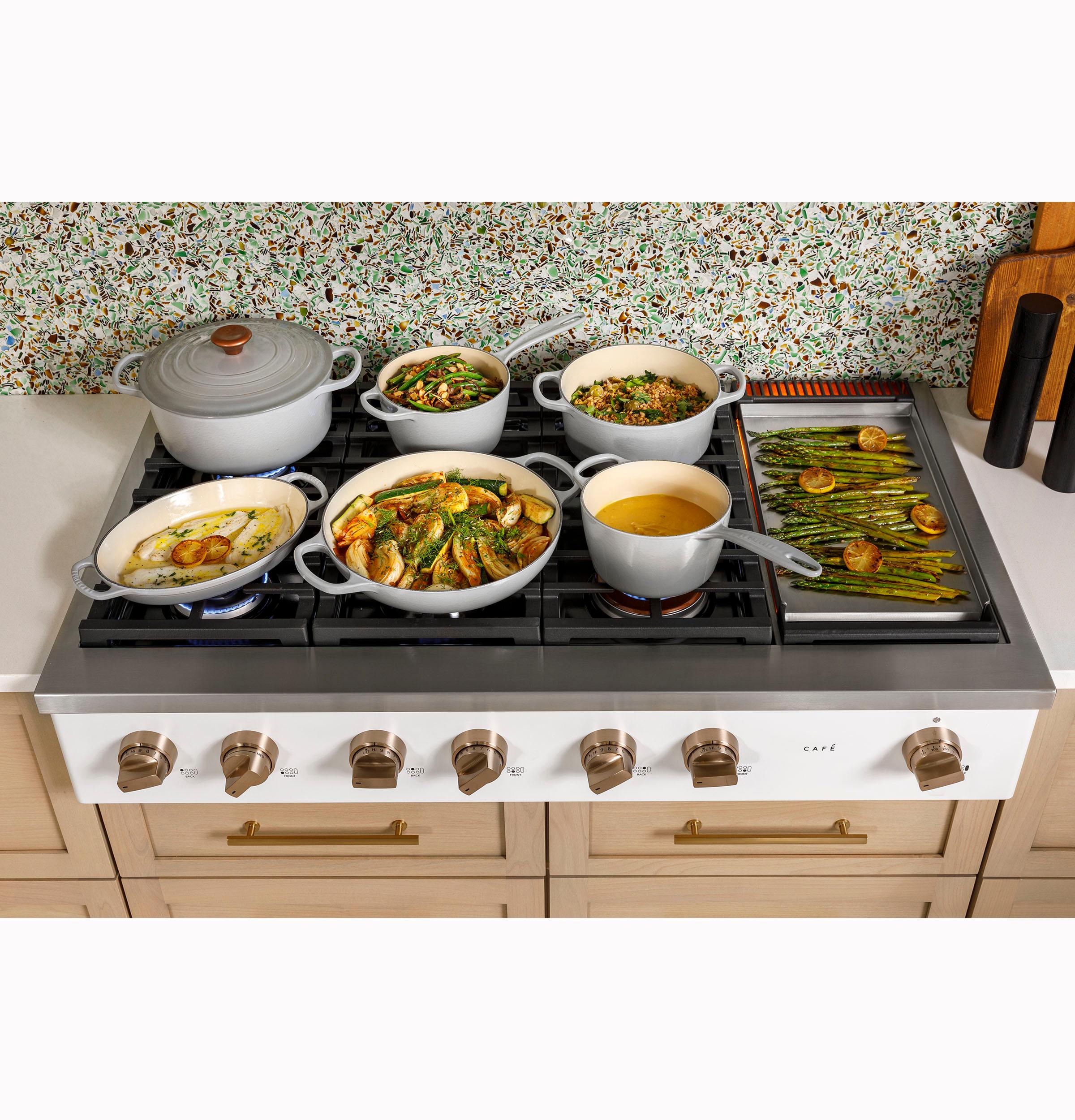

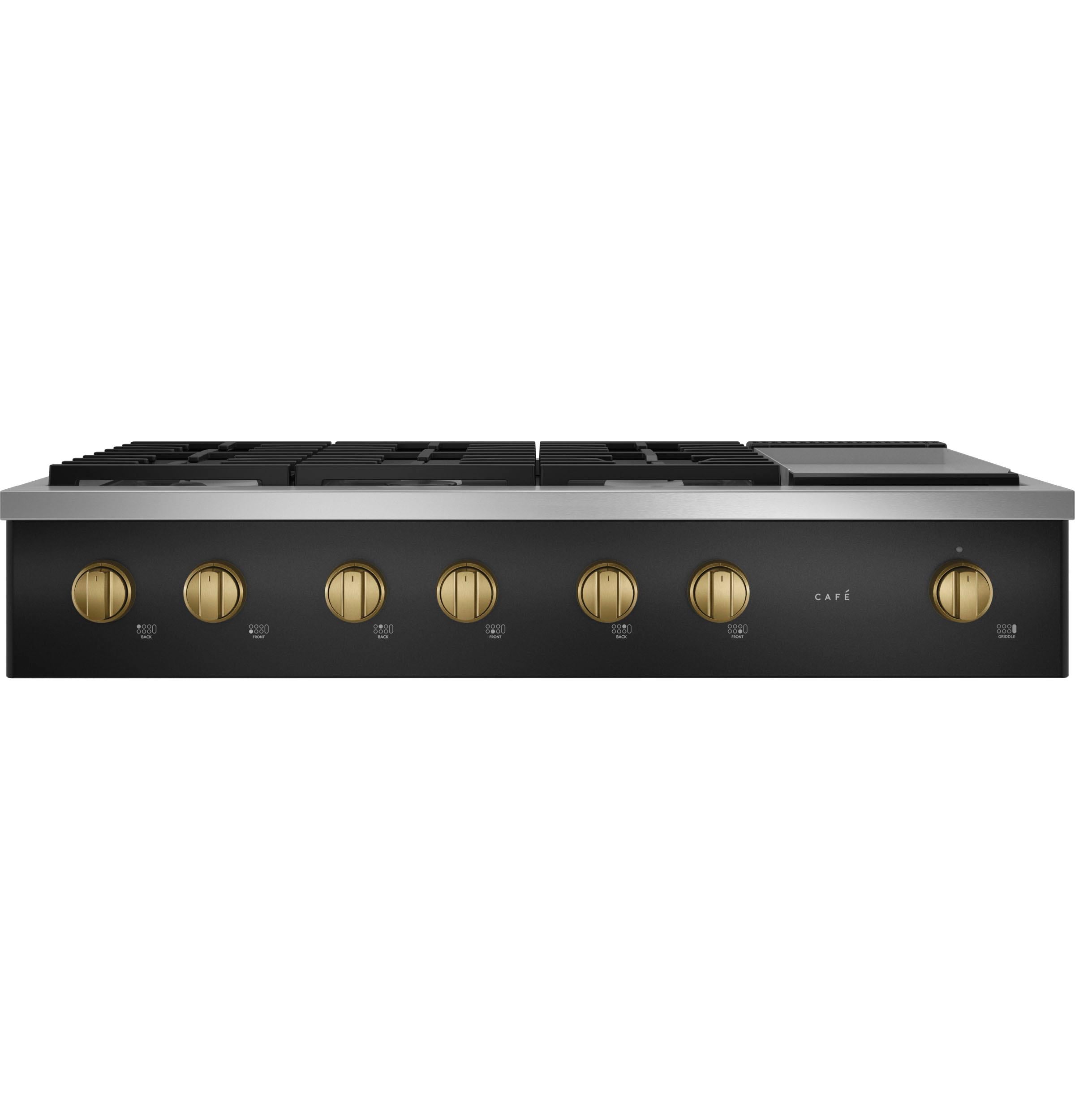

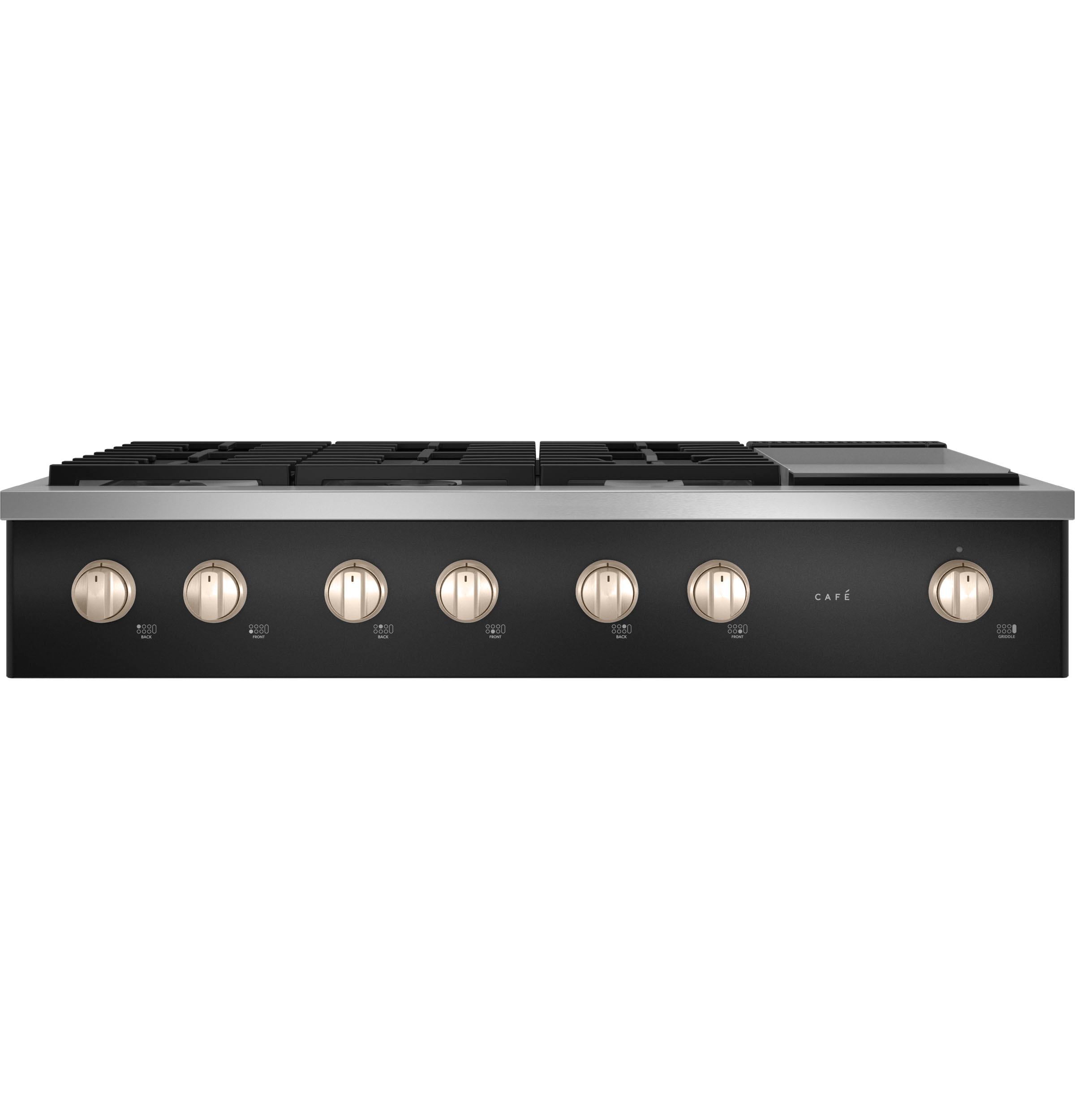

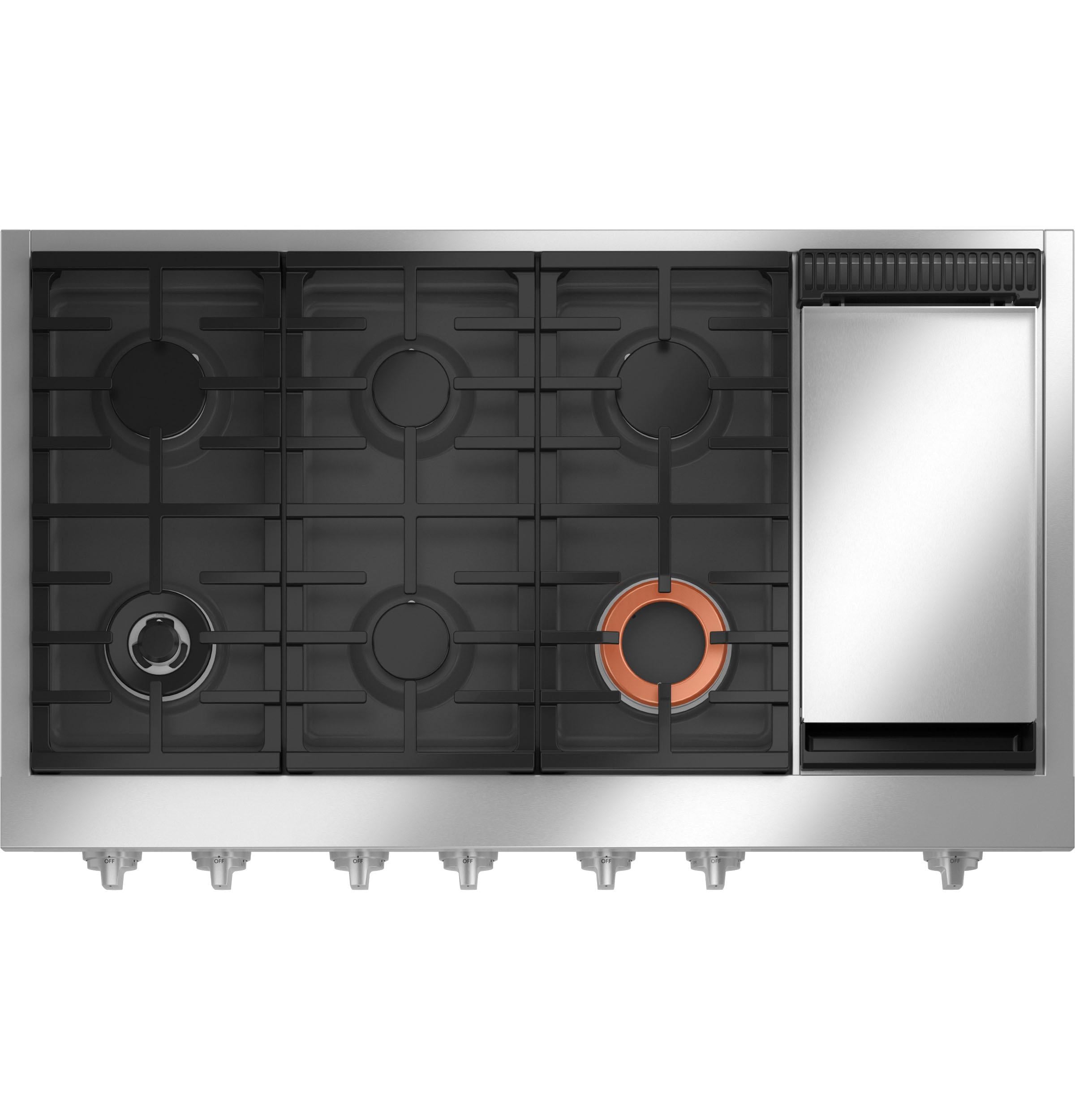

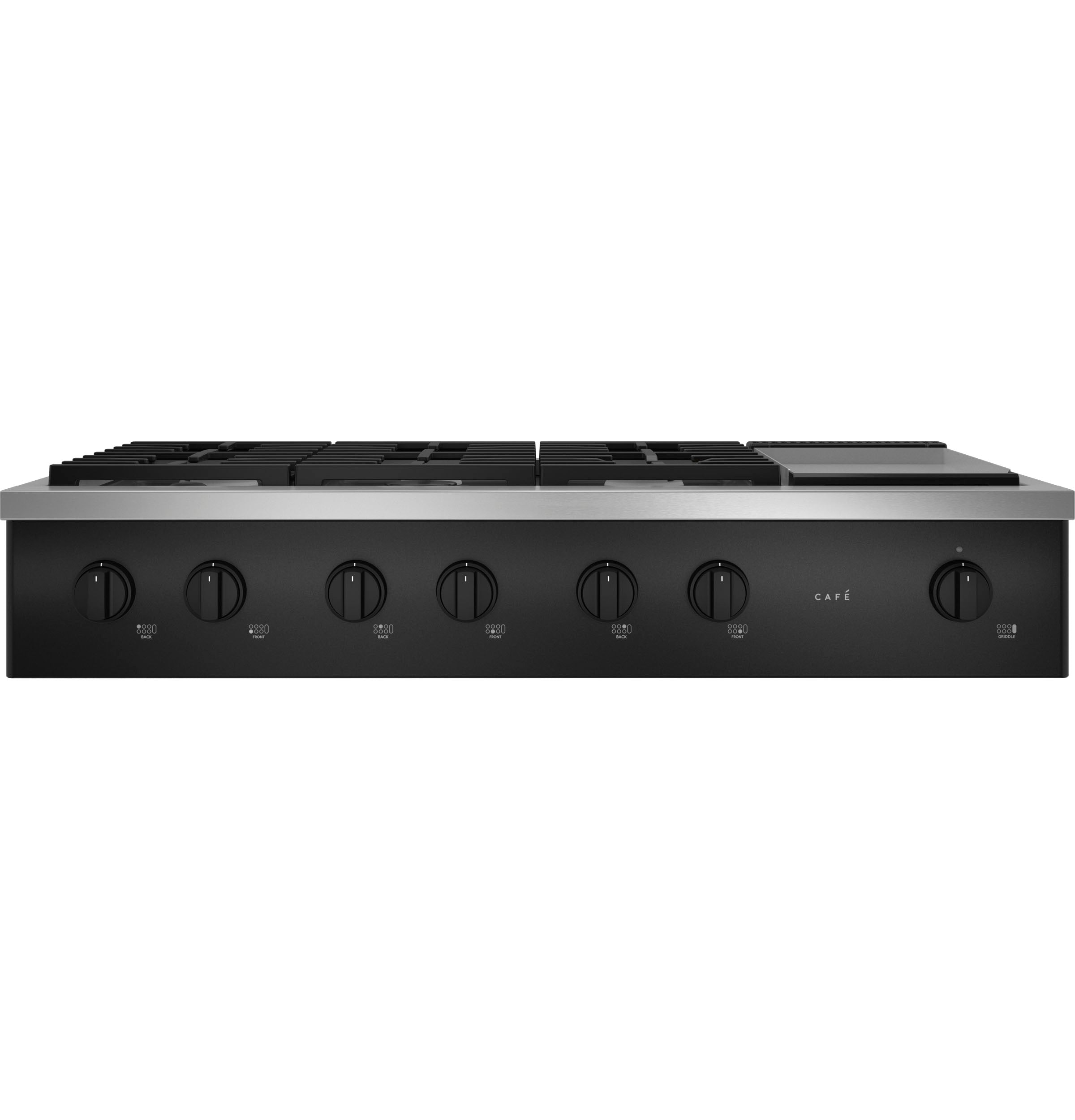

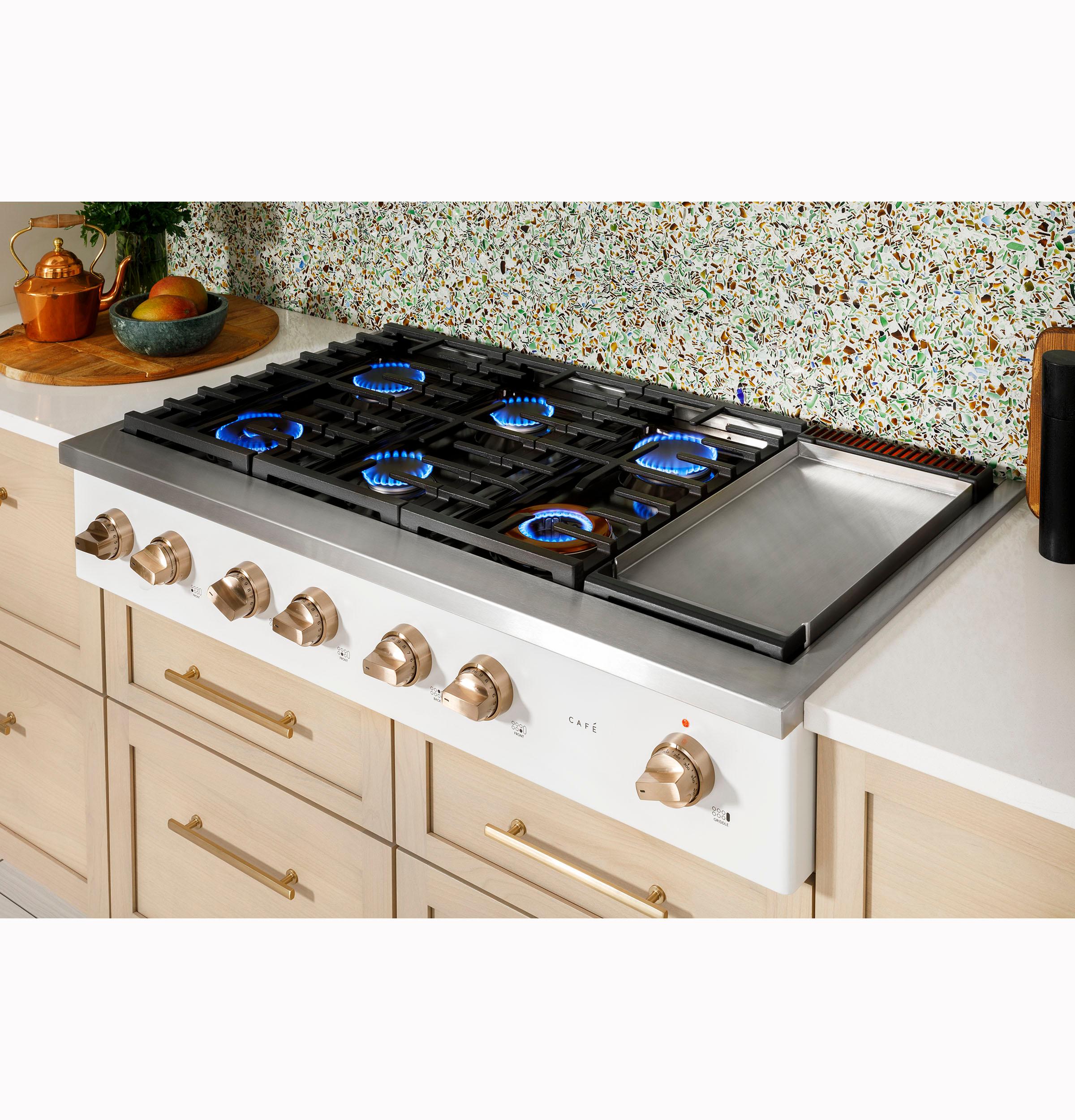

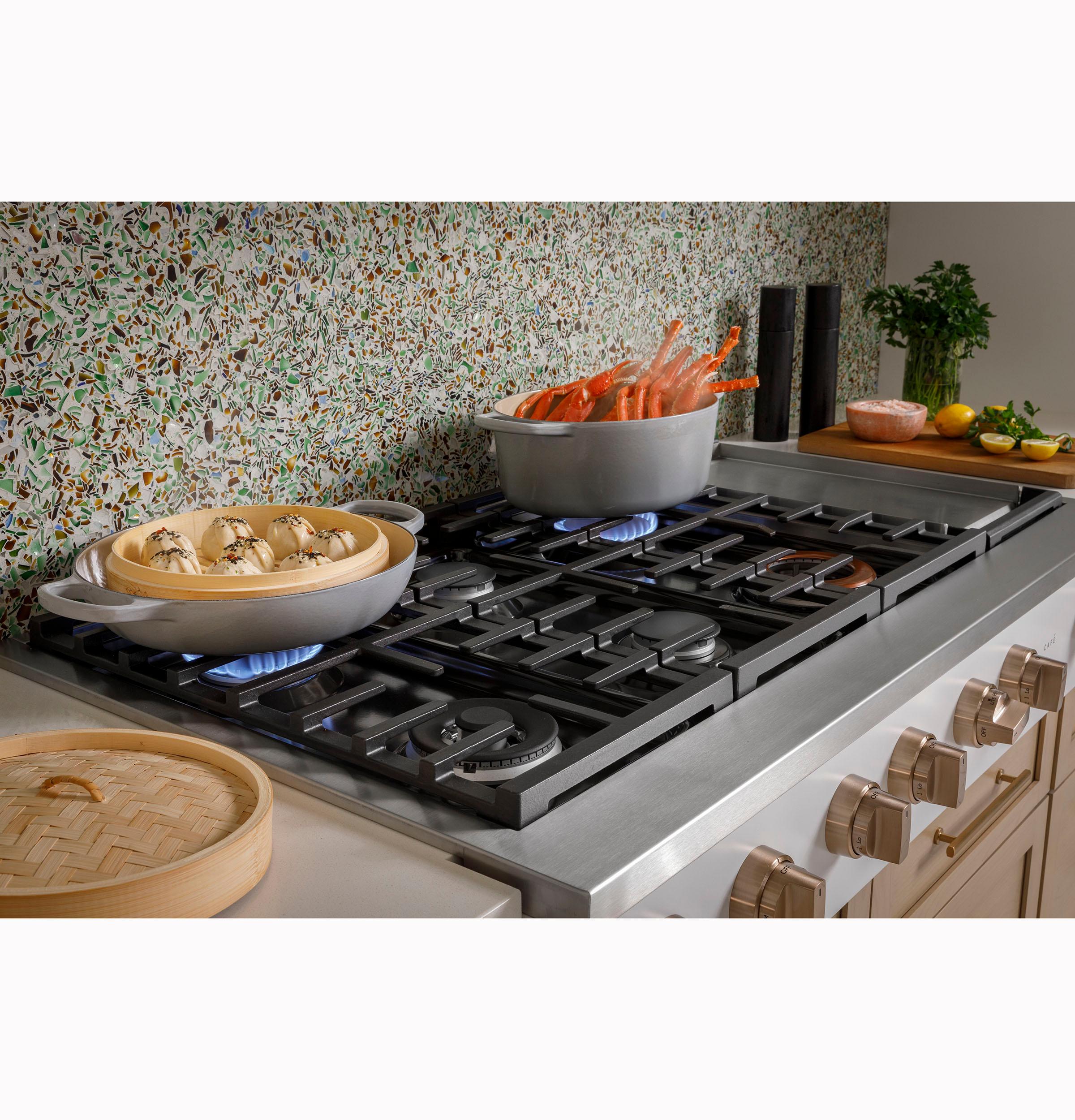

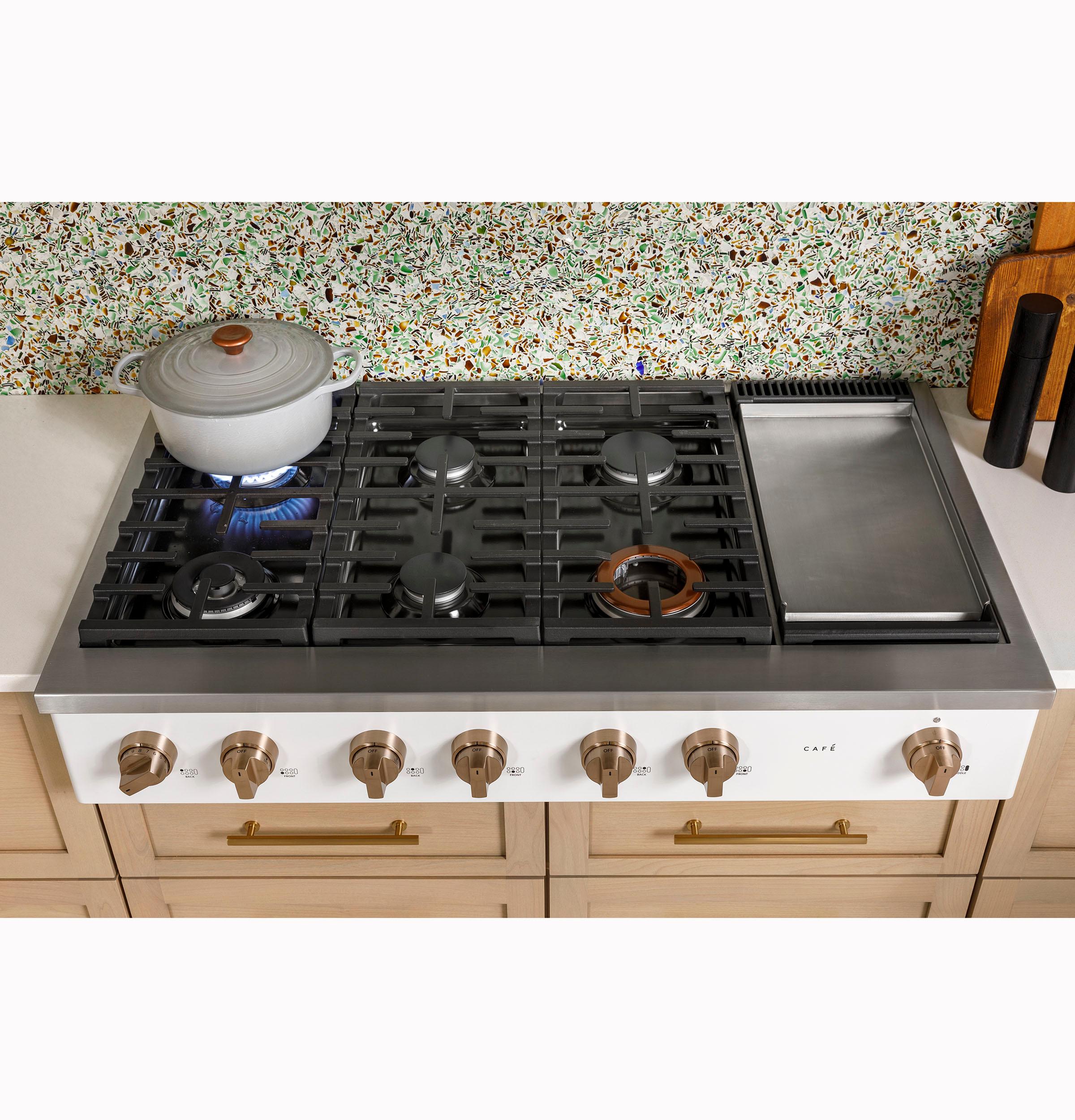

The Café CGU486P3TD1 48-Inch Commercial-Style Gas Rangetop combines professional-grade performance with a sophisticated matte black design to elevate your culinary experience. Its versatile cooktop includes six sealed burners:
A 21,000-BTU multi-ring burner offering three different-sized flame rings on a single element for precise heat control.
Two 18,000-BTU Power Boil burners for rapid boiling.
Two 12,000-BTU burners that can be used together or separately with an optional griddle grill accessory.
A 10,000-BTU burner suitable for various cooking tasks.

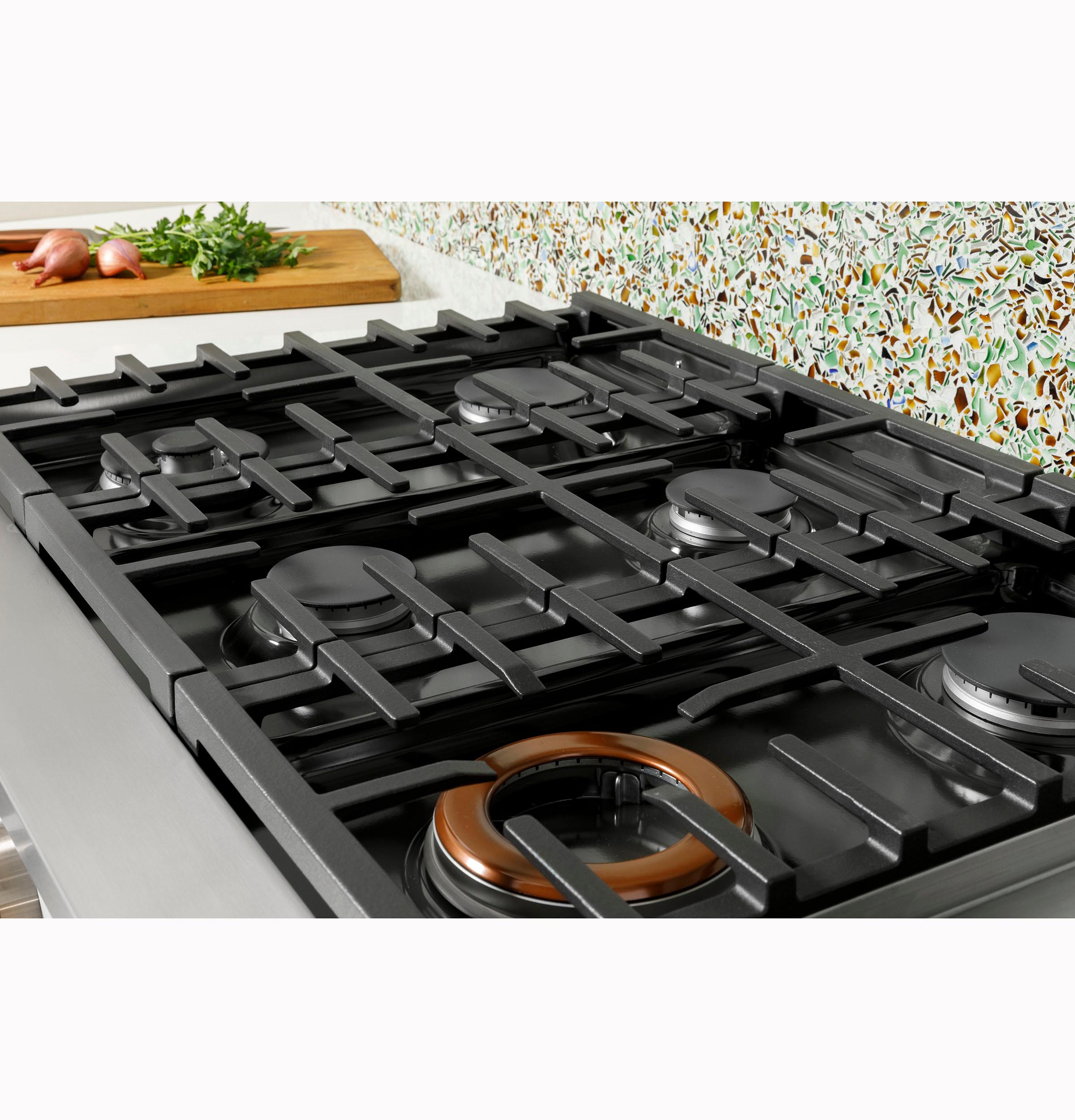

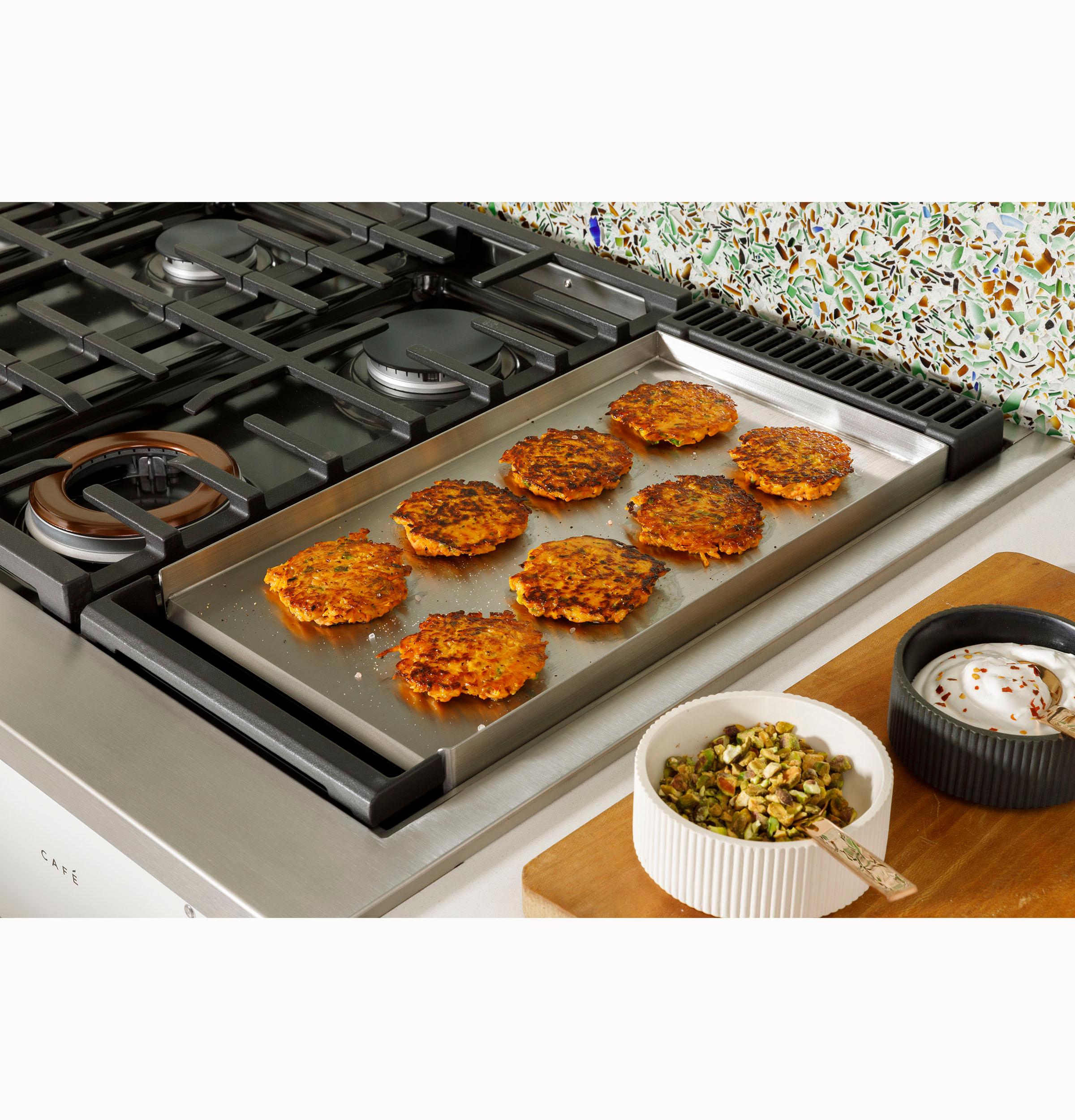

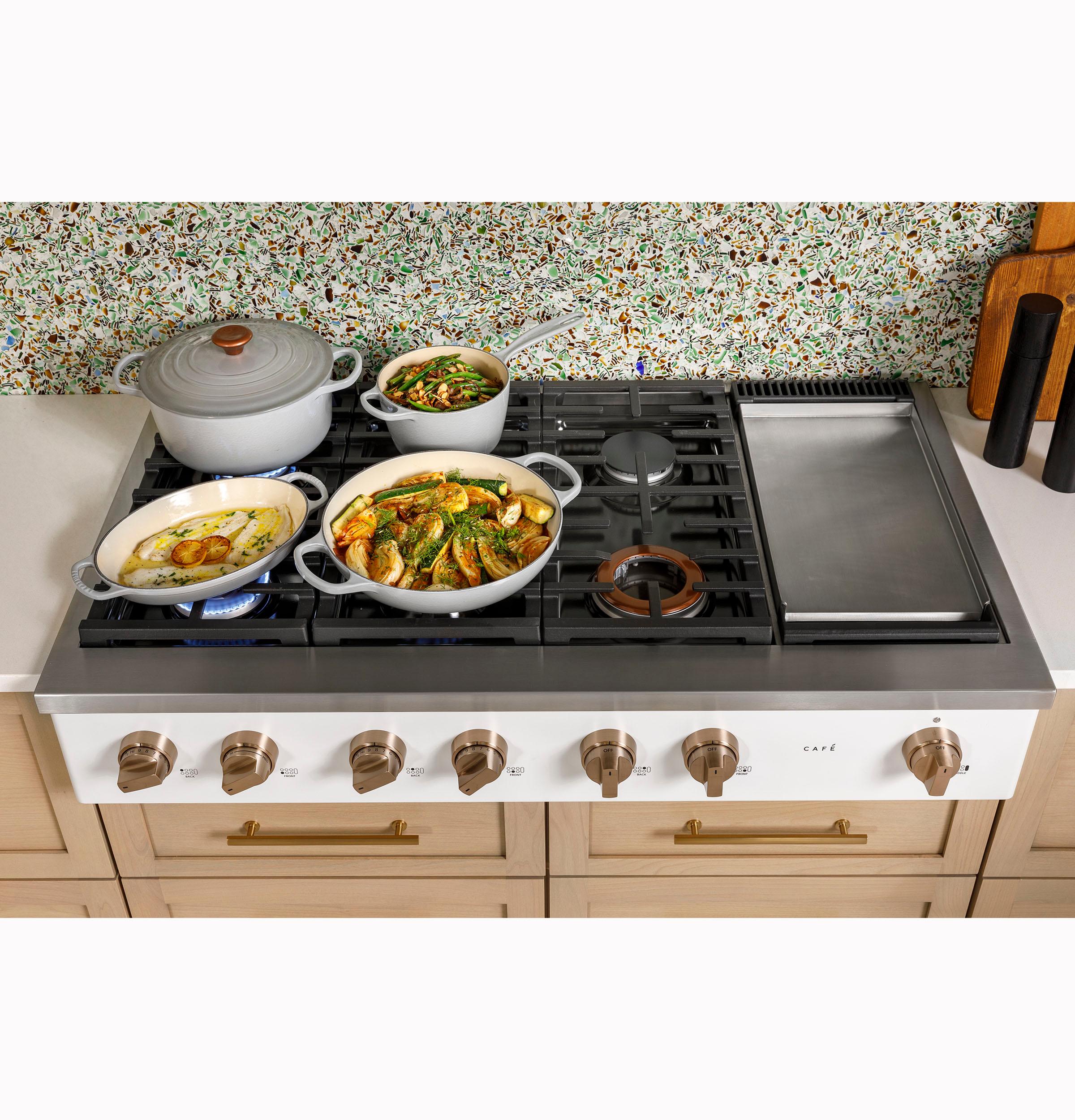

The industry-exclusive Inspiral™ burner swirls the flame under cookware to evenly spread heat from the center to the edges, eliminating uneven heating. The integrated 18,000-BTU stainless steel and aluminum clad griddle features a built-in thermostat, automatically adjusting heat to maintain your set temperature, ensuring consistent cooking results. The color-matched manifold and matte black finish offer a coordinated and modern aesthetic, enhancing the overall look of your kitchen. Additional features include continuous matte black porcelainized cast iron grates for easy movement of cookware, dishwasher-safe grates and knobs for convenient cleaning, and an Inspiral™ wok grate contoured to fit specialty cookware like woks, concentrating the Inspiral burner's heat for better cooking results.

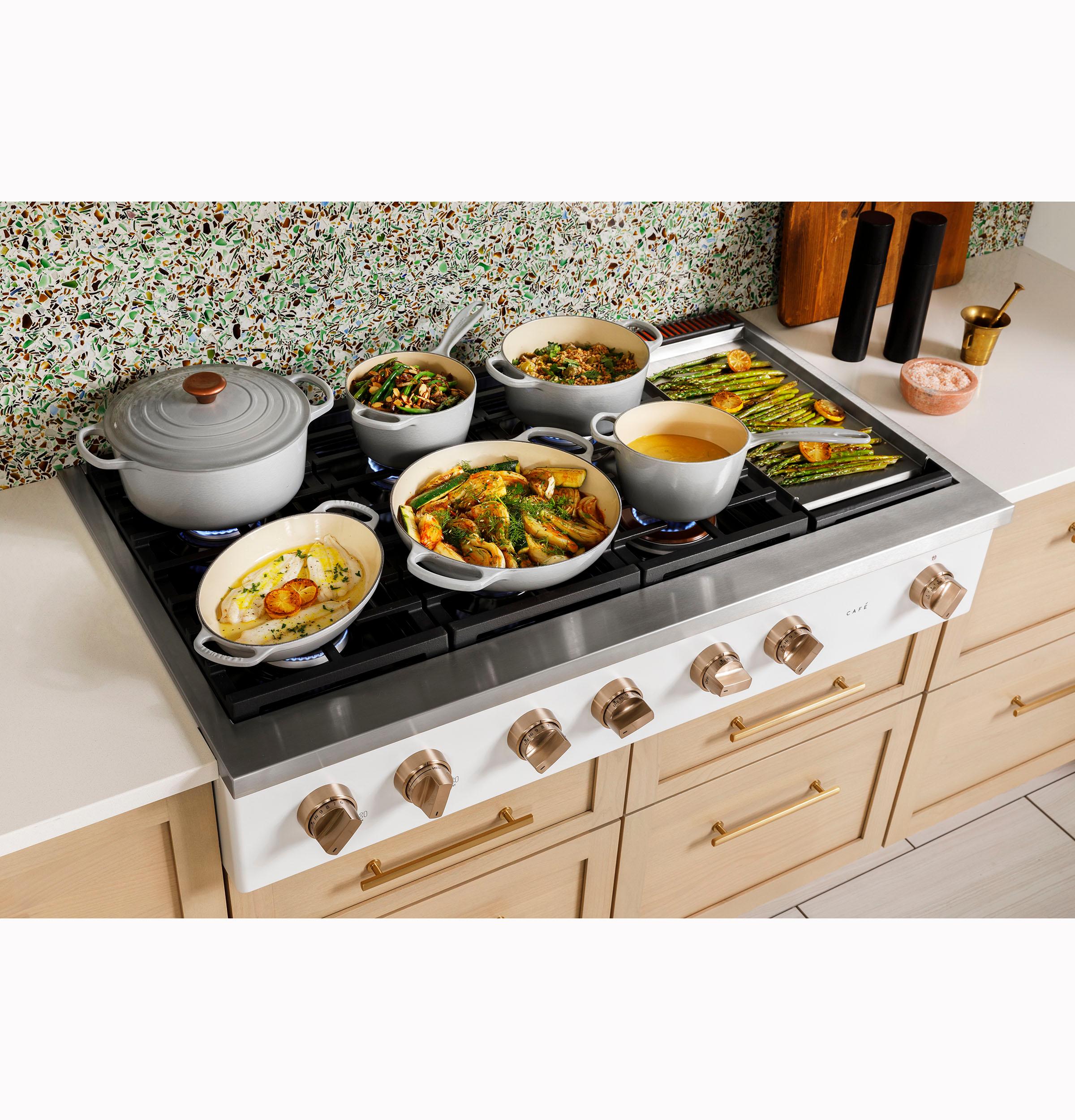

The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
Get a coordinated look with a manifold that matches the rangetop's finish

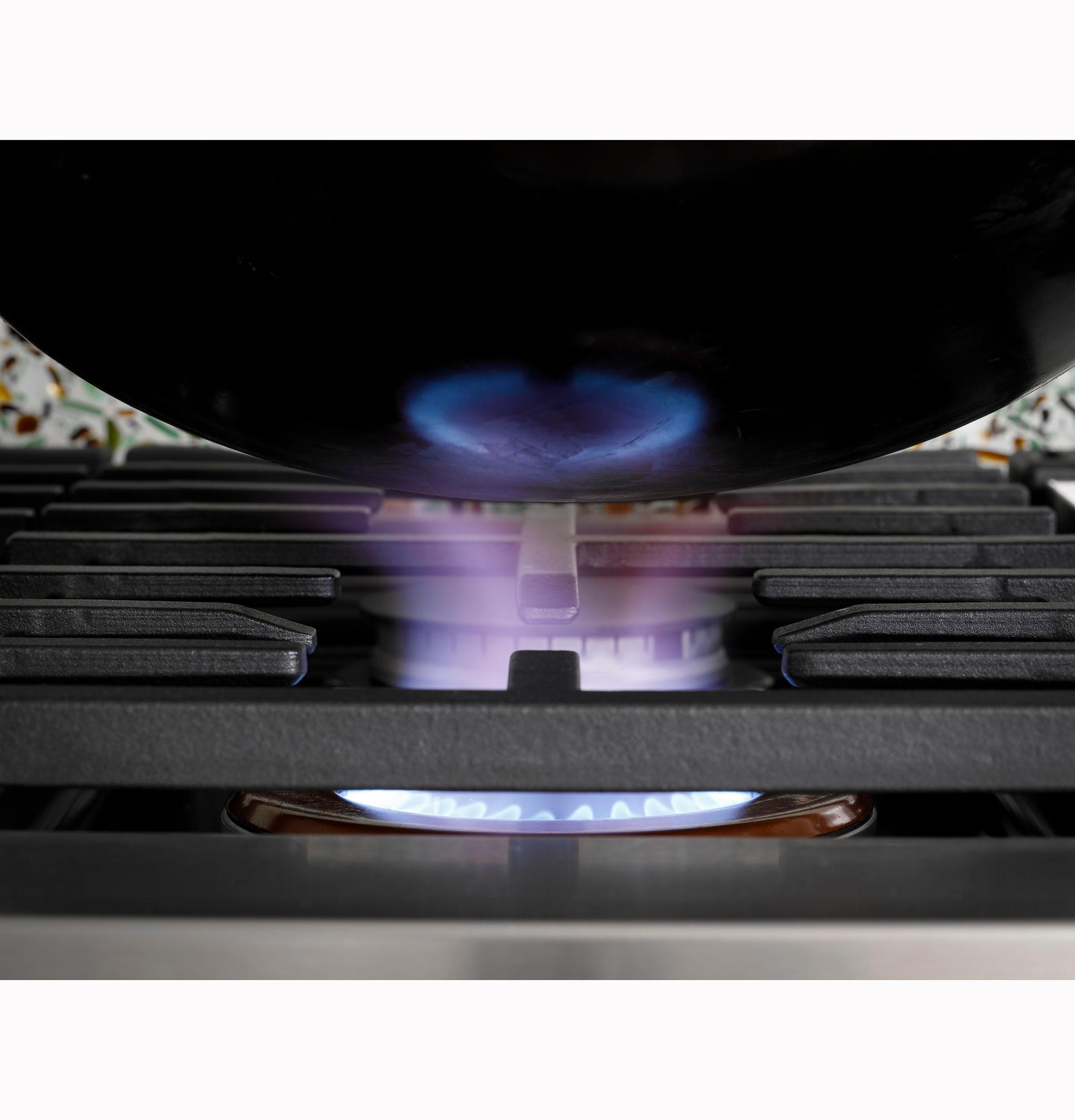

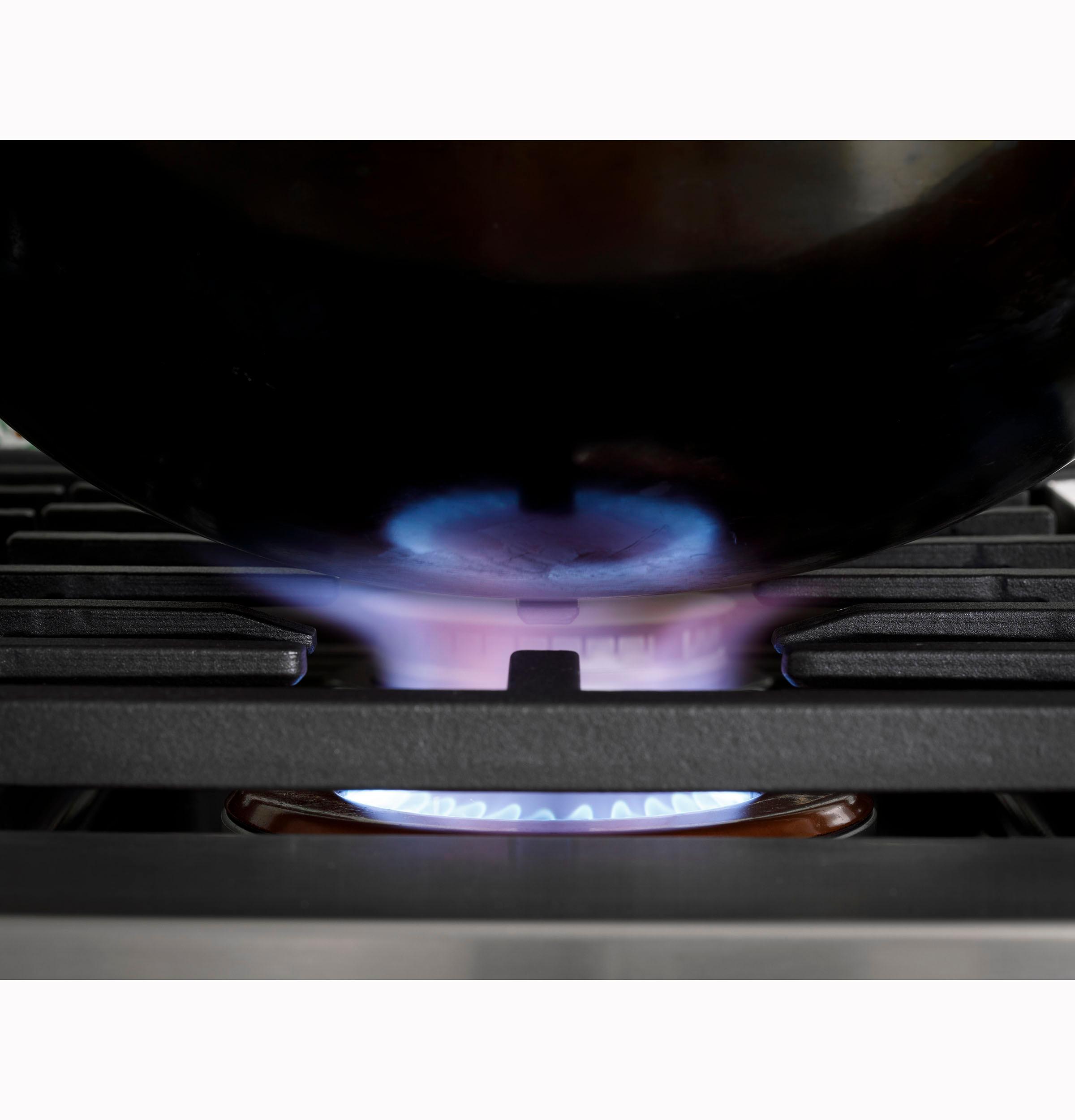

The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory

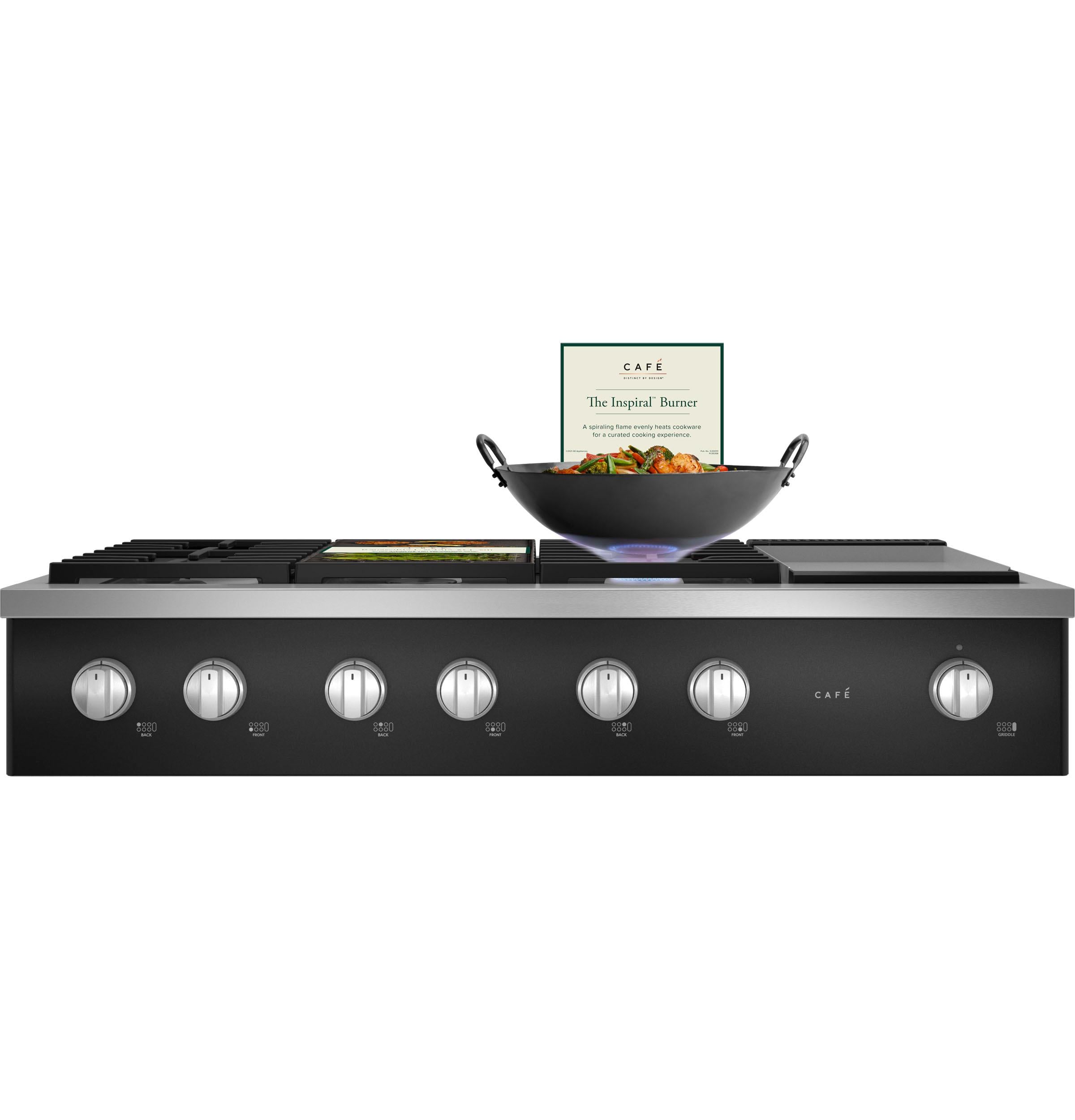

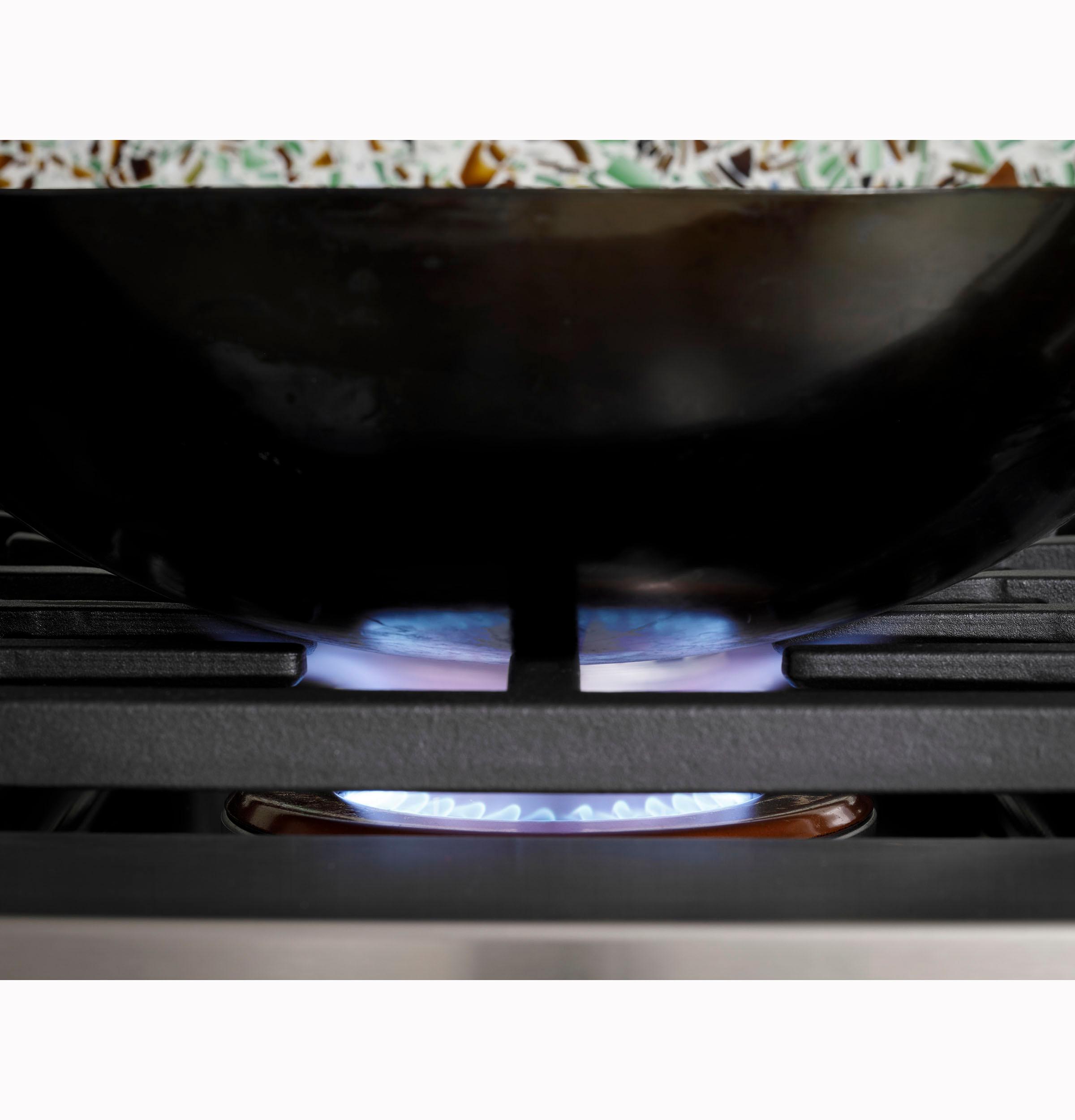

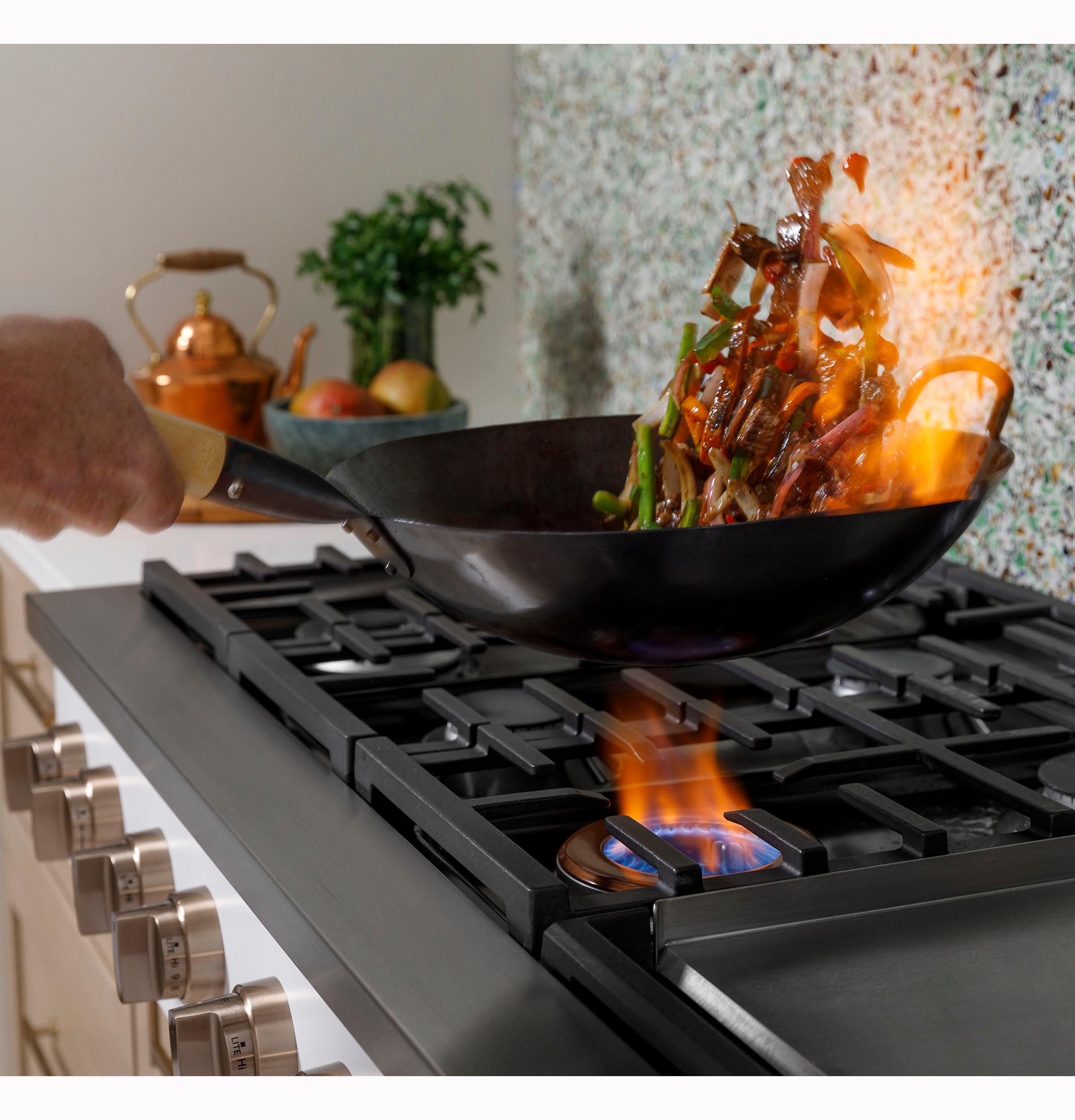

Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.

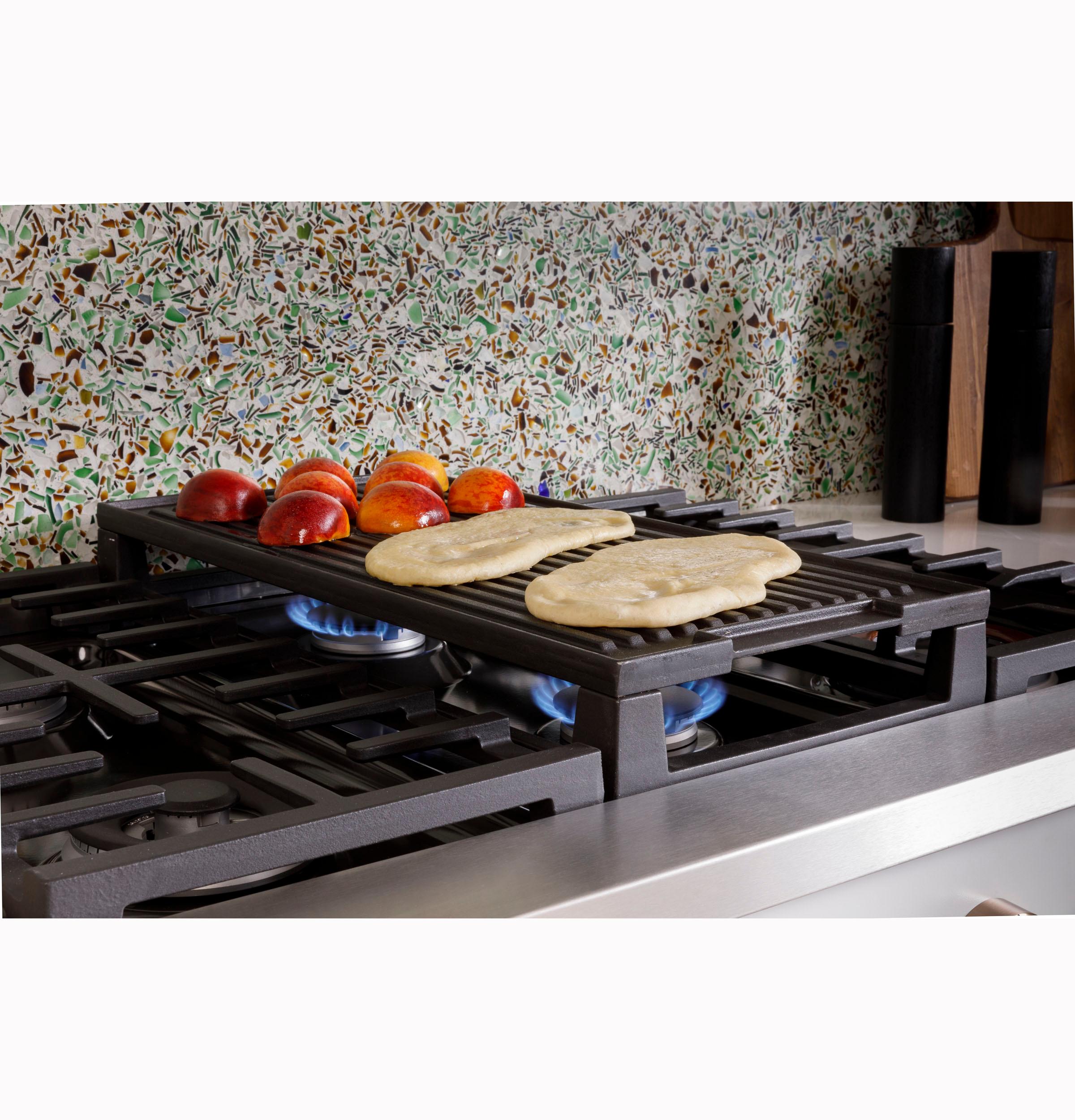

Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.

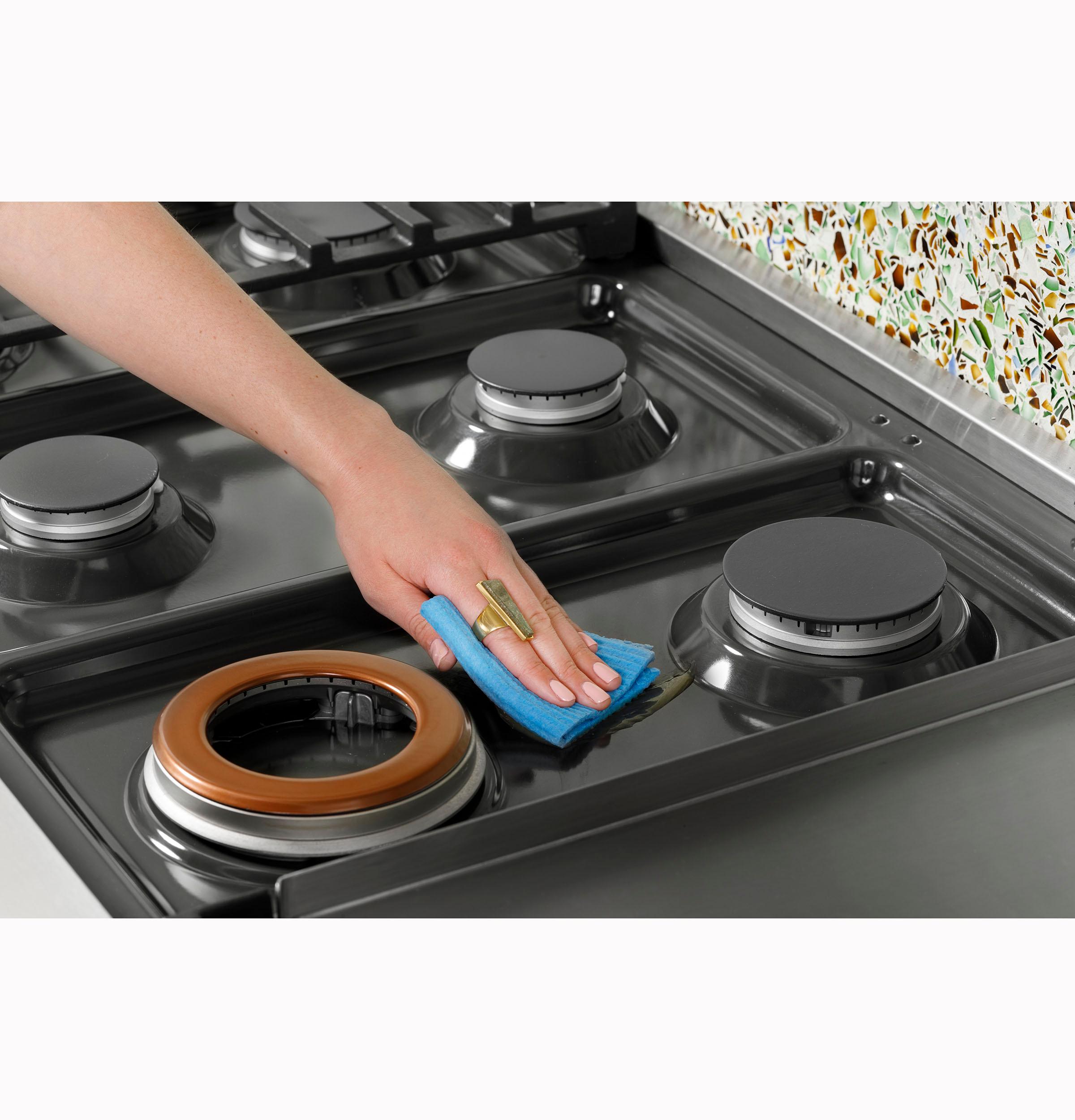

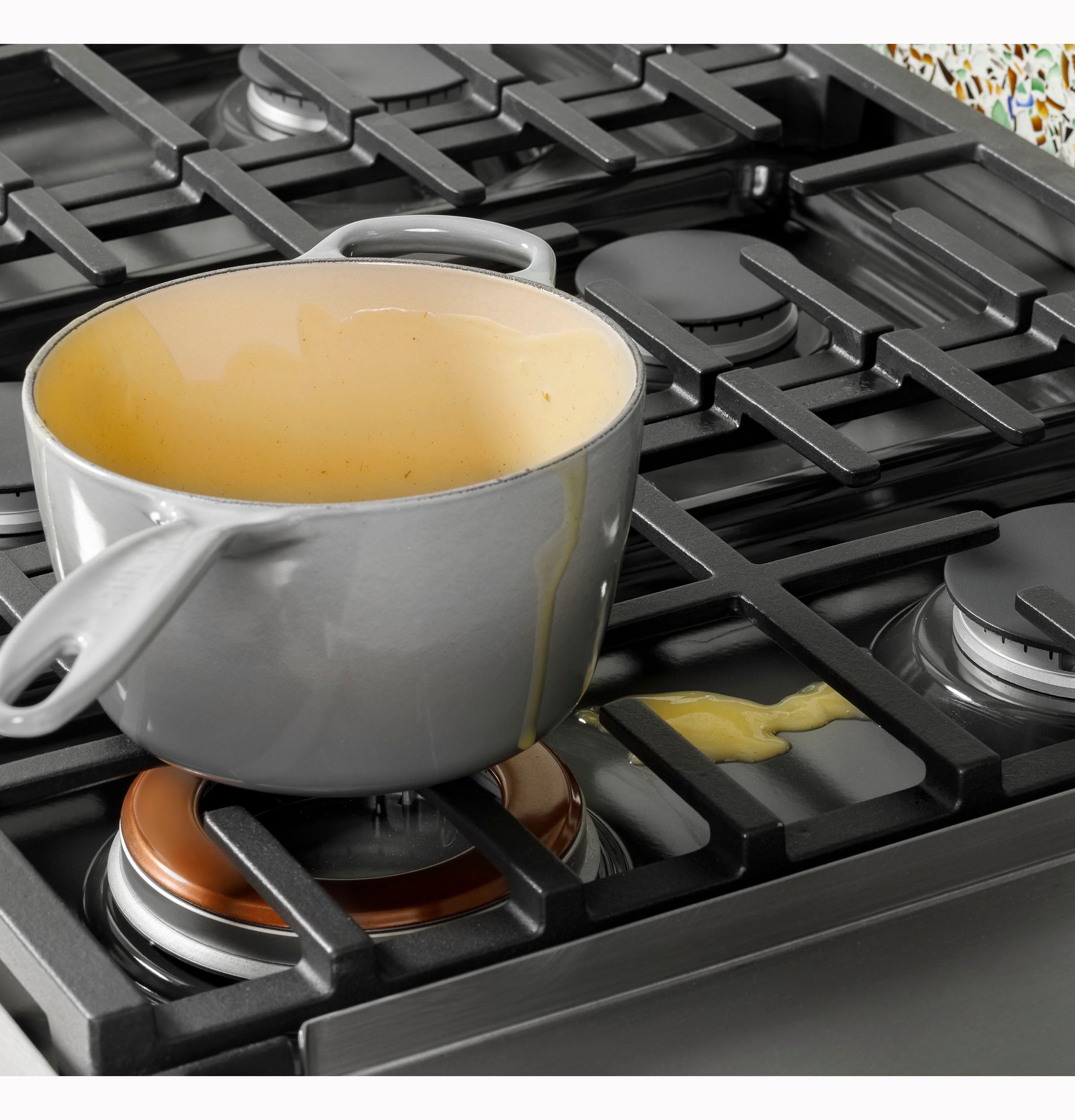

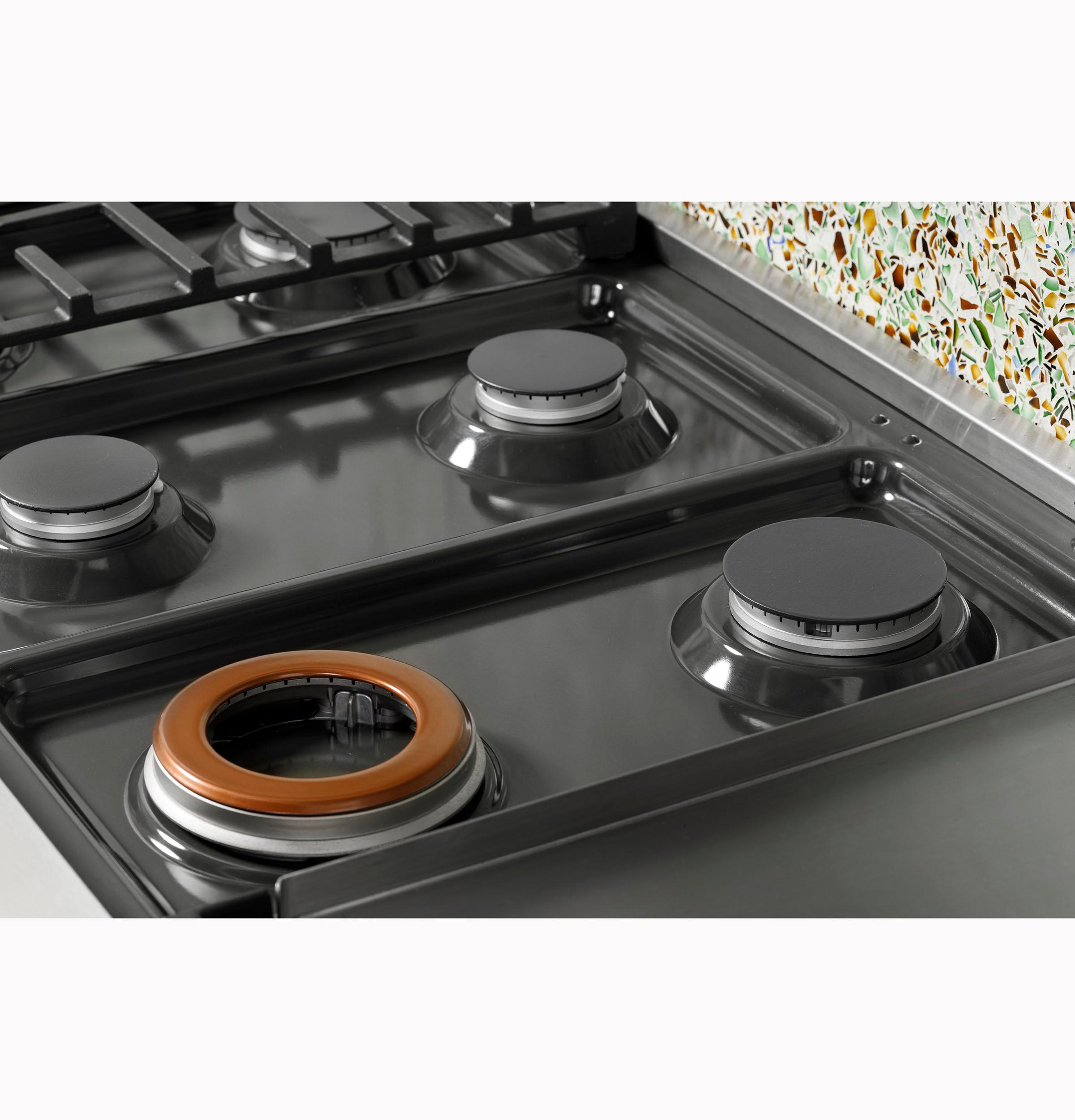

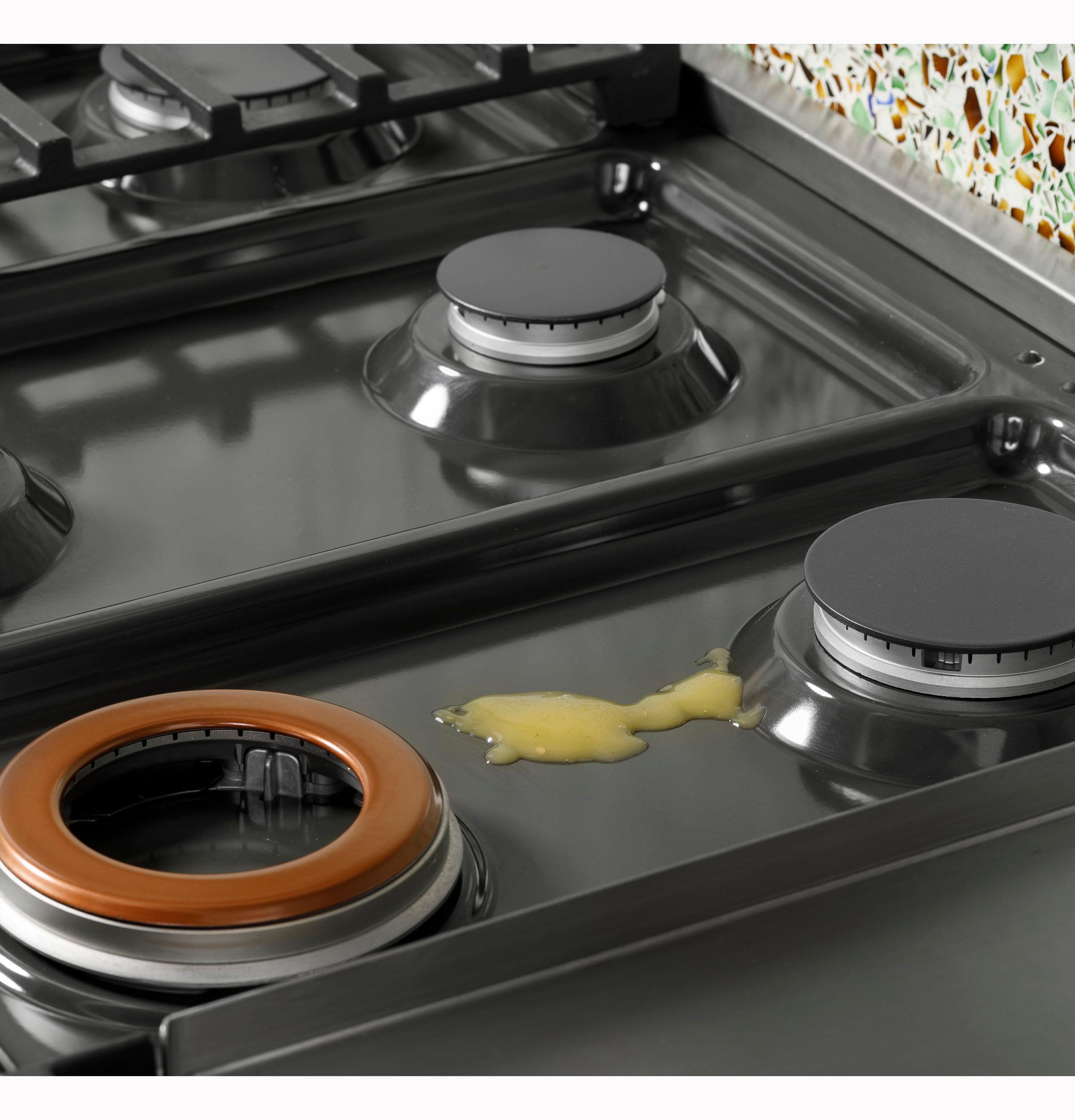

Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.
