| Parts | 1 Year |
| Labor | 1 Year |
| Overall Depth | 26.75 in |
| Overall Height | 42.375 in |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20-1/4 |
| Overall Width | 29.75 in |
| Oven Interior Dimensions (upper) | 20-1/16 x 8-1/2 x 17 |
| Net Weight | 215 lb |
| Approximate Shipping Weight | 235 lb |
| Cutout Depth (in) | 23.5 |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 42-1/4 x 23-1/2 |
| Oven Interior Dimensions (W x H x D) (in.) | 20-1/16 x 8-1/2 x 17 - Upper; 25 x 17-3/8 x 20-1/4 - Lower |
| Depth with Door Open | 49.75 in |
| Cutout Height (in) | 42.25 |
| Cutout Width (in) | 28.625 |
| Electrical Input - 120V Amperage | 15 |
| Bake Wattage | 2850W |
| Electrical Requirements | 208/240V ; 60Hz ; 30A |
| Electrical Input - 120V Watts | 1800 |
| Amp Rating at 208V | 30 |
| Broiler Wattage | 3400W |
| Convection Wattage | 2400W |
| KW Rating at 240V | 7.2 |
| Amp Rating at 240V | 30 |
| KW Rating at 208V | 5.4 |
| Hertz | 60 |
| Fuel Type | Electric |
| Oven Interior | Hidden Bake |
| Oven Features | 8-Pass Broil Element |
| Configuration | Double Oven |
| Advantium Cooking Modes | Warm (Upper) |
| Product Type | Microwave Oven Combination |
| Oven Rack Features | Ladder-Rack Positions (Lower) |
| Cooking Technology | Advantium |
| Self-Clean Oven Door Lock | Automatic (Lower) |
| Baking/Speed Cook Pan | Porcelain (Upper) |
| Control Type | Glass Touch |
| Style | Built-In |
| Cooking System | True European Convection (Lower) |
| Sabbath Mode | Yes |
| Oven Cooking Modes | Convection Roast (Lower Oven) |
| OU Certified | No |
| Microwave Sensor Cooking Controls | Reheat |
| Oven Cleaning Type | Self-Clean with Steam Clean Option (Lower) |
| Cleaning Time | Variable with Delay Clean Option (Lower) |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Program Cooking | Over 175 Programmed Menu Selections |
| Oven Control Features | Warm Mode |
| Power Levels | 10 |
| Oven Interior | 2 Halogen Interior Oven Lights (Lower) |
| Advantium Cooking Modes | Microwave (Upper) |
| Product Type | Double Oven |
| Oven Rack Features | 2 Heavy-Duty Oven Racks |
| Oven Cooking Modes | Convection Bake Multi/Single Rack (Lower) |
| Microwave Sensor Cooking Controls | Defrost |
| Oven Control Features | Auto Recipe Conversion |
| Advantium Cooking Modes | Convection Bake (Upper) |
| Advantium Cooking Modes | Proof (Upper) |
| Advantium Cooking Modes | Speedcook (Upper) |
| Control Type | Dial |
| Microwave Sensor Cooking Controls | Cook |
| Microwave Sensor Cooking Controls | Express |
| Microwave Watts (IEC-705) | 1,000 W |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Defrost Mode |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Delay Start |
| Oven Control Features | Electronic Clock & Kitchen Timer (Lower) |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Temperature Probe |
| Oven Control Features | Proof Mode |
| Oven Cooking Modes | Convection Bake (Lower Oven) |
| Oven Cooking Modes | Convection Broil (Lower) |
| Oven Features | 10-Pass Bake Element |
| Oven Interior | 1 Halogen Interior Oven Light (Upper) |
| Oven Rack Features | 1 Heavy-Duty Roller Rack |
| Product Type | 5-in-1 Oven |
| Turntable Size | 16 |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Handle Color | Brushed Stainless |
| Installation | Above Warming Drawer |
| Color Appearance | Stainless Steel |
| Handle Design | CAFÉ™ Pro |
| Capacity (Cu. Ft.) | 1.7 Upper / 5.0 Lower |
| Total Capacity (cubic feet) | 6.7 cu ft |
| Optional Kits | CXWD0H0PMSS Brushed Stainless |
| Cookbook | Yes (Advantium) |
| Optional Kits | CXWD0H0PMBZ Brushed Bronze |
| Optional Kits | CXWD0H0PMBT Brushed Black |
| Optional Kits | CXWD0H0PMCU Brushed Copper |
| Optional Kits | CXWD0H0PMCG - Brushed Brass |
| Optional Kits | CXWD0H0PMFB - Flat Black |
| Width | 29.75 in. |
| Height | 42.38 in. |
| Length | 26.75 in. |
| Weight | 215 lbs. |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20-1/4 |
| Oven Interior Dimensions (upper) | 20-1/16 x 8-1/2 x 17 |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 42-1/4 x 23-1/2 |
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 47.38 in. |
| Shipping Length | 31.75 in. |
| Shipping Weight | 235 lbs. |
| Total of Shipping Weight | 235 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 19.52 ft³ |
| Dimensional Weight | 242.61 lbs. |
| Total of Cubes | 19.52 ft³ |
| Total of Dimensional Weight | 242.61 lbs. |

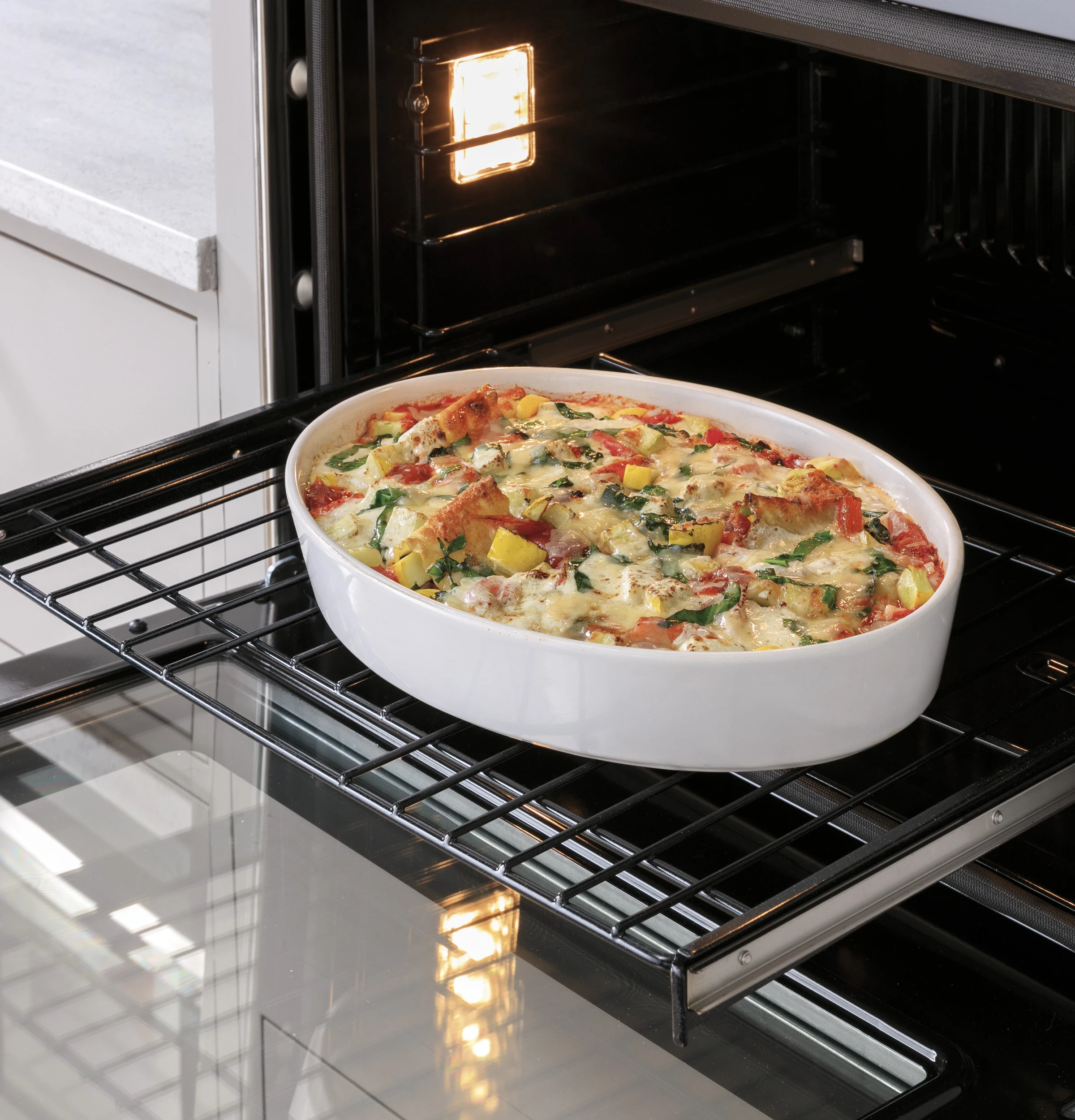

Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

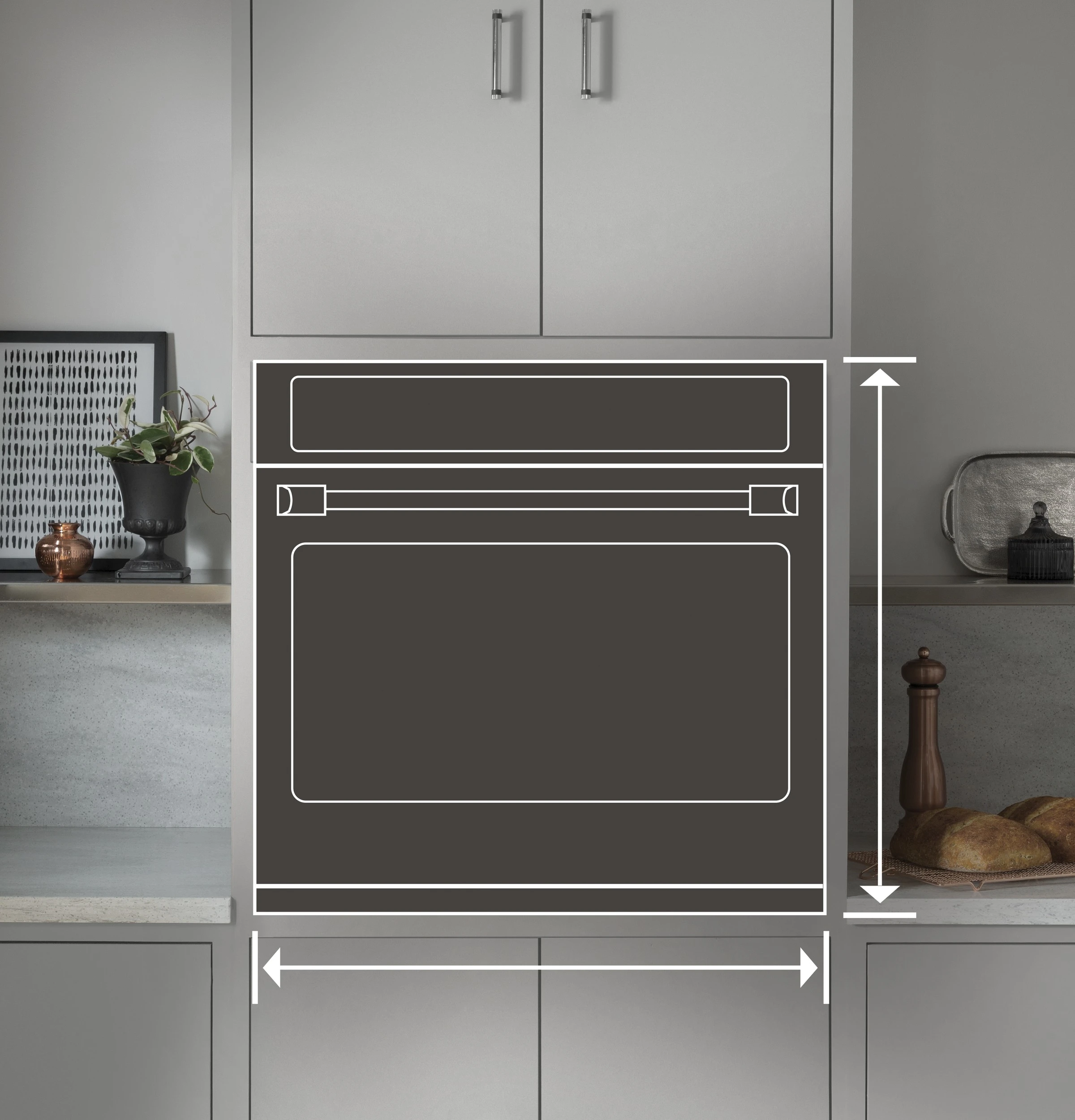

When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ wall ovens are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $300 toward modifications.
Enjoy a whole new level of cooking flexibility with a single oven that can be used in five different ways. Use it as a Convection Oven, Microwave, Toaster Oven, Warming/Proofing Oven, and Precision Cook Oven with Advantium Technology (upper oven)
Eliminate the need for preheating and cook your favorite foods two- to four-times faster than a conventional oven (upper oven)

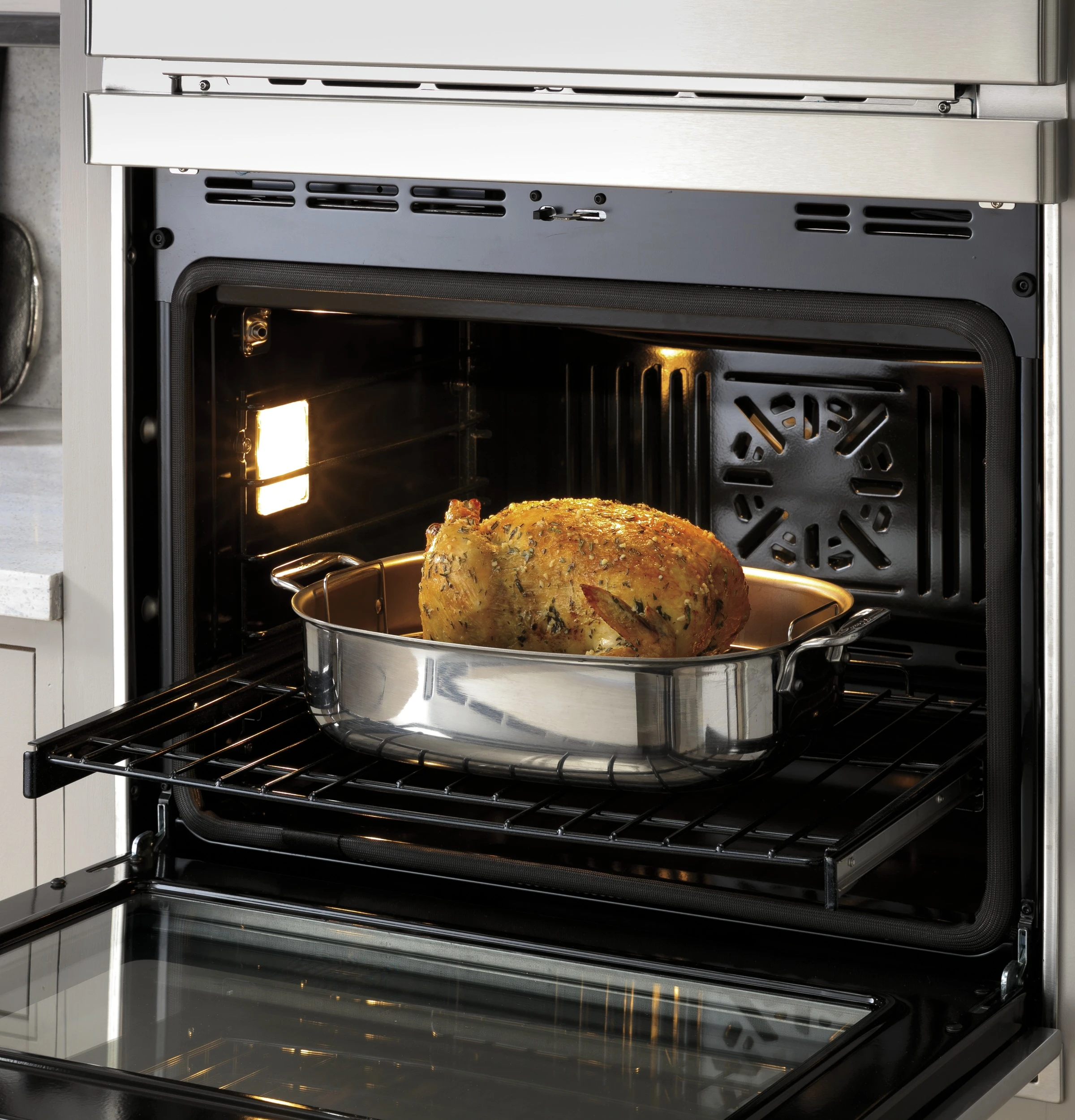

Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more (lower oven)
