Product Details for GE Appliances JGBS66DEKWW
Technical Details
Filter
| App Filter - Cabinet Width | 30.0 |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Broiler |
| App Filter - Cleaning Type | Steam and Manual |
| App Filter - Voltage | 120 |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
Appearance
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss White |
| Color Appearance | White |
Power / ratings
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Accessories
| Center Grate | Optional - JXGRATE1 |
| Griddle Accessory | Integrated Griddle (Included) |
| LP Conversion Kit | Included |

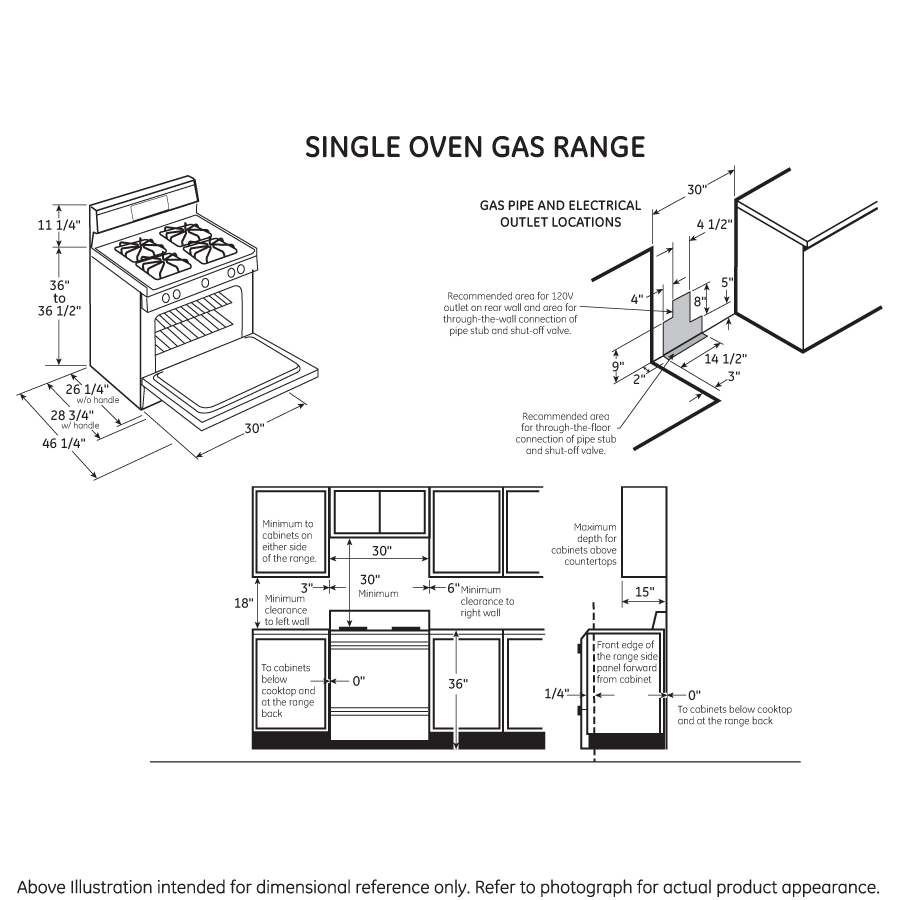

Weights & dimensions
| Net Weight | 150 |
| Depth Without Handle | 26.25 |
| Height to Cooking Surface (in.) | 36 |
| Cabinet Width | 30.0 |
| Approximate Shipping Weight | 172 |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 |
Features
| Ignition System | Electronic |
| Burner - Right Rear | 12 |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
| Oven Rack Features | 2 |
| Burner - Left Rear | 5 |
| Oven Cleaning Type | Steam Clean |
| Griddle | Integrated (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10 |
| Interior Oven Light | 1 |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 15 |
| Drawer Type | Broiler |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| OU Certified | Embedded OU/CRC Enhanced Shabbos Mode |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9 |
| Cooktop Surface | Edge-to-Edge One-Piece Upswept Porcelain-Enamel White |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
Features

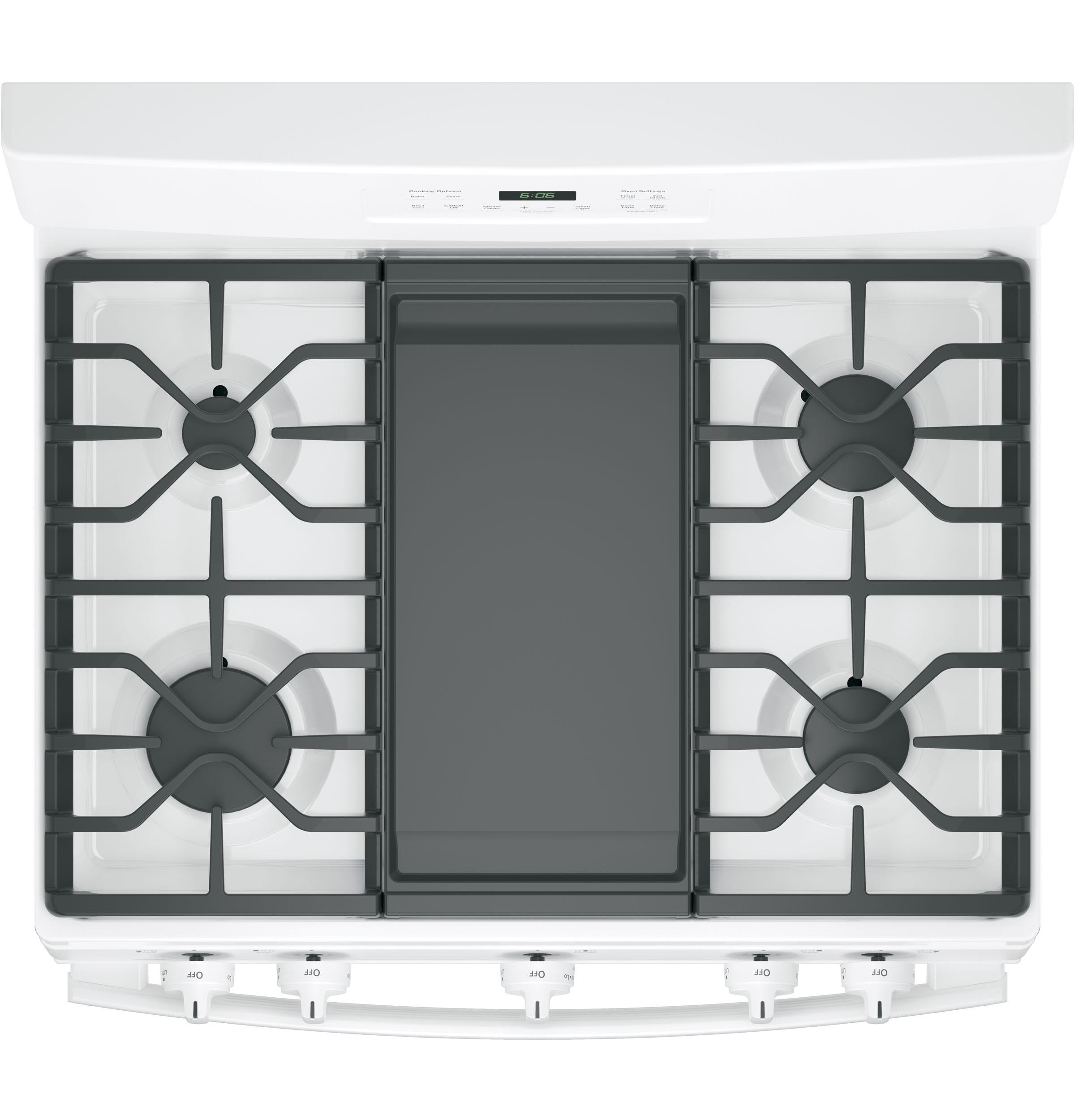

- Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner - Extra-large integrated griddle

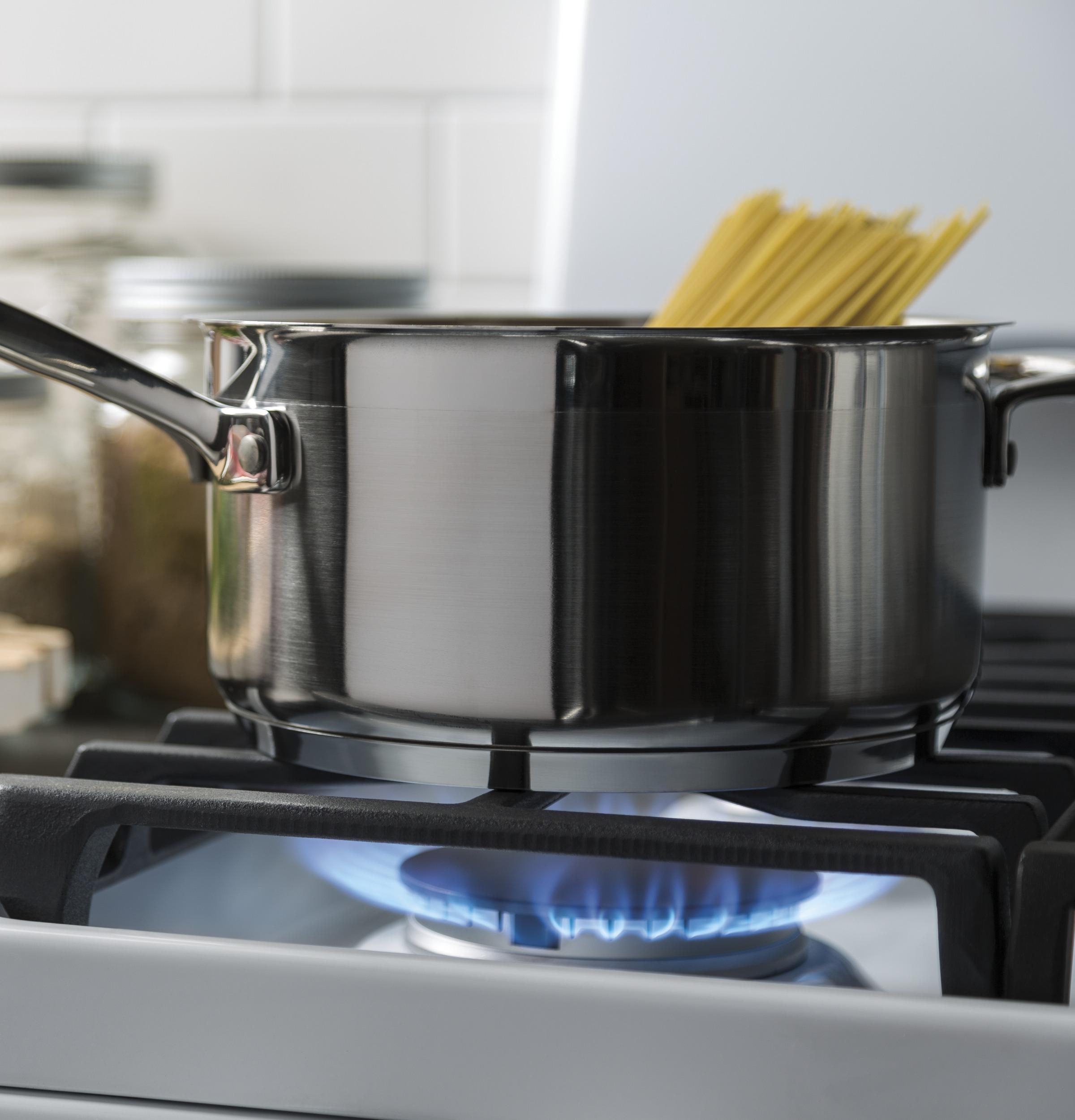

Cook up to six grilled cheeses at once on the industry's largest integrated griddle - 15,000 BTU Power Boil Burner
Delivers high heat for fast boiling - Center oval burner

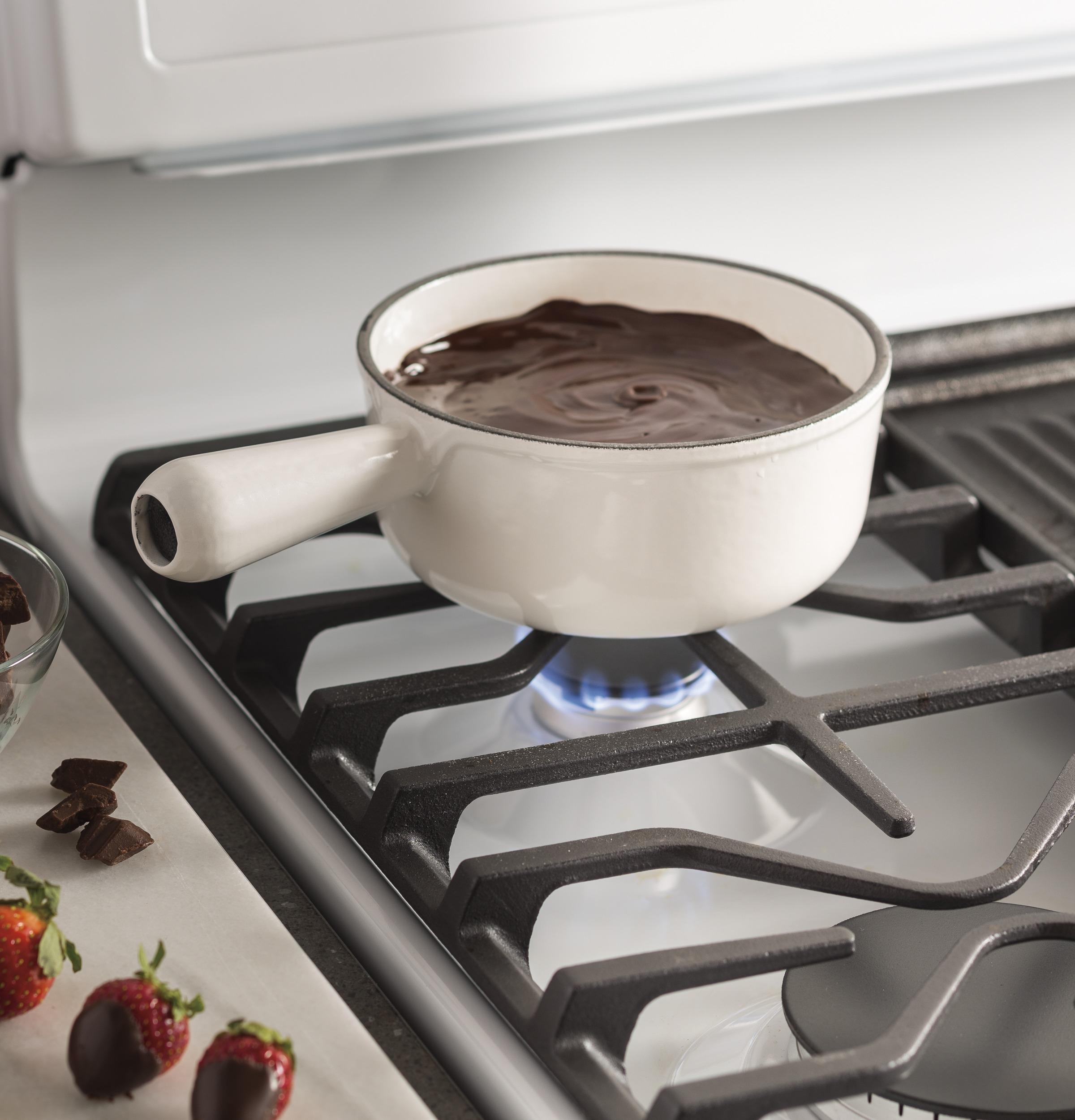

Large oval fifth burner is ideal for griddle cooking - Precise Simmer burner

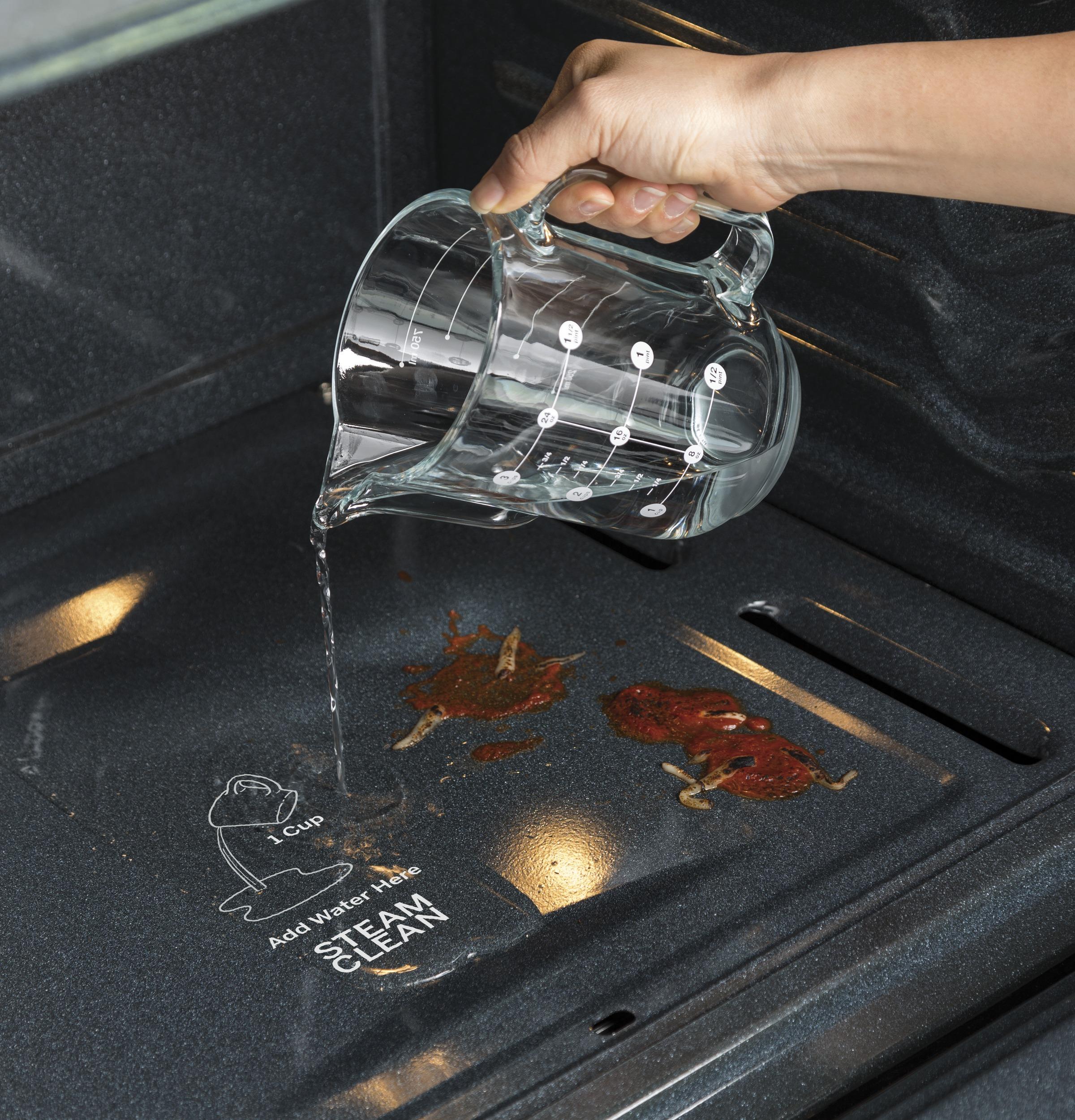

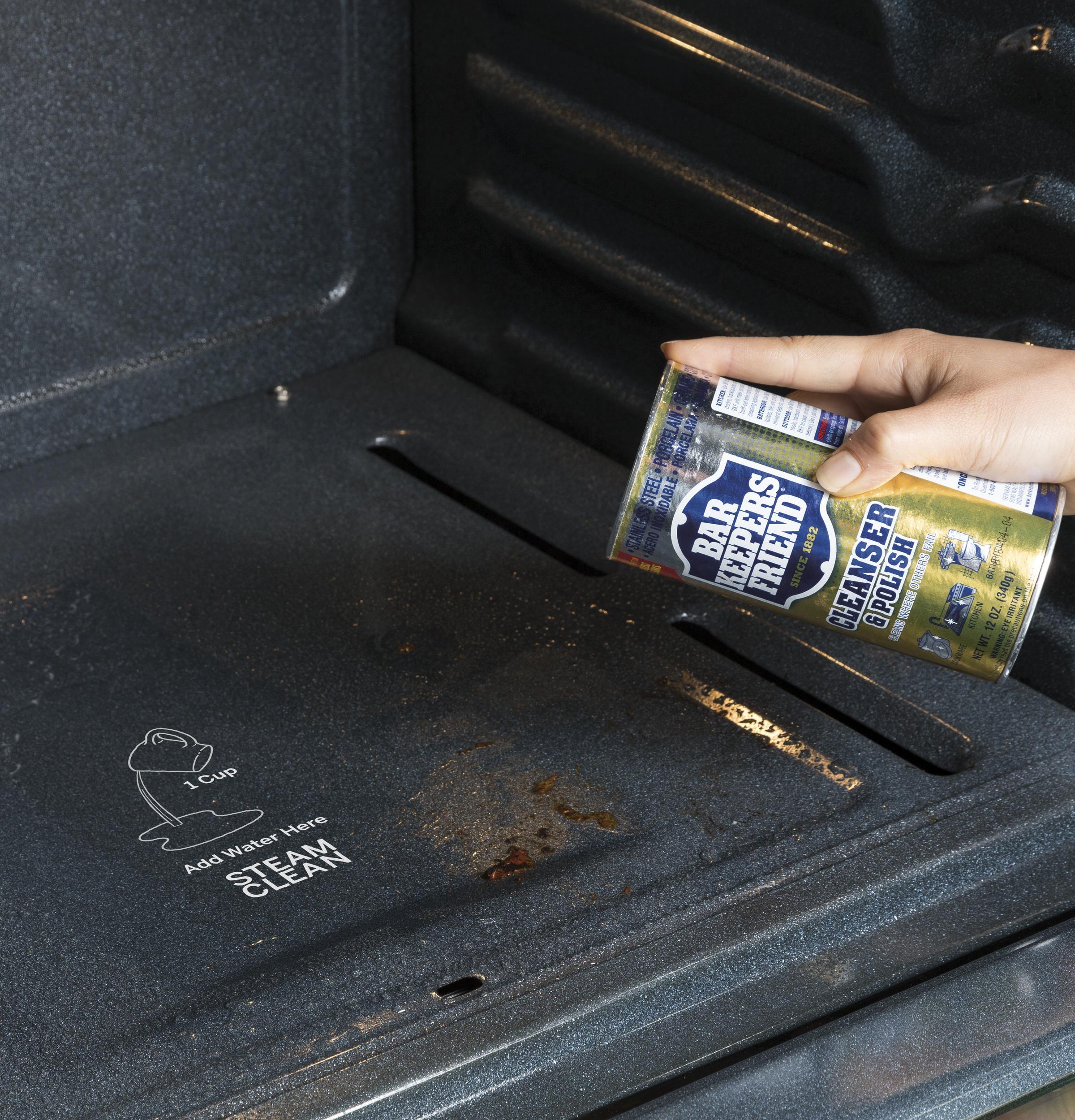

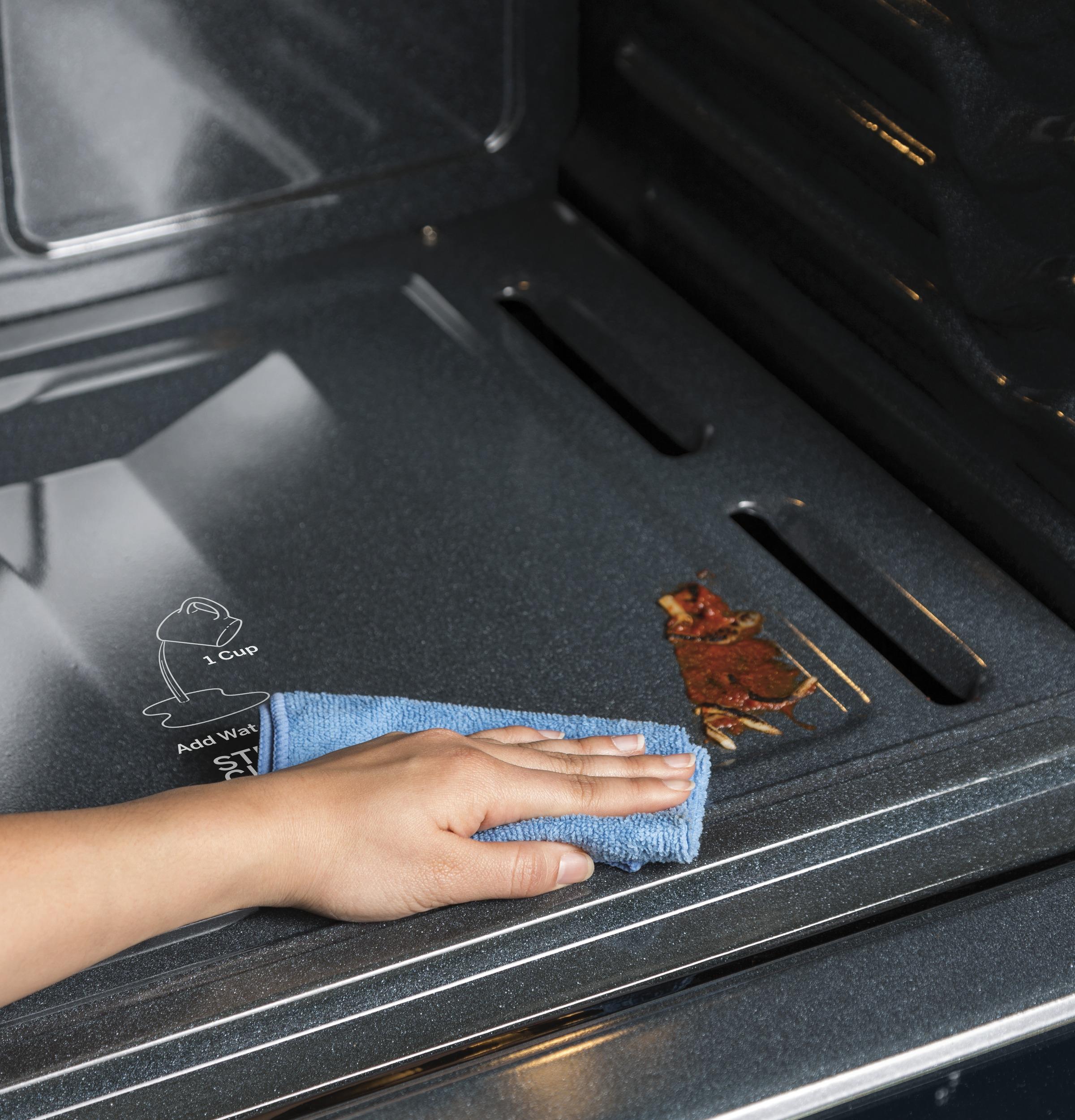

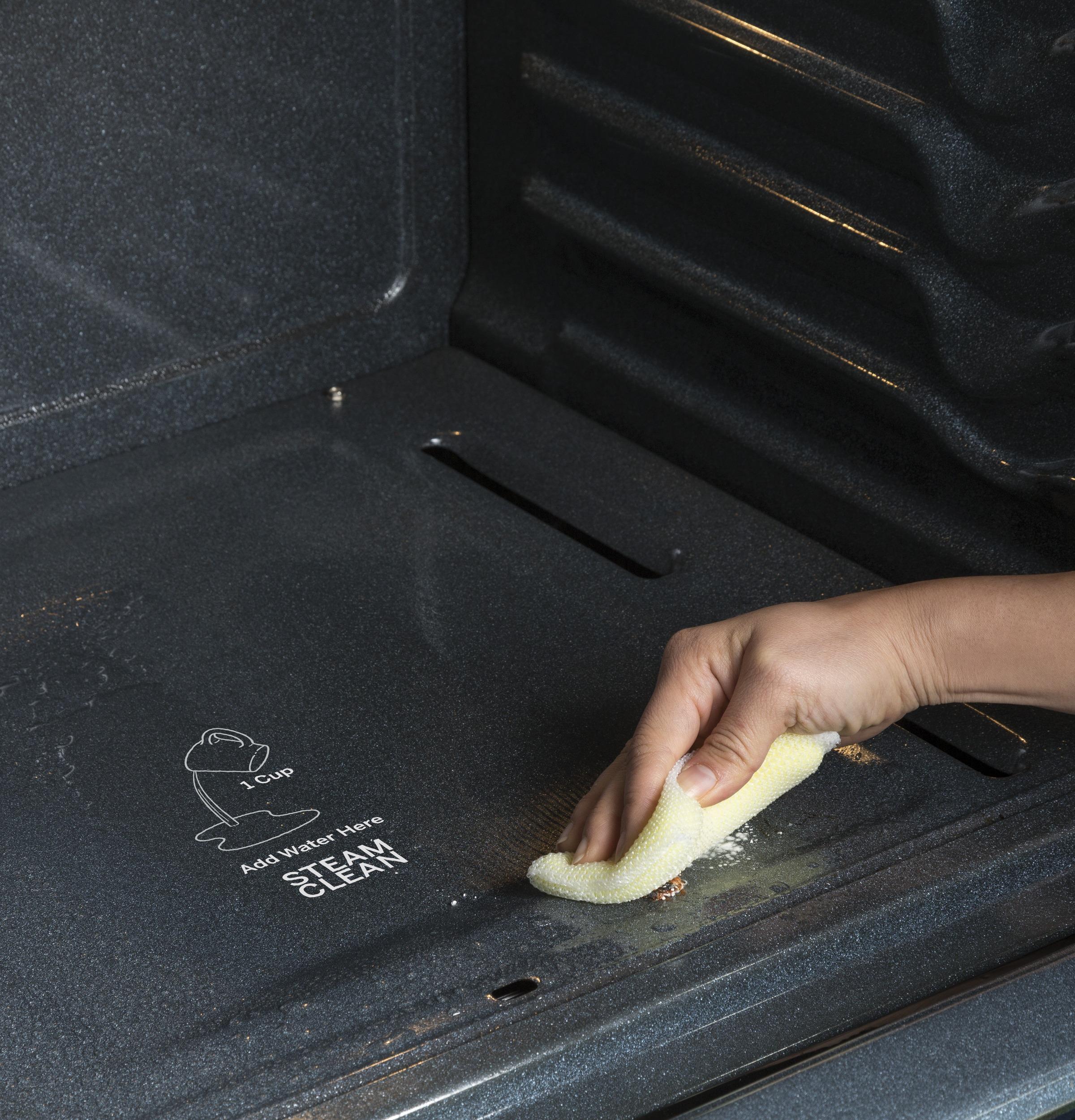

Delicate foods don't burn with low, even heat - Steam clean

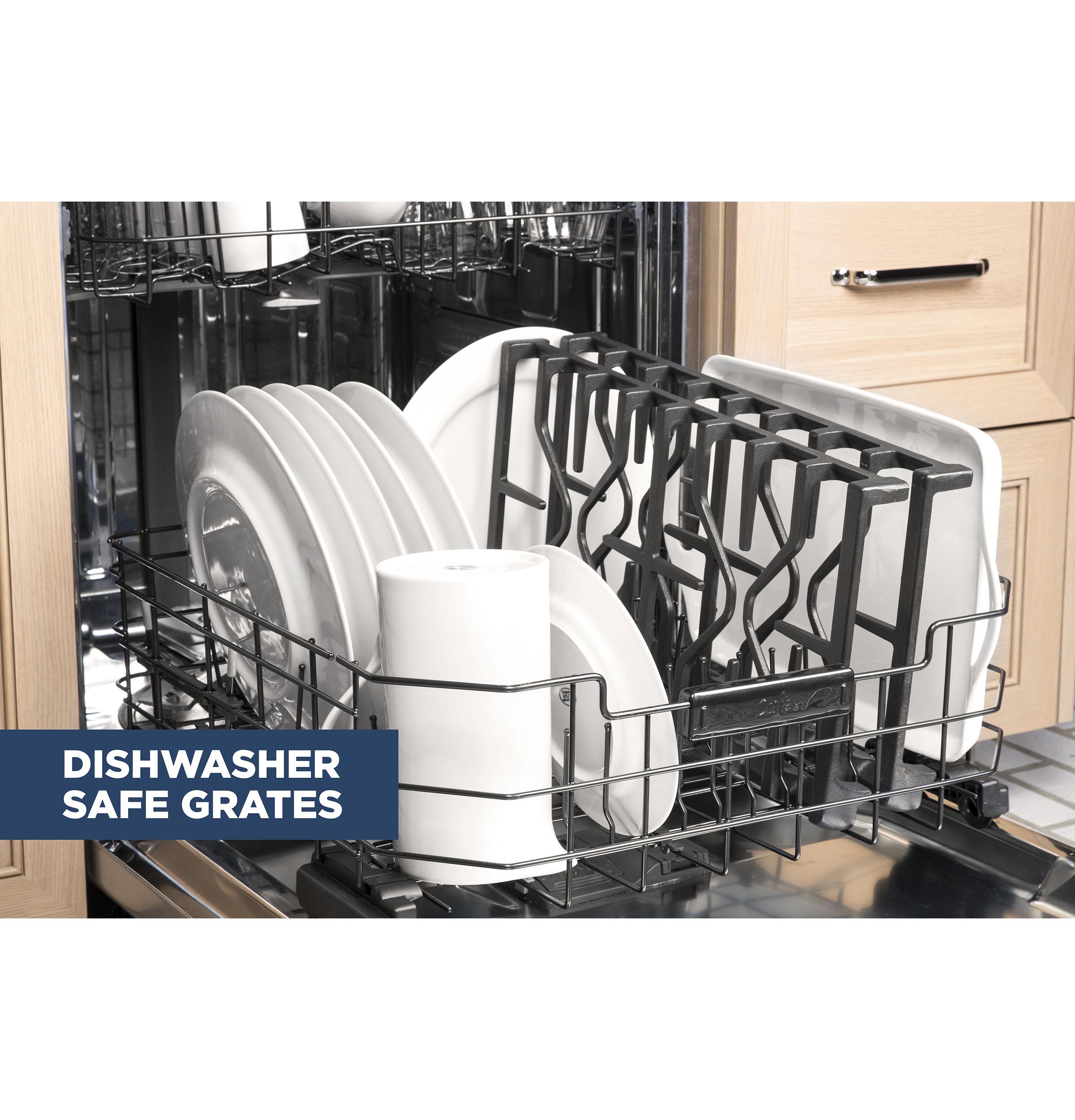

- Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher - 5.0 cu. ft. oven capacity
- Sealed cooktop burners
- Deep-recessed cooktop
- Flexible broiling

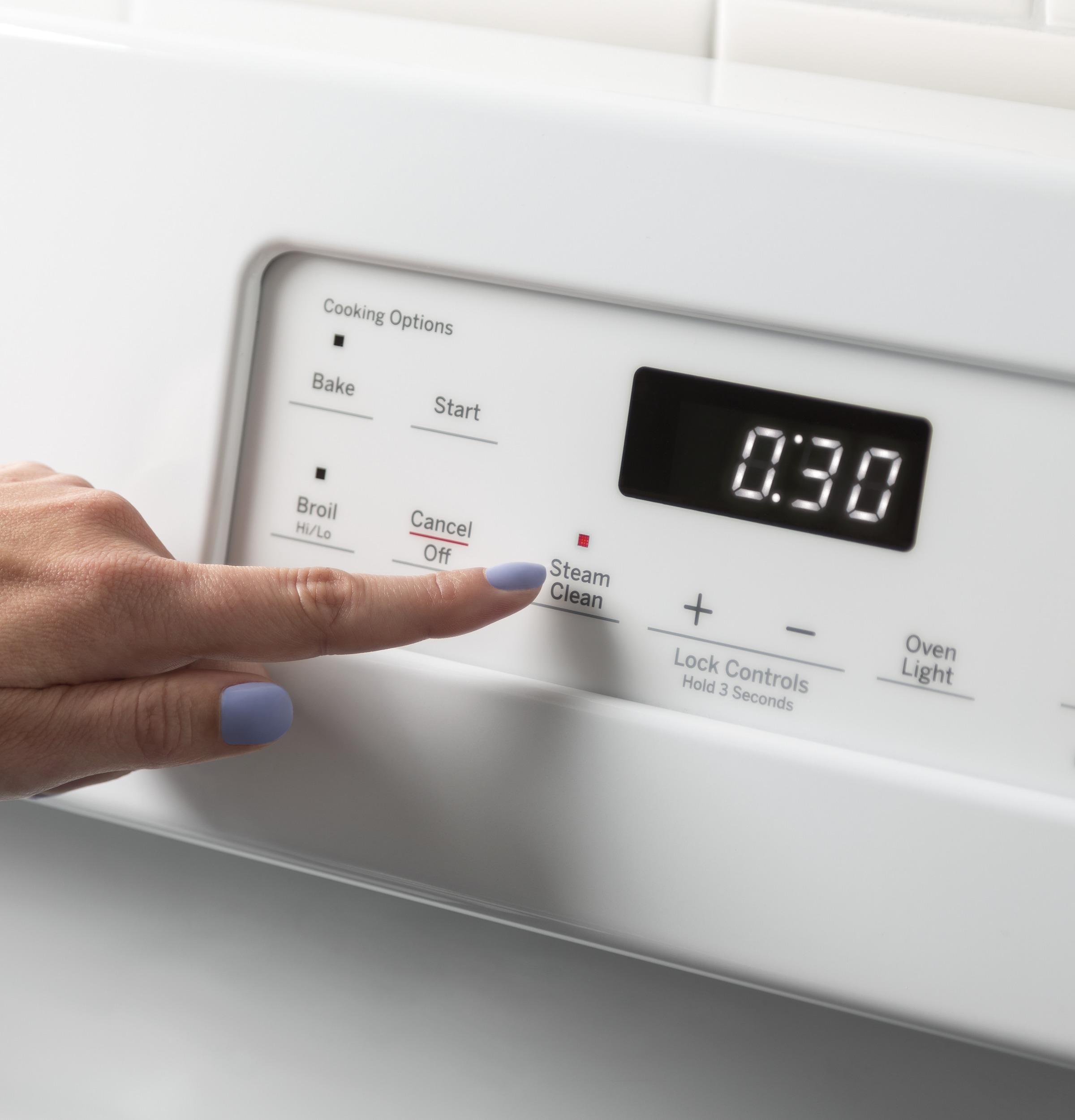

- Electronic clock and timer
Description

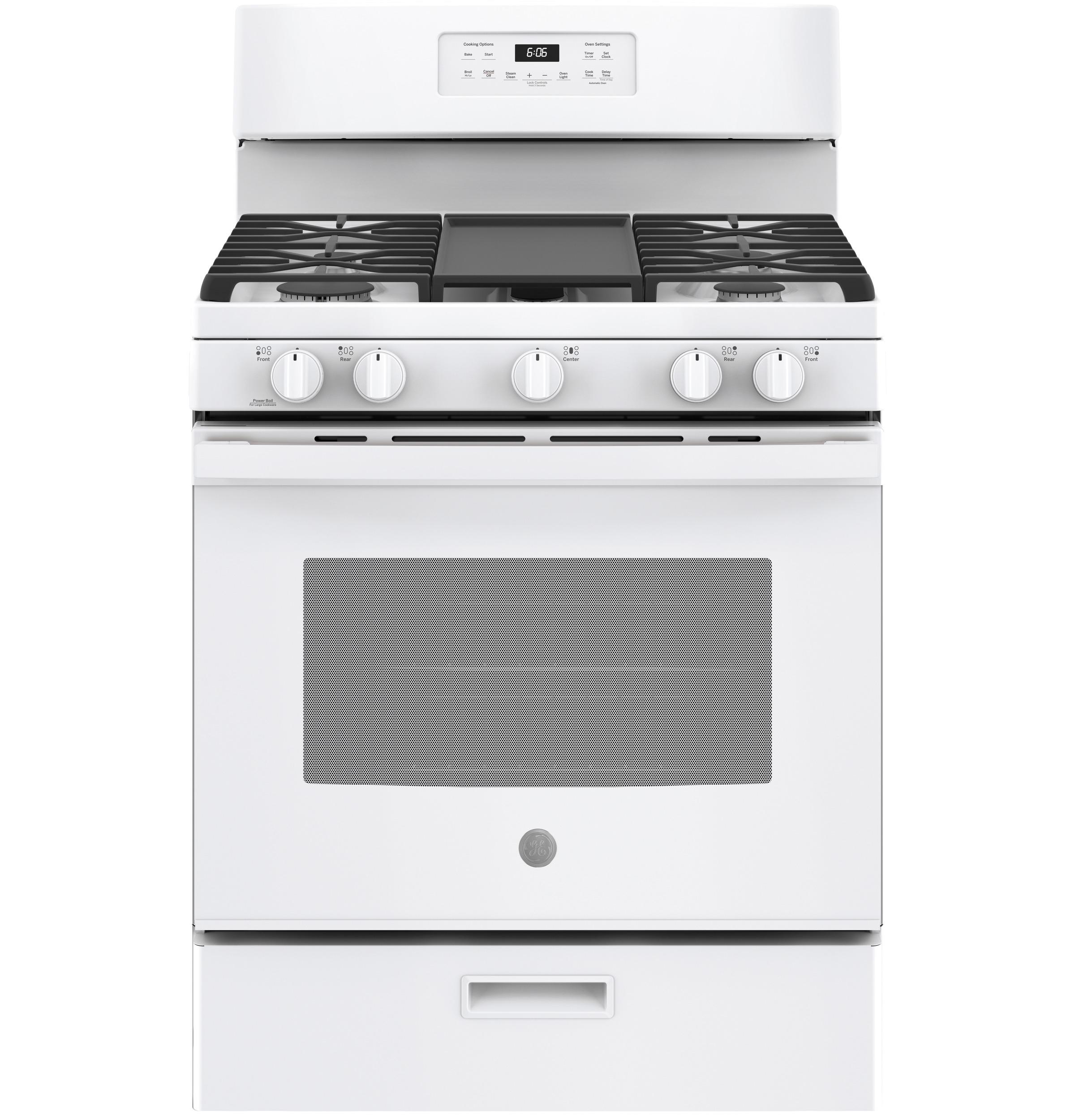

The brand GE JGBS66DEKWW delivers versatile home cooking in a stylish 30-inch freestanding gas range. With a generous 5.0 cu ft oven capacity and a full-width broiler drawer, it supports everything from family dinners to gourmet creations. The cooktop features five sealed burners—including a potent 15,000 BTU power‑boil burner, a precise simmer burner, and a multifunctional center oval burner that doubles as a non-stick griddle. Continuous heavy-duty cast-iron grates and a deep-recessed porcelain-enameled surface contain spills for easy clean-up. Oven cleaning is streamlined with the steam-clean function, and intuitive electronic touch controls, delay bake, Sabbath mode, audible preheat signal, and LP conversion kit offer convenience and flexibility. Built for durability and performance, this range is perfect for daily cooking and entertaining.:contentReference[oaicite:0]{index=0}
Manuals & Guides
Key Features

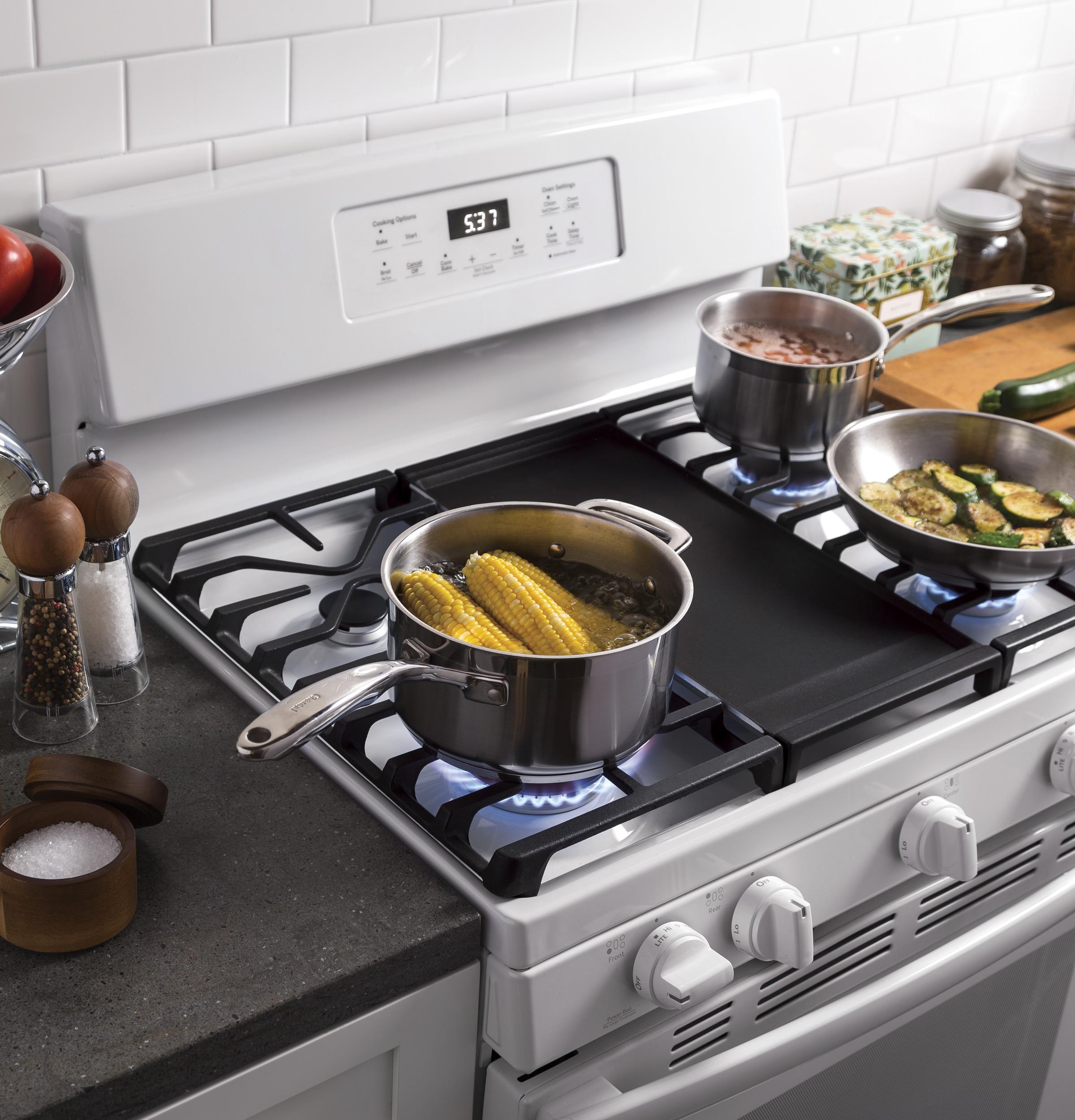

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

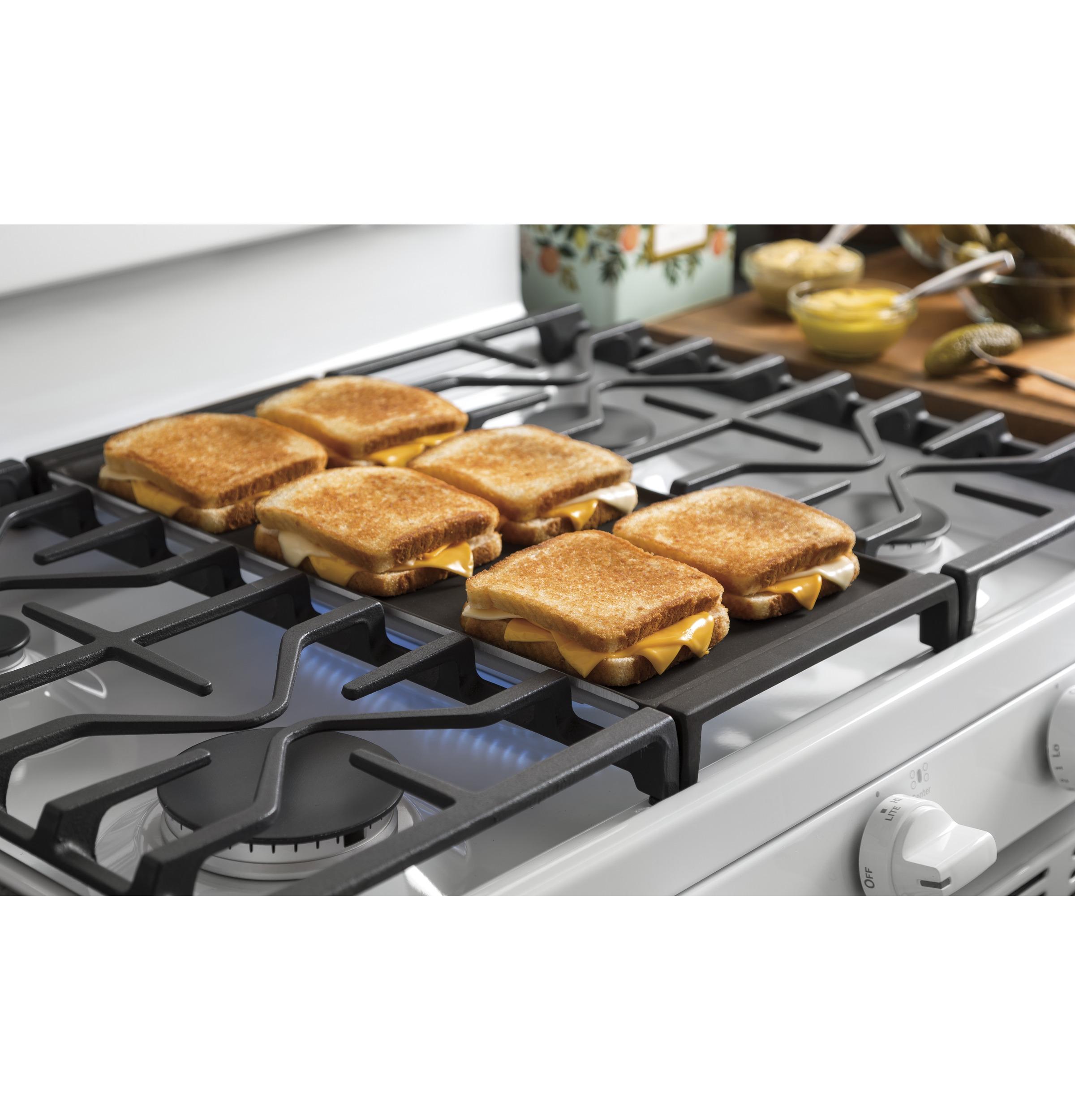

Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle
15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

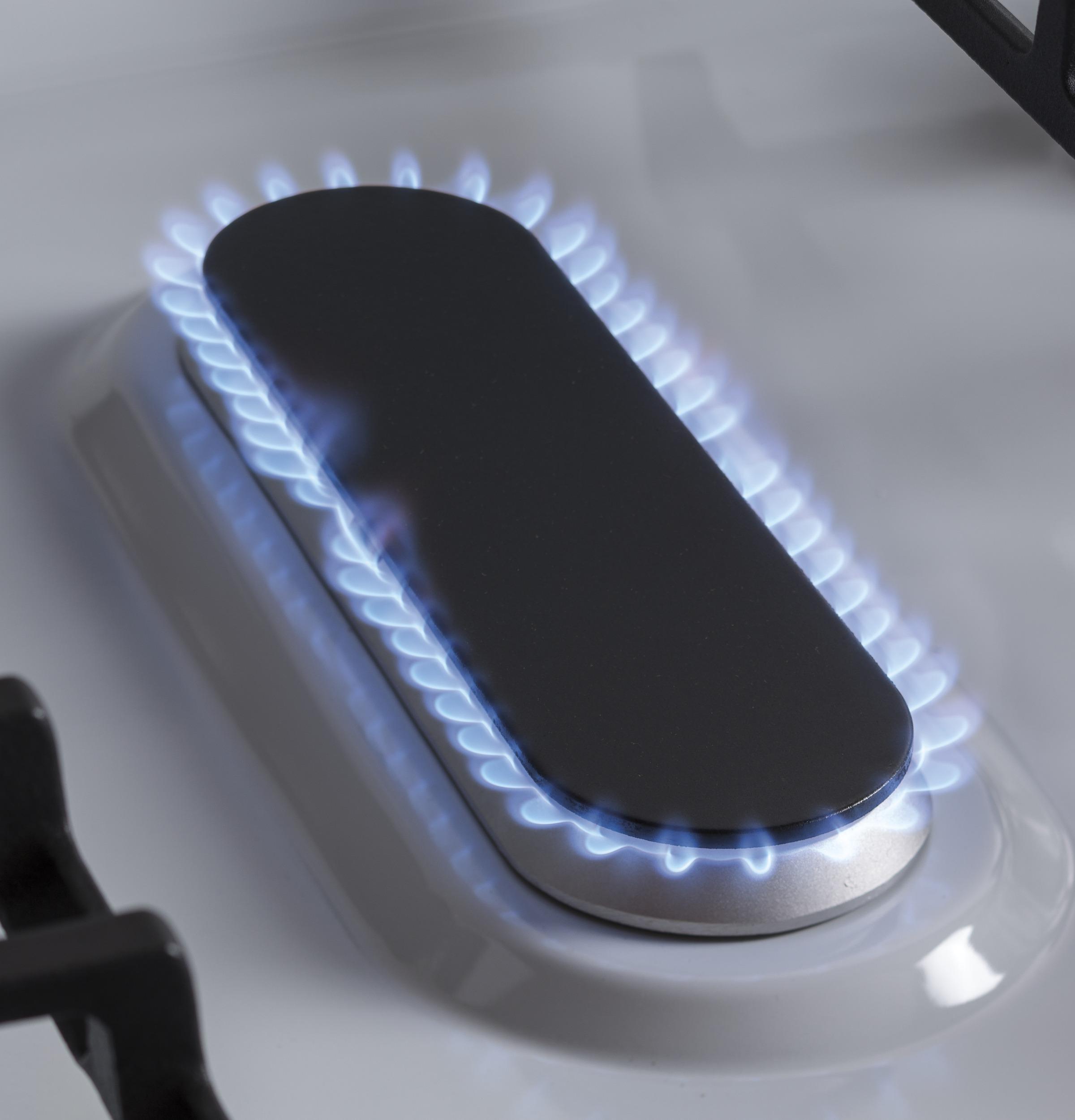

Center oval burner
Large oval fifth burner is ideal for griddle cooking
Precise Simmer burner
Delicate foods don't burn with low, even heat
